Product type	Cooktop with integrated extractor hood
Brand	Siemens
Model	EH675BE15E
Maximum appliance weight	25 kg
Worktop load capacity	60 kg
Power supply	Connection 3N, 2N, 1N, 2L/2N (see rating plate)
Protection class	1
Extraction modes	External extraction and recirculation
Filter types	Grease filter, odor filter (recirculation), acoustic filter (external extraction)
Round exhaust duct diameter	150 mm
Equivalent flat duct cross-section	177 cm²
Minimum air outlet cross-section for recirculation	400 cm²
Cabinet heat resistance temperature	Up to 90 °C
Safety distance for electronic implants	10 cm
Optimal rear wall distance	50 mm
Maintenance	Regular cleaning of grease filters, replacement of odor and acoustic filters
Spare parts	Available from Siemens after-sales service

Frequently Asked Questions - EH675BE15E SIEMENS

How to install the Siemens EH675BE15E built-in extractor hood?

Installation must be carried out by a qualified professional. Follow the assembly instructions carefully, especially regarding safety distances, cutting the worktop (see diagram) and electrical connection according to the diagram in the manual.

What safety distances must be observed?

It is essential to maintain a minimum distance of 10 cm between the appliance and any electronic implant (pacemaker, insulin pump) due to permanent magnets. The distance between the rear wall of the cabinet and the wall must be at least 50 mm for optimal performance.

How to connect the appliance electrically?

Connection must be carried out by a qualified electrician. The appliance can be connected in 3N, 2N, 1N or 2L/2N depending on your installation configuration. Use only the supplied cable and respect the color codes (BN: brown, BU: blue, GN/YE: yellow/green, BK: black, GY: gray). See the connection diagrams in the manual.

How to choose between external extraction mode and recirculation mode?

External extraction mode requires a duct to the outside and the use of acoustic filters. Recirculation mode returns filtered air to the room via odor filters and a diffuser. Adapt the installation according to your configuration (see corresponding sections of the manual).

How to clean and replace filters?

Grease filters must be cleaned regularly in the dishwasher or by hand. Odor filters (recirculation mode) and acoustic filters (extraction mode) must be replaced periodically. Consult the manual for the frequency and replacement procedure.

What to do if the display shows error 400 E851?

This error code indicates an incorrect electrical connection. Disconnect the appliance, check the connection (fig. 4 and fig. 8 of the manual) and correct it according to the diagrams in the 'Check and correct the electrical connection' section.

Can I install the hood above a drawer?

Yes, but observe the minimum distances indicated for removal of the overflow reservoir (Fig. 11 and 12 of the manual). Ensure that the drawer does not contain any objects exceeding the maximum height, so as not to interfere with the operation of the appliance.

What is the weight of the appliance?

The appliance weighs a maximum of approximately 25 kg. The worktop must be able to support a load of approximately 60 kg (appliance + additional load). Two people are required to move it.

How to switch from recirculation mode to external extraction mode?

You must change the basic settings of the electronic control to indicate the extraction mode. Refer to the 'Basic settings' chapter of the user manual. Also remember to change the filters (acoustic for extraction, odor for recirculation).

Where to find spare parts for the Siemens EH675BE15E hood?

Spare parts (filters, cables, gaskets, etc.) are available from Siemens after-sales service, on the official website or from specialized dealers. Always use original parts.

USER MANUAL EH675BE15E SIEMENS

m = 311

16

12/12

18

m = 311

20

22

m = 311 ;

24

25

26

27

28

29

m = 311

31

m = 311

33

35

36

38

37

40

42

43

45

44

47

220-240V/380-415V 2L/2N~

49

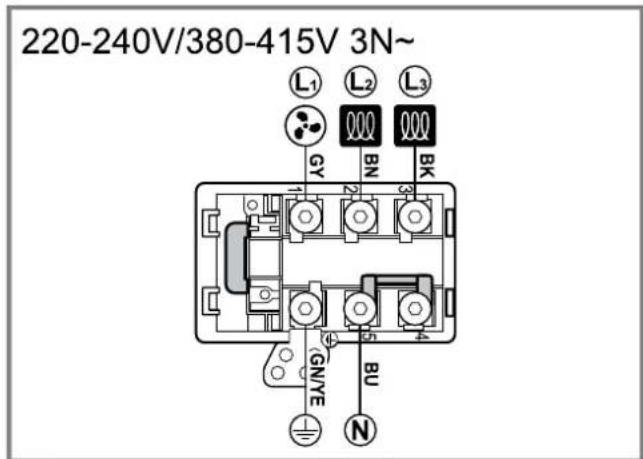

220-240V/380-415V 3N~

50

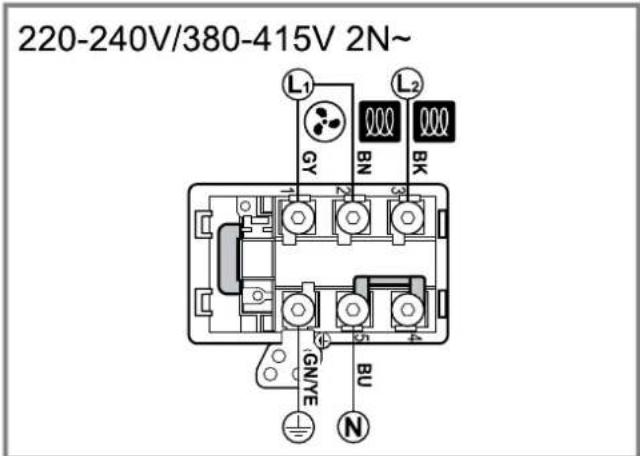

220-240V/380-415V 2N~

51

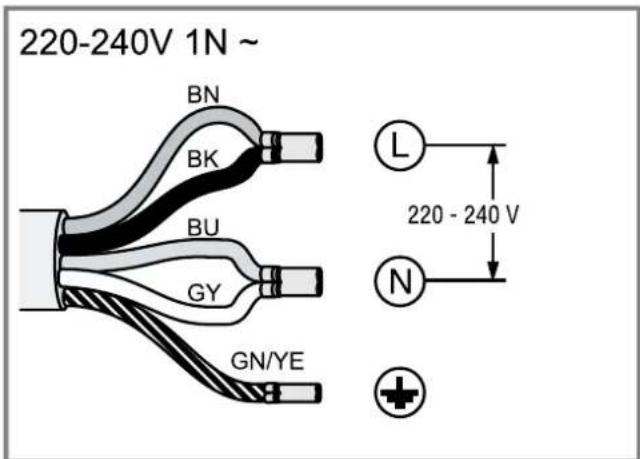

220-240V 1N~

52

es

After unpacking all parts, check for any damage in transit and completeness of the delivery.

$$ \rightarrow F i g. 1 $$

QR code for the installation video

This is were you will find the QR code for the installation video. Fig. 2

Appliance dimensions

You will find the dimensions of the appliance here Fig. 3

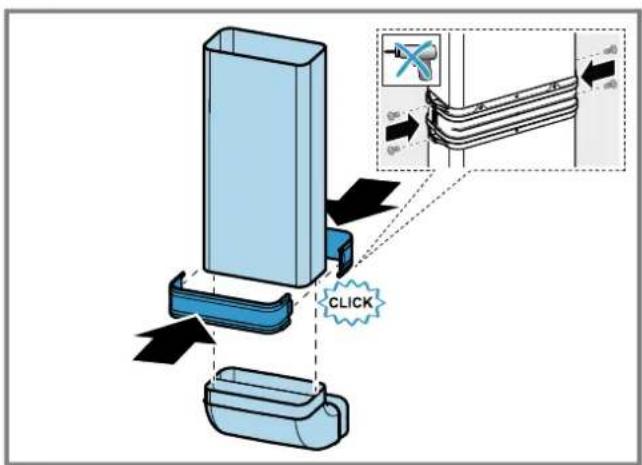

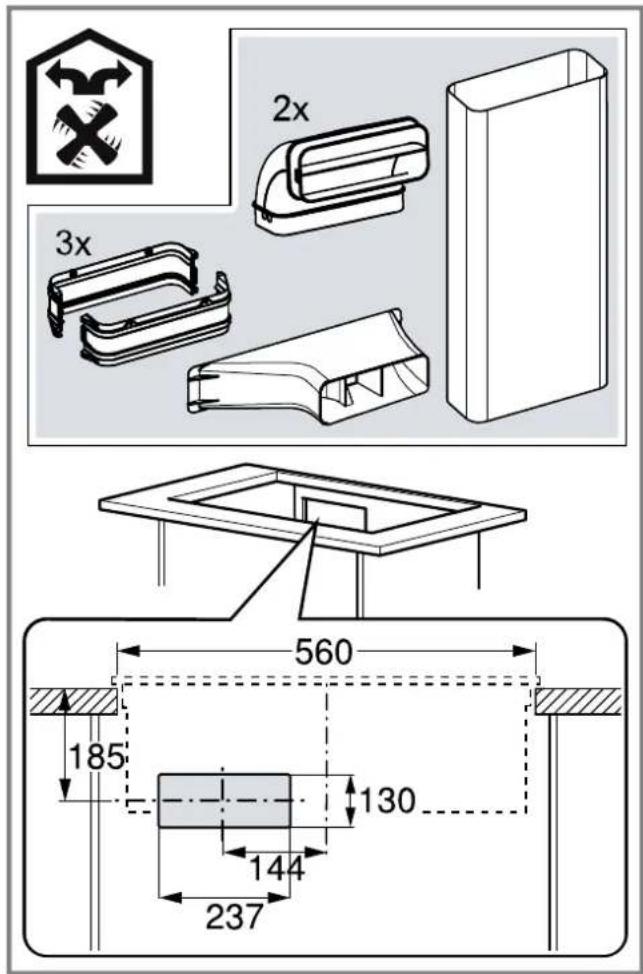

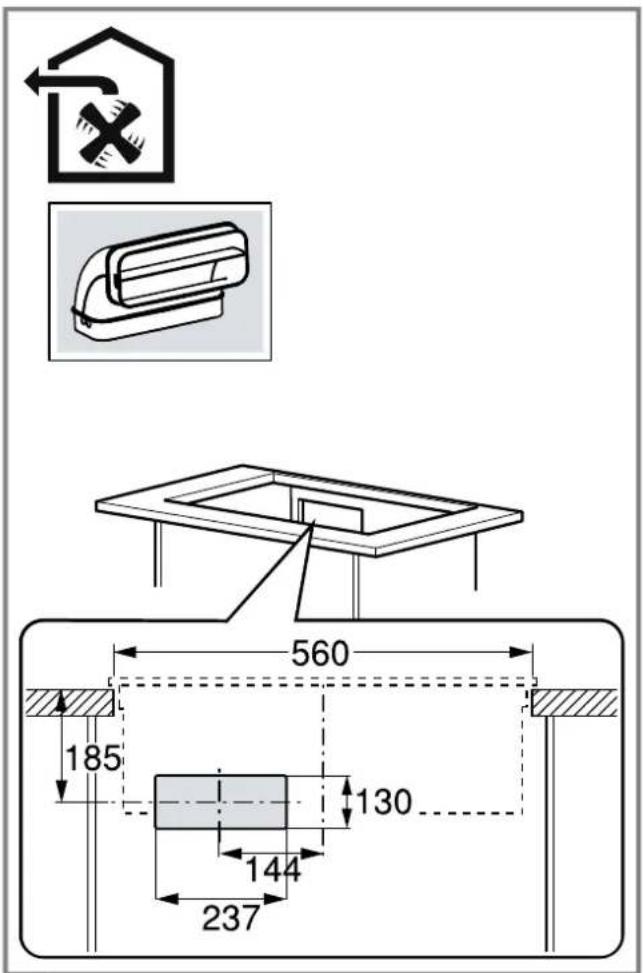

Installation dimensions for flat duct bends

This is where you can find an overview of the installation dimensions for the flat duct bends.

Side view:

$$ \rightarrow \text {F i g .} 4, \rightarrow \text {F i g .} 5, \rightarrow \text {F i g .} 6 $$

Front view:

$$ \rightarrow F i g. \mathbf {7} $$

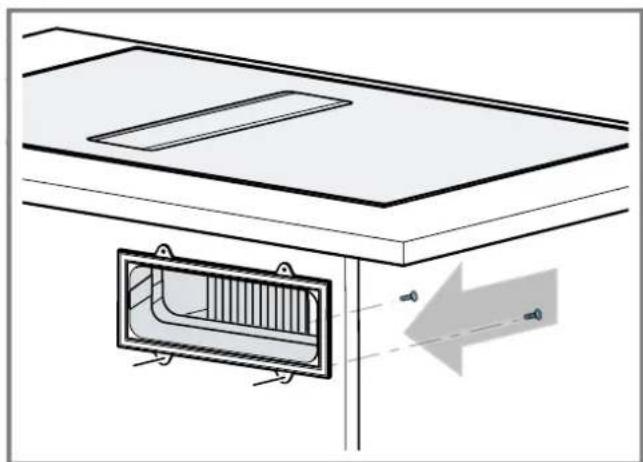

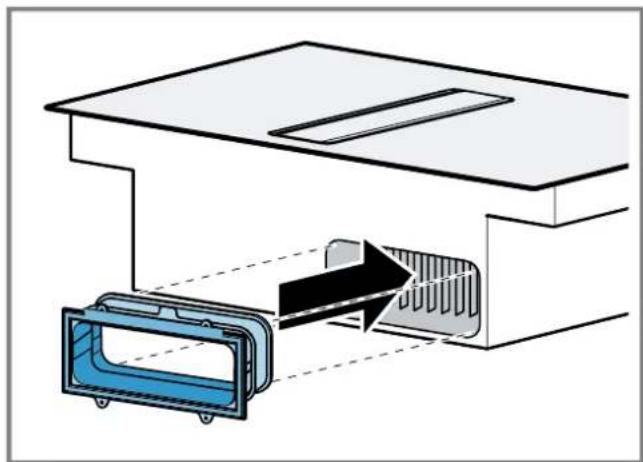

Installation variants

This is where you can find an overview of the different installation variants.

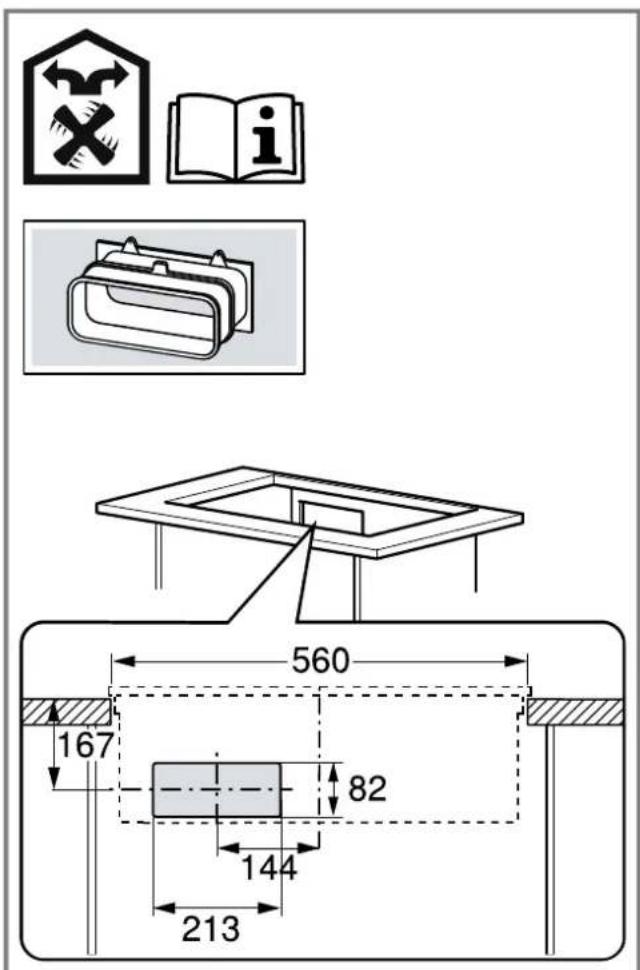

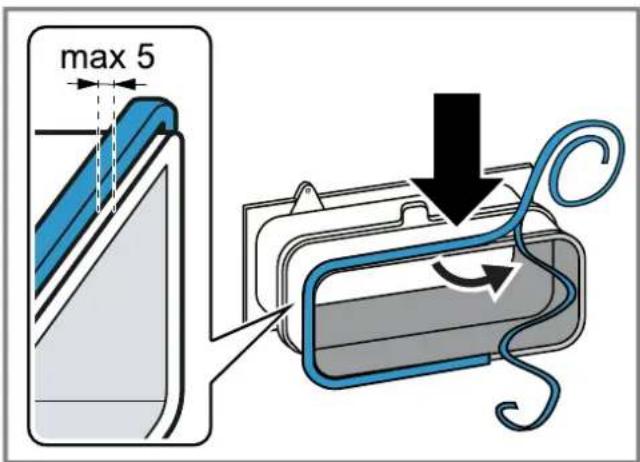

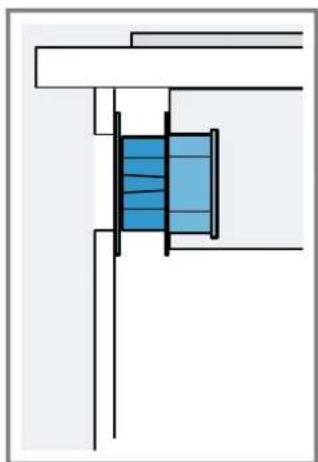

Odour filter and adapter for circulating-air mode:

$$ \rightarrow F i g. \quad 8 $$

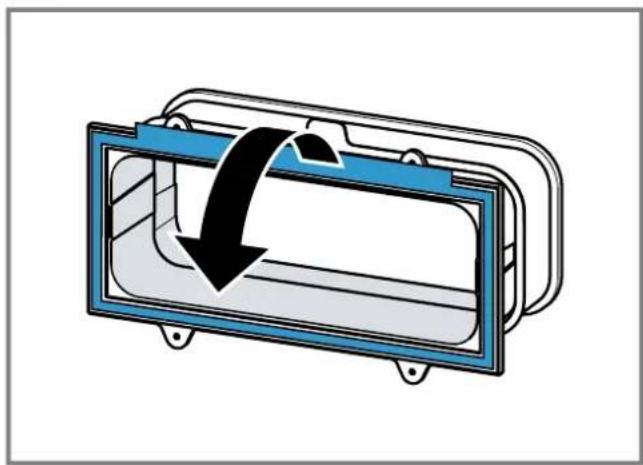

Odour filter, diffuser and seal for circulating-air mode: Fig. 9

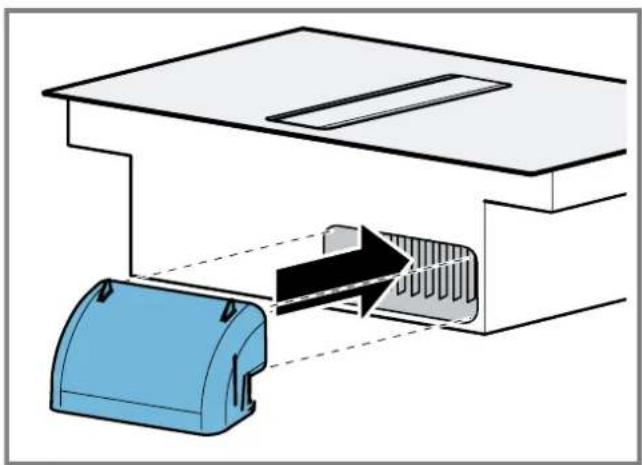

Acoustics filter and seal for air extraction mode: Fig. 10

Note: Channels suitable for installation can be obtained from customer service, our website or from specialist retailers.

Safety clearances

Comply with the safety clearances for the appliance. Clearances to the overflow container:

→Fig. 11

Position of the overflow container: Fig. 12

The performance is optimal at a clearance of 50mm between the unit back panel and the wall. The performance is reduced at a smaller clearance.

Fig. 13

Observe the safety clearances for the worktop cutout.

Do not place any objects in the drawer which exceed the maximum height of the drawer. The objects may come into contact with the base of the appliance and thus disrupt the functions.

→Fig. 14

General information

• Read this instruction manual carefully.
  Only a licensed expert may connect the appliance.
• Switch off the power supply before carrying out any work.
• Never use this appliance in boats or in vehicles.
• Follow the worktop manufacturer's recommendations.

Safe installation

Follow these safety instructions when installing the appliance.

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

WARNING - Danger: Magnetism!

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

• Persons with electronic implants must stand at least 10cm away from the appliance.

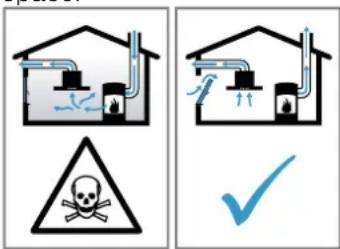

WARNING - Risk of poisoning!

Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney).

With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or

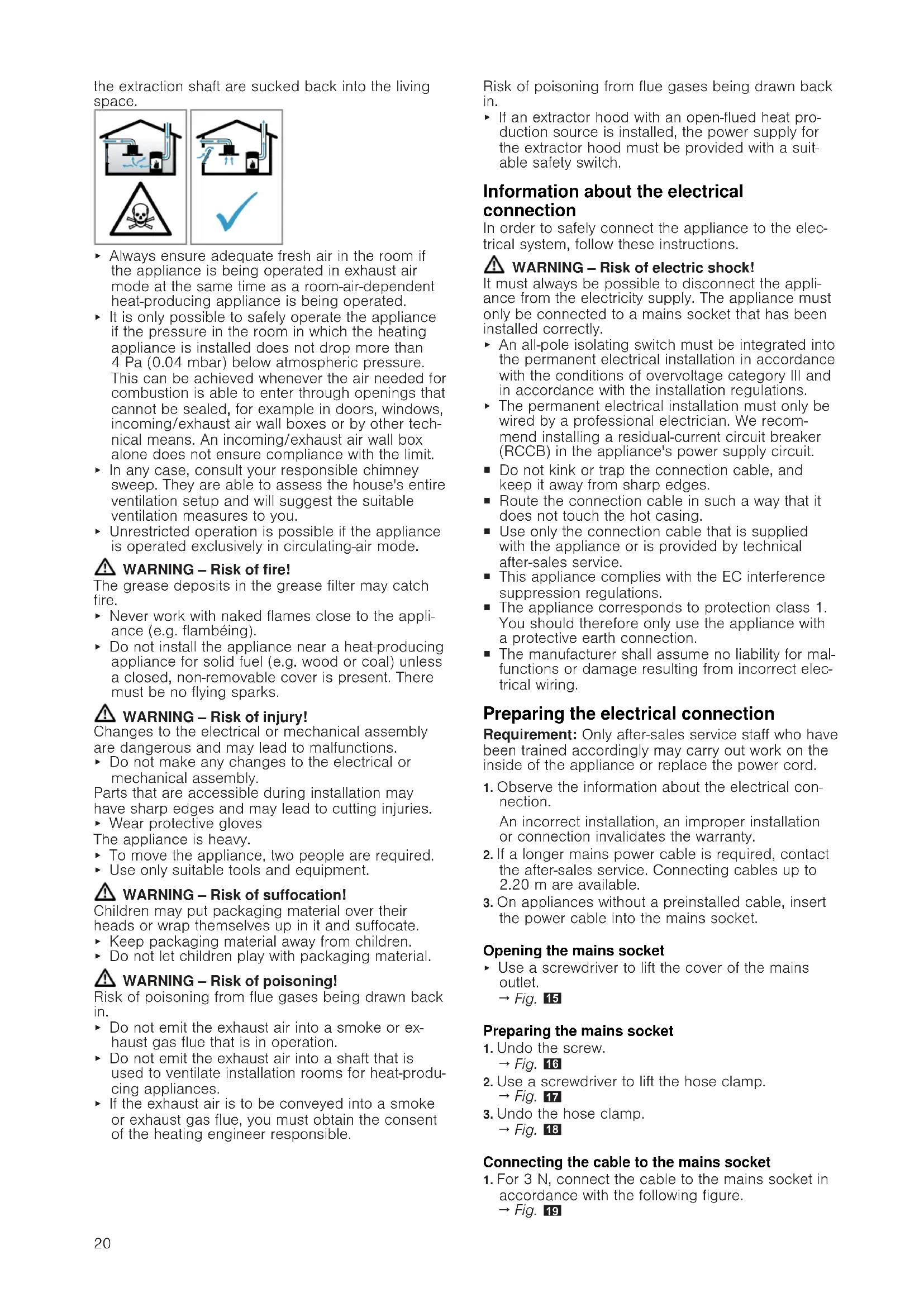

the extraction shaft are sucked back into the living space.

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appliance is being operated.
It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit.
In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
Unrestricted operation is possible if the appliance is operated exclusively in circulating-air mode.

WARNING - Risk of fire!

The grease deposits in the grease filter may catch fire.

• Never work with naked flames close to the appliance (e.g. flambeing).
• Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is present. There must be no flying sparks.

WARNING - Risk of injury!

Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions.

• Do not make any changes to the electrical or mechanical assembly.

Parts that are accessible during installation may have sharp edges and may lead to cutting injuries.

Wear protective gloves
The appliance is heavy.
To move the appliance, two people are required.
- Use only suitable tools and equipment.

WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

WARNING - Risk of poisoning!

Risk of poisoning from flue gases being drawn back in.

• Do not emit the exhaust air into a smoke or exhaust gas flue that is in operation.
• Do not emit the exhaust air into a shaft that is used to ventilate installation rooms for heat-producing appliances.
  If the exhaust air is to be conveyed into a smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.

Risk of poisoning from flue gases being drawn back in.

If an extractor hood with an open-flued heat production source is installed, the power supply for the extractor hood must be provided with a suitable safety switch.

Information about the electrical connection

In order to safely connect the appliance to the electrical system, follow these instructions.

WARNING - Risk of electric shock!

It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a mains socket that has been installed correctly.

An all-pole isolating switch must be integrated into the permanent electrical installation in accordance with the conditions of overvoltage category III and in accordance with the installation regulations.
The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit.
- Do not kink or trap the connection cable, and keep it away from sharp edges.
- Route the connection cable in such a way that it does not touch the hot casing.
- Use only the connection cable that is supplied with the appliance or is provided by technical after-sales service.
This appliance complies with the EC interference suppression regulations.
- The appliance corresponds to protection class 1. You should therefore only use the appliance with a protective earth connection.
The manufacturer shall assume no liability for malfunctions or damage resulting from incorrect electrical wiring.

Preparing the electrical connection

Requirement: Only after-sales service staff who have been trained accordingly may carry out work on the inside of the appliance or replace the power cord.

1. Observe the information about the electrical connection.
   An incorrect installation, an improper installation or connection invalidates the warranty.
2. If a longer mains power cable is required, contact the after-sales service. Connecting cables up to 2.20m are available.
3. On appliances without a preinstalled cable, insert the power cable into the mains socket.

Opening the mains socket

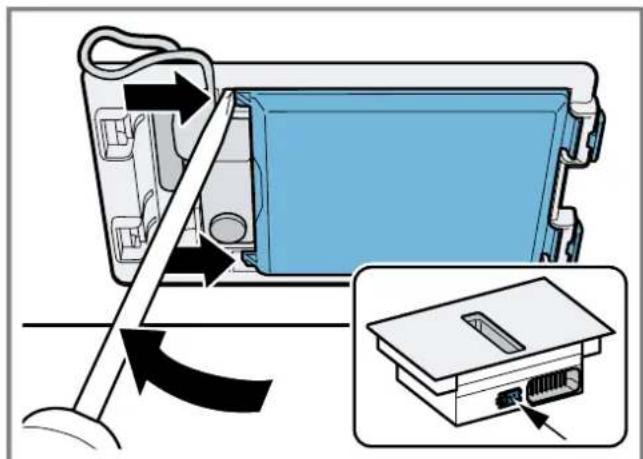

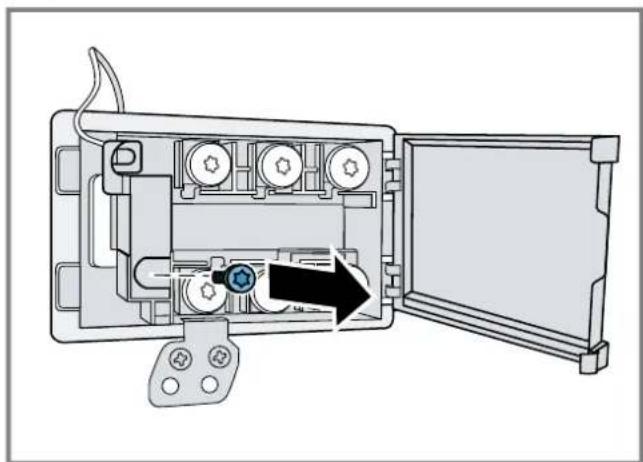

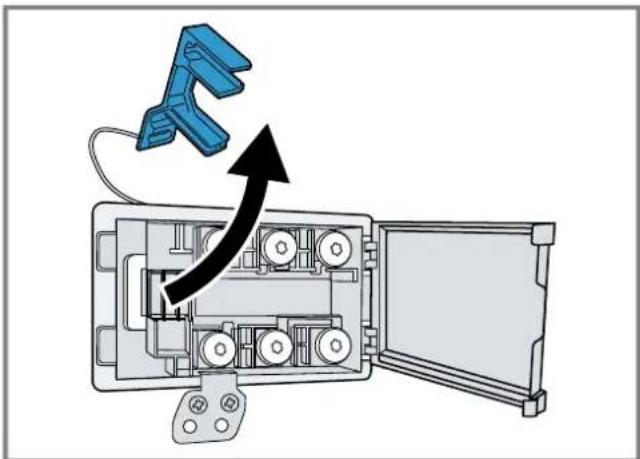

• Use a screwdriver to lift the cover of the mains outlet.

$$ \rightarrow \text {F i g .} 1 5 $$

Preparing the mains socket

1. Undo the screw.

$$ \rightarrow \text {F i g .} 1 6 $$

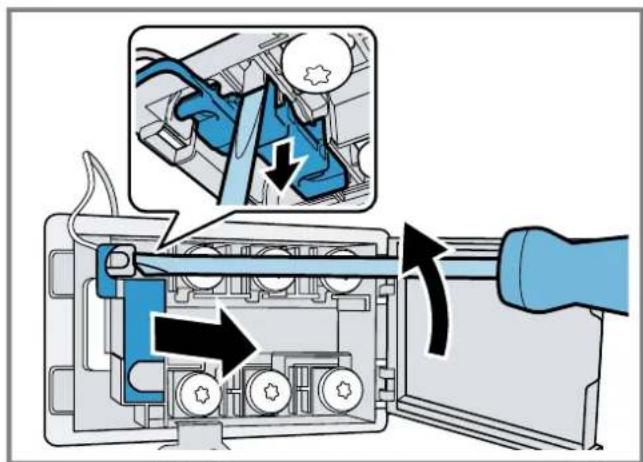

1. Use a screwdriver to lift the hose clamp.

$$ \rightarrow \text {F i g .} \quad 1 7 $$

1. Undo the hose clamp.

$$ \rightarrow \text {F i q .} 1 8 $$

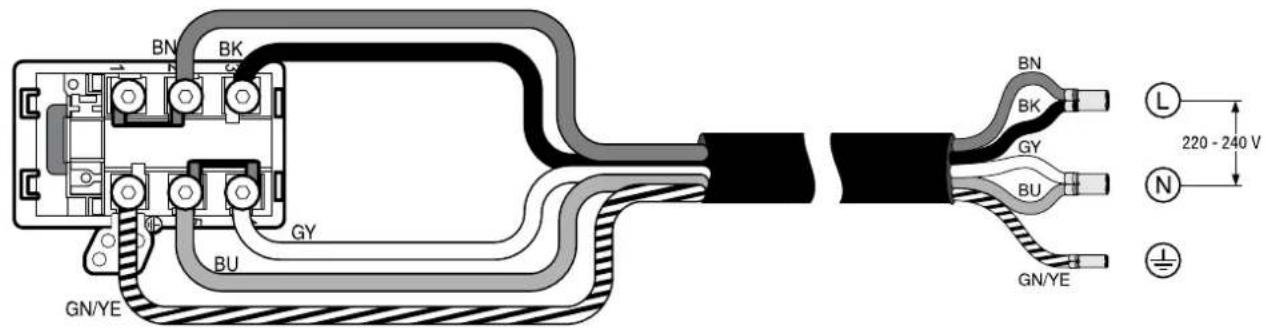

Connecting the cable to the mains socket

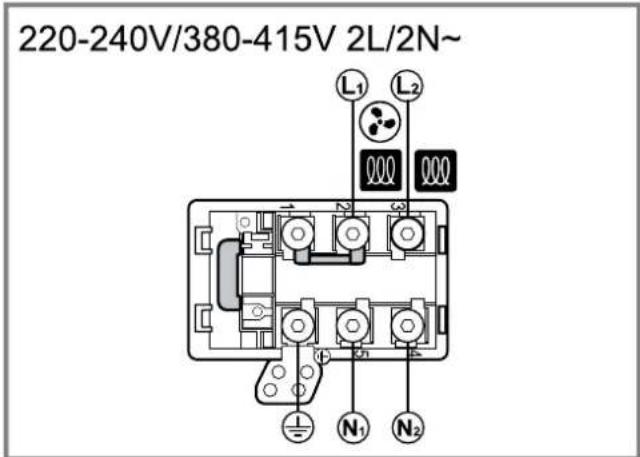

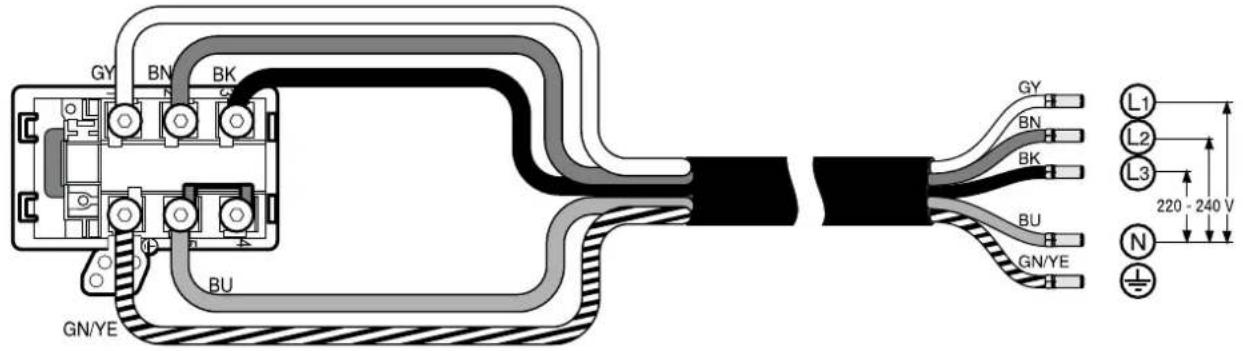

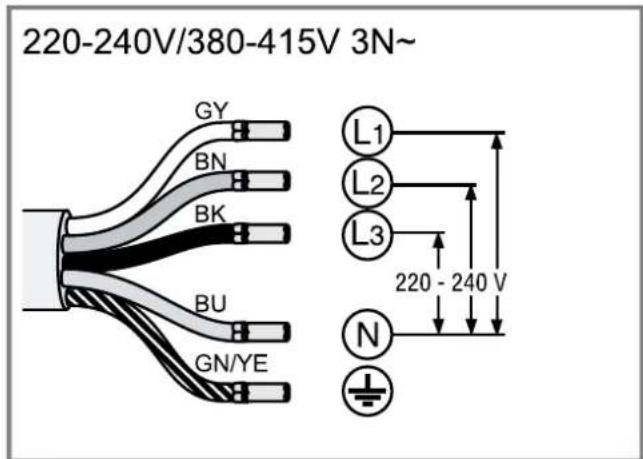

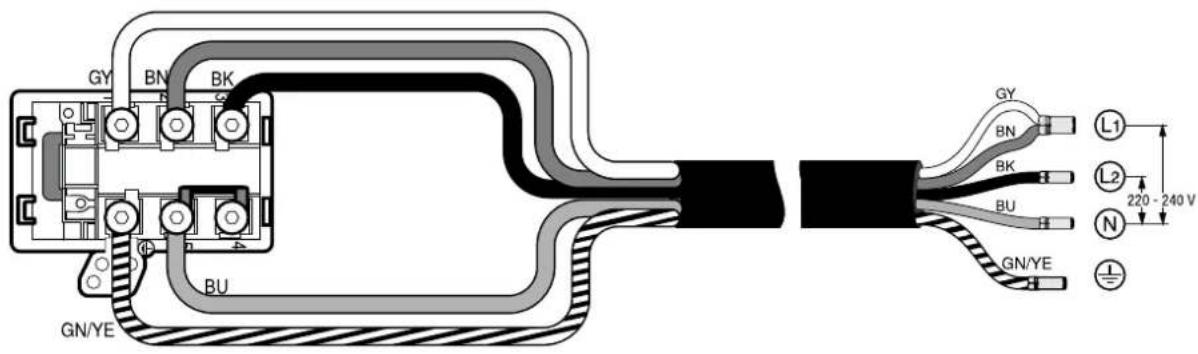

1. For 3N connect the cable to the mains socket in accordance with the following figure.

$$ \rightarrow \text {F i g .} \quad 1 9 $$

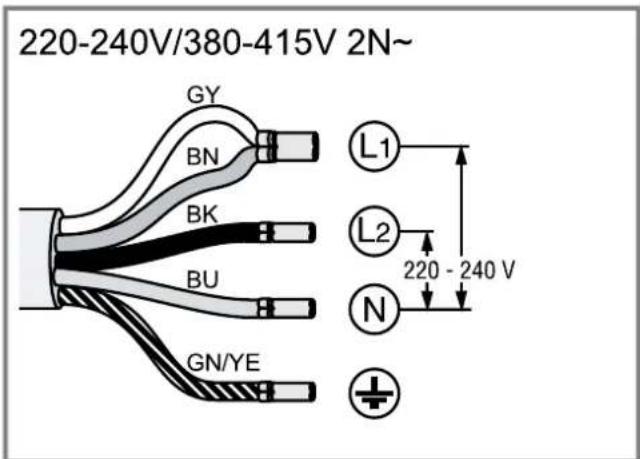

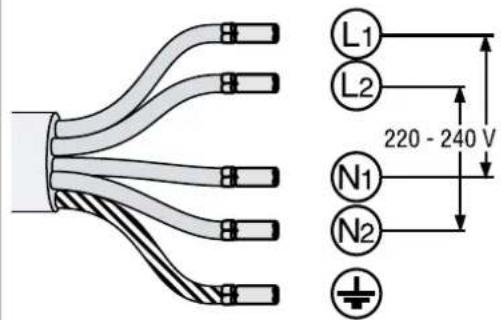

1. For 2N connect the cable to the mains socket in accordance with the following figure. Fig. 20

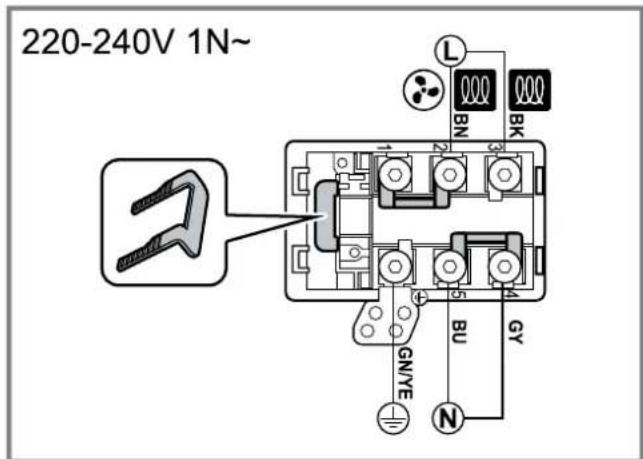

2. For 1 N, connect the cable to the mains socket in accordance with the following figure. Fig.21
3. For 2L / 2N connect the cable to the mains socket in accordance with the following figure. Fig. 22

4. Note the colours of the cables.

5. BN: Brown

6. BU: Blue
7. GN/YE: Yellow and green
8. BK: Black

9. GY: Grey

10. If required, install the enclosed copper bridges in accordance with the connection diagram.

11. Connect the cables and then tighten the screws of the mains socket.
12. For a 1N^ or 2L/2N connection in accordance with the connection diagram, 1 corresponds to the fan motor.
13. For a 2N^ / 3N^ connection, phase L1 (grey) corresponds to the fan motor.

Secure the cable in the mains socket

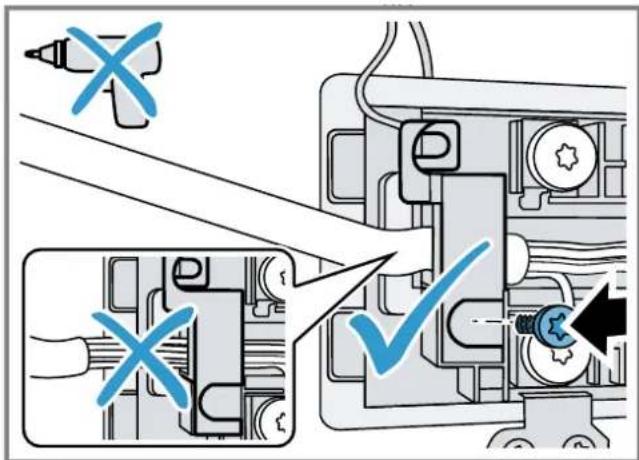

1. Use the hose clamp to secure the power cord.

2. Tighten the screw at the correct position.

3. Do not use a cordless screwdriver.

$$ \rightarrow \text {F i g .} 2 3 $$

1. To facilitate closing the mains socket, arrange the cables in the central area of the mains socket.
2. Close the cover of the mains socket.

Instructions for the exhaust air pipe

The appliance manufacturer does not provide any warranty for faults attributable to the pipeline.

Use a short, straight exhaust air pipe with as large a pipe diameter as possible.
- Long, rough exhaust air pipes, many pipe bends or small pipe diameters reduce the suction power and increase the fan noise.
- Use an exhaust pipe that is made of non-combustible material.
- To prevent condensate from returning, fit the exhaust pipe with a 1^ gradient from the appliance.

Flat ducts

Use flat ducts with an inner cross-section that corresponds to the diameter of the round pipes:

• Diameter of 150mm corresponds to approx. 177~cm^2

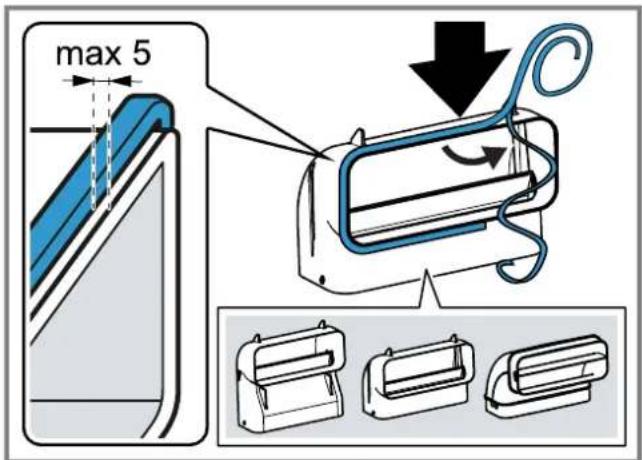

  Use sealing strips for different pipe diameters.
• Do not use any flat ducts with sharp bends.

Round pipes

Round pipes with an inner diameter of 150~mm

Instructions for the air extraction mode

For air extraction mode, a one-way flap should be installed.

Notes

If a one-way flap is not included with the appliance, one can be ordered from a specialist retailer.
If the exhaust air is conveyed through the external wall, a telescopic duct should be used.

Checking the units

1. Check whether the fitted unit is level and has sufficient load-bearing capacity.

The maximum weight of the appliance is approx. 25kg

The worktop into which you are fitting the appliance must be able to withstand loads of approx. 60kg

1. Ensure that the stability of the fitted unit is also guaranteed following cut-out work.

2. Use suitable substructures to ensure the load-bearing capacity and the stability, particularly in the case of thin worktops.

3. Take the appliance weight, including additional load, into consideration.

4. Use heat-resistant and moisture-resistant reinforcement material.

5. Ensure that the fitted unit is heat-resistant up to 90^ .

6. Do not support any other appliances, e.g. ovens, refrigerators, dishwashers or washing machines.
7. Only check that the appliance is level once it has been installed in the installation opening.

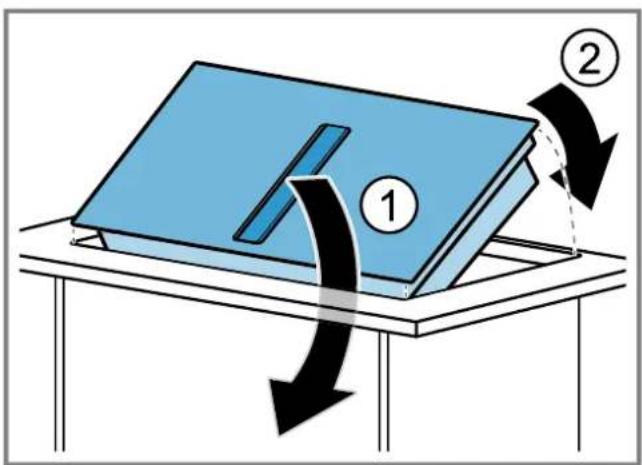

Installing the support rails

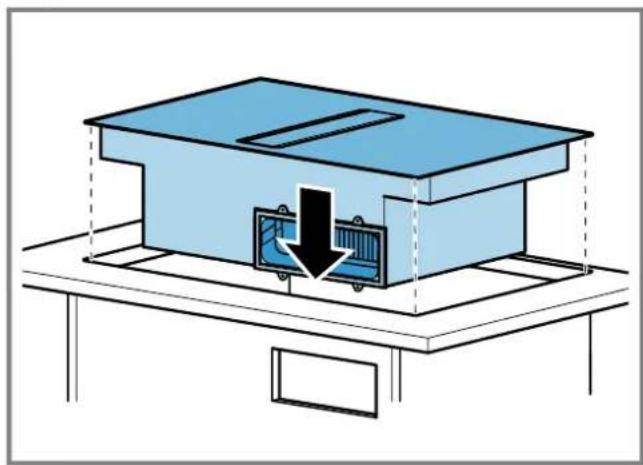

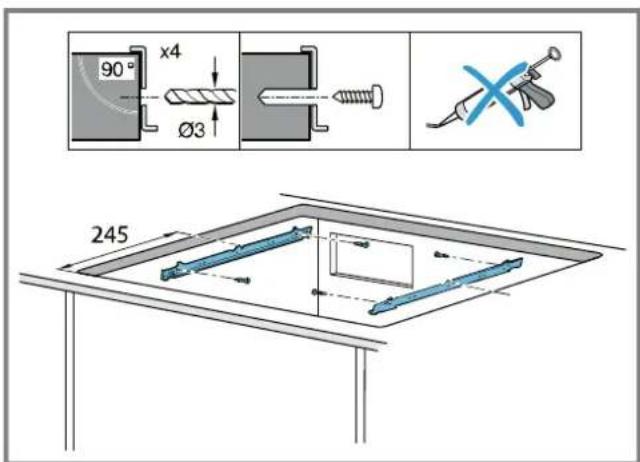

Install the support rails in the unit.

• Glue the support rails to the stone worktop. For stone worktops, use a heat-resistant adhesive suitable for gluing metal and stone.

• Do not use silicone for sealing.

$$ \rightarrow F i g. \quad 2 4 $$

Preparing the units

Requirement: The fitted units must be heat-resistant up to 90^

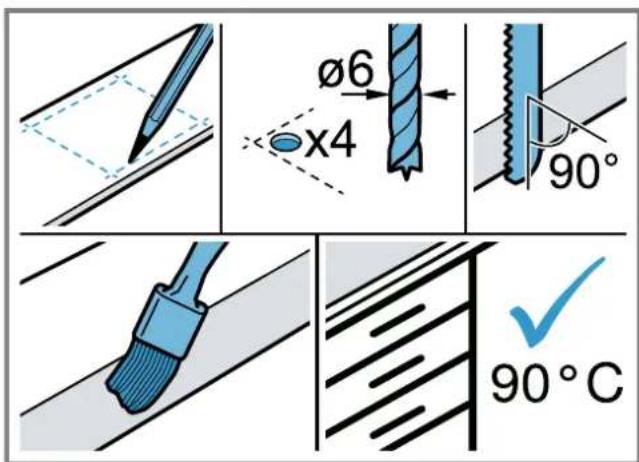

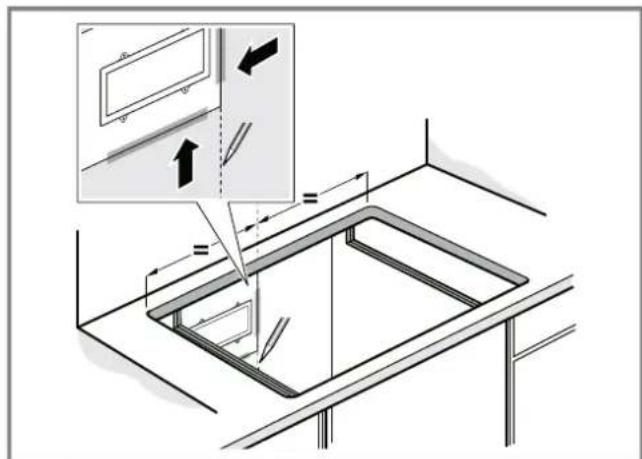

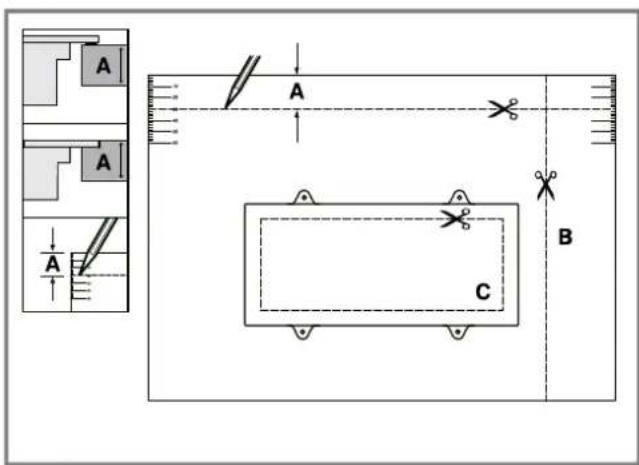

1. Mark the unit cut-out in accordance with the installation diagram.

$$ \rightarrow \text {F i g .} \quad 1 4 $$

1. Drill four holes with a diameter of 6mm

$$ \rightarrow \text {F i g .} 2 5 $$

1. Ensure that the angle of the cut surface to the worktop is 90^ .

$$ \rightarrow \text {F i g .} 2 5 $$

Observing the minimum clearances when installing above a drawer

$$ \rightarrow \text {F i g .} \quad 1 1 $$

$$ \rightarrow \text {F i g .} 1 2 $$

1. When removing the overflow container on integrated appliances, take the minimum clearances into consideration.
2. Observe the position of the overflow container.

Preparing the unit for circulating-air mode with the adapter

Note: We do not recommend to install on a non-thermally insulated outer wall or above a cold floor ( ≥ 0.5W / m^2 C)

1. Observe the relevant dimensions when combining with the adapter for the cut-out in the back wall. Fig. 26
2. Measure the thickness of the worktop. Transfer the measurement to the template and draw a line that corresponds to it.

$$ \rightarrow \text {F i g .} 2 7 $$

1. Cut the template along the marked line for worktop thickness A, the cut centre line B and the reference line to the inner air outlet C.
2. Mark the centre of the cut-out in the worktop as the centre line on the back panel of the unit.

$$ \rightarrow \text {F i g .} 2 8 $$

1. Align the template to the centre line of the back panel of the unit and to the lower edge of the work surface.
2. Use the template to make the cut-out in the back panel.
3. After making the cut-outs, remove any shavings.
4. Seal the cut surfaces so that they are heat-resistant and waterproof. Fig. 25

Ventilation

1. In circulating-air mode, establish an air outlet in the unit's plinth.

2. Provide a minimum air outlet cross-section of approx. 400~cm^2

3. To keep the draught and noise low, ensure that the outlet opening in the base panel is as large as possible.

4. To guarantee that the appliance works correctly, ventilate the hob appropriately via an air outlet with a minimum cross-section of 200~cm^2 in the base unit.

Installing an appliance featuring circulating-air mode with adapter

Attaching the seal to the adapter

• Attach the seal to the adapter with max. 5mm to the edge.
  Fig. 29

Attaching the adapter

1. Clean and degrease the adhesive surface around the cut-out in the unit's back panel.

2. Insert the adapter into the outlet opening on the rear of the hob. Fig. 30

3. Remove the adhesive tape's protective film from the adapter.
   Fig. 31

Inserting the appliance into the worktop cut-out

1. Ensure that the connection cable is connected to the appliance.
2. Carefully insert the appliance into the worktop cutout.

Fig. 32

Securing the adapter

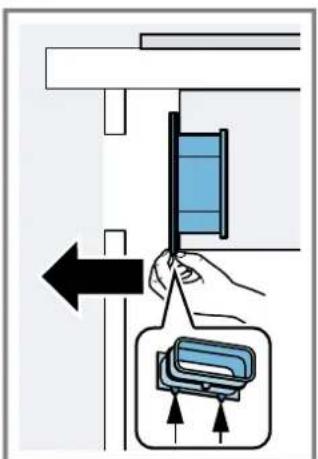

1. Hold the adapter at the central holder and use the side holders to slide it towards the unit's back panel in the base unit, then affix it.
   →Fig. 38
2. If required, also use screws to secure it.
   Fig. 34

Preparing the unit for circulating-air mode with a circulating-air duct

1. If required, remove the unit's back wall.
2. Observe the relevant dimensions when combining with the flat duct elbow for the cut-out in the back wall.

Fig. 35

1. In circulating-air mode, establish an air outlet in the unit's plinth.

2. Provide a minimum air outlet cross-section of approx. 400~cm^2

3. To keep the draught and noise low, ensure that the outlet opening in the base panel is as large as possible.

4. To guarantee that the appliance works correctly, ventilate the hob appropriately via an air outlet with a minimum cross-section of 200~cm^2 in the base unit.

5. After making the cut-outs, remove any shavings.

6. Seal the cut surfaces so that they are heat-resistant and waterproof.

Fig. 25

Installing the appliance for air recirculation mode with circulating-air duct

1. For circulating-air mode, use the seal, the circulating-air duct, the diffuser and the odour filter.
2. Observe the dimensions for the different flat duct bends. Page 19

Securing the seal

• Secure the enclosed seal on the flat duct elbow at a maximum of 5mm from the edge.
  Fig. 36

Inserting the flat duct elbow

• Insert the flat duct elbow into the outlet opening on the rear of the appliance.
  Fig. 37

Inserting the appliance into the worktop cut-out

1. Ensure that the connection cable is connected to the appliance.
2. Carefully insert the appliance into the worktop cutout.

Fig. 38

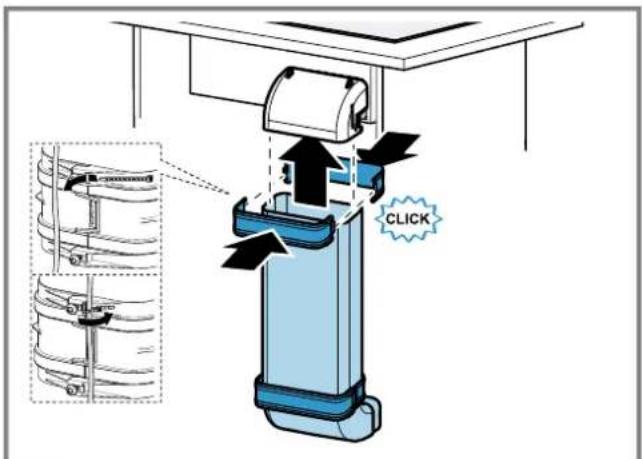

Establishing the pipework between the appliance and the diffuser

1. Connect the components of the circulating-air duct to each other.

2. Secure the flat duct pipe connector by engaging it in place.

3. For an additional fixing, screw the flat duct pipe connector together using 4 × PT 4 × 8 ~mm screws for plastic.

→Fig. 39

1. Connect the circulating-air duct to the flat duct elbow on the rear of the hob.

Fig. 40

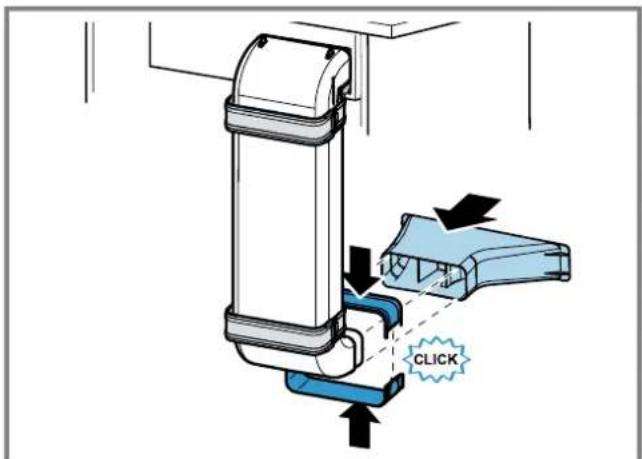

1. Connect the diffuser to the circulating-air duct.

Fig. 41

Preparing the unit for air extraction mode

1. If required, remove the unit's back wall.
2. Observe the relevant dimensions when combining with a flat duct elbow for the cut-out in the back wall.

Fig. 42

1. After making the cut-outs, remove any shavings.
2. Seal the cut surfaces so that they are heat-resistant and waterproof.

Fig. 25

Install the appliance for air extraction mode

1. For air extraction mode, use the seal and the acoustics filters.
2. Observe the instructions for the exhaust air pipe. Page 21

Securing the seal

• Secure the enclosed seal on the flat duct elbow at a maximum of 5mm from the edge.
  Fig. 36

Establishing the piping

1. Insert the flat duct elbow into the outlet opening on the rear of the appliance.
   Fig. 37
2. If required, install additional piping elements.

Inserting the appliance into the worktop cut-out

1. Ensure that the connection cable is connected to the appliance.
2. Carefully insert the appliance into the worktop cutout.

Fig. 38

Connecting the exhaust air pipe

1. Secure the exhaust air pipe to the flat duct bend.
2. Establish the connection to the exhaust air opening.
3. Seal the joints appropriately.

Inserting filters

Note: For circulating-air mode, insert the odour filters.

For air extraction mode, insert the acoustics filters.

1. Observe the filters' air flow direction.

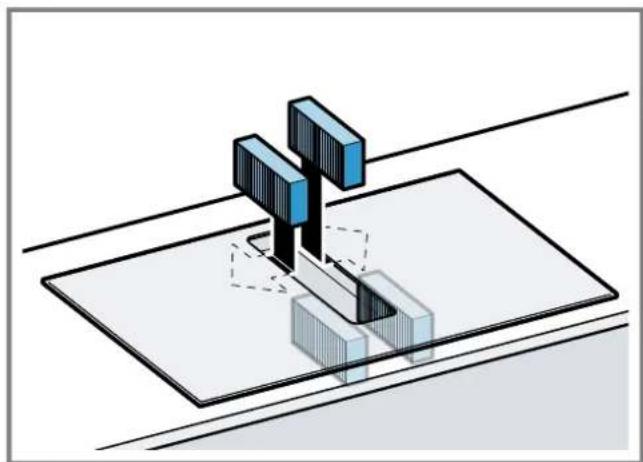

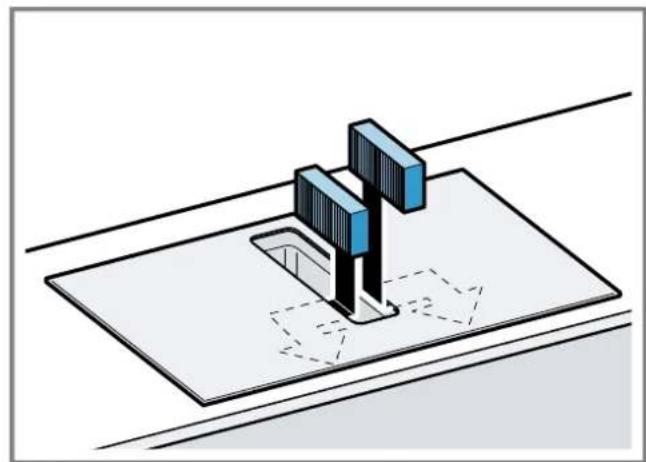

2. Insert two of the filters into the left and right of the appliance, and slide them forwards.

$$ \rightarrow F i g. \quad 4 8 $$

$$ \rightarrow F i g. 4 4 $$

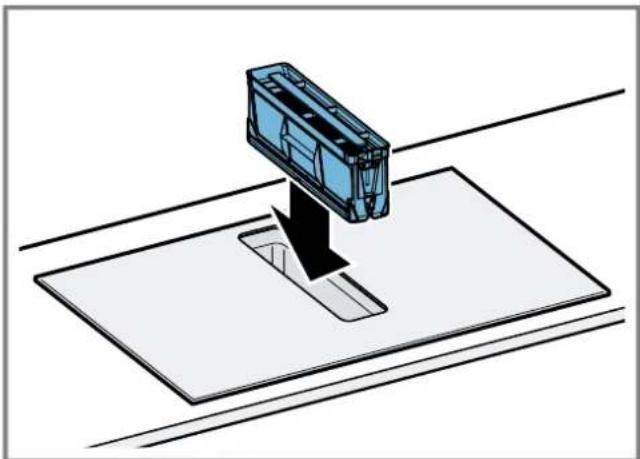

1. Insert the other filters into the left and right of the appliance.

Inserting grease filters

• Insert the grease filter.
  Fig. 45

Establishing the connection to the power supply

1. Observe the connection data on the rating plate.
2. For 3N connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text {F i g .} 4 6 $$

1. For 2N connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text {F i g .} 4 7 $$

1. For 1 N, connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text {F i g .} 4 8 $$

1. For 2L / 2N connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text {F i g .} 4 9 $$

1. Note the colours of the cables.

2. BN: Brown

3. BU: Blue
4. GN/YE: Yellow and green
5. BK: Black

6. GY: Grey

7. If required, arrange the supplied wire end ferrules differently depending on the type of connection.

8. To connect two cables, if required, use a wire end ferrule.

9. Shorten the wires.

10. Remove the insulation.

Checking the function

1. Switch on the appliance.
2. If the appliance is not connected correctly. "Checking and correcting the electrical connection", Page 23
3. If no faults appear in the appliance's display, use the operating instructions to check that the ventilation is working.

Checking and correcting the electrical connection

1. Disconnect the appliance from the power supply.
2. Check whether the connection to the appliance (fig. 4) and the building-side connection (fig. 8) correspond to the connection diagram in these installation instructions.

"Preparing the electrical connection", Page 20
"Establishing the connection to the power supply", Page 23

$$ \rightarrow \text {F i g .} 5 0 $$

$$ \rightarrow \text {F i g .} \quad 5 1 $$

$$ \rightarrow \text {F i g .} 5 2 $$

1. For 3 N ,observe the following figure.
2. For 2N observe the following figure.
3. For 1 N, observe the following figure.

Switching the display for air extraction mode

1. If required for the air extraction mode and the air recirculation mode, change the display of the electronic control in the basic settings.
2. Observe the basic settings section in the instruction manual.

Removing the appliance

ATTENTION!

Tools may damage the appliance frame.
Do not prise out the appliance from above.

1. Disconnect the appliance from the power supply.
2. Remove the exhaust air duct or undo the circulating-air connections.
3. Push out the appliance from below.

fr

Positie van overlooppreservoir:

Fig. 12

ADVARSEL-Fare for forgiving!

ADVARSEL - Brandfare!

Fedtaflejringer i fedtfiltret kan blive antaendt.

ADVARSEL-Fare for forgiving!

Fastgoring at taeling

• Fastgor den medfolgende taeling pa fladkanalbogeningen maks. 5 mm fra kanten.
  Fig. 36

Fastgoring at taeling

Monteringsmal for flat rorbend

Her finner du en oversikt over monteringsmalene for flate rorbend.

Sett fra sider:

Fig. 4, Fig. 5, Fig. 6

Sett fortra:

Fig. 7

ADVARSEL-Fare for forgiving!

ADVARSEL-Fare for forgiving!

Montere holdeskinner

Sette inn flatt rorbend

TeH MOrTy 3aBepHyTbCBy UyNaKOBOUHbIMaTePnAIN HnHa-Te b erO ce6e Ha rONoBv N3aDOxHYtbcR.

He npnyckaTe DeTe K ynaKOBOHMy MaTePnAny.
He no3BOJIaIe DeTAM INrpaTb C yNaKOBOUHbIM MaTePnaJOM.

I PNEyIPEJXJEHNE -OnacHocTb OtpaBJeHnA!

BTRHYtIe 6bpaTHOBnmeHHe OTPa6oTaBUNe ra3bl MOryT CTaTb PnPHHOOTpABJIeHH.

BbITaKHOI Bo3DyX He DOJKeH BbIXOINbYepe3 DbIMOBYTOpy6y HnN Bo3DyXOBo npn IH KcNnyataun.
- OTOBDA BbITAKHORO BO3dyxa He CneDyET NcNOb3oBaTb BEHTKaHaN, Cnykaun DnBeHTnraun NOMeHIN, B KOTOpbIX yCTaHOBHeH INCTOCHNKI PnaMeHN.
PnIOKIOUeHNN BITAKKK K HeHCNOB3yEMOMy DbIMOxOy, Heo6XoJIMO NOJyHTb pa3peJHeH B CneuaJIb-HOH INCTaHcN,OTBeauIOSe 3a EKnIyatauH N UInCTKy Tpy6.

B7aHytbe 6bpaTHOBnmeHHe OtpaOToBUnHe ra3bl MoryT CTaTb npuHHO TpabJIeHHJ.
Pn yctaHOBKe BbITAAKKN B NOMEUeHNrX, rde npncytCTByeT nCTOCHNK PIIaMeHN C NOBODOM BO3dyxHa N3 NOMeUeHN, CNCTema NODaCh NITaHIN BbITAAKKN DOJIXHA 6bItbOBOpyIDoBaHa FyHKcneA bApInHOrO OTKJIIOUeHNr.

Yka3aHnno no noKnIOueHHo K 3JIeKTpocetN

IJI630nacHOro NIOKJIQUeHn IpiHbopa K 3NeKTPocETn co6JIOdaIte DaHHbIe HNCTpyKUn.

PNEyPExDEHNE-Onachocb npaHexn 3JIeKTPuueckm TOKOM!

CneIyET o6ecneHb B03MOXHOCTb OTKHOUeHINI pInbopaOT 3JIeKTPocetB N IIOBOIM MOMHT. 3TO T pNbOp MOKHO NOKIIIOUaTb K cTeN TObKO Upe3 npaBnIbHO yCTaHOBNeHHYOp paCnpedeIeNTbHyO KOPOkY.

B Ctaunohapno 3neKtpoPoBOdKe Heo6xOIMo PpeDyCMOTpeb CnuaJIbHb BblKIOUaTeNb DnPa3MbKaHnBCex NIOUCOB cOrnaCHO ycNoBnM KaTeOpn NepeHa npJKeHH III nCOrnaCHO yCNOBnM MOtAka.
IoiKluoyehne CtaunohapHoro 3eKtpoo6opydoBaHHn DOJHKHO pOn3BOoITbCra TOJIbKO KBaIIHmUPOBaHHbIM 3eKtpnKOM.Mbl peKOMeHdyem yCTaHOBHTb yCTpoiCTBO 3aunTHoro OTKluoyehn (Y3O) B 3eKtpuyeckon cenn Chabxhen npu6opOB.
Ipocneinte,HTO6bI cTeBoi Ka6eB He 6bl 3aKaT,He nepereh6anca HaxoDnCBAaNNOT OCTpbIX KpOMOK.
- PpoklaIbIaIe Te CeTeBOI Ka6eJIb TaK, YTo6bI OH He KaCaIcHarpTeTORO Kopnyca np6opa.

IcnoIb3yIteToIbKOceTeBOKa6eJIb,BXoIaIIINB KOMnIeKTI NOCTaBKn PnIObOpa HIN NoCTaBJIReMbI CepBHCHOH clyk60i.
- 3ToT npH6Op COOTBeTCTByET Tpe6oBaHNm IpaBn EC noNoDaBJIeHHIO paDIOnomEx.
- Pn6op COOTBETCTBYET KJAccy 3aunTb1 I, NOtOMy OH ДОЛжEH 3KcNJIyaTINPOBaTbCRA TOnbKO C 3a3eMnHOUcIM ПЮВODOM.
IpnH3BOJNTeJIb He Hecet OTBETCTBeHHOCTn 3a HeHCnPpABHOCTN HIN BO3MOKHe IOBpeXDeHn, KOTOpbIE MOryT6bITb CBA3aHbC HECOOBTcTBYIOuIM 3JeKTPnuueCKMMOHTaXOM.

IodroTOBka K 3JIeKtponoKnIOUoyHnIO

Tpe6oBaHHe:Pa6oTaB C BHTpeHHMn YactrMn np6oopa HIN pOn3BODHT 3aMeHy CeTeBOrO Ka6eMa rTOIbKO npOSeDUnne 06yueHHe cNeuaJInc7b CePBCHOH cIyK6bl.

1. C6bIoudaIte yka3aHnno NO NOKJIIOUeHNIO K 3neKTPocetN. B clyuae HeKOppeKTHoN c6OpKn, HecooTBeTCTByHOuei yctahOBKn IIN NoNOKJIIOUeHN rapaHTNHa npbOp nepe- ctae TdNCTBOBAtb.
   2 EcIN Bam Tpe6yetc 60one nnHHb ceTeBOK Ka6enb, 6paTnTEcb B cepBnCHyIO cnYk6y. B HAnuH NMeOTc Ka6en dInHOI do 2,20 M.
2. Пи установке пиборов бez пеДварпельно сmoHTирован Horo Кабеля НeoхODиMo пobeCTN сeteBOй Кбелк pacnPpeDeHNTelBною кopoБke.

OTKpbBaHne pacnpeJeIeHTelbHO Kopo6Kn

• PpHIOJHMNITE KpbIiKy paCnppeJeIeJIteIbHOJ Kopo6Kn C NOMOuB OTOBepTK.

$$ \rightarrow P u c. \quad 1 5 $$

PoiroToBka pacnpedeJInteIbHOJ Kopo6Kn

1.Ocna6bTe BnHT.

$$ \rightarrow P u c. 1 6 $$

2ПинлдИМпTe 3aЖIMсnomоьюOTBepTKI.

$$ \rightarrow P u c. 1 7 $$

3.Ocna6bTe 3aHHM.

$$ \rightarrow P u c. \quad 1 8 $$

PoiKluoyeHne Ka6eJRA paCppeIeHTeJIb-HoKopo6Ke

$$ \rightarrow P u c. \quad 1 9 $$

1.ПоДКЛHOUHTe KIeMMy 3N Ka6eJI KpacPpeJTeJIbHOI KOPO6Ke, KaK nOKa3aHo Ha cIeDyHOUeM pncyHke.
2 PoiKJIIOUHTe KIeMMy 2 N Ka6eJI K paCppeJTeJIbHoi Kopo6Ke, KaK NOKa3aHO Ha cJeDyHOe M pUCyHKe. Pnc.20
3.ПоДКЛЮЧИТЕКLEММу1Nka6eЯKpacppeДeNTeHOBI Kopo6Ke, KaK nOKa3aHoHa cNeDyHOUeM pncyHKe. →Pnc.21
4.ПоДКЛIOUHTe KIeMMMy 2L/2N Ka6eR KpacpeTeINTeB-HoH Kopo6Ke, KaK nOKa3aHo Ha cNeDyIOUeM pncyHKe. P_NC 22
5. YuHTbBaIte UBeT KaBeJeI.

-BN:KOpHHeBbI
-BU:CNHNI
- GN/YE: JkntbI n 3eHbI
-BK:чepHbI
-GY:cepbii

1. Пи Heo6xOAnMoCTn yctaHOBHTe NoCTaBJIReMbIe B KOMJIeKTe MeIbIe IepeMbIyKu COrJaCHO CXeMe NOJ-KJIIOUcHЯ.
   7.ПоДКЛIOUHTe Ka6eIa, a 3aTeM 3aTAHNTe BnHTbHa paCnppeJInTeBHOH Kopo6Ke.
2. Cornacno cxeme noikkyehn noikkyeHHIO 1 N\~nn2 L/2N cooTBeTcByet pa3a 1 3neKtpoBnraTeIa BeHTnIyTopa.

9.ПОДКИLOЧЕНIO 2N\~/3N\~ COOTBETCTByeT Φa3a L1 (cepbI) 3JIeKTKPODIBRAteTEnBEHTINrTopa.

Фнкcaия Ka6eЯВpacnpedeJIHTeJbHoi Kopo6ke

1. 3aФнксрун Te CTeBOJ Ka6eJIb XOMyTOM.
   2.3aTnHTe BHTB npaBnHOM NOIOXKeHN.

-He nCnoJIb3yIte aKKymJITOpHbI raiKOBeP.

→PUC.23

1. TTo6bI yInpOCTnTb 3aKpbIBaHHe paCnPpeJenlTeBHO KoP06Kn, paCNoIOKHTe Ka6eIN B cpeDHe YacTH Kopo6Kn.
2. 3aKpOHTe KpbIuKy Kopo6Kn.

Yka3aHnnoOTbOyBO3dyXa

PpOINBODInTeIb npHbopa He daet rapaHTn B cIyae peKnaMaun, KacaHouxcxryuactkoB Tpy6oPBOda dIy OTBODa BO3dyxa.

Icnonb3yte KOPOTkyo npmyo BbITKHyO Tpy6y,meIOUHO NO BO3MOXHOCTN 0BbJoo DnAmETp.
ДиINHHbIe WepoxOBaTbe BbITaXHbIe Tpy6bl,60nbUoe KOJIInueCTBO KOIEN HIN Tpy6bl MaIOrO dNaMeTppa yMeHbIaIOT MOuHOCtB BbITaXKn IyBeNCHBaIOT wM OT pa6oTbI BEHTINATopa.
Icnonb3yTe BbITXHbIE Tpy6bl N3 HeBocnJaMeHaIOx-Cr MATEpnaIOB.
TTo6bl npedotbpaTb Bo3Bpat KOHdehcaTa,yCTaHOBnTe BtAHHyTOpy6y nOg yrIOM 1 K npnbopy.

Плockи Каналы

HcnoIb3yIte IIOCKHe KaHaJIbI, BHyTpEHHee CeeyHee KOTOp bIX COOTBeCTByET DnAmEtpy KpyIbIX Tpy6:

DnAmEtP 150 MM COOTBeTCTByeT npM. 177 cm².
Ipn HecooTBeCTBn DnaMaTePoB Tpy6 NcNoJIb3yIte repMeTN3NpyUOuOJeHTy.
He nCnoB3yTe nnOckne KaHaIbI c pe3KmMn 3rN6aMn.

KpyrIbIe Tpy6bl

PekomeHdyembI BHyTppeHHn DnaMeTp Kpyrblx Tpy6- 150 MM.

Yka3aHnI pypeKnMa OTbOa BO3dyXa

BpeKHe OToBa BO3yXa DOJIkHa 6bITb yCTaHOBJeHa 3acNoHka 6paTHoTn.

PpIMeuaHn

Ecln 3acNoHa o6paTHo Tn He BXoNT B KOMnIeKT noCTaBKn np6opa, eM MoKHO npno6pcTe N CneuaHn3npoBaHHOM MaRa3nHe.
Ecln BbTTKHOB3DyX OTBOINTCAYepe3 HApyHKYcTeHy, CNeDyET NcONb3OBAb TeNECKONuueckN BeHTINaUOHHb KaHaJ, npoxoAunB CteHe.

PpOBepKa Me6eHn

1. Y6eIITecb, yTO Me6eIb IJI BCTpaHbAHy ycTaHOBneHa pOBHo n CnOcO6Ha BbIepKaTb HArpy3Ky. MakcImaJIbHbI BEc np6opa coCTaBnaET npm. 25 Kr. CToJeuHnua, B KOTOpYIO BCTpaHbAetc np6op, DOnJKHb BbIepKHNBaTb HArpy3Ky npm. 60 Kr.
   2.ПослЕБынOLнEHЯВьpe3a npOBepbTe yCTOnHBOCTbMe6eINДЯВCTpaHBAHЯ.
   3.ObecneBte HecyUHO CnOCo6HOCTb U yCTOuINBOCTb, Oc0eHHO TOHKNX CTOnEWHNU, C NOMOUsHIO NOxODAUXX ONOpHBIX KOHCTpyKuN.

2. Yunbai Te Bec np6opa, Bknoa JOnonHntbHyo Harpy3ky.

3. HcnoIb3yIe JapOpnpHbI n BlaOroCToKm MaTepn-an.

4. Y6eIntecb, yTO Me6eIb IINB BCTpaBHaN CnOCo6Ha Bbl- depKHBaTb TemnepaTy pO 90 ^ C
   5.He BCTpaBaNte DyXOBbIe Wkafo, XOJOnNtBnHKn, NocyDOMoeuHbIe MaunHbI, CTnpaJIbHbIe MaunHbI IN DpyryTOxHNky NO np6opom.

5. IpoKoHTpOJIpyTe ToHocTb paCNoJoxHeNr npIbopa B rOpH3OHTaJIbHOI NIOCKOCTn NOcNe erO yCTaHOBKn B MOHTaHHb InpoE M.

YctaHOBKa ONOpHbIX NlaHOK

YcTaHOBnTe onOpHbIe PnaHKn B Me6eIb.

• PpHKJIe T OOpHbIe NlaHKn K KaMeHHoN CTOJIeUHnIe. Ppi paBoTe C KaMeHHbIMN CTOJIeUHnIaMNI NCIOJIb3yI- Te TepMOcToKnIKNe, NOxOJaIuN IJa CKJIeHbAHnI MaTAnJa N KaMHJ.
  -ДяпнкlenBaHnHa HeIb3Я ИСоЛьЗOBaТь CИИКОHO-Bын RepМETИK.
  →PUC.24

PoiroTobKa Me6eJH

Tpe6oBaHHe:Me6eBnIaBCTpaHbAHnIdoJIKHa BblepKnBaTb Temnepatpy Do 90 ^ C

1. Pa3MeTbTe MeCTo BbIpe3a B Me6eHN B COOTBeTCTBHN CO CXEMO yCTaHOBKN.

→Pnc.14

2.ПрocВерпгЕчыpeOTВерсТнЯДиAmETpOM6MM. →Pnc.25
3. Yron MeJdy noBepxHocbO cpea n CToneuHnuee DonJIKeH coCTaBnTb 90°

→Pnc.25

Pn yCTaHOBKe HaI BblBHXHbIM AUNKOM BblepXHBaIe MHHMaJIbHbIe OTCTyNbl.

1.ПиСНТИЕМКОCTNДЯСЛВАЛIMSHAЕЖИДКOSTHAYCTaHOBJIeHOMпибореco6IbOaTeMHIMMaJIbHbIeOTCTybl.
→Pnc.11
2. YuHTbIbAte paCnoJIOKeHHe EMKoCTn DnR CInBa IINuHHe HNkOcTH.
→PUC.12

IodrotobKa Me6eN K yctaHOBKe npH6opa dIyIuKpyJauHH Bo3dyXa c aIaNTepOM

3aMeTka: YcTaHOBKa Ha BHeUHNe cTeHe 6e3 TeIIOH3OJIaIIN Hn HaN HeOTaJIINBaEMbIM NOLOM He peKOMeHdyETcA ( ≥ 0,5BT / M^2 C)

1.ПиКOM6HINHPOBAHNc cадANTepoM yHTbIaIte COOTBeTCTBn pa3MePoB BbIpe3a B 3aHHeI CTeHKe.

→Puc.26

2.ИЗмерьтToJIинHy cToJIeшинцI.ПepeHecnte 3aМерHa ШабLOн И пОВеДиTe COOTBETCTBYЮУК ПИИНΟ.

→PUC.27

1. BbIpeKbTe 7a61oH no pa3MeueHHo IHHn Ia TOnuHbI CToneuHnucB A, cHTpaIbHOJ IHHN Bbipe3a B n KOHTpOJIbHOJ IHHN IaI BHyTpEHHero BblNyCKHOrO OTBepCTNa C.
2. OTMeTbTe ueHTp Bbipe3a B CToneuHnue ueHTpaJIbHOJ HnHe Ha 3aDHeI CTeHKe Me6eII.

→PUC.28

1. BbipOBHnTe WApIOH No cHTpaIbHOJ IINHH Ha 3aHHe CTeHKe Me6eN N IO HxKHeMy KpaO CToneUHNuBJI.
2. CdelaIaIe BbIpe3 B 3aIHei cTeHKe B COOTBeTCTBnC Ila- 6JIOHOM.
   7.ПослЕ ВынOLнEHиВ Bipe3a yДаЛпTe OПИКИ.
3. 3aRepeMeTn3npyIe CTbIKN TePMoCTOKNM IN BOHOHePNOHnIaEMbIM repMeTNIKOM.

→Pnc.25

BeHTnlaucna

1.YCTaHOBtBe BO3dyuHbI KJIanaH B zuKone dIpyeXnMa CnpKyJUcIN BO3dyxa.
- MInHmAlbHoe nonepeuHoe ceeHne BO3dyuHoTo KnaHa HOnKHO 6bTb npM. 400 cm².

-BbIyckHoe OTBepCTHe BcOKone DoJHKHO 6bTb DocTaTOUHO BoJbWM, YTObI ObecneuHTb TAY Hn3Kn ypoBeHb Wyma.

1. TTo6bI npn6op fynKUHOHPOBaI npaBnIbHo, o6ecneyTe npITOK Bo3dyxa K BapOuHoi NaHei Ype3 OTBepCThe DnB BixOda Bo3dyxa C MINHMaJIbHbIM NOpEpeHbIM CeueHem 200cM² B HxKHeM uKaΦy.

YcTaHOBKa np6opacpeKHMOM cnKpyIaHn BO3dyXca aanTePOM Kpenenne yNIOHTHeTnaHa aanTepe

3aKpeHnTe yIIOTHnTeIb Ha aIaIaTepe Ha pacCToHn Hc 60nee 5 MM OT Kpa.

Puc.29

YctaHOBKa aanTepa

1. OuHCTHe N o6e3KnPbTe NOBepxHocTb PnPKJIeNBaHH BOKpyr BbIpe3a B 3aDHei CTehKe Me6eHN.
   2.YcTaHOBnTe aAnTep B BbInyckHoe OTBepCTne B 3aHeN YaCTn BapOHyI NaHEII.
   →PUC.30
2. CHIMITE 3aunTHyU nHcy c anaTepa.
   PUC.31

YcTaHOBka np6opa B BBipe3 CToJeHHue

1.Y6eIITecb,yTO cTeBOKabEnbnoKnIOUeyH KnpN6Opy.
2.AkkypaTHO yCTaHOBHTe npH6Op B BBIpe3 cToJIeWHNtbl. P_NC 32

Фнкациаадпетера

1. YdeepKIBa CpeHnI DeepKaTeIb aAanTepa, CdBINbTe ero 6OKOBIMN DeepKaTeIaMn K 3aDHei CTeHKe B HIXHEm WkaФy n npNKJIeIte. P_NC 33
   2.Пи Heo6xOIMOCn DoONHHTeNbHO 3aФHKcpyIte aIanTeBnHTaMn. →Pnc.34

IoproBka Me6eN K yctaHOBKe np6opa IJIa CHPKylraun BO3dyxa C cHPKylraunOH HbIM KaHaJOM

1.Пи Heo6xOaHMoCtN CHIMITE 3aDHIoCTeHKy Me6eHN.
2.ПиКOM6HINHPOBaHN CПLOCKIM KaHaIOM yuHTbIBaHTe COOTBETCTBHe pa3MepOB Bblpe3a B 3aDHei CTHeKHe. P_NC [35]
3.YcTaHOBnTe Bo3DyUHbI KlaNaH B zuKone IpapeKIma CnpKyJnUBo3Dyxa.

MHHImaJIbHoe nonepeuHoe ceeHne BO3dyUHoro KJanaHa DOJIxHO 6bITb npm.400 cm².
-BbIyckHoeOTBepCTHeBUOKOJIeDOLXHO6bITbDOCTaTouHO6oJbUIM,UTo6blObecneuHTbTAYHn3Kn ypoBeHb Wyma.

1. TTo6bI npn60p fynKUHOHPOBaI npaBnIbHo, oBeCneBTe npITOK Bo3dyxa K BapOuHoi naHei Ype3 OTBepCTne DnA BixOda Bo3dyxa C MINHMaJIbHbIM NOpEpeHbIM ceHHeM 200cM² B HnKHeM WkaFy.
2. Iocne BbInonHeHHBbIpe3a ydaJIte OINIKN.
3. 3aRepeMeTHn3HpyTe CTbIKN TepMOCTOnKIM N BOHOHeIPO-HuCaembIM TepMeTNIKOM. Pnc.25

YcTaHOBKa npH6opa IaI pa6oTbI B peXHMe UINPKyJIaIcH N BO3dUxA C UINPKyJIaIcHNOHHbIM KaHaJlOM

1. IcnoIb3yIte yIInoTHIeIb, cIpyKyIaIIOHHb KaHaI, dIΦ-Фу3Op IФИbTp dIyIaIeHnI 3anaxOB bpeKImpeIcnpKyJIaIu BO3dYxa.
2. YHTbBaIte pa3Mepb pa3JIuHbIX IIOCKHX BO3dYXOBoB. CtpaHua 73

ФнкацулnotHTteJIa

3aKpeNITe BXOJUINB KOMNJIeKT NocTaBKN yNIOHTeNB Ha NIOCKOM KaHane He daJIbIe 5 MM OT Kpa. P_NC 36

YctaHOBka NIOCKORKaHaJa

YcTaHOBnTe PNOCKn KaHaI B BbInyCKHoe OTBepCTne Ha 3aJHei CTeHKe npNo6opa. Pnc.37

YctaHOBka np6opa B Bbipe3 B CToJeHHue

1. Y6eIntecb, yTo cTeBoi KaebIb noKIIoucen K npHbOpy.
   2 AKKypaTHO yCTAHOBNTe np6op B BBpe3 cToJeHHuBl. P_NC 38

YcTaHOBbCa ChCTeMbI Tpy6 MeHdI npH6Opom HnΦΦy3OpOM

1. CoeHHHe KOMHOENTbI cHpKyIaIOHOHorO KaHaJa MeJx dy co6oN.

-3aKpeHnTE coeHNHTeN IIOCKHX BO3dYxOBOOB, 3a-ΦHKCHPOBaB HX CO ΚeJyKOM.
-ДяболгендяжногиКсauипнкpyтite coeHnTeь поского BO3dYxOBOda 4 BHTamN Дяпл actka PT 4x8 MM.

→Pnc.39

2IooeHnHTeUINPKyJauHHbKaHaC nPiocKm BO3- DxyoBOOM K 3aJHe YacTn BapOuHOI NaHeII. P_sc 40
3.ПодсоeДинITEДИФФуЗОРКцИрКУЛЯЦИОНHOMYKaHany. →Pnc.41

IodrotOBKa Me6eJn IJIy yCTaHOBKn peKIMa OTbOda BO3dyxa

1.Пи Heo6xOДMOCTN CHIMITE 3aHIOCTeHKy Me6eIi.
2ПиКOM6HINPOBAHnCПIOCKIMKaHaIOMyHTbIBaTc COOTBeTCTBnpepa3MePoB BbIpe3aB3aHneCTeHKe. P_sc 42

1. Nocle BbInoJIHeHnB Bipe3a ydaJIte OINIKN.
   4.3aRepeMeTHn3HpyTe CTbIKN TepMOCTOKNM IN BOHOHePOnHnIaEMbIM TepMeTNIKOM. P_NC 25

YcTaHOBka npH6opa IJIpa6OtBI B peKHe MTBOJa BO3dYaXa

1. B pexime OTbOda Bo3dyxa HcNoIb3yIe yIpyntHtTeIb IyMOnorIooaIoUneФIbTpbl.
2. Co6nOdaIte yka3aHn no paBote B peKHe M e OTbOa BO3- dyxa. CtpaHua 75

ФнкацуYPNLOTHHTeJIa

3aKpeNTe BXOJaIINB KOMnEKT NocTaBKN yNIOHTeJIb Ha IIOCKOM KaHaJIe He DaJIbWe 5 MM OT KpaJ. P_NC 36

YctaHOBKa CnCTembl Tpy6

1. YctaHOBInTe PINOckn KaHaJI B BbInyCKHoe OTBepCTHe Ha 3aJHei CTeHKe npNo6opa. PUC.37
2. Пи Нeoбходимоctи монтугий Te ДОпОннITEь bIe 3Ie-MeHTbI ChTeMbI Tpy6.

YcTaHOBka np6opa B BBipe3 CTOJeHHue

1. Y6eIntecb, yTO cTeBoi KaebIb NIOKJIIOUeH K npIbOpy.
   2.AKKypaTHO ycTaHOBnTe npH6Op B Bblpe3 cToJIeUHHuBl. P_NC 38

IopcoeHHeHne BbITaHHoTpy6bl

1. 3aKpeIe BbITJHHyIO Tpy6y Ha KOJIeHe IIOCKORO BO3dYXOBoJa.
   2 BbIIOJIHHTe coeINHeHHe c BbITAXHHbIM OTBepCTHEM.
2. 3aRepeMeTn3npyTe MeCTa CoeINHeHr COOTBeTCTByIO-UM o6pa3OM.

YctaHOBkaΦHbTpOB

3aMeTHa: B peKHMe cIrpKyIaIu ycTaHOBHTe FInbTpbl, nOrloaIOUne 3anax.
BpeKnme OTOBa BO3dyxa yCTaHOBITE WymONOrNoaHouneΦnIbTpbl.

1. 06paTHe BnMaHne Ha HnPaBHeHne Bo3DyUHOro NtOKaΦnIbTpOB.
   2.BctaBbTe B npn6op Dba fNtpa CneBa n cnpaba N CdBnHbTe IN Bnpeq.

→PNC.43

1. BCTaBbTe B npn6op npyrgne DBA pntbtpbl cneBa n cnpaBa.
   →PnC.44

YcTaHObKa HnpoynBaHbHaOuIeroΦnIbTp a

YcTaHOBnTe KInpoynabNBAIOUmHnIbTp.
→PUC.45

3neKtpnuecKoe noDKIIOUeHne

1. YuHTbBaIe npaMeTpbl NOdkluoyehnHa TInoBOI Ta-6JnUKe.
   2.ПодклioчnteКлему3Nka6елЯрспpeДиTeьнй Коробke，Кakпokа3aHoHa pncyHke.

PHC.46

3.ПоДКЛIOЧИТЕКЛEMМУ2Nka6eЯнpacпpeДENITeHOBIN Kopo6ke，KAKnOKa3aHOHaPcCyHKe.
→Puc.47
4.Поdkлioчite KIeMMy 1 N ka6eJIa paCppeIeIteIbHoi Kopo6Ke, KaK noka3aHo Ha pncyHke.
→Pnc.48
5.Подклочп Клемmy 2L/2NКабеляКpacnpedentel-нов Коробke,Кak noka3aHoHa pncyHke.
P_HC 49
6. YuHTbIaBte ZbET KaBeNei.

-BN:KOpuHneBbI
-BU:cHHN
- GN/YE: JkntbI n 3eHbI
-BK: Yephbl
-GY:cepbii

1. B 3aBnCmOCTn OT Tnna NpDkJIuOeHn, npi Heo6xOaMocTn paCnONIOKHTe Ka6eNbHbIe 3aXHMbl, NOcTaBnEMBIe B KOMPNeKTe, No-pa3HOMy.

2. Pn Heo6xOaHMOCTN Hcnonb3yIte Ka6eIbHbIe 3aKIMbl Dnra coeDInHeHH DaByX Ka6eIe.

3. YKopoTInTe Jnnbl KaBen.
   -YdaJIHTe H3OJIaIIO.

PpOBePKa pa6oTbI

1. BkHouHTe npH6op.
   2.Ecnn 3aropaeTcN O400, E8513 npnOp noKnHOn-ueH HeKoppeKTHO.

"PpOBeRka n OToJaKa IOnKnHoueHnK 3NeKeTpoCeTu", CtpaHnua 77

1. EcIn Ha dinCnnee npnbopa He noRbIeTcHnDnKaun OwN6ok, npOBepbTe pa60Ty BeHTnlaucn, cJeDyR pykoBODCTBy NO 3Kcnnyatau.

PpOBepKa H OTlaIka NODKJIIOUeHnK 3JneK- TpOcETn

1. OToeDHHTe npH6Op OT cETN.
   2.Y6eIntecb,yTO NOKJIIOUeHHe Ha npBope (pnc.4) nNoKJIIOUeHHe Ha CTeHe (pnc.8) COOTBeTCTByIOT CXEMe NOKJIIOUeHnB INHCTpyKuIN N O MOHTaKy.

"IoiIOrOToBk K 3JIeKtPOnIOJIoJIuHoyeHnIO", CtrpaHnua 74
"3neKtpnueckoe noKnIouheNe", CtpaHua 77

3.ДЯ3N O6paTne BHNMaHHe Ha cNeIyUOuIn pncyHOK. →Pnc.50
4.ДЯ2NobpaTneBHIMaHHeHaCneIyOuPnIpyHOK. →Pc.51
5.ДЯ1N O6paTne BHMaHHe Ha cIeIyOuIIN PnCyHOK. →PnC. 52

IpepeHaCTpoiKa HnHnKaaun Ha peXHM OTBOda BO3dyxa

1. Пи НeoбхоДИМОСТ ИпЕнэсТРОЛТЕ COOTВETCTBYIOIM M OБразOM 3ЛЕКТПОННOEУпЯВЕHNE B6a3OBbIX yCTaHOB-Kax ДЯ ржима OTBOДA BO3dYxa.
2. CM. rnaBy «Ba30BbIe yCTaHOBKn» B pyKOBoIDCTBe no 3Kc- nlyataun.

Демонтан пибopa

BHIMAHHE!

Pn HcNoB3OBAHn HcTpymeHTOB MoKHO NOBpeDntb paMy np6opa.

He n3BneKaai Te npH6op CBepxy.

1. OToeDHHte npH6Op OTNeKTPocEtN.
2. CHIMTE BbITXHON KaHaN INOcIa6Be coeINHeHne INR cIPKyJIaUN BO3Dyxa.
   3.ИЗБLEКТЕпнбов,БВITOKHNYB eRo cHn3y.
