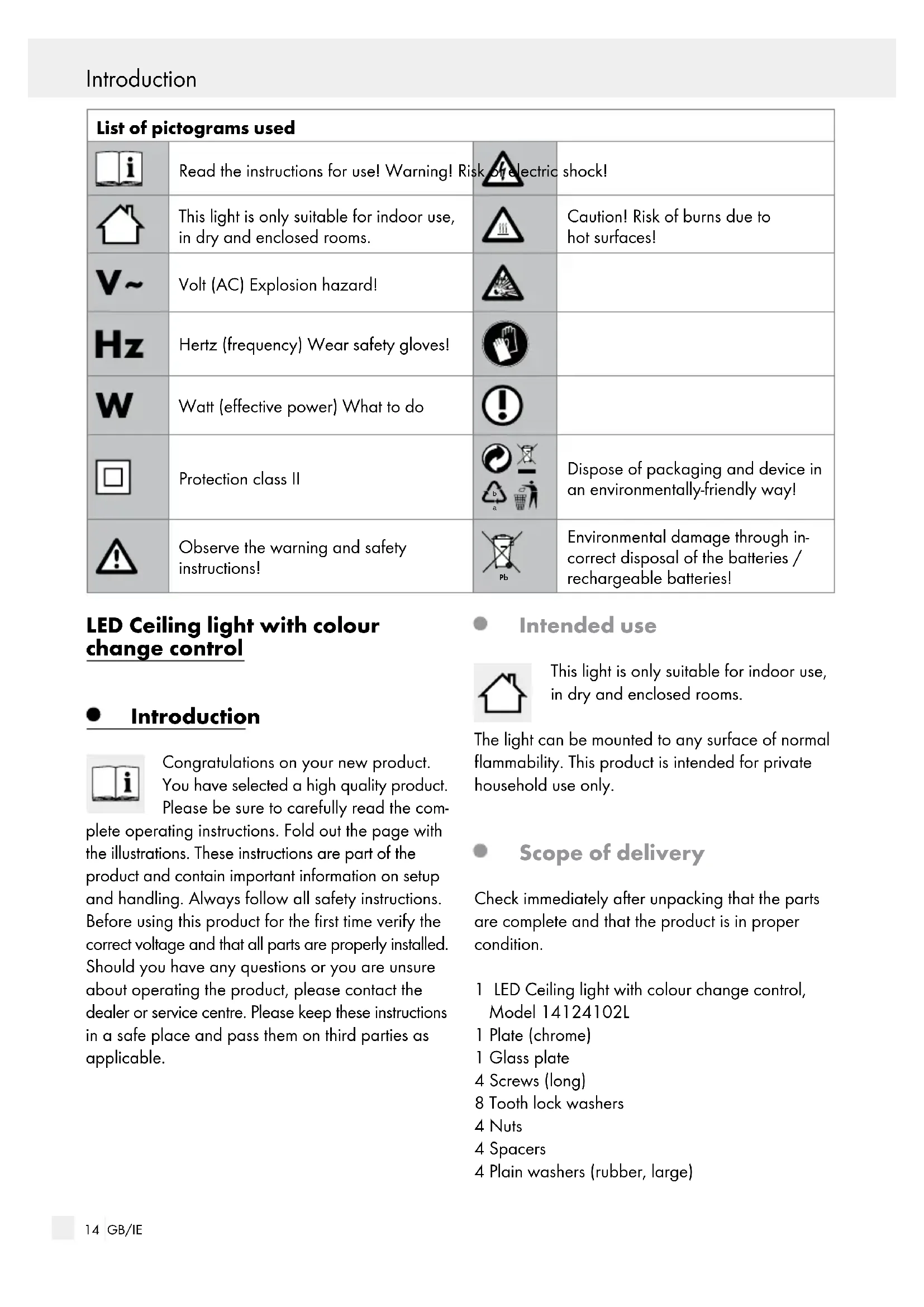

Environmental damage through in- correct disposal of the batteries / rechargeable batteries! LED Ceiling light with colour change control Introduction Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the com- plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable. Intended use This light is only suitable for indoor use, in dry and enclosed rooms. The light can be mounted to any surface of normal flammability. This product is intended for private household use only. Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 LED Ceiling light with colour change control, Model 14124102L 1 Plate (chrome) 1 Glass plate 4 Screws (long) 8 Tooth lock washers 4 Nuts 4 Spacers 4 Plain washers (rubber, large) Introduction / Safety15 GB/IE Introduction Introduction / Safety 4 Plain washers (rubber, small) 4 Box nuts 2 Screws 2 Wall plugs 2 Batteries (AAA) 1 Remote control 1 Set of assembly instructions and instructions for use Parts description

Locating screws (connection housing)

Screws (mounting bracket)

Mains connection cord (external)

Terminal housing 10 a Plate (chrome)

Plain washer (rubber, small)

Plain washer (rubber, large) Technical data Model no.: 14124102L Operating voltage: 230–240 V∼ 50 Hz Lamps: LEDs (non-replaceable) Rated power: 20 W Protection class: II / Protection type: IP20 (only suitable for indoor use) Remote control: Batteries: 2 x 1,5 V AAA Safety Safety information Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions! Do not leave the light or packaging material ly- ing unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. Avoid the risk of fatal injury from electric shock Ensure that a qualified electrician, or a person trained to carry out electrical installations, per- forms the electrical installation. Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage. A damaged mains cable indicates a life-threat- ening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician. Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the light (see „Technical data“). Ensure that the light does not come into contact with water or other liquids under any circum- stances. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Do not install the light on a wet or conductive substrate!16 GB/IE Prevent fire and injury hazards RISK OF INJURY! Check each lamp and lamp glass for damage immediately after unpacking. Do not mount the light with defective lamps and / or lamp lenses. In this case, contact the service centre for a replacement. Do not look directly into the light source (lamp, LED etc.).

CAUTION! RISK OF BURNS

DUE TO HOT SURFACES! Ensure that the light has been switched off and has cooled before touching it, to avoid burn in- juries. Lamps develop a lot of heat in the area of the lamp head. The lamp‘s light source is not replaceable, the entire light needs to be replaced if the light source reaches the end of its service life. Safe working Mount the light so that it is protected from moisture and dirt. Carefully prepare the installation and allow sufficient time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach. Always be attentive when working! Always pay attention to what you are doing and act with common sense. Never install the light if you are having difficulty concentrating or do not feel well. Safety instructions for batteries / rechargeable batteries DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries. Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. Avoid contact with the skin, eyes and mucous membranes. In the event of contact with bat- tery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention. WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries / recharge- able batteries, immediately remove them from the product to prevent damage. Only use the same type of batteries / recharge- able batteries. Do not mix used and new bat- teries / rechargeable batteries. Remove batteries / rechargeable batteries if the product will not be used for a longer period. Risk of damage of the product Only use the specified type of battery / recharge- able battery! Insert batteries / rechargeable batteries accord- ing to polarity marks (+) and (-) on the battery / rechargeable battery and the product. Clean the contacts on the battery / rechargea- ble battery and in the battery compartment be- fore inserting! Remove exhausted batteries / rechargeable batteries from the product immediately. Safety Preparation / Prior to installation / Initial use17 GB/IE Preparation Required tools and material The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions. - Pencil / making tool - Voltage tester - Screwdriver - Electric drill - Drill bit (approx. ø 6 mm) - Side cutting pliers - Ladder Prior to installation Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). Use the voltage tester to verify the de-energised status. Initial use Mounting the light Remove the locating screws

visible at the side of the connection housing

and remove the mounting bracket

at the back. Place a tooth lock washer

onto each screw (long)

from below through the terminal housing

Screw the plate 10 a to another tooth lock washer

. Carefully tighten the nuts

and a plain washer (rubber, large)

Place the glass plate

Be sure the trim faces outward. Attach the glass plate

by laying the plain washer (rubber, small)

on it and screwing it together using the box nuts

. Be sure they are positioned correctly.

e the slotted holes in the mounting bracket

intended for the screws

to mark the bores. Now drill the mounting holes (approx. 6 mm, depth approx. 30 mm). Be sure not to damage the supply line. Insert the wall plugs

sten the mounting bracket

Open the junction box

through the protective tube

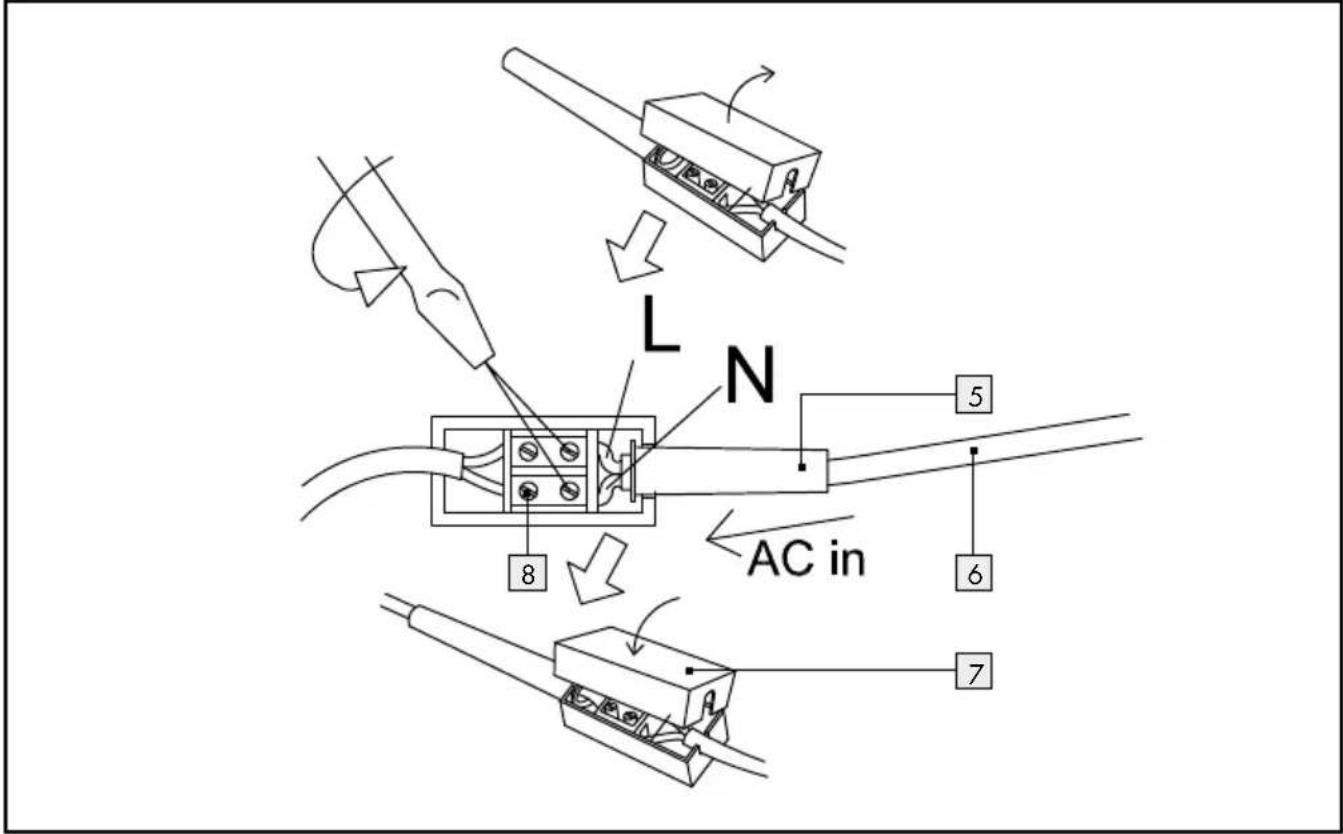

Connect the connection cable of the light to the mains connection cord (external)

Note: Ensure that the individual conductors of the mains connection cord (external)

are connected properly: current-carrying conductors, black or brown = L symbol, neutral conductor, blue = N symbol. This light is particularly insu- lated and may not be connected to a protective conductor. Close the junction box

Now use the locating screws

to connect the light to the mounting bracket

Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box. Your light is now ready to use. Inserting / replacing batteries (remote control) (fig. B) If the range of the remote control

reduces, the battery needs to be replaced. Safety Preparation / Prior to installation / Initial use18 GB/IE Disposal / Warranty and serviceInitial use / Maintenance and cleaning / Disposal Slide the battery cover on the reverse side of the remote control

from the remote control

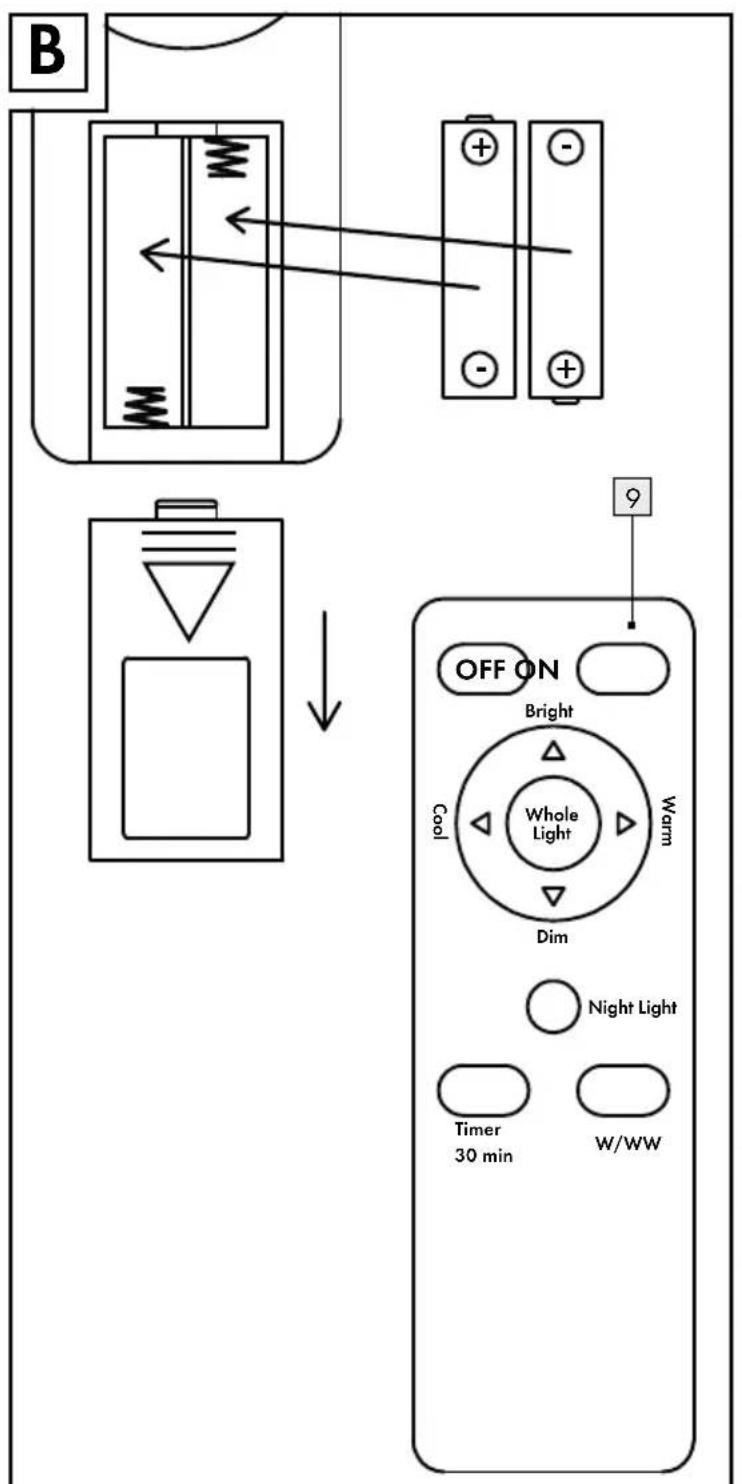

in the direction of the arrow. Remove the batteries. Insert the new batteries (AAA) into the remote control

Note: The correct polarity is indicated in the battery compartment of the remote control

Slide the battery cover back onto the remote control

Controlling light effects with the remote control (fig. B) Note: The transmitter for the remote control

located on the opposite side of the battery com- partment. Ensure there are no obstacles between the transmitter and the receiver. Choose from the following functions: ON button = Switch on OFF switch = Switch off Night Light button = Nightlight function (3 brightness settings) W / WW button = Light colour white/ warm white Timer 30 min button = Automatic switch-off after 30 minutes Ring button in the direction: Bright = Brighten Dim = Dim Cool = Change light colour to cold white Warm = Change light colour to warm white Whole Light button = neutral white light Maintenance and cleaning RISK OF ELECTRIC SHOCK! Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other fluids, or immerse it in water.

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Allow the lamp to cool down completely. Do not use solvents, petrol, etc. Otherwise the lamp will be damaged. Only clean with a dry, lint-free cloth. Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box. Disposal The packaging is made entirely of recy- clable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre- board / 80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return19 GB/IE Disposal / Warranty and service the batteries / rechargeable batteries and / or the product to the available collection points.
