USER MANUAL HG06761A AURIOL

Operating and safety instructions

NL RADIOGESTUURDE WANDKLOK

IAN 456317_2401, art.N°: 4-LD6684-1, 4-LD6684-2

GB|IE|NI|CY|MT

Operating and safety instructions

Contents

Contents 36

Introduction 38

Intended use 38

Shipment 38

Technical information 38

Explanation of the signal words 39

Key 39

Important safety Instructions 41

Safety instructions for the user 41

Battery Safety Instructions 42

Hang the product securely 43

Back and control panels 44

Getting started 44

Reception interference 45

Manual adjustment 45

Manual start of the radio signal reception 45

Reset (RESET) 45

Thermometers 46

Hygrometer 46

Battery replacement 46

Cleaning Instructions 46

Storage 46

Disposal 47

Disposal of the electrical appliance 47

Disposal of batteries 48

Simplified EU Declaration of Conformity 49

Warranty of digi-tech gmbh 49

Warranty terms 49
Warranty period and legal claims for defects 49
Scope of Warranty 50
Process in case of a warranty claim 50

Service 51
Supplier 51

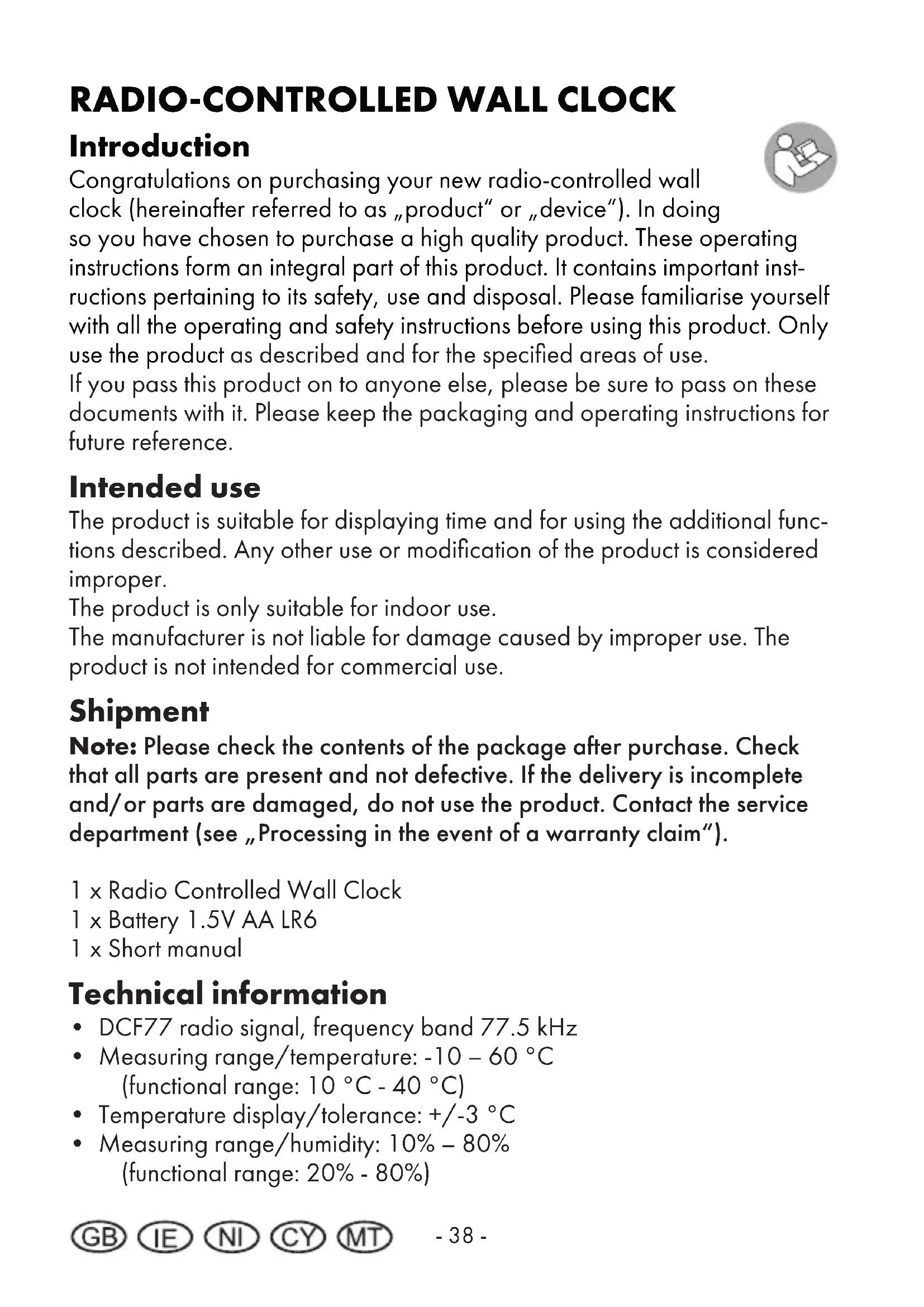

RADIO-CONTROLLED WALL CLOCK

Introduction

Congratulations on purchasing your new radio-controlled wall clock (hereinafter referred to as „product“ or „device“). In doing

so you have chosen to purchase a high quality product. These operating instructions form an integral part of this product. It contains important instructions pertaining to its safety, use and disposal. Please familiarise yourself with all the operating and safety instructions before using this product. Only use the product as described and for the specified areas of use.

If you pass this product on to anyone else, please be sure to pass on these documents with it. Please keep the packaging and operating instructions for future reference.

Intended use

The product is suitable for displaying time and for using the additional functions described. Any other use or modification of the product is considered improper.

The product is only suitable for indoor use.

The manufacturer is not liable for damage caused by improper use. The product is not intended for commercial use.

Shipment

Note: Please check the contents of the package after purchase. Check that all parts are present and not defective. If the delivery is incomplete and/or parts are damaged, do not use the product. Contact the service department (see „Processing in the event of a warranty claim”).

1 x Radio Controlled Wall Clock
1 x Battery 1.5V AA LR6
1 x Short manual

Technical information

• DCF77 radio signal, frequency band 77.5 kHz
• Measuring range/temperature: -10 - 60 °C (functional range: 10 °C - 40 °C)
• Temperature display/tolerance: +/-3^ C

• Measuring range/humidity: 10% - 80% (functional range: 20% - 80% )

• Humidity display/tolerance: +/-8%
  Size: approx. 25.4× 4.5 cm
  Weight:

Model 1: approx. 411 g (excl. battery)

Model 2: approx. 406g (excl. battery)

• Battery: 1 × 1.5 VAAR6/LR6

• Indicator for DC voltage

Caution fragile!

Explanation of the signal words

WARNING!	This symbol/word indicates a hazard with a medium level of risk, which, if not avoided, could result in death or serious injury.
CAUTION!	This symbol/word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.
ATTENTION:	This signal word warns against potential damages to property.
Note: This signal word is used for additional information.

Key

	Improper use of the batteries/accumulators may result in explosion and leakage of the battery fluid.
Includes alkaline battery (AA/1.5V/LR6)	Alkaline battery included
Incl.
1.5 V AA - +	Battery: 1 x 1.5 V AA R6/LR6
= = =	Indicator for DC voltage
	Read through these operating instructions!
CE	digi-tech gmbh uses the CE marking to show compliance with the applicable EU directives.
	DCF77 radio signal, frequency band 77.5 kHz
	temperature
%	Air humidity
	Caution fragile!
	Always keep batteries out of children's reach.
	Do not throw batteries into the fire or place them near fire.
	Batteries must always be inserted with the correct polarity.
	Do not deform or damage batteries.
	Do not open or disassemble batteries.

Do not mix batteries of different brands and types.

Do not mix new and used batteries.

Do not charge batteries.

Protect batteries from moisture and keep them away from liquids.

Do not short-circuit batteries.

Always insert the batteries in the correct polarity.

Protective gloves must be worn!

Important safety Instructions

Safety instructions for the user

WARNING! Risk of death and accidents for infants and children

Children often underestimate the dangers. Always keep children away from the product.

• This device may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised or instructed in the safe use of the device and understand the hazards involved. Children are not allowed to play with the product. Cleaning and user maintenance is not to be carried out by children without supervision.
• The packaging material is not a toy. Children can get caught in it and suffocate while playing.
• Do not operate the product if it is damaged.

• Do not expose the product to moisture.

• Only use the product indoors.

• This product does not contain any parts that can be serviced by the consumer.

Battery Safety Instructions

WARNING! Danger of death!

• Keep batteries/accumulators out of reach of children. In case of swallowing, seek medical attention immediately!
• Ingestion may result in burns, perforation of soft tissue and death. Severe burns can occur within 2 hours after swallowing.
• Do not use rechargeable batteries!
• Never charge non-rechargeable batteries.
• Do not short-circuit batteries/rechargeable batteries and/or open them. This can result in overheating, fire hazards or explosions.
• Never throw batteries/rechargeable batteries into fire or water.
• Do not expose batteries/rechargeable batteries to mechanical stress.

Risk of battery/rechargeable battery leakage

CAUTION! Risk of injury!

Leaked or damaged batteries/rechargeable batteries can cause burns if they come into contact with the skin.

Therefore, wear suitable protective gloves in this case.

• Avoid extreme conditions and temperatures that can affect batteries/ rechargeable batteries, such as radiators/direct sunlight.
• If batteries/rechargeable batteries have leaked, avoid contact of skin, eyes and mucous membranes with the chemicals! Rinse the affected areas immediately with clear water and consult a doctor!
• In case of leakage of the batteries/rechargeable batteries, remove them from the product immediately to avoid damage.
• Remove the batteries/rechargeable batteries if the product is not used for a long time.

CAUTION: Risk of damage to the product

• Only use the specified battery/rechargeable battery type!
• Insert batteries/rechargeable batteries according to the polarity markings (+) and (-) on the battery/rechargeable battery and the product.
• Clean contacts on the battery/rechargeable battery and in the battery

compartment with a dry, lint-free cloth or cotton swab before insertion!

• Remove depleted batteries/rechargeable batteries from the product immediately.

Hang the product securely

The product is not designed for operation in rooms with high humidity (e.g. bathrooms). Before attaching it to the wall, make sure that there is no gas, water or power line at the drilling site. Use suitable screws and dowels (not included). Be mindful of the wall's condition.

The manufacturer assumes no liability for damage caused by improper fastening. Make sure that

• no direct heat sources (e.g. heating) act on the product;
• no direct sunlight hits the product;
• Contact with spraying or dripping water is avoided;
• the product does not hang in the immediate vicinity of magnetic fields (e.g. loudspeakers);
  to avoid having foreign objects interfere with it;
• Candles and other open flames must be kept away from the product at all times to prevent the spread of fire.

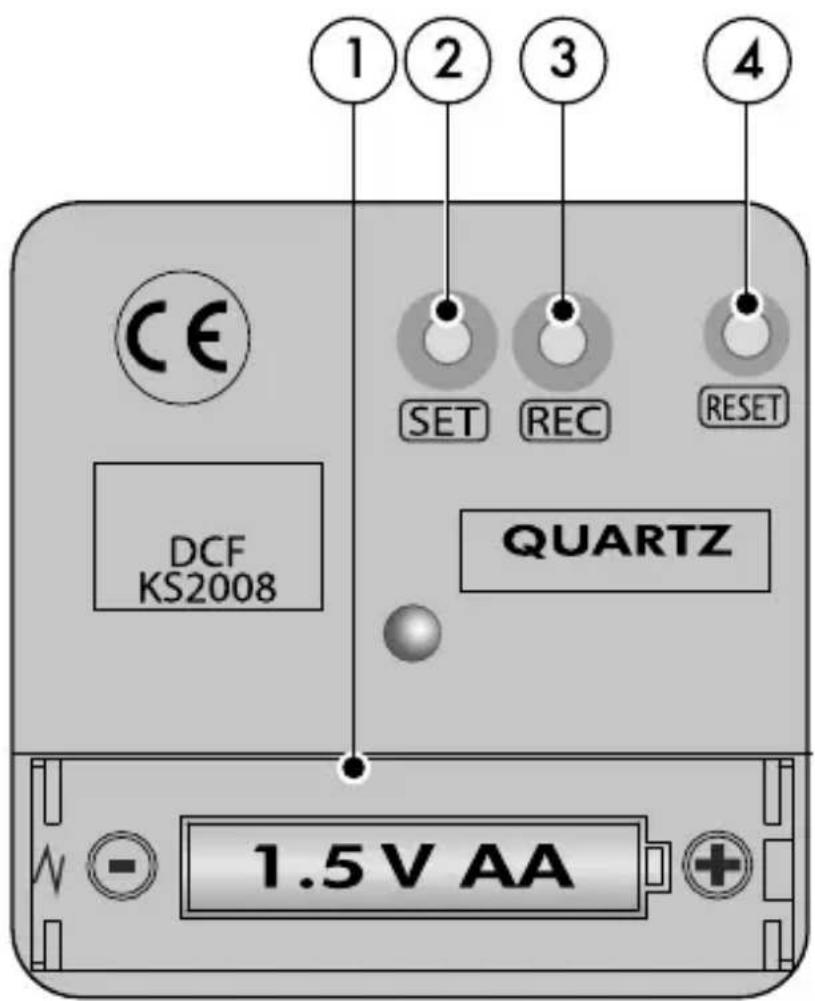

Back and control panels

1 Battery compartment 2 SET button
3 REC	button 4 RESET button

Getting started

• Remove all packaging material from the product.
• Insert a 1.5 V AA R6/LR6 battery into the battery compartment

with the correct + / - polarity.

The hands move to the 12:00:00-o'clock position and stop. The product receives the DCF77 radio signal. This process can take 3 - 10 minutes. Upon successful reception of the DCF77 radio signal, the hands automatically move to the correct time. The product updates the internally stored time daily at 2:00, 3:00, 4:00, 5:00, 14:00, 15:00, 16:00 and 17:00.

Note: Please do not move the product while receiving the DCF77 radio signal.

Reception interference

The DCF77 radio signal is transmitted from near Frankfurt am Main. It can be received up to approx. 2000km in the radius around Frankfurt am Main. However, there are some sources of interference that can significantly interfere with the reception of the DCF77 radio signal. If your product does not receive the DCF77 radio signal correctly, hang the product in another place. Note that electromagnetic radiation may occur in the vicinity of the computer, telephone, radio and TV, which may interfere with the reception of the DCF77 radio signal. Other sources of interference for the reception of the DCF77 radio signal can be strong building insulation (metallic components), high mountains or atmospheric interference. Replace the batteries if necessary.

Manual adjustment

If the pointers are not exactly in their position, you can adjust the pointers using the SET button.

• Long press the SET button once to enter setting mode.
• Then briefly press the SET button to set the pointers in small increments. Or long press the SET button to move the hands continuously.
• Release the SET button to exit the setting mode.
  The hands move normally again.

Manual start of the radio signal reception

You can start the radio reception manually by pressing and holding the REC button for 5 seconds.

Reset (RESET)

You can reset the product by briefly pressing the RESET button with a thin object, if necessary.

All settings will be lost. The hands move to the 12:00:00-o'clock position and stop.

The product receives the DCF77 radio signal.

Upon successful reception of the DCF77 radio signal, the hands automatically move to the correct time.

Thermometers

Your product has an analogue display for the temperature in ^ C / ^ F

The measuring range of the temperature is between -10 - 60^ (functional range: 10^ - 40^ ).

Note: After unpacking your product, it may take some time for the sensor to adapt to the new environment.

Hygrometer

Your product has an analogue display for humidity in %.

The humidity measurement range is between 10 - 80% (functional range: 20% - 80%).

Note: After unpacking your product, it may take some time for the sensor to adapt to the new environment.

Battery replacement

Remove the battery non-destructively.

Insert a 1.5 V AA R6/LR6 battery into the battery compartment with the correct +/- polarity.

Cleaning Instructions

Improper cleaning may damage the product. Do not immerse this product in water or any other liquid. Avoid any aggressive cleaning agents, brushes with metal or nylon bristles, or any sharp or metallic cleaning objects such as knives, hard spatulas and the like. These can damage the surface. Clean the product with a soft, dry, lint-free cloth, such as that used to clean spectacle lenses.

Storage

If the product is not used for a long time, remove the battery and store the product, cleaned and protected from sunlight, in a dry, cool place, preferably in the original packaging.

Disposal

The product and the packaging materials are recyclable. Please dispose of them separately for better waste treatment. To learn options for disposal of the used product, please contact your municipal or city administration.

Check the labelling on the packaging materials when separating waste — they are marked with abbreviations (a) and numbers (b) with the following meaning:

1-7:Plastics

20-22: Paper and cardboard

80-98: Composites

Disposal of the electrical appliance

The symbol with the crossed-out waste container means that electric and electronic devices must not be disposed of in the household waste. Consumers are obligated by law to dispose of obsolete electric and electronic devices separately from

unsorted household waste. This ensures environmentally friendly and resource-saving recycling. Batteries and rechargeable batteries that are not permanently installed in electric or electronic devices and can be removed without destruction must be separated from such devices before disposal at a designated site and disposed of properly. The same applies to illuminants that can be removed from the device without destroying it. Electric and electronic devices from private households can be dropped off at the collection points of the public waste disposal companies or at the collection points established by the manufacturers or distributors. The return of obsolete devices is free of charge. This free take-back obligation applies for store purchases and deliveries to your home address. The place of performance of the take-back obligation is the same as the place of performance of the delivery. Transport costs may not be charged for devices that are taken back. Generally, distributors are obligated to ensure the free-of-charge take-back of obsolete devices by means of suitable take-back sites at a reasonable distance. Consumers have the possibility to return obsolete devices free of charge to a distributor obligated to take back such devices if they purchase a new device of equal value with essentially the same functions. This option also applies for home deliveries. In the case of distance selling, the option to have obsolete devices collected free of charge is limited to heat exchangers, monitors and large devices with at least one outer

edge longer than 50~cm when purchasing a new device. The distributor has to ask the consumer whether they want to return an obsolete device at the time the sales contract is concluded. Apart from this, consumers can drop off up to three obsolete devices of the same device type at a supplier collection point free of charge without having to purchase a new device. However, the edge lengths of the respective devices must not exceed 25~cm .

Remove the battery without destroying it before disposal and dispose of it separately (see Disposal of batteries).

Disposal of batteries

The adjacent symbol means that batteries and accumulators must

not be disposed of together with household waste. Defective or used batteries/rechargeable batteries must be recycled in accor

dance with Directive 2006/66/EC and its amendments. Con

sumers are legally obliged to remove all batteries and accumulators, regardless of whether they contain harmful substances, such as:

Cd = cadmium, Hg = mercury, Pb = lead, Li = lithium or not, at a collection point in their municipality/district or in the trade, so that they can be disposed of in an environmentally friendly manner and recovered from valuable raw materials such as cobalt, nickel or copper. The return of batteries and rechargeable batteries is free of charge.

WARNING! Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Some of the possible components such as mercury, cadmium and lead are toxic and endanger the environment if disposed of improperly. Heavy metals, for example, can have adverse health effects on humans, animals and plants and accumulate in the environment and in the food chain in order to then enter the body indirectly through food.

WARNING! Danger of explosion!

There is a high risk of fire with lithium-containing used batteries (Li = lithium). Therefore, special attention must be paid to the proper disposal of lithium-containing old batteries and rechargeable batteries. Incorrect disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead

to a fire or explosion and have serious consequences for people and the environment. Therefore, in the case of lithium-containing batteries and rechargeable batteries, seal the poles before disposal to avoid an external short circuit. Batteries and rechargeable batteries that are not permanently installed in the device must be removed before disposal and disposed of separately. Please only return batteries and rechargeable batteries when discharged! If possible, use rechargeable batteries instead of disposable batteries.

Simplified EU Declaration of Conformity

Digi-tech gmbh hereby declares that the radio system type radio-controlled wall clock 4-LD6684-1, 4-LD6684-2 complies with Directive RED 2014/53/EU, Article 10 (8) and the RoHS Directive.

Your user manual and declaration of conformity can be downloaded here: www.digi-tech-gmbh.com/downloads

Then click on the magnifying glass and enter item number 456317_2401.

Warranty of digi-tech gmbh

This device comes with a 3 year warranty from the date of purchase. In case there are defects in this product, you have legal rights against the seller of the product. These legal rights are not limited by our warranty described below.

Warranty terms

The warranty period starts on the date of purchase. Please keep the receipt in a safe place. This receipt is required as proof of purchase. If a material or manufacturing defect occurs within 3 years from the date of purchase of this product, we will - at our option - repair or replace the product for you free of charge. This warranty claim requires you to submit the defective device and the proof of purchase (receipt) within the three-year period and briefly describe what the defect is and when it occurred, in writing. If the defect is covered by our warranty, you will receive the repaired or a new product back. The warranty period does not restart when the product is repaired or replaced.

Warranty period and legal claims for defects

The warranty period is not extended by the warranty claim. This also applies to replaced and repaired parts. Any damage and defects already present at the time of purchase must be reported immediately after

unpacking. Repairs done after the expiry of the warranty period are chargeable.

Scope of Warranty

The device has been carefully produced according to strict quality guidelines and meticulously tested before delivery. The warranty applies to material or manufacturing defects. This warranty does not extend to product parts that are subject to normal wear and tear and can therefore be considered as wearing parts or for damage to fragile parts, e.g. switches, batteries or that are made of glass. The warranty is void if the product is damaged, improperly used or maintained. For using the product properly, all the instructions given in the operating manual must be strictly followed. It is essential to avoid uses and actions which are advised or warned against in the operating manual. The product is intended for private use only and not for commercial use. In the event of abusive and improper treatment, use of force and interventions that have not been carried out by our authorized service branch, the warranty will expire.

Process in case of a warranty claim

To ensure that your claim is processed quickly, please follow the instructions below:

• For all inquiries, please have the receipt and the item number (456317_2401) available as proof of purchase.
• Please find the article number on the nameplate, an engraving, on the title page of your manual (bottom left) or as a sticker on the back or underside.
  If functional errors or other defects occur, first contact the following service department by telephone or email.

You can download this manual and many other manuals, product videos and installation software at www.lidl-service.com.

This QR code takes you directly to the LIDL service page (www.lidl-service.com) and you can open your operating instructions by entering the item number (456317_2401).

Service

Inter-Quartz GmbH, Valterweg 27A, 65817 Eppstein, GERMANY
Email: [e-mail], Phone: [phone]

GB 1080035156616

CY 80094403 80062851 MT

Supplier

Please note that the following address is not a service address. First contact the service point named above.

digi-tech gmbh, Valterweg 27A, 65817 Eppstein, GERMANY

Year of manufacture: 2024

IAN 456317_2401, Art.no.: 4-LD6684-1, 4-LD6684-2

www.digi-tech-gmbh.com/downloads
