Gartenpumpen-Set / Garden Pump Set / Pompe d'arrosage PGPS 1100 A1
DE AT CH
Gartenpumpen-Set
Translation of the original instructions
NL BE
Tuinpompenset
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB / IE Translation of the original instructions Page
Service-Center....13
Importeur ......13
Intended purpose......14
General Description......15
Scope of Delivery....15
Functional description....15
Overview....15
Technical Data....15
Notes on Safety 16
Symbols in the manual....16
Symbols on the equipment .....16
General notes on safety 16
Initial Operation....18
Mountcarryinghandle 18
Setting up 18
Mains Connection....18
Connecting the hoses .....19
Filling the pump 19
Checks before initial operation...19
Switching ON and OFF......20
Cleaning/Maintenance ......20
General cleaning instructions......20
Drain garden pump....20
Storage....20
Waste Disposal and
Environmental Protection ......21
Spare Parts/Accessories......21
Guarantee 22
Repair Service....23
Service-Center 23
Importer 23
Translation of the original
EC declaration of conformity ...101
Exploded Drawing ......109
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Intended purpose
The garden pump is intended for use in private homes and gardens. The unit is suitable for service water supply and the irrigation of gardens. It is solely intended for pumping clear and rain water up to temperatures of no more than 35 °C. Any other use, not expressly authorised in these instructions (e.g. for transporting foodstuffs, salt water, motor fuels, chemical products or water with abrasive materials), may cause damage to the equipment and represent a serious risk for the user.
The garden pump is not suitable for continuous duty. Continuous operation reduces the durability and shortens the guarantee period. This equipment is not suitable for commercial use.
Commercial use will invalidate the guarantee.
The operator or user is responsible for accidents or damage to other people or their property.
The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.
General Description
The illustration of the principal functioning parts can be found on the front and back foldout pages.
Scope of Delivery
Carefully unpack the appliance and check that it is complete:
- Garden pump
- Carrying handle
- 2 fi xing srews
- Suction hose
- Seal ring (pre-mounted)
- Adapter (pre-mounted)
- Prefi lter with backflow preventer (pre-mounted)
- Instruction Manual
Functional description
After connecting the suction and pressure hoses and fi lling the garden pump with water, it will output a defi ned volume of clear water.

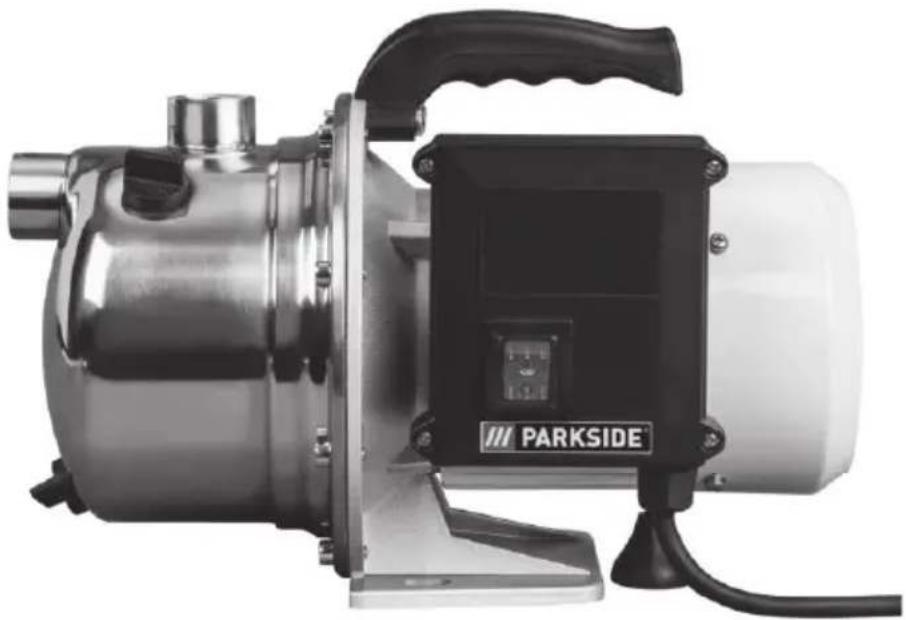

Overview
1 Protective cap
2 Water inlet
3 Protective cap
4 Water outlet
5 On/Off switch
6 Power cable
7 Carrying handle
8 2 fixing screws
9 Filler screw
10 Draining screw 11 Adapter
12 Seal ring
13 Suction hose connection, water inlet
14 Suction hose
15 Prefi Iter with backfl ow preventer
16 Suction hose connection, prefi Iter
Technical Data
Garden pump set....PGPS 1100 A1
Mains connection....230 V\~, 50 Hz
Power consumption 1100 W
Suction lift 7 m
Max. discharge rate....4.600 l/h*
Max. discharge head (Hmax) ..... 45 m
Max. water temperature (Tmax) ..... 35 °C
Hose connection ....1" (30.3 mm)
Safety class....I
Degree of protection....IPX4
Sound pressure level
(L_pA) 69.5 dB(A); K_pA = 3 dB(A)
Sound power level ( L_WA )
measured..81.6 dB(A); K_WA=2.16 dB(A)
guaranteed 85 dB (A)
* With the included suction hose (14), the maximum discharge rate of the garden pump can not be reached.
GBIE
line

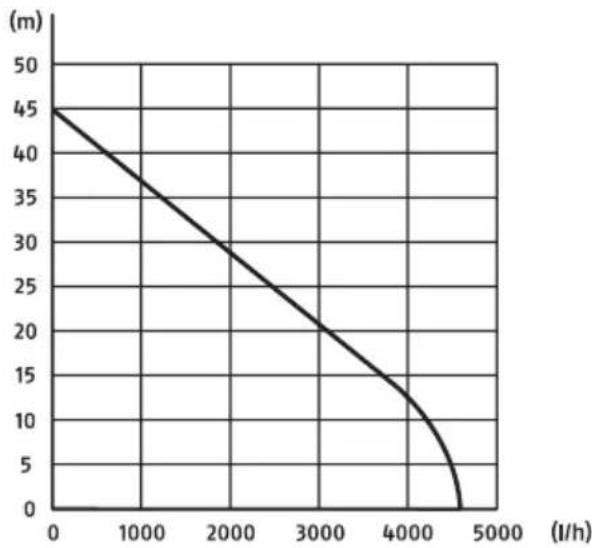

| Time (l/h) | Value (m) | | ---------- | --------- | | 0 | 45 | | 1000 | 38 | | 2000 | 30 | | 3000 | 22 | | 4000 | 12 | | 4500 | 5 | | 4750 | 0 |
Tighter hoses can reduce the output.
Notes on Safety
This section deals with the general safety regulations for working with the equipment.
Symbols in the manual
Warning symbols with information on damage and injury prevention.
Hazard symbol with in- formation on the preve- tion of personal injury caused by electric shock.
Instruction symbols with information on preventing damage.
Pull out the mains plug.
The device is not suitable to be connected to a drinking water supply system.
Help symbols with information on improving tool handling.
Symbols on the equipment
Caution! Not suitable for water with a high sand content!
Familiarise yourself with all operating elements before starting work, especially functions and modes of action. Ask a specialist if necessary. Read and comply with the operating instructions for the device!
Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.
Warning : Protect the pump from running dry. Risk of overheating!
Information of the acoustic power level L_WA in dB
Water inlet
Water outlet
Electric appliances should not be disposed of in the domestic garbage.
General notes on safety
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Working with the equipment:
Caution: to avoid accidents and injuries:
- People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the minimum age for using the device.
- Should there be people in the water, do not operate the equipment.
• Take appropriate measures to keep children away from the equipment whilst it is running. - Do not use the equipment in the vicinity of fl ammable liquids or gases. Non-observance will result in a risk of fi re or explosion.
- Do not use for water containing abrasive particles such as sand. The dispensing of aggressive, abrasive (grinding effect), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. Liquid temperature not to exceed 35 °C.
- Store the equipment in a dry place and out of reach of children.
Caution! To avoid damage to the equipment and any possible person injury resulting from this:
- Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.
- Do not carry or fi x the equipment by the cable or pressure line.
- Protect the equipment from frost and from running dry.
- Use only original accessories and do not carry out conversion work on the equipment.
- Please read the notes in the operating instructions on the topic of "Cleaning/Maintenance" and "Storage". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
Electrical safety:
Caution: to avoid accidents and injuries from electric shocks:
• After erection, the mains plug must be freely accessible when the equipment is in operation.
- Before operating your new pump, have a specialist check:
- The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,
- The protection of the electrical plug connections from the wet.
GBIE
- If there is a risk of flooding, fi x the plug connections in an area that is safe from flooding.
- Ensure that the mains voltage matches the specifications on the rating plate.
- The electrical installation shall be according to national wiring rules.
- Connect the equipment only to a socket with a residual current protection device (residual current circuit breaker) with a rated current of not more than 30 mA; minimum fuse 10 amperes.
- Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have any damage to your equipment repaired by a specialist.
- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
- Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
- Do not carry or fix the equipment by the cable.
- Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.
- Before any work on the equipment, during work breaks and in the case of non-use, remove the plug from the socket.
- The cross-section of mains connection lines must be no smaller than rubber hose lines with the
designation H07RN-F. The power cable wire cross section must be at least 2.5 mm ^4
Initial Operation
Mount carrying handle
B Fix the carrying handle (7) to the garden pump using the fixing screws (8).
Setting up
- Place the unit on a firm, horizontal, non-fl ooding surface.
- If you would like to install the device, screw it together with the base. A screw connection with a fastening plate also prevents the device from slipping. By doing so, ensure a free access to the drain screw (A 10).
- Always put up the garden pump at a point higher than the water surface you wish to pump water from.
Where this is impossible, install a low pressure-resistant shut-off implement between the appliance and the suction hose (available from specialist retailers).
Mains Connection
The pump you have purchases is already fitted with an earthed plug. The pump is intended for connection to an earthed socket at 230 V\~ / 50 Hz.
Connecting the hoses
- On the suction side, attach a hose with backflow preventer and install a prefile (available from specialist retailers).
- On the suction side, do not use any quick-action connection systems.
- Do not use the suction hose as a pressure pipeline.
- Remove the cover caps (1/3) from the device.
- Unless already mounted, screw the pre-fi lter with backfl ow preventer (15) and pre-fi lter connection (16) onto the suction hose (14). All parts are marked with a B.
-
First, screw the adapter piece (11) with water inlet (2) onto the device. Both pieces marked with an Ⓐ.
-
Next, screw the suction hose connection water inlet (13) with the sealing ring (12) onto the adapter piece (11). Both pieces marked with an A. Fit the water inlet free from air.
-
Fit a pressure hose to the water outlet (4) Fit the water outlet free from air.
Air in the suction hose will stop the garden pump from working properly.
Filling the pump
Fill up the garden pump every time before you start using it. Caution: Avoid dry running of the pump! Danger of overheating! Never touch an overheated pump! There is a danger of burns!
When switching on the pump, ensure that the pump and suction hose are completely filled with water in order to prevent the dry running of the pump. Dry running damages the device.
-
Open the filling screw (A 9) on the garden pump.
-
Fill with water to the fi ll point and retighten the fi lling screw (A 9).
Checks before initial operation
- Check that the electrical connection is 230 V\~ / 50 Hz.
- Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 10 A).
- Make sure that moisture or water never come in contact with the mains connection. There is a risk of electrocution.
- Control the suction hose. The end of the suction hose must be placed in water.
- Control the suction hose. The end of the suction hose must be in outlet position.
The device is not suitable to be connected to a drinking water supply system.
GBIE
With the included suction hose (A 14), the maximum discharge rate of the garden pump can not be reached.
Switching ON and OFF
- Connect the power cable (6) to the power supply.
- Switching On: On/Off Switch ( A 5) In position "I" After a suction period the pump begins the supply of water.
- Switching Off: On/Off Switch ( A 5) In position "0"
Overload protection: In the event of overload the equipment automatically switches off. To restart, allow the equipment to cool then switch it back on.
Cleaning/Maintenance
Clean and maintain your equipment regularly. This will guarantee its performance and long durability.
Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.
Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.
Never direct the water jet against the appliance, nor clean the appliance under flowing water. This could give rise to the danger of electric shock and damage the appliance!
General cleaning instructions
- Keep the motor fins and motor housing clean. To do so, use a damp cloth or a brush. Do not use any detergents or solvents.
- Remove fl uff and fi brous particles, which have accumulated in the pump housing, by rinsing it with water.
- In case the unit clogs up, remove the suction and pressure hoses. Flush water through the threaded hole on the pump in order to remove the foreign body.
Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
Drain garden pump
If there is a danger of frost or longer periods of non-use (e.g. winter) the garden pump must be completely emptied.
- Open the drain screw (A 10) and empty the water from the device.
- Rinse the device with clear water.
Storage
- Keep the equipment clean, dry and out of the reach of children.
- Before longer storage periods (e.g. winter) drain the pump (see "Drain garden pump"). Difficulties in start-up can arise due to precipitation and residues.
Waste Disposal and Environmental Protection
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have fi nished with them.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Defective units returned to us will be disposed of for free.
Spare Parts/Accessories
Spare parts and accessories can be obtained at www.grizzlytools.shop
If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 23).
| Position instruction manual | Position exploded drawing | Description Order No. |
| A 9/10 1,2 | Filler screw / Draining screw + seal | 91100940 |
| A 11-16 63 | Suction hose kit | 91100965 |
| A 15 | Prefi lter (Water particle fi lter) | 91102260 |
| 44 Fan wheel | 91100944 | |
| 4,7,13,17,21,40 Set Sealing | 91100945 |
Guarantee
Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. suction hose kit, prefi lter or fan wheel) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and item number (IAN 373459_2104) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the ad-
dress communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain Tel.: 0800 404 7657
E-Mail: grizzly@lidl.co.uk
IAN 373459_2104
JE Service Ireland Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: grizzly@lidl.ie
IAN 373459_2104
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Service Réparations ......36
Service-Center 36
Importateur ......36
Service-Center....58
Importer ....58
Service-Center....78
Dovozca....78
Service-Center......88
Importør 88
Service-Center....99
Importador....99
 Translation of the original EC declaration of conformity | |
| We hereby confi rm that the Garden Pump Set model PGPS 1100 A1 Serial number 000001 - 097000 conforms with the following applicable relevant version of the EU guidelines: | |
| 2006/42/EC • 2014/30/EU • 2000/14/EC • 2011/65/EU* & (EU) 2015/863 | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60335-1:2012+A11+A13 • EN 60335-2-41:2003+A1+A2 EN 62233:2008 EN 55014-1:2017+A11 • EN 55014-2:2015 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013+A1 EN IEC 63000:2018 | |
| We confi rm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 85 dB(A) measured: 81,6 dB(A) Compliance evaluation process carried out in accordance with Appendix V / 2000/14/EC | |
| This declaration of conformity (21)** is issued under the sole responsibility of the manufacturer: | |
| CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, GERMANY 30.11.2021 | Christian Frank Documentation Representative |
Translation of the original EC declaration of conformity
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affi xed.
