Product type	Electric massage device
Brand	SilverCrest
Model	SKM 20 A2
Dimensions (approx.)	20 x 10 x 15 cm
Weight (approx.)	1 kg
Power supply	220–240 V ~, 50–60 Hz
Power consumption	20 W
Protection class	II (double insulation)
Included massage accessories	5 (intensive 3-point, curved, 3-point, 1-point, half-sphere)
Massage modes	5 modes (continuous pulse, 1 pulse/s, 1-2 pulses/s, 2-3 pulses/s, combination)
Power levels	5 levels
Automatic shut-off	Yes, after approx. 20 minutes
Recommended use	Massage of skin, connective tissue and muscles (except head)
Care and cleaning	Damp cloth; do not immerse
Warranty	3 years
Package contents	Device, 5 accessories, bag, instruction manual
Spare parts	Accessories available during warranty
Repairability	Repairs by qualified personnel only
Certifications	CE

Frequently Asked Questions - SKM 20 A2 SILVERCREST

How to turn the device on and off?

Press and hold the on/off button (symbol ⏻) for 2 seconds to turn on. A beep sounds and the green LED lights up. To turn off, briefly press the same button. The device automatically shuts off after approx. 20 minutes.

What massage accessories are included and what are they used for?

Five accessories are provided: intensive 3-point (deep tissue), curved (arms/legs), 3-point (deep tissue), 1-point (trigger points), half-sphere (full body). They screw onto the device's thread.

How to clean the device?

Always unplug the device before cleaning. Use a damp cloth with a little mild detergent if necessary. Never immerse the device in water or other liquid. Do not use abrasive products.

Is the device waterproof?

No, the device is not waterproof. It must not be immersed in water or placed under running water. Protect it from moisture and splashes. Risk of electric shock.

How long can I use it continuously?

The device has an automatic shut-off after 20 minutes to prevent overheating. You can turn it back on after a pause of about 10 minutes to cool it down.

Can I use the device on my face?

No, use on the face, eyes, larynx or other sensitive areas is prohibited. The massage is designed for the body (shoulders, back, arms, legs, calves, thighs).

Are there any medical contraindications?

Yes: do not use in case of herniated disc, spinal changes, pacemaker (unless advised by a doctor), swollen/burned/inflamed areas, pregnancy, under the influence of medication or alcohol. Consult a doctor if in doubt.

What to do if the device does not turn on?

Check that the power plug is properly inserted and that the outlet works. If the problem persists, contact customer service. Do not attempt to repair the device yourself.

Is the device noisy?

The device produces a slight mechanical noise during operation, which is normal. The different modes may emit audible pulses. If the noise becomes excessive, check if an accessory is not properly attached.

What is the warranty and how to activate it?

The warranty is 3 years from the date of purchase. Keep the receipt. In case of a defect, contact customer service (phone or email) and send the device with proof of purchase. Repairs are free of charge during the warranty period.

USER MANUAL SKM 20 A2 SILVERCREST

PDF ONLINE www.lidl-service.com

Black handheld medical or cosmetic device with a curved handle and bulb (no visible text or symbols)

ELEKTRISCHES MASSAGEGERÄT / ELECTRIC MASSAGER / APPAREIL DE MASSAGE ÉLECTRIQUE SKM 20 A2

DE AT CH

ELEKTRISCHES MASSAGEGERÄT

Operation and safety notes

FR BE

APPAREIL DE MASSAGE ÉLECTRIQUE

GB/IE Operation and safety notes Page 15

Technical diagram of a handheld device with numbered parts and labeled control buttons

B

15 13

Line drawing of a person holding a medical device with a target symbol (no text or labels)

Line drawing of a person holding a circular object with concentric rings, no text or symbols present

Line drawing of a person's arm and foot with a device, no text or symbols present

Line drawing of a person holding an IV catheter (no text or symbols present)

Line drawing of a seated human vehicle seat with steering wheel and sensor device (no text or symbols)

Line drawing of a human hand holding a tool, no text or symbols present

Technical line drawing of a mechanical component with three wheels and a central hub (no text or symbols)

10

Simple line drawing of a cylindrical object with a curved base and handle (no text or symbols)

11

Warnings and symbols used ...... Page 16

Introduction Page 16

Intended use. Page 17

Scope of delivery.... Page 17

Safety instructions.... Page 17

Parts description.... Page 21

Technical data Page 21

Before use Page 21

Operation...... Page 21

Removing/Attaching massage attachment Page 21

Mains connection.... Page 22

Switching on/off Page 22

Settings (modes/power levels)...... Page 22

Cleaning and care Page 23

Storage Page 23

Troubleshooting Page 23

Disposal Page 23

Warranty Page 24

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		NOTE: This symbol in combination with “Note” provides additional useful information.
			Read the manual.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Alternating current / voltage
			Hertz (supply frequency)
			Watt
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.	[H8ST]	Ampere (current)
			Symbol for a Protection Class II product
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Use the product in dry indoor spaces only.
	Danger - risk of electric shock!	CE	CE mark indicates conformity with relevant EU directives applicable for this product.

ELECTRIC MASSAGER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal.

Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for massaging skin, connective tissue and muscular system. Do not use the product for any other purpose. The product is only intended for private household use, not for commercial purposes. The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1x Electric massager
5x Massage attachment
1x Accessories pouch
1x Instruction manual

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠️DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND

CHILDREN! Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.

Cleaning and user maintenance shall not be made by children without supervision.

Risk of electric shock

⚠ WARNING! Keep the product dry.

⚠ WARNING! If the product falls into the water, immediately disconnect the power plug from the socket outlet before reaching into the water.

⚠ WARNING! Never touch the power plug with moist or wet hands.

⚠ WARNING! Never submerge the product or the power plug in water or any other liquid and never rinse these under running water.

For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

- Disconnect the power plug from the socket-outlet - if a malfunction occurs, - before you clean the product, - during a thunderstorm and - after each use.

When doing so, remove the power plug directly from the socket-outlet and do not pull it out using the power cord.

Risk of injury

• Do not use the product if you detect any kind of visible, external damage. Never use a damaged product.
  If liquid gets into the product, check before using the product once more.
  If you notice that the power cord, power plug, housing or another part has become damaged, the product can no longer be used.
  If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ■ Repairs must only be carried out by a qualified person. Improper repairs may result in considerable danger to the user.

■ Defective components must always be replaced with original spare parts.

■ Lay the power cord so nobody will step on or trip over it.
- Do not use the product for a head massage.

■ Never use on animals.

■ Never use on persons suffering from a herniated disk or from abnormal changes to the vertebrae.

■ Never use the product to massage the heart region of persons fitted with a pacemaker. Always consult a doctor before using the product on other parts of the body of a person fitted with a pacemaker.

■ Never use the product on swollen, burned, inflamed or damaged skin or body parts.
■ The product must not be used during pregnancy.

• Do not use the product on the face (eyes), on the larynx or on other particularly sensitive parts of the body.
  ■ Never use the product while you are asleep.
  ■ Never use the product after taking medication or consuming alcohol (reduced levels of awareness).
  ■ You should consult your doctor before using the massage device if you suffer from a serious illness or are recovering from an operation.

Risk of damage to property

■ Protect the product from moisture, drops of water and splashing water.
- Ensure that the power cord does not get stuck in cupboard doors and that it is not pulled over hot surfaces. This could damage the power cord's insulation.

• Do not place the product on hot surfaces, near hot surfaces or near an open fire.
• Do not use any corrosive or abrasive cleaning agents.
• Do not place the product on hot surfaces, near hot surfaces or near an open fire.
• Do not place the product on hot surfaces, near hot surfaces or near an open fire.
• Do not use any corrosive or abrasive cleaning agents.

Parts description

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

(Fig. A, B)

1		Electric massager
2		LED (power indicator)
3	M	button (mode selection)
4	+	Button (increase power level)
5	-	Button (decrease power level)
6	➊	Button (on/off)
7		Handle
8		Power cord with power plug(not illustrated)
9		Accessories pouch
10		Massage attachment(3 points, intensive)
11		Massage attachment (curved)
12		Massage attachment (3 points)
13		Massage attachment (1 point)
14		Massage attachment (semisphere)
15		Thread

- Technical data

Operating voltage: 220-240 V\~, 50-60 Hz

Power consumption: 20 W

Protection class: 11/回

Before use

i NOTES:

All parts have to be unpacked and the packaging material has to be removed completely.
- Verify the package contents are complete and undamaged!

Operation

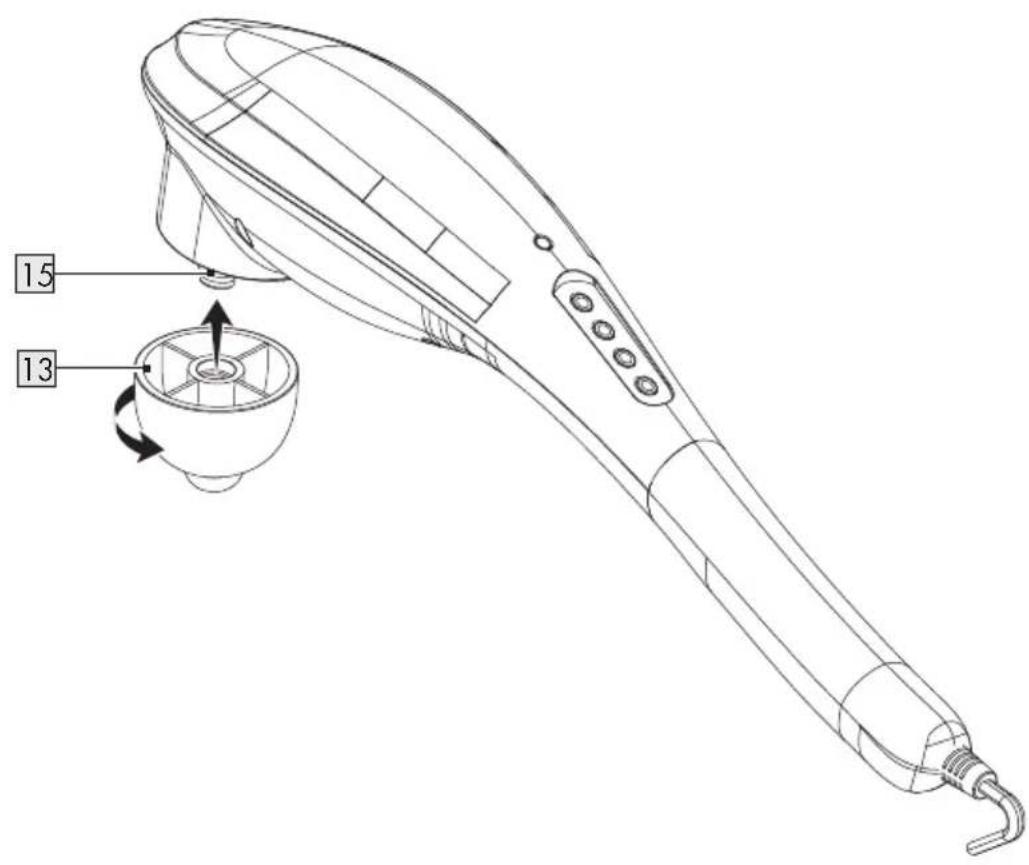

- Removing/Attaching massage attachment

ATTENTION! Risk of product

damage! Switch off the product before removing/attaching a massage attachment.

(Fig. B)

Massage attachment 10 11 12 13 14

■ Removing: Turn the massage attachment in a counter-clockwise direction.
■ Attaching: Screw a massage attachment in a clockwise direction onto the thread 15.

Massage area Figure

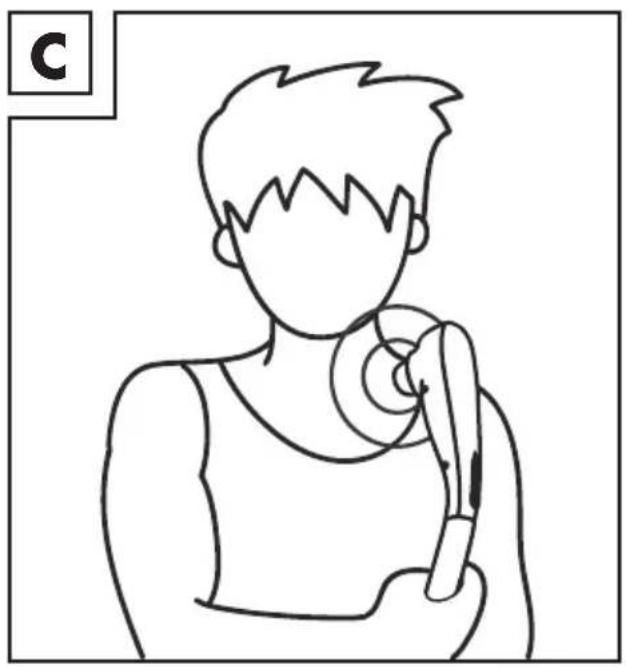

Shoulders and neck C

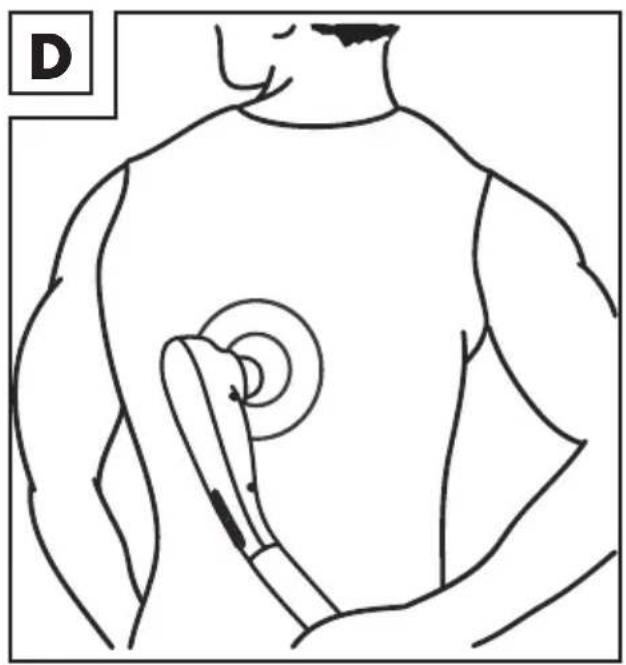

Back D

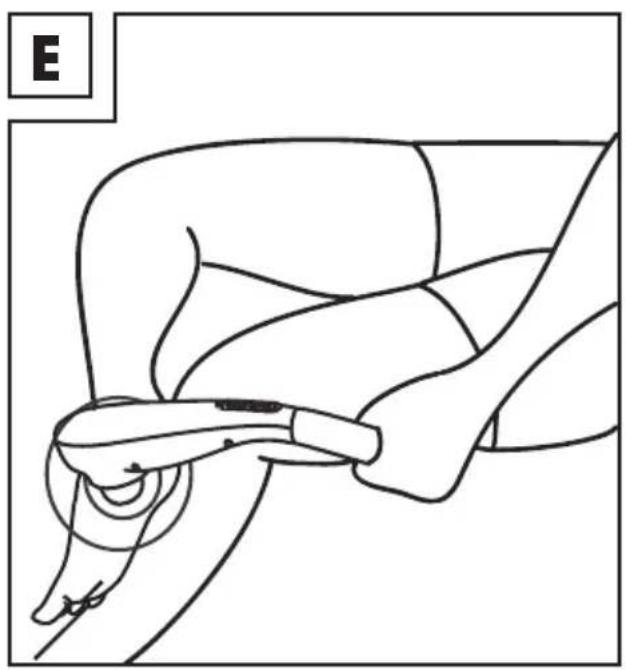

Feet	E

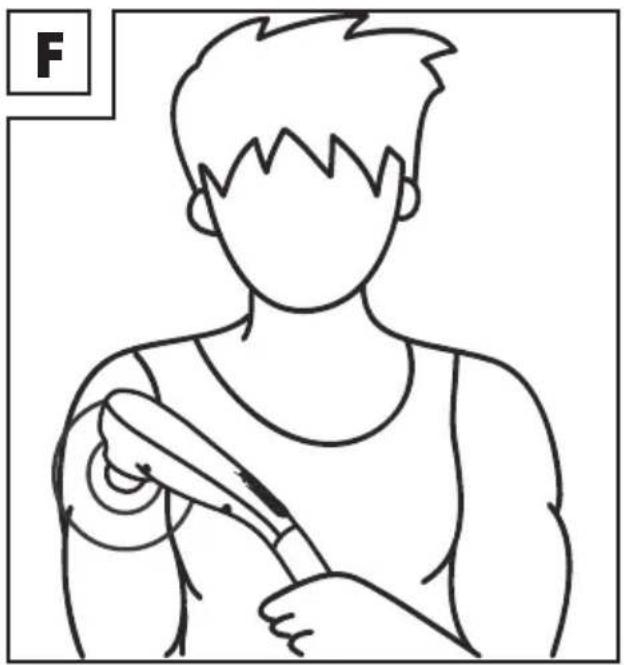

Arms	F

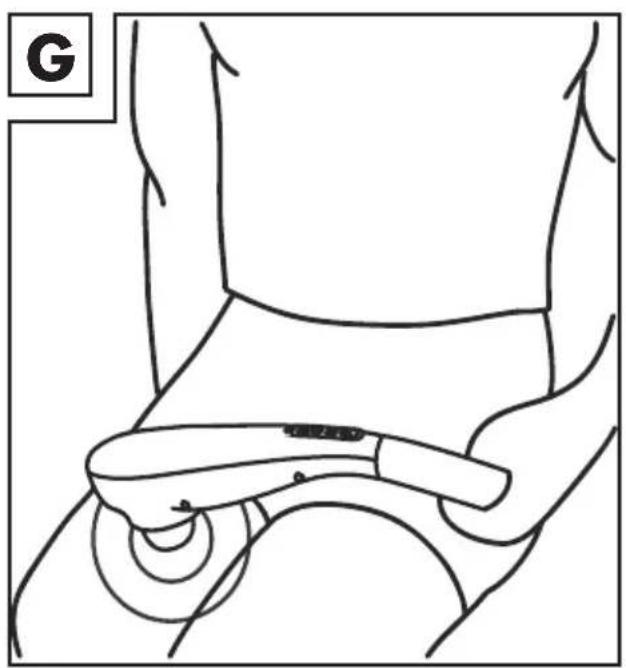

Thighs	G

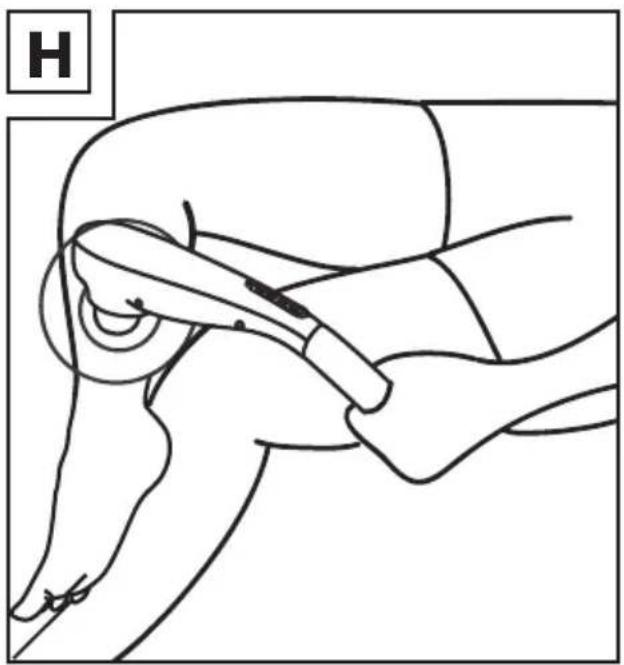

Lower legs	H
Massage attachment	Area of application
	Connective tissue, for relaxing tense muscles (Fig. G and H)
	Especially suitable for arms and legs, for relaxing tense muscles (Fig. G and H)
	Connective tissue, for relaxing tense muscles (Fig. C to H)
	Trigger points all over the body, for relieving muscle pain to a certain extent (Fig. C to H)
	Whole body, for relaxation purposes (Fig. C to H)

Mains connection

■ Connect the power plug 8 to a socket-outlet.
■ Disconnect the power plug 8 from the socket-outlet when you are not using the product.

- Switching on/off

Switching product on/off

Switching press and hold ⏻6 for approx. on: 2 seconds. A signal sounds. The green LED 2 lights up permanently. The product is in mode 1 at power level 1 (see "Settings").

SwitchiR-gess 6. A signal sounds. The off: green LED 2 goes off.

NOTE: The product switches off automatically after 20 minutes to avoid overheating.

● Settings (modes/power levels)

Button Function

M	3 Toggle between modes to set different massaging styles. 5 modes are available: ■ Modus 1: Permanent pulsation ■ Modus 2: 1 pulse per second ■ Modus 3: 1-2 pulses per second ■ Modus 4: 2-3 pulses per second ■ Modus 5: Combination of modes 1 to 4

+ 4 Increase power level

- 5 Decrease power level

i NOTES:

The product offers 5 power levels in each mode.
■ Start with low intensity and low speed to avoid unpleasant feelings or pain. If the results are satisfactory and you feel comfortable handling the product, you may switch to a higher power level.
A signal sounds when the mode or power level is changed.

● Cleaning and care

⚠️ DANGER! Risk of electric shock!

Disconnect the power plug 8 from the socket-outlet before cleaning the product. Never touch the power plug with moist or wet hands. Always keep the power plug and power cord dry.

⚠ WARNING! Risk of electric shock!

Never immerse the product in water or other liquids. Never hold the product under running water.

• Do not use any corrosive or abrasive cleaning agents.
  Clean the product and massage attachments 10 11 12 13 14 with a damp cloth. If any stubborn stains remain, place a few drops of mild detergent on the damp cloth and clean it again.

Storage

■ Store the product in the original packaging when it is not in use.
■ Store the product at a dry location out of the reach of children.

■ Store the massage attachments 10 11 12 13 14 in the accessories pouch 9.

Troubleshooting

Fault Possible cause Action

The product does not work.	The power plug 8 is not connected to the socket-outlet.	Connect the power plug 8 to the socket-outlet.
The product switches off during use.	The product switches off automatically after 20 minutes to avoid overheating	Let the product cool down for about 10 minutes before switching it on again.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

CE

ELEKTRISCH MASSAGE-APPARAAT

Inleiding

⚠ WAARSCHUWING! Raak

Technical line drawing of a mechanical component with three legs and a central hub (no text or symbols)

10

Simple line drawing of a cylindrical object with a curved base, resembling a hat or cap (no text or symbols)

11

Technical line drawing of a mechanical component with three grooves and central hub (no text or symbols)

10

Simple line drawing of a cylindrical object with a curved base, resembling a hat or container (no text or symbols)

11

Technical line drawing of a mechanical component with no visible text or symbols

10

Simple line drawing of a hat with a curved base (no text or symbols)

11

Technical line drawing of a mechanical component with three grooves and central hub (no text or symbols)

10

Simple line drawing of a cylindrical object with a curved base, resembling a hat or container (no text or symbols)

11

Technical line drawing of a mechanical component with multiple grooves and a central hub (no text or symbols)

10

Line drawing of a cylindrical object with a grid pattern on top, placed on a curved base (no text or symbols)

11

Technical line drawing of a mechanical component with no visible text or symbols

10

Simple line drawing of a hat with a curved base (no text or symbols)

11
