Product type	Photographic tripod
Brand	SilverCrest
Model	SDS 22 A1
Folded dimensions	Approx. 50 cm
Maximum height	Approx. 150 cm
Weight	Approx. 1.5 kg
Maximum load	Approx. 3 kg
Material	Aluminum
Head	3-way adjustable head with handles
Spirit level	Yes, built-in
Quick release plate	Yes, with 1/4\" screw
Number of sections	3 sections
Leg locks	Twist locks
Carrying bag	Included
Color	Black and silver
Power supply	None (manual)
Recommended use	Cameras, camcorders
Care and cleaning	Wipe with a soft, dry cloth
Safety	Do not exceed the maximum load
Spare parts	Available through after-sales service
Repairability	Repair by a professional recommended
Warranty	2 years

Frequently Asked Questions - SDS 22 A1 SILVERCREST

How to unfold the SDS 22 A1 tripod?

Unlock the locks on each leg section by turning counterclockwise, pull the section upward to the desired height, then retighten the lock clockwise. Repeat for all three legs.

How to attach a camera to the tripod?

Screw the quick release plate onto your camera using the 1/4" screw. Then slide the plate into the tripod head and tighten the locking knob.

What is the maximum height of the tripod?

The maximum height is approximately 150 cm without the center column extended. By extending the center column, you can gain an additional 20 cm, but this reduces stability.

What is the maximum weight the tripod can support?

The recommended maximum load is approximately 3 kg. Do not exceed this limit to avoid risk of tipping or damage.

Is the tripod compatible with all cameras?

Yes, thanks to the standard 1/4" screw, it is compatible with most DSLR, mirrorless cameras, camcorders, and even some lightweight projectors. Check the weight of your equipment.

How to adjust the head orientation?

Loosen the head handles to release the axes. Orient the head as needed (tilt, pan, roll). Tighten the handles firmly to hold the position.

Is the tripod stable on uneven surfaces?

Yes, each leg is independently adjustable, allowing you to compensate for uneven ground. Use the built-in spirit level to check horizontality.

How to maintain the SDS 22 A1 tripod?

Clean it with a soft, dry cloth after each use. Avoid water and chemicals. If the locks become stiff, you can apply a very small amount of silicone lubricant.

Where to find spare parts?

Spare parts (quick release plate, knobs, etc.) are available from SilverCrest after-sales service. Check the manufacturer's website or contact customer service.

What to do if a lock no longer tightens properly?

Check if the lock is simply loose. If the problem persists, there may be a defect. Contact after-sales service for a replacement under warranty or repair.

USER MANUAL SDS 22 A1 SILVERCREST

SMARTPHONE-MINISTATIV / SMARTPHONE MINI TRIPOD / MINI TRÉPIED POUR SMARTPHONE SDS 22 A1

DE AT CH

SMARTPHONE-MINISTATIV

Operation and Safety Notes

FR BE

MINI TRÉPIED POUR SMARTPHONE

SMARTPHONE MINI-STATIEF

GB/IE Operation and Safety Notes Page 13

Warnings and symbols used 15

Scope of delivery 15

General safety instructions 16

Description of parts 18

Technical data 19

Before use 19

Operation 19

Storage when not in use 20

Cleaning 20

Disposal 21

SMARTPHONE MINI TRIPOD

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product serves to fasten mobile phone or other devices by using the holder.

This product is only suitable for private use in dry locations. This product is not intended for commercial use. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

Warnings and symbols used

These instructions for use contain the following warnings:

DANGER!

This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

CAUTION!

This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

Note:

This symbol with the signal word provides additional useful information.

Scope of delivery

1 Smartphone Mini Tripod
1 Instruction Manual

General safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER Risk of suffocation!

• Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.
• This product may be used by children age 14 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks.
• Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.
• Ensure that the product is not subjected to a mechanical load
• Do not put the product on sensitive surfaces of furniture, otherwise scratching may cause.

RISK OF PROPERTY DAMAGE

- This product does not contain any parts which can be serviced by the user.

• Keep the product away from moisture, dripping and splash water!
• Do not place burning candles or other open fire on or next to the product.
• Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
• Do not throw the product into fire and do not expose to high temperatures.
• Ensure that the product is not subjected to a mechanical load
• Do not put the product on sensitive surfaces of furniture, otherwise scratching may cause.

WARNING! Ensure that:

• no direct heat sources (e.g. heating) can affect the product
• the product are not exposed to bright artificial light
• any contact with splashed and dripping water and corrosive liquids is avoided and the product are not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product
• no fire sources (e.g. burning candles) are placed on or near the product
• no foreign objects penetrate the device
• the product are never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product have reached ambient temperature before use
• the product are never subjected to excessive shocks and vibrations

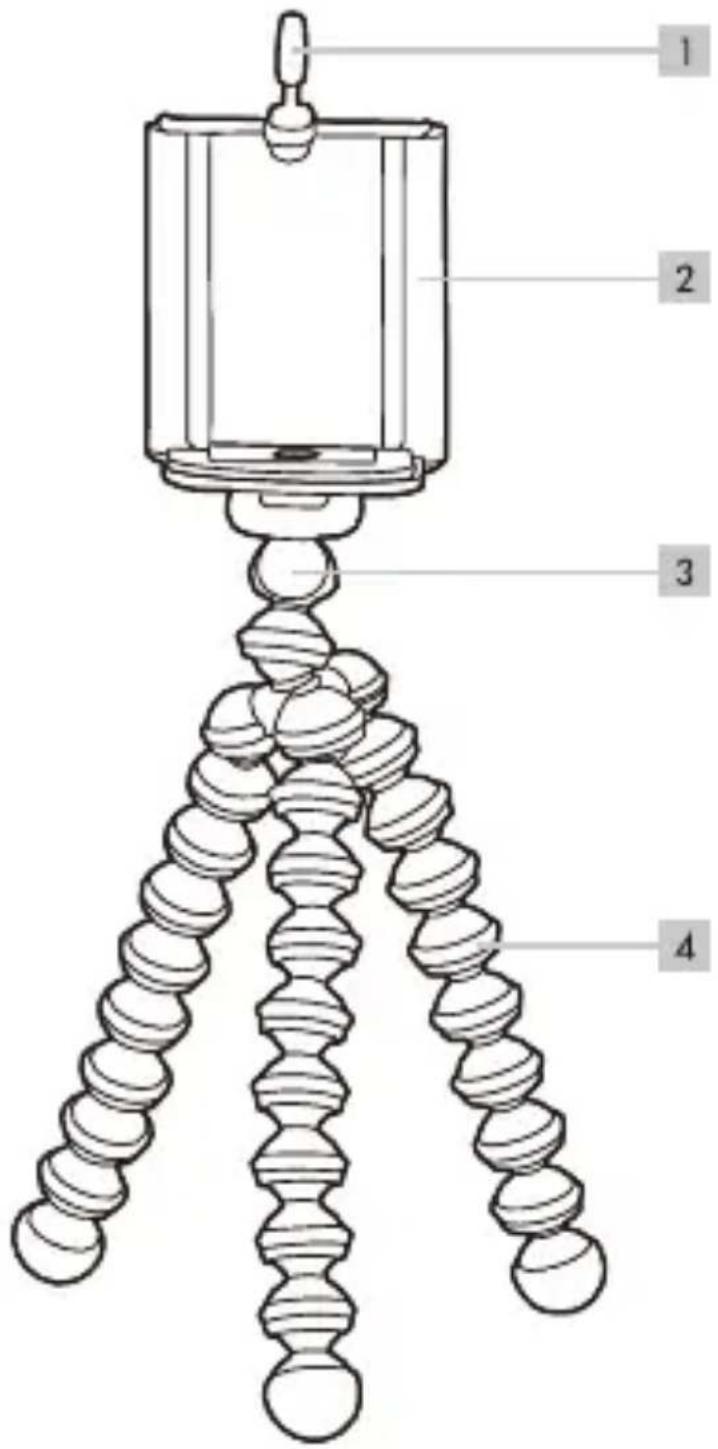

Description of parts

1. Handle
2. Holder
3. Button
4. Flexible legs

Technical data

Max. loading

(with tripod legs extended): 1500 g

Max. height: 230 mm

The specification and design may be changed without notification

Before use

Note:

All parts have to be unpacked and the packaging material has to be removed completely.

Before use, verify the package contents are complete and undamaged!

Operation

Setup and alignment

• Pull the flexible legs apart.
• Bend the flexible legs to set up on an uneven surface.

Securing the device

• Pull the handle upwards and place your device inside the holder.
• Ensure the device if fixed correctly in the holder.

Positioning the device

• You can bend the legs and tilt the holder at the pivot point to get the exact position you need.
• You can remove the holder by pressing the button.

Removing the device

• Hold the device firmly.
• Pull the handle upwards.
• Remove your device.

Storage when not in use

Store the product in a dry location from dusk, protected from direct sunlight.

Cleaning

• No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
• Only clean the outside of the product using a soft, dry cloth!
• At persistent soiling, a mild cleaning agent can be used.
• Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.
