Product type	Battery charger for electric vehicle (EV)
Brand	Blaupunkt
Model	P1PM2T2
Power supply type	Single-phase
Input voltage	200-250 V
Adjustable rated current	8 / 10 / 13 / 16 A
Cable length	8 m
Connector type	T2
Dimensions (L × W × H)	260 × 100 × 72.5 mm
Weight	2.65 kg
Protection rating (control box)	IP65
Operating temperature	-30°C to +50°C
Functions	Current adjustment, Timer (1-10h), Ground detection (PE)
Safety	Use with external circuit breaker; do not open during charging; do not use if damaged
Cleaning	Do not use chemicals; wipe with a dry cloth

Frequently Asked Questions - P1PM2T2 BLAUPUNKT

How to start charging?

Insert the plug into the power outlet, then remove the cap and insert the charging connector fully into the vehicle's charging port. Charging starts automatically.

How to stop charging?

First unplug the plug from the power outlet, then disconnect the charging connector from the vehicle. Close the protective cap and store the charger in its bag.

How to adjust the charging current?

Make sure the cable is disconnected from the vehicle. Press and hold the "Amps" button for 2 seconds to enter adjustment mode. Briefly press to choose between 8, 10, 13 and 16 A, then press and hold again for 2 seconds to confirm.

How to use the timer?

Disconnect the cable from the vehicle. Press and hold the "Time" button for 2 seconds. Briefly press to select 1, 2, 4, 6, 8 or 10 hours. Press and hold again for 2 seconds to confirm. Charging will start after the delay.

What does the PE indicator "½!" mean?

"½!" indicates that the upstream protective conductor (PE) has not been detected. In this case, charging cannot start. Check the grounded outlet or disable PE detection if necessary.

How to disable PE detection?

Press the "Amps" and "Time" buttons simultaneously for 4 seconds. The function is disabled or re-enabled in the same way. Caution: this presents a risk if the outlet has no ground.

What to do in case of an error on the screen?

Refer to the fault table in the manual: codes include CP Error, Relay error, Overvoltage/undervoltage, Overcurrent protection, etc. Depending on the error, check connections and power supply.

Can I charge if the outlet has no ground?

The charger can operate without ground if you disable PE detection (see previous question). However, it is strongly recommended to charge with a properly grounded outlet for safety reasons.

How to clean the charger?

Never clean the charger with chemicals or water. Simply wipe it with a clean, dry cloth. Make sure it is unplugged before any cleaning.

What are the usage precautions?

Use the charger in a cool, dry, and well-ventilated place, out of reach of children and animals. Do not use it if damaged. Never open the enclosure during charging. Use an external circuit breaker.

USER MANUAL P1PM2T2 BLAUPUNKT

EV Portable Charger User Manual

Enjoy it.

Please read this instruction carefully before using the product.

CONTENTS ENGLISH	INDHOLDSFORTEGNEALSE DANSK/NORSK	INHALTSVERZEICHNIS DEUTSCH
01-10	11-20	21-30
INHOUD NEDERLANDS	CONTENIDOS ESPAÑOL	SISALTO SUOMALAINEN
31-40	41-50	51-60
CONTENU FRANÇAISE	INDICE ITALIANO	SPIS TREŠCI POLSKI
61-70	71-80	81-90
ÍNDICE PORTOGHESE	INNEHÄLL SVENSK
91-100	101-110

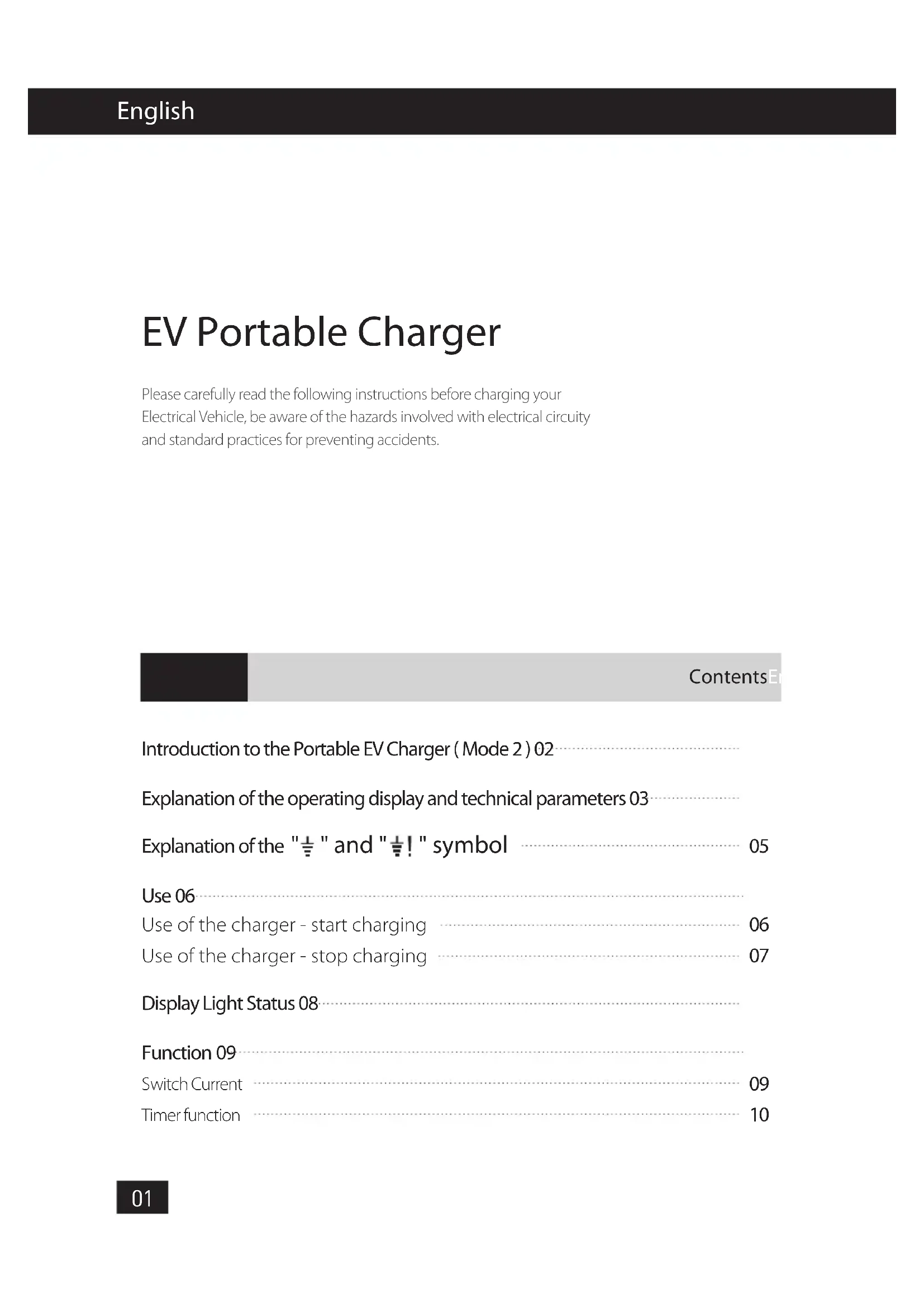

EV Portable Charger

Please carefully read the following instructions before charging your Electrical Vehicle, be aware of the hazards involved with electrical circuitry and standard practices for preventing accidents.

Contents

Introduction to the Portable EV Charger (Mode 2) 02

Explanation of the operating display and technical parameters 03

Explanation of the 12 and 12! symbol 05

Use 06

Use of the charger - start charging 06

Use of the charger - stop charging 07

Display Light Status 08

Function 09

Switch Current 09

Timer function 10

CAUTION

• Use the power source with external upstream Circuit Breaker.
• Make sure the charger is used in a safe, secure place and well out of the reach of young children or pets.
  -Please use the charger in a dry, well ventilated and secure place. Keep weel out of reach of young children or pets. Avoid water pouring directly onto the power plug.
• Do not open the enclosure while charging or with the power on.
• Do not maliciously damage the product.

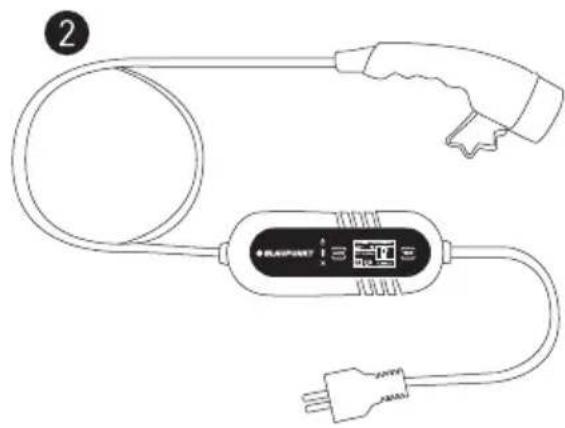

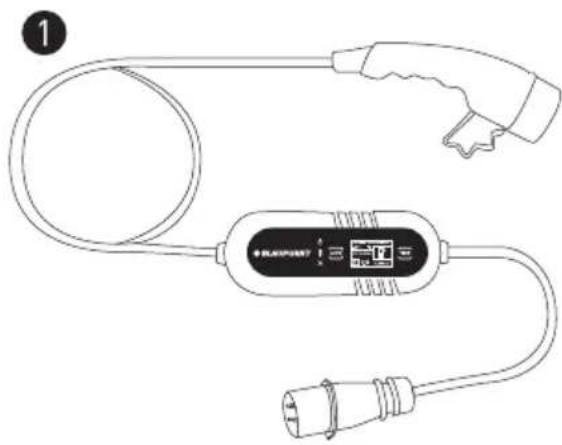

Introduction to the Portable EV Charger (Mode 2)

Specifications

Model	Power Supply Type	Cable Total Length	Voltage	Current	Connector Type
P1PM2T2	Single-phase	8m	200-250V	8/10/13/16A	T2
P1PM2T1	Single-phase	8m	200-250V	8/10/13/16A	T1
P1PM2T2C	Single-phase	8m	200-250V	8/10/13/16A	T2
P3PM2T2	Three-phase	8m	380-450V	8/10/13/16A	T2
P1PM2T2BS	Single-phase	8m	200~250V	8/10/13A	T2
P1PM2T1BS	Single-phase	8m	200~250V	8/10/13A	T1

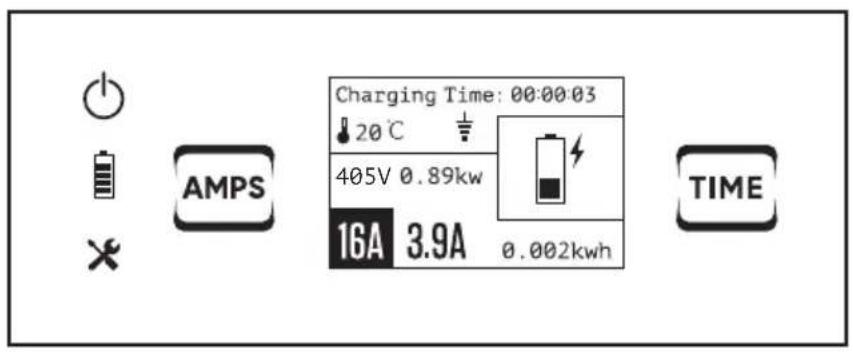

1 Model: P3PM2T2

Explanation of the operating display

Power light	405V	Voltage
Charge lamp	0.89kw	Power
Trouble lamp	16A	Rated current
Current switch button	3.9A	Constant current
Charging time	0.002kwh	Electricity consumption
Temperature	TIME	Time function button
PE Detection (Earthing Detection)	½!	The upstream PE has not been detected and the charging cannot be started.

Control box:

Technical Parameters

Dimensions (L×W×H)	260×100×72.5 mm
Weight	3Phase: 3.35 kg
Protection Degree (Control box)	IP65
Operating Temperature	-30°C to +50°C

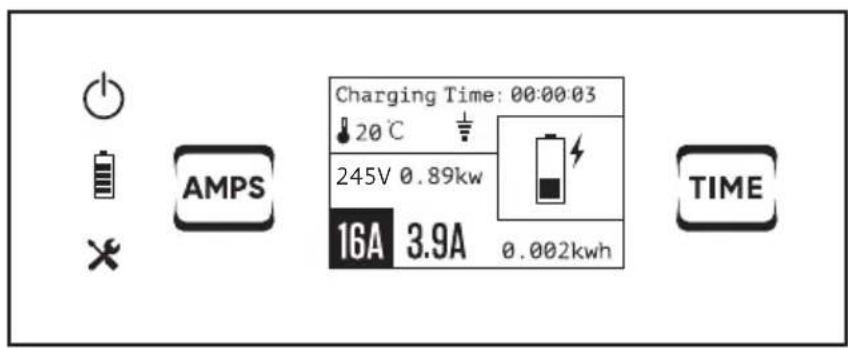

Model: P1PM2T2 / P1PM2T1 / P1PM2T2C / P1PM2T2BS / P1PM2T1BS

Explanation of the operating display

Power light	245V	Voltage
Charge lamp	0.89kw	Power
Trouble lamp	16A	Rated current
Current switch button	3.9A	Constant current
Charging time	0.002kwh	Electricity consumption
Temperature	TIME	Time function button
PE Detection (Earthing Detection)	½!	The upstream PE has not been detected and the charging cannot be started.

Control box:

Technical Parameters

Dimensions (L×W×H)	260×100×72.5 mm
Weight	1Phase: 2.65 kg
Protection Degree (Control box)	IP65
Operating Temperature	-30°C to +50°C

Users must check the PE detection mark " 12 " on the display before each use. (PE meaning protective conductor)

1.If the Mark " 1三 " is displayed on the screen, it indicates that the charger shall verify the presence of the upstream PE, and the charging process will only begin when the upstream PE is present.

ATTENTION: if the mark "½!" appears, it means that the upstream PE has not been detected and the charging cannot be started.

2.If the Mark " 1 " is NOT displayed on the screen, it indicates that the charger has no function to verify the presence of the upstream PE, and can be charged whether or not the PE can be detected.

ATTENTION: It is strongly recommended that users charge under condition 1. Condition 2 has certain security risks due to the absence of PE. So Condition 2 should only be used under the premise that users can ensure safety and in special circumstances where PE does not exist in the power system.

Deactivate PE Detection: Press "Amps+Time" for 4s together.

Reactivate PE Detection: Press "Amps+Time" for 4s together.

Use of the charger - start charging

Start Charging

Step	Illustration Operation
1.	←→	Insert the plug into the correct power supply socket.
	←→	Remove the protective cap and fully insert the charging connector into the EV charging port.
2.		Start charging
3.

DANGER

Do not use product if it appears to be damaged or the cable is broken.
Do not disassemble or assemble the connector and change the internal parts
Do not clean the products using chemicals or cleaning the EV car while charging.

Stop Charging

Step Illustration C	Operation
1.		Disconnect the plug from the power supply socket.
		Disconnect the charging connector from the EV car.
2.		Close the protective shell of EV charging port,then cover the protective cap of the charging connector.
3.		Put the portable charger into the bag.
4.		Put the portable charger into the bag.

Display Light Status

Indicator Light Indicators Light			Status		Status
	Off		Blink		On
	Off		Blink		On
	Off		Blink		On

Operation:

1	Power Off
2	Check
3	Standby
4	Connected
5	Charging
6	Charge Complete

Troubleshooting:

1	CP Error
2	Relay Error
3	Over/Under Voltage			×
4	Over current protection			×
5	Electric leakage protection			×
6	No ground connection			×
7	Temperature warning			×
8	Persistent high temperature			×

Switch Current:

CAUTION

In order to switch charging current, Please make sure the power plug is firmly inserted into the socket and plug for the EV vehicle is disconnected.

Step Illustration Statu
1.Insert the plug into the correct power supply socket.	←←→	Ready
	←←→
2 pressing the "Amps" switch button for 2 seconds	CHARGING Time: 00:88:83 128°C 405V 0.89kw 16A 3.9A 0.082kwh	Enter setting the switch current mode
3 Continue to press the button briefly. The current will be changed. ( switch between 8-10-13-16A)	AMPS 8A 10A ↑ ↓ □ ← 13A 16A	Setting the current of User's request
4. Press the button for 2s again.	AMPS	Setting successfully

Please complete setting within 4 seconds at each step, otherwise the feature setting will fail.

Timer function:

CAUTION

In order to switch charging current, Please make sure the power plug is firmly inserted into the socket and the plug for EV vehicle is disconnected.

Step Illustration Statu
1.Insert the plug into the correct power supply socket.	←←→	Ready
	←←→
2.Load the "Time" switch button for 2 seconds.	CHARGING TIME: 08:00:05 120°C 405V 0.85kW 16A 3.9A 0.002kWh TIME	Enter setting the delay time mode
3 Continue to press the button briefly.The time will be changed.(Switch between 1/2/4/6/8/10H)	TIME 1h 2h 4h → ↓ □ - □ - 6h8h10h	Setting the delay time of User's request
4.Load the button for 2s again	TIME	Setting successfully

Please complete setting within 4 seconds at each step, otherwise the feature setting will fail.

Notice:

In case you want to cancel the timer setting - you can use one of the two options below:

1. Directly to disconnect the plug from the outlet socket.
2. Press the Time button for 5s.
