Product Type	Battery Charger
Brand	Blaupunkt
Model	BP1835
Power Supply	220-240 V AC, 50-60 Hz
Input Power	200 W
Output Voltage	DC 14.4 - 18 V
Output Current	3.5 A
Compatible Batteries	Blaupunkt BP1820, BP1840, BP1850
Charging Indicator	Red LED (charging), Green LED (complete)
Charging Procedure	Insert battery, connect to power; red LED on during charging, green LED when done
Battery Removal	Press battery lock button and slide battery out
Cleaning	Wipe with slightly damp cloth and dry; keep contacts free of dust and dirt
Overcharge Protection	Automatic shut-off when charging complete (green LED)
Safety Features	Do not immerse in water; keep away from heat sources; unplug before maintenance
Intended Use	Charging compatible Blaupunkt batteries only

Frequently Asked Questions - BP1835 BLAUPUNKT

What batteries are compatible with the Blaupunkt BP1835 charger?

The charger is designed for Blaupunkt batteries models BP1820, BP1840, and BP1850. Do not use it for other battery types or brands.

How do I know when the battery is fully charged?

When charging is complete, the green LED will be on and the red LED will turn off. The charger automatically stops charging.

Can I leave the charger plugged in after charging?

It is recommended to unplug the charger after use. Do not leave it unattended while connected to power.

What should I do if the red LED does not light when I connect a battery?

Check that the battery is fully inserted and the contacts are clean. If the issue persists, the battery may be defective or incompatible.

Is the BP1835 charger suitable for charging car batteries?

No, this charger is only for charging specific Blaupunkt power tool batteries (BP1820, BP1840, BP1850). It is not designed for automotive batteries.

How should I clean the charger?

Wipe the exterior with a slightly damp cloth and dry it thoroughly. Ensure the battery contacts are free of dust and dirt. Do not immerse in water.

What is the output voltage and current of the BP1835?

The output voltage is DC 14.4-18 V and the output current is 3.5 A. Input is 220-240 V AC, 50-60 Hz, 200 W.

Can I use an extension cord with this charger?

Yes, but ensure the total power consumption of all connected devices does not exceed the extension cord's load capacity. Arrange the cord to avoid tripping.

What does the green LED indicate?

A steady green LED indicates that the battery is fully charged and the charging process has completed.

Where can I get service or support for my BP1835 charger?

Contact the service center at tel. [phone] or email [e-mail]. Address: 02-801 Warsaw, Poland.

USER MANUAL BP1835 BLAUPUNKT

- In order to achieve the highest satisfaction, enjoy the performance of the product and learn all its features and functions, please read this manual before using this product. Before using the device, read the manual and follow the instructions contained therein. The manufacturer is not responsible for any damage caused by the use of the device not in accordance with its purpose or improper operation. Keep the user's manual so that you can also use it when using the product later.

- Connect the device only to an outlet with characteristics consistent with the values on the nameplate.

- Check that the total current consumption of all devices connected to the wall outlet does not exceed the maximum load of the fuse.

- If an extension cord is used, check that the total power consumption of the equipment connected to the extension cord does not exceed the load parameters of the extension cord. Arrange the extension cord in such a way as to avoid accidental pulls and tripping over it.

- The device is not designed to be controlled by an external timer, separate remote control or other equipment that can turn on the device automatically.

- Always unplug the unit from the power supply before maintenance work. When unplugging the power cord, always pull it out of the outlet by holding the plug. Never pull out the power cord by pulling on the cable, as the plug or cable may be damaged, in extreme cases even fatal electric shock may occur.

- Do not leave the device plugged into an outlet unattended.

- Do not immerse the device in water or any other liquid.

- The device should be cleaned regularly according to the recommendations described in the section on Cleaning and maintenance of the device.

- Do not place the device near heat sources, flames, electric heating element or on a hot oven. Do not place on top of any other appliance.

- Be especially careful when using the appliance when children or pets are around.

- Keep the cord out of reach of children and babies to avoid the risk of electric shock,

- Keep the device and its cord out of reach of children under 8 years old

- Do not use the device near flammable materials.

- Do not expose the device to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, humid camping houses).

- Periodically check the condition of the power cord. If a non-separable power cord becomes damaged, it should be replaced at the manufacturer or a specialized repair facility or by a qualified person to avoid danger.

- Do not use the device with a damaged power cord or plug, or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electrocution. Take the damaged device to a competent service center for inspection or repair. Any repairs may be made only by authorized service centers. Improper repair may cause serious danger to the user.

- Use only original accessories and spare parts for the device or those recommended by the manufacturer. Use of accessories or parts not recommended by the manufacturer may damage the device and endanger the safety of use.

- Note: The use of batteries unsuitable for the device may lead to improper operation or damage to the device.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

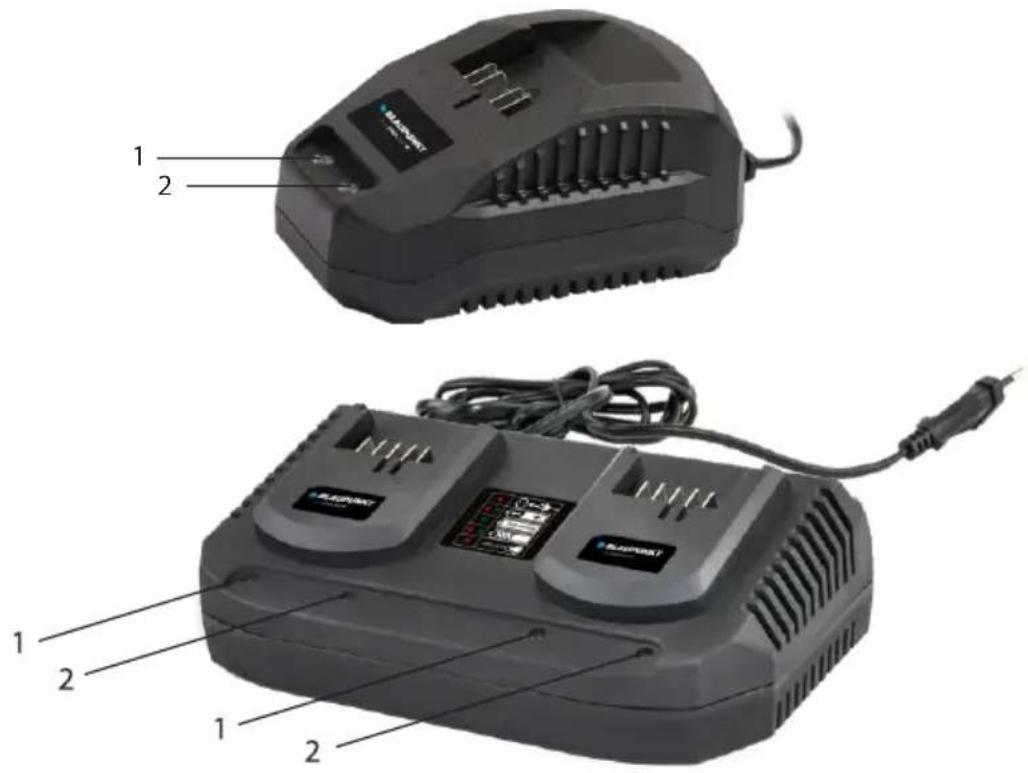

1. red LED (charging process)
2. green LED (charging completed)

To connect a rechargeable battery for charging, insert it into the charger, and then connect the charger to a power source.

To remove the battery from the device, use the battery lock button and then slide the battery out of the device.

The charger is used to charge the Blaupunkt BP1820, BP1840 and BP1850 battery never use it for other purposes or for batteries from other manufacturers.

When the battery is connected, the red charging light will come on and charging will begin

When charging is complete, the green light will remain on and the red light will turn off

Cleaning and maintenance of the device.

Wipe the device with a slightly damp cloth and then wipe it dry.

Make sure that the contacts in the device are always free of dust and dirt

BP1824 Technical data

Power supply: 220-240 VAC \~ 50-60 Hz

Input power: 70 W

Output current: 2.4 A

Output voltage: D.C. 14.4 - 18 V

BP1835 Technical data

Power supply: 220-240 VAC \~ 50-60 Hz

Input power: 200 W

Output current: 3.5 A

Output voltage: D.C. 14.4 - 18 V

WAŻNE INFORMACJE

Output current: 3,5 A

Output voltage: D,C, 14.4 - 18 V

DÔLEŽITÉ INFORMÁCIE

1. Sarkanais LED (uzlādes process)
2. Zaja LED (uzlāde pabeigta)

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.
