Product type	Portable electric vehicle charger (Mode 2)
Brand	Blaupunkt
Model	P3PM2T2
Power supply	Three-phase, 380-450 V
Adjustable rated current	8 / 10 / 13 / 16 A
Connector type	T2
Total cable length	8 m
Control box dimensions	260 x 100 x 72.5 mm
Weight	3.35 kg
Protection rating (enclosure)	IP65
Operating temperature	-30°C to +50°C
Main functions	Charging with current selection, delayed timer, ground fault detection (PE), parameter display (voltage, current, power, consumption, temperature)
Safety	Protection against overvoltage/undervoltage, overcurrent, electrical leakage, ground faults, overheating; must be used with an external circuit breaker
Maintenance and cleaning	Clean with a dry cloth; do not use chemicals; do not open the enclosure while energized
Spare parts and repairability	Contact Blaupunkt customer service; do not disassemble or modify the connector
General information	Portable charger for electric vehicles, indoor or outdoor use protected from water, do not use if cable is damaged

Frequently Asked Questions - P3PM2T2 BLAUPUNKT

How to start charging with the P3PM2T2 charger?

Plug the power plug into a suitable socket, then insert the T2 connector into the vehicle. Charging starts automatically. Make sure the socket is properly grounded.

How to adjust the charging current?

First disconnect the connector from the vehicle. Insert the power plug, then press and hold the «Amps» button for 2 seconds. Then use short presses to switch between 8, 10, 13 and 16 A. Confirm by holding the button for 2 seconds.

How to use the timer function?

Disconnect the connector from the vehicle. Plug in the power plug, press and hold the «Time» button for 2 seconds, then choose the delay (1, 2, 4, 6, 8 or 10 h) with short presses. Confirm by holding the button for 2 seconds. Charging will start after the delay.

What does the «½!» display on the screen mean?

This symbol indicates that the upstream protective conductor (PE) is not detected. Charging cannot start until grounding is correct. Check your electrical installation.

Can this charger be used outdoors?

Yes, the control box has an IP65 protection rating, which protects against dust and water jets. However, place it in a dry location away from direct weather.

What to do if the charger displays an overtemperature error?

If the temperature warning light turns on, stop charging and let the charger cool down. Avoid exposing it to sunlight or a heat source. If the problem persists, contact customer service.

Is the charger compatible with a single-phase installation?

No, the P3PM2T2 model is designed for three-phase power supply (380-450 V). It will not work properly on a standard single-phase socket.

How to clean the charger?

Use a dry, soft cloth to wipe the enclosure and cable. Never use chemicals, solvents, or high-pressure cleaners. Do not clean the vehicle during charging.

Can I use an extension cord with this charger?

It is not recommended to use an extension cord, as it may cause voltage drop and overheating risks. Plug the charger directly into a wall socket with a circuit breaker.

What to do if the charger does not detect grounding?

Check the power socket: it must be properly connected to ground. If the «½!» symbol appears, charging will not start. You can temporarily disable PE detection by pressing «Amps»+«Time» simultaneously for 4 seconds, but this poses a safety risk.

USER MANUAL P3PM2T2 BLAUPUNKT

EV Portable Charger User Manual

Enjoy it.

Please read this instruction carefully before using the product.

CONTENTS ENGLISH	INDHOLDSFORTEGNEALSE DANSK/NORSK	INHALTSVERZEICHNIS DEUTSCH
01-10	11-20	21-30
INHOUD NEDERLANDS	CONTENIDOS ESPAÑOL	SISALTO SUOMALAINEN
31-40	41-50	51-60
CONTENU FRANÇAISE	INDICE ITALIANO	SPIS TREŠCI POLSKI
61-70	71-80	81-90
ÍNDICE PORTOGHESE	INNEHÄLL SVENSK
91-100	101-110

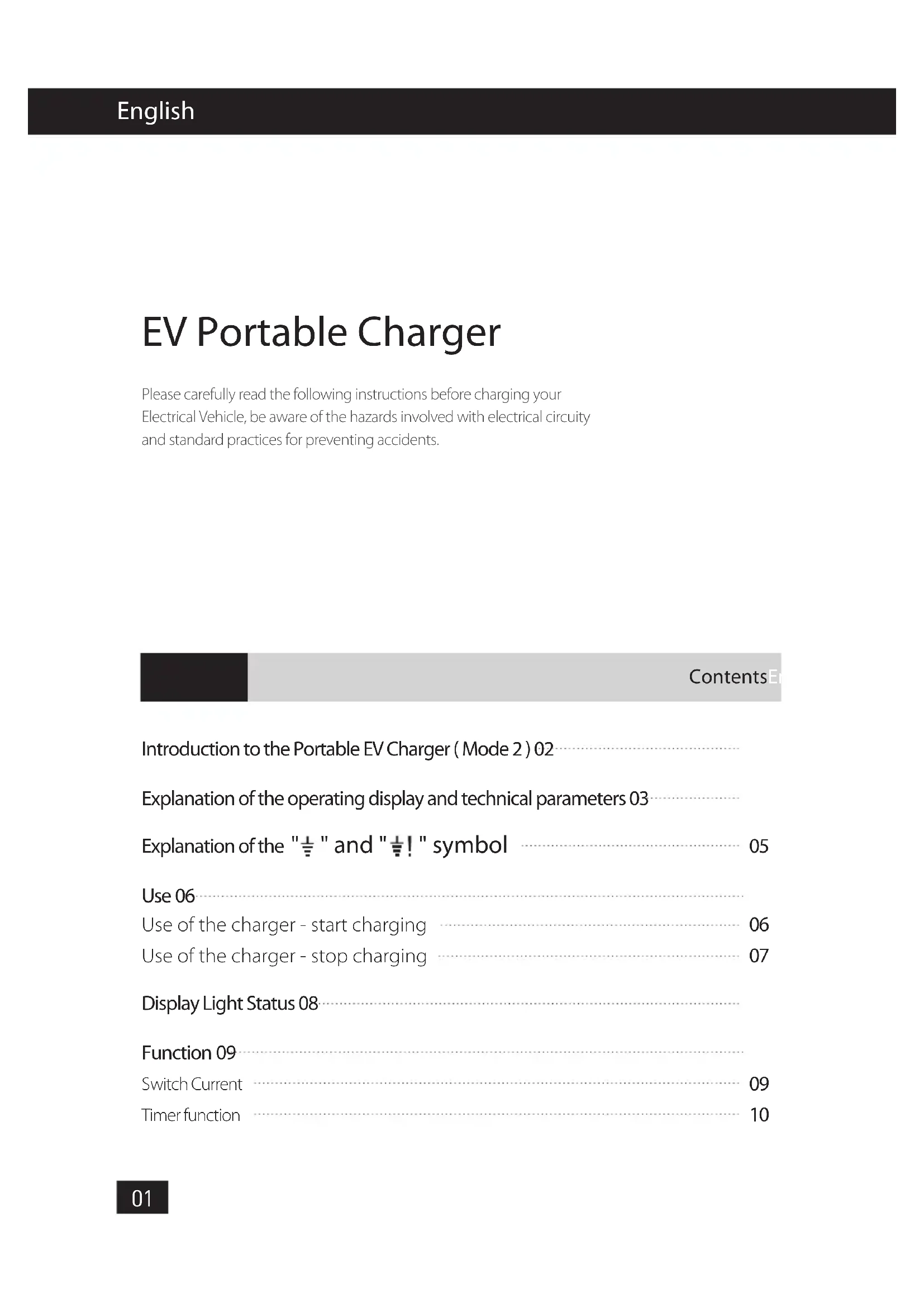

EV Portable Charger

Please carefully read the following instructions before charging your Electrical Vehicle, be aware of the hazards involved with electrical circuitry and standard practices for preventing accidents.

Contents

Introduction to the Portable EV Charger (Mode 2) 02

Explanation of the operating display and technical parameters 03

Explanation of the 12 and 12! symbol 05

Use 06

Use of the charger - start charging 06

Use of the charger - stop charging 07

Display Light Status 08

Function 09

Switch Current 09

Timer function 10

CAUTION

• Use the power source with external upstream Circuit Breaker.
• Make sure the charger is used in a safe, secure place and well out of the reach of young children or pets.
  -Please use the charger in a dry, well ventilated and secure place. Keep weel out of reach of young children or pets. Avoid water pouring directly onto the power plug.
• Do not open the enclosure while charging or with the power on.
• Do not maliciously damage the product.

Introduction to the Portable EV Charger (Mode 2)

Specifications

Model	Power Supply Type	Cable Total Length	Voltage	Current	Connector Type
P1PM2T2	Single-phase	8m	200-250V	8/10/13/16A	T2
P1PM2T1	Single-phase	8m	200-250V	8/10/13/16A	T1
P1PM2T2C	Single-phase	8m	200-250V	8/10/13/16A	T2
P3PM2T2	Three-phase	8m	380-450V	8/10/13/16A	T2
P1PM2T2BS	Single-phase	8m	200~250V	8/10/13A	T2
P1PM2T1BS	Single-phase	8m	200~250V	8/10/13A	T1

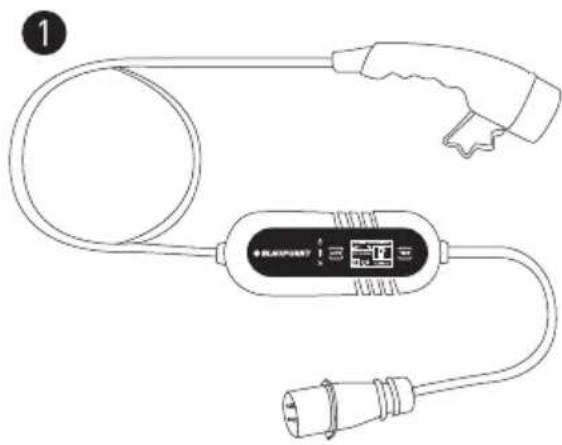

1 Model: P3PM2T2

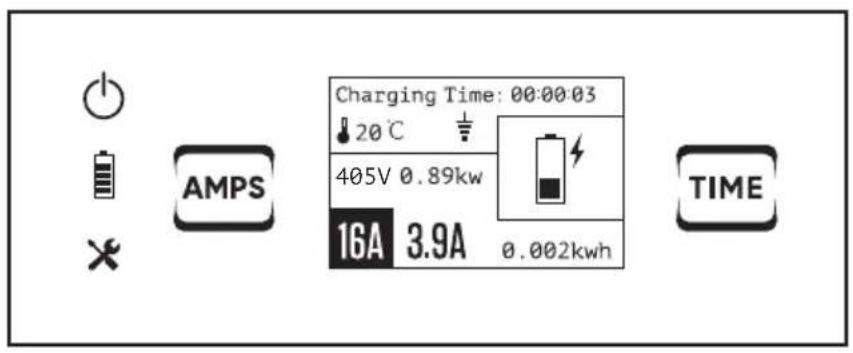

Explanation of the operating display

Power light	405V	Voltage
Charge lamp	0.89kw	Power
Trouble lamp	16A	Rated current
Current switch button	3.9A	Constant current
Charging time	0.002kwh	Electricity consumption
Temperature	TIME	Time function button
PE Detection (Earthing Detection)	½!	The upstream PE has not been detected and the charging cannot be started.

Control box:

Technical Parameters

Dimensions (L×W×H)	260×100×72.5 mm
Weight	3Phase: 3.35 kg
Protection Degree (Control box)	IP65
Operating Temperature	-30°C to +50°C

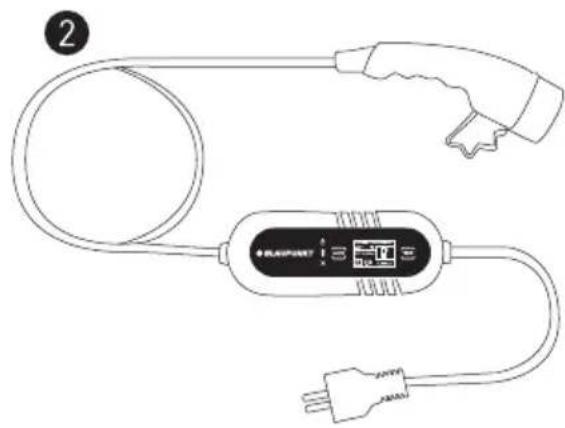

Model: P1PM2T2 / P1PM2T1 / P1PM2T2C / P1PM2T2BS / P1PM2T1BS

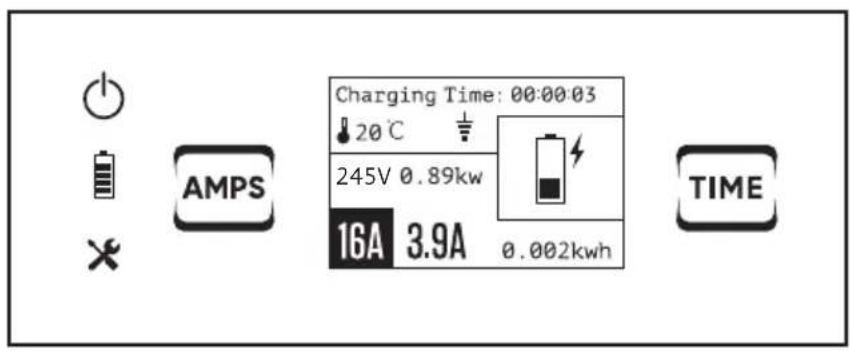

Explanation of the operating display

Power light	245V	Voltage
Charge lamp	0.89kw	Power
Trouble lamp	16A	Rated current
Current switch button	3.9A	Constant current
Charging time	0.002kwh	Electricity consumption
Temperature	TIME	Time function button
PE Detection (Earthing Detection)	½!	The upstream PE has not been detected and the charging cannot be started.

Control box:

Technical Parameters

Dimensions (L×W×H)	260×100×72.5 mm
Weight	1Phase: 2.65 kg
Protection Degree (Control box)	IP65
Operating Temperature	-30°C to +50°C

Users must check the PE detection mark " 12 " on the display before each use. (PE meaning protective conductor)

1.If the Mark " 1三 " is displayed on the screen, it indicates that the charger shall verify the presence of the upstream PE, and the charging process will only begin when the upstream PE is present.

ATTENTION: if the mark "½!" appears, it means that the upstream PE has not been detected and the charging cannot be started.

2.If the Mark " 1 " is NOT displayed on the screen, it indicates that the charger has no function to verify the presence of the upstream PE, and can be charged whether or not the PE can be detected.

ATTENTION: It is strongly recommended that users charge under condition 1. Condition 2 has certain security risks due to the absence of PE. So Condition 2 should only be used under the premise that users can ensure safety and in special circumstances where PE does not exist in the power system.

Deactivate PE Detection: Press "Amps+Time" for 4s together.

Reactivate PE Detection: Press "Amps+Time" for 4s together.

Use of the charger - start charging

Start Charging

Step	Illustration Operation
1.	←→	Insert the plug into the correct power supply socket.
	←→	Remove the protective cap and fully insert the charging connector into the EV charging port.
2.		Start charging
3.

DANGER

Do not use product if it appears to be damaged or the cable is broken.
Do not disassemble or assemble the connector and change the internal parts
Do not clean the products using chemicals or cleaning the EV car while charging.

Stop Charging

Step Illustration C	Operation
1.		Disconnect the plug from the power supply socket.
		Disconnect the charging connector from the EV car.
2.		Close the protective shell of EV charging port,then cover the protective cap of the charging connector.
3.		Put the portable charger into the bag.
4.		Put the portable charger into the bag.

Display Light Status

Indicator Light Indicators Light			Status		Status
	Off		Blink		On
	Off		Blink		On
	Off		Blink		On

Operation:

1	Power Off
2	Check
3	Standby
4	Connected
5	Charging
6	Charge Complete

Troubleshooting:

1	CP Error
2	Relay Error
3	Over/Under Voltage			×
4	Over current protection			×
5	Electric leakage protection			×
6	No ground connection			×
7	Temperature warning			×
8	Persistent high temperature			×

Switch Current:

CAUTION

In order to switch charging current, Please make sure the power plug is firmly inserted into the socket and plug for the EV vehicle is disconnected.

Step Illustration Statu
1.Insert the plug into the correct power supply socket.	←←→	Ready
	←←→
2 pressing the "Amps" switch button for 2 seconds	CHARGING Time: 00:88:83 128°C 405V 0.89kw 16A 3.9A 8.082kwh	Enter setting the switch current mode
3 Continue to press the button briefly. The current will be changed. ( switch between 8-10-13-16A)	AMPS 8A 10A ↑ ↓ □ ← 13A 16A	Setting the current of User's request
4. Press the button for 2s again.	AMPS	Setting successfully

Please complete setting within 4 seconds at each step, otherwise the feature setting will fail.

Timer function:

CAUTION

In order to switch charging current, Please make sure the power plug is firmly inserted into the socket and the plug for EV vehicle is disconnected.

Step Illustration Statu
1.Insert the plug into the correct power supply socket.	←←→	Ready
	←←→
2.Load the "Time" switch button for 2 seconds.	CHARGING TIME: 08:00:05 120°C 405V 0.85kW 16A 3.9A 0.002kWh TIME	Enter setting the delay time mode
3 Continue to press the button briefly.The time will be changed.(Switch between 1/2/4/6/8/10H)	TIME 1h 2h 4h → ↓ □ - □ - 6h8h10h	Setting the delay time of User's request
4.Load the button for 2s again	TIME	Setting successfully

Please complete setting within 4 seconds at each step, otherwise the feature setting will fail.

Notice:

In case you want to cancel the timer setting - you can use one of the two options below:

1. Directly to disconnect the plug from the outlet socket.
2. Press the Time button for 5s.
