Product Type	Cordless Impact Driver
Brand	Parkside
Model	PDSSAP 20Li B2
Nominal Voltage	20 V (DC)
No-load speed (3 levels)	0-660 / 0-1250 / 0-1550 min⁻¹
Impact rate (3 levels)	0-500 / 0-1500 / 0-1900 min⁻¹
Max tightening torque	1356 Nm (level 3)
Max loosening torque	1898 Nm
Max screw diameter	M33
Tool holder	1/2" (12.7 mm)
Compatible battery	Lithium-ion 20 V, type PAP 20 B3 (4 Ah, 80 Wh)
Compatible charger	PLG 20 C3, input 230-240 V~, output 21.5 V/4.5 A
Charging time	Approx. 60 min
Sound pressure level	105.6 dB(A)
Sound power level	116.6 dB(A)
Vibration (screwing)	7.159 m/s² (uncertainty 1.5 m/s²)
Functions	LED work light, reversing switch, 3-level torque adjustment, belt clip, motor brake
Included accessories	3 sockets (17/19/21 mm), 1/2" to 3/4" adapter, belt clip, carrying case, instruction manual
Maintenance	Clean with a dry cloth, do not use gasoline or solvent. Store battery between 0-50°C with 50-80% charge.
Safety	Wear hearing protection, use only original battery and charger, observe warnings.
Warranty	5 years (product), 3 years (battery)

Frequently Asked Questions - PDSSAP 20Li B2 PARKSIDE

How to charge the battery of the Parkside PDSSAP 20Li B2 impact driver?

Insert the battery into the compatible fast charger (e.g., PLG 20 C3) and plug the charger into a mains outlet. The red LED indicates charging, the green LED signals that the battery is ready. Do not charge if the temperature is below 10°C or above 40°C.

How to adjust the speed or tightening torque?

Press the torque selection button to choose among the 3 levels (displayed on the screen). A light press on the switch gives reduced speed, a stronger press increases speed and torque.

How to reverse the rotation direction?

Turn the reversing switch located above the trigger to the right (forward) or to the left (reverse). The center position locks the tool.

Which batteries are compatible with the PDSSAP 20Li B2?

All batteries of the X20 V Team series, including models PAP 20 A1/A2/A3/B1/B3, PAPS 204 A1, and PAPS 208 A1. Full power is achieved with PAP 20 A3 or B3.

What is the battery charging time?

With the PLG 20 C3 charger (4.5 A), a 4 Ah battery takes about 60 minutes. Times vary depending on the charger and battery capacity (see charging time table).

How to clean and maintain the impact driver?

Before any maintenance, remove the battery. Clean the housing with a dry cloth. Never use gasoline or solvent. Keep the tool clean, dry, and free of oil. For the battery, store it between 0 and 50°C with a charge of 50 to 80%.

What to do if the battery does not charge (red LED flashes)?

If the red LED flashes, the battery is overheated: let it cool down. If the red and green LEDs flash together, the battery is defective and must be replaced.

What is the warranty for the Parkside PDSSAP 20Li B2 impact driver?

The product is guaranteed for 5 years from the date of purchase. Batteries of the X20 V Team series have a 3-year warranty. Keep the sales receipt as proof of purchase.

Where can I order spare parts or batteries?

You can order replacement batteries at www.kompernass.com or by phone at the after-sales service numbers (France: 0800 919270, Belgium: 0800 12089). Have your IAN (391002_2201) ready.

How to store the lithium-ion battery long-term?

Store the battery in a cool and dry place, between 0°C and 50°C, with a charge level between 50% and 80%. Check the charge regularly and recharge if necessary.

USER MANUAL PDSSAP 20Li B2 PARKSIDE

CORDLESS IMPACT WRENCH 20V / AKKU-DREHSCHLAGSCHRAUBER 20 V / VISSEUSE À CHOCSSANS FIL 20 V PASSP 20-Li A3

GB IE

CORDLESS IMPACT WRENCH 20V

Translation of the original instructions

FR BE

VISSEUSEÀCHOCS SANSFIL20V

AKKU-DREHSCHLAGSCHRAUBER 20 V

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Translation of the original instructions Page 1

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1/ PLGS 2012 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/ PAPS 204 A1/PAPS 208 A1 battery pack.

GB Smart battery support 17

This appliance supports advanced functions when using special smart batteries. For more information, please refer to the accompanying material provided by the respective manufacturer. If smart battery functions are supported, the Ready2Connect LED ⑰ lights up in the following manner:

Ready2Connect LED

Connect the battery pack LED flashes 3 times

Connect to the app LED stays on

Not connected to the app LED stays off

Tool in update mode LED flashes continuously

Tool update successful The LED flashes for 5 seconds

Tool update failed LED flashes rapidly alternately

Lücka LED Ready2Connect

General power tool safety warnings 4

1.Work area safety 4
2. Electrical safety
3. Personal safety 4
4. Power tool use and care 5
5. Use and handling of the cordless electrical power tool. 5
6. Service 6

Appliance-specific safety instructions for impact wrenches 6

Original accessories/auxiliary equipment 6

Safety guidelines for battery chargers 7

Before use 7

Charging the battery pack (see fig. A) 7

Inserting/removing the battery pack 8

Checking the battery charge level 8

Fitting the belt clip 8

Switching on/off 8

Setting/preselecting the rotation speed/tightening torque. 8

Changing the direction of rotation 8

Fitting a socket 8

Maintenance and cleaning 8

Kompernass Handels GmbH warranty 9

Service 10

Importer 10

Disposal 11

Translation of the original Conformity Declaration 12

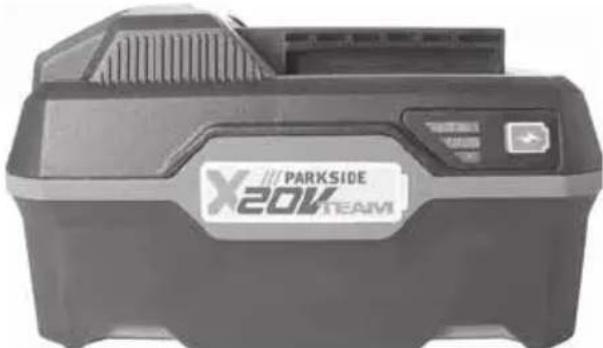

Ordering a replacement battery 13

Telephone ordering 13

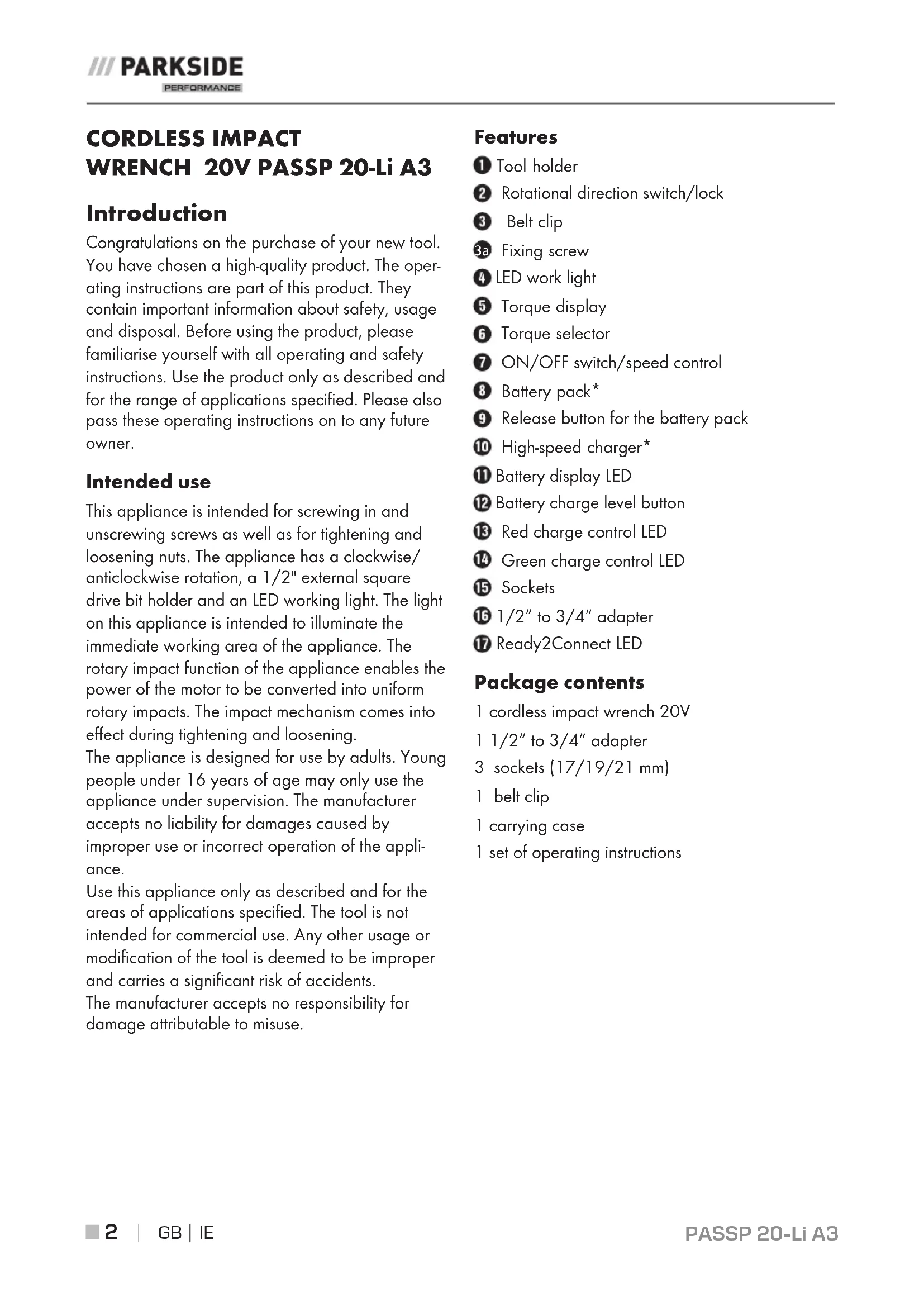

CORDLESS IMPACT WRENCH 20V PASSP 20-Li A3

Introduction

Congratulations on the purchase of your new tool. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for screwing in and unscrewing screws as well as for tightening and loosening nuts. The appliance has a clockwise/ anticlockwise rotation, a 1 / 2'' external square drive bit holder and an LED working light. The light on this appliance is intended to illuminate the immediate working area of the appliance. The rotary impact function of the appliance enables the power of the motor to be converted into uniform rotary impacts. The impact mechanism comes into effect during tightening and loosening. The appliance is designed for use by adults. Young people under 16 years of age may only use the appliance under supervision. The manufacturer accepts no liability for damages caused by improper use or incorrect operation of the appliance.

Use this appliance only as described and for the areas of applications specified. The tool is not intended for commercial use. Any other usage or modification of the tool is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

Features

Tool holder
Rotational direction switch/lock
3 Belt clip
3a Fixing screw
4 LED work light
Torque display
6 Torque selector
ON/OFF switch/speed control
8 Battery pack
9 Release button for the battery pack
10 High-speed charger
10 Battery display LED
12 Battery charge level button
13 Red charge control LED
16 Green charge control LED
15 Sockets
16 1/2" to 3/4" adapter
Ready2Connect LED

Package contents

1 cordless impact wrench 20V
1 1 / 2^ to 3 / 4^ adapter
3 sockets (17/19/21 mm)
1 belt clip
1 carrying case
1 set of operating instructions

Technical data

Cordless impact wrench 20V PASSP 20-Li A3

Rated voltage 20V (DC)

Rated idle speed 1st gear n 0-660 rpm

2nd gear _b 0-1250 rpm

3rd gear n_0 - 1550 rpm

Impact frequency 1st gear n 0-500 rpm

2nd gear _b 0-1500 rpm

3rd gear n 0-1900 rpm

Torque levels 1st level 130 Nm

2nd level 400 Nm

3rd level 1356 Nm

Max.screw capacity M33

Max. release torque 1898 Nm

Tool holder 1 / 2^

Battery PAP 20 B3*

Type LITHIUM

Rated voltage 20V (DC)

Capacity 4

Cells 10 (80 Wh)

NOTE

• Please note that the maximum performance of the device can only be achieved when using the PAP 20 A3/PAP 20 B3 battery.

High-speed battery charger PLG 20 C3*

INPUT

Rated voltage 230-240 V\~,50 Hz

(AC)

Rated power

consumption 120W

Fuse (internal) 3.15 A

OUTPUT

Rated voltage 21.5V-DC)

Rated current 4.5 A

Charging time approx. 60 min

Protection class II (double insulation)

• BATTERY AND CHARGER ARE NOT SUPPLIED

Noise emission value

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:

Sound pressure level L_PA = 105.6dB(A)

Uncertainty K_PA = 3 dB

Sound power level L_WA = 116.6dB(A)

Uncertainty K_WA = 3 dB

Vibration emission value

Total vibration values (vector total of three directions) determined accordance with EN 62841:

Tightening screws and nuts of maximum

permissible size a_h = 7.159m / s^2

Uncertainty K = 1.5 ~m / s^2

Wear ear muffs!

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accident
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing on jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in un expected situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ (265^) can cause an explosion.
g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!

Protect the recharge

able battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never try to repair damaged batteries. Maintenance of batteries should only be carried out by the manufacturer or an approved customer service centre.

Appliance-specific safety instructions for impact wrenches

Wear ear muffs when impact screwing. Exposure to loud noise can lead to hearing loss.
Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
Hold the power tool firmly. High torques can occur for brief periods while tightening and loosening screws.
Wait until the power tool has come to a standstill before putting it down. The tool could catch in something and thus lead to loss of control of the power tool.
Hold the power tool by the insulated gripping surfaces when performing an operation where a screw may hit hidden power lines. If a screw comes into contact with a live wire, this may make exposed metal parts of the power tool live and could give the operator an electric shock.

Original accessories/auxiliary equipment

Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

WARNING!

Do not use any accessories that are not recommended by PARKSIDE. Doing so could lead to an electric shock and/or fire.

ATTENTION! Hot surface. There is a risk of burns.

Safety guidelines for battery chargers

This tool may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the tool safely and are aware of the potential risks. Do not allow children to use the tool as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.

The charger is suitable for indoor use only.

WARNING!

To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.

ATTENTION!

This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/ PAP 20 A3/PAP 20 B1/PAP 20 B3/ PAPS 204 A1/PAPS 208 A1.
A current list of battery compatibility can be found at www.Lidl.de/Akku.

Before use

Charging the battery pack (see fig. A)

CAUTION!

Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

NOTE

• Never charge the battery pack at an ambient temperature of below 10^ or above 40^ . If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .

Connect the battery pad to the high-speed battery charger 10 see fig.A).
Insert the mains plug into the mains power socket. The green charge control LED 14 lights up briefly, then the red charge control LED 13 lights up.
The green control LED indicates that the charging process is complete and the battery pack ready for use.

ATTENTION!

If the red control LED3 flashes, this means that the battery pack has overheated and cannot be charged.
If the red and green control LEDs both flash, this means that the battery pack defective.

Push the battery pack into the appliance.
Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Inserting/removing the battery pack

Attaching the battery pack

Push the rotation direction switch into the middle position (lock).Push the battery pack 8 into the handle until it clicks into place.

Removing the battery pack

Press the release button and remove the battery pack.

Checking the battery charge level

Press the battery charge level button to check the status of the battery (see also main diagram).

The status/remaining charge will be shown on the battery display LED 1s follows:

RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge

RED = low charge - charge the battery

Fitting the belt clip

Loosen the fixing screw using a standard Phillips screwdriver (not supplied).

Hold the corresponding hole of the belt clip over that of the screw thread.

Tighten the fixing screw.

Switching on/off

Turn on

Press and hold the ON/OFF switch to start up the tool.

The LED work light 4 lights up when the ON/OFF switch 7s pressed lightly or fully.

This provides illumination of the work area in poor lighting conditions.

Switching off

Release the ON/OFF switch to switch off the appliance.

Setting/preselecting the rotation speed/tightening torque

Press the torque select to select the required torque in stages. The selected torque is shown on the torque display 5.

Press the ON/OFF switch lightly for a low speed and a low tightening torque. Increasing the pressure increases the speed and the tightening torque.

The tightening torque depends on the selected speed/torque selection and impact duration.

NOTE

• When tightening wheel nuts, however, the smallest torque setting must be selected to avoid over-tightening.
  The integrated motor brake ensures that the tool stops quickly.

AT

ATTENTION!

The tightening torque actually attained must always be checked with a torque wrench!

Changing the direction of rotation

Change the direction of rotation by pressing the rotation direction switch 2 towards the left or right.

Fitting a socket

Push one of the supplied sockets or the adapter into the tool holder.

Maintenance and cleaning

WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The tool is maintenance-free.

The appliance must always be kept clean, dry and free from oil or grease.
Never allow liquids to get into the tool.

Use a dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.

If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage environment is cool and dry.

NOTE

Unlisted replacement parts (such as switches) can be ordered via our service hotline.

KompernassHandelsGmbH warranty

Dear customer,

This appliance comes with a 5-year warranty valid from the date of purchase. In the event that this product has any defects, you, the buyer, have certain statutory rights. Your statutory rights are not limited in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within 5 years of the product's date of purchase, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the 5-year warranty period, together with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

The X 20 V Team Series battery pack comes with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 391002_2201 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 391002_2201.

WARNING!

Have your tools repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Ensure that the power plug or the mains cable is replaced only by the manufacturer of the tool or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

Service

GB Service Great Britain Tel.:[phone] E-Mail: [e-mail]
IE Servicelreland Tel.:[phone] E-Mail:[e-mail] IAN 391002_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

Disposal

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is

subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to

Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/ rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material

components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

• The manufacturer bears full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 62841-1:2015

EN 62841-2-2:2014

ENIEC55014-1:2021

EN IEC 55014-2:2021

ENIEC63000:2018

Type/appliance designation: Cordless impact wrench 20V PASSP 20-Li A3

Year of manufacture: 06-2022

Serial number: IAN 391002_2201

Bochum, 24/06/2022

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering a replacement battery

If you want to order a replacement battery for your tool, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

NOTE

• Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

Telephone ordering

GB Service Great Britain Tel.: [phone]
IE ServiceIrelandTel.: 1800 101010

To ensure fast processing of your order, have the article number of your appliance to hand (IAN 391002_2201) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Inhaltsverzeichnis

Einleitung 16

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Entsorgung

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

Directive relative aux machines

(2006/42/CE)

• Responsible qualite -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

Akumulator PAP 20 B3*

Typ

LITHIUM-IO

NTOV

VYSTUP/Output

Domezovaci napeti 21,5 V (srejnosmerny proud)

Domezovaciproud 4,5A

Doba nabijeni cca 60 min

Trida ochrany II (dvojita izolace)

• AKUMULÁTOR A NABÍJEČKA NEJSOU SOUČÁSTÍ DODÁVKY

Hodnota emise hluku

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidace

Akumulator PAP 20 B3*

Typ

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

Akumulator PAP 20 B3*

Typ

LITIUM-IONVy

VYSTUP/Output

Dimenzaçné napàtie 21,5 V= (jednosmerny prud)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

Produkt a obal su recyklovatel'né, podliehaju rozsirenej zodpovednosti vyrobcu a zbieraju sa oddelene.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bortskaffelse

Bestilling of reservebatteri

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Smaltimento

Akumulator PAP 20 B3*

Vrsta LITIJ-IONSKI

Nazivna napetost 20V = (enosmerni tok)

Kapaciteta 4 Ah

Celic 10 (80 Wh)

OPOMBA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMCIJA

www.kompernass.com

OPOZORILO!

Svoje naprave daje v popraviloismo servisni sluzbi ali strokovnjaku za elekto-tehniko, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ochrani varnost naprave.
Zamenjavo vtica ali priključne napeljave zmeraj prepustite proizvajalu naprav e ali njegovi servisni sluzbi. S tem zagotovite, da se ohrani varnost naprave.

Pooblasceni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 391002_2201

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompermass.com

Last Information Update - Stand der Informationen - Version des informations - Stand van de informatie - Stav informaci - Stan informaci Stav informaci - Estado de las informaciones - Tilstand af information - Versione delle informazioni - Informacionk allasa - Stanje informacij: 06 / 2022 - Ident-No.: PASSP20-LiA3-062022-1
