| Product Type | Cordless Drill/Driver |
| Model | E035912 |
| Brand | Parkside |
| Battery Voltage | 18 V |
| Chuck Type | Keyless |
| Chuck Capacity | 1 – 10 mm |
| No-Load Speed (Gear 1) | 0 – 400 rpm |
| No-Load Speed (Gear 2) | 0 – 1500 rpm |
| Max Torque | 30 Nm |
| Drilling Capacity in Wood | 30 mm |
| Drilling Capacity in Steel | 10 mm |
| Weight | 1.2 kg |
| Dimensions (L x W x H) | 200 x 80 x 250 mm |
| Battery Type | Li-Ion |
| Charging Time | 1 hour (approx.) |
| LED Work Light | Yes |
| Battery Level Indicator | Yes |
| Soft Grip Handle | Yes |
| Belt Clip | Yes |
| Safety Features | Overload protection, safety trigger lock |
| Maintenance | Clean with dry cloth; keep ventilation slots clear |
| Spare Parts Availability | Available via Parkside service centres |
| Warranty | 3 years |
Frequently Asked Questions - E035912 PARKSIDE
User questions about E035912 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual E035912 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. E035912 by PARKSIDE.
USER MANUAL E035912 PARKSIDE
Operation and Safety Notes
Translation of original operation manual
ES
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB / MT Operation and Safety Notes Page 35


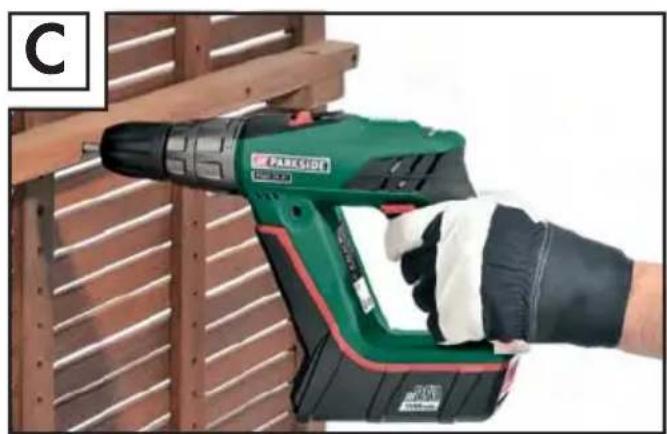

Hand holding a green and black Pareto tool against a wooden panel background (no text or symbols visible)


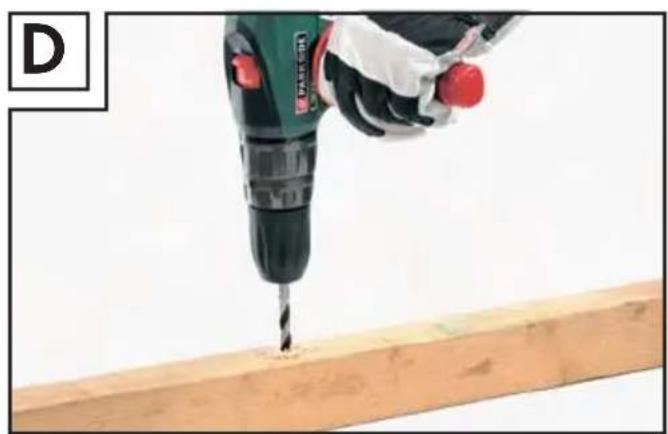

Close-up of a green electric drill press on a wooden beam, no text or symbols visibleIntroducción
Date of manufacture (DOM): 04-2011
Numero di serie: IAN 64192
Bochum, 30.04.2011
Hans Kompernaß
-Amministratore-
Features and equipment......Page 36
Included items ......Page 37
Technical information......Page 37
General safety advice for electrical power tools
-
Workplace safety ......Page 38
-
Electrical safety Page 38
-
Personal safety......Page 38
-
Careful handling and use of electrical power tools ......Page 39
-
Use and handling of the cordless electrical power tool ......Page 39
Safety advice relating specifically to cordless impact drill/drivers....Page 40
Original accessories/attachments....Page 40
Caution utility services! Page 40
Preparing for use
Attaching the auxiliary handle....Page 40
Charging the battery pack Page 40
Inserting / removing the battery pack into / out of the device ......Page 41
Checking the battery charge state....Page 41
2-speed gear operation......Page 41
Torque preselection....Page 41
Drilling/screwing/impact drilling......Page 41
Changing inserted tools....Page 41
Switching On/Off Page 42
Activating the lock....Page 42
Setting the speed....Page 42
Reversing the direction of rotation....Page 42
Tips and tricks......Page 42
Maintenance and cleaning......Page 42
Service Page 42
Warranty Page 43
Disposal Page 43
Declaration of Conformity / Manufacturer......Page 44
| The following pictograms are used in these operating instructions / on the device: | |||
 | Read instruction manual! | W | Watts (Effective power) |
 | Observe caution and safety notes! DC (current and voltage type) | ||
 | Caution - electric shock!Danger to life! | Nm | Newton metre (torque) |
 | Design no-load speed Safety class II | ||
 | Volt (AC) Drill setting (torque preselect) | ||
  | Wear hearing protection, dust protection mask, protective glasses and protective gloves. | Drill setting (impact drilling) | |
 | Wear appropriate footwear. | Ah | Amp (Battery capacity) |
 | For indoor use only! | Risk of loss of life by electric shock from damaged mains lead or mains plug! | |
 | Spindle lock | Keep children away from electrical power tools! | |
| [DTZS] | Drill chuck, Made In Germany | Dispose packaging and appliance in an environmentally-friendly way! | |
Cordless hammer drill PSBS 24 A1
For drilling and screwing into wood, plastic and metal
- Introduction
Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you
understand how to handle electrical power tools correctly. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.
- Proper use
This device is intended for drilling and screwing into wood, plastic and metal as well as for impact drilling into stone, brick and concrete. When drilling into
granite, we recommend the use of a drill hammer. Use the device only as described and for the indicated purposes. Any other use or modification to the device shall be considered as improper use and could give rise to considerable risk of accident. The manufacturer will not accept liability for loss or damage arising from improper use. Not suitable for commercial use.
● Features and equipment
1 Gear selector switch
2 LED display / battery charge state
3 Battery charge state test button
4 Spirit level
5 Direction of rotation switch / lock
6 ON/OFF switch/Speed regulator
7 Bit
8 Battery unlocking button
9 Battery pack
10 Auxiliary handle
11 Quick-release chuck RÖHM
12 Drill / hammer drill setting ring
13 Torque preselection ring
14 Fast battery charger
15 Red charge indicator LED
16 Green charge indicator LED
- Included items
1 Carrying case
1 Rechargeable impact drill/ driver with rechargeable battery pack
1 Auxiliary handle
2 Bits
1 Charger
1 Operating instructions
● Technical information
Cordless hammer drill PSBS 24 A1:
Rated voltage: 24V ---
No-load speed: 1st gear: n 0-500 min ^-1
No-load speed: 2nd gear: n 0-1800 min ^-1
Chuck capacity: 1.0-13 mm
Max. drill diameter: Metal: 13 mm
Wood: 30 mm
Masonry (concrete): 15 mm
Max. torque: 35 Nm
Dimensions: 324×68×237 mm
Ni-Cd rechargeable battery pack PSBS 24 A1-1:
Rated voltage: 24 V ---
Capacity: 1.5 (Ah)
Capacity: 36 Wh
Fast battery charger PSBS 24 A1-2:
Rated voltage: 230 V \~ 50 Hz, 105 W
Charging current: 3000 mA
Charging duration: 90 min
Protection class:
Noise and vibration data:
Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:
| Sound pressure level: | 76 dB(A) |
| Sound power level: | 87 dB(A) |
| Sound pressure level(Impact drilling in concrete): | 87 dB(A) |
| Sound power level(Impact drilling in concrete): | 98 dB(A) |
| Uncertainty K: | 3 dB |
Wear ear protection!
Total vibration (vector sum of three directions) is calculated in accordance with EN 60745:
Drilling in metal: Vibration emission value a_h,D = 1.682 m/s^2 , Uncertainty K = 1.5 m/s^2 ,
Screwing: Vibration emission value a_h=1.109 m/s^2 , Uncertainty K=1.5 m/s^2 ,
Impact drilling
in concrete: Vibration emission value a_h,ID = 11.25 m/s^2 , Uncertainty K = 1.5 m/s^2 .
WARNING! The vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN 60745 and can be used to compare devices. Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to underestimate the vibration load if the electrical power tool is used regularly in particular circumstances.
Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.
General safety advice for electrical power tools
WARNING! Read all the safety advice and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury.
Keep all the safety advice and instructions in a safe place for future reference!
The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).
1. Workplace safety
a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts.
Electrical power tools create sparks, which can ignite dusts or fumes.
Keep children and other people away while you are operating the electrical tool.
Distractions can cause you to lose control of the device.
2. Electrical safety
a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body.
There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
Wear personal protective equipment and always wear safety glasses.
The drawing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it.
Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.
4. Careful handling and use of electrical power tools
a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions
and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.
5. Use and handling of the cordless electrical power tool
a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
CAUTION! DANGER OF EXPLOSION! The batteries must never be recharged!
Safety advice relating specifically to cordless impact drill/drivers
Wear ear protection when percussion drilling. Exposure to noise can cause hearing loss.
Use the additional handle 10 that came with the appliance. Losing control of the machine can lead to injuries.
- Hold the appliance by the insulated handling surfaces when you are carrying out work during which the insertion tool might hit on hidden power supply lines or the appliance's own power cable. Contact with a live electrical wire can also make metal parts of the electrical tool live and can lead to electric shock.
Before cleaning or maintaining the charger or battery pack always pull the plug out of the mains socket. This precaution is intended to prevent you from unintentionally starting the device.
■ Never charge the battery pack if the ambient temperature is below 10 °C or above 40 °C. In this way you will ensure your battery has long working life.
The ventilation openings on the charger must always be kept free. Otherwise there is the danger of overheating.
Before you carry out any tasks on the device, transport or store it, make sure that the direction of rotation switch 5 is in the middle position (lock) to prevent the device from starting up unintentionally.
Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.
● Original accessories/attachments
Use only the accessories detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.
● Caution utility services!
WARNING! Ensure that you do not strike electrical cables, gas or water pipes when you are working with an electrical power tool. Check a wall using a suitable detector before you drill or cut slots.
● Preparing for use
- Attaching the auxiliary handle
☐ Screw the additional handle onto the left-hand or the right-hand side of your appliance depending on the way you work.
● Charging the battery pack
Note: A battery pack that has been unused for a while or never been charged must be charged before reuse or first use. The battery pack requires about 3 - 5 cycles before it can reach its full charge. Charging takes about 90 minutes.
⚠️ CAUTION! Always ensure the plug is removed from the mains socket before inserting a battery pack into, or removing one from, the charging station.
☐ Push the coupler (see Fig. A) onto the rechargeable battery pack 9. Insert the mains plug into the socket.
☐ The red charge indicator LED 15 indicates that the charging process has started. The red light goes out as soon as the battery pack 9 is fully charged.
The green charge indicator LE ^D6 shows that the charging process is complete and the battery pack 9 is ready for use.
NOTE: If the rechargeable battery pack is discharged and still hot from from the tool being used, it will not be recharged immediately. The charging process will start automatically, as soon as the rechargeable battery pack has cooled to an adequate temperature.
Do not use the quick-charge process to charge a battery pack 9 for a second time in close succession. Otherwise there is the danger that the battery pack 9 will become overcharged and its useful life and that of the charger reduced.
■ Switch the charger4 off for at least 15 minutes between successive charging processes. To do this pull the mains plug out of the socket.
- Inserting / removing the battery pack into / out of the device
Removing the rechargeable battery pack:
☐ In order to remove the rechargeable battery, turn the appliance 180°.
Press the unlocking button 8 and push the rechargeable battery pack 9 out of the appliance.
Inserting the rechargeable battery pack:
☐ Push the rechargeable battery pack 9 onto the appliance.
- Checking the battery charge state
Press the battery charge state test button. The remaining charge capacity is shown on the LED display 2.
● 2-speed gear operation
In first gear (gear selector switch 1 in position: 1)
the device achieves a speed of approx. 500 min ^1 and a high torque. For example, for screwing work with small screw diameters.
In second gear (gear selector switch 1 in position: 2)
the device achieves a speed of approx. 1800 min ^1 and a lower torque. For example, for rapid drill progress in masonry or large drill or screw diameters.
- Torque preselection
Use the torque preselection ring 13 to set the torque. When this set torque is reached the clutch decouples the drive. This allows you to screw in screws to a predetermined depth, which is ideal e.g. for screwing in a series of screws.
☐ Select a lower setting for small screws or soft materials.
☐ Select a high setting for large screws, hard materials, or when screwing out screws.
☐ For drilling tasks select drilling setting by placing the torque preselection ring in the position.
● Drilling / screwing / impact drilling
Drilling / screwing:
Turn the setting ring to the symbol
Impact drilling:
□ Turn the setting ring 12 to the symbol
● Changing inserted tools
Your cordless hammer drill has a fully automatic spindle lock SPINDLE LOCK and is fitted with a single-sleeve drill chuck with radial lock "Made in Germany" by Rohm
Once the motor has come to a halt, the drive shaft is automatically locked so that the quick-action drill
chuck 11 can be opened simply by turning it in the direction of the arrow (see labelling at the front of the drill chuck "←AUF/OPEN").
After you have inserted the tool you wish to have, turn the drill chuck in the direction of the arrow until you cannot hear any click any more (see the labelling on the front of the drill chuck "ZU/CLOSE"). The drill chuck will then lock automatically. The spindle lock releases itself automatically when the motor is started (by operation of ON/OFF switch 6).
- Switching On / Off
☐ To start the device, press the ON / OFF switch and keep it pressed.
☐ To switch off the device, release the ON / OFF switch 6.
- Activating the lock
☐ Press the rotational direction switch 5 into the middle position. The ON/OFF switch 6 is now blocked.
- Setting the speed
The ON/OFF switch 6 has a variable speed regulator.
Increasing the speed:
☐ Increase the pressure on the ON / OFF switch
Reducing the speed:
☐ Reduce the pressure on the ON/OFF switch 6 The integral motor brake quickly brings the device to a standstill - which is ideal e.g. for screwing in a series of screws.
● Reversing the direction of rotation
☐ Push the direction of rotation switch fully through to the right or left to reverse the direction of rotation.
- Tips and tricks
Drilling in metal: Use a metal drill bit (HSS). For the best results, you should cool the bit with oil. Metal drill bits can also be used to drill into plastic.
Drilling in stone: Use a hardened-metal-tipped masonry drill bit.
Drilling in wood: Use a wood drill bit with a centring point. For deep holes, use an auger type bit. For large diameter holes, use a forstner bit. You can screw small screws into soft wood without the need for pre-drilling.
● Maintenance and cleaning
The cordless impact drill / driver is maintenance-free.
□ Clean the device frequently. This should be done immediately after you have finished using it.
☐ Use a dry cloth to clean the outside of the device - never use petrol, solvents or cleaners.
WARNING! Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist.
- Service
WARNING! Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING! If the plug or lead needs to be replaced, always have the replacement carried out by the manu-
facturer or its service centre. This will ensure that your device remains safe to use.
- Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
GB
Service Great Britain
Tel.: 0871 5000 720
(0,10 GBP/Min.)
e-mail: kompernass@lidl.gb
IAN 64192
MT
Service Malta
Tel.: 80062230
e-mail: kompernass@lidl.mt
IAN 64192
- Disposal
The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.
Do not dispose of electrical appliances in household waste.
In accordance with European Directive 2002/96/ EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.
Do not dispose of rechargeable batteries with your household refuse!
Defective or exhausted rechargeable batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please refer to the special safety advice in relation to the charger and battery pack. Return the rechargeable battery and/or the equipment to the appropriate collection facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
● Declaration of Conformity / Manufacturer CE
We, Kompernaß GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:
Machinery Directive (2006/42/EC)
EC Low-Voltage Directive (2006/95/EC)
Electromagnetic Compatibility (2004/108/EC)
Applicable harmonized standards
EN 60745-1:2009
EN 60745-2-1:2010
EN 60745-2-2:2010
EN 55014-1:2006
EN 55014-2:1997+A1+A2
EN 60335-1:2002+A1+A11+A12+A2+A13
EN 60335-2-29:2004
EN 62233:2008
EN 61000-3-2:2006
EN 61000-3-3:2008
Product designation:
Cordless hammer drill PSBS 24 A1
Date of manufacture (DOM): 04-2011 Serial number: IAN 64192
Bochum, 30.04.2011
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications in the course of product development.
Einleitung
© by ORFGEN Marketing
