PAS 4 D6 - Drill PARKSIDE - Free user manual and instructions

Product type	Cordless screwdriver (drill/driver)
Brand	Parkside
Model	PAS 4 D6
Rated voltage	4 V (DC)
Battery type	Integrated lithium-ion, 1.5 Ah
Charging time	Approx. 60 minutes
Charging voltage	5 V (USB-C)
Max charging current	1.7 A
Max torque	10 Nm (according to ISO 5393)
Bit holder	6.35 mm (1/4") hexagonal
Included bits	14 bits: 4 slotted (SL3-SL6), 3 Pozidriv (PZ0-PZ2), 4 Phillips (PH0-PH3), 3 hex (H3-H5)
Lighting	Work area LED
Rotation direction	Reversible (left/right)
Optional accessories	Torque bit, eccentric bit, angle bit, cutting bit (not included)
Sound level (pressure)	55.5 dB(A)
Sound level (power)	66.5 dB(A)
Vibration (screwing)	≤ 2.5 m/s²
Operating temperature	0 to +40 °C
Charging temperature	+4 to +40 °C
Storage temperature	0 to +50 °C
Warranty	3 years
Recommended charger	HG06825 / HG06825-BS (not included)

Frequently Asked Questions - PAS 4 D6 PARKSIDE

How to recharge the battery of the Parkside PAS 4 D6?

Connect the supplied USB cable to the USB-C port of the tool and to a recommended USB charger (Type A) (HG06825 or HG06825-BS). The charging LED lights up red during charging and turns green when the battery is full. Charging time is approximately 60 minutes. Only charge between +4 °C and +40 °C.

Can I use a non-Parkside charger?

It is strongly recommended to use only the specified charger (HG06825 / HG06825-BS) to avoid any risk of fire or damage to the battery. Using other chargers may be dangerous.

How to change the rotation direction?

Use the rotation direction switch (mark 5) on the tool. Push it to the right (indicator ▲) for screwing, and to the left (indicator ▼) for unscrewing. For locking, set it to the center position.

What to do if the screw does not turn or the tool jams?

Immediately turn off the tool by releasing the switch. Check that the bit is suitable for the screw and properly inserted. If the jam persists, secure the workpiece and gently remove the screw. Be prepared for a kickback effect when unscrewing.

How to clean the tool?

Before cleaning, set the rotation direction switch to the center position, disconnect the USB cable and remove the bit. Clean the tool with a dry cloth and a soft brush for the ventilation slots. Do not use chemical or abrasive cleaners.

Is the battery removable?

No, the Li-ion battery is integrated and cannot be replaced by the user. For any service, contact the manufacturer or an authorized after-sales service.

What do the LEDs on the tool mean?

The charge level LED (mark 3) indicates the battery status: red if the charge is below 30% (or during charging), green if the battery is full. The work area LED light (mark 8) turns on when the on/off switch is pressed.

Can I use standard bits?

Yes, the tool accepts bits with a 6.35 mm (1/4") hexagonal shank. You can use standard bits suitable for your screws. A magnetic bit holder is included for easy changing.

Is the tool suitable for drilling?

This tool is mainly designed for screwing and unscrewing. It is not intended for drilling. For drilling work, use a suitable drill.

How to store the tool?

Set the rotation direction switch to the center position (locked). Store the tool in a dry place, protected from direct sunlight, ideally in its original packaging. The storage temperature should be between 0 and +50 °C.

USER MANUAL PAS 4 D6 PARKSIDE

AKKU-SCHRAUBER / CORDLESS SCREWDRIVER / TOURNEVIS SANS FIL PAS 4 D6

DE AT CH

AKKU-SCHRAUBER

Operation and safety notes

Translation of the original instructions

FR BE

TOURNEVIS SANS FIL

Warnings and symbols used. Page 45

Introduction 48

Intended use. 48

Scope of delivery. Page 49

Description of parts. 50

Technical data. Page 51

Safety instructions. Page 55

General power tool safety warnings. 55

Safety guidelines for screwdrivers. Page 64

Vibration and noise reduction. 65

Behaviour in emergency situations. Page 66

Battery charger safety warnings . Page 66

Residual risks. Page 68

Use. Page 69

Battery information. Page 69

Changing rotary direction. Page 71

LED work light . Page 71

Changing bits and magnetic bit holder . Page 71

Front cover . Page 72

Switching on/off 72

Cleaning and maintenance. Page 73

Maintenance . Page 74

Storage 74

Transportation . 75

Disposal. Page 76

Warranty

Warranty claim procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service. Page 79

EC declaration of conformity. Page 80

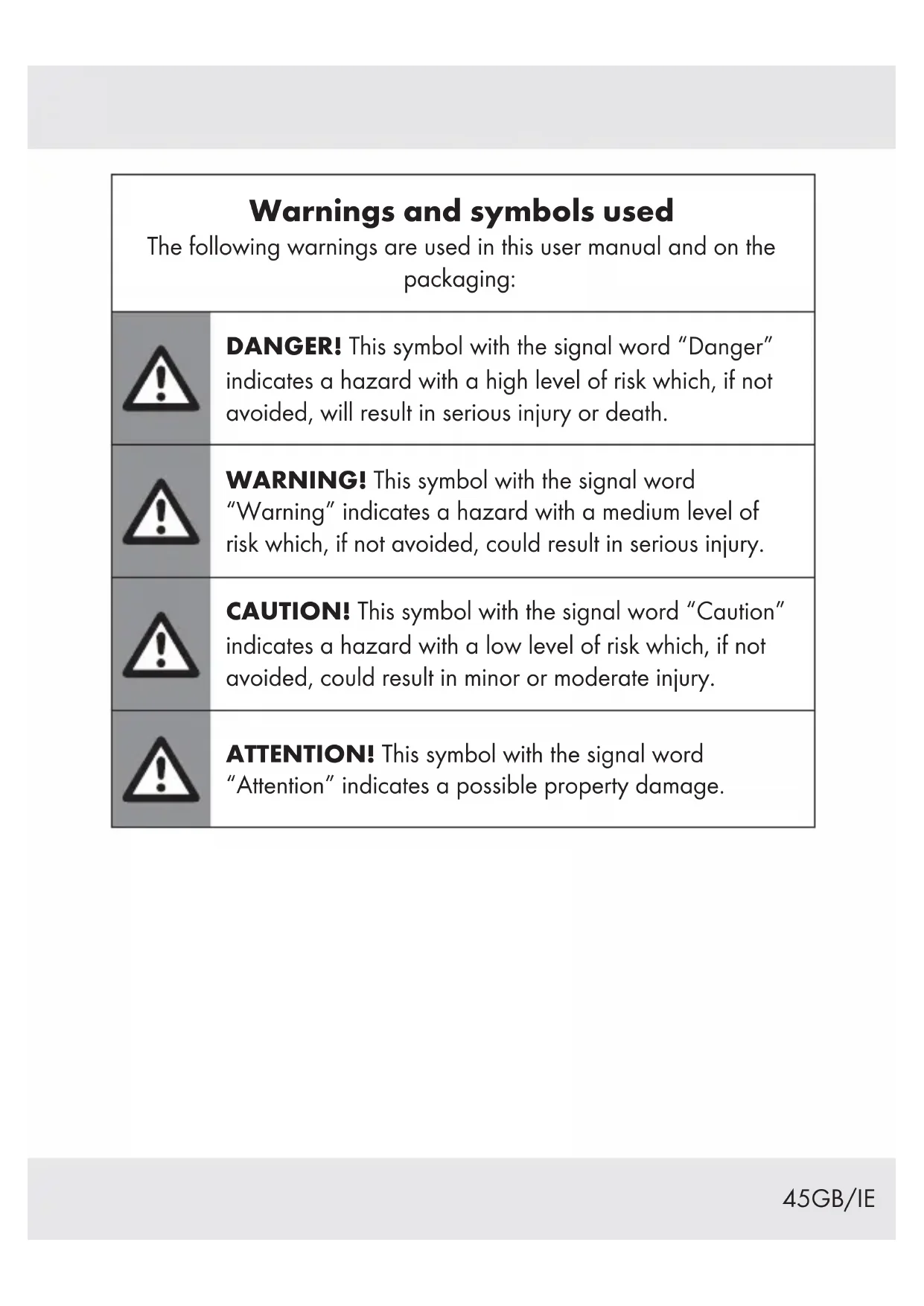

Warnings and symbols used

The following warnings are used in this user manual and on the packaging:

DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.

CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

ATTENTION! This symbol with the signal word "Attention" indicates a possible property damage.

i	NOTE: This symbol with the signal word "Note" provides additional useful information.
4	Risk of electric shock!
~	Alternating current / voltage
=	Direct current / voltage
	Protection class II
	Use in dry indoor rooms only.
	Read the instruction manual.
Li-Ion	Lithium-Ion battery
n₀	No-load speed
máx. 50 °C	Protect the rechargeable battery from heat and continuous intense sunlight.
	Protect the rechargeable battery from fire.
	Protect the rechargeable battery from water and moisture.
min-1	Revolutions per minute
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This cordless screwdriver (hereinafter "product" or "power tool") is designed for screwing in and out screws.
Always use the correct accessory tools (attachments and bits) according to the intended use! Observe the technical requirements of this product (see "Technical data") when purchasing and using accessory tools!
The LED work light 8 on this product is intended to illuminate the immediate work area.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial or similar uses.

Scope of delivery

mWARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Cordless screwdriver
1 USB cable
14 Screw bits × 25mm

4 Slotted bits: SL3 SL4 SL5 SL6
3 Pozidriv bits: PZ0 PZ1 PZ2
4 Phillips bits: PHO PH1 PH2 PH3
3 Hexagonal bits:

H3 H4 H5

1 Magnetic bit holder × 60mm
1 Instruction manual

Description of parts

(Fig. A)

1 Bit holder
2 Direction indicator (tighten screws)
3 Battery status LED
4 Direction indicator (loosen screws)
5 Rotation direction switch
6 USB Type C socket
7 Switch trigger
8 LED work light
9 Front cover
10 Magnetic bit holder
11 Screw bits
12|USB cable
13 Instruction manual
14 Charger
15 USB port (Type A)

• Charger is not included. Suitable charger:

HG06825 / HG06825-BS

Technical data

Cordless screwdriver

Model: HG07075

Rated voltage: 4 V = (direct current)

Charging voltage: 5 V = = (direct current)

Maximum charging current: 1.7 A

Rechargeable battery (built-in): Lithium-lon

Number of cells: 1

Capacity: 1.5 Ah

No-load speed: n 0 = 200^-1

Torque (hard/soft screwing per

Use only the following charger to charge the cordless tool * :

Information Value

Manufacturer's name or trademark, commercial registration number and address

OWIM GmbH & Co. KG

Input AC frequency 50/60 Hz

Output voltage 5.0 V

Output current 1.7 A

Output power

8.5 W

Average active efficiency

78.2%

No-load power consumption 0.07 W

Input current

0.3 A

Protection class

II / (double insulation)

Connection type USB (Type A)

Charging time

approx. 60 min

• Charger is not included. Suitable charger: HG06825 / HG06825-BS

Recommended ambient temperature

While charging:

+4 to +40 °C

During operation:

0 to +40 °C

During storage:

0 to +50 °C

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: L pA = 55.5 dB(A)

Sound power level: L WA = 66.5 dB(A)

Uncertainty K: K pA / WA = 3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Screw driving

Vibration emission value a_h = < 2.5 m/s (0.912 m/s²)

Uncertainty K = 1.5m / s

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

mWARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.

Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

- General power tool safety warnings

mWARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power

tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/ or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) eep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!
max. 50°C	Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture.
	There is a risk of explosion.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

Safety guidelines for screwdrivers

a) Hold the power tool by the insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
b) Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
c) Hold the power tool firmly. High reaction moments can occur for brief periods while lightening and loosening screws.
d) Switch the power off immediately if the tool blocks while in use. Be prepared for high reaction moments as these can cause kickback.
e) While working on the appliance, transporting it or storing it, always set the rotation direction switch to the central position (lock position). This prevents the power tool from starting up unintentionally.

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

Only use the product as intended by its design and these instructions.
Ensure that the product is in good condition and well maintained.
Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles / grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.

Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions.

Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Do not charge non-rechargeable batteries.

Disregarding this instruction is hazardous.

Protect the electrical parts against moisture.

Do not immerse such parts in water or other liquids to avoid electrical shock.

• Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

The appliance is suitable for indoor use only.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.

The following dangers can arise in connection with the structure and design of this product:

Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

Use

Battery information

The built-in battery is supplied partially charged. Li-1on batteries can be charged at any time without adversely affecting their service life. Interruption of the charging process will not damage the battery.
If the battery status LED 3 lights up red during use, the battery is at less than 30% of its capacity and needs to be charged.
- Never charge the product when the ambient temperature is below +4^ or above +40^ . The storage climate should be cool and dry and the ambient temperature should be between 0^ and +50^ .
This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Start charging

(Fig. B)

Connect the USB ca12 to the USB port (Type A) 15 of the charger14.
Connect the other end of the USB ca12 to the USB Type C socket 6.

Connect the charger 14 to a socket-outlet.
The battery status LED 3 shows the charging status:

Battery status LED 3

Charging status

Red Charging

Green Battery is charged up

① NOTE: The LED work light 8 can be used whilst charging. It is normal for the handle to warm up slightly whilst charging.

Stop charging

Disconnect the USB ca12 from the product.
Disconnect the char14 from the socket-outlet.

- Changing rotary direction

Push through the rotation direction switch 5 to set the rotary direction (Fig. C):

Switch pushed from Direction Direction indicator

Right

(b)

Tightenscrews

Left

(a)

Loosen screws

LED work light

• Set the rotation direction switch 5 to the middle position so that it protrudes equally on both sides.
  The LED work light 8 can be switched on separately to illuminate the immediate work area.
• Switching on the LED work light 8: Press down the switch trigger 7.
  Switching off the LED work light 8: Release the switch trigger 7.

- Changing bits and magnetic bit holder

Pull out the 11. Insert another type of bit into the bit holder 1 or the magnetic bit holder 10 (Fig. D).

① NOTE: Screw bits are labelled according to their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.

Front cover

The front cover 9 can be removed for attaching other attachments that are available from our after-sales service (Fig. E, F):

A1 Torque attachment
A2 Eccentric attachment
A3 Angle attachment
A4 Cutting attachment

- Switching on/off

Switching on/off Action

On	Press the switch trigger 7 and hold it in place. The LED work light 8 lights up.
Off	Release the switch trigger 7. The LED work light 8 goes off.

Cleaning and maintenance

Before cleaning or carrying out any maintenance:

• Set the rotation direction switch 5 to the middle position. This prevents unintentional switching on.

-Remove the USB cable12.
-Remove the bi11.
-Disconnect the charge 14 from the socket-outlet.

Never allow fluids to get into the product.

The product must always be kept clean, dry and free from oil or grease.
Remove debris from it after each use and before storage.
Regular and proper cleaning will help ensure safe use and prolong the life of the product.
Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
In particular clean the air vents after every use with a cloth and soft brush.
The vents must always be clear.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

Before and after each use: Check the product and its accessories (screw bits 11, magnetic bit holder 10) for wear and damage.

If required, exchange the accessories for new ones (see "Changing bits and magnetic bit holder").

Observe the technical requirements of the accessories (see "Technical data").

Storage

Set the rotation direction switch 5 to the middle position. This prevents unintentional switching on.
Store the product in a dry indoor location protected from direct sunlight, preferably in its original packaging.

- Transportation

This product contains a Li-1on rechargeable battery and is therefore subject to hazardous materials regulation. Users may transport the product with built-in rechargeable battery on roads or by sea without special requirements.
The packaging and marking is subject to special requirements when it is transported by third parties (e.g. airline, courier, carrier). A hazardous materials expert must be consulted when transported by third parties.

① NOTES:

The integrated Lithium-1on battery may only be removed by trained or qualified personnel.

To remove the battery from the housing, the battery must be empty and the screws unscrewed from the housing. The connections on the battery must be individually disconnected and isolated.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 384680_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

C E

EC declaration of conformity

EC DECLARATION OF CONFORMITY
IAN: 384680_2107 Product identification: PARKSIDE Cordless Screwdriver Model Number: HG07075 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Directive 2006/42/EC
Directive 2014/30/EU
Directive 2011/65/EU
References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared.
N° / Parts
Directive 2006/42/EC
EN 62841-1:2015
EN 62841-2-2:2014
Directive 2014/30/EU
EN 55014-1:2017
EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013/A1:2019
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:
N° / Parts
Directive 2011/65/EU
EN IEC 63000:2018
Signed for and on behalf: CWIM GmbH & Co. KG Stiftsbergstraße 1 D-74167 Neckarsulm Germany This declaration of conformity is issued under the sole responsibility of the manufacture Original declaration of conformity
Neckarsulm 24.09.2021
Place	Date	Benjan## Steeb Managing Director	L###s Boschheim Authorized Signatory

Maintenance. Page 112

Rangement 112

Transport 113

V = (tension continue)

$$ = - - (t e n s i o n c o n t i n u e) $$

A

N m maxi

,35 mm (1/4")

N°/Pboces

DirecTive:2011/ES/PJE

EN IEC 63000:2018

4 Phillipsbits: PHO PH1 PH2 PH3

3 Inbusbits: H3 H4 H5

Productidentification:

PARKSIDE Accu-schroelmachine

ModelNumber:

H607075

$$ 0 = 2 0 0 \min ^ {- 1} $$

Max. 10Nm

Vystupni napeti 5,0 V

Vystupni proud 1,7 A

Vystupni vykon 8,5 W

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Directive 2006/42/EC

EN62841-1:2015

EN 62841-2-2:2014

Directive 2014/30/EU

EN55014-1:2017

EN55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013/A1:2019

Predmet vissie uvedenenoVyhlaseia je v sulade so smernicou Europskeho parlamento a Rady 2011/65/EU 8. jana 2011 o obmedzreni pouzmania urDyich nebezpeydnych latok v elektrickych a elektronickych ziaradeniach

2

Smernica 2011/65/EU

EN IEC 63000:2018

Pdpisani z a vmei:

$$ 0 = 2 0 0 \min ^ {- 1} $$

Max. 10Nm

La tapa frontal [9]SEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO

$$ 0 = 2 0 0 \min ^ {- 1} $$

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

$$ 0 = 2 0 0 \min ^ {- 1} $$

Max. 10Nm
