Dear Customer, You have just acquired a BRANDT hood, and we would like to thank you. Our research teams have created this new generation of appliances for you. Their quality, design, features and technological advances make them exceptional products, and reveal our unique know-how. Your new BRANDT hood will blend harmoniously into your kitchen and will perfectly combine extraction performance and ease of use. We wanted to offer you a product of excellence. In the BRANDT product range, you will also find a wide choice of hobs, ovens, microwaves, dishwashers, cookers, fridges, freezers, that you can coordinate with your new BRANDT hood. Visit our website www.brandt.com , where you will find our latest innovations as well as useful and complementary information. BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning : Before installing and using your appliance, please carefully read this Guide to Installation and Use, which

• will allow you to quickly familiarise yourself with its operation.42 Contents EN - Safety and important precautions p. 43
• Instruction on mounting and use p. 45
• Use p. 45
• Description of the hood p. 45
• Installation p. 45
• Electrical connection p. 45
• Mounting p. 45
• Operation p. 46
• Maintenance p. 46
• Cleaning p. 46
• Grease filter p. 46
• Charcoal filter (filter version only) p. 46
• Replacing lamps p. 46
• Troubleshooting p. 47

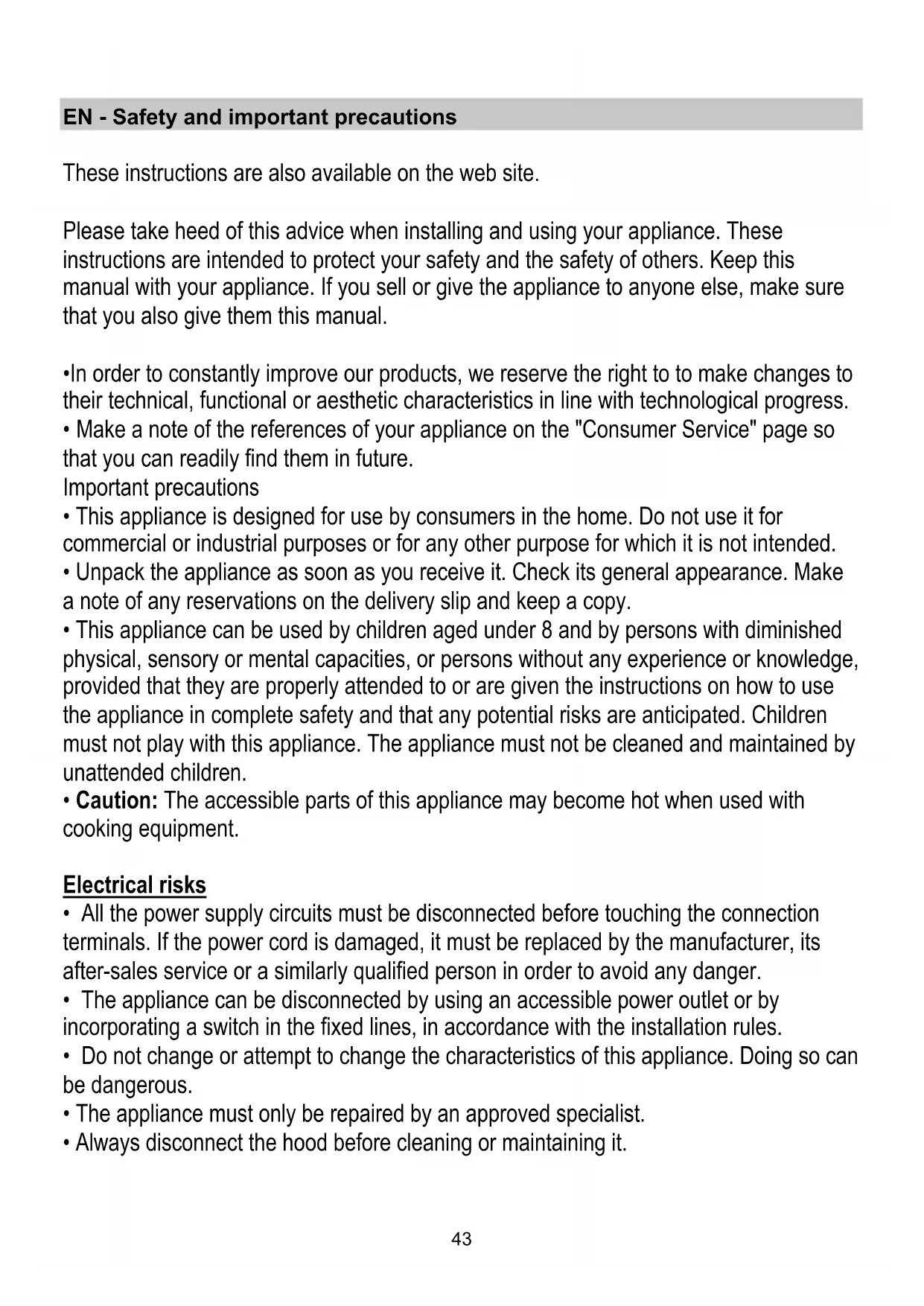

• After-sales service EN - Safety and important precautions These instructions are also available on the web site. Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual. p. 4743

• In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress.

• Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in future. Important precautions

• This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

• Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

• This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.

• Caution: The accessible parts of this appliance may become hot when used with cooking equipment. Electrical risks

• All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.

• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.

• The appliance must only be repaired by an approved specialist.

• Always disconnect the hood before cleaning or maintaining it.44

• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety). Risk of asphyxiation

• The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

• The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room). Risk of fire

• It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.

• Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.

• Clean the appliance and replace the filters at the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).45 Instruction on mounting and use Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied. Use The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use. The hood is designed to be used either for exhausting or filter version. Ducting version The hood is equipped with a top air outlet B for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided). Filter version In the case of not being able to discharge the fumes and the steam of cooking outside, the hood in the filter version can be used mounting the F deflector on the flue and one or more carbon filters (on the basis of the model possessed). The fumes and steam are recycled into the kitchen through upper grill H. Description of the hood Fig. 1

3. Grease filter release handle

Installation The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions. Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled. Mounting Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.

• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.

• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).

• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube). Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Fig. 3-4 Remove the grease filters. 1 With a pencil, make a line on the wall, up to the ceiling, corresponding to the centre line, it will make the installation operations easy. 2 Apply the drilling diagram to the wall: the vertical centre line printed on the drilling diagram shall correspond to the centre line drawn on the wall. Furthermore, the lower edge of the drilling diagram corresponds to the lower edge of the hood. 3 Make the holes indicated on the template, insert the wall plugs equipped with hooks and adjustment screws. 4 Apply the chimney stirrup to the wall next to the ceiling, use the stirrup as template (the small notch on the upper side must correspond to the centre line previously marked on the wall), mark 2 holes with a pencil. Make the holes and insert 2 plugs. 5 Fix the chimney support stirrup to the wall by 2 screws. 6 Hang the hood on the hooks and level it using the adjustment screws placed on the hooks themselves.46 7 Mark with a pencil the position for the 4 final fixing screws T and R. 8 Remove the hood and bore where marked (4 x Ø 8 mm). 9 Insert the wall plugs and 2 screws in the upper holes, screw in partially, the screws will stand as additional hooking points. 10 Hook back the hood on the wall. 11 Tighten the 2 upper screws definitively and screw in the 2 lower screws. 12 Connect a pipe (pipe and clips for fixing not supplied, to be purchased) for fume discharge to the connecting ring placed above the suction motor unit. The other end of the pipe must be connected to a fume ejecting device towards the outside in case the hood is used in suction version. 13 In case the hood is to be used in filter version, fix the deflector to the chimney support stirrup and connect the other end of the pipe to the connecting ring placed on the deflector. 14 Connect to the power supply. 15 Slide the lower section of the chimney up to complete covering of the suction group to insert it into the special housing above the hood. 16 Lift the upper chimney and fix it by 2 screws to the chimney support stirrup. Reinstall the grease filter. Operation The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL! Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. Grease filter Traps cooking grease particles. The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle. Fig. 1 Charcoal filter (filter version only) Fig. 2 It absorbs unpleasant odours caused by cooking. The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated. Remove the grease filters. Fit the charcoalfilters over the motor. Align the pins R on the cowl with the slots S, then turn the filter clockwise until it locks in place. Reverse the above procedure to remove the charcoal filters. Refit the grease filters.

CLEANING AND UPKEEP OF YOUR APPLIANCE

To keep your appliance in good working order, we recommend that you use Clearit household products.

Professional expertise for the general public Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances. You may find them in conventional retail outlets, along with a complete line of by-products and consumables. Replacing lamps Fig. 1 Disconnect the appliance from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood. Remove cover A to access the lamp housing A. If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.47 This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product. Appliance designed, tested and manufactured according to:

• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise. Troubleshooting SYMPTOMS SOLUTIONS The hood is not working... Ensure that:

• The power is not cut off.

• A speed has been selected. The hood is not operating effectively... Ensure that:

• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.

• The kitchen is sufficiently ventilated to allow for fresh air intake.

• The air pipe circuit involves a lack of efficiency of the cooker hoods. Contact a qualified technician.

• The carbon filter is not worn (hood operating in recycling mode). The hood stopped working Ensure that:

• The power is not cut off.

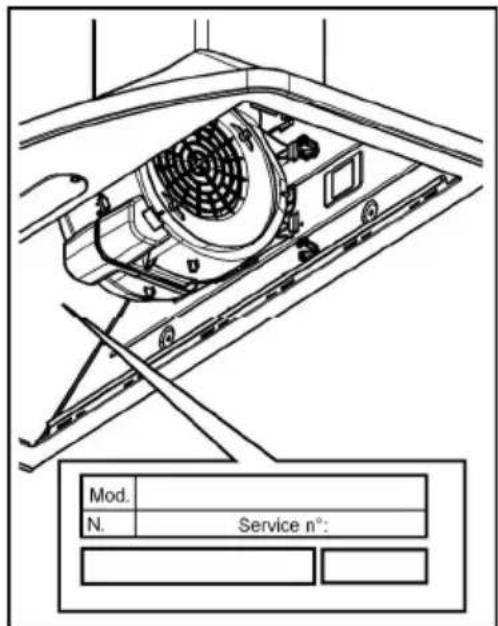

• The single-pole cut-off device was not activated. After-sales service Any maintenance on your equipment should be undertaken by: - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serialnumber). This information appears on the manufacturer's nameplate attached to your equipment.4849
