Brand	Brandt
Model	BHG1522X
Product type	Extractor hood
Use	Domestic
Minimum installation height	650 mm (above the hob)
Exhaust duct diameter	120 mm minimum
Power supply	220-240 V ~ 50/60 Hz
Electrical class	Class I (earth connection required)
Number of speeds	3 (low, medium, high)
Lighting	LED lamp 4 W, socket E14
Grease filter	Dishwasher safe, clean every 2 months
Charcoal filter	Not washable, replace every 4 months (recirculation version)
Material	Stainless steel (certain parts)
Controls	Push buttons for light and speed selection
Operation	Extraction or recirculation (with charcoal filter)
Safety distance	650 mm between hob and hood
Installation type	Wall mounting or under cabinet (according to manual)
After-sales service	Brandt: 0 892 02 88 01 (€0.50/min) or 09 69 39 25 25 (free)
Spare parts	Certified original parts available from the manufacturer
Recycling	Take to a recycling centre or store (electronics)

Frequently Asked Questions - BHG1522X BRANDT

What is the minimum installation height of the hood above a hob?

The minimum safety distance is 650 mm between the hob and the hood. If the gas hob instructions specify a greater distance, this must be respected.

How to clean the grease filters?

The grease filters should be cleaned every 2 months or more often with heavy use. They are dishwasher safe or hand washable with a mild detergent.

When should the charcoal filter be replaced?

The activated charcoal filter must be replaced after about 4 months of use (or more often if used intensively). It is neither washable nor rechargeable.

How to replace the lighting bulb?

The lighting uses a 4 W LED lamp with E14 socket. Disconnect the appliance before any intervention. Remove the old bulb and insert the new one.

Can the hood operate in recirculation mode?

Yes, the hood can be used in recirculation mode by installing a charcoal filter. In this case, the air is filtered and then returned to the room.

What diameter of exhaust duct is recommended?

The minimum diameter of the exhaust duct is 120 mm. The route should be as short as possible and comply with local regulations.

What to do if the hood does not work?

Check that there is no power cut and that a speed has been selected. Consult the fault table in the manual for other checks.

Can the hood be used by children?

Children aged 8 and above can use the appliance under adult supervision. Do not let children play with the hood. Cleaning and maintenance must not be performed by children without supervision.

How to contact Brandt after-sales service?

You can contact Brandt Monday to Friday from 8:30 am to 6:00 pm at 0 892 02 88 01 (€0.50/min + call charges) or Monday to Saturday from 8 am to 8 pm at 09 69 39 25 25 (free service + call charges).

How to recycle the hood at end of life?

Do not dispose of the hood with household waste. Take it to a recycling centre or return it to the store where you bought it. Follow local sorting instructions.

USER MANUAL BHG1522X BRANDT

Technical line drawing of a mechanical component with no visible text or symbols

FR 3
DE 10
EN 16
ES 22
IT 28
GR 34
PT 41

Chère Cliente, Cher Client,

Illustration of a hand holding a small object with an arrow indicating motion, next to a blank panel (no text or symbols)

1- RELATIONS CONSOMMATEURS FRANCE

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

You have just acquired a BRANDT hood, and we would like to thank you.

Our research teams have created this new generation of appliances for you. Their quality, design, features and technological advances make them exceptional products, and reveal our unique know-how.

Your new BRANDT hood will blend harmoniously into your kitchen and will perfectly combine extraction performance and ease of use. We wanted to offer you a product of excellence.

In the BRANDT product range, you will also find a wide choice of hobs, ovens, microwaves, dishwashers, cookers, fridges, freezers, that you can coordinate with your new BRANDT hood.

Visit our website www.brandt.com, where you will find our latest innovations as well as useful and complementary information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning : Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

EN

1. SAFETY INFORMATION

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

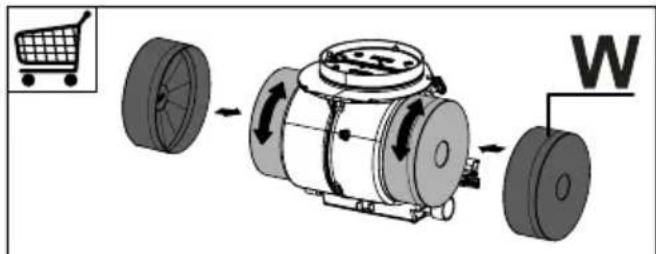

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

- Clean the hood using a damp cloth and a neutral liquid detergent. - For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

L	Lights Switches the lighting system on and off.
V	Speed Determines the speed of operation:0. Motor Off.1. Minimum speed, suitable for a particularly silent continuous air exchange, in the presence of a low level of cooking vapours.2. Average speed, suitable for most conditions of use, given the excellent ratio between the air flow treated and the sound level.3. Maximum speed, suitable to deal with the maximum cooking steam emissions, even for prolonged periods.

5. LIGHTING

Light Absorption (W) Connection Voltage (V) Dimensions (mm) ILCOS code
	4 E14 220-240 107x37 DRBB/F-4-220-240-E14-35/100

6. TROUBLESHOOTING

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:– The power is not cut off.– A speed has been selected.
The hood is not operating effectively...	Ensure that:– The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.– The kitchen is sufficiently ventilated to allow for fresh air intake.– The carbon filter is not worn (hood operating in recycling mode).
The hood stopped working...	Ensure that:– The power is not cut off.– The single-pole cut-off device was not activated.

7. AFTER-SALES SERVICE

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.
