USER MANUAL PMB 1100 B2 PARKSIDE

Translation of the original instructions

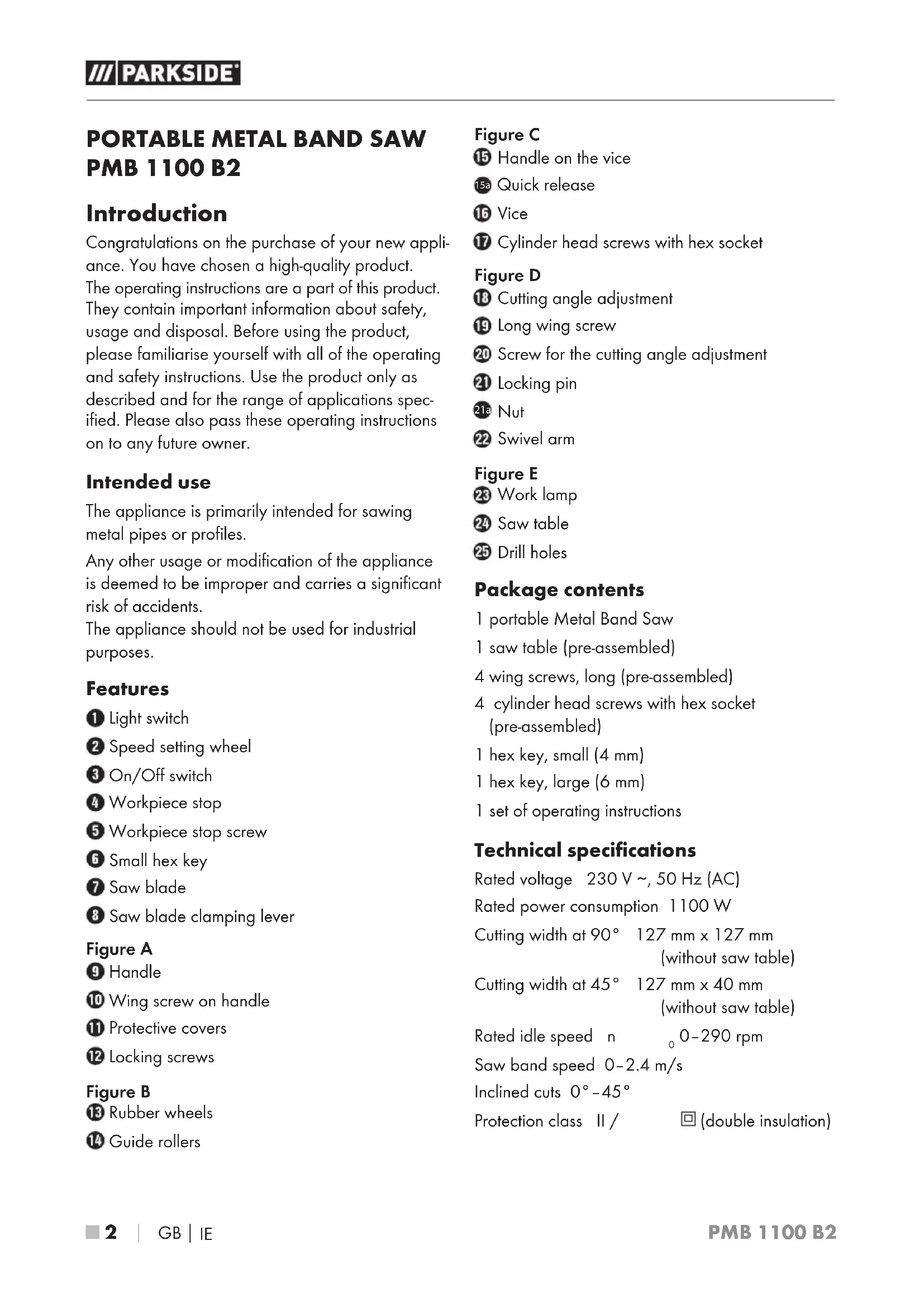

PMB 1100 B2 Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are a part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications spec- ified. Please also pass these operating instructions on to any future owner. Intended use The appliance is primarily intended for sawing metal pipes or profiles. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The appliance should not be used for industrial purposes. Features Light switch Speed setting wheel On/Off switch Workpiece stop Workpiece stop screw Small hex key Saw blade Saw blade clamping lever Figure A Handle Wing screw on handle Protective covers Locking screws Figure B Rubber wheels Guide rollers Figure C Handle on the vice 15a Quick release Vice Cylinder head screws with hex socket Figure D Cutting angle adjustment Long wing screw Screw for the cutting angle adjustment Locking pin 21a Nut Swivel arm Figure E Work lamp Saw table Drill holes Package contents 1 portable Metal Band Saw 1 saw table (pre-assembled) 4 wing screws, long (pre-assembled) 4 cylinder head screws with hex socket (pre-assembled) 1 hex key, small (4 mm) 1 hex key, large (6 mm) 1 set of operating instructions Technical specifications Rated voltage 230 V ∼, 50 Hz (AC) Rated power consumption 1100 W Cutting width at 90° 127 mm x 127 mm (without saw table) Cutting width at 45° 127 mm x 40 mm (without saw table) Rated idle speed n

 3 ■ Noise emission value Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically: Sound pressure level L

= 90.7 dB (A) Uncertainty K K

= 3 dB Sound power level L

= 101.7 dB (A) Uncertainty K K

= 3 dB Wear ear muffs! Read the operating instructions before use. Total vibration value (vector total of three directions) determined in accordance with EN 60745: Sawing metal a h,CM = 6.94 m/s

NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool. WARNING! ► Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.PMB 1100 B2 ■ 4 

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD re duces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.PMB 1100 B2

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Additional safety instructions for band saws ■ Hold the appliance by the insulated gripping surfaces when performing work where the cutting tool may come into contact with hidden cables or its connecting cable. If the cutting tool comes into contact with a live wire, this may make exposed metal parts of the power tool live and could give the operator an electric shock. ■ Keep your hands out of the sawing area and away from the saw blade. ■ Always make sure that the portable band saw is clean before use. ■ Always stop working immediately if you notice anything unusual. ■ Before using the tool, always ensure that all components are properly and safely assem- bled. ■ Always be careful when attaching or removing the band saw blade. ■ Always keep your hands away from the cutting path of the band saw blade. ■ Always wait until the motor has reached full speed before sawing. ■ Keep the handles dry, clean and free from oil and grease. Hold the tool firmly while working.PMB 1100 B2 ■ 6 

■ Always be vigilant, especially during repetitive, monotonous operations. Always make sure that your hands are in the correct position in relation to the saw blade. ■ Never remove the workpiece stop. ■ Keep away from end pieces that fall down after sawing. They can be hot, sharp and/or heavy. This could result in serious injury. ■ Ventilation openings often cover moving parts and should be kept free. Loose clothing, jewellery or long hair can get caught in the moving parts. WARNING! ► The power tool creates an electromagnetic field during operation. This field can, in certain circumstances, impair active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend that individuals with medical implants consult their physician and the manufacturer of the medical implant before operating the power tool. Original accessories/auxiliary equipment Only use the accessories and additional equip- ment that are specified in the operating instruc- tions and compatible with the appliance. Before use WARNING! RISK OF INJURY! Always remove the power plug from the wall socket before carrying out any work on the appliance. Assembly Note that all parts are pre-assembled. The instruc- tions only apply to possible maintenance activities. Fitting the handle (pre-assembled) ♦ Hold the handle in the appropriate position (see pictures on fold-out page) ♦ Push the wing screw through the handle and housing and tighten it. Mounting the vice (pre-assembled) ♦ Fasten the vice in the corresponding holes on the back of the saw table using the 4 cylinder head screws with hex socket supplied (see fig. C on the fold-out page). Use a 5 mm hex key (not supplied). Mounting the cutting angle adjustment on thesaw table (pre-assembled) ♦ Completely unscrew the screw from the cutting angle adjustment . Insert the screw through the angle recess on the saw table from below and retighten it using the cutting angle adjustment (see fig. D on the fold-out page). ♦ Use a long wing screw to fasten the swivel arm through the other hole on the saw table (see fig. D on the fold-out page).PMB 1100 B2

 7 ■ Mounting the band saw on the swivel arm If you plan to operate the appliance using the saw table , proceed as follows: ♦ Attach the swivel arm using the 3 long wing screws supplied in the corresponding holes of the appliance housing (see fig. E on the fold-out page). NOTE ► It is possible that the nuts 21a are a little too tight on delivery. Loosen the nuts 21a a little with a 19 mm wrench. ► Tighten the nut 21a from time to time with a 19 mm wrench if the swivel arm has too much play. WARNING! ► The band saw may only be used without the saw table if the user has firm, steady footing. The workpiece must also be secured against slipping, for instance on a workbench. ► Make sure at all times that the power cord can not get near the saw blade. ► If you want to use the appliance with the saw table, attach the power cable with the cable holder

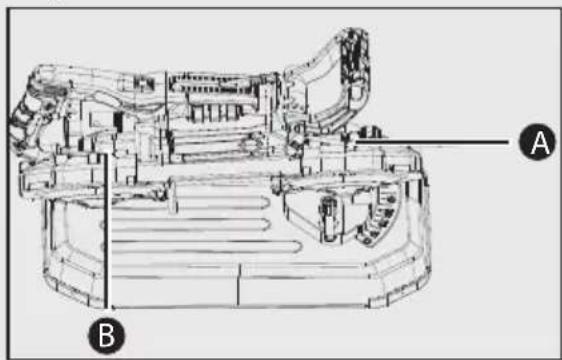

as shown in the following diagram:

► For any other use, the cable must be routed using the cable holders

so that the cable can never get into the sawing/working area or any other hazardous area. Making settings Adjusting the handle ♦ To adjust the handle , loosen the wing screw on the handle. ♦ Turn the handle to the required position. ♦ Retighten the wing screw

Using the vice ♦ Turn the handle on the vice clockwise to clamp the workpiece. ♦ Turn the handle on the vice anticlockwise to unclamp the workpiece. NOTE ► You can also flip the quick release 15a upwards in order to adjust the vice setting more quickly. Fold the quick release 15a back down again to fix the vice in place. After this, use the vice handle to make fine adjustments. Transport restraint ♦ To release the position, pull out the locking pin so you can lower the band saw. ♦ Swivel the band saw downwards and push in the locking pin . Now you can easily trans- port the band saw together with the saw table. Setting the cutting angle (mitre angle) ♦ Undo the cutting angle adjustment by turning it anticlockwise. ♦ Set the required cutting angle using the angle provided. ♦ Retighten the cutting angle adjustment

Adjusting the workpiece stop ■ During normal operation, the workpiece stop must be fixed in the lowest position. ♦ If the workpiece stop gets in the way when sawing, you can undo the workpiece stop screw to remove it. Use the supplied hex key to do this. In this way, you can adjust the workpiece stop upwards. Fix the workpiece stop in place again using the workpiece stop screw . Changing the saw blade WARNING! RISK OF INJURY! ► Wear protective gloves to avoid injury. NOTE ► You can reorder saw blades via our service hotline. ♦ Release the saw blade clamping lever by turning it anticlockwise

♦ Remove the two locking screws with the supplied small hex key . Remove the two protective covers . ♦ Carefully remove the saw blade . Start at the guide rollers (see fig. B on the fold-out page). ♦ Remove any sawdust with a brush or compressed air. ♦ Slide the saw blade into the guide rollers with the saw teeth pointing upwards. Make sure that the guide rollers completely grip the saw blade . NOTE ► Make sure that the direction arrow on the saw blade (if any) is the same as the one on the rubber wheels . ♦ Insert the saw blade around the two rubber wheels. ♦ Retighten the saw blade clamping lever by turning it clockwise again. ♦ Replace the two protective covers

WARNING! RISK OF INJURY! ► Only operate the appliance with the protective covers fitted

♦ Perform a test run by briefly switching the appliance on and off a few times to determine whether the saw blade is correctly seated. WARNING! RISK OF INJURY! ► Keep your body away from the sawing area during the test run! Use Switching the appliance on and off Switching on ♦ Hold down the On/Off switch

Switching off ♦ Release the On/Off switch

Switching the work lamp on and off Switching on ♦ Move the light switch to position I. The work lamp lights up. Switching off ♦ Move the light switch to position 0. The work lamp goes out. Setting rotational speed ♦ Adjust the speed setting wheel to a position between 1 and 6. Working procedures ♦ Secure the workpiece against slipping, e.g. with the vice of the saw table. ♦ Use the weight of the saw when sawing. Do not exert any additional pressure. ♦ Wait until the saw has reached its full speed before carefully bringing it into contact with the workpiece.PMB 1100 B2

 9 ■ ♦ If the saw blade blocks, switch off the appli- ance immediately. ♦ Do not twist the saw blade while making the cut. ♦ Ensure that the appliance is always stable and secure. For extra safety, you can secure the appliance in a suitable location. There are 4drill holes in the housing foot that can beused for attachment to a secure and level surface. Feed a suitable fixing material that is appropriate for the surface (not supplied) through the 4 drill holes . Fix the appliance tothe surface using the fixing material. WARNING! RISK OF INJURY! ► Do not remove the workpiece until the saw has come to a standstill. Cleaning and maintenance WARNING! RISK OF INJURY! ► Always remove the power plug from the wall socket before carrying out any work on the appliance. ■ Store the appliance and the saw blades in a dry and dust-free location. ■ The appliance must always be clean and free of oil or grease. ■ Use a soft, dry cloth to clean the housing. ■ The carbon brushes should only be replaced by the service centre or an authorised specialist workshop. ■ Never obstruct the ventilation openings. ■ Remove any adhering sawdust with a brush. NOTE ► Unlisted replacement parts (such as carbon brushes, switches, saw blades) can be ordered via our service hotline. Disposal Do not dispose of power tools in your normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The pack- aging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.PMB 1100 B2 ■ 10 

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazardsPMB 1100 B2

 11 ■ Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)390483_2201 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 390483_2201. WARNING! ► Have the appliances repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug and power cord are replaced only by the manu- facturer of the appliance or its customer service. This will ensure that the safety of the appliance is maintained. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 390483_2201 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) Electromagnetic Compatibility (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 60745-1:2009/A11:2010 EN 60745-2-20:2009 EN 55014-1:2017/A11:2020

EN 61000-3-3:2013/A1:2019 EN IEC 63000:2018 Type/appliance designation: Portable Metal Band Saw PMB 1100 B2 Year of manufacture: 05–2022 Serial number: IAN 390483_2201 Bochum, 25/03/2022 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PMB 1100 B2
