Brand	Soundmaster
Model	PL196H
Product type	Turntable with FM radio
Power supply	230 V, 50 Hz
Playback speeds	33, 45, 78 rpm
Main functions	Vinyl playback, FM stereo radio, line output, 3.5 mm headphone jack
Automatic stop	Yes, can be activated/deactivated (switch on the back)
45 rpm adapter	Included
FM antenna	Wire antenna
Line output	LINE OUT (RCA) jack
Headphone jack	3.5 mm jack (automatically cuts speakers)
Speakers	2 built-in speakers
Display	Frequency LED
FM stereo indicator	Stereo reception LED indicator
Included accessories	Dust cover, 45 rpm adapter, instruction manual
Safety	Do not open, use in a dry place, do not expose to humidity
Maintenance	Clean with a dry cloth, do not use abrasive products
Operating conditions	Indoor only, dry and ventilated place
Compliance	Directive 2014/53/EU

Frequently Asked Questions - PL196H Soundmaster

How to connect the Soundmaster PL196H turntable?

Ensure the mains voltage corresponds to 230 V and 50 Hz. Plug the power cord into a properly installed and grounded wall socket.

How to play a 45 rpm record on the turntable?

Place the 45 rpm adapter (included) on the center of the turntable before placing the record. Select the 45 speed with the selector.

What to do if the record stops before the end of the last track?

The automatic stop can be disabled using the automatic stop switch located on the back of the device. If disabled, the platter continues to spin until manual stop.

How to connect the turntable to a hi-fi system?

Use RCA cables (not included) and connect the LINE OUT jack of the turntable to the auxiliary input of your hi-fi system. Note that the built-in speakers remain active; set their volume to minimum if you prefer the sound from the system.

How to use headphones with the turntable?

Connect headphones with a 3.5 mm jack plug to the headphone jack. The built-in speakers automatically turn off.

How to tune the FM radio?

Set the function switch to the radio (FM) position. Turn the frequency tuning knob to tune a station. Use the FM/FM ST toggle to switch to mono if stereo reception is disturbed. The stereo indicator lights up in stereo reception.

What to do if the turntable stylus doesn't work?

Check that the protective cap of the stylus has been removed. Make sure the tonearm is detached from its rest before use. If the problem persists, have maintenance done by qualified personnel.

How to clean the turntable?

Use a soft, dry cloth. Never use detergents or abrasive cloths. Avoid any liquid contact with the device.

Can I use the turntable outdoors?

No, the turntable is designed for indoor use only, in a dry place away from humidity. Do not expose it to direct sunlight or heat sources.

What to do in case of poor FM radio reception?

Fully extend the FM wire antenna. Move the device away from computers or microwave ovens. If the problem persists, switch to mono mode (FM ST off) to reduce interference.

USER MANUAL PL196H Soundmaster

Black-and-white photo of a vintage gramophone with open lid and control knobs (no visible text or symbols)

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

PORTUGUÊS

DANSK

NORSK

SVENSKA

ČEŠTINA

SLOVENSKÝ

LIETUVOS

Hersteller

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

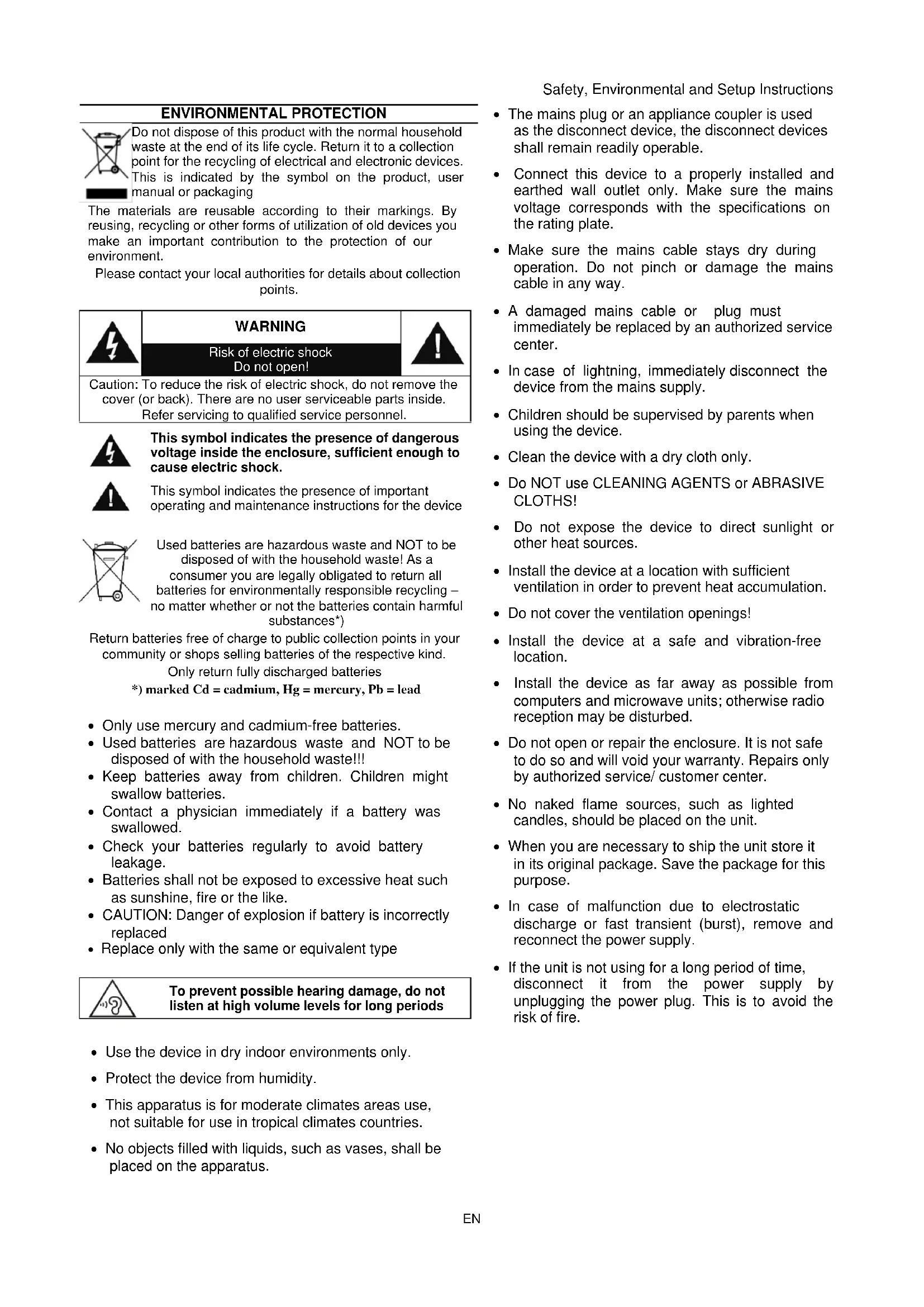

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

	WARNING	!
	Risk of electric shockDo not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

Safety, Environmental and Setup Instructions

• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.

- Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

- A damaged mains cable or plug must immediately be replaced by an authorized service center.

- In case of lightning, immediately disconnect the device from the mains supply.

- Children should be supervised by parents when using the device.

- Clean the device with a dry cloth only.

- Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

- Do not expose the device to direct sunlight or other heat sources.

- Install the device at a location with sufficient ventilation in order to prevent heat accumulation.

- Do not cover the ventilation openings!

- Install the device at a safe and vibration-free location.

- Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.

- Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.

- No naked flame sources, such as lighted candles, should be placed on the unit.

- When you are necessary to ship the unit store it in its original package. Save the package for this purpose.

- In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.

- If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

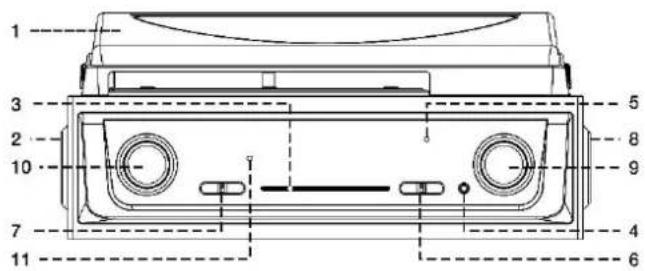

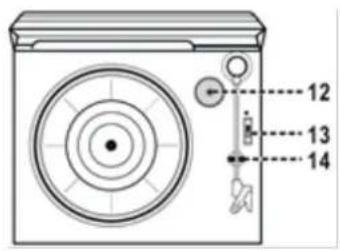

LOCATION OF CONTROLS

1 DUST COVER
2 LEFT SPEAKER
3 DIAL POINTER
4 3.5MM HEADPHONE JACK
5 POWER LED INDICATOR
6 POWER OFF/FUNCTION SELECTOR BUTTON
7 BAND/FM STEREO SELECTOR
8 RIGHT SPEAKER
9 ROTARY VOLUME KNOB
10 TUNING KNOB
11 FM STEREO LED INDICATOR
12 SPINDLE ADAPTOR
13 33/45/78 RPM SPEED SELECTOR
14 PICK-UP HOLDER
15 LINE OUT SOCKET
16 FM ANTENNA
17 AUTO STOP SWITCH
18 AC CORD

1 3 2 10 7 11 5 8 9 4 6

12 13 14

15 16 17 18

INSTALLATION

CONTENT OF DELIVERY

Main Unit
▶ Instruction manual

PRECAUTIONS FOR USE

• Unpack all parts and remove protective material.
  Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
  Do not cover any vents and make sure that there is a space of several centimeters around the unit for ventilation.

TOP COVER ASSEMBLY

➢ Push the metal bracket to rear side.
Connect the metal bracket to the top cover.
Connect the hinge of the top cover to the main unit.

PHONO COVER METAL BRACKET MAN UN T

CONNECTION

Connect the power cord to AC outlet.

Now your system is ready to play the music.

LISTENING TO RADIO

MANUAL TUNING

➢ Set the function switch to the position “TUNER”.
➢ Tune to the required station by turning the tuning knob.
Adjust the "VOLUME" knob to the desired volume level.
Set the FM mode selector to „FM“ position. Programs are received in mono mode. In particular when stereo signals are weak. It's preferable to receive the program in mono
Set the FM mode selector to "FM-ST" position for receiving stereo programs. The LED "ST" indicator will light up to show FM stereo program is receiving.

PHONO

NOTE:

Remove the stylus protector.
➢ Be sure that the tone arm is being detached from the rest before operating and re-secured again afterwards.

Carttridge Stylus assembly

1. Select the "PHONO" function.
2. Set the speed selector to the proper position depending on the record be played.
3. Place the record on the platter (Use the spindle adaptor if required).
4. Lift the tone arm from the rest and slowly move it to the record side. The platter will start to rotate
5. Place the tone arm to the desired position of the record
6. Adjust the volume to the desired level
7. At the end of record, the platter will automatically stop rotating. Lift the tone arm from the record and return it to the rest
8. To stop manually, lift the tone arm from the record and return it to the rest.

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

REMARK: As some kind of record the auto-stop area was out of the unit setting, so it will stop before the last rack finish. In this case, select the auto-stop switch to "off" position, then it will run to the end of the record but will not stop automatically (turn off the unit by power button or switch back the auto-stop switch to "on" position to stop the platter rotate). Then put back the tone arm to the rest position.

LINE OUT CONNECTION

You can connect the system to your whole hi-fi system by connecting the line out socket to the auxiliary input socket with a RCA cable (not included).

REMARK: the sound from the original build-in speaker will not be terminated even after connecting to other hi-fi system via line out socket. You can turn the volume of system to minimum level if you prefer the sound coming from the hi-fi system only.

HEADPHONE (not incl.)

Connect a commercially available headphone with a 3.5mm jack to the socket. Speakers switch off automatically!

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

CE

PROTECTION DE L'ENVIRONNEMENT

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

PHONO COVER METAL BRACKET MAIN UNT

COMMISSIONING

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

PHONO COVER METAL BRACKET MA N U N T

Comissionamento

Illustration of a hand holding a thin bundle with arrows indicating motion (no text or symbols)

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

INDHOLDET AF LEVERING

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Illustration of a hand holding a thin bundle with arrows indicating force direction (no text or symbols)

Illustration of a hand holding a thin bundle with arrows indicating movement or force (no text or symbols)

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
