Product type	Belt-drive turntable
Brand	Soundmaster
Model	PL790
Speeds	33 1/3 and 45 RPM
Tonearm	Balanced tonearm with adjustable counterweight and anti-skating
Cartridge	Pre-installed cartridge (type not specified)
Audio outputs	RCA outputs (L/R) with LINE/PHONO switch
Bluetooth	Built-in Bluetooth transmitter (standard range)
Platter	Heavy metal platter
Power supply	External AC adapter (DC, included)
Included accessories	45 RPM adapter, rubber mat, counterweight, dust cover, power cable
Maintenance	Clean with a dry cloth; do not use detergents or abrasive products
Safety	Do not open the device (risk of electric shock); use only in dry indoor environments
Repairability	No user-serviceable parts; refer servicing to qualified personnel
Compliance	Directive 2014/53/EU (CE certified)

Frequently Asked Questions - PL790 Soundmaster

How to install the turntable platter?

Place the metal platter on the center spindle, aligning the cutout with the drive roller. Pull the belt over the drive pulley. Then, insert the dust cover hinges into the brackets on the back of the unit.

How to adjust the tonearm counterweight?

Set the anti-skating to 0. Release the tonearm and position it above the platter. Turn the counterweight until the arm is parallel to the record (balance). Then, turn the graduated ring to align the 0 with the index, then turn the counterweight to achieve the desired tracking force (usually 3g).

How to connect the turntable to an amplifier?

Use the provided RCA cables (red/white). Plug them into the LINE/PHONO jacks on the back. Set the LINE/PHONO switch to LINE if your amplifier does not have a phono input, otherwise set it to PHONO. Make sure to connect the ground wire (black) to the amplifier's ground terminal.

How to use the Bluetooth function?

Set the Bluetooth switch to ON. Activate pairing mode on your Bluetooth speaker. The blue LED blinks during searching and becomes solid once connected. If no device is found after 3 minutes, the LED turns red; turn Bluetooth off and on again.

How to clean the stylus?

Use a dedicated cleaning device or a soft brush. Do not rub vigorously and never use solvents or chemicals. The stylus is very fragile; improper cleaning can damage it.

What to do if no sound comes from the speakers?

Check that the unit is powered on (ON/OFF switch on the back). Make sure the RCA cables are properly connected and the LINE/PHONO switch is in the correct position. Check the volume on your amplifier. If using Bluetooth, check the pairing.

How to change the playback speed (33/45 RPM)?

Use the 33/45 RPM switch located near the tonearm. For 45 RPM records with a large center hole, use the included adapter.

Can I replace the cartridge myself?

The manual does not provide details for cartridge replacement. It is recommended to have this done by a qualified professional to avoid damaging the tonearm or cartridge.

How to maintain the turntable?

Clean the cabinet and cover with a soft, dry cloth. Never use detergents or abrasive products. Avoid direct sunlight or heat sources. Keep the unit in a dry, well-ventilated area.

The turntable stops spinning during playback, what do I do?

Check that the drive belt is properly placed on the platter and pulley. If the belt is loose or broken, it must be replaced by a professional. Also ensure the START/STOP switch is in the START position.

USER MANUAL PL790 Soundmaster

Black-and-white photo of a vintage typewriter with a flat top and open lid, no visible text or symbols on the device itself.

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

SVENSKA

ČEŠTINA

SLOVENSKÝ

Technical diagram of a mechanical device with numbered parts for identification

1 Gegengewicht
2 Anti-Skating
3 Metallplattenteller
4 Tonarmlift
5 Tonarmhalterung

Close-up of a mechanical component with a circular feature and textured surface (no visible text or symbols)

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

	WARNING	!
	Risk of electric shockDo not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries ^* marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

Safety, Environmental and Setup Instructions

• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.

- Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

- A damaged mains cable or plug must immediately be replaced by an authorized service center.

- In case of lightning, immediately disconnect the device from the mains supply.

- Children should be supervised by parents when using the device.

- Clean the device with a dry cloth only.

- Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!

- Install the device at a safe and vibration-free location.

- Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed. - Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.

- No naked flame sources, such as lighted candles, should be placed on the unit.

- When you are necessary to ship the unit store it in its original package. Save the package for this purpose.

- In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.

- If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

LOCATION OF CONTROLS

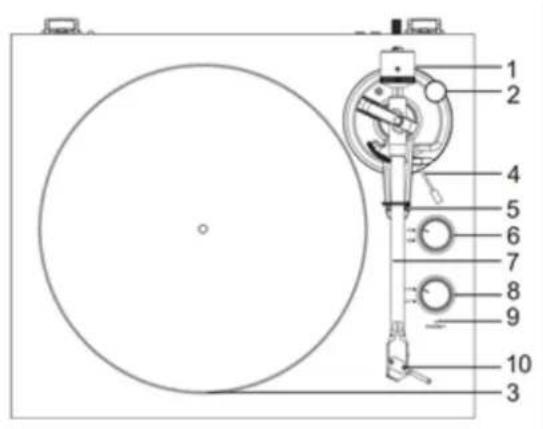

TOP VIEW

Technical diagram of a mechanical device with numbered parts for identification

1 Counterweight
2 Anti-Skating
3 Heavy metal platter
4 Tonearm lift
5 Tone arm bracket
6 33 / 45 RMP switch
7 Tone arm
8 START / STOP switch
9 Bluetooth status LED
10 Cartridge

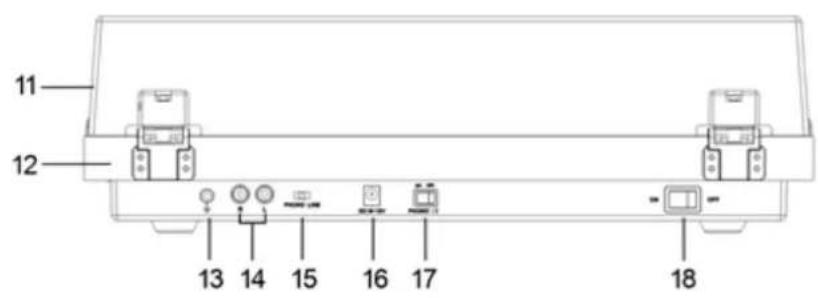

BACK VIEW

11 12 13 14 15 16 17 18

11 Dust Cover

12 Hinge

13 GRND connector

14 LINE / PHONO OUT (L + R)

15 LINE / PHONO Switch

16 AC-DC Power Jack

17 Bluetooth Control Button

18 Power switch

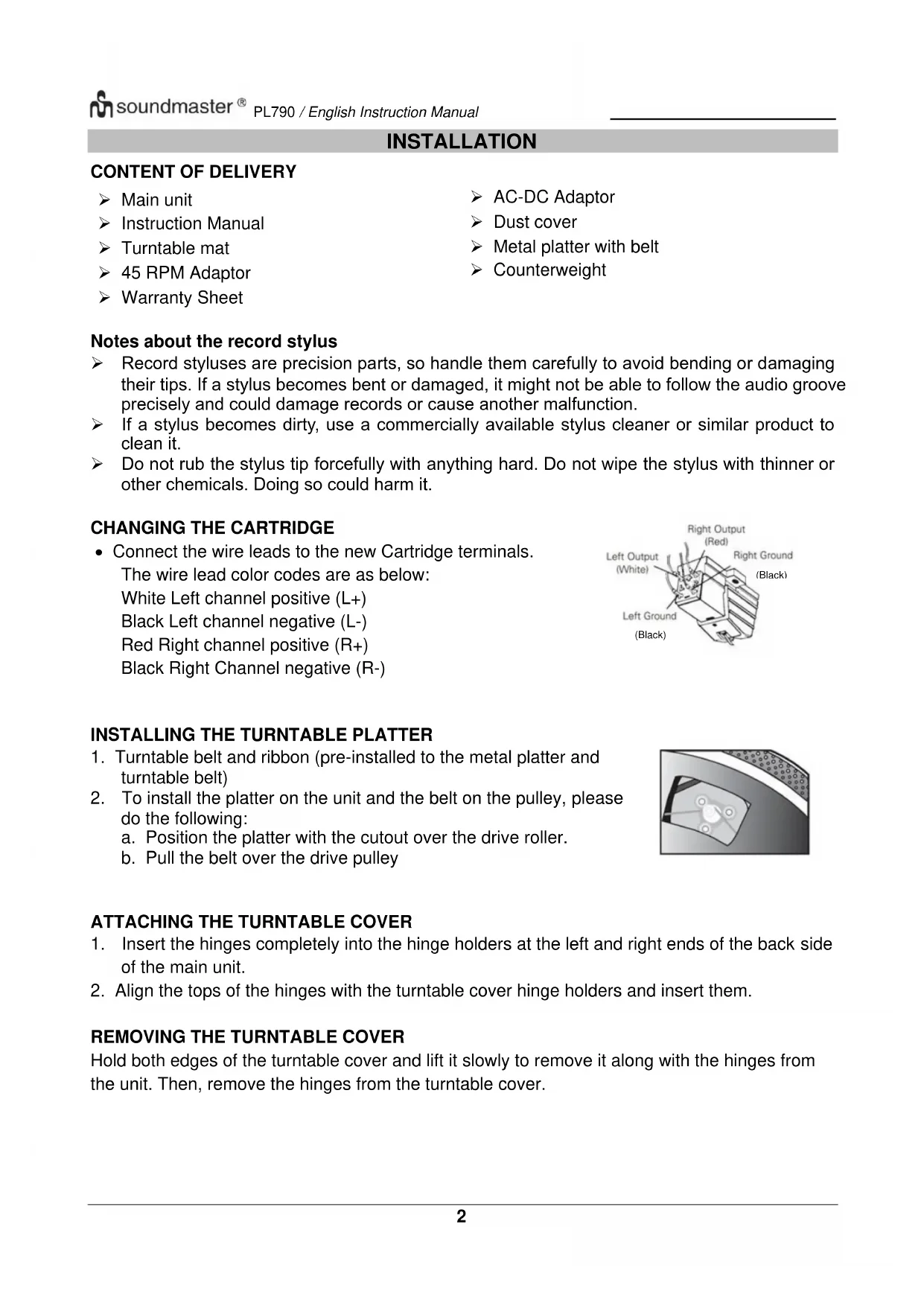

INSTALLATION

CONTENT OF DELIVERY

▶ Main unit
Instruction Manual
▶ Turntable mat
45 RPM Adaptor
Warranty Sheet

AC-DC Adaptor
Dust cover
▶ Metal platter with belt
Counterweight

Notes about the record stylus

Record styluses are precision parts, so handle them carefully to avoid bending or damaging their tips. If a stylus becomes bent or damaged, it might not be able to follow the audio groove precisely and could damage records or cause another malfunction.
If a stylus becomes dirty, use a commercially available stylus cleaner or similar product to clean it.
Do not rub the stylus tip forcefully with anything hard. Do not wipe the stylus with thinner or other chemicals. Doing so could harm it.

CHANGING THE CARTRIDGE

- Connect the wire leads to the new Cartridge terminals.

The wire lead color codes are as below:

White Left channel positive (L+)

Black Left channel negative (L-)

Red Right channel positive (R+)

Black Right Channel negative (R-)

Right Output (Red) Left Output (White) Right Ground (Black) Left Ground (Black)

INSTALLING THE TURNTABLE PLATTER

1. Turntable belt and ribbon (pre-installed to the metal platter and turntable belt)
2. To install the platter on the unit and the belt on the pulley, please do the following:

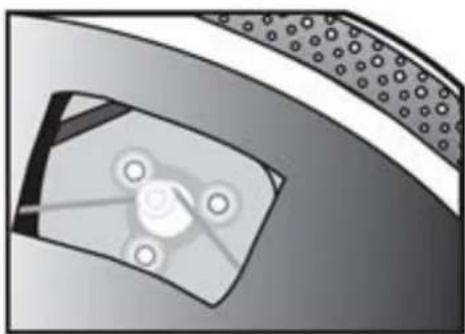

   a. Position the platter with the cutout over the drive roller.
   b. Pull the belt over the drive pulley

Abstract diagram of a curved surface with a central circular element and radiating lines, no text or symbols present.

ATTACHING THE TURNTABLE COVER

1. Insert the hinges completely into the hinge holders at the left and right ends of the back side of the main unit.
2. Align the tops of the hinges with the turntable cover hinge holders and insert them.

REMOVING THE TURNTABLE COVER

Hold both edges of the turntable cover and lift it slowly to remove it along with the hinges from the unit. Then, remove the hinges from the turntable cover.

ADJUSTING THE TONE ARM

Level Balance Adjustment

1. Set the "ANTI-SKATING" knob to "0".
2. Release the arm clamp and move the tonearm to the space between the arm rest and the platter, taking care not to damage the stylus.
3. Set the "CUE LEVER" to the down position.

4. Support the headshell's finger-lift with one hand and attain the level balance by turning the counterweight either clockwise or counter-clock wise. "Level balance" means that the tonearm is parallel to the record on the platter and that the tonearm pipe. Therefor should not tilt toward the counterweight side or the headshell side.

5. Return the tonearm to the arm rest and fasten the arm clamp. Since the tracking force is zero when the tonearm is balanced level, turn just the tracking force scale ring in front of the counter-weight and set the "0" on the scale to the index line on the shaft. Be careful not to turn the counterweight otherwise the tonearm will become unbalanced e

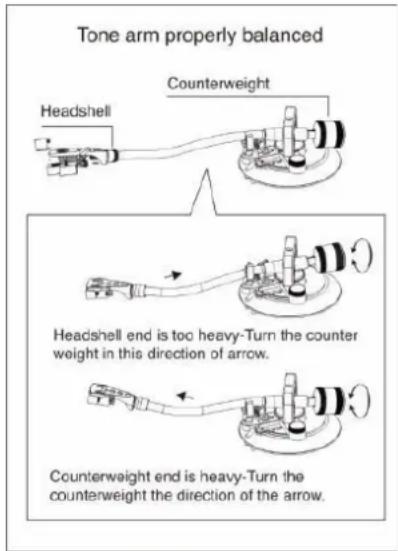

Tone arm properly balanced Headshell Counterweight Headshell end is too heavy-Turn the counter weight in this direction of arrow. Counterweight end is heavy-Turn the counterweight the direction of the arrow.

Tracking Force Adjustment

Turning the counterweight, set the correct tracking force opposite the index line on the counterweight shaft. The tracking force scale ring has 0.5g steps and one full turn of the counterweight will yield a tracking force of 2.0g. You will need at least 3g. So turn the counterweight 1.5 times and stop by position 1.

Scale ring

Anti-Skating Adjustment

To adjust the Anti-skating mechanism, turn the “ANTI-SKATING” Knob so that the number corresponding to the required tracking force is opposite the index line. As a rule, the setting of the anti-skating function should correspond to that of the support weight of the needle (3 grams).

Index line Anti-skate knob

CONNECTIONS

Analog audio output jacks (L + R)

These output analog audio signals.

The "PHONO EQ" switch setting changes the type of output signal.

Use the included audio cable (or commercially available ones) to connect other equipment to the output jacks of this unit.

PHONO/LINE Selection Switch

LINE: Signals that have been amplified by the built-in equalizer amp are output from the analog audio output jacks.

➢ PHONO: Use this when connecting to equipment that has PHONO inputs.

Caution

When set to ON, if connected to the PHONO inputs of an amplifier, for example, the output from speakers and headphones will be very loud, which could damage equipment or harm hearing.

DC input connector

Do not use any AC-DC adaptor other than the one included.
➢ Ensure that the voltage is the same as that indicated on the ac adapter identification plate.
Connect the supplied AC adapter to a properly installed safety power socket and the plug of the cable into the DC IN jack at the back side of the unit.
➢ Unplug the power cord from the outlet when you are not planning to use the unit for an extended period.

BASIC OPERATIONS

Playing records

1. Press the "ON/OFF" button at the back side of the unit to turn it on.
2. Open the turntable cover slowly.
3. Place a record on the turntable. When playing a 45 RPM large-hole single record, use the included adapter.
4. Turn the "33 / 45 RPM" switch to 33 or 45 position and the "START/STOP" switch in "START" position.
5. Move the tone arm clasp to release the tone arm.
6. Lift the "TONE ARM BRACKET".
7. You can also leave the cue lever down and moved the raised tone arm over the record and then lower the tone arm slowly to start playback.
8. Move the tone arm to the edge of the record or the track where you want to start playback.
9. Lower the tone arm slowly until the stylus touches the record and playback begins.

When playback finishes

1. Slightly lift the cue lever or the head-shell hook and return the tone arm to its resting position.
2. Turn the "START/STOP" switch to "STOP" to stop the turntable. When the turntable stops.

BLUETOOTH® TRANSMITTER

Pairing BLUETOOTH ^® to Stereo System

1. Set the BLUETOOTH ^® receiver device (BLUETOOTH ^® - headphone or speaker to pairing mode;
2. Turn on the unit. Turn the Bluetooth control button to "ON" position.
3. The turntable is ready for connection and the BLUETOOTH ^ indicator LED light is flashing.
4. When the pairing is successfully performed, the turntable BLUETOOTH® indicator LED light is fixed.

Note: This unit will connect to the closest BLUETOOTH ^® speaker that is near it. If after 3 minutes no BLUETOOTH ^® speaker can be found to pair with, the BLUETOOTH ^® transmitter will become inactive and the LED will turn red. To activate the BLUETOOTH ^® function, turn off the BLUETOOTH ^® button und turn on again.

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

PROTECTION DE L'ENVIRONNEMENT

CHANGING THE CARTRIDGE

- Connect the wire leads to the new Cartridge terminals

The wire lead color codes are as below

White Left channel positive (L+)

Black Left channel negative (L-)

Red Right channel positive (R+)

Black Right Channel negative (R-)

Close-up of a mechanical component with circular features and a central hub (no text or symbols visible)

INSTALLATION DU COUVERCLE DE LA PLATINE

Technical diagram of a mechanical device with numbered parts for identification

1 contragewicht
2 Anti-Skating
3 Zware metalen schaal
4 Toonarmlift
5 Toonarm beugel

6 33 / 45 RMP
7 Toonarm
8 START / STOP schakelaar
9 Bluetooth-status-LED
10 patroon

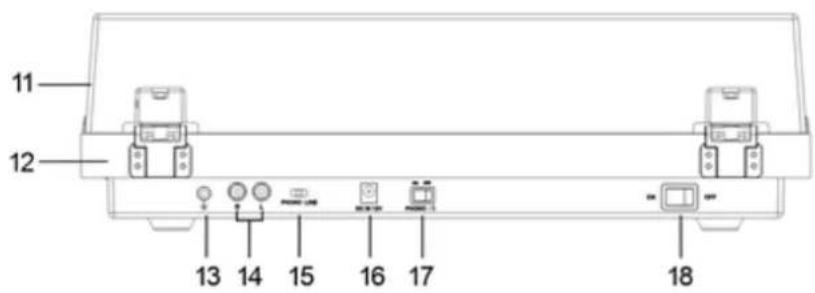

ACHTERAANZICHT

11 12 13 14 15 16 17 18

11 Stofkap
12 Hinch
13 GRND screw
14 LINE / PHONO OUT (L + R)

Close-up of a mechanical component with circular features and a central hub (no visible text or symbols)

DE DRAAITAFELDEKSEL BEVESTIGEN

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a circular feature and dotted pattern (no visible text or symbols)

APPLICAZIONE DEL COPERCHIO DEL GIRADISCHI

*) markerade Cd = kadmium, Hg = kvicksilver, Pb = bly

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a circular feature and dotted pattern (no visible text or symbols)

MONTERING AV SKIVSPELARENS LOCK

Technical diagram of a mechanical device with numbered parts for identification

1. Turntable belt and ribbon (pre-installed to the metal platter and turntable belt)
2. To install the platter on the unit and the belt on the pulley, please do the following:
3. Position the platter with the cutout over the drive roller.
4. Pull the belt over the drive pulley

Close-up of a mechanical component with circular holes and a central hub (no visible text or symbols)

Cadolzburg, www.soundmaster.de

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a central hub and mounting holes (no visible text or symbols)

PRIPOJENIE KRYTU GRAMOFÓNU

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.soundmaster.de

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
