USER MANUAL One+ OPT1845 RYOBI
Safety, performance, and dependability have been given top priority in the design of your cordless pole hedge trimmer.
INTENDED USE
The product is only intended for outdoor use by a single operator who is standing on firm solid ground. For safety reasons, the product must be adequately controlled by using two-handed operation.
The product is designed for home or domestic use. It is intended to cut and trim hedges, shrubs, and similar vegetation. The product is designed to be extended to a maximum length of 2.93 m. Do not exceed this working length.
It should be used in dry, well-illuminated conditions.
It is not intended to cut grass, trees, or branches. It should not be used for any other purpose than hedge trimming.
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
PERSONAL SAFETY
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories, and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
POLE HEDGE TRIMMER SAFETY WARNINGS

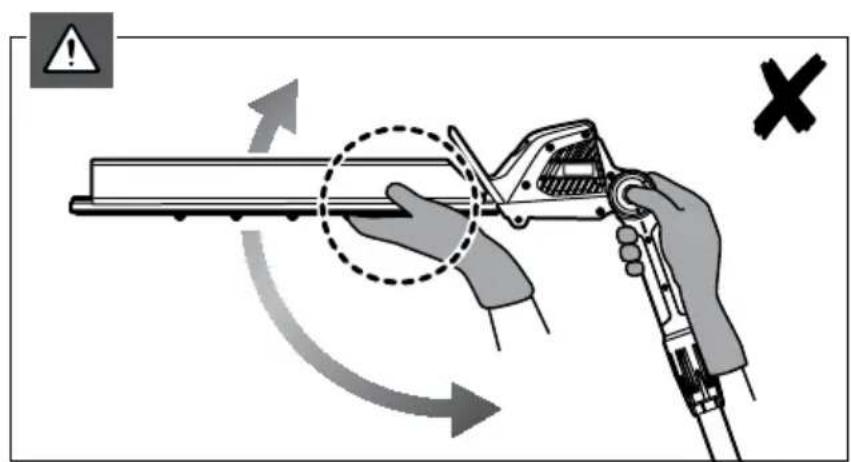

- Keep all parts of the body away from the cutter blades. A moment of inattention while operating the product may result in serious personal injury.
- Carry the pole hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the pole hedge trimmer, always fit the cutting device cover. Proper handling of the pole hedge trimmer will reduce possible personal injury from the cutter blades. Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
ADDITIONAL SAFETY WARNINGS
- Clear the work area before each use. Remove all objects such as cords, lights, wire, or string which can be thrown or become entangled in the cutting means.
- Beware of thrown objects; keep all bystanders, children, and pets at least 15 m away from the work area.
- Check constantly for persons or animals behind or inside any hedge or bush you intend to trim.
- Do not operate in poor lighting. The operator requires a clear view of the work area to identify potential hazards. Inspect the machine before each use. Check for loose fasteners, etc. Make sure all guards and handles are properly and securely attached. Replace any damaged parts before use.
Do not modify the product in any way. Do not allow children or untrained individuals to use this unit. Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn. Wear heavy long trousers, boots, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet. Secure long hair so it is above shoulder level to prevent entanglement in moving parts. Do not use the product when you are tired, ill, or under the influence of alcohol, drugs, or medication. Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance and can result in serious injury. Before starting the product, make sure the cutting blades will not come in contact with anything. Ensure that the product is correctly located in a designated working position before starting the product. While operating the pole hedge trimmer, always hold it firmly with both hands by the two handles and ensure that the operating position is safe and secure. The manufacturer does not recommend the use of steps or ladders. Use the harness if it is supplied with your pole hedge trimmer. It will assist you to support the weight of the product during use and whilst moving between trimming positions. Carefully adjust the harness to fit comfortably. Identify the quick release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick release mechanism. To protect yourself from electrocution, do not operate within 10 m of overhead electrical lines. Never use the pole hedge trimmer near fencing, posts, buildings, or other immovable objects. Blades are sharp. When handling the blade assembly, wear non-slip, heavy-duty protective gloves. Do not place your hand or fingers between blades or in any position where they could get pinched or cut. Never touch blade or service unit unless the battery pack is
removed.

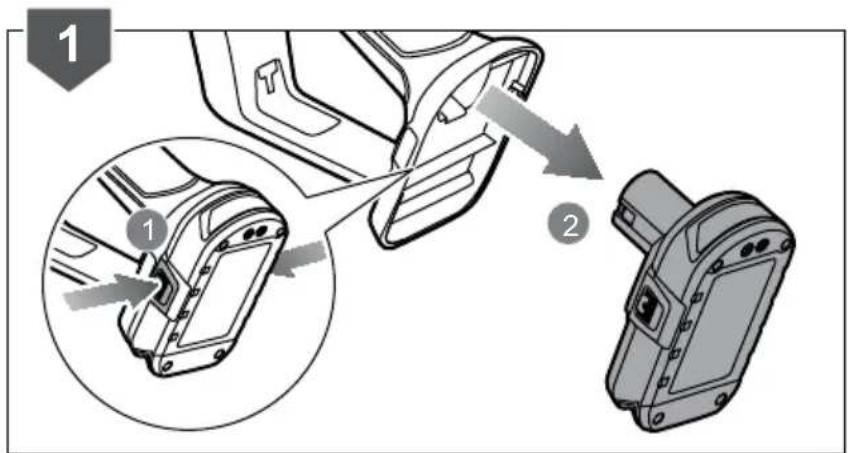

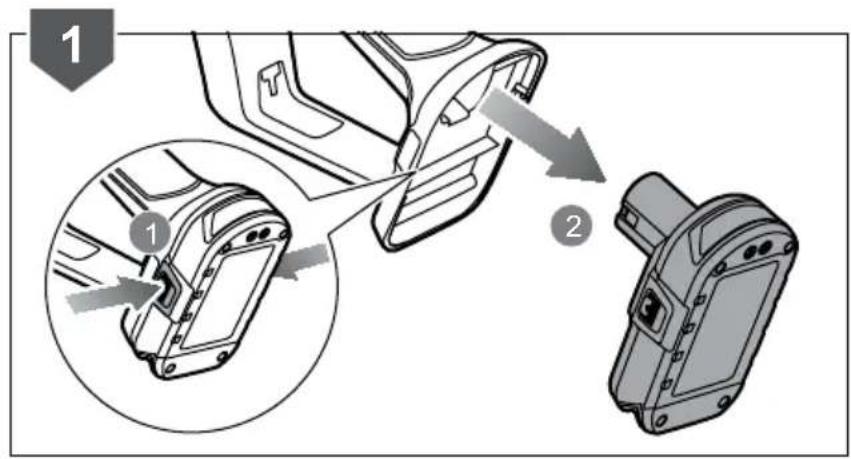

Switch off and remove the battery pack before:

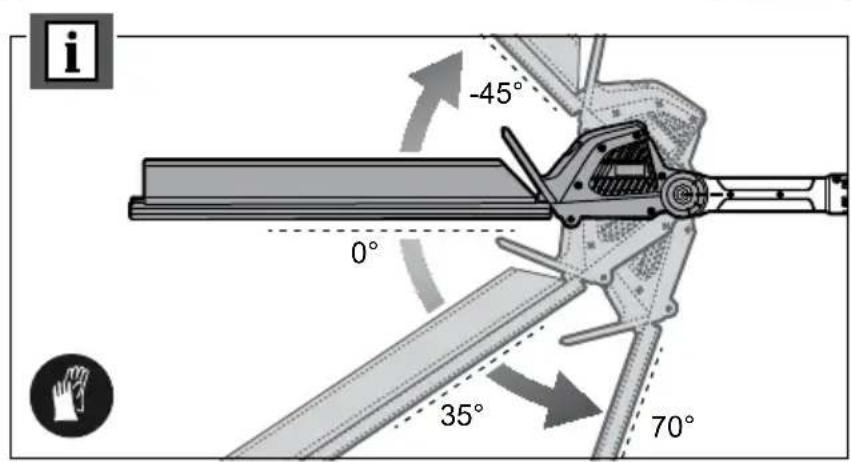

- adjusting the working position of the cutting device
- cleaning or clearing a blockage
- leaving the product unattended
- checking, maintenance or working on the product.
- Do not force the pole hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.
- Do not attempt to cut stems or twigs that are larger than 18 mm thick, or those obviously too large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim large stems. Use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area.
- Do not operate the pole hedge trimmer with damaged or excessively worn blades. Always be aware of your surroundings and stay alert for possible hazards that you may not hear due to the noise of the product.
WARNING
If the product is dropped, suffers heavy impact or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.
WARNING

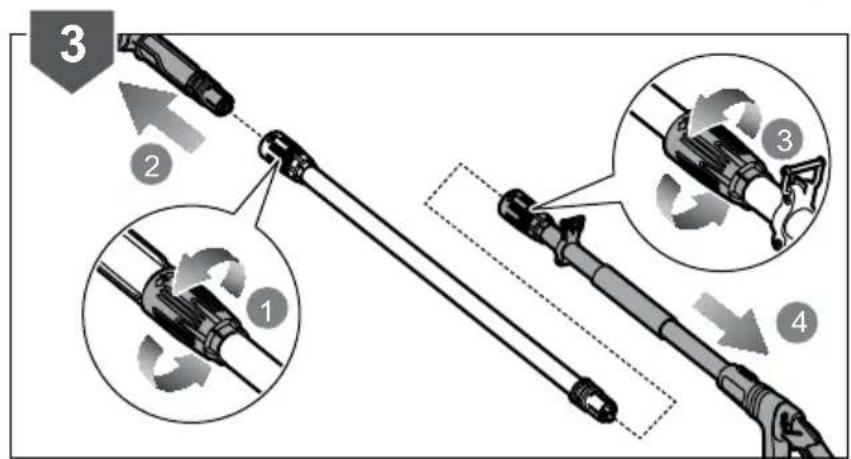

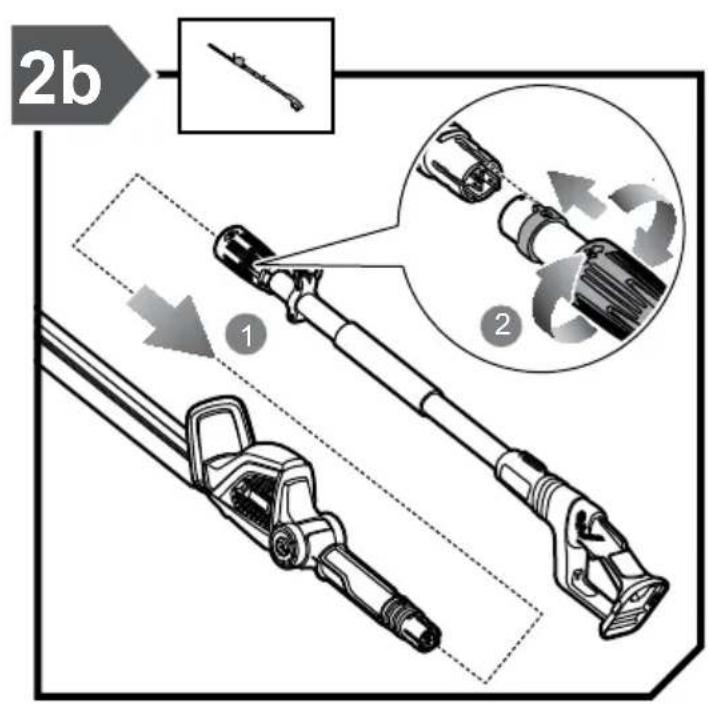

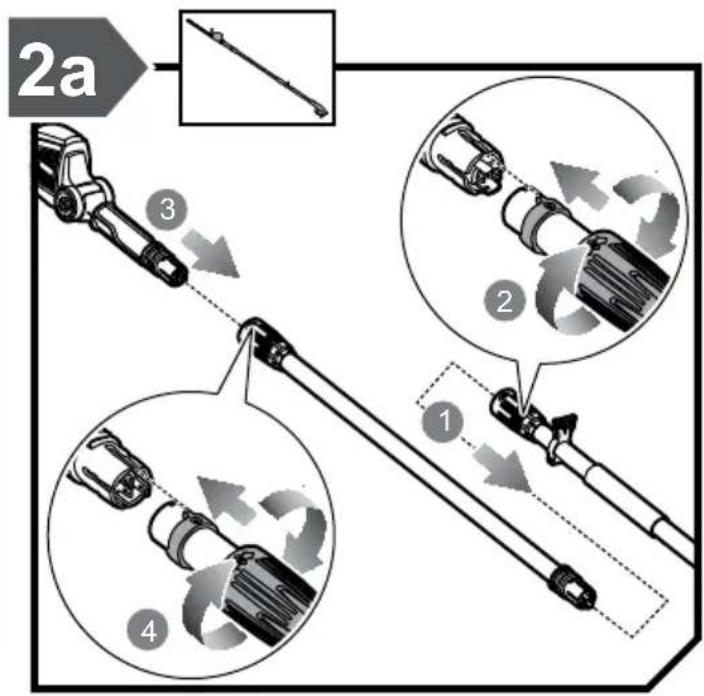

Check that all the shaft couplings on the extension pole and tool are securely fastened before each use and at frequent intervals.

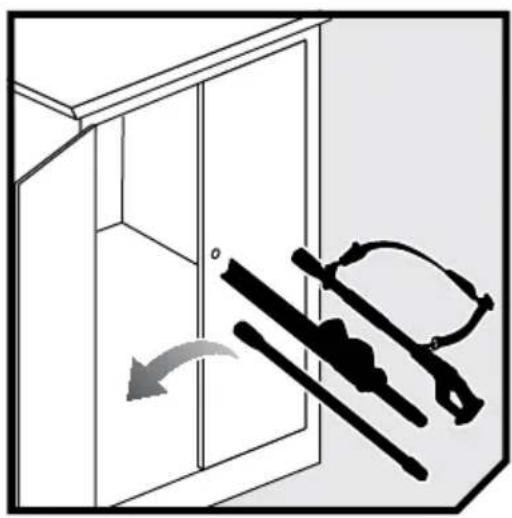

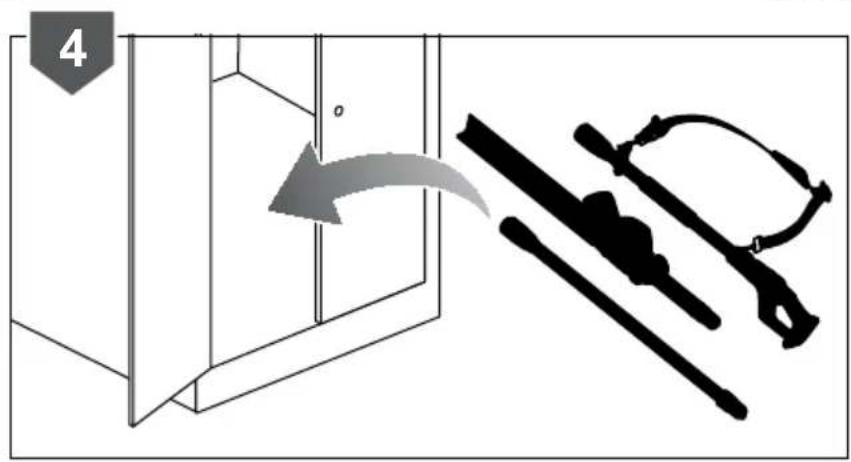

TRANSPORTATION AND STORAGE
- Stop the product, remove the battery and allow both to cool before storing or transporting. Clean all foreign material from the product. Store it in a cool dry and well-ventilated place that is inaccessible to children. For extra safety, store the battery separately from the product. Keep away from corrosive agents such as garden chemicals and de-icing salts. Do not store outdoors.

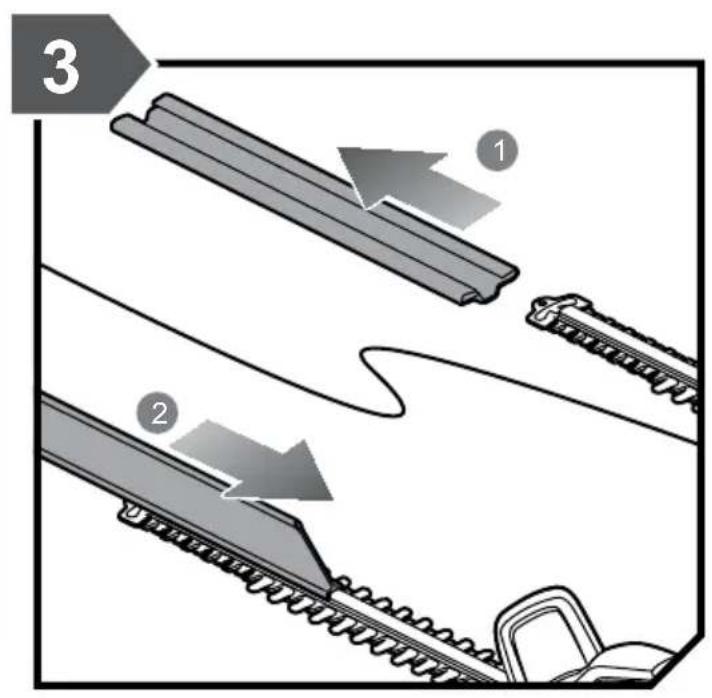

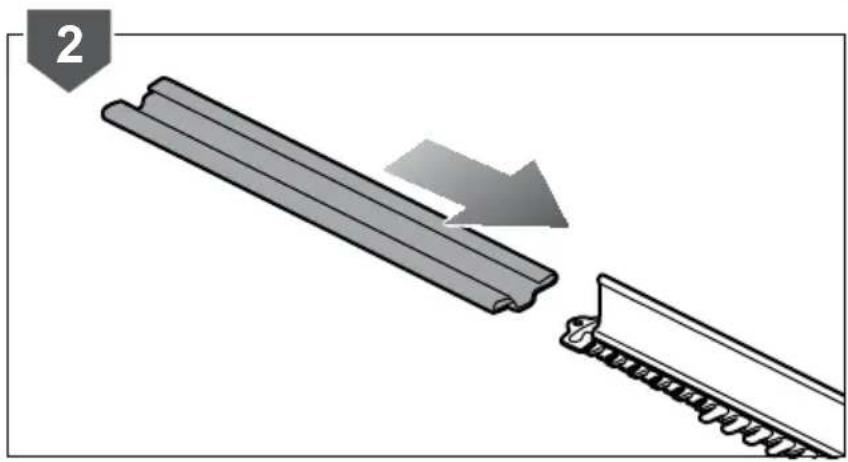

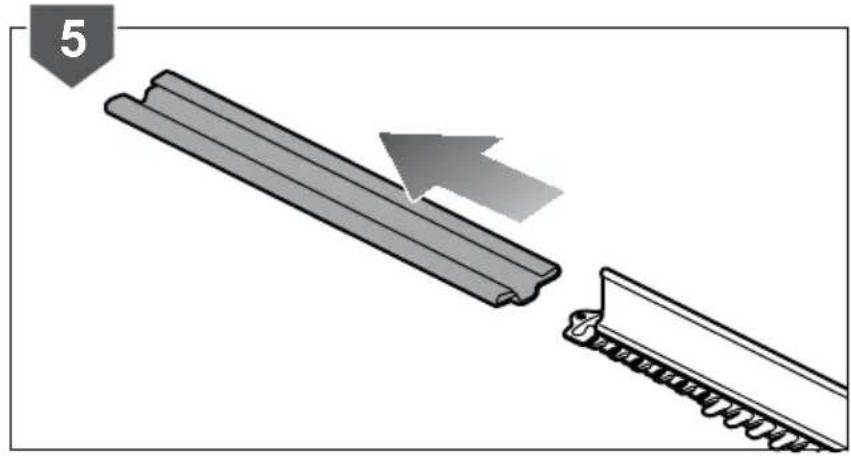

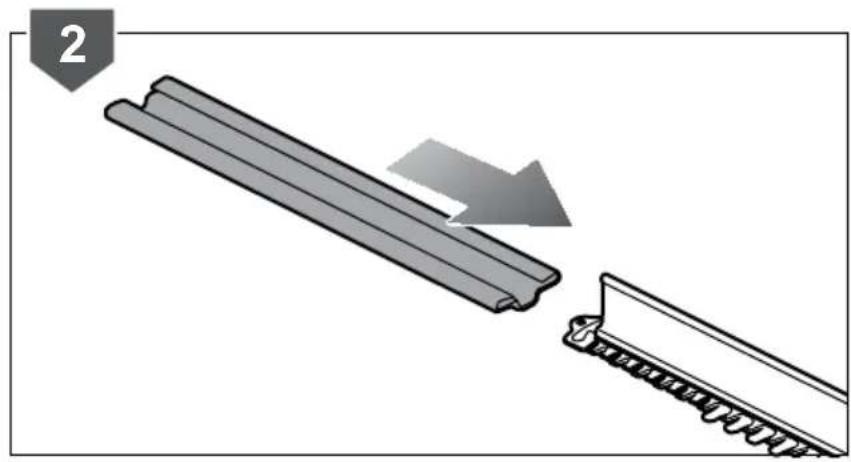

- Cover the blade with the blade protector before storing the unit, or during transportation. For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product.
MAINTENANCE
WARNING
Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty.
WARNING
Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest authorised service centre for repair. When servicing, use only identical replacement parts.
WARNING
The blades are sharp. To prevent personal injury, exercise extreme caution when cleaning, lubricating and fitting or removing the blade protector.

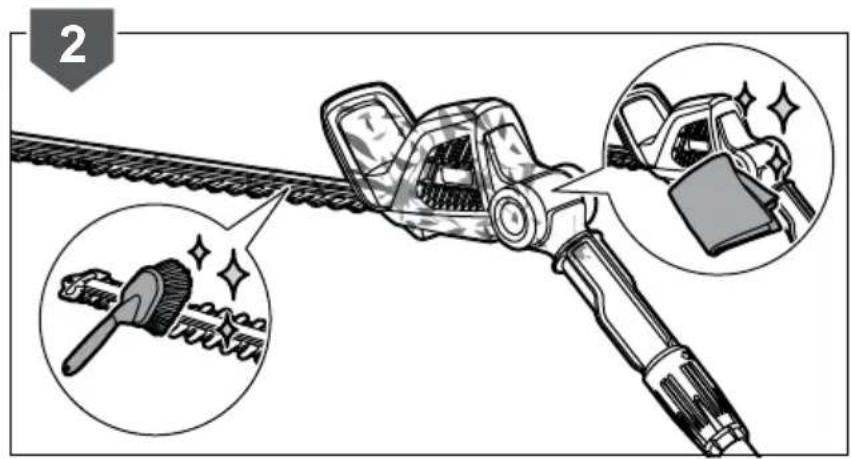

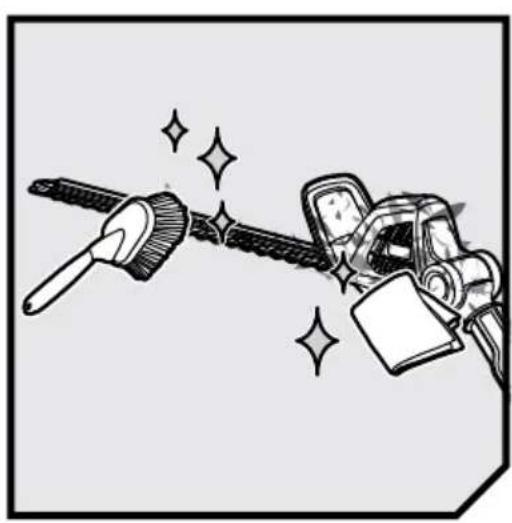

- Remove the battery before conducting any maintenance or cleaning work.
- You may only make adjustments or repairs described in this manual. For other repairs, contact the authorised service agent. After each use, clean the body and handles of the product with a soft dry cloth. After each use, clean the debris from the blades with a stiff brush, and then carefully apply a rust preventative lubricant before refitting the blade protector. Use the recommended rust preventative and lubricant spray. Take care to avoid contact with the blade when applying an even distribution of the lubricant. For information about suitable spray product check with your local authorised service centre.

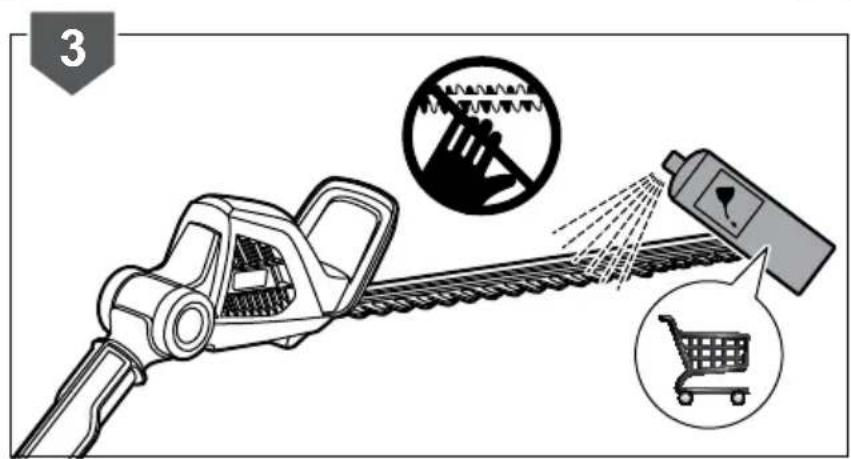

- You may wish to lubricate the blades lightly before use if necessary using the above method.
- Check all nuts, bolts and screws at frequent intervals for proper tightness to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following:
The blades cannot be guarded whilst cutting. Contact with the blades can cause serious injury. Keep the blade away from yourself and others. Cover it with the blade protector whenever you are not cutting. - Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure.
Exposure to noise can cause hearing injury. Wear ear protection and limit exposure.
RISK REDUCTION
It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:
- Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome. After each period of operation, exercise to increase blood circulation. Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.
WARNING
Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

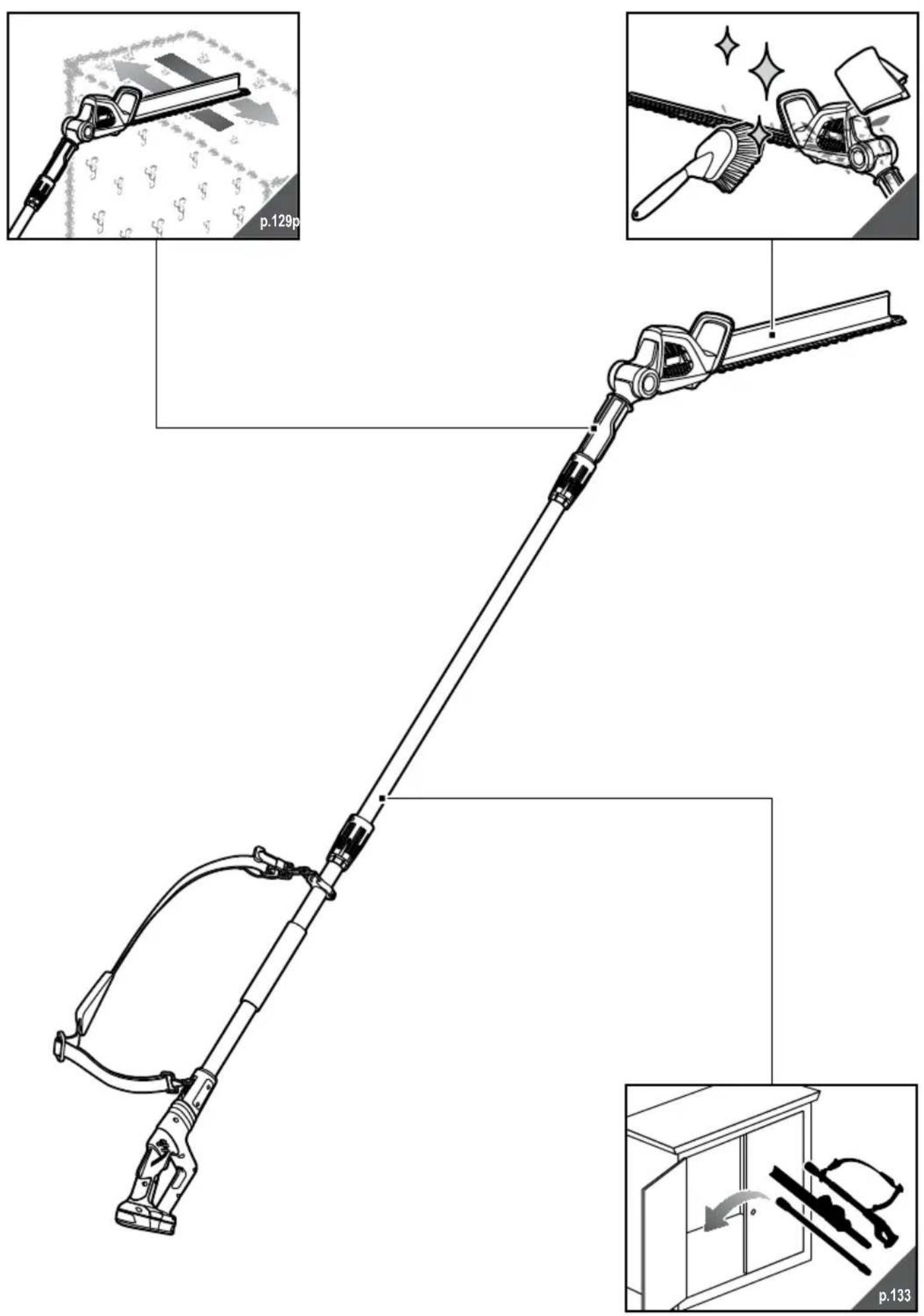

KNOW YOUR PRODUCT

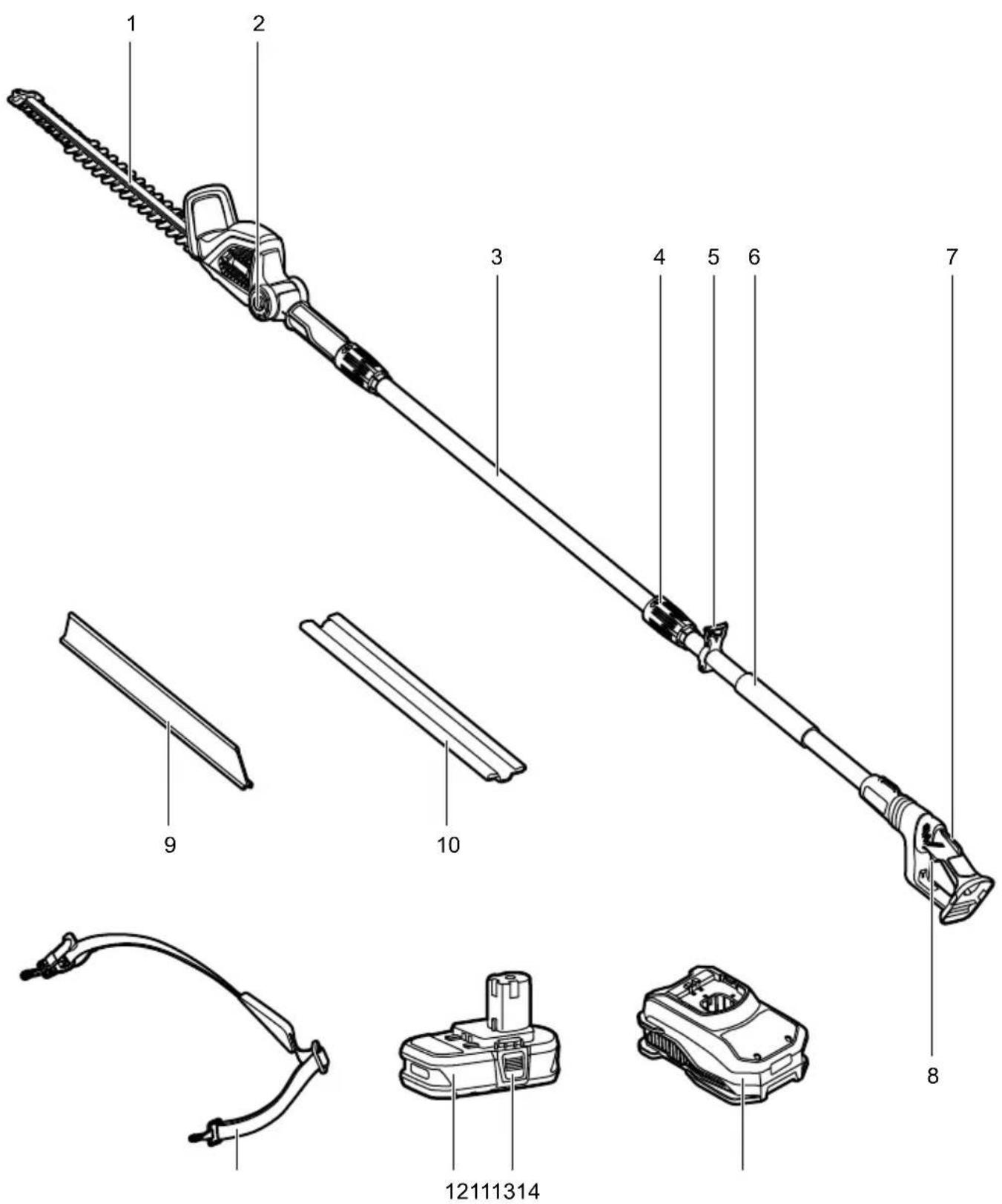

See page 125. 1. Blade 2. Pivoting button 3. Extension pole 4. Shaft coupling 5. Harness hanger 6. Front hand grip 7. Trigger release 8. On/Off trigger 9. HedgeSweep™ debris sweeper 10. Scabbard 11. Harness 12. Battery 13. Battery latch button 14. Charger
SYMBOLS ON THE PRODUCT
Safety alert
Read and understand all instructions before operating the product, follow all warnings and safety instructions.

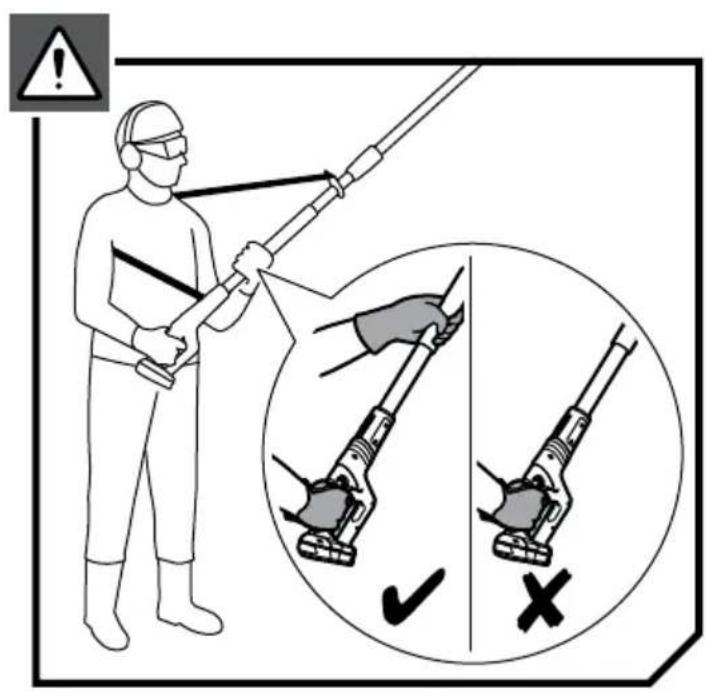

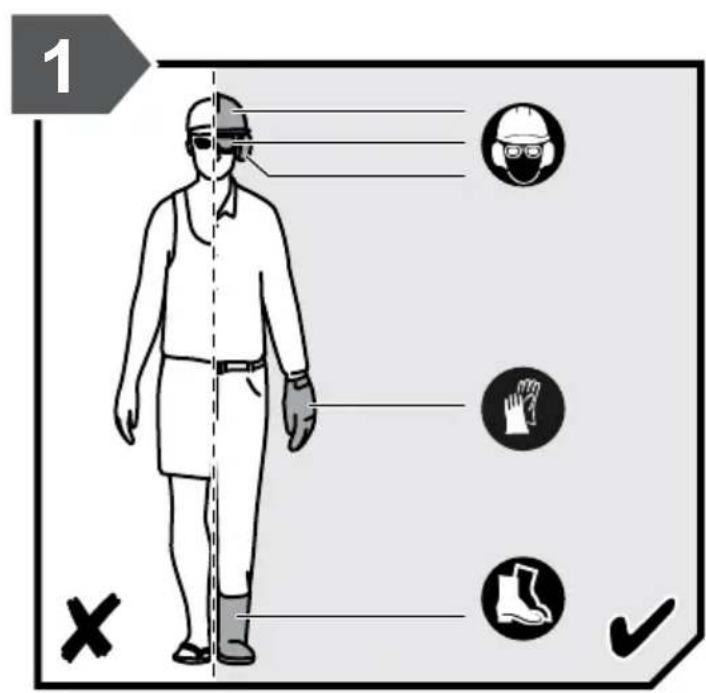

Wear eye, ear and head protection.
Wear non-slip safety footwear when using the product.
Wear non-slip, heavy duty gloves.

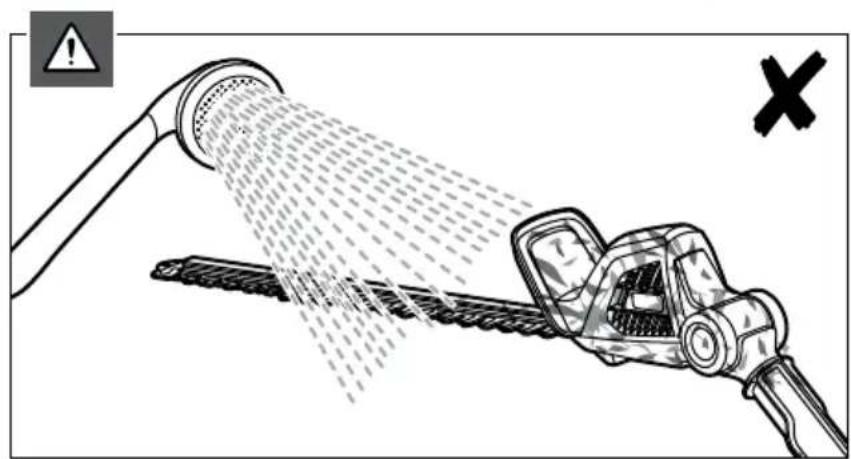

Do not expose to rain or damp condition.
Pull: Quick release tab
Sharp cutting blades. To prevent serious injury, do not touch cutting blades.

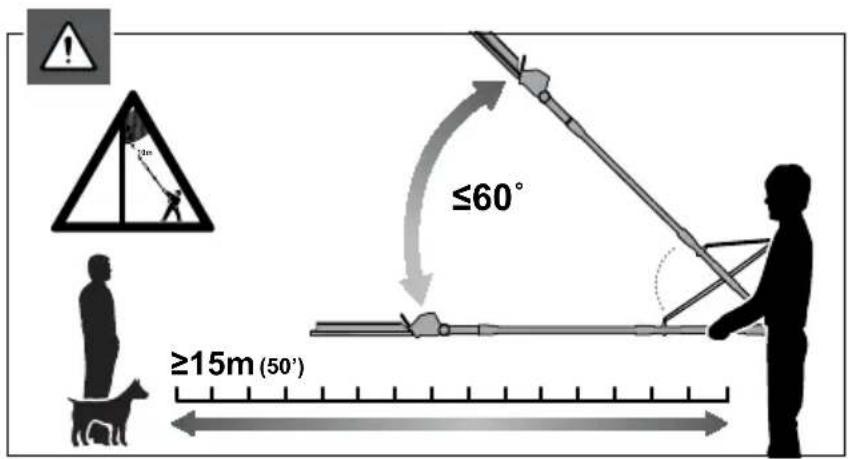

Electrical hazard. Stay at least 10 m away from the overhead electric-power lines
Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Conforms to all regulatory standards in the country in the EU where the product is purchased.
EurAsian Conformity Mark
Ukrainian mark of conformity
Guaranteed sound power level is 95 dB
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
4 | English
Warning
The following signal words and meanings are intended to explain the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
RISK REDUCTION
GET TO KNOW YOUR PRODUCT
See page 125.
SYMBOLS APPLIED ON THE PRODUCT
Warning
GET TO KNOW YOUR PRODUCT
See page 125.
SYMBOLS ON THE PRODUCT
Safety warning
GENERAL SAFETY WARNINGS
WARNING
SYMBOLS ON THE PRODUCT
Safety Warning
TRANSPORT AND STORAGE

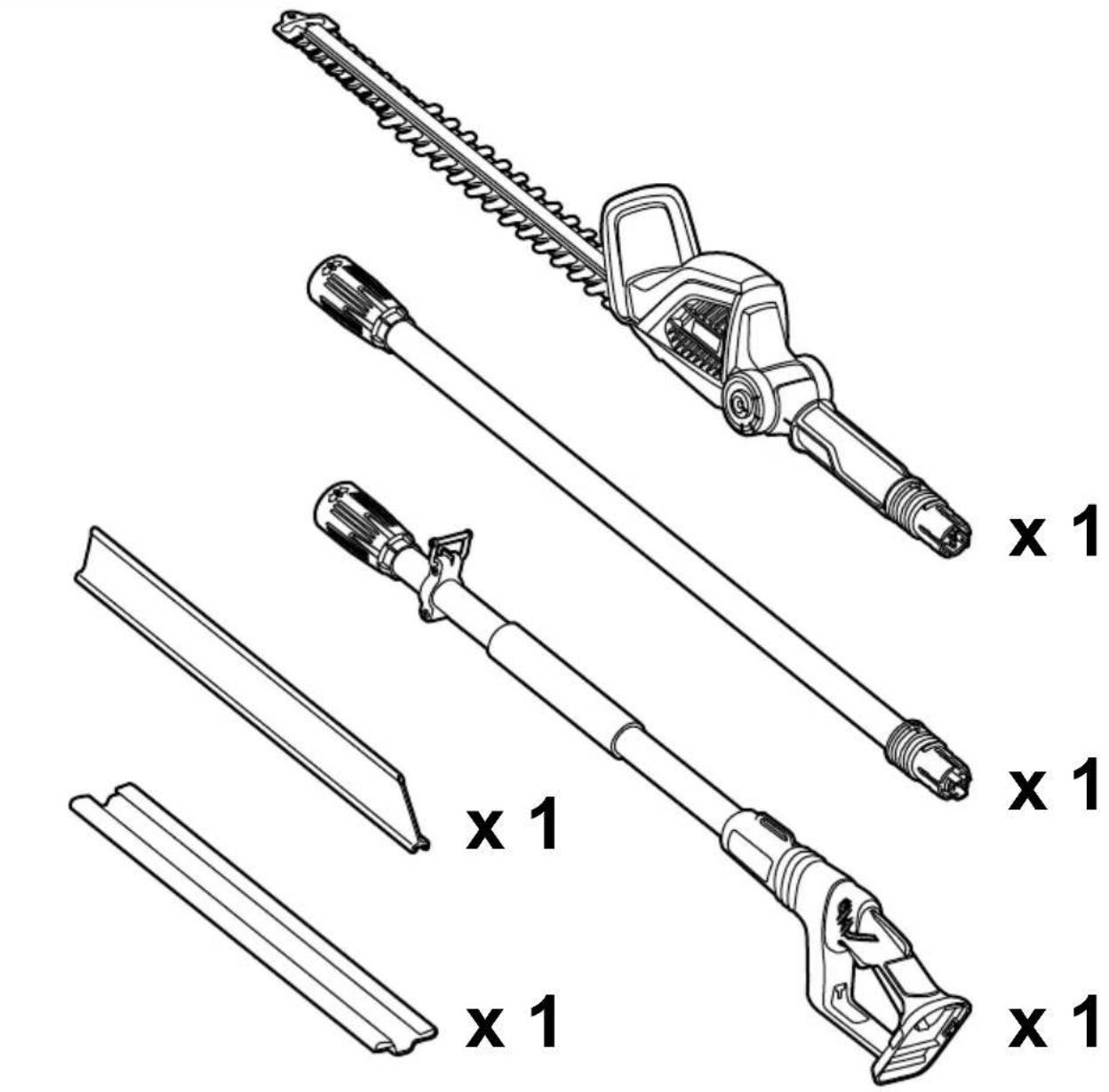

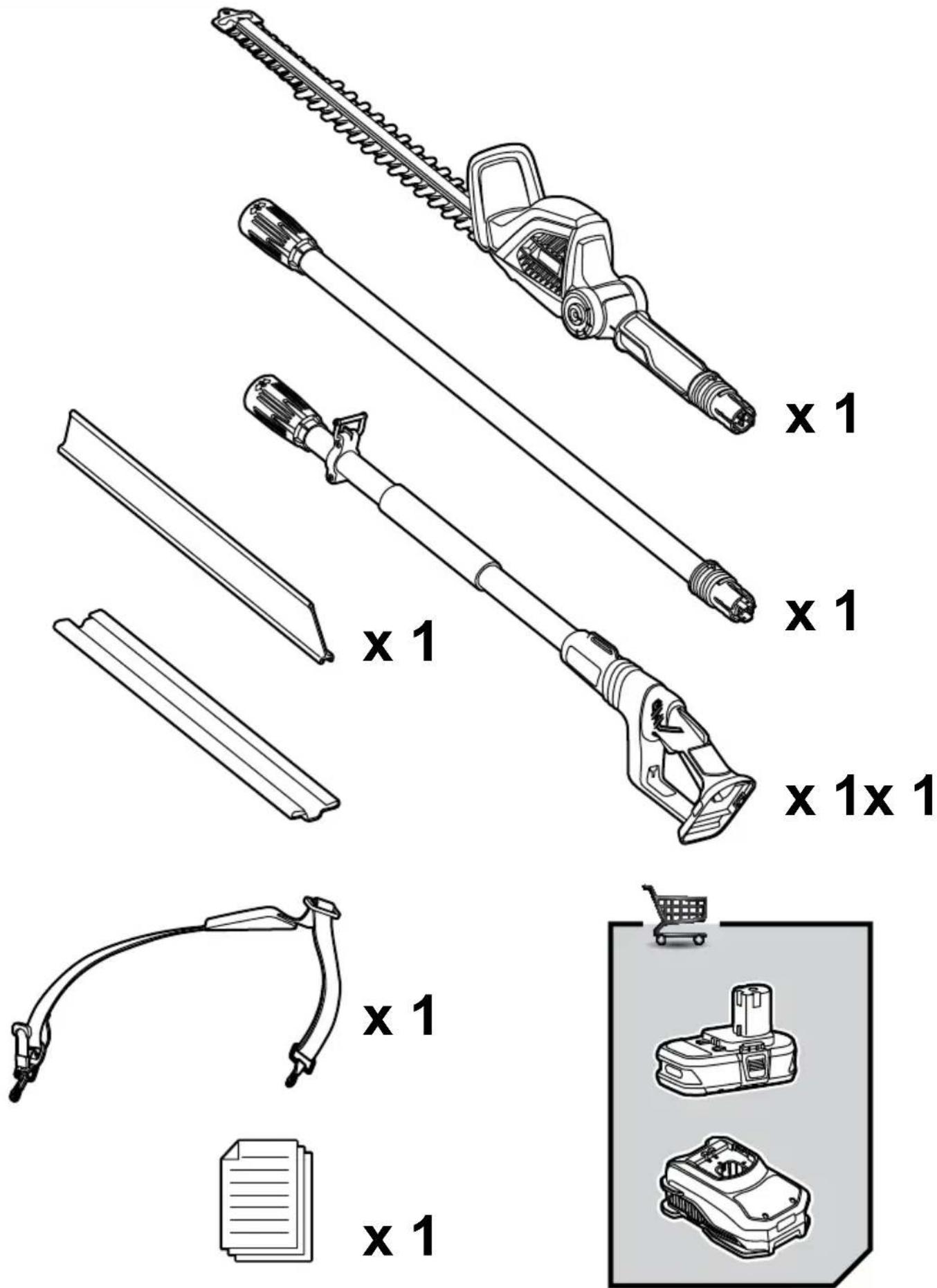

KNOW YOUR PRODUCT
See page 125.
- Blade
- Swivel knob
- Extension shaft
- Shaft coupling

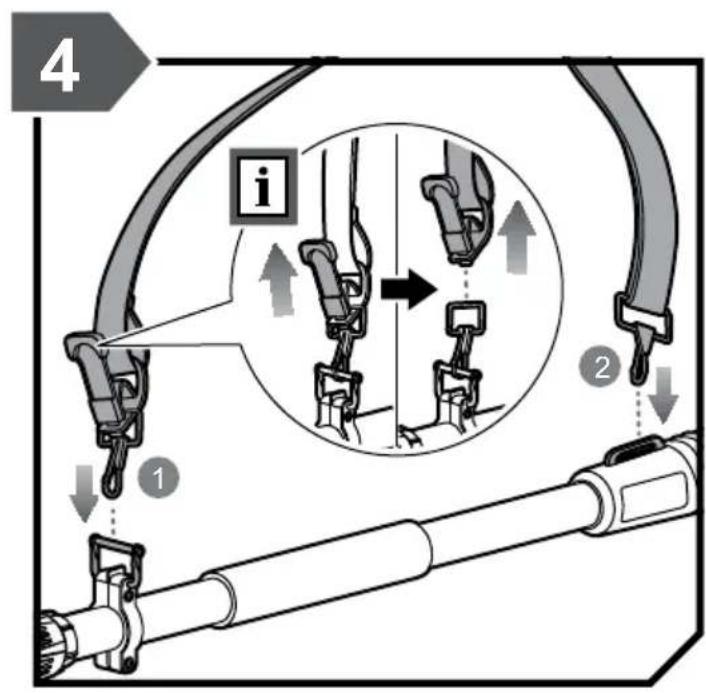

- Harness attachment
- Front handle

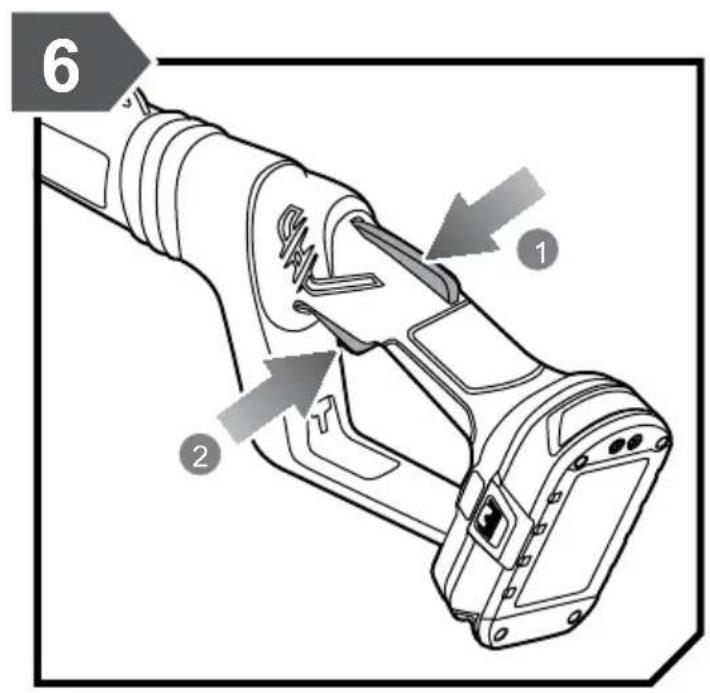

- Throttle trigger release
- On/off trigger button
- HedgeSweep™ debris remover

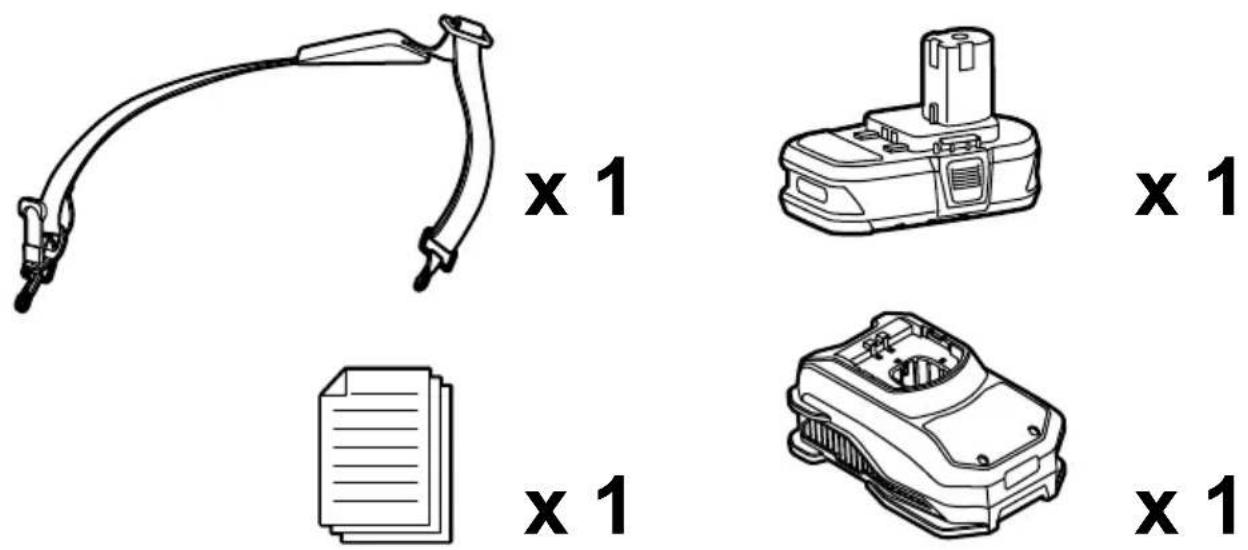

- Carrying case
- Harness
- Batteries
- Trigger button for battery
- Charger
SYMBOLS ON THE PRODUCT
Safety alert
Read and understand all instructions before using the product, follow all warnings and safety instructions.
WORK AREA SAFETY
The work area must be clean and well lit. Cluttered or dark work areas can lead to accidents. Do not use power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks, which may ignite dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
The power tool plug must match the outlet being used.
Do not modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Using original plugs and matching outlets reduces the risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. If your body is earthed or grounded, the risk of electric shock increases. It is strictly forbidden to use this product in conditions of high humidity. Water entering a power tool increases the risk of electric shock. Handle the power cord properly. Do not use the cord for carrying, pulling, or unplugging the power tool. Keep the cord away from heat, oil, sharp edges, and moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Using an RCD reduces the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used appropriately will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source, picking up, or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
Before moving the tool, make sure the switch is in the off position. To avoid accidents when moving the tool, do not keep your finger on the switch. Do not connect the tool to the power source while the switch is on.
Before switching on the tool, check all adjusting and locking keys. Keys left on rotating parts of the tool may cause personal injury. Do not overreach. Try to maintain balance and secure footing. This ensures better control of the power tool in unexpected situations. Dress appropriately. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can get caught in moving parts. If the tool is equipped with dust extraction and collection devices, ensure they are properly connected and used. Use of dust collection can reduce dust-related hazards.
USE AND HANDLING OF THE POWER TOOL
Do not apply excessive force when working with this tool. In each case, use the appropriate power tool. A correctly selected power tool allows you to do the job better and more safely. Do not use the tool if the switch does not turn it on or off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Before making any adjustments, changing accessories, or storing the tool, disconnect the plug from the power source and/or remove the battery pack from the power tool. Such preventive safety measures reduce the risk of accidental starting. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate the tool. A power tool in the hands of untrained users is dangerous. Handle the tool with care. Check the tool for misalignment or binding of moving parts, breakage of parts, or any other
conditions that may affect the tool's operation. If the tool is damaged, have it repaired before further use. Many accidents are caused by poorly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the tool, accessories, bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
OPERATION WITH BATTERY POWERED TOOLS
Use only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use electrical devices only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact with it. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
MAINTENANCE
Tool service and repair must be performed only by qualified personnel using identical replacement parts. This will ensure that the tool is maintained properly.
SPECIFIC SAFETY RULES FOR PLANER KNIFE SHARPENING
Keep the cutting blade at a safe distance from body parts. Even a moment of inattention while operating the tool may
lead to serious injury.
Carry the planer knife sharpener by the handle with the switch off. Always fit the protective guard on the cutting part when transporting or storing the planer knife sharpener. Proper handling of the planer knife sharpener will reduce the risk of injury from the sharp blades. Hold the power tool only by the insulated gripping surfaces, because the cutter may contact hidden wiring. If the cutting blade contacts a live wire, the metal parts of the tool may become live and could give the operator an electric shock.
ADDITIONAL SAFETY INSTRUCTIONS
Before using the device, check the work area. Make sure that objects such as wires or cords that could trip or get caught in the equipment are removed. Beware of flying objects; do not allow people, children, or pets closer than 15 m from the work area. Constantly check for people or animals behind or inside the fence or bushes that you are about to cut. Do not work in insufficient lighting. The operator must clearly see the work area to identify potential hazards. Check the device before each use. Check the reliability of the fastenings; make sure that all protective devices and handles are correctly and securely attached. Replace damaged parts before use. It is forbidden to modify the device's construction in any way. Do not allow children or untrained persons to use the device. Use reliable protective equipment for eyes and hearing when working with the product. When working in an area where there is a risk of falling objects, a protective helmet must be worn. Work in thick long trousers, boots, and gloves. Wearing overly loose clothing, short trousers, or jewelry is not allowed. Working barefoot is prohibited. To avoid hair getting caught in rotating parts, secure long hair so that it does not hang below the shoulders. Do not work with this tool if you are tired, ill, or under the influence of alcohol, drugs, or medication. Keep your footing and balance. Do not overreach. Trying to reach too far can cause loss of balance and lead to serious injury.
far can cause loss of balance and lead to serious injury.
Before starting the device, make sure that the cutting blades do not come into contact with anything. Before starting the tool, set it to the correct working position. During operation of the hedge trimmer, always hold it firmly with both hands on the two handles and make sure that the working position is stable and safe. The manufacturer does not recommend using ladders or steps. Use a work platform if it is supplied with your hedge trimmer. This will also help to support the weight of the device during use and when moving between cutting positions. Carefully adjust the platform so that it is comfortable. Find the quick release mechanism and test it before starting to use the device. Its correct use can prevent serious injuries in case of an emergency. Never wear loose clothing over the harness or in any way restrict access to the quick release mechanism. To avoid electric shock, do not work within 10 m of overhead power lines. Never use the hedge trimmer near fences, posts, buildings, or other immovable objects. The blades have sharp edges. When performing all operations with the blades, wear non-slip protective gloves. Do not allow your hands or fingers to get between the blades, and hold them in such a way that it is impossible to pinch or cut them. Never touch the blade disc and do not perform maintenance until the battery has been removed. Turn off the device and remove the battery before performing the following actions:
Adjusting the working position of the cutting device, blade sharpening or clearing jams, leaving the product unattended - inspection, maintenance and operation of the device.
Do not use dull blades for cutting thick branches. This can cause jamming and slow down the blade movement. If the blade movement slows down, reduce the working speed. Do not attempt to cut stems or branches thicker than 18 mm or those that obviously do not fit into the blade gap. For cutting large stems, use a hand saw or pruning saw. The use of hearing protection reduces the ability to hear warnings (shouts or signals). The operator must
pay increased attention to what is happening in the work area.
Do not use the hedge trimmer with damaged or excessively worn blades. Never forget about the surrounding environment and be aware of potential dangers that you may not notice due to the noise made by the tool during operation.
CAUTION
If the device is dropped, makes unusual noises or vibrates excessively, stop the device immediately and check for damage or find the cause of vibration. Any damaged parts must be properly repaired or replaced by an authorized service center.
CAUTION
Make sure that all couplings on the unit and the tool are securely fastened before each use and with the specified torque.
TRANSPORT AND STORAGE
Stop the device, remove the battery and let it cool down before storage or transport. Clean the device of all foreign materials. Store it in a dry, cool, well-ventilated place out of reach of children. For additional safety, store the battery separately from the device. Protect from substances that cause corrosion, such as garden fertilizers or de-icing salts. Put the protective cover on the cutting blade before storing or transporting the device. When transporting, secure the device so that it cannot move or fall, to avoid injury to personnel or damage to the device.
MAINTENANCE
CAUTION
Use only original spare parts, accessories, and attachments from the manufacturer. Failure to comply with this requirement may lead to injury, reduced performance, and voiding of the warranty.
CAUTION
Maintenance requires above-average knowledge and must be performed only by qualified service personnel. For maintenance, we recommend returning the device to your nearest authorized service center. When servicing, use only genuine replacement parts.
CAUTION
Blades have sharp edges. To avoid injury, handle the blade with extreme care during cleaning, lubrication, and installation or removal of the device or blade.
Remove the battery before maintenance or cleaning. You may also perform other adjustments and repair work described in this manual. For repairs, contact an authorized service center. After each use, wipe the housing with a dry cloth. After each use, clean the blade of debris with a stiff brush, then carefully apply an anti-corrosion lubricant to it before installing the protective cover for the blade. Use the recommended anti-corrosion coating and spray lubricant. Be careful not to touch the disc when applying lubricant. For information on suitable spray lubricants, contact your local authorized service center. If necessary, you can lightly lubricate the blade before operation using this method. Check all bolts, nuts, and screws at short intervals for proper tightness to ensure the device is in a safe working condition. In case of damage to any part, it is necessary to contact an authorized service center for proper repair or replacement.
ALWAYS BE CAREFUL
Even when using this tool as intended, it is impossible to completely eliminate residual risk factors. During operation, the following situations may arise, to which the user must pay special attention to avoid problems:
The cutting tool must be protected during breaks. Contact with the blade can lead to serious injury. Keep the blade away from yourself and other people. Keep it closed and protected when not in use.
Injuries caused by vibration. Use the tool only for its intended purpose, use reliable handles and observe the work mode. Noise exposure can lead to hearing damage. Wear hearing protection devices and limit the duration of noise exposure.
REDUCED RISK
It is believed that vibration from the power tool may contribute to the manifestation of the so-called Raynaud's Syndrome in some individuals. Symptoms may include tingling, numbness, and blanching of the fingers (as when exposed to cold). It is believed that hereditary factors, cold and humidity, diet, smoking, and work practices contribute to the development of these symptoms. Below are examples of measures the operator can take to reduce vibration exposure:
Dress warmly in cold weather. When working with the tool, use gloves to keep your hands and wrists warm. It is believed that cold weather is a major factor contributing to the onset of Raynaud's Syndrome. After each work session, perform exercises to improve blood circulation. Take frequent breaks during work. Limit the duration of daily exposure to the open air.
If any of the listed symptoms occur, immediately stop working and consult a doctor.
CAUTION
Prolonged use of the tool can lead to injury. When using the tool for extended periods, take regular breaks.
GET TO KNOW THE TOOL
See page 125. 1. Sanding belt 2. Rotating brush 3. Universal rod 4. Shaft coupling 5. Belt lamp 6. Front handle 7. Lock-off button 8. On/Off switch 9. Dust bag HedgeSweepTM 10. Blades 11. Belt clip 12. Battery 13. Battery release button 14. Charger
SYMBOLS ON THE PRODUCT
WARNING
Read all instructions carefully before starting work with the product, and follow all safety warnings and instructions.
Wear eye and hearing protection, as well as a protective helmet.
When working with this product, wear non-slip protective footwear.
Handle the device carefully in difficult conditions.
Do not expose the instrument to rain and do not use it in conditions of high humidity.
Quick release latch.
Sharp blades. To avoid serious injury, do not touch the cutting blades. Danger of electric shock. Use at a distance of no less than 10 meters from power lines. Remember the danger posed by the device or objects ejected from under it. Do not allow unauthorized persons, especially children and pets, closer than 15 meters to the work area. Waste electrical products must be disposed of with household waste.
Utilize special technical equipment if available. For utilization questions, consult your local authorities or the enterprise that sells the product.
This instrument meets all the general standards of the country where it was purchased.
CE marking of conformity.
NCTC RU C-DE.AE61.B.06406 Certificate of conformity valid until 05.08.2020.
Expert body for quality control - Center of certification 'Euro-Test' 109147, Moscow, Malaya Kalitnikovskaya Street, 7.
Ukrainian standardization mark.
Guaranteed sound power level is 95 dB.
SYMBOLS USED IN THIS MANUAL
Accessories purchased separately.
NOTE
Caution!
The words and meanings are intended to explain the risk levels associated with this product.
DANGER
Indicates an imminent hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION
Used without the safety alert symbol indicates a situation that could result in damage to property.
Transportation:
Dropping and any mechanical impacts on the packaging during transportation are strictly prohibited.
During unloading/loading, the use of any equipment operating on the principle of gripping the packaging is not allowed.
Storage:
Must be stored in a dry place.
Must be stored away from sources of elevated temperatures and exposure to sunlight.
Sharp temperature changes must be avoided during storage.
Storage without packaging is not allowed.
Service life of the product:
The service life is 5 years.
It is not recommended to operate after 5 years of storage from the date of manufacture without prior inspection.
The date of manufacture (date code) is stamped on the surface of the product body.
Example:
W17 Y2015, where Y2015 is the year of manufacture
W17 - week of manufacture
The place of manufacture can be determined according to the table below, using 2015 as an example.
Attention! The number of weeks in a year varies from year to year.
FAMILIARIZE YOURSELF WITH YOUR PRODUCT
See page 125.
ADDITIONAL SAFETY INSTRUCTIONS
ADDITIONAL WARNINGS
WORK AREA SAFETY
Keep the work area clean and well lit. Cluttered or dark work areas are a prerequisite for accidents. Do not use electrical tools in explosive environments, for example in the presence of flammable liquids, gases or dust. During work, electrical tools produce sparks that can ignite dust or vapors. Keep children and bystanders away while operating the electrical tool. If your attention is diverted, you may lose control of the electrical tool.
ELECTRICAL SAFETY
The plug of the electrical tool must match the socket. Never make any modifications to the plug in any case.
When working with an earthed electrical tool, do not use adapters for the plug. The use of original plugs and sockets reduces the risk of electric shock.
Avoid body contact with earthed surfaces, such as pipes, radiators, stoves and refrigerators. When your body is earthed, the risk of electric shock is increased. Do not expose the product to rain or wet conditions. Water entering the electrical tool increases the risk of electric shock. Do not abuse the cord. Never carry, disconnect or plug the electrical tool by the cord. Keep the cord away from heat, oil, sharp edges or moving parts of the machine. Damaged or entangled cords increase the risk of electric shock. When working with the electrical tool outdoors, use only extension cords intended for outdoor use. The use of cords intended for outdoor use reduces the risk of electric shock. If you cannot avoid using the electrical tool in a damp location, use an RCD (residual current device). The use of an RCD reduces the risk of electric shock.
PERSONAL SAFETY
Be careful, follow the rules and use common sense when working with power tools. Do not use power tools when you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while working with power tools can lead to serious injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-slip safety shoes, a hard hat, or hearing protection used in appropriate conditions will reduce the risk of injury. Prevent unintentional starting. Before connecting the tool to the power supply and/or battery, or before picking up or carrying the tool, make sure the switch is in the OFF position. Carrying the tool with your finger on the switch or connecting it to the power supply while the switch is on invites accidents. Remove any adjusting keys or wrenches before turning on the tool. A wrench or key left attached to a rotating part of the tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
This allows for better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
USE AND CARE OF POWER TOOLS
Safety warnings for power tools. Use the power tool, accessories and bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep the power tool clean and well maintained. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Use of the power tool for operations different from those intended could result in a hazardous situation.
USE AND MAINTENANCE OF THE BATTERY-OPERATED TOOL
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
SERVICE
Power tools must be repaired only by qualified specialists and only with the use of original spare parts. In this way, the safety of working with the power tool is guaranteed.
SAFETY WARNINGS FOR WORKING WITH A CUTTER WITH ABRASIVE WHEEL
Hold the power tool by the insulated gripping surfaces, as the cutting wheel may come into contact with hidden wiring. If the cutting wheel comes into contact with a live wire, current may flow through the metal parts of the power tool and the operator may be exposed to an electric shock.
ADDITIONAL SAFETY WARNINGS
Ensure the work area is clean and free of obstacles. Remove any objects such as cables, lamps, wedges, or debris that could trip or get caught in the mechanism. Watch out for open objects; keep all bystanders, children, and pets at least 15 meters away from the work zone. Always check for people and animals before starting or while operating. Do not use this machine in poor lighting. The operator must have a clear view of the work area to identify potential hazards. Before each use, check the machine for defects. Inspect for loose connections and ensure all guards and handles are properly attached. Replace damaged parts before use. Do not modify the machine or its safety features. Do not allow children or untrained persons to use this product. Wear protective eyewear and hearing protection when working with the product. If working in an area where there is a risk of falling objects, you must wear a helmet. Wear sturdy boots, long pants, and gloves. Do not wear loose clothing, jewelry, or long hair, and do not use the machine if you are not wearing shoes. The cutting blade must be properly adjusted to avoid kickback. Do not use this machine if you are tired, ill, or under the influence of alcohol, drugs, or medication. Maintain a stable stance and keep your balance. Do not overreach to work in hard-to-reach places. Overreaching can lead to loss of balance, which is a prerequisite for serious injury. Before starting the machine, make sure the blade is not in contact with anything. Ensure the tool is correctly positioned and the work area is clear before starting the tool. When working with a brush cutter, always hold the device with both hands and maintain a stable and safe working position. The manufacturer does not recommend using a ladder or stool while working. Use the harness if the brush cutter is equipped with one. This will help you support the weight of the product while working and when moving between different positions.
Adjust the harness carefully so that it is comfortable for you to work with.
This mechanism is for quick release and proper use of it, before you forget to work with the machine. Proper use of this mechanism can prevent serious injury or cause an emergency situation. Never wear loose clothing or a lanyard for keys, because this blocks access to the quick release mechanism. To protect against electric shock, do not work with the machine closer than 10 meters from overhead electric cables. Never use the hedge trimmer near fences, posts, walls, or other immovable objects. The blades are very sharp. While operating the hedge trimmer, wear gloves, safety glasses, and protective footwear. Do not place your hand or fingers between the blades or in a position where they could be pinched or injured. Never touch the blade and do not perform maintenance without first disconnecting the battery. Disconnect and remove the battery, before:

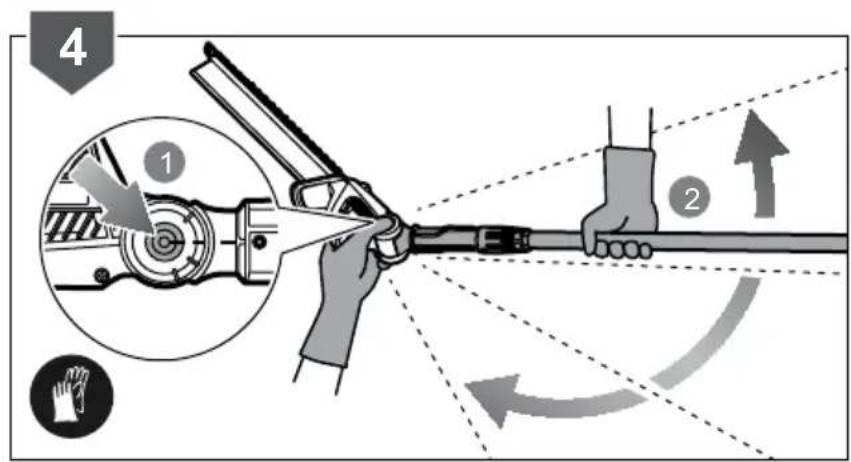

Adjusting the working angle of the blade device - cleaning or removing obstacles. Leaving the product unattended - checking, maintenance, or work on the product.
Do not force the hedge trimmer through thick branches. This may cause the blades to jam and stop. If the blades jam, release the trigger. Do not cut branches or twigs that are thicker than 18 mm or are obviously too thick, to avoid getting between the teeth of the blade. Use an ordinary pruning saw or pruning shears to cut thick branches. When using the anti-vibration feature, the ability to feel warnings (vibrations or alarms) is reduced. The operator must be especially attentive to what is happening in the work area. Do not work with the hedge trimmer if the blades are damaged or excessively worn. You must be familiar with the surrounding environment and be aware of potential hazards that may not be audible due to the noise from the machine.
MAINTENANCE
If the machine is dropped, suffers a heavy impact, or begins to vibrate abnormally, immediately turn it off and check for damage or determine the source of the vibration. Repairs or replacement of parts or damage must be carried out by an authorized service center.
MAINTENANCE
Periodically and before each use, check that all screws, nuts, and bolts are properly tightened and that all connections and tools are secure.
TRANSPORTATION AND STORAGE
Before storing the battery, remove it from the product. Store the product away from any heat sources. Store it in a cool, dry, and well-ventilated place that is inaccessible to children. For longer battery life, store the battery separately from the product. Do not leave it near corrosive agents such as garden chemicals or de-icing salts. Do not store it outdoors. Store and transport the device only with the blade guard mounted. When transporting the product, secure it so that it cannot move or fall, as this could lead to personal injury or damage to the product.
MAINTENANCE
MAINTENANCE
Use only original spare parts, accessories, and attachments from the manufacturer. Otherwise, the tool may malfunction or cause serious injury, and the warranty will become invalid.
MAINTENANCE
Servicing requires exceptional care and specific knowledge and should be performed only by qualified technicians. For servicing and repairs, we recommend taking the product to the nearest authorized service center. When repairing, use only identical spare parts.
MAINTENANCE
The blades are very sharp. To prevent injury, be especially careful when cleaning, assembling, mounting, or removing the blade guard.
Remove the battery whenever performing maintenance or cleaning. You may make adjustments and repairs described in this user manual. For other repairs, contact an authorized service agent. After each use, clean the housing and the device's handles with a damp and dry cloth.
After each use, clean the blades and the blade guard with a stiff brush, then apply anti-rust agent before mounting the blade guard again. Use recommended anti-rust and lubricating sprays. Avoid any contact with the blades while applying the lubricant. For more information on suitable lubricants, contact your local authorized service center. Before using the device, you can remove the blades by following the method described above. Periodically check that all nuts, bolts, and screws are properly tightened to ensure the product is in good condition. Any damaged part must be repaired or replaced by an authorized service center.
RESIDUAL RISKS
Even when the machine is used as intended, it is impossible to completely eliminate certain residual risk factors. The risks described below may arise during use, and the operator should be aware of them to avoid the following:
Keep the cutting tool sharp and safe during operation. Contact with the sharp edge can cause serious injury. Keep the sharp edge away from yourself and from the observer. Cover it with a protective cap when not in use. Injury caused by vibration. Be careful when using the appropriate tool for the intended purpose, limiting the working time and exposing to risk. Exposure to noise can cause hearing damage. Wear hearing protection to limit exposure.
RISK REDUCTION
It is known that vibration from hand tools can cause health problems, including Raynaud's Syndrome. Symptoms may include tingling, numbness, and whitening of the fingers, usually occurring when exposed to cold. It is believed that hereditary factors, exposure to cold and moisture, diet, smoking, and certain work habits contribute to the development of these symptoms. Some measures can be taken by the operator to reduce the effects of vibration:
Keep your body warm in cold weather. When working with the tool, wear gloves to keep your hands and wrists warm. According to research, the main factor contributing to the development of Raynaud's Syndrome is cold weather. Do exercises to activate blood circulation after each work session.
Regularly take breaks. Limit exposure to vibration per day.
If you notice symptoms of this disease, immediately stop using the tool and consult a doctor.
INTENDED USE
Prolonged use of the tool can lead to injury and fatigue. When using the tool for prolonged periods, take regular breaks.
PRODUCT IDENTIFICATION
See page 125.
- Sharp edge
- Rotating
- Wear gloves
- Link
- Noise protection
- Handle
- Button for locking the starting device
- Switch for turning on/off
- Metal case with a label for HedgeSweepTM
- Cable 11. Plug 12. Battery
- Button for the battery fixator 14. Charging device
Product symbols
Safety warnings
Read all instructions carefully before operating the product; follow all warnings and safety instructions.
Wear eye protection when operating.
Wear non-slip safety footwear when using the product.
Wear protective gloves suitable for vibrations.
Do not expose to rain or wet conditions.
Removal: Disposal
Cutting parts are very sharp. To avoid serious physical injury, do not touch the sharp edges. Danger: electricity. Keep a distance of at least 10 m from overhead cables.
Be careful when handling or installing objects. Keep all pages of the observer (especially children and pets) at a distance of at least 15m from the working area.
Electrical devices must not be switched on together with household appliances. Recycle where possible. Contact your local authorities for recycling information.
This product complies with the essential requirements of the relevant EU directives.
Eurasian Conformity mark
Ukrainian Conformity mark
Guaranteed sound power level of 95 dB.
User manual
Parts and accessories are sold separately.
Declaration of Conformity
Warnings
The signal words and meanings are intended to alert you to dangers associated with this product.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
WARNING
Without the safety alert symbol
Indicates a situation that could result in property damage.
Safety, productivity and reliability of operation are top priorities in the design of your cordless hedge trimmer.
INTENDED USE
The product is intended only for use outdoors in well-ventilated areas by a single operator standing on solid ground. For safety reasons, the product must be controlled by means of two hands.
The product is intended for domestic or household use. It is intended for trimming and cutting hedges, shrubs and similar vegetation. The product is intended for cutting up to a maximum depth of 2.93 m. Do not exceed this working depth. It should be used in dry, well-lit conditions.
It is not intended for cutting grass, trees or branches. It should not be used for other purposes, such as cutting branches or logs.
GENERAL SAFETY WARNINGS
WARNINGS
Read all safety warnings and instructions. Failure to follow warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
To reduce the risk of electric shock, ensure the power tool is unplugged or the battery is removed before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
ELECTRICAL SAFETY
The power tool plug must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
Always use the correct power tool for the job. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
USE OF POWER TOOL AND CARE
Do not overload the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
USE OF POWER TOOL ON BATTERIES
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
SERVICE
To service your power tool, use only qualified personnel and only original spare parts. This will ensure the safety of the serviced power tool.
Keep all parts of the body away from the rotating blades. The slightest carelessness when working with the power tool can lead to serious injuries. Hold the trimmer by the handle and keep the rotating blades away. When transporting or storing the trimmer, place the guard over the rotating device. Proper handling of the trimmer will reduce the likelihood of injury from the blades. Hold the tool by insulated surfaces, as the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could shock the operator.
ADDITIONAL SAFETY WARNINGS.
Describe the work to be performed. Identify all objects such as cables, wires, ropes, or cords that could be caught or entangled in the rotating parts. Be careful of hidden objects; keep all bystanders, children, and pets at least 15 m away from the work area. Periodically check for the presence of people or animals within or near the work area, and stop if you are about to cut. Do not use in poor lighting. The operator must inspect the work area to identify potential hazards. Inspect the area before each use. Check the tightness of fasteners, etc.
Beware of thrown objects, deflectors, and handles being correctly and securely attached. Replace all damaged parts before use.
This product is dangerous. Do not allow children or untrained persons to use this device. Wear protective clothing and hearing protection while working with the product. When working in places where there is a risk of falling objects, it is necessary to wear head protection. Wear sturdy long trousers, boots, and gloves. Do not wear loose clothing, shorts, jewelry, or go barefoot. Secure long hair above shoulder level to prevent entanglement in moving parts. Do not use the machine if you are tired, sick, or under the influence of alcohol, drugs, or medication. Maintain balance and proper footing at all times. Do not overreach; loss of balance can lead to serious injury. Before starting the product, make sure the blade is not in contact with anything. Ensure that the product is correctly positioned in the designated working position before starting. When testing the trimmer for operation on the ground, keep it away from your body and hold it with both hands on the handles, and make sure the working position is stable and safe. The manufacturer does not recommend using the trimmer on slopes or stairs. Use the trimmer only as intended, as described in the manual. This will help you maintain control of the trimmer during use and move between cutting positions. Carefully adjust the trimmer so that it is easy to operate. Familiarize yourself with the mechanism of the cutting head and practice using it before using the product. Its correct use can prevent serious injuries in case of an emergency. Never wear loose clothing or in any way obstruct access to the cutting head mechanism. To protect yourself from electric shock, do not work within 10 m of overhead power lines. Never use the trimmer near fences, posts, buildings, or other stationary objects. The blade is very sharp. When servicing the blade, always wear non-slip, protective gloves. Do not place your hand or fingers between the blades or in any position where they could be pinched or caught. Never touch the blade or service the device unless the motor has been switched off. Switch off and remove the battery before:
adjusting the working position of the cutting device, or if you need to clear a blockage from the product without tilting it - inspection, maintenance, or work on the blade.
Do not operate the trimmer on a mirror through a strong impact. This can cause contamination and breakage. If it breaks, change the temperature. Do not attempt to cut stems or branches larger than 18 mm, or those that are obviously too large for the tool. Use a cutting blade without teeth or a knife for cutting large branches. Using hearing protection reduces the ability to hear warnings (cries or alarm signals). The operator must pay special attention to what is happening in the work area. Do not use the trimmer on a mirror with damaged or excessively worn blades. Always be aware of your surroundings and be prepared for possible hazards that you cannot perceive through the product.
WARNING
If the product is dropped, suffered a heavy impact, or started vibrating, immediately stop the device and check for damage or determine the cause of the vibration. Any damaged part must be properly repaired or replaced by an authorized service center.
WARNING
Make sure that all guards and instruments are properly closed before each use and at regular intervals.
TRANSPORTATION AND STORAGE
Turn off the product, remove the battery, and allow it to cool down before storing or transporting. Clean all foreign materials from the product. Store it in a dry, ventilated place, inaccessible to children. For additional safety, store the battery separately from the product. Keep away from aggressive agents such as chemicals and salt. Do not store on an open surface. Cover the blade with the blade protector before storing or transporting. For transportation, secure the machine to prevent it from moving or causing injury or damage.
MAINTENANCE
WARNING
Use only original spare parts, accessories, and equipment from the manufacturer. Failure to comply may result in injury, poor product performance, and may void the warranty.
WARNING
Maintenance requires extreme care and knowledge and should be performed only by qualified personnel. For maintenance, we recommend returning the product to the nearest authorized service center for repair. When servicing, use only identical replacement parts.
WARNING
The blade is very sharp. To avoid injury, exercise extreme caution when cleaning, sharpening, installing, or removing the blade protector.
You can perform the maintenance and repairs described in this user manual. For other repair work, contact an authorized service agent. After each use, clean the main body of the product with a dry cloth. After each use, clean the blade with a short brush, then carefully apply blade oil using the blade protector device. Use the recommended spray to protect against rust and wear. Make sure to avoid contact with the blade when applying and evenly distributing the oil. For information on aerosol products, contact your local authorized service center. You may slightly dull the blade before use if necessary, using the method described above. Check all seals, bolts, and screws after a short period of use for proper tightness to ensure the product is in a safe working condition. Any damaged part must be properly repaired or replaced at an authorized service center.
RESIDUAL RISKS
Even if the product is used as described, some residual risks remain. The following hazards may arise. The operator must pay special attention
to avoid the following:
The blade cannot be protected during cutting. Contact with the blade can cause serious injury. Keep the blade away from yourself and others. Engage the blade guard when you are not cutting. Injuries caused by vibration: use the correct tool, use the designated handles and limit working time. Noise can cause hearing damage. Use hearing protection and limit exposure.
RISK REDUCTION
It has been established that vibrations from handheld tools may contribute to a condition called Raynaud's syndrome. Symptoms may include tingling, numbness, and blanching of the fingers, usually upon exposure to cold. Hereditary factors, exposure to cold and humidity, diet, smoking, and work practices all contribute to the development of these symptoms. The following measures can be taken by the operator to possibly reduce the effects:
Keep your body warm in cold weather. When operating the device, wear gloves to keep your hands and wrists warm. It has been reported that cold weather is a major factor contributing to Raynaud's syndrome. After each work period, perform exercises to increase blood circulation. Take frequent breaks from work. Limit the number of cuts per day.
If you experience any of the symptoms of this condition, stop using the product immediately and consult a doctor about these symptoms.
TRANSPORTATION
Prolonged use of the tool may cause or worsen injuries. Take regular breaks during prolonged use of the tool.
PRODUCT DESCRIPTION
See figure 125.
- Blade
- Release button
- MyΦTa
- Biwana kna npemHIB
- IpepeHrykoTka
- 3BilbHeHHa Tpirepa
- TpiRep YbIMKHeHO/BmMKHeHO
- HedgeSweep™ CMITTI pnpbapalha MaunHa 10.HoXHH
- Pemihb
- AkymyraTop
- Khonka 3acybkn akymyIaTopa
14.3apAHH npncTpii
CNMBOJIH HAPODyKTI
PonepeJxehn8be3neKei
YHTaTe i 3po3yMiTe Bci IHctpyKJIi nepeE ekCnPyatauieo BnPo6y, DOTpMMyTEcB CXkBA3IBOK i nonepeJKeHb 3 TexhIKs Be3neKn.
Hocitb 3axnct ouen, cnxy, i rnoBN.
Hocit HeKOB3He 3axnche B3yTTI npn BIKOPNCaHHI npOdykTy.
HocitbHeCn3bKi,HaMiCiHi pykabuKn.
He nIaBaIe BnInBy doUy a60 BOJOrnx yMOB.
Tara: TETLA WBNKORO BINycky
Tocpi pixyui ne3a.Дя 3anobirahn cepno3Hx TpaBM He TopkaTecra ne3.
He6e3neKa ypaXeHH eJekTpHnM cTpymOM.He6e3neKa ypaXeHH eJekTpHnM cTpymOM, npHaMHi, Ha BiCTaHI 10 M BiN NobITpAHx LiHi eJekTpHOrO XKUHeHH
OcTepiraTecKa KHyTx a6o Iitaiounx 06'ekTIB. TpMaIte Bcix nepexoxx, 0oc6nbo dTe i domaunix TBapHn, npHaMHi 15 M BiD p6oohoi 30HN.
Bixxodn ekeptexhihoi npodykui He cnid BnkaDAtn pa30 i3 nobyTOBmN BiXoamn. Bynb nacka, nepepeobnyte tam, de HaraBHe yctatkybaHH. NepeBipTe 3 BaWM MicueBMn OprAHOM BnaDn a6o npOdaum nKcHcyIbTaui 3 npBOy nepepokn.
BiINObiae BCIM HopMaTHBnM CTaHApTAM B KpaIHax CC, De Bnpi6 6yIO npu6aHO.
Cbpaaicbckn 3NaK BiIOBiaHocti
YkpaHcbKm3HaK BiINOBiDHOCTI
TapaHTOBaHn pIBeHb 3ByKOBOi notyxHOCTi 95 dB
CIMBOINBUBOMYTOCEIHKU
3aHactnHa Ta akcescyapn, 0 npdaTbca OKpemO
3amitka
PonepeJKeHHa!
Introductory words and table of contents are intended for understanding the risk levels associated with the product.
DANGER
Indicates an imminent hazardous situation that, if not avoided, may result in death or serious injury.
WARNING
Indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
WARNING
Without safety alert symbol
Indicates a situation that may result in damage to property.
English Français Deutsch Español Italiano Nederlands Português
| Specifi cations Caracéctiés
techniques | Technische Daten Caracteristicas
técnicas | Caratteristiche
tecniche | Technische geveens | Caracteristicas tícnicas |
| Cordless pole hedge trimmer | Taille-haies sans-fil sur perche | Kabellosen Teleskop Heckenschere | Cortasetos de alta inalámbrico | Taglasiépi telescopico月以来 | Snoerloze telescopische heggeschaar | Cortador de sebes sem fios |
| Model Modèle Modelled | Modelo Modello Model | Modelo |
| Rated voltage | Tension nominale | Nennspannung | Tensión nominal | Voltaggio nominale | Toegekende spanning | Tensión nominal |
| No-load speed | Vitesse de rotation | Leerlaufgeschwindigkeit | Velocidad sin caria | Velocità sensa carico | Snelheid zonder lading | Velocidade sem caria |
| Stroke rate at no load | Vitesse de rotation sans charge | Hubfrequenz ohne Last | Índice de desplazamenti sin caria | Frequenza di corsa senza carico | Slagsnellheid zonder belasting | Indice de tempos sem caria |
| Usable cutting length | Longueur de coupe utile | Anwendbare Schnittlänge | Largo de corte | Lunghezza di taglio disponibile | Bruikbare zaaglente | Comprimento de corteutil |
| Cutting capacity Capazité | Té de coupe Schnittlente | Durchmesser | Capacidad de corte | Capacità di taglio | Snijcapaciteit | Capacidade de corte |
| Maximum product working length | Longueur maxima de travail du produit | Maximale Arbeitsreichweite des Produktés | Longitud máima de trabalho del aparato | Lunghezza massima funzioniamento prodotto | Maximum product bedrifslenge | Comprimento Tmaxipo de trabalho do aparelho |
| Weight (with harness, without battery and charger) | Poids (avec hernais, sans batterie ni chargeur) | Gewicht (mit Tragegeschirr, ohne Akku und Ladegerät) | Peso (con amés, sin batería y cargador) | Peso (con cinghia di supporto, sena Battería e caricatore) | Gewicht (met hernas, zonder batterij en lader) | Peso (com amés, sem bateria e carregarador) |
| Vibration level (in accordance with annex C of EN ISO 10517:2009+A1:2013) | Niveau de vibrations (selon l'Annexe C de EN ISO 10517:2009+A1:2013) | Vibrationsgrad (gemäß Anhang C der EN ISO 10517:2009+A1:2013) | Nivel de vibración (de conformidad con el Anexo C de la norma EN ISO 10517:2009+A1:2013) | Livillo di vibrazioni (secondo quando stabilito dallado standard EN ISO 10517:2009+A1:2013) | Trillingsniveau (in overeerenstemming met bijlage C van EN ISO 10517:2009+A1:2013) | Nível de vibração (em conformidade com o Anexo C da norma EN ISO 10517:2009+A1:2013) |
| Vibration total value | Valeur totale des vibrations | Gesamtwert der Vibration | Valor total de vibración | Valor total de vibrazioni | Totale waarde trilling | Valor total da vibração |
| Uncertainty of measurement | Incertitude de la mesure | Unsicherheit der Messung | Incertidumbre de medicion | Incerteza delle misurazioni | Onzekerheid bij meting | Incerteza de medicções |
| Noise emission level (in accordance with annex D of EN ISO 10517:2009+A1:2013) | Niveau d'émission sonore (selon l'Annexe D de EN ISO 10517:2009+A1:2013) | Schalleistungsgelag (gemäß Anhang D der EN ISO 10517:2009+A1:2013) | Nivel de emissión de rudo (de conformidad con el Anexo D de la norma EN ISO 10517:2009+A1:2013) | Livillo di emissión rumore (secondo quando stabilito dallado standard EN ISO 10517:2009+A1:2013) | Geluidermissieniveau (in overeerenstemming met bijlage D van EN ISO 10517:2009+A1:2013) | Nível de emissão de rudo (em conformidade com o Anexo D da norma EN ISO 10517:2009+A1:2013) |
| A-weighted sound pressure level at operator's position | Niveau de pression sonore ponderée A au niveau de l'opéraleur | A-bewerteter Schalldruckpeggel an der Position des Benutzers | Nivel de presión sonora ponderado A en la posición del operario | Livillo di pressione sonora ponderata A alla posizione dell'operaatore | A-gewogen geluidsdruk niveau bij positie van gebruiker | Nível de pressão sonora ponderada A na posizione do operador |
| Uncertainty of measurement | Incertitude de la mesure | Unsicherheit der Messung | Incertidumbre de medicion | Incerteza della misurazione | Onzekerheid bij meting | Incerteza de medicções |
| A-weighted sound power level | Niveau de puissance sonore ponderée-A | A-bewerteter Schalleistungsgelag | Nivel de potenza acústica ponderada en A | Livillo di potenza sonora pesato A | A-gewogen geluidsniveau | Nível de potência sonora ponderada A |
| Uncertainty of measurement | Incertitude de la mesure | Unsicherheit der Messung | Incertidumbre de medicion | Incerteza della misurazione | Onzekerheid bij meting | Incerteza de medicções |
| Replacement parts | Piços de Rechange | Ersatzteile | Piezas de reposto | Parti di ricambio | Vervangonderdelen | Peças de substituição |
| HedgeSweepTM | Défié ecteur de débris | HedgeSweepTM | Barredora de escombros | Aspiratore di detriti HedgeSweepTM | HedgeSweepTM | Varredor de detritos HedgeSweepTM |
| debris sweeper | HedgeSweepTM | Schnittgut-Kehrer | HedgeSweepTM | | | |
| Scabbard | Fourreau | Schienenabdeckung | Fundá | Copertura lame | Zaagschede | Bainha |
| Harness | Harnais | Tragegurt | Amés | Cinghia | Harnas | Arnês |
| English | François | Deutsch | Estonial | Italiano | Nederlands | Portugues |
| Model | Modèle | Model | Modelo | Modello | Model | Modelo |
| Battery pack | Batterie | Akku | Bateria | Batteria | Accu | Bateria |
| Charger | Chargeur | Ladegerät | Cargador | Caricatore | Lader | Carregador |
| Compatible battery packs | Packs Batterie-Compatiblees | Kompatible Akkus | Paqueles de batería compatibles | Gruppo batterie compatibili | Compatibile.accupacks | Baterias Compatibleis |
| Dansk Svenska Suomi Norsk Pysckn |
| Tekniske specifi kationer | Tekniska data Tekniset liedot | Tekniske egenskapier Tech | Характөрстөдөн | |
| харалгийпсг | |
| Ledningsfri stanghaekkeiklipper | Kabelfria häcksax på stav | Langattoman versipensasleikkurisi | Elektriske hekklipper Beç | штангового Триммера- кystореша | |
| Model Modell Malli Model | Modél RPT184515/OPT1845 | Nominell speening | Höminhaltnohehandrajgenche | DC 18 Volts |
| Märkespænding | Spänning | Nimellisjännite | Nominell speening | Höminhaltnohehandrajgenche | 1,350 min-1 |
| Tomgangshastighed | Hastighet utan belastning | Nopeus ilman kuormaa | Tomgangshastighet | Xолостая скорочь | |
| Slaghastighed Eden belastning | Slaghastighet utan belastning | Iskunopeus ilman kuormaa | Stempelslag ved tomgang | Частota врацения нахлостомхуdu | 2,700 spm |
| Anvendelig skærer længe | Användbar sagningsliangd | Leikkuupituus Brukar kottelengde | Истolyзmaяржuelleядаиina | | 450 mm |
| Skærakapacitet | Trimningskapacitet | Leikkauskapasiteeeli | Klippekapatet | Сокрашениевмостros | 18 mm |
| Max Produktarbejdsløngde | Max langd påprodukarbete | Tuotteen suurin työpituus | Maksimal arbeidslengde | Мakшильnamяразочая длиаюдемия | 2.93 m |
| Vægt (inkl. sele, utden batteri og oplader) | Vikt (med sele, utan batteri erler laddare) | Paino (valjaiden kanssa, ilman akkua ja laturia) | Vekt (med ledninger, uten batteri og lader) | Масca (с ремен, бezбатарей и заюногу устрийсту) | 4.2 kg |
| Vibrationsniveau (i hemhold til bilag C til EN ISO 10517:2009+A1:2013Annex C) | Vibrationsniva (i enlighet med EN ISO 10517:2009+A1:2013Annex C) | Tärinataso (EN ISO 10517:2009+A1:2013-standardlin litteen C mukaan) | Vibrasjonsniva (i hemhold til Tillegg C av EN ISO 10517:2009+A1:2013) | Уровень вибаши (corplasno Приложению сстадота EN ISO 10517:2009+A1:2013) | |
| Total vibrationsvaardi | Totalvärde for vibration | Tärinān kokonaisarvo | Vibrasjon totalverdi | Сymmарhoeэзанден bugибаши | 1.25 m/s2 |
| Målingsusikkerhed | Osäkerhet for mätt | Mittausten epätarkkuus | Usikkerhet ved mälg | Погешистьзмерения | 1.5 m/s2 |
| Stojemissionsniveau (i hemhold til bilag D til EN ISO 10517:2009+A1:2013Annex D) | Bullerutsläppsniva (i enlighet med EN ISO 10517:2009+A1:2013Annex D) | Melutaso (EN ISO 10517:2009+A1:2013-standardlin litteen D mukaan) | Stöyutslipsniva (i hemhold til Tillegg D av EN ISO 10517:2009+A1:2013) | Уровеньшума (corplasno Приложениюстадота EN ISO 10517:2009+A1:2013) | |
| A-væglet hydtryksniveau ved operatøres position | A-viktad ljudtrycksnivá vid operatørplats | A-painotettukäytäjan kohdistuva änenpainetaso | Steynivävekting ved operatørns posisjon | Аmpлittудно-BЗвшений уровень звухового давлиь в равочем мосте оретарoga | 81.1 dB(A) |
| Målingsusikkerhed | Osäkerhet i mätningar | Mittausten epätarkkuus | Usikkerhet ved mälg | Погешистьзмерения | 2.5 dB |
| A-væglet lydeffektniveau | A-vögåd ludeffektsnivá | A-painotettu änenentho | A-vektet lydeffektniva | Уровень A-BZBESEENHNO BZBESEENHNO MÖUHCOH | 92.8 dB(A) |
| Målingsusikkerhed | Osäkerhet i mätningar | Mittausten epätarkkuus | Usikkerhet ved mälg | Погешистьзмерiones | 1.75 dB |
| Reservedele | Utbytesdelar | Varaosat | Erstantingsdeler | Запathныеactivи | |
| HedgeSweepTM-lavfjerner | HedgeSweepTMklippbortöraren | HedgeSweepTM-puhdistuslaite | HedgeSweepTM avfallsjerner | П一步一步 льданядя мсора HedgeSweepTM | 526799003 |
| Skede | Svärdsvlada | Terän suojus | Fullteral | Ножны | 526798003 |
| Sele | Sele | Valjaat | Sele | Пробяныйerve管理体系 | 308319004 |
| Dansk Svenska Suomi Norsk | Рүсsekгий | | | |
| Model | Modell | Malli | Modell | МODEЛь | RPT184515 | OPT1845 |
| Batteri | Batteri | Akku | Batteri | Аккумлартор | RB18L15 | Not included |
| Oplader | Batteriladdare | Laturi | Lader | Зaporдное устристvo | BCL14181H | Not included |
| Koportable batterier | Koportbla batteripaket | Yhteensopivat akut | Koportable batteripakker | Сов畿имая akкумлартогая батеря | RB18L13, RB18L15, RB18L25, RB18L26, RB18L40, RB18L50 | |
| Polski Čeština Magyar Română Latviski Lietuviškai Eesti | |
| Parametry techniczne | Technické udaje | Muszaki adatok | Caracteristi tehnice | Specifikácijas | Techninés salygos | Techninés salygos |
| Bezprzewodowych nozy do zywoptolu na wysiegniku Model Model Tipus Model | Bezdrátového pilotostfuhu s dlouhym dosahem | Akkumulátoros teleszkópos sōvényvágó | De tuns gardul viu fara cablu | Bezvdad dzívžoga trimeri | Belaides gyvatvorú Žirkles | Varrega hekitrimmeri |
| Napićce znamionowe | Jmenovite napěti | Névleges feszültseg | Tensiunea nomină | Nominalais spriegums | Nominali jtampa | Nimipinge |
| Prědkość obrotowa bez obcîazenia | Rychlost napráźdno | Üresjárati fordulatszám | Viteză fãră sarcină | Átrums bez slodzes | Greītis be apkrovimo | Tühikäigukiiirus |
| Prědkość skokowa bez obcîazenia | Počet taktú pri chodu napráźdno | Ütesszám Üresjáratban | Ritm cursă fãră sarcină | Taktu skails tukşgaită | Kirčiu dažnis nesantapkrovos | Käigusagedus ilma koormuseta |
| Uzyteczna dlugosc pięcía | Vyuzǐtelnárezaci déka | Hasznos vágashossz | Lungime de tāiereutilizabila | Izmantojamais grieşanas garums | Naudojamas piovimo ilgis | Kasutata lõke pikkus |
| Szerokóc pięcía | Rezaci kapacita | Vagasi teljesitmény | Lungimea de tāiere | Grieşanas dzljums | Pjovimo talpa | Löikevoïmsus |
| Maksymalna dlugosc robocza produktu | Maximáni pracovni déka výrobku | Termék maximíls hosszá mücködés kózben | Lungime maximá de prelucrate a produsului | Maksimalais produkta darba ilgums | Maksimalus darbinis gamnio ilgis | Seadme maksimaaine tõöpikkus |
| Waga (z uprzejá, bez akumulatori i ladowarki) | Hmotnost (s popruhy, bez akumulatoru a nabijecchy) | Tómeg (vezetěkkteggel, akumulatoru és tõlćnl) | Greunate (cu ham, fãră accumulator Şi incârcatór). | Svars (ar aprikojumu, bez baterjas unladétajá) | Svoris (su saugos dirzais, be baterjos ir kroviklio) | Mass (koos rakmete, aku ja laadijaga) |
| Poziom drgan (zgodnie z aneksem C normy EN ISO 10517:2009+A1:2013) | Üroveni vibraci (v souladu s pflöhou C normy EN ISO 10517:2009+A1:2013) | Vibrációszt (az EN ISO 10517:2009+A1:2013 C. függelekének megfeilelønen) | Nivelul vibratilor (In conformitate cu Anexa C a EN ISO 10517:2009+A1:2013) | Vibrácijs limenis (saskaná ar EN ISO 10517:2009+A1:2013 pielikumu C) | Vibracijos lygis (pagal EN ISO 10517:2009+A1:2013 C心愿da) | Vibratsoonitase (vastavall standard EN ISO 10517:2009+A1:2013 lisle C) |
| Łuczna wartosc vibracji | Hodnota cellkovych vibraci | Vibrácio teljes erétek | Valoare totala vibratie | Vibrácijs kopéjais apjoms | Bendra vibracijos verte | Vibratsiononi koguvääruts |
| Niepewnosć pomiaru | Nejistota měfeni Mériès | bizonytalansága | Nesiguranta másuratóri | Mérjūma nenoteiktiba | Matavimo paklaïda | Mötmismäramatus |
| Poziom emisişi halasu (zgodnie z aneksem D normy EN ISO 10517:2009+A1:2013) | Hladina emise hluku (v souladu s pflöhou D normy EN ISO 10517:2009+A1:2013) | Hangkibocsátási szint (az EN ISO 10517:2009+A1:2013 D. függelekének megfeilelønen) | Nivel emise zgomot (In conformitate cu Anexa D a EN ISO 10517:2009+A1:2013) | Trokşnu emisijas limenis (saskaná ar EN ISO 10517:2009+A1:2013 pielikumu D) | Skleidžiamo triukšmo lygis (pagal EN ISO 10517:2009+A1:2013 D心愿da) | Helivöimsuse tase (vastavall standard EN ISO 10517:2009+A1:2013 lisle D) |
| Poziom cisnienia akuslycznégo w pozymoji operadora | Hladina akustického tlaku vázéná funcká A v poloze obsluhy | A-súlyozott hangnyomásszint a kezelő helyén | Un nival de presiune al sunetului maihare la posizija operatorului. | Lietotaja posizija ir ar A noveltéskanas spiediena limenis. | A lygio svorinis garso slegis operatoriaus padetye. | A-kaalutud müräemissioni rôhu tase operaatori tõkohal |
| Niepewnosć pomiaru | Nejistota měfeni Mériès | bizonytalansága | Incertitudine a másurārìi | Mérjūma mainigums | Matmenu paklaïda | Mötmismäramatus |
| A-wazony poziom natężenia halasu | Hladina akustického výkonu vázéná funcká A | A-súlyozott hangteljesitményszint | Nivel de putere acustica ponderatá A | A-límena skanjas jaudas limenis | A svertinis garso galios lygis | A-kaalutud helivöimsuse tase |
| Niepewnosć pomiaru | Nejistota měfeni Mériès | bizonytalansága | Incertitudine a másurārìi. | Mérjūma mainigums | Matmenu paklaïda | Mötmismäramatus |
| Częsci zamiennentse | Náhradní díly | Cserealkatrészek | Piese de schimb | Rezerves davon | Atsarginés detalés | Asendusosad |
| Zamiatarka ogrodowa HedgeSweepTM Pochwa | HedgeSweepTM sběrače odřežků | HedgeSweepTM hulladékseprü | Dispositiv de aspirat reziduuri HedgeSweepTM Inveltoare | HedgeSweepTM gruzu slaucitájs | HedgeSweepTM atlieku šlavyklé | HedgeSweepTM prahieemaldi |
| Pouzdro | Védôtok | Maksts | Makstis | Tupp |
| Upráz | Poprury | Heveder | Ham | Drosibas jostas | Saugos diržai | Rakmed |
| Polski | Čeština | Magyar | Română | Latviski | Lietuviškai | Eesti |
| Model | Model | Tipus | Model | Modelis | Modelis | Model |
| Akumulator | Baterie | Akkumulátor | Accumulator | Akumulators | Baterija | Aku paketiga |
| Ladowarka | Nabiječka | Töttő | Incârcător | Lădētãs | Ikroviklis | Laadija |
| Pasujuace akumulatory | Kompatibilni akumulátory | Kompatibilis akumulátorok | Accumulatori compatibili | Savietojami akumulatoru komplekti | Suderinami baterijos paketai | Uhilduvad akupaketid |
| Hrvatski Slovensko Slovenčina | БълграиУкраінсьka | | |
| Technologie karakteristike | Tehnici podatki | Špecifikacia | Спешенихам на рожута | Спешениху | |
| Bežićog kresoа za ogradu | Brežićega teleskopskega obrezovalnika zive meje | Akumulatorového strihač Živěho ploteu | Беžишиен xрастоpeз с удьлжител | Беžдротова raонохокарка почoc | |
| Model Model Modelis Робл. | Моны LRT184515/ | | | | OPT1845 |
| Nazivni napon | Nazivna napetost | Menovite napatie | Hominahen boлтук | Hominahьна habрува | DC 18 Volts |
| Brzina bez optereçiena Hitrostneobrennenegamotorjá | St neobremenjenega motorjá | Rychlostnaprázdno | Скорост в неатовереньяйм | Швдкість бeз habав'tахеняя | 1,350 min-1 |
| Brzina takla kad nema optereçiena | Števil odarceb brez obretenite | Zdvihov'y pomer bez záťaže | Скорost на разане в неатовереньяйm | Швдкість xoу при Ваду'tахеняя | 2,700 spm |
| Korisna duljina vodilice | Doljina uporabne povrsine zaŽaganje | Vyuzitel'ná dlžka rezania | Иллорбаевская на разане | Корисна довжни рizання | 450 mm |
| Duljina rezanja | Kapaciteta rezanja | Kapacita rezania | КалачтET на разане | Рікуна здаимпь | 18 mm |
| Maksimalna duljina proizvoda u radu | Maksimalna dolžina obdelovanja izdelka | Maximálna pracovná dlžka produktu | Мakсимална работна дылжина на рожуты | Мakсимална розоча довжни рожукty | 2.93 m |
| težina (s kopćom, bez baterije i punjaça) | Teža (z oprtnikom, brez baterije in polnilnika) | Hmotnost (s postrojom, bez akumulatóra a nabijačky) | Тетно (задно с празамкatingа, посязббагупси зэрдноу utсрочию) | Bara (з ременем, бeз akу'mял'tора i zar'dиноу рпс'tрочи) | 4.2 kg |
| Razina vibracijee (u sklado s Dodatkom C od EN ISO 10517:2009+A1:2013) | Raven vibracij (v sklado s prilogo C standarda EN ISO 10517:2009+A1:2013) | Üroven vibracij (v sulade s dodatkom C normy EN ISO 10517:2009+A1:2013) | Иbero Na Вибрация (сьбразиму поглочице С на EN ISO 10517:2009+A1:2013) | Ріberь vibрация (эд再多 з dodatkом 3 EN ISO 10517: 2 009 + A1: 2013) | |
| Ukpuna vrijednost vibracija | Skupna vrednost vibracij | Celková hodnota vibracij | Ови лстонoc на вибрац明珠e | Загалные зачесни вибрацija | 1.25 m/s2 |
| Neodredenost mjerenja | Negotovost meritve | Nespołahlivost merani | Несугност на Изmerванeto | НебиизанецпьВимиркованя | 1.5 m/s2 |
| Razina emisija buke (u sklado s Dodatkom D od EN ISO 10517:2009+A1:2013) | Raven emisij hrupa (v sklado s prilogo D standarda EN ISO 10517:2009+A1:2013) | Üroven emisiš hluku (v sulade s dodatkom D normy EN ISO 10517:2009+A1:2013) | Иbero NaшимовITE emиси (сьбразиму поглочице Д на EN ISO 10517:2009+A1:2013) | Ріberь ушу (вide поюну do dodаток D з EN ISO 10517:2009+A1:2013) | |
| A-ponderirana razina zvučnog tlaka u položaju operatera | A-izmerjena raven zvočnega tlaka pri položaju upravljavca | Vázenzá A hladina akustického tlaku na posizici obsluhujúcej osoby. | Равишие А на НibOTO на Шу'mobOTо на поглоче на мостоту на onepatORA. | А-звашени ріberь звукового тису на рожуч'micци onepatORA | 81.1 dB(A) |
| Neodredenost mjerenja | Negotovost meritve | Nespołahlivost merani | Несугнost на Изmerванeto | НебиизанецпьВимиркованя | 2.5 dB |
| Ponderirana razina zvučne snage | A-izmerjena raven zvočné moči | Vázenzá A hladina akustického vykonu | Иbero Na сизалая на ушуma c равишие A | А-звашени ріberь звукового поглочи | 92.8 dB(A) |
| Neodredenost mjerenja | Negotovost meritve | Nespołahlivost merani | Несугнost на Изmerванeto | НебиизанецпьВимиркованя | 1.75 dB |
| Zamjena dijelova | Nadomestni deli | Náhradné dieliy | Рezерви чASTи | Зminна чASTи | |
| HedgeSweep™ cistač optradaka | Čistlinik smeti HedgeSweep™ | Zmeták ülomkov HedgeSweep™ | Метачka с чeTKи за оторын HedgeSweep™ | HedgeSweep™ cmiTTя рпбиральmaшиna | |
| Korice (şṭitnik lanca i vodilice lanca) | Zaščitni tulec | Puztrok Ka'byФони | | | 526798003 |
| Remen | Jermen | Postroj | Празрмka | Ремь | |
| Hrvatski | Slovensko | Slovenčina | Българа | Украɪнсыka | | |
| Model | Model | Modelis | Моden | Моdenь | RPT184515 | OPT1845 |
| Baterija Akumulator Batalia | Батурnia | | | Контейнера 3 akумлąторМ | RB18L15 Not included | |
| Punjac | Polnilec | Nabijačka | Зарадно устroduстvo | Зарадный писстriй | BCL14181H | Not included |
| KOMPATIBINA pakiranjabaterija | Združljive baterije | KOMPATIBINÉ jegnotky akumulátorov | Съвменци мьатерп | Суmicни akумлąтори бlosкii | RB18L13, RB18L15, RB18L25, RB18L26, RB18L40, RB18L50 | |
EN Vibration level
The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.
The declared vibration value may be used in a preliminary assessment of exposure. The vibration emission during actual use of power tool can differ from the declared total value depending on the ways in which the tool is used.
Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
In addition to any statutory rights resulting from the purchase, this product is covered by a guarantee as stated below.
- The guarantee period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no guarantee provided in case of professional or commercial use.
- There is, in some cases (i.e. promotion, range of tools), a possibility to extend the warranty period over the period described above using the registration on the www.ryobotools.eu website. The eligibility of the tool is clearly displayed in stores and/or on packaging. The end user needs to register his/her newly-acquired tools online within 8 days from the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the data which are required to enter online and they have to accept the terms and conditions. The registration confirmation receipt which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty. Your statutory rights remain unaffected.
- The guarantee covers all defects of the product during the warranty period due to defaults in workmanship or material at the purchase date. The guarantee is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or being incorrectly connected. This guarantee does not apply to
any damage to the product that is the result of improper maintenance any product that has been altered or modified
any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
any damage caused by non-observance of the instruction manual
any non CE product
- any product which has been attempted to be repaired by a nonqualified professional or without prior authorization by Techtronic Industries
- any product connected to improper power supply (amps, voltage, frequency)
any product used with inappropriate fuel mixture (fuel, oil, percentage of oil)
any damage caused by external influences (chemical, physical, shocks) or foreign substances
- normal wear and tear of spare parts - inappropriate use, overloading of the tool - use of non-approved accessories or parts - carburettor after 6 months, carburettor adjustments after 6 months
components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.
- For servicing, the product must be sent or presented to a RYOBI authorized service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
- A repair/replacement under this guarantee is free of charge. It does not constitute an extension or a new start of the guarantee period. Exchanged parts or tools become our property. In some countries delivery charges or postage will have to be paid by the sender.
- This guarantee is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.
AUTHORISED SERVICE CENTRE
To find an authorised service centre near you, visit http://uk.ryobitools.eu/ header/service-and-support/service-agents.
GARANTIE
Normal wear and tear on spare parts
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Herewith we declare that the product
Cordless pole hedge trimmer
Brand: Ryobi
Model number: RPT184515/OPT1845
Serial number range:
RPT184515:44445101000001-44445101999999
OPT1845: 44445201000001-4444520199999
is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016), 2000/14/EC, 2005/88/EC.
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN ISO 3744:2010.
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008, EN50581:2012
Measured sound power level: 92.8 dB(A)
Guaranteed sound power level: 95 dB(A)
Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.
Andrew John Eyre (BEng, CEng, MIE)
Vice President, Regulatory & Safety
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We hereby declare that the products
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016), 2000/14/EC, 2005/88/EC,
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN ISO 3744:2010,
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN 50581:2012
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We hereby declare that the product
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
NO EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Hereby we declare that the products
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016),
2000/14/EC, 2005/88/EC
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Measured sound power level: 92.8 dB(A)
Guaranteed sound power level: 95 dB(A)
Max-Eyth-Straße 10, 71364 Winnenden, Germany
COMPLIANCE WITH EC DIRECTIVES
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016)
2000/14/EC, 2005/88/EC
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Measured sound power: 92.8 dB(A)
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare under our sole responsibility that this product
Spare parts list of the hedge trimmer
Brand: Ryobi
Model: RPT184515/OPT1845
Serial number range
RPT184515: 44445101000001-44445101999999
OPT1845: 44445201000001 - 44445201999999
Complies with the requirements of the following EC directives and harmonized
standards
2006/42/EC, 2004/108/EC (until April 19, 2016), 2014/30/EU (from April 20,
2016), 2000/14/EC, 2005/88/EC,
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Measured sound power level: 92.8 dB(A)
Sound power level: 95 dB(A)
Method of conformity assessment, Annex V of Directive 2000/14/EC as
amended by 2005/88/EC.
C
Andrew John Eyre (BEng, CEng, MIET)
Vice-President of Technical Safety and Standards
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We hereby declare that the products
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Hereby, we declare that the products
Cordless hedge trimmer
Brand: Ryobi
Serial number: RPT184515/OPT1845
Serial number range:
RPT184515:44445101000001-44445101999999
OPT1845: 44445201000001 - 44445201999999
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April
2016) 2000/14/EC, 2005/88/EC
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN 50581:2012
Measured acoustic power level: 92.8 dB(A)
Guaranteed acoustic power level: 95 dB(A)
Method of conformity assessment with Annex V of Directive 2000/14/EC as amended by 2005/88/EC.
Andrew John Eyre (BEng, CEng, MIET)
Vice President, Regulation & Safety
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We hereby declare that the product
Cordless hedge trimmer
Brand: Ryobi
Model number: RPT184515/OPT1845
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016), 2000/14/EC, 2005/88/EC.
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN ISO 3744:2010.
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Measured sound power level: 92.8 dB(A)
Guaranteed sound intensity level: 95 dB(A)
Conformity assessment method to Annex V of Directive 2000/14/EC as amended by 2005/88/EC.
Andrew John Eyre (BEng, CEng, MIE)
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare that this product
Pole hedge trimmer
Brand: Ryobi
Model number: RPT184515/OPT1845
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016).
2000/14/EC, 2005/88/EC
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010,
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare that the product
Cordless telescopic hedge trimmer
Brand: Ryobi
Model number: RPT184515/OPT1845
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC Declaration of Conformity
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare under our sole responsibility that the products
Hedge trimmer
Brand: Ryobi
Model name: RPT184515/OPT1845
Serial number range
RPT184515:44445101000001-44445101999999
OPT1845: 44445201000001 - 4444520199999
Comply with the relevant EC harmonized standards
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016),
2000/14/EC, 2005/88/EC
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010,
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Measured sound power: 92.8 dB(A)
Guaranteed sound power: 95 dB(A)
Conformity assessment method to Annex V of Directive 2000/14/EC
Amended by 2005/88/EC
C
Andrew John Eyre (BEng, CEng, MIE)
Vice President, Engineering and Safety
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
EC DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Authorized representative for the product
Cordless lawn mower
Brand: Ryobi
Model number: RPT184515/OPT1845
Serial number range:
RPT184515:44445101000001-44445101999999
OPT1845: 44445201000001 - 44445201999999
In accordance with the following European directives
harmonized standards
2006/42/EC, 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April
2016), 2000/14/EC, 2005/88/EC,
2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN
ISO 3744:2010.
EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008
EN50581:2012
Measured sound power level: 92.8 dB(A)
Guaranteed sound power level: 95 dB(A)
Method of conformity assessment to Directive 2000/14/EC with amendments
2005/88/EC.
C
Andrew John Eyre (BEng, CEng, MIET)
Vice-President, Regulatory Affairs
Max-Eyth-Straße 10, 71364 Winnenden, Germany
RYOBI.
Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
