USER MANUAL PSKO 24 A1 PARKSIDE

Operating and Safety Instructions

Translation of Original Operating Manual

FR BE

COMPRESSEUR SILENCIEUX

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating and Safety Instructions Page 01

Table of contents: Page:

1. Explanation of the symbols on the device 2
2. Introduction 3
3. Device description (fig. 1-10) 3
4. Scope of delivery 3
5. Proper use 3
6. Safety information 4
7. Technical data 6
8. Before commissioning 6
9. Attachment and operation 6
10. Electrical connection 7
11. Cleaning, maintenance and storage 7
12. Transport 8
13. Disposal and recycling 8
14. Troubleshooting 9
15. Warranty certificate 10
16. Declaration of conformity 92

1. Explanation of the symbols on the device

Read the operating and safety instructions before start-up and follow them!

Wear hearing protection. Excessive noise can result in a loss of hearing.

Wear respiratory protection.

Warning against hot parts! (A fig. 10)

Warning against electrical voltage

Warning! The equipment is remote-controlled and may start-up without warning.

Observe warnings and safety instructions!

Do not expose the machine to rain. The device may only be stationed, stored and operated in dry ambient conditions.

Sound power level specified in dB

Sound pressure level specified in dB

2. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
  Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
• Installing and replacing non-original spare parts,
  Application other than specified,
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed.

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you familiarise yourself with your power tool and teach you how to use it for its intended purpose.

The operating manual include important instructions for the safe, proper and economic operation of the power tool, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the power tool.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the power tool in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The power tool may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

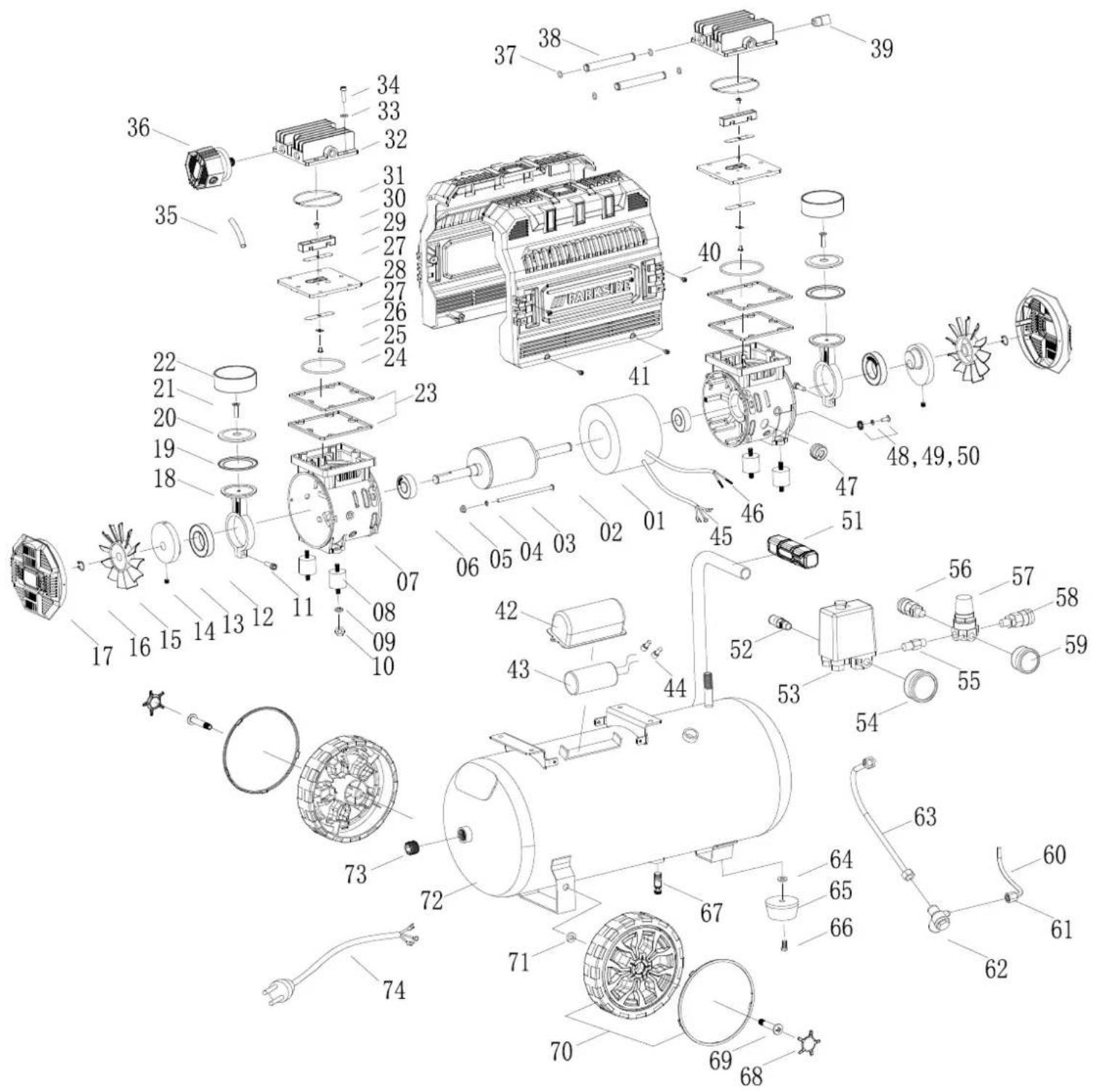

3. Device description (fig. 1-10)

1. Transport handle
2. Pressure switch
3. On/off switch
4. Air filter
   4a. Filter housing
   4b. Filter element
   4c. Filter cover
   4d. Hose
   5.Wheel
   5a. Fillister head screw
   5b. Washer
5. Drain screw for condensate
6. Supporting foot
   7a. Screw
7. Pressure vessel
8. Safety valve
   9a. Exhaust nut
   9b. Connection lock
   9c. Cap of exhaust nut
9. Quick coupling (regulated compressed air)
10. Quick coupling (regulated compressed air)
11. Pressure gauge (set pressure can be read off)
12. Pressure gauge (vessel pressure can be read off)
13. Compressed air hose
    14a. Plug nipple
    14b. Quick coupling
14. Pressure regulator
15. Transport lid

4. Scope of delivery

1x air filter
1x supporting foot
2x wheel
1x compressed air hose
1x assembly material
1x operating manual

5. Proper use

The compressor is designed to generate compressed air for compressed-air driven tools which can be driven with an air volume of up to approx. 150l / min (e.g. tire inflator, blow-out pistol and paint spray gun). Due to the limited air output it is not possible to use the compressor to drive tools with very high air consumption (for example orbital sanders, die grinders and hammer screwdrivers).

The compressor may only be operated in a dry and well ventilated indoor space.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

6. Safety information

Attention!

The following basic safety measures must be observed when using power tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the electric tool and store the safety instructions well for later reference.

Safe work

1. Keep the work area orderly

2. Disorder in the work area can lead to accidents.

3. Take environmental influences into account

4. Do not expose power tools to rain.

5. Do not use electric tools in a damp or wet environment. There is a risk of electric shock!
6. Make sure that the work area is well-illuminated.

7. Do not use power tools where there is a risk of fire or explosion.

8. Protect yourself from electric shock

9. Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges, cooling units).

10. Keep away from children!

11. Do not allow other persons to touch the equipment or cable, keep them away from your work area.

12. Securely store unused electric tools

13. Unused power tools should be stored in a dry, elevated or closed location out of the reach of children.

14. Do not overload your power tool

15. They work better and more safely in the specified output range.

16. Dress properly

17. Do not wear wide clothing or jewellery, which can become entangled in moving parts.
    Rubber gloves and anti-slip footwear are recommended when working outdoors.

18. Tie long hair back in a hair net.

19. Do not use the cable for purposes for which it is not intended

20. Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

21. Take care of your tools

22. Keep your compressor clean in order to work well and safely.

23. Follow the maintenance instructions.
24. Check the connection cable of the power tool regularly and have it replaced by a recognised specialist when damaged.

25. Check extension cables regularly and replace them when damaged.

26. Pull the connector out of the socket

27. When the electric tool is not in use or prior to maintenance and when replacing tools such as saw blades, bits, milling heads.

28. Avoid inadvertent starting

29. Make sure that the switch is switched off when plugging the plug into an outlet.

30. Use extension cables for outdoors

-Only use approved and appropriately identified extension cables for use outdoors.
-Only use cable reels in the unrolled state.

1. Always remain attentive

2. Pay attention to what you are doing. Remain sensible when working. Do not use the power tool when you are distracted.

3. Check the power tool for potential damage

4. Protective devices or other parts with minor damage must be carefully inspected to ensure that they function correctly and as intended prior to continued use of the electric tool.

5. Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.
6. Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.
7. Damaged switches must be replaced at a customer service workshop.
8. Do not use any faulty or damaged connection cables.

9. Do not use any electric tool on which the switch cannot be switched on and off.

10. Have your power tool repaired by a qualified electrician

11. This electric tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise accidents can occur.

12. Attention!

13. For your own safety, only use accessories and additional equipment that are indicated in the operating manual or have been recommended or indicated by the manufacturer. Use of other tools or accessories that those recommended in the operating manual or in the catalogue could represent a personal danger to you.

14. Noise

15. Wear hearing protection when using the compressor.

16. Replacing the connection line

17. If the connection line is damaged, it must be replaced by the manufacturer or an electrician to avoid danger. There is a risk of electric shock.

18. Filling tyres

19. Directly after inflating tyres, check the pressure with a suitable pressure gauge, for example at your filling station.

20. Street-legal compressors in construction site operation

21. Set-up location

22. Ensure that all hoses and fixtures are suitable for the maximum permissible working pressure of the compressor.

23. Only set up the compressor on a flat surface.

24. In case of pressures above 7 bar, it is recommended to equip supply hoses with a safety cable (e.g. a wire rope).

25. Avoid over-stressing the piping system by using flexible hose connections to prevent kinking.

26. Use a residual current circuit breaker with a trigger current of 30mA or less. Using a residual current circuit breaker reduces the risk of an electric shock.

Additional safety instructions

Observe the corresponding operating manuals of the respective compressed air tools / compressed air attachments! The following general warnings must also be observed.

Safety instructions for working with compressed air and blasting guns

• Ensure there is sufficient distance to the product, at least 2.50m , and keep the compressed air tools / compressed air attachments away from the compressor during operation.
• The compressor pump and lines can become very hot during operation. Touching these parts will burn you.
• The air which is sucked in by the compressor must be kept free of impurities that could cause fires or explosions in the compressor pump.
• When releasing the hose coupling, hold the hose coupling piece with your hand. This way, you can protect yourself against injury from the rebounding hose.
• Wear safety goggles and a respirator when working with the compressed air pistol. Dusts are harmful to health! Injuries can be easily caused by foreign objects and blown away parts.
• Do not blow at people with the blow-out pistol and do not clean clothes while being worn. Danger of injury!

Safety instructions when using spraying attachments (e.g. paint sprayers)

• Keep the spray attachment away from the compressor when filling so that no liquid comes into contact with the compressor.
• Never spray in the direction of the compressor when using the spraying attachments (e.g. paint sprayers). Moisture can lead to electrical hazards!
• Do not process any paints or solvents with a flash point below 55^ . Risk of explosion!
• Do not heat up paints or solvents. Risk of explosion!
• If hazardous liquids are processed, wear protective filter units (face guards). Also, adhere to the safety information provided by the manufacturers of such liquids.
• The details and designations of the Ordinance on Hazardous Substances, which are displayed on the outer packaging of the processed material, must be observed. Additional protective measures are to be undertaken if necessary, particularly the wearing of suitable clothing and masks.
• Do not smoke during the spraying process and/or in the work area. Risk of explosion! Paint vapours are easily combustible.
• Never set up or operate the equipment in the vicinity of a fire place, open lights or sparking machines.
• Do not store or eat food and drink in the work area. Paint vapours are harmful to your health.

• The work area must exceed 30m^3 and sufficient ventilation must be ensured during spraying and drying.

• Do not spray against the wind. Always adhere to the regulations of the local police authority when spraying combustible or hazardous materials.

• Do not process media such as white spirit, butyl alcohol and methylene chloride with the PVC pressure hose. These media will destroy the pressure hose.
• The work area must be separated from the compressor so that it cannot come into direct contact with the working medium.

Operation of pressure vessels

• Anyone who operates a pressure vessel must keep this in good working order, operate and monitor it correctly, perform the necessary maintenance and servicing works immediately and implement safety measures as required according to the circumstances.
• The regulatory authority can instruct necessary monitoring measures in individual cases.
• A pressure vessel must not be operated if it exhibits a defect that poses a danger to personnel or third parties.
• Check the pressure vessel for rust and damage each time before use. The compressor shall not be operated if the pressure vessel is damaged or rusty. If you discover damage, please contact the customer service workshop.

Keep these safety instructions in a safe place. Residual risks

Comply with the stipulated maintenance and safety instructions in the operating instructions.

Remain attentive at all times when working, and keep third parties at a safe distance from your work area.

Even when the device is being used properly, there will always be certain residual hazards that cannot be completely ruled out. The following potential hazards can arise due to the type and design of the device:

• Unintentional starting up of the product.
• Damage to hearing if the stipulated hearing protection is not worn.
• Dirt particles, dust etc. can get irritate the eyes or face despite wearing safety goggles.
• Inhaling swirled up particles.

Warning!

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

7. Technical data

Mains connection. 230 V~50 Hz

Motor power 1500 W

Operating mode.. .S1

Compressor speed 2800 min

Pressure vessel capacity approx. 241

Operating pressure approx. 8 bar

Theo. intake capacity.. approx. 260 l/min

Effective delivery quantity at 7 bar........................approx. 80 l/min

Effective delivery quantity at 4 bar approx. 110 l/min

Effective delivery quantity at 1 bar approx. 150 l/min

Sound pressure level L_BA 68 dB(A)

Device weight approx. 24 kg

Max. altitude (above mean sea level) 1000 m

The noise emission values have been determined in accordance with EN ISO 3744:1995.

Wear hearing protection.

Excessive noise can result in a loss of hearing.

8. Before commissioning

• Open the packaging and carefully remove the device.
• Remove the packaging material, packaging and transport safety devices (if applicable).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the end of the warranty period.

DANGER

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.
• Check the device for transport damage. Report any damage immediately to the transport company which was used to deliver the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension cables).
• Make sure that the intake air is dry and free of dust.
• Do not install the compressor in a damp or wet room.
• The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5^ to 40^ ). There must be no dust, acids, vapours, explosive gases or inflammable gases in the room.
• The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
• The compressor may only be used outdoor briefly when the ambient conditions are dry.
• The compressor must always be kept dry and must not be left outdoors after work is complete.

9. Attachment and operation

Attention!

Always make sure the device is fully assembled before commissioning!

You require the following for assembly:

1x open-ended spanner 14 mm

1x Phillips screwdriver

not included in the scope of delivery)

9.1 Fitting the wheels (fig. 3)

• Fit the supplied wheels (5) as shown.

9.2 Installing the supporting foot (fig. 4)

• Fit the supplied supporting foot (7) as shown.

9.3 Installing the air filter (fig. 5, 6)

• Remove the transport lid (16) and screw the air filter (4) to the equipment.
• Insert the hose (4d) into the opening of the air filter (4).

9.4 Mains connection

• The compressor is equipped with a mains cable with protective contact plug. This can be connected to any 220 - 240V 50Hz protective contact socket, with fuse protection of at least 16 A.
• Before you use the machine, make sure that the mains voltage is the same as the operating voltage and the machine power on the rating plate.
• Long supply cables, extensions, cable reels, etc. cause a drop in voltage and can impede motor start-up.
• At low temperatures below +5^ , sluggishness may make starting difficult or impossible.

9.5 On/Off switch (fig. 1)

• Pull the On/Off switch (3) upwards to switch on the compressor.
• To switch off the compressor, press the On/off switch (3) down.

9.6 Setting the pressure (fig. 1, 2)

• Use the pressure regulator (15) to set the pressure on the pressure gauge (12).
  The pressure set can be drawn from the quick couplings (10, 11).
• The vessel pressure can be read off at the pressure gauge (13).

9.7 Setting the pressure switch (fig. 1)

The pressure switch (2) is set at the factory.

Cut-in pressure approx. 5.5 bar

Cut-out pressure approx. 8 bar

9.8 Fitting the compressed air hose (fig. 1, 2)

• Connect the plug nipple (14a) of the compressed air hose (14) to one of the quick couplings (10, 11). Then attach the compressed air tool to the quick coupling (14b) of the compressed air hose (14).

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

When working with spray attachments and during temporary use outdoors, the device must be connected to a residual current circuit breaker with a trigger current of 30mA or less.

10.1 Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

10.2 Damaged electrical connection cable

The insulation on electrical connection cables is often damaged. This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

10.3 AC motor

The mains voltage must be 220 - 240 V~50 Hz.
- Extension cables up to 25m long must have a cross-section of 1.5mm^2

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

Type of current for the motor
Data of machine type plate
Data of motor type plate

11. Cleaning, maintenance and storage

Attention!

Pull out the mains plug before carrying out any cleaning and maintenance work! Risk of injury from electric shock!

Attention!

Wait until the equipment has cooled down completely! Danger of burning!

Attention!

Always depressurise the equipment before carrying out any cleaning and maintenance work! Danger of injury!

11.1 Cleaning

• Keep the device as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
  We recommend that you clean the device directly after every use.
• Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use aggressive cleaning agents or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.
• The hose and injection tools must be disconnected from the compressor before cleaning. The compressor must not be cleaned with water, solvents or similar.

11.2 Maintaining the pressure vessel (fig. 1)

Attention!

To ensure a long service life for the pressure vessel (8), drain off the condensate after each use by opening the drain screw (6).

Release the vessel pressure first (see 11.6.1). Open the drain screw (6) by turning counter-clockwise (when looking at the screw from the bottom of the compressor) so that the condensate can be completely drained out of the pressure vessel (8).

Then close the drain screw (6) again (turn it clockwise). Check the pressure vessel (8) for rust and damage each time before use.

Do not use the compressor with a damaged or rusty pressure vessel (8). If you discover damage, please contact the customer service workshop.

11.3 Safety valve (fig. 7)

The safety valve (9) has been set for the highest permitted pressure of the pressure vessel (8). It is not permitted to adjust the safety valve (9) or remove the connection lock (9b) between the exhaust nut (9a) and its cap (9c). Actuate the safety valve (9) every 30 operating hours but at least 3 times a year to ensure that it works when required. Turn the perforated exhaust nut (9a) counterclockwise to open it and use your hands to pull the valve rod outwards over the perforated exhaust nut (9a) to open the outlet of the safety valve (9). Now, the valve audibly releases air. Then, tighten the exhaust nut (9a) clockwise again.

11.4 Cleaning the air filter (fig. 8, 9)

The air filter (4) prevents dust and dirt being sucked in. It is essential to clean this air filter (4) after at least every 300 hours in service. A blocked air filter (4) significantly reduces the compressor power.

Turn the air filter (4) counterclockwise to remove it. Open the filter cover (4c) and remove it. You can now take out the filter element (4b). Carefully tap out the filter element (4b), the filter cover (4c) and the filter housing (4a). These components must then be blown out with compressed air (approx. 3 bar) and reassembled in reverse order.

11.5 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*:air filter

• may not be included in the scope of supply!

11.6 Storage

Attention!

Pull out the mains plug and ventilate the equipment and all connected pneumatic tools. Store the compressor in such a way that it cannot be used by unauthorised persons.

Attention!

Store the compressor only in a dry location which is not accessible to unauthorised persons. Always store upright, never tilted!

11.6.1 Releasing excess pressure

Release the excess pressure by switching off the compressor and using the compressed air which is still left in the pressure vessel (8), e. g. with a compressed air tool running in idle mode or with a blow-out pistol.

12. Transport

Use the transport handle (1) to transport the device, and drive the compressor with it.

When lifting the compressor, note its weight (see Technical data).

Ensure that the load is well secured when transporting the compressor in a motor vehicle.

13. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and plastics. Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

14. Troubleshooting

Fault Possible cause Remedy
The compressor does not start.	Mains voltage is not available. Check the cable.	mains plug, fuse and socket.
	Mains voltage is too low. Make sure that the extension cable is not too long. Use an extension cable with large enough wires.
	Outside temperature is too low. Never operate with an outside temperature of below +5 °C.
	Motor is overheated. Allow the motor to cool down.	own. If necessary, remedy the cause of the overheating.
The compressor starts but there is no pressure.	The safety valve leaks. Contact your local service centre. Only allow qualified personnel to carry out repairs.
	The seals are damaged. Check the seals and have any damaged seals replaced by a service centre.
	The drain screw for condensate leaks. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
The compressor starts, pressure is shown on the pressure gauge, but the tools do not start.	The hose connections have a leak. Check the coilpressed air hose and tools and replace if necessary.
	A quick coupling has a leak. Contact your local service centre. Only allow qualified personnel to carry out repairs.
	Insufficient pressure set on the pressure regulator.	Increase the set pressure with the pressure regulator.

15. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

• The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
  In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB/IE):

[phone]

(0,00 EUR/Min.)

Service-Email (GB):

[e-mail]

Service-Email (IE):

[e-mail]

Service Address (GB/IE):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.

The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 354867_2004.

Inhalt:

Seite:

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

[e-mail]

[e-mail]

Service-Adresse (DE):

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Service-hotline (BE):

[phone]

(0,00 /Min.)

Email du service (FR):

[e-mail]

E-mailadres (BE):

[e-mail]

Scheppach France Strassburg

2, Impasse Jean Millot

FR-6700 Strasbourg

Serviceadres (BE):

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

[e-mail]

E-mailadres / Email du service (BE):

[e-mail]

Serviceadres/Adresse du service (NL/BE):

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Vázeny zákaznik,

Zelame Vam vela zabavy a uspechov pri praci s Vaśim novym pristrojom.

Upozorenie:

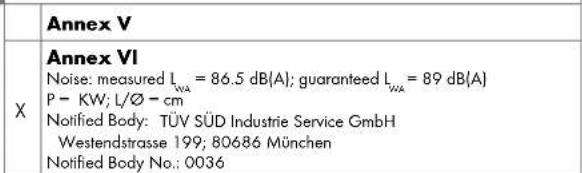

X 2000/14/EC_2005/88/EC

2010/26/EC

Emission. No:

Standard references:

EN 1012-1:2010; EN 60204-1:2018; EN 61000-6-1:2007; EN 61000-6-3:2007/A1:2011; EN 50581:2012; EN 286-1:1998/A1:2002

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Thomas Schuster

Günzburger Str. 69, D-89335 Ichenhausen

CE
