PDSS C3 - Air compressor PARKSIDE - Free user manual and instructions

Product type	Compressed air tire inflation kit with blow gun
Brand	Parkside
Model	PDSS C3
Maximum working pressure	8 bar
Volume flow rate (inflation)	40 - 70 l/min
Volume flow rate (blow gun)	70 - 130 l/min
Sound pressure level (inflation)	84 dB(A)
Sound pressure level (blow gun)	87.7 dB(A)
Sound power level (inflation)	95 dB(A)
Sound power level (blow gun)	98.7 dB(A)
Power supply	Compressed air (clean, oil-free, condensation-free)
Intended use	Inflating bicycle tires, balloons, mattresses, inflatable boats; blowing and cleaning
Delivery contents	Inflation gun with pressure gauge, compressed air blow gun, extension nozzles, adapter set (8 pieces), instruction manual
Included accessories	Valve tips (14, 15, 16 mm), balloon needle, universal adapters (∅6-9 mm), bicycle valve adapter, screw valve adapter, drain valve adapter
Maintenance	No special maintenance required
Cleaning	With a dry cloth; avoid any liquid inside the device
Warranty	3 years from date of purchase
Conformity standards	Machinery Directive 2006/42/EC, EN1953:2013
IAN number	292180

Frequently Asked Questions - PDSS C3 PARKSIDE

How to inflate a tire with the PDSS C3?

Connect the valve tip (5) to the tire valve. Press the trigger (6) to activate the air flow. Release to stop. Read the pressure on the pressure gauge (1). If the pressure is too high, use the drain valve (3) to release air.

What maximum pressure does the device support?

The maximum working pressure is 8 bar. Never exceed this value, risk of damage or injury.

What accessories are supplied with the PDSS C3?

The kit includes: inflation gun with pressure gauge, blow gun, extension nozzles, and a set of 8 adapters: tips 14/15/16 mm, balloon needle, universal adapters (∅6, 8, 9 mm), bicycle valve adapter, screw valve adapter and drain valve adapter.

How to use the blow gun?

Attach the extension nozzle (8) to the blow gun (7). Press the trigger (6) to activate the air. Release to stop. Always disconnect the device from the compressor after use.

How to maintain the device?

The device requires no special maintenance. Clean it regularly with a dry cloth. Do not allow liquids to enter the interior. Before cleaning, disconnect the compressed air supply.

What to do in case of overpressure in the tire?

Use the drain valve (3) located on the gun to release excess air. Press until the desired pressure is reached, then release.

Is the device under warranty?

Yes, the PDSS C3 comes with a 3-year warranty from the date of purchase. The warranty covers material and manufacturing defects, but not wear parts or damage due to improper use.

Can I use gases other than compressed air?

No, use only clean compressed air, oil-free and condensation-free. The use of hydrogen dioxide, oxygen, carbon dioxide or other bottled gases can cause an explosion and serious injury.

How to clean the device after use?

Disconnect the device from the compressor. Clean the housing with a dry cloth. Never use sharp objects or flammable liquids such as gasoline. Avoid liquids entering the interior.

Where to find the IAN number to claim the warranty?

The IAN number (292180) is on the rating plate, an engraving, the cover of the manual (bottom left) or a sticker on the device. Keep it with the receipt as proof of purchase.

USER MANUAL PDSS C3 PARKSIDE

AIR TOOL ACCESSORY SET PDSS C3

Operation and Safety Notes

Translation of the original instructions

NL

INSTAPSET PERSLUCHTTOEBEHOREN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE/NI Operation and Safety Notes Page 5

DK	Brugs- og sikkerhedsanvisninger Side 13
NL	Bedienings- en veiligheidsinstructies Pagina 21
BE	Bedienings- en veiligheidsinstructies Pagina 29
FR	Consignes d’utilisation et de sécurité		Page	37
DE	Bedienungs- und Sicherheitshinweise	Seite	45

Two horizontal grayscale color swatches with a central crosshair symbol (no text or labels)

Table of contents

List of pictograms used....Page 6

Introduction Page 6

Intended use Page 6

Features Page 6

Technical specifications ......Page 7

Package contents......Page 7

Safety instructions for pneumatic tools....Page 7

Operation Page 9

Setup and use Page 9

Using the tyre inflator with pressure gauge....Page 9

Using the accessories....Page 9

Using the air blow gun....Page 9

Maintenance......Page 9

Care and cleaning......Page 9

Warranty and service information Page 10

Warranty conditions......Page 10

Extent of warranty....Page 10

Processing of warranty claims Page 10

Information about recycling and disposal......Page 11

Original EC Declaration of Conformity....Page 11

/// PARKSIDE

GB/IE/NI

5

List of pictograms used/Introduction

List of pictograms used
	Please read the operating instructions!		Wear eye protection.
	Wear ear protection. Wear a d.
	Wear protective gloves.		Dispose of packaging properly.Do not dispose of the product in household waste!

AIR TOOL ACCESSORY SET PDSS C3

- Introduction

Congratulations! You have purchased one of our high-quality products. Before initial setup, please familiarise yourself with the product. Please also read the safety instructions carefully. This product must be set up only by people who have been trained to do so.

KEEP OUT OF THE REACH OF CHILDREN!

- Intendeduse

The pneumatic tyre inflator is designed for inflating bicycle tyres, balls, airbeds, rubber dinghies, etc. The pneumatic air blow gun is designed for cleaning objects and hard-to-reach areas with compressed air. Use the products only as described and only for the specific applications as stated. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer.

- Features

After unpacking the product, please check that all of the package contents are present and that the device is in perfect condition. Do not use the device if it is defective.

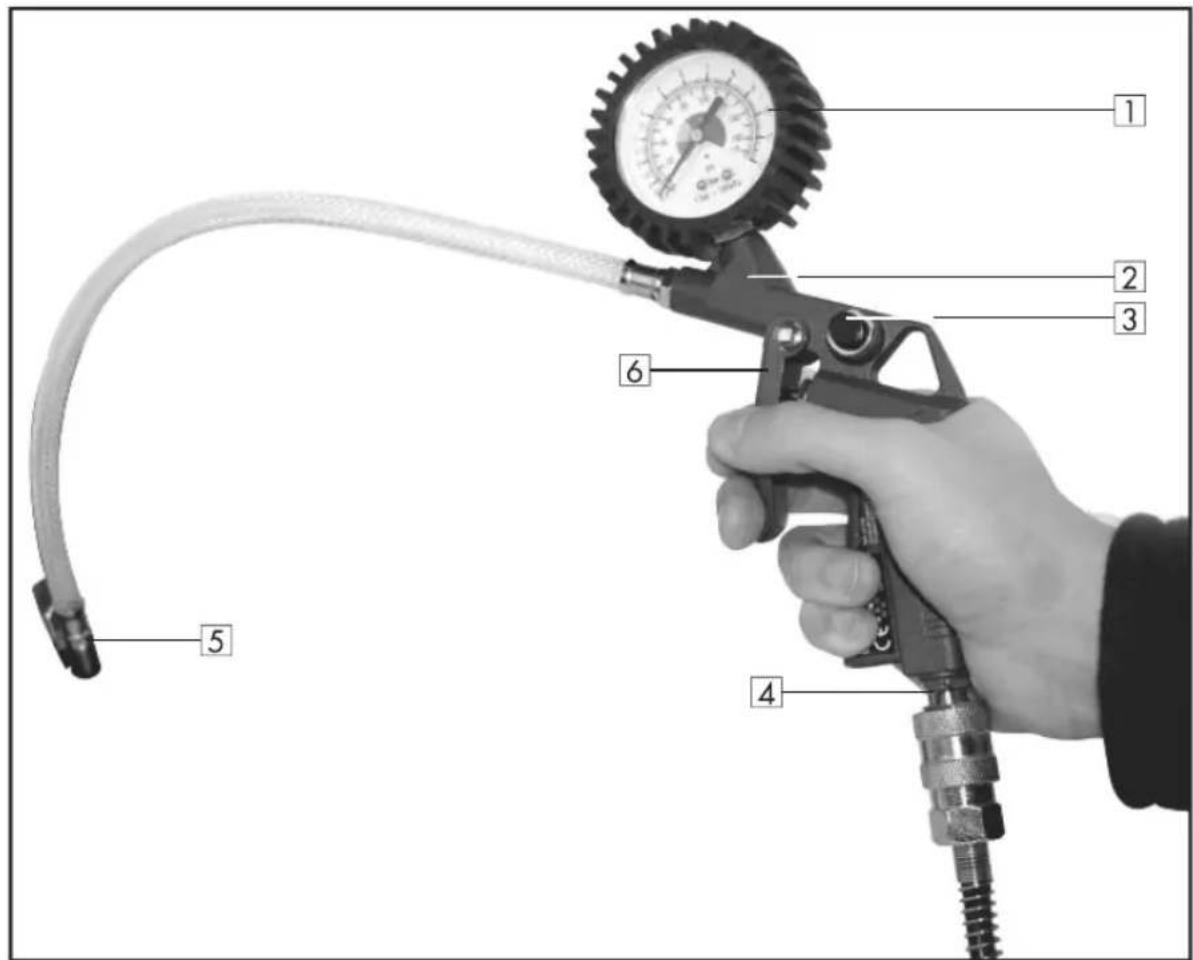

1 Manometer
2 Pneumatic tyre inflator with pressure gauge
3 Vent valve
4 Barbed fitting
5 Hose with straight valve connector
6 Trigger lever
7 Pneumatic air blow gun
8 Extension nozzle

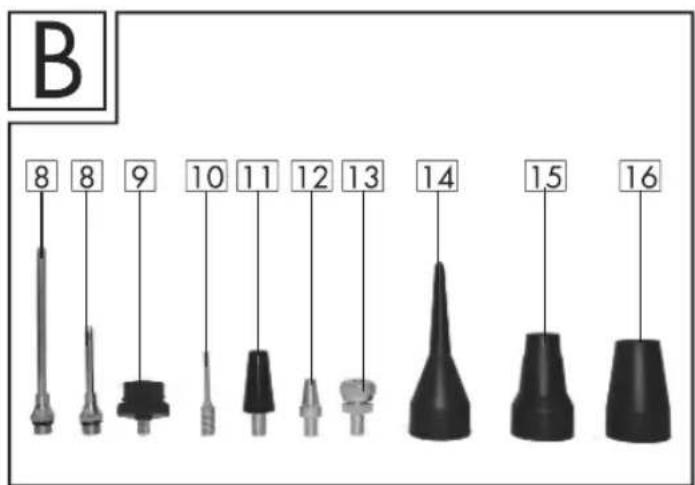

Accessories:

9 Attachment for 14, 15, 16

10 Ball needle

11 Universal adapter for valves with internal diameter of approx. 9 mm

12 Universal adapter for valves with internal diameter of approx. 6 mm

13 Valve adapter e.g. for bicycle tyre valves

14 Universal adapter for valves with internal diameter of approx. 8 mm

15 Adapter for threaded valves, e.g. for dinghies

16 Adapter for vent valves

Introduction/Safety instructions for pneumatic tools

• Technical specifications

Working pressure: max.	8 bar
Compressed air quality:	clean, oil-free and moisture-free
Volumetric flow rate: Tyre inflator Air blow gun	40–70 l/min 70–130 l/min
A-weighted sound pressure level (Lpa):	Tyre inflator: 84 dB(A)
Air blow gun: 87.7 dB(A)
A-weighted sound power level (Lwa):	Tyre inflator:	95 dB(A)
	Air blow gun:	98.7 dB(A)
Uncertainty: K = 3 dB(A)
Measured value determined according to EN 14462 (EN1953:2013).

- Package contents

1 pneumatic tyre inflator with pressure gauge
1 pneumatic air blow gun
2 extension nozzles
1 adapter set (8-piece)
1 set of operating instructions

● Safety instructions for pneumatic tools

PLEASE READ THROUGH THE OPERATING

INSTRUCTIONS CAREFULLY BEFORE USE. THESE FORM PART OF THE PRODUCT AND MUST BE AVAILABLE AT ALL TIMES!

WARNING! When pneumatic tools are used, basic safety precautions must be taken in order to avoid the risk of fire, electric shock or personal injury. Before first using the product, please ensure you read and follow these operating instructions in full and keep them in a safe place. The manufacturer accepts no liability for losses, damage or personal injury caused by a failure to follow these operating instructions.

WARNING! The dangers stated are foreseeable when using handheld pneumatic equipment for general-purpose work. However, users must themselves consider the risks that can occur when using the equipment for a specific application.

WARNING! DANGER OF INJURY!

Switch off the compressed air supply before changing tools and settings or performing maintenance.

WARNING! EXPLOSION HAZARD!

■ Never use petrol or other flammable liquids to clean the pneumatic device! Residual fumes in the pneumatic device could be ignited by sparks and cause the pneumatic device to explode.

/// PARKSIDE

GB/IE/NI

Safety instructions for pneumatic tools

Do not work with the device in explosion hazard areas where combustible liquids, gases or dusts are present. Never work on materials which are or could potentially be highly flammable or explosive.

■ For multiple hazards, please ensure you have read and understood the safety instructions before installing, operating, repairing, maintaining or replacing accessory parts, and before working in the vicinity of the pneumatic tyre inflator with pressure gauge. Failure to do so can result in serious bodily injury.
■ Only qualified and trained operators should set up, adjust or use the device.
■ Do not modify the device. Modifications can reduce the effectiveness of safety precautions and increase the level of risk for the operator.
- Do not discard the safety instructions – give them to the person operating the device.
■ The device must be regularly maintained, so as to verify that

the required introduction/safety instructions for pneumatic tools, rated values and markings such as rated speed or nominal air pressure are affixed legibly to the device. The user must contact the manufacturer to request replacement labels or markings if this is required.

■ Always use the device for the specific applications for which it has been designed!
■ Do not overload the device.

Never use hydrogen, oxygen, carbon dioxide or any other bottled gas as the source of energy for this tool, since this may cause an explosion and lead to serious injury.

DANGER! Keep hands and other parts of the body away from rotating parts to avoid risk of injury.

Operation

- Setup and use

NOTE: Always operate the product with compressed air that is clean, oil-free and moisture-free. Do not exceed the maximum working pressure of 8 bar at the device.

NOTE: To be able to control the air pressure, the compressed air supply must be equipped with a pressure regulator.

☐ Connect the product to a suitable compressed air source by plugging the quick-connect plug on the supply hose to the barbed fitting 4 on the product. The plug locks into place automatically.

• Using the tyre inflator with pressure gauge

1. Plug the valve connector 5 into the valve
2. Press the trigger lever 6 to start supplying compressed air.
3. Release the trigger lever 6 to stop supplying compressed air. Use the pressure gauge 1 to check the pressure.
4. If the pressure is too high (too much air) in the object you are filling: Press the vent valve 3 to release some air.
5. Press the lever on the valve connector 5 down and unplug the valve connector 5 from the valve.
6. Disconnect the device from the compressor after completing work.

• Using the accessories

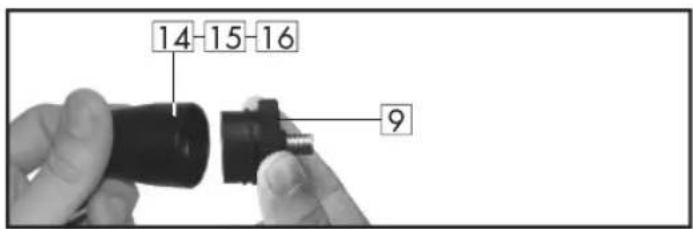

☐ Press the lever on the valve connector and plug in accessory parts 10 to 13 or the attachment 9 into the valve connector 5.

• Using the air blow gun

1. Screw an extension nozzle 8 onto the pneumatic air blow gun 7.
2. Press the trigger lever 6 to start supplying compressed air.
3. Release the trigger lever 6 to stop supplying compressed air.
4. Disconnect the device from the compressor after completing work.

NOTE: Detach the hose from the compressor first, before you remove the supply hose from the device. This will prevent a situation where the supply hose whips around uncontrollably.

- Maintenance

WARNING! DANGER OF INJURY!

Always disconnect the device from the compressed air supply before cleaning it.

The device does not require special maintenance.

- Care and cleaning

• Do not use sharp objects to clean the device. Do not allow liquids to get inside the device – this can cause damage to the device.
• Clean the device regularly. The best time to do so is straight after completing work.
  ■ Clean the device housing with a dry cloth.

Warranty and service information

• Warranty and service information

Warranty from Creative Marketing Consulting GmbH

We give you a warranty on this device of 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. To claim against this warranty, you must present the defective device and your purchase receipt within the 3-year period, and include a brief written description of the nature of the defect and the date it occurred.

If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not cover product parts that are subject to normal wear and tear and can therefore be regarded as consumables, nor does it cover damage to fragile parts

such as switches, rechargeable batteries or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below. Please retain your proof of purchase and quote the product number (e.g. the EAN code) in all correspondence. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device. In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

Note:

If you visit www.lidl-service.com, you can download this manual and many other manuals, product videos and software.

Information about recycling and disposal/Original EC Declaration of Conformity

How to contact us:

EN

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 292180

Please note that the following address is not a service address.

Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

• Information about recycling and disposal

Please return this device, accessories and packaging to your local recycling depot.

Do not dispose of pneumatic devices in household waste!

According to European Directive 2012/19/EU, used electrical appliances must be collected separately for environmentally compatible recycling or recovery. Please return this device to an approved waste management company or use your municipal waste collection service. Please ensure you comply with local regulations. If you have any questions, please contact your local authority or waste management company.

• Original EC Declaration of Conformity

We,

C. M. C. GmbH

Documentation Officer: Marc Uhle

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

hereby take sole responsibility for declaring that the product

Pneumatic starter accessory set

IAN: 292180

Art. no.: 2084

Year of manufacture: 2018/04

Model: PDSS C3

meets the basic safety requirements as specified in the European Directives

Machinery Directive:

2006/42/EC

and the amendments to these Directives.

This conformity assessment is based on the following harmonised standards:

EN1953:2013

AfPS GS 2014:01PAK

St. Ingbert, 6 November 2017

pp. Marc Uhle – Documentation Officer
