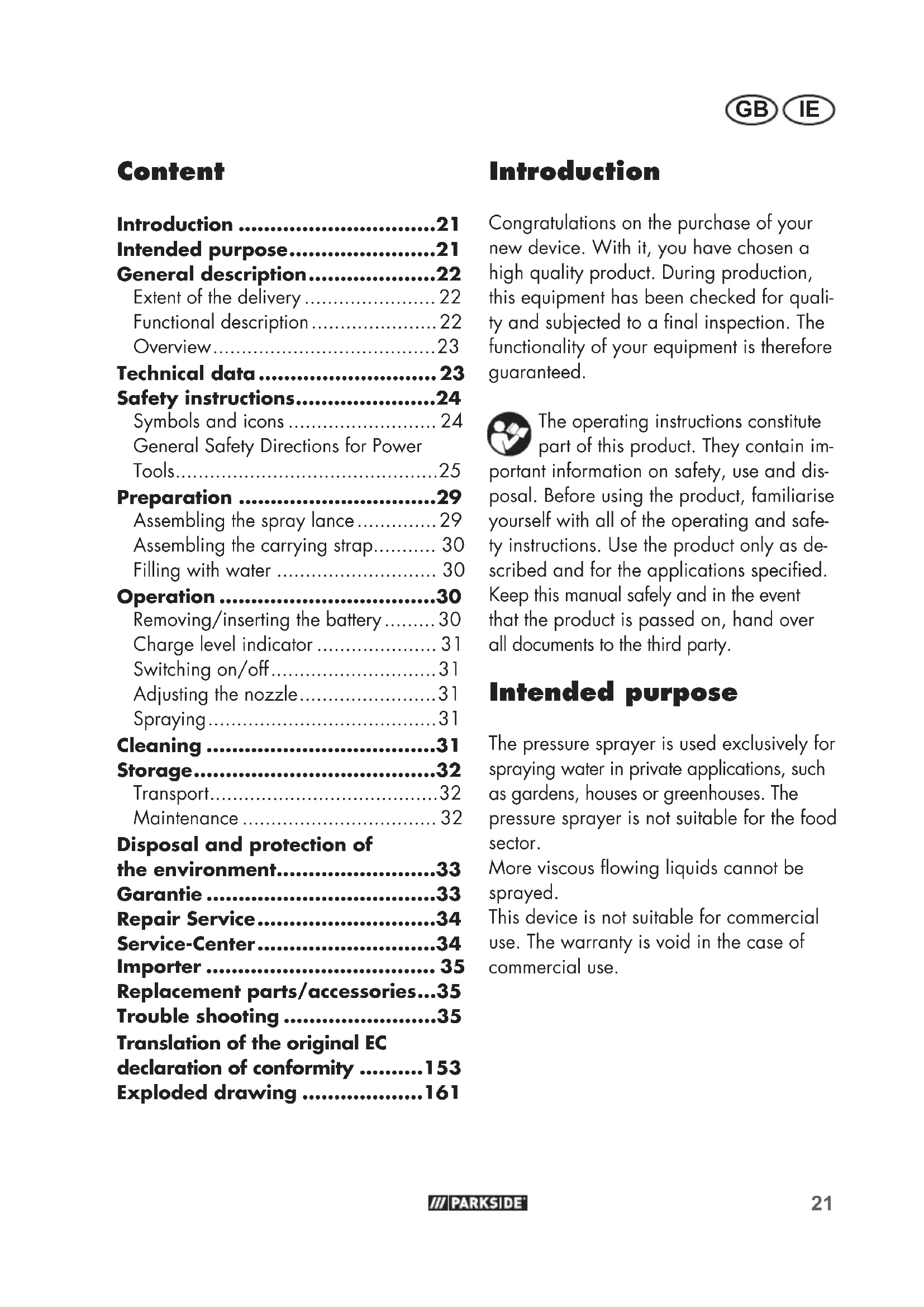

Intended purpose......21

General description......22

Extent of the delivery 22

Functional description 22

Overview....23

Technical data 23

Safety instructions......24

Symbols and icons 24

General Safety Directions for Power Tools....25

Preparation ......29

Assembling the spray lance....29

Assembling the carrying strap...... 30

Filling with water 30

Operation 30

Removing/inserting the battery......30

Charge level indicator 31

Switching on/off....31

Adjusting the nozzle....31

Spraying....31

Cleaning 31

Storage....32

Transport....32

Maintenance 32

Disposal and protection of

the environment....33

Garantie 33

Repair Service....34

Service-Center....34

Importer 35

Replacement parts/accessories...35

Trouble shooting 35

Translation of the original EC

declaration of conformity .....153

Exploded drawing .....161

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain im-nt information on safety, use and dis- . Before using the product, familiarise self with all of the operating and safe-ructions. Use the product only as de- and for the applications specified. this manual safely and in the event the product is passed on, hand over cuments to the third party.

Intended purpose

The pressure sprayer is used exclusively for spraying water in private applications, such as gardens, houses or greenhouses. The pressure sprayer is not suitable for the food sector.

More viscous flowing liquids cannot be sprayed.

This device is not suitable for commercial use. The warranty is void in the case of commercial use.

GB IE

Improper use includes, in particular, the spraying of:

• Solvents
• Liquids containing solvents
• Pesticides
• Weedkillers
• Disinfectants
• Fertilizers
• Oils, greases
• Lacquers, glazes
• Impregnating agents
• Highly flammable liquids
• Corrosive liquids such as acids or alkalis

Minors are not allowed to work with the device – except for young people over 16 years of age who are trained under supervision.

The user or operator is responsible for accidents causing injury to other people or damage to property.

The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

The device is part of the Parkside X 12 V TEAM and X 20 V TEAM series and can be operated using Parkside X 12 V TEAM or X 20 V TEAM series batteries. The batteries may only be charged using chargers from the Parkside X 12 V TEAM or X 20 V TEAM series.

General description

The illustrations can be found on the fold-out pages.

Extent of the delivery

Carefully unpack the appliance and check that it is complete.

• Cordless Pressure Sprayer
• Spray lance:
  Pistol grip with pipe
  Spray pipe with spray nozzle
• Instruction manual

Battery and charger are not included.

Dispose of the packaging material correctly

Functional description

The spray lance can be used to direct the water in the container at plants or surfaces. Refer to the following descriptions for a functional description of the controls.

Overview

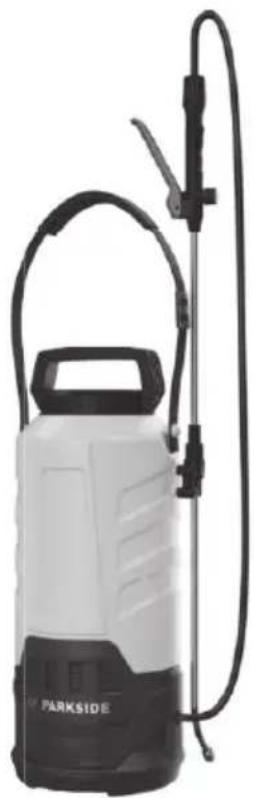

1 Pistol grip

2 Trigger lever
3 Metal pipe 4 Hose
5 Strap fastening
6 Holder for spray lance
7 Spray lance
8 Spray nozzle
9 Carrying strap 10 Container

11 Screw cap
12 Carrying handle
13 Clamping nut for hose connection
14 Spring housing
15 Battery cover 16 Scale
17 On/off switch
18 LED charge indicator
19 Battery compartment shaft
20 Release button 21 Battery

22 Clamping nut for spray pipe

23 Connecting piece

24 Length adjustment of carrying strap

25 Battery compartment 12V

26 Battery compartment 20V

27 Battery control button

Technical data

Cordless Pressure Sprayer

12 and 20V.....PDSA 20-Li A1

Voltage:....12 V /20 V DC motor, Pump:

Maximum pressure:....1.5 bar Flow capacity:....350ml/min (water)

Range: 50-60cm

Spray angle 45°degrees

Tank capacity/nominal volume: .....5 L

Technical residue: ....<0.1 l

Weight (empty,

without battery): m_0 1.85 kg

Weight (full, without battery): .....6.85 kg Permissible

operating temperature: .... max. 40°C

Runtime....15-20 min. (2.0Ah)

Hose length:....1 m

Metal lance:....60 cm

Protection type IPX4

Emission sound pressure level

(Lp) 62 dB(A); KpA = 3 dB

Sound pressure level

(L_pA) 53 dB(A); K_pA = 3 dB

Sound power level ( L_WA )

73 dB(A); K_WA = 3 dB

Vibration (q _h )

at the handle .. ≤ 2.5 m/s ^2 ; K = 1.5 m/s ^2

The specified total vibration values and the stated noise emission values have been measured according to a standardised test method and can be used to compare one power tool with another.

The specified total vibration values and the stated specified noise emission values can also be used for a provisional assessment of the load.

Warning:

vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used and, in particular, what kind of material is being worked on.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Attention!

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

This device can only be operated with the following rechargeable batteries: PAP 20 A1, PAP 20 A2, PAP 20 A3, PAP 20 B1, PAP 20 B3.

The following batteries can also be used: PAPK 12 A1, PAPK 12 A2, PAPK 12 A3 PAPK 12 B1, PAPK 12 B2, PAPK 12 B3.

The listed 20 V batteries may be charged with the following chargers: PLG 20 A1, PLG 20 A3, PDSLG 20 A1, PLG 20 A4.

Charging time (min.)	PAP 20 A1 B1	PAP 20 A2	PAP 20 A3 B3
PLG 20 A1 60	75 90
PLG 20 A3 PDSLG 20 A1	30 30	60
PLG 20 A4	60 75	90

The listed 12 V batteries may be charged with the following chargers:

PLGK 12 A1, PLGK 12 A2, PLGK 12 B2.

Charging time (h)	PAPK 12 A1PAPK 12 A2PAPK 12 A3	PAPK 12 B1PAPK 12 B2PAPK 12 B3
PLGK 12 A1	1 2
PLGK 12 A2	1 2
PLGK 12 B2	0,5 1

Safety instructions

Symbols and icons

Symbols on the appliance

Attention!

Read the operating instructions!

Wear safety goggles

Water spraying only!

Not for spraying plant protectants!

Keep bystanders away during spraying

Electrical devices must not be disposed of with domestic waste.

Charge level indicator

button for activating the charge level indicator

Direction of rotation, screw cap

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols with information on preventing damage

Help symbols with information on improving tool handling.

General Safety Directions for Power Tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

GB IE

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operation of the power tool in a damp environment is unavoidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influ-

ence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Look after the power tool and application tool carefully. Check for misalignment or binding

of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away

from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts.

A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 °C can cause an explosion.

g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never repair damaged batteries. All battery repairs should be car-

ried out by the manufacturer or authorised customer service centres only.

7) ADDITIONAL SAFETY INSTRUCTIONS

a) Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

8) SAFETY INFORMATION FOR PRESSURE SPRAYERS

• Keep children, animals and onlookers away.
• The device must be put away so that no one is endangered when it is not in use.
• Secure the device against unauthorised access.
• Only put the device into operation if all components are undamaged. Pay particular attention to the leak tightness of all device parts.
• Only operate the device when it is completely assembled.
• Anyone working with the device must be rested, healthy and in good shape. Do not operate the device after taking alcohol, medication or drugs that impair your ability to react
• Never spray in the direction of other people – risk of injury!
  • Take the wind direction into account! Always keep the spray lance facing away from the operator

• Be careful in slippery, wet, snowy, icy conditions, on slopes, uneven terrain, etc. - danger of slipping!

• Watch out for obstacles – risk of tripping!

• Take timely breaks from work to prevent fatigue and exhaustion – risk of accidents!
• Only work in good light and visibility conditions.
  • Work carefully, do not endanger others.
• Do not work on a ladder, do not work on unstable sites.
• Do not work near power lines! Danger to life from electrical shock!
• Wear proper clothing and equipment when using, filling and cleaning the device.
• To reduce the risk of eye injuries, wear close-fitting safety goggles according to standard EN 166. Ensure that the safety goggles fit correctly.
  • Work clothes must fit tightly and must not hinder you.

9) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a. Lung damage if a suitable protective mask is not worn.
b. Contact with hazardous substances. Spray materials can be harmful if they are inhaled, swallowed or come into contact with skin or eyes. Follow the instructions and wear suitable protective equipment.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V TEAM or X 12 V TEAM series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Preparation

Warning! Switch off the device and remove the battery before any assembly work.

Assembling the spray lance

1. Insert the connection piece of the hose (4) into the pistol grip (1) as far as it will go and fix it with the clamping nut (13).

1. Insert the spray lance (7) into the connecting piece (23) of the metal pipe (3) and screw it tight with the clamping nut (22).

Attention! Be sure to check the hose connections.

Any leaks must be repaired immediately. The device is no longer to be used until then.

The spray lance can be inserted into the holder (6) for transport or when not in use.

Assembling the carrying strap

A carrying strap (9) can be hooked onto the sides of the container for fatigue-free work.

1. To do this, slide the openings of the carrying strap (9) over the strap fastening (5) on both sides of the container (10).
2. Adjust the desired strap length using the length adjuster (24). For optimal wearing comfort, we recommend keeping the strap holder (5) at hip level if you wear the carrying strap (9) over your shoulder.

The device can now be carried over the shoulder with the carrying strap (9) in addition to the handle (12).

Filling with water

The device may only be operated with pure water!

Caution!

Do not fill with acidic, corrosive or flammable liquids.

Caution! Do not fill with impregnating agents or disinfectants, varnishes, glazes, greases, mineral oils or synthetically produced oils.

The spray container (10) can be filled with a maximum of 5 litres of water.

1. Place the pressure sprayer on a level surface.
   2 Turn the screw cap (11) anticlockwise.

Fill with water. Pay attention to the scale (16) on the container (10) so as not to exceed the maximum filling quantity.

1. After filling, screw the screw cap (11) clockwise with both hands.
2. Make sure that the screw cap fits tightly.

Operation

Caution! Wear suitable personal protective equipment!

Removing/inserting the battery

The device can be operated either with X 20 V TEAM or X 12 V TEAM batteries.

1. Fold up the battery cover (15).
2. There are 2 different battery compartments. The upper battery compartment (F 25) is intended for use with the 12 V battery. The lower battery compartment (F 26) is intended for the 20 V battery.
3. Push the desired battery (21) fully into the corresponding compartment. You will hear it click into place.
4. To remove the battery (21) from the device, press the release buttons (20) on the battery and pull the battery out.

Charge level indicator

To check the charge of the battery during operation, press the charge control button (27).

The LEDs above it now show the current charging status:

Green - battery charged

Yellow - battery only partially charged

Red - battery is flat - please charge the battery

Switching on/off

Make sure that the battery has been put in correctly.

1. To switch on, move the on/off switch (17) to position "I".

2. To switch off, move the on/off switch (17) to position "O".

Adjusting the nozzle

The spray nozzle (8) is infinitely adjustable from spray mist to jet.

- Turning to the left from the user's viewpoint = spray mist

- Turning to the right makes the beam selectively more intense.

Attention: you can also unscrew the spray nozzle (8) if you turn it too far to the right

Spraying

Note that recoil forces may occur when pressing the trigger lever (2) on the pistol grip (1). Always keep a good hold on the pistol grip.

Always spray directly and solely onto the plants or objects to be sprayed.

1. Press the trigger lever (2) on the pistol grip (1) to spray.

2. The spray jet stops once you let go of the trigger lever (2).

- Point the spray nozzle at the surface to be sprayed and press the trigger lever (2) on the pistol grip (1) for several seconds.

- If the pump continues to run after you have let go of the trigger lever, this means there is too little water in the container (10). Refill with water.

Cleaning

Do not spray the device with water or clean it under running water. There is a risk of electric shock and the device could be damaged.

Switch the device off before cleaning and remove the battery from the device. Risk of electric shock!

Clean the device immediately after each use.

GB IE

Cleaning the inside:

- Empty the container via the filler opening and allow the container to dry out completely.

Cleaning the outside:

- Clean the outside of the device with a damp cloth. Do not use any detergents or solvents; these might attack the plastic parts of the device. Make sure that no water can get into the interior of the device. Penetration of water into the electrical device increases the risk of electric shock.

Cleaning when the spray nozzle is clogged

If foreign bodies have accumulated in the spray nozzle (8) and the spray nozzle is blocked, clean it as follows (never blow it out with your mouth):

1. Clear the hole in the spray nozzle (8) of residue with a needle or thin wire.

2 Rinse the spray nozzle with clear water.

1. Allow the spray nozzle to dry.

Storage

• Empty water fully from the cordless pressure sprayer.
- Store the spray lance inserted in the holder (6) with the spray nozzle (8) pointing downwards.
- The cordless pressure sprayer and accessories will be destroyed by frost if they are not fully emptied of water.
- Store the device and accessories in a frost-proof, dry and dust-proof room and out of the reach of children.
- Remove the battery from the device before storing it for a longer period.

Reusing after the winter

• Check the battery compartments as well as the spray nozzle for any dirt and clean them if necessary.
• Test the system and the water supply line for leaks.

Transport

• Switch off the device and remove the battery from the device before transport.
• The spray lance can be transported in the holder (6)
• Secure the device against tipping over and damage.

Maintenance

The device is maintenance-free.

Disposal and protection of the environment

Remove the rechargeable battery before disposing of the device!

The device, accessories and packaging should be properly recycled.

Instruction on how to dispose of the rechargeable battery can be found in the separate instruction manual for your battery and charger

Electrical appliances must not be disposed of with the domestic waste.

- Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

- Defective units returned to us will be disposed of for free.

Garantie

Dear Customer,

This device comes with a three-year warranty from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The warranty is only valid for material or manufacturing defects. This warranty does not extend to consumable parts exposed to normal wear and tear.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Neither does it extend to damage resulting from water, frost, lightning and fire or improper transport. Precise adherence to all of the instructions specified in the operating manual is required for

proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and item number (IAN 361647_2007) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 361647_2007

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 361647_2007

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Replacement parts/accessories

Spare parts and accessories can be obtained at www.grizzlytools-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 34).

Item

Description Product No.

9 Carrying strap....91106073

7+8+22 Spray lance with spray nozzle 91106072

6 Holder for spray lance 91106071

1+2+3+23 Pistol grip, complete....91106070

11 Screw cap 91106068

Trouble shooting

Problem Possible cause	Remedy
Machine does not start	Battery (21) discharged	Charge the battery (observe the separate operating instructions for the rechargeable battery and charger)
	Battery (21) not inserted	Insert the battery (see “Inserting/removing the battery”)
	On/off switch (17) is broken	Repair by Service Centre
Even though the tank is full, the device does not spray or sprays at a low rate	Spray nozzle (8) completely or partially blocked	Clean spray nozzle
	Liquid too thick and therefore unsuitable	Remove liquid, clean spray lance and container
Motor stops suddenly	Battery (21) empty	Charge the battery

Sommaire

Introduction ......36

Service-Center....53

Importateur 53

Service-Center....70

Importeur 70

Reserveonderdelen/accessoires..71

Foutmeldingen ....71

Service-Center......119

Dovozca....119

Service-Center....134

Importør 134

Reservedele/Tilbehør ......135

Fejlsøgning 135

Service-Center....150

Importador 150

GBIE	Translation of the original EC declaration of conformity
We hereby confirm that the Cordless Pressure Sprayer 12 and 20V Design Series PDSA 20-Li A1 Serial Number 000001 - 030000 conforms with the following applicable relevant version of the EU guidelines :
2006/42/EC • 2014/30/EU • 2011/65/EU* • (EU)2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • PPP 58103 A:2020 EN 55014-1:2017 • EN 55014-2:2015 • EN IEC 63000:2018
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 03.03.2021	Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

FSC www.fsc.org MIX Paper from responsible sources FSC® C150223

FSC www.fsc.org MIXTE Papier lissu de sources responsables FSC® C150223

IAN 361647_2007

8
