PARKSIDE PKO 24 A1 - Air compressor

PKO 24 A1 - Air compressor PARKSIDE - Free user manual and instructions

Find the device manual for free PKO 24 A1 PARKSIDE in PDF.

📄 80 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice PARKSIDE PKO 24 A1 - page 17
Pick your language and provide your email: we'll send you a specifically translated version.
Brand Parkside
Model PKO 24 A1
Product type Air compressor
Motor power 1800 W
Power supply 230 V ~ 50 Hz
Tank volume 24 liters
Max. operating pressure 10 bar
Suction power 260 L/min
Rotation speed 2850 min⁻¹
Sound pressure level 72.9 dB(A)
Sound power level 92.9 dB(A)
Protection type IP20
Weight Approx. 27 kg
Motor oil SAE 15W 40, approx. 0.25 L
Main functions Production of compressed air for pneumatic tools, inflation, painting
Maintenance and cleaning Drain condensation water after each use; clean air filter every 300 h; drain oil every 500 h
Safety Safety valve, overload switch, mandatory hearing protection
Spare parts and repairability Air filter (wear part); repairs by a qualified electrician
Warranty 3 years (excluding professional use)
General information Intended use: tools with flow rate up to 260 L/min; do not use in damp environments

Frequently Asked Questions - PKO 24 A1 PARKSIDE

What type of oil to use for the Parkside PKO 24 A1 compressor?
Use SAE 15W 40 oil or equivalent. The quantity is approximately 0.25 liter. Check the level via the oil sight glass (between MIN and MAX).
How to drain condensation water from the reservoir?
After each use, turn off the compressor and release the pressure. Open the threaded drain plug (item 10) by turning counterclockwise to drain the water. Then close tightly.
What is the maximum operating pressure?
The maximum operating pressure is 10 bars. The pressure switch is factory-set to stop at 10 bars and restart at about 8 bars.
Can the compressor be used for spray painting?
Yes, provided that paints with a flash point above 55°C are used. Wear a filter mask and ensure adequate ventilation. Do not spray against the wind.
How to clean the air filter?
Unscrew the filter cover, remove the filter and housing. Tap gently then blow with compressed air (approx. 3 bars). Reassemble in reverse order. To be done every 300 hours of service.
What to do if the compressor does not start?
First check the mains voltage, cable and fuse. If the temperature is below +5°C, the motor may struggle. If the motor is overheated, let it cool down. The overload switch (item 24) may also have tripped: press it after cooling.
How to adjust the outlet pressure?
Use the pressure regulator (item 5) to adjust the pressure read on the pressure gauge (item 4). The set pressure is available at the quick coupling (item 3).
Is the compressor suitable for professional use?
No, the Parkside PKO 24 A1 is designed for domestic or hobby use. Professional, artisanal or industrial use is not covered by the warranty.
How to check the oil level?
Place the compressor on a level surface. The oil level must be between the MIN and MAX marks on the oil sight glass (item 18).
What tools can be used with this compressor?
Tools requiring an air flow of approx. 260 L/min maximum, such as tire pumps, air guns or varnishing guns. Avoid high-consumption tools (sanders, grinders).

User questions about PKO 24 A1 PARKSIDE

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Air compressor in PDF format for free! Find your manual PKO 24 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PKO 24 A1 by PARKSIDE.

USER MANUAL PKO 24 A1 PARKSIDE

KOMPRESSOR PKO 24 A1 COMPRESSOR PKO 24 A1 COMPRESSEUR PKO 24 A1

PARKSIDE PKO 24 A1 - KOMPRESSOR PKO 24 A1   COMPRESSOR PKO 24 A1   COMPRESSEUR PKO 24 A1 - 1

PARKSIDE PKO 24 A1 - KOMPRESSOR PKO 24 A1   COMPRESSOR PKO 24 A1   COMPRESSEUR PKO 24 A1 - 2

PARKSIDE PKO 24 A1 - KOMPRESSOR PKO 24 A1   COMPRESSOR PKO 24 A1   COMPRESSEUR PKO 24 A1 - 3

KOMPRESSOR

Operating and Safety Instructions

Translation of Original Operating Manual

PARKSIDE PKO 24 A1 - KOMPRESSOR - 1

COMPRESSOR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

R

GB/IE Operating and Safety Instructions Page 11

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

service.AT@scheppach.com

service.CH@scheppach.com

Service Adresse (DE):

Service Adresse (AT):

Gausch Hubert

Bairisch Kolldorf 267

Table of contents: Page:

  1. Explanation of the symbols on the equipment 12
  2. Introduction 13
  3. Device description (fig. 1-13) 13
  4. Scope of delivery 13
  5. Intended use 13
  6. Safety information 14
  7. Technical data 15
  8. Before starting the equipment 15
  9. Assembly and operation 16
  10. Electrical connection 16
  11. Cleaning, maintenance and storage 17
  12. Transport 18
  13. Disposal and recycling 18
  14. Troubleshooting 19
  15. Warranty certificate 20
  16. Declaration of conformity 71

1. Explanation of the symbols on the equipment

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 1

GB IE

Read the operating and safety instructions before start-up and follow them.

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 2

GB IE

Wear hearing protection. The impact of noise can cause damage to hearing.

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 3

GB 1E

Beware of hot parts! (G fig. 11)

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 4

GB 1E

Beware of electrical voltage

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 5

GB 1E

Warning! The equipment is remote-controlled and may start-up without warning.

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 6

GB IE

Attention! Before using for the first time, check the oil level and replace the oil sealing plug!

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 7

GB 1E

Observe caution and safety notes!

PARKSIDE PKO 24 A1 - Explanation of the symbols on the equipment - 8

GB 1E

Sound power level specified in dB

2. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

  • Improper handling,
    Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
    Application other than specified,
  • A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and local regulations.

Please consider:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions contained in this operating manual and the specific regulations of your country, the technical rules generally accepted for the operation of machines of the same type must be observed.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

3. Device description (fig. 1-13)

  1. Transport handle
  2. Pressure switch
  3. Quick-lock coupling (regulated compressed air)
  4. Pressure gauge (for reading the preset vessel pressure)
  5. Pressure regulator
  6. Pressure gauge (for reading the vessel pressure)
  7. Quick-lock coupling (unregulated compressed air)
  8. Pressure vessel
  9. Supporting foot
  10. Drain plug for condensation water
    11.Wheel
  11. Oil drain plug
  12. Compressor pump
  13. Compressed air hose
  14. Air filter
  15. Oil sealing plug
  16. ON/OFF switch
  17. Oillevel window
  18. Safety valve
  19. Oil filling opening
  20. Filler head screw
  21. Washer
  22. Screw
  23. Overload switch

4. Scope of delivery

1xAir filter
2x Supporting foot
2x Wheel
1x Mounting material
1x Oil sealing plug
1x Oil bottle
1x Compressed air hose
1x Operating Manual

5. Intended use

The compressor is designed to generate compressed air for compressed-air driven tools which can be driven with an air volume of up to approx. 260l / min (e.g. tire inflator, blow-out pistol and paint spray gun). Due to the limited air output it is not possible to use the compressor to drive tools with very high air consumption (for example orbital sanders, die grinders and hammer screwdrivers).

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Safety information

Attention!

The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the electric tool and keep the safety instructions for later reference.

Safe work

  1. Keep the work area orderly

  2. Disorder in the work area can lead to accidents.

  3. Take environmental influences into account

  4. Do not expose electric tools to rain.

  5. Do not use electric tools in a damp or wet environment. There is a risk of electric shock!
  6. Make sure that the work area is well-illuminated.
  7. Do not use electric tools where there is a risk of fire or explosion.

  8. Protect yourself from electric shock

  9. Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges, cooling units).

  10. Keep children away

  11. Do not allow other persons to touch the equipment or cable, keep them away from your work area.

  12. Securely store unused electric tools

  13. Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.

  14. Do not overload your electric tool

  15. They work better and more safely in the specified output range.

  16. Wear suitable clothing

  17. Do not wear wide clothing or jewellery, which can become entangled in moving parts.
    Rubber gloves and non-slip shoes are recommended when working outdoors.

  18. Tie long hair back in a hair net.

  19. Do not use the cable for purposes for which it is not intended

  20. Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

  21. Take care of your tools

  22. Keep your compressor clean in order to work well and safely.

  23. Follow the maintenance instructions.
  24. Check the connection cable of the electric tool regularly and have it replaced by a recognised specialist when damaged.
  25. Check extension cables regularly and replace them when damaged.

  26. Pull the plug out of the outlet

  27. During non-use of the electric tool or prior to maintenance and when replacing tools such as saw blades, bits, milling heads.

  28. Avoid inadvertent starting

  29. Make sure that the switch is switched off when plugging the plug into an outlet.

  30. Use extension cables for outdoors

  31. Only use approved and appropriately identified extension cables for use outdoors.

  32. Only use cable reels in the unrolled state.

  33. Remain attentive

  34. Pay attention to what you are doing. Remain sensible when working. Do not use the electric tool when you are distracted.

  35. Check the electric tool for potential damage

  36. Protective devices and other parts must be carefully inspected to ensure that they are fault-free and function as intended prior to continued use of the electric tool.

  37. Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.
  38. Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.
  39. Damaged switches must be replaced at a customer service workshop.
  40. Do not use any faulty or damaged connection cables.
  41. Do not use any electric tool on which the switch cannot be switched on and off.

  42. Have your electric tool repaired by a qualified electrician

  43. This electric tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise accidents can occur.

  44. Important!

  45. For your own safety you must only use the accessories and additional units listed in the operating instructions or recommended or specified by the manufacturer. The use of mounted tools or accessories other than those recommended in the operating instructions or catalogue may place your personal safety at risk.

  46. Noise

  47. Wear ear muffs when you use the compressor.

  48. Replacing the power cable

  49. To prevent hazards, leave the replacement of damaged power cables strictly to the manufacturer or a qualified electrician. There is a risk of electric shock!

  50. Inflating tires

  51. Directly after inflating tires, check the pressure with a suitable pressure gauge, for example at your filling station.

  52. Roadworthy compressors for building site operations

  53. Make sure that all lines and fittings are suitable for the maximum permissible operating pressure of the compressor.

  54. Place of installation

  55. Set up the compressor on an even surface.

  56. Supply hoses at pressures above 7 bar should be equipped with a safety cable (e.g. a wire rope).

  57. Avoid over-stressing the piping system by using flexible hose connections to prevent kinking.

  58. Ensure that oil cooling devices are kept clean.

  59. Risk of burns from hot oil

  60. Wear suitable protective gloves.

  61. Never work with the compressor near naked flames.
  62. Be careful not to spill oil.

Additional safety instructions

Safety instructions for working with compressed air and blasting guns

  • The compressor pump and lines can become very hot during operation. Touching these parts will burn you.
  • The air which is sucked in by the compressor must be kept free of impurities that could cause fires or explosions in the compressor pump.
  • When releasing the hose coupling, hold the hose coupling piece with your hand. This way, you can protect yourself against injury from the rebounding hose.
  • Wear safety goggles when working with the blow-out pistol. Foreign bodies or blown off parts can easily cause injuries.
  • Do not blow at people with the blow-out pistol and do not clean clothes while being worn. Risk of injury!

Safety information for paint spraying

  • Do not process any paints or solvents with a flash point below 55^ C. There is a risk of explosion!
  • Do not heat up paints or solvents. There is a risk of explosion!
  • If hazardous liquids are processed, wear protective filter units (face guards). Also, adhere to the safety information provided by the manufacturers of such liquids.
  • The details and designations of the Ordinance on Hazardous Substances, which are displayed on the outer packaging of the processed material, must be observed.
    Additional protective measures are to be undertaken if necessary, particularly the wearing of suitable clothing and masks.
  • Do not smoke during the spraying process and/or in the work area. There is a risk of explosion! Paint vapours are easily combustible.
  • Never set up or operate the equipment in the vicinity of a fire place, open lights or sparking machines.
  • Do not store or eat food and drink in the work area. Paint vapours are harmful to your health.
  • The work area must exceed 30m^3 and sufficient ventilation must be ensured during spraying and drying. Do not spray against the wind. Always adhere to the regulations of the local police authority when spraying combustible or hazardous materials.
  • Do not process media such as white spirit, butyl alcohol and methylene chloride with the PVC pressure hose. These media will destroy the pressure hose.

Operating pressure vessels

  • You must keep your pressure vessel in good working order, operate the vessel correctly, monitor the vessel, carry out necessary maintenance and repair work immediately and meet the relevant safety precautions.
  • The supervisory authority may enforce essential control measures in individual cases.
  • A pressure vessel is not allowed to be used if it has faults or deficiencies that can endanger workers or third parties.
  • Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service workshop.

Keep these safety instructions in a safe place.

Residual risk

Observe the specified maintenance and safety instructions in the instruction manual.

Always be attentive at work and keep third persons at a safe distance from your workplace.

Even with proper use of the device, a certain residual risk remains, which can not be excluded. The following potential hazards can be derived from the type and design of the device:

  • Unintentional commissioning of the product.
  • Hearing loss if no suitable hearing protection is worn.
  • Wear safety glasses to prevent your eyes and face from dust and dirt particles.
  • Inhalation of whirled-up dust and dirt particles.

Warning!

This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

7. Technical data

Mains connection 230 V~ 50 Hz
Motor rating 1800 W
Operating mode S1
Compressor speed 2850 min -1
Pressure vessel capacity approx. 24 l
Operating pressure approx. 10 bar
Theoretical intake capacity approx. 260 (l/min)
Sound power level \( L_{PA} \)72.9 dB(A)
Sound power level \( L_{WA} \)92.9 dB(A)
Uncertainty \( K_{PA/WA} \)2.59 dB
Protection type IP20
Weight of the unit approx. 27 kg
Oil (15W 40)approx. 0.25 l
Max. altitude1000 m(above mean sea level)

The noise emission values were measured in accordance with EN ISO 3744:1995.

Wear hearing protection.

The effects of noise can cause a loss of hearing.

8. Before starting the equipment

  • Open the packaging and remove the device carefully.
  • Remove the packaging material as well as the packaging and transport bracing (if available).
  • Check that the delivery is complete.
  • Check the device and accessory parts for transport damage.
  • If possible, store the packaging until the warranty period has expired.

DANGER

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

Before you connect the equipment to the mains supply, make sure that the data on the rating plate are identical to the mains data.

  • Prior to initial commissioning, remove the transport lid (A) and fill the compressor pump housing with oil as described in item 9.4.
  • Check the equipment for damage which may have occurred in transit. Report any damage immediately to the transport company which was used to deliver the compressor.
  • Install the compressor near the point of consumption.
  • Avoid long air lines and supply lines (extension cables).
  • Make sure that the intake air is dry and dustfree.
  • Do not install the compressor in a damp or wet room.
  • The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5^ to 40^ ). There must be no dust, acids, vapours, explosive gases or inflammable gases in the room.
  • The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
  • The oil level in the compressor pump has to be checked before putting the equipment into operation.

9. Assembly and operation

Attention!

You must fully assemble the appliance before using it for the first time!

You will require the following tools for assembly:

1x Open-end spanner 13 mm

1x Phillips screwdriver

not included)

9.1 Fitting the wheels (fig. 4)

  • Fit the supplied wheels as shown.

9.2 Fitting the supporting feet (fig. 5)

  • Fit the supplied supporting feet as shown.

9.3 Fitting the air filter (fig. 6, 7)

  • Remove the transport lid (B) and screw the air filter (15) to the equipment.

9.4 Changing the transportation lid (A) (fig. 8, 9)

  • Remove the transport lid (A) of the oil filling opening (20)
  • Fill the included compressor oil into the compressor pump housing and insert the supplied oil sealing plug (16) into the oil filling opening (20).

9.5 Mains connection

  • The compressor is equipped with a mains cable with shock-proof plug. This can be connected to any 220 - 240 V~50 Hz shock-proof socket.

  • Before you use the machine, make sure that the mains voltage is the same as the operating voltage and the machine power on the rating plate.

  • Long supply cables, extensions, cable reels, etc. cause a drop in voltage and can impede motor start-up.
  • At low temperatures below +5^ , sluggishness may make starting difficult or impossible.

9.6 ON/OFF switch (fig. 2)

  • Pull the ON/OFF switch (17) upwards to switch on the compressor. To switch off the compressor, press the ON/OFF switch down.

9.7 Setting the pressure (fig. 1, 3)

  • Use the pressure regulator (5) to set the pressure on the pressure gauge (4).
  • The set pressure can be drawn from the quick lock coupling (3).
  • The vessel pressure can be read off the pressure gauge (6).
  • The vessel pressure is drawn from the quick-lock coupling (7).

9.8 Setting the pressure switch (fig. 1)

The pressure switch (2) is set at the factory.

Cut-in pressure approx. 8 bar

Cut-out pressure approx. 10 bar.

9.9 Fitting the compressed air hose (fig. 1, 3)

  • Connect the nipple (H) on the compressed air hose (14) to one of the quick-release couplings (3, 7). Then attach the compressed air tool to the quick-release coupling (I) on the compressed air hose (14).

9.10 Overload switch (fig. 13)

The motor is fitted with an overload switch (24). If the compressor overloads, the overload switch switches off the equipment automatically to protect the compressor from overheating. If the overload switch triggers, switch off the compressor using the ON/OFF switch (17) and wait until the compressor cools down. Then press the overload switch (24) and restart the compressor.

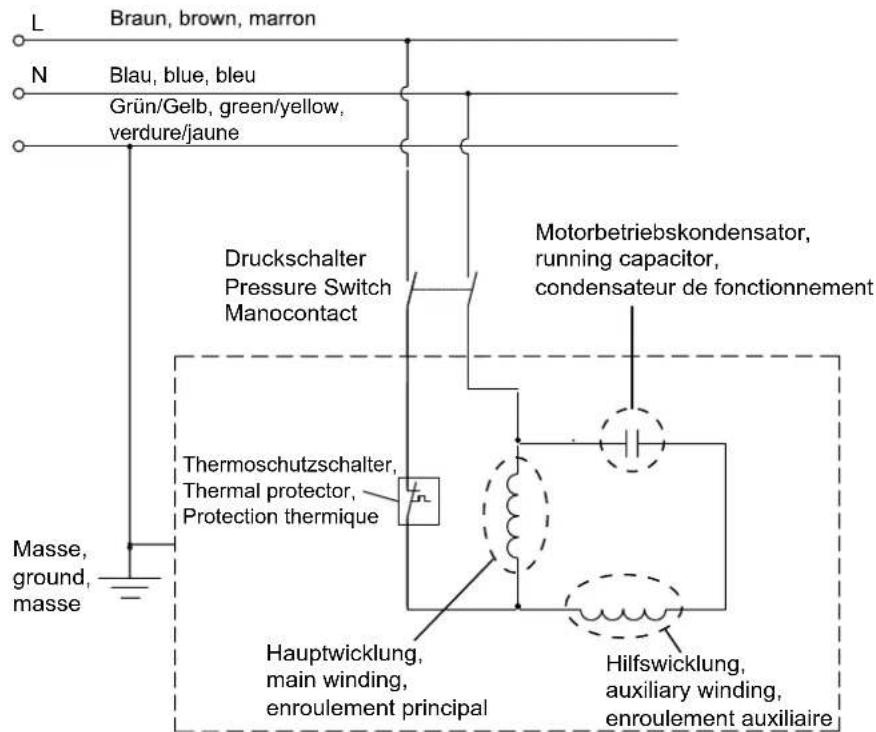

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

10.1 Important information

In the event of an overloading the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

10.2 Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

Passage points, where connection cables are passed through windows or doors.
- Kinks where the connection cable has been improperly fastened or routed.
- Places where the connection cables have been cut due to being driven over.
Insulation damage due to being ripped out of the wall outlet.
- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

10.3 AC motor

The mains voltage must be 220 - 240V 50Hz
- Extension cables up to 25m long must have a cross-section of 1.5mm^2

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

Type of current for the motor
Machine data - type plate
- Machine data - type plate

11. Cleaning, maintenance and storage

Attention!

Pull out the power plug before doing any cleaning and maintenance work on the equipment. Risk of injury from electric shock!

Attention!

Wait until the equipment has cooled down completely! Risk of burns!

Attention!

Always depressurize the equipment before carrying out any cleaning and maintenance work! Risk of injury!

11.1 Cleaning

  • Keep the equipment free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.
  • We recommend that you clean the equipment immediately after you use it.

  • Clean the equipment regularly with a damp cloth and some soft soap. Do not use aggressive cleaning agents or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

  • You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

11.2 Maintenance work on the pressure vessel (fig. 1) Attention!

To ensure a long service life of the pressure vessel (8), drain off the condensed water by opening the drain valve (10) each time after using.

Release the vessel pressure first (see 11.8.1). Open the drain screw by turning counter-clockwise (looking at the screw from the bottom of the compressor) so that all the condensed water can run out of the pressure vessel. Then close the drain screw again (turn it clockwise). Check the pressure vessel for signs of rust and damage each time before using.

Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service workshop.

Attention!

The condensed water from the pressure vessel will contain residual oil. Dispose of the condensed water in an environmentally compatible manner at a suitable collection point.

11.3 Safety valve (fig. 3)

The safety valve (19) has been set for the highest permitted pressure of the pressure vessel. It is not permitted to adjust the safety valve or remove the connection lock (19.2) between the exhaust nut (19.1) and its cap (19.3). Actuate the safety valve every 30 operating hours but at least 3 times a year, to ensure that it works when required. Turn the perforated exhaust nut (19.1) counterclockwise to open it and use your hands to pull the valve rod outwards over the perforated exhaust nut (19.1) to open the safety valve outlet. Now, the valve audibly releases air. Then, tighten the exhaust nut clockwise again.

11.4 Checking the oil level at regular intervals (fig. 10)

Place the compressor on a level and straight surface.

The oil level must be between the MAX and MIN marks on the oil-level window (18).

Oil change: recommended oil: SAE 15W 40 or equivalent. The original oil filling must be changed after 100 hours in operation; thereafter the oil must be drained and replaced with new oil after every 500 hours in operation.

11.5 Changing the oil (fig. 1, 9, 10)

Switch off the engine and pull the mains plug out of the socket. Remove the oil sealing plug (16). After releasing any air pressure you can unscrew the oil drain plug (12) from the compressor pump (13).

To prevent the oil from running out in an uncontrolled manner, hold a small metal chute under the opening and collect the oil in a vessel. If the oil does not drain out completely, we recommend tilting the compressor slightly. When the oil has drained out, re-fit the oil drain plug (12).

Dispose of the old oil at a drop-off point for old oil. To fill in the correct quantity of oil, make sure that the compressor stands on an even surface. Fill new oil through the oil filler opening (20) until it comes up to the maximum level. This is marked with a red dot on the oil-level window (18) (fig. 10). Do not exceed the maximum filling quantity. Overfilling the equipment may result in damage. Reinsert the oil sealing plug (16) into the oil filler opening (20).

11.6 Cleaning the intake filter (fig. 3, 11, 12)

The intake filter prevents dust and dirt being drawn in. It is essential to clean this filter after at least every 300 hours in service. A clogged intake filter will decrease the compressor's performance dramatically.

Open the thumb screw (E) to the remove the intake filter.

Then pull off the filter cover (C). Now you can remove the air filter (F) and the filter housing (D). Carefully tap out the air filter, filter cover and filter housing. Then blow out these parts with compressed air (approx. 3 bar) and reinstall in reverse order.

11.7 Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Air filter

  • Not necessarily included in the scope of delivery!

11.8 Storage

Attention!

Pull out the mains plug and ventilate the equipment and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorised person.

Attention!

Store the compressor only in a dry location which is not accessible to unauthorised persons. Always store upright, never tilted! Oil may leak out!

11.8.1 Releasing excess pressure

Release the excess pressure by switching off the compressor and using the compressed air which is still left in the pressure vessel, e. g. with a compressed air tool running in idle mode or with a blow-out pistol.

12. Transport

Use the transport handle (1) to transport the device, and drive the compressor with it.

Observe the weight when lifting the compressor (see Technical Data).

Ensure that the load is well secured when transporting the compressor in a motor vehicle.

13. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

PARKSIDE PKO 24 A1 - Disposal and recycling - 1

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

14. Troubleshooting

Fault Possible cause Remedy

The compressor does not start.No supply voltage. Insufficient supply voltage. Outside temperature is too low. Motor is overheated.Check the supply voltage, the power plug and the socket outlet. Make sure that the extension cable is not too long. Use an extension cable with large enough wires. Never operate with an outside temperature of below +5°C. Allow the motor to cool down. If necessary, remedy the cause of the overheating.
The compressor starts but there is no pressure.The safety valve (19) leaks. The seals are damaged. The drain plug for condensation water (10) leaks.Contact your local service centre. Only allow qualified personnel to carry out repairs. Check the seals and have any damaged seals replaced by a service centre. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
The compressor starts, pressure is shown on the pressure gauge, but the tools do not start.The hose connections have a leak. A quick-lock coupling has a leak. Insufficient pressure set on the pressure regulator (5).Check the compressed air hose and tools and replace if necessary. Contact your local service centre. Only allow qualified personnel to carry out repairs. Increase the set pressure with the pressure regulator.

15. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

  • These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
  • Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

  • The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
    In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB/IE):

+80040034003

(0,00 EUR/Min.)

Service-Email (GB):

service.GB@scheppach.com

Service-Email (IE):

service.IE@scheppach.com

Service Address (GB/IE):

Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW

PARKSIDE PKO 24 A1 - Service Address (GB/IE): - 1

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.

The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 339151_2004.

Table des matieres: Page:

Günzburger Straße 69

D-89335 Ichenhausen

Chers clients,

Service-hotline (BE):

+80040034003

[0,00 /Min.)

Email du service (FR):

service.FR@scheppach.com

E-mailadres (BE):

service.BE@scheppach.com

Scheppach France Strassburg

2, Impasse Jean Millot

FR-6700 Strasbourg

Serviceadres (BE):

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

9.6 AAN/UIT-schakelaar (afb. 2)

service.NL@scheppach.com

E-mailadres / Email du service (BE):

service.BE@scheppach.com

Serviceadres/Adresse du service (NL/BE):

Günzburger Straße 69

D-89335 Ichenhausen

Vázeny zákaznik,

Zelame Vam vela zabavy a uspechov pri praci s Vasim novym pristrojom.

Poznámka:

Article name: COMPRESSOR-PKO 24 A1

Nom d'article: COMPRESEUR - PKO 24 A1

Art.-Nr./Art.no./Numero d'article:3906140974-3906140981;39061409915-39061409916;39061409951

Standard references:

EN 1012-1:2010; EN 60204-1:2006/A1:2009; EN 61000-6-1:2007; EN 61000-6-3:2007/A1:2011; EN 50581:2012; EN 286-1:1998/A1:2002

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Andreas Pecher Gunzburger Str. 69, D-89335 Ichenhausen

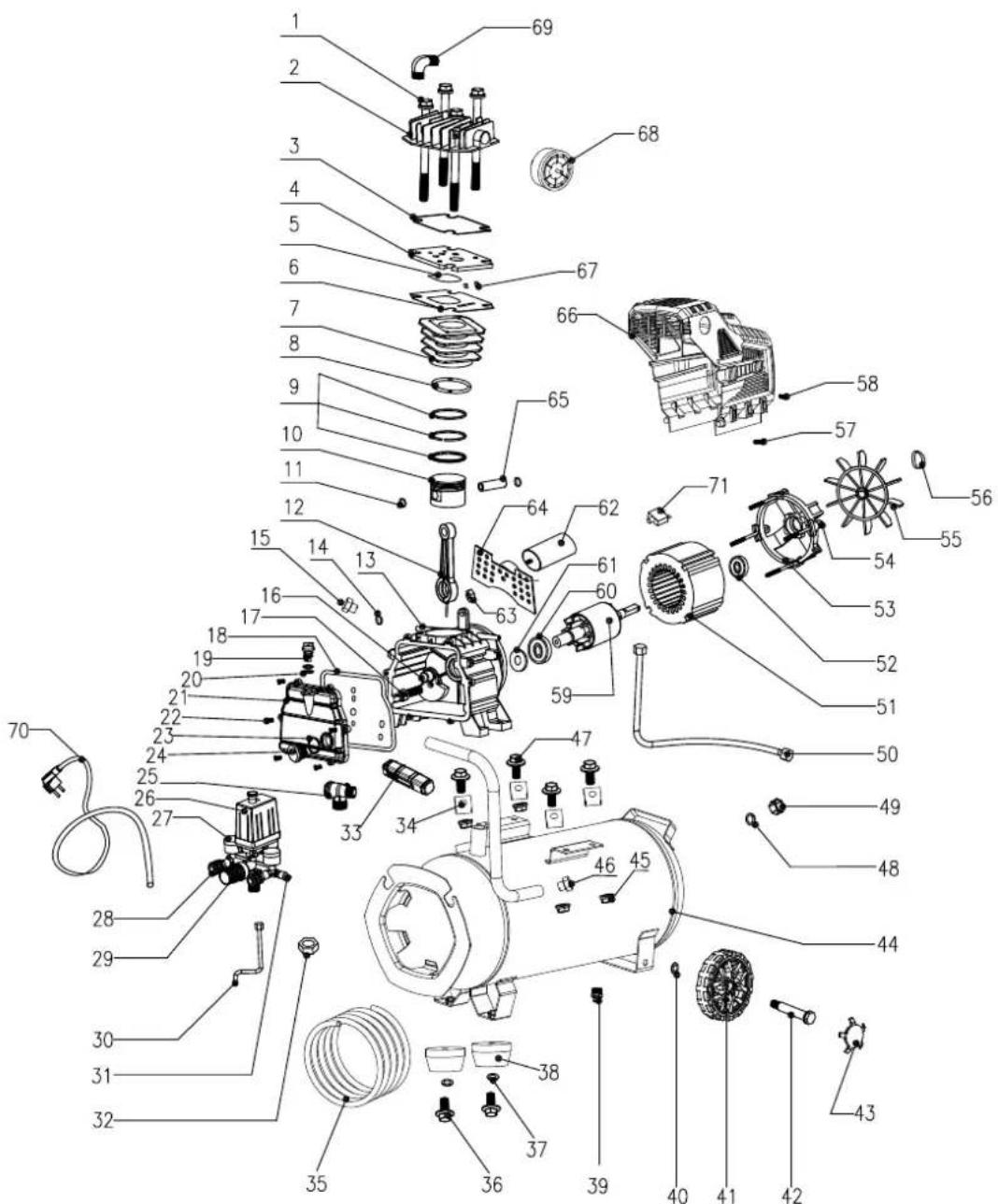

PARKSIDE PKO 24 A1 - EN 1012-1:2010; EN 60204-1:2006/A1:2009; EN 61000-6-1:2007; EN 61000-6-3:2007/A1:2011; EN 50581:2012; EN 286-1:1998/A1:2002 - 1

PARKSIDE PKO 24 A1 - EN 1012-1:2010; EN 60204-1:2006/A1:2009; EN 61000-6-1:2007; EN 61000-6-3:2007/A1:2011; EN 50581:2012; EN 286-1:1998/A1:2002 - 2

CE

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PARKSIDE

Model : PKO 24 A1

Category : Air compressor
