USER MANUAL PDBNP 14 B1 PARKSIDE
DRUCKLUFT-BLINDNIETPISTOLE / AIR BLIND RIVETING GUN / PISTOLET PNEUMATIQUE POUR RIVETS AVEUGLES PDBNP 14 B1
DE AT CH
DRUCKLUFT-BLINDNIETPISTOLE
Translation of the original instructions
NL BE
PERSLUCHT-BLINDNIETPISTOOL
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Translation of the original instructions Page 13
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Operating components (fig. A) 14
Accessories (Fig. B) 14
Package contents 14
Technical data 15
General safety warnings for compressed air tools 15
Hazards caused by flying parts 16
Hazards during operation 16
Hazards caused by repetitive movements 16
Hazards caused by accessories 16
Hazards in the workplace 17
Risks due to noise. 17
Hazards caused by vibrations 17
Additional safety instructions for pneumatic machines 17
Before use 18
Lubrication 18
Refilling oil 18
Connecting to a compressed air source 18
Use 19
Maintenance and cleaning 20
Changing the gripper jaws 20
Troubleshooting 21
Disposal 22
Kompernass Handels GmbH warranty 22
Service 23
Importer 23
Translation of the original Conformity Declaration 24
AIR BLIND RIVETING GUN PDBNP 14 B1
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
The pneumatic pop rivet gun is used to join suitable materials with a rivet joint. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This tool is intended for domestic use only.
Symbols on the compressed air tool
| WARNING | Read the operating instructions before use. |
| Wear a dust mask. | |
| Always wear eye protection when using or maintaining the rivet gun. | |
| Always wear hearing protection. | |
| Oil regularly. |
Operating components (fig. A)
(For illustrations see fold-out pages)
Mouthpiece (4.8 mm pre-fitted)
Front connector
3 Hexagonal socket on the front connector
4 Trigger
Lubricant opening
Connecting nipple
7 Handle
Thread for the pin collector
Accessories (Fig. B)
Assembly spanner 10 | 15 | 24 mm
Assembly spanner 14 | 19 mm
14× 20 rivets (2.4 - 3.2 - 4.0 - 4.8mm)
Oil container
3 spare mouthpieces (2.4 - 3.2 - 4.0mm)
14 Pin collector with attachment ring
15 2 × spare gripper jaws
Package contents
1 air blind riveting gun
4 mouthpieces (2.4 - 3.2 - 4.0 - 4.8 mm)
2 assembly spanners
1 connecting nipple (pre-fitted)
20 rivets each (2.4 - 3.2 - 4.0 - 4.8 mm)
1 oil container
1 pin collector
2 gripper jaws
1 carrying case
1 set of operating instructions
Technical data
Working pressure max. 6.3 bar
Air consumption 127 l/min (average)
Stroke length 17 mm
Traction min.
Compressed air supply 1 / 4''
Noise emission value
Noise measurement determined in accordance with ISO 15744. The rated noise level of the tool is typically:
Sound pressure level L pA = 75.8dB(A)
Uncertainty K_pA = 3 ~dB
Sound power level L WA = 86.8 dB (A)
Uncertainty K_WA = 3dB
Wear hearing protection!
Total vibration value
Vibration values determined in accordance with ISO 28927-6 and EN 12096:
Vibration emission value a ≤ 0.85m / s^2
Uncertainty K_b = 0.59~m / s^2
NOTE
The noise emission levels and vibration values specified in these instructions have been measured in accordance with the corresponding standardised measuring procedure and can be used to make equipment comparisons. The noise emission levels and vibration values vary depending on the use of the compressed air tool and may be higher than the values specified in these instructions in some cases. It is easy to underestimate the noise emission levels and vibration values if the compressed air tool is used regularly in this manner.

General safety warnings for compressed air tools
7.050N
For multiple hazards: Please ensure that you have read and understood the safety information before setting up, operating, repairing, maintaining and replacing accessories on the machine and before working in the vicinity of the machine for threadless fasteners. Failure to do this can result in serious bodily injury.
The machine should only be set up, adjusted or used by suitably qualified and trained operators.
This machine for threadless fasteners may not be modified in any way. Modifications can reduce the effectiveness of the safety measures and increase the risks for the operator.
The safety instructions should not be lost - give them to the operator.
Never use damaged machines for threadless fasteners.
The appliance must be inspected regularly to ensure that it is labelled with the required rated values and markings given in this manual. The user must contact the manufacturer to obtain replacement labels if necessary.
Hazards caused by flying parts
- Disconnect the machine for threadless fasteners from the power supply before replacing the machine tool or accessories.
If a workpiece or accessory or even part of the machine tool itself breaks, parts can be flung off at high speeds.
Always wear impact-resistant eye protection when operating the machine. The level of protection required should be assessed separately for each use.
In this case, the risks for others should also be assessed.
You must ensure that the workpiece has been securely fixed in place.
Check whether protection against ejection of fastening elements and/or rivet shafts is available and effective.
Hazards during operation
When using the machine, the operator's hands may be exposed to hazards such as crushing, impact, cuts, abrasions and heat. Wear suitable gloves to protect your hands.
The operator and maintenance personnel must be physically capable of handling the size, mass and power of the machine.
Hold the machine correctly: Be ready to counteract any normal or sudden movements - keep both hands ready.
■ Ensure that your body is balanced and that you have a secure standing position.
■ Release the start/stop control in case of a disruption to the electricity supply.
Use only the lubricants recommended by the manufacturer.
- Avoid inappropriate postures as these postures are likely to make it impossible to respond to normal or unexpected movements of the machine.
If the machine for threadless fasteners is attached to a suspension device, the attachment must be secured,
There is a risk of crushing if the equipment is not attached to the machine head.
Hazards caused by repetitive movements
When using a machine for threadless fasteners, operators may experience uncomfortable sensations in their hands and arms, as well as in the neck and shoulders or other parts of the body.
When using a machine for threadless fasteners, the operator should adopt a comfortable posture. Ensure that you have a secure foothold and avoid unfavourable postures or postures in which it is difficult to maintain balance. The operator should change positions during the course of long-lasting tasks. This can be helpful for the prevention of discomfort and fatigue.
If the operator notices symptoms such as persistent or recurring illness, discomfort, throbbing, pain, tingling, burning or stiffness, these indications should not be ignored. The operator should consult a suitably qualified physician.
Hazards caused by accessories
- Disconnect the machine for threadless fasteners from the power supply before replacing the machine tool or accessories.
Use only accessories and consumables of the sizes and types recommended by the manufacturer of the machine for threadless fasteners; do not use any other types or sizes of accessories or consumables.
Hazards in the workplace
Slipping, tripping and falling are the main causes of injuries in the workplace. Look out for surfaces which could have become slippery through use of the machine, and also any tripping hazards caused by air or hydraulic hoses.
■ Proceed with caution in unknown surroundings. Hidden hazards caused by power or other supply lines may be present.
This machine for threadless fasteners is not suitable for use in explosive environments and is not insulated against contact with power sources.
Do not operate the appliance in the vicinity of electric mains, gas pipelines, etc. which could pose a hazard if damaged by the machine.
Risks due to noise
Excessive noise levels in conjunction with insufficient hearing protection may lead to permanent hearing damage, hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in your ears).
It is essential that a risk assessment is carried out with respect to these risks and that appropriate regulatory mechanisms are implemented.
Suitable regulatory mechanisms include measures such as the use of insulation materials which avoid ringing noises occurring on the workpieces.
Use ear protection equipment as per the instructions provided by your employer or as required by health and safety regulations.
Consumables/machine tools should be selected, maintained and replaced in accordance with the recommendations in this guide in order to avoid unnecessary increase of the noise levels.
If the machine is equipped with a silencer, always ensure that it is fitted and that it is operational while the machine is in operation.
Hazards caused by vibrations
Vibrations can damage the nerves and cause malfunctions to the blood circulation in the hands and arms.
When working in a cold environment, wear warm clothing and keep your hands warm and dry.
If you experience numbness, tingling or pain in your fingers or hands or notice that the skin of your fingers or hands has become pale, stop working with the machine for threadless fasteners, inform your employer and consult a doctor.
A stand, tensioner or balancing device must be used to support the weight of the machine, as the operator does not have to grip the machine so tightly to hold it.
Additional safety instructions for pneumatic machines
Compressed air can cause serious injury.
- When the machine is not in use, and before replacing accessories or carrying out repairs, always ensure that the air supply is closed, that the air hose is not under pressure and that the machine is disconnected from the air supply.
- Never aim the airflow towards yourself or any other person.
- Thrashing hoses can cause serious injury. Always check that the hoses and fasteners are undamaged or have not come loose.
Cold air must be directed away from the hands.
If universal rotary joints (claw couplings) are used, locking pins must be used to provide protection; Whipcheck® air hose restraints must be used to provide protection in case of a failure of the connection of the hose to the machine.
Ensure that the maximum permissible pressure on the machine is not exceeded.
Never carry compressed-air-powered machines by the hose.
Before use
NOTE
The rivet gun may only be operated on cleaned, oil-atomised compressed air and may not exceed the maximum operating pressure of 6.3 bar at the appliance. The compressor must be fitted with a pressure reducer to regulate the working pressure.
Note that the maximum working pressure may not be exceeded. An excessive working pressure does not mean increased output; it merely increases the air consumption and accelerates appliance wear. Always comply with the technical information.
Lubrication
NOTE
Regular lubrication is particularly important to avoid friction and corrosion damage. We recommend using a suitable special oil for compressed air tools (e.g. Liqui Moly compressor oil).
Lubrication with mist oiler A mist oiler (not supplied) continuously and optimally lubricates the appliance as a preparation stage after the pressure reducer. A mist oiler gives off fine drops of oil into the air flow and thus guarantees regular lubrication.
- Manual lubrication
If you do not have a mist oiler, lubricate the tool before every use or any longer work sessions. To do this, drip 3-5 drops of special oil for compressed air appliances into the lubricant opening 5.
Refilling oil
To ensure that the rivet gun remains operational for as long as possible, make sure that there is sufficient pneumatic oil in the appliance.
You have the following options
Attach a maintenance unit with an oiler to the compressor.
Install a fitted oiler into the compressed air line or the compressor.
Manually add 3-5 drops of pneumatic oil from the supplied oil container into the connecting nipple after every 15 minutes of operation.
When opening the oil container for the first time, remove the cap nut from the container. Use a pair of long-nosed pliers or a similar implement to remove the internal pipette.
Turn it 180^ replace it and screw it back in place with the cap nut.
Use a needle or similar tool to poke a small hole into the tip of the pipette to release oil.
Connecting to a compressed air source
NOTE
Before connecting the compressed air source, the correct working pressure (3-6 bar) must be fully reached ensure that the trigger is not pulled
Pull the supply hose connector over the quick-release fastener on the connecting nipple 6 until it clicks into place.
NOTE
The compressed air source must be equipped with a pressure reducer to ensure that you can regulate the air pressure.
Use
The appliance is ready for use as soon as the pneumatic air flow has been established.
Screw the pin collector onto the thread for the pin collector 8 at the back of the machine.
Determine the suitable rivet size on the basis of the workpieces used.
Use a suitable tool to drill a hole into the workpieces in the spot where the rivet will be located. Make sure the diameter of the hole corresponds to the determined rivet size.

CAUTION!
Suitable safety precautions must be taken depending on the size and nature of the workpieces. Use suitable clamping devices to prevent the workpieces from slipping.
In the event of an interruption to the air supply, release the trigger 4 immediately.
Before switching on the machine, make sure the machine tool is firmly placed on the surface to be processed.
Check if the diameter of the attached mouthpiece 1 matches the mandrel diameter of the determined rivet size.
If it does not, unscrew the front connecto using the assembly spanner if necessary.

CAUTION!
Ensure that the appliance is disconnected from the compressed air source before you fit or remove the front connector 2.
If necessary, unscrew the mouthpiece from the front connector 2 using the assembly spanner 9. Afterwards, screw the correct spare mouthpiece 13 into the front connector 2 and tighten it.
To attach the front connecto, press it onto the thread (you will feel minor resistance) and tighten it by hand.
Tighten the front connecto using the assembly spanner
Reconnect the appliance to the compressed air supply.
Place the rivet body in the drill hole.
Slide the appliance over the river until the mandrel is fully inserted into the mouthpiece 1
Pull the trigger. The mandrel is pulled into the device, detached from the rivet body and the rivet joint is established permanently. If necessary, repeat the process until the mandrel has been fully separated from the rivet body.
NOTE
You will need to tip the appliance to the rear to get the mandrel into the waste collector.
Proceed in the same way with the other rivets 1
Empty the pin collector regularly.
When you have finished working, disconnect the appliance from the compressed air source.
Maintenance and cleaning

WARNING! RISK OF INJURY! Disconnect the appliance from the compressed air supply.
CAUTION!
Before maintenance, clean off any hazardous substances that may (due to working processes) have accumulated on the appliance. Avoid all skin contact with these substances. If the skin comes into contact with hazardous dusts, this can lead to severe dermatitis.
The dust and vapours produced by using the appliance can be hazardous to health (e.g. cause cancer, birth defects, asthma and/or dermatitis); it is essential to carry out a risk assessment in respect of these risks and to implement corresponding regulatory mechanisms.
NOTE
To ensure correct functioning and long-term durability of the rivet gun, pay attention to the following points:
Sufficient and continuously intact oil lubrication is highly important for optimum functioning.
Use only the genuine replacement parts recommended by the manufacturer, otherwise you could put users at danger. In doubt, contact the Service Centre.
Use only accessories and supplies of the sizes and types recommended by the manufacturer of the rivet gun.
Only clean the appliance with a soft, dry cloth or with compressed air.
Never use sharp or scratchy cleaning agents under any circumstances.
Changing the gripper jaws
Friction can wear out the gripper jaws if this happens, replace the worn gripper jaws with the supplied spare gripper jaws 1s follows.
Unscrew the front connecto using the assembly spanner 9, if necessary. This gives you access to the following parts:

A Appliance shaft
B Lock nut
C Lock washer
E Two-piece metal cone
G Gripper jaws
Unscrew the two-piece metal cone (E) holding the gripper jaws (G) from the shaft (A), using the two assembly spanners and necessary.
Using both assembly spanners and unscrew the front piece of the metal cone from the back piece (E2, E1). This gives you access to the following parts:

A Appliance shaft
B Lock nut
C Lock washer
D Spring
E1 Back piece of the metal cone
F Expanding mandrel
G Gripper jaws
E2 Front piece of the metal cone
Remove the expanding mandrel (F) and the worn gripper jaws (G) from the front piece of the metal cone (E2).
Place the new gripper jaws (G) into the front piece of the metal cone (E2) such that the narrow ends protrude from its opening.

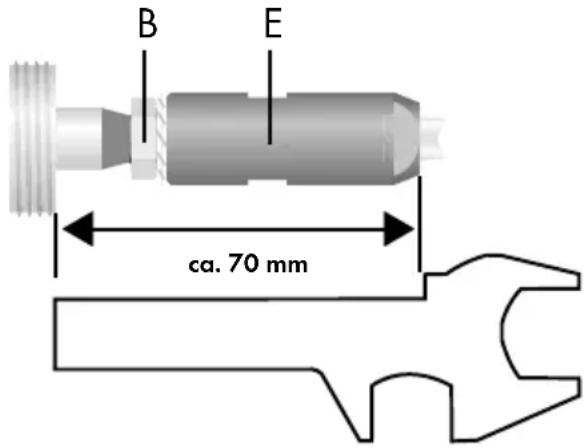

NOTE
Both gripper jaws (G) must protrude from the opening flush with each other. We recommend that you hold the front piece of the metal cone (E2) vertically, with the gripper jaws (G) pointing downward.
Insert the expanding mandrel (F) such that its tips are inside the notch formed by the rear ends of the gripper jaws (G).
Using both assembly spanners and screw the front and back piece of the metal cone (E2, E1) together.
Screw the metal cone (E) back onto the appliance shaft (A) and tighten it using the assembly spanner. Use the assembly spanner lock the lock nut (B).
After installing the metal cone (E), check the distance between the thread and metal cone (E). It should be approximately 70~mm . You can use the assembly spanner 1s a measuring aid. If necessary, adapt the measurement by adjusting the lock nut (B).

To attach the front connecto, press it onto the thread (you will feel minor resistance) and tighten it by hand.
Tighten the front connecto using the assembly spanner 9.
Troubleshooting
| Fault Possible cause Remedy | ||
| Riveting power too low, some air escapes from the outlet. | Moving parts jammed due to dirt. | Check the pressure supply filter for contamination. |
| Pressure supply too low. | Check the pressure supply filter for contamination. | |
| Lubricate the tool as described in the instructions. | ||
| If necessary, repeat the steps outlined above. | ||
| Appliance does not work; compressed air escapes completely through the outlet. | Moving parts are jammed due to material build-up. | Lubricate the tool as described in the instructions. |
Disposal

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Do not dispose of the appliance in the normal domestic waste!
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material
components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to
the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 339145_1910
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
Applied harmonised standards
EN ISO 11148-1:2011
Type designation of machine: Air blind riveting gun PDBNP 14 B1
Year of manufacture: 01-2020
Serial number: IAN 339145_1910
Bochum, 28/01/2020

Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Table des matieres
Introduction 26
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines (2006/42/CE)
Risico's door accessories
Risico's door trilling
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompermass.com
