AIR MICRO GRINDER

PDMS 6.3 A1

Introduction

tulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The compressed-air mini grinder (hereinafter referred to as "apppliance"/grinding machine) is suitable for grinding and deburring metal. Any other uses of or modifications to the appliance are deemed to be improper

usage and may result in serious physical injury. Not for commercial use.

Features

Chuck
Compressed-air mini grinder
Speed setting wheel
4 Compressed-air hose
Threaded connector 1 / 4''
Assembly spanner SW 9
Teflon tape
Threaded connector 1 / 4''
9 Mini compressed-air oiler
10 Female threaded connector 1 / 4''
Phillips screw for oil filler opening
12 Compressed-air connector
Threaded nipple 1/4"
14 Oil bottle
15 Whetstone

Package contents

1 air micro grinder
2 assembly spanners SW 9
1 m Teflon tape
1 compressed air oil container
1 compressed-air connector plug
1 mini compressed-air oiler
10 whetstones
1 transport case
1 operating manual

Technical data

Speed: 0-54000 rpm

Working pressure: max. 6.3 bar

Chuck capacity: 3.2 ~mm

Air flow rate: 200 l/min

Air intake: 1 / 4''

Housing material: aluminium

Weight (compressed-air mini

grinder with hose):

approx. 175 g

Sound pressure level: 67.2 dB(A)

Sound power level: 78.2 dB(A)

Uncertainty K: 3 dB

Measured value determined

according to: ISO 15744

Wear ear muffs!

Vibration emission value

$$ = 9. 4 6 \mathrm {m} / \mathrm {s} ^ {2} $$

Uncertainty K = 1.43 m/s^2

Measured value determined

according to: ISO 28927-12,

EN 12096

Explanation of the symbols on the appliance:

Wear safety goggles!

Wear ear muffs!

Wear a dust mask!

Oil daily!

Read the operating instructions before use.

WARNING!

The noise emission levels specified in these instructions have been measured in accordance with the standardised measuring procedure specified in ISO 15744 and can be used to make equipment comparisons. The noise emission values vary in accordance with the use of the compressed-air tool and may be higher than the values specified in these instructions in some cases. It is easy to underestimate the noise emission load if the compressed-air tool is used regularly in a certain manner.

NOTE

For an accurate estimate of the noise emission load during a certain working period, the times during which the appliance is switched off or is running but not actually being used must also be taken into consideration. This can significantly reduce the noise emission load over the total working period.

eral safetyinstructions forcompressedair – tools

WARNING!

For multiple hazards: Please ensure that you have read and understood the safety instructions before adjusting, operating, repairing, maintaining or replacement of accessories on the mini die grinder as well as before working in the vicinity of the machine. Failure to do this can result in serious bodily injury.

The mini die grinder should only be adjusted, set or used by adequately qualified and trained operators.

This mini die grinder must not be modified. Modifications can reduce the effectiveness of the safety measures and increase the risks for the operator.

Never use damaged machines.

Save all warnings and instructions for future reference.

The safety instructions should not be lost - give them to the operator.

Work area safety

• Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

Slipping, tripping and falling are the main causes of injuries in the workplace. Watch out for surfaces which could have become slippery through use of the machine, and also any

stripping hazards caused by air or hydraulic hoses.

■ Proceed with caution in unknown surroundings. Hidden hazards caused by power or other supply lines may be present.

Do not work with the compressed-air tool in areas subject to the risk of explosions, or in areas where flammable liquids, gases or dusts are located. Grinding work creates sparks which may ignite the dust or fumes.

• Keep children and other unauthorised personnel at a safe distance when using compressed-air tools. Distractions can cause you to lose control.

The grinder is not insulated against electrical power sources.

Safety information

Always wear eye protection when using or maintaining the sander.

Always wear suitable protective clothing.
Protect your hands, hair and clothes from being drawn in by rotating parts.
Always wear a dust mask in situations in which dust is being generated.
Always wear ear muffs.
Always wear protective gloves.
Only connect the grinder to the compressed-air supply when it has been switched off and when the tool has been clamped.
Sparks are created during grinding. Ensure that nobody can be endangered by flying sparks. You should also remove any flammable materials or objects.
Do not carry the grinder if it has been connected to the compressed-air hose.
Be aware of the danger caused by a flailing compressed-air hose!
The grinder may not be used for drilling or screwing!

The grinder is not approved for use with cutting discs!
The flow pressure of 6.3 bar may not be exceeded during operation.
Never use oxygen or other flammable gases as an energy source.
Once you have completed your work, switch the grinder off and place it down securely once it has come to a standstill.

Caution! The grinder continues to run on.

Once you have completed your work, disconnect the grinder from the compressed-air supply.
■ Be aware that when processing certain materials there is a danger that dust and vapours can arise that could create an explosive atmosphere. Use vacuum cleaners and suitable protective equipment.

Hazards caused by flying parts

If a workpiece or accessory or even part of the machine tool itself breaks, parts can be flung off at high speeds.

When using the mini die grinder or when replacing accessories on the machine, impact-proof eye protection must be worn. The degree of necessary protection must be evaluated separately for each individual task.

You must ensure that the workpiece has been securely fixed in place.

Check regularly that the speed of the sander does not exceed the labelled speed value for grinding inserts. This speed check must take place without an installed grinding pencil/ grinding aid and in agreement with the manufacturer's instructions.

Ensure that any sparks and fragments caused during use do not present any hazards.

• Disconnect the grinder from the power supply before replacing the grinding material and before carrying out maintenance work.

In this case, the risks for others should also be assessed.

Hazards caused by entanglement

Suffocation, scalping and/or cut wounds can occur if loose clothing, jewellery, necklaces, hair or gloves are not kept away from the machine and its accessories.

Hazards during operation

• Avoid contact with the rotating shaft and the installed tools in order to prevent cuts to the hands and other body parts.

When using the machine, the operator's hands can be subject to hazards such as cuts, grazing and heat. Wear suitable gloves to protect your hands.

The operator and maintenance personnel must be physically capable of handling the size, mass and power of the machine.

Hold the machine correctly: be ready to counteract any normal or sudden movements - have both hands ready.
Ensure that your body is balanced and that you have a secure standing position.
Use only lubricants recommended by the manufacturer.
Suitable safety goggles must be worn; wearing protective gloves and safety clothing is recommended.
A rotating file may not be operated at a speed higher than its nominal speed.
Wear a safety helmet if working above head height.
Please note that the machine tool continues to run after completion of the working process.
Warning: there is a risk of explosion or fire due to the material being worked.
Release the start/stop control in case of a disruption to the electricity supply.

Hazards caused by repetitive movements

When using a mini die grinder to perform work-related activities, operators may experience uncomfortable sensations in their hands and arms, as well as in the neck and shoulders or other parts of the body.

When using a mini die grinder, the operator should adopt a comfortable posture whilst ensuring a secure hold and avoiding awkward postures or positions in which it is difficult to maintain balance. The operator should change positions during long-lasting tasks. This can be helpful in the prevention of discomfort and fatigue.

If the operator notices symptoms such as persistent or recurring illness, discomfort, throbbing, pain, tingling, burning or stiffness, these indications should not be ignored. In this case, the operator should consult a suitably qualified physician.

Hazards caused by dust and vapours

The dust and vapours produced by using the mini die grinder can be hazardous to health (e.g. cause cancer, birth defects, asthma and/or dermatitis); it is essential to carry out a risk assessment in respect of these risks and to implement corresponding regulatory mechanisms.

The risk assessment should include all dust caused by the use of the machine and the existing dust that may be kicked up at the same time.

The mini die grinder is to be operated and maintained in accordance with the recommendations contained in this manual to reduce the release of dust and vapours to a minimum.

The exhaust air should be routed so that the raising of dust in already dusty environments is kept to a minimum.

If dusts or vapours are created, the main priority must be to control these at the site of their release.

All inserts or accessories of the machine intended for collecting, extracting or suppressing airborne dust or vapours or should be used and serviced in accordance with the manufacturer's instructions.

Consumables/machine tools should be selected, maintained and replaced in accordance with the recommendations in this guide in order to avoid unnecessary intensification of dust or vapour production.

Use breathing equipment as per the instructions provided by your employer or as required by health and safety regulations.

Working with certain materials can lead to emissions of dust and vapours that are potentially explosive.

Hazards caused by noise

Excessive noise levels in conjunction with insufficient hearing protection may lead to permanent hearing damage, hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in your ears). Therefore it is essential that a risk assessment should be carried out in respect of these risks and to implement appropriate regulatory mechanisms.

Suitable regulatory mechanisms include measures such as the use of insulation materials to avoid ringing noises occurring on the workpieces.

Use ear muffs as per the instructions provided by your employer or as required by health and safety regulations.

The mini die grinder is to be operated and maintained in accordance with the recommendations contained in this manual to reduce any unnecessary increase of the noise levels.

Consumables/machine tools should be selected, maintained and replaced in accordance with the recommendations in this guide in order to avoid unnecessary increase of the noise levels.

If the mini die grinder is equipped with a silencer, always ensure that this is in place and is operational while the machine is in operation.

Hazards caused by vibrations

Vibrations can damage the nerves and cause malfunctions to the blood circulation in the hands and arms.

When working in a cold environment, wear warm clothing and keep your hands warm and dry.

If you notice numbness, tingling or pain in your fingers or hands or determine that the skin of your fingers or hands has become pale, stop working with the mini die grinder and consult a doctor.

The mini die grinder is to be operated and maintained in accordance with the recommendations contained in this manual to reduce any unnecessary increase of the vibrations.

Consumables/machine tools should be selected, maintained and replaced in accordance with the recommendations in this guide in order to avoid unnecessary increase of the vibrations.

Always use a stand, a clamp or a compensation device to support the weight of the machine.

Hold the machine securely but not too firmly while maintaining the necessary hand-reaction force, as the vibration risk generally increases the harder the machine is held.

An inadequately mounted or damaged machine tool can lead to excessive vibrations.

Additional safety instructions for pneumatic machines

• Compressed air can cause serious injuries.
  Ensure that the air supply is switched off, the hose is not under pressure and that the machine is disconnected from the air supply when the machine is not in us, and also before exchanging accessories or carrying out repairs.
  Never aim the airflow towards yourself or any other person.

Thrashing hoses can cause serious injury. Therefore, always check that the hoses and their fixings are not damaged or have not come loose.

If universal rotary joints (claw couplings) are used, locking pins must be used to provide protection; Whipcheck® air hose restraints must be used to provide protection in case of a failure of the connection of the hose to the machine.

Ensure that the maximum permissible pressure on the machine is not exceeded.
Never carry compressed-air-powered machines by the hose.

Hazards caused by accessories

• Disconnect the grinder for whetstones from the power supply before fitting or replacing the machine tools or accessories.
  Use only accessories and consumables of the size and type recommended by the manufacturer of the grinder for whetstones.
  Avoid direct contact with the machine tool during and after use, as it may have heated up or have become sharp.
  The maximum operating speed recommended by the manufacturer of the grinder for whetstones must be the same or higher than the rotational speed labelled on the machine.

Never fit a grinding disc, cutting disc or milling cutter to a grinder for whetstones. A shattering grinding disc can cause serious injuries or death.

Do not use discs which are damaged, cracked or could have been dropped.

Only approved machine tools with the correct shaft diameter may be used.

Please note that you must ensure that the per missible rotational speed of small grinding tools is reduced due to raising the position of the shaft between the end of the chuck and the small grinding tool (overhang). Ensure that the minimum clamping length of 10mm is observed (see figure 1).

You must be aware that there is a danger of mismatching between the shaft diameter of the small grinding tool and of the chuck.

Use

NOTE

The grinder may only be operated using cleaned, oil-atomised compressed air and may not exceed the maximum operating pressure of 6.3 bar on the appliance. The compressor must be fitted with a pressure reducer to regulate the working pressure.

Wind the supplied Teflon tape around all threaded connectors.

First, screw the 1 / 4'' threaded nipple 13 onto the 1 / 4'' threaded connector 8f the mini compressed-air oiler 9
Then fill the mini compressed-air oiler with 1-2 drops of special compressed-air oil. To do this, loosen the screws on the attached Phillips screw of the

oil filling opening 11 of the mini compressed-air oiler Drip a little oil into the oil filler opening using the supplied oil bottle 14

WARNING!

• Avoid eye and skin contact with lubricants.

NOTE

A mist oiler continuously and optimally lubricates the grinder as a preparation stage after the pressure reducer. A mist oiler adds fine drops of oil to air flowing through the appliance and therefore guarantees regular lubrication.

Now screw the 1 / 4'' threaded connector 5 into the 1 / 4'' female thread connector 10 of the mini compressed-air oiler 9
Now press the quick coupling of the compressed-air hose (not supplied) onto the compressed-air connector 12 The connection locks automatically.

Now connect the other end of the compressed-air hose to the (filter) pressure reducer on the compressor.

Changing a tool

Always disconnect the grinder from the compressed air supply before changing tools. Only use suitable tools. Ensure that the minimum clamping length of the shank in the chuck is complied with (see fig. 1).

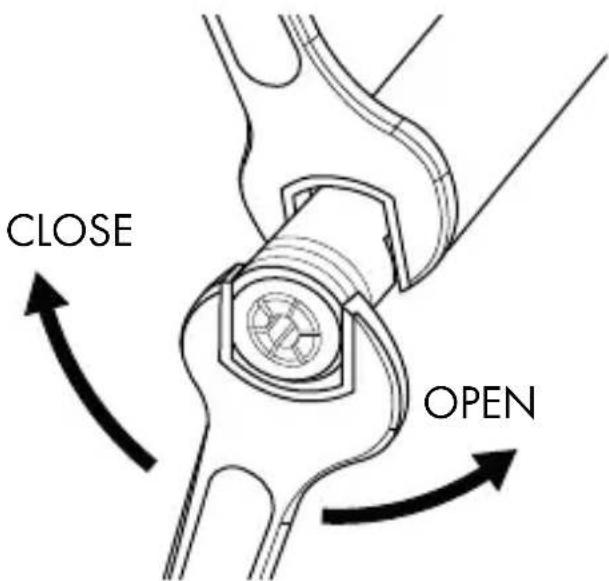

Using the spanners included in the accessories, hold the spindle and chuck 1rmly and open or close the chuck 1 in the direction of the arrows (see fig.2).

Fig. 2

Now insert one of the 10 different whetstones 15.

NOTE

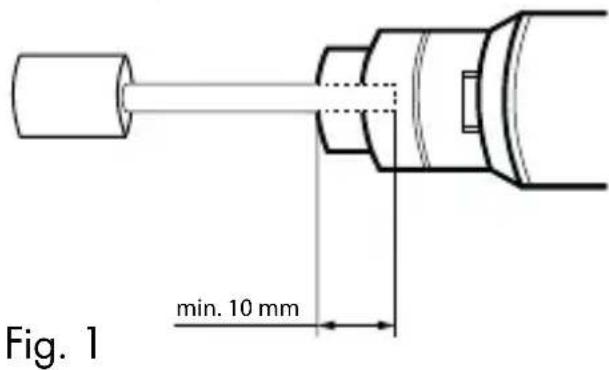

• Please note the danger caused by mismatching the diameter of the grinding tool shaft and the chuck. Incorrectly fitted grinding tools can cause severe vibrations - there is a risk of injury!

Ensure that the grinding tool is correctly fitted, and carry out a 30 second trial run in a safe area at idling speed.

Operation

Switching the grinder on and off

Use the pressure reducer to set the correct working pressure. Operate the appliance at a working pressure of maximum 6.3 bar.

NOTE

An excessive working pressure does not improve performance; it merely increases compressed air consumption and increases wear on the appliance.

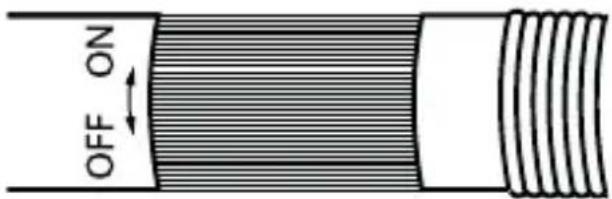

By turning the speed setting wheel 3 the respective direction (marked with ON/OFF), you switch on the grinding machine and increase or decrease the speed (see figure 3).

Fig. 3

Maintenance and cleaning

INJURY! Disconnect the grinder from the compressed-air supply before carrying out maintenance work.

CAUTION!

Before maintenance, clean off any hazardous substances that may (due to working processes) have accumulated on the appliance. Avoid all skin contact with these substances. If the skin comes into contact with hazardous dusts, this can lead to severe dermatitis.

If dust is produced or swirled up during maintenance, it can be inhaled.

NOTE

To ensure correct functioning and long-term durability of the sander, pay attention to the following points:

Sufficient and continuously intact oil lubrication is highly important for optimum functioning.
Check the idle speed regularly and after any maintenance is performed:

use a rev counter and perform the measurement without any clamped tools.

At a residual pressure of 6.3 bar, the idle speed may not be exceeded under any circumstances.

Clean any dirt from the air inlet on the compressed-air mini grinder.
To protect against contamination, the compressed-air mini grinder should packed away in the supplied carrying case after each use.
Do not pack the appliance away until it has cooled down completely.
If, despite this, the compressed-air mini grinder has become dirty, observe the following instructions when cleaning.
Only use a dry, soft cloth or compressed air to clean the grinder.
Never use sharp or abrasive cleaning agents.

Disposal

The packaging consists of environmentally friendly material. It can be disposed of in the local recycling containers.

Do not dispose of the appliance in the normal domestic waste!

Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:plastics,
20-22: paper and cardboard,
80-98: composites

Your local community or municipal authorities can provide information

on how to dispose of the worn-out product.

Dispose of lubricants and cleaning agents in an environmentally friendly manner. Observe the legal regulations.

• Dispose of lubricant residues at a disposal point. Do not allow lubricants to enter drains or watercourses. Do not allow them to get into the subsoil/ soil. Make sure you use a suitable mat/surface. Dispose of lubricants in accordance with official regulations.

Dispose of contaminated maintenance material and consumables at a collection point provided for this purpose.

Kompernass Handels GmbHwarranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts

which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/ repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidlservice.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail:

[e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

0,06 EUR/Min.,

(off peak))

E-Mail: [e-mail]

IAN301840

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS

HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

Applied harmonised standards:

EN ISO 11148-9:2011

Type designation of machine:

Air micro grinder PDMS 6.3 A1

Year of manufacture: 03 - 2019

Serial number: IAN 301840

Bochum, 18/02/2019

Semi Uguzlu

• Quality Manager -

The right to effect technical changes in the context of further development is reserved.

Table des matieres

Introduction 46

Chere cliente, cher client,

Directive relative aux machines (2006/42/CE)

Risico's door trilling

Risico's door accessories

Neurcitost'K=1,43m/s²

Namerana hodnota zistena podla: ISO 28927-12 a EN 12096

Vysvetlenia ku štifikom s upozorneniami na pristroji:

Noste ochranné okuliare!

Noste ochranu sluchu!

Noste ochrannú masku proti prachu!

Zariadenie oleujte kazd'y den!

Navod na obsluhu si preciţaje pred uvedenim do prevadzky.

VYSTRAHA!

Hodnoty hlukovych emisiu
uvedené v toto navode
boli vypočitané podla
postupu merania v sulade s
normou ISO 15744 a možu
byt' použivané na porovná
vanie prístrojov. Hodnoty
hlukovych emisiu sa menia
v závislosti od použivania
pneumatickeho náradia a v
niektorych pripadoch možu
prekračovat' hodnoty uvedeni v tychto Pokynoch. Za
taženie hlukovymi emisiami
mоze byt' podcenene v pri
pade, ak by sa pneumaticke
náradie pravidne takymto
spôsobom použivalo.

UPOZORNENIE

Semi Uguzlu - Managerial -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
