USER MANUAL SDW 1200 C1 SILVERCREST

PDF ONLINE www.lidl-service.com

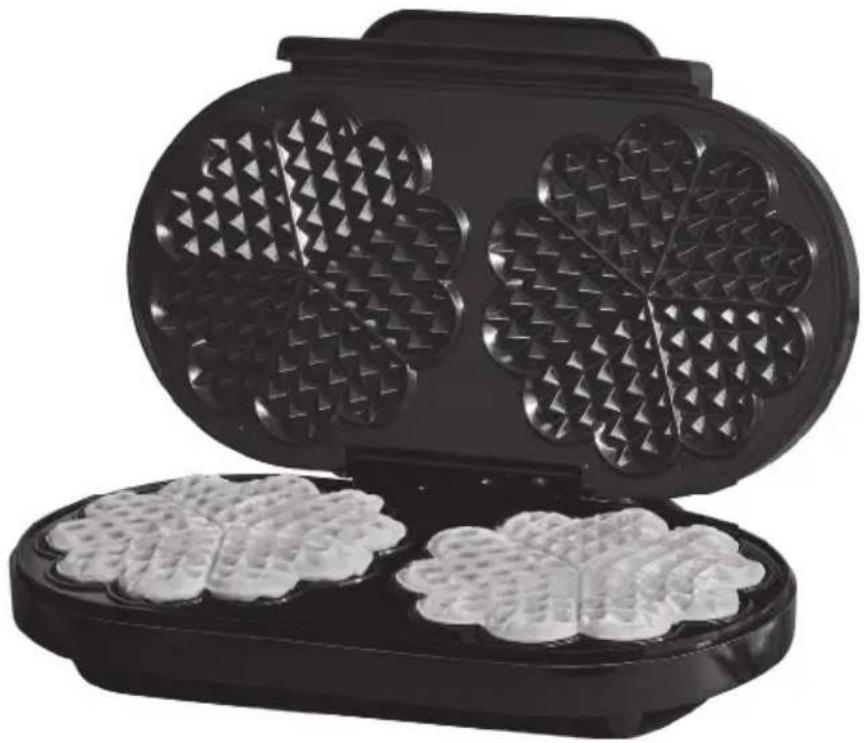

Black waffle-shaped food item with diamond patterns, open lid open (no text or symbols visible)

DOPPEL-WAFFELEISEN/WAFFLE MAKER/GAUFRIER DOUBLE SDW 1200 C1

DE AT CH

DOPPEL-WAFFELEISEN

Operation and safety notes

FR BE

GAUFRIER DOUBLE

GB/IE Operation and safety notes Page 17

Two identical icon-based diagrams showing a person reading a book and another with a shopping cart, likely representing online shopping or e-commerce platforms.

Warnings and symbols used.... Page 18

Introduction Page 18

Intended use.... Page 18

Scope of delivery.... Page 19

Description of parts ...... Page 19

Technical data Page 19

Safety instructions.... Page 19

Before first use.... Page 22

Operation.... Page 22

Turning on/off Page 22

Browning level ...... Page 22

Baking waffles Page 22

Recipes Page 23

Overview Page 23

Cocoa waffles Page 23

Buttermilk waffles.... Page 23

Lemon waffles Page 23

Basic waffles Page 24

Egg-free waffles.... Page 24

Cleaning and care Page 24

Troubleshooting Page 24

Storage Page 25

Disposal Page 25

Warranty Page 25

Warranty claim procedure.... Page 25

Service Page 26

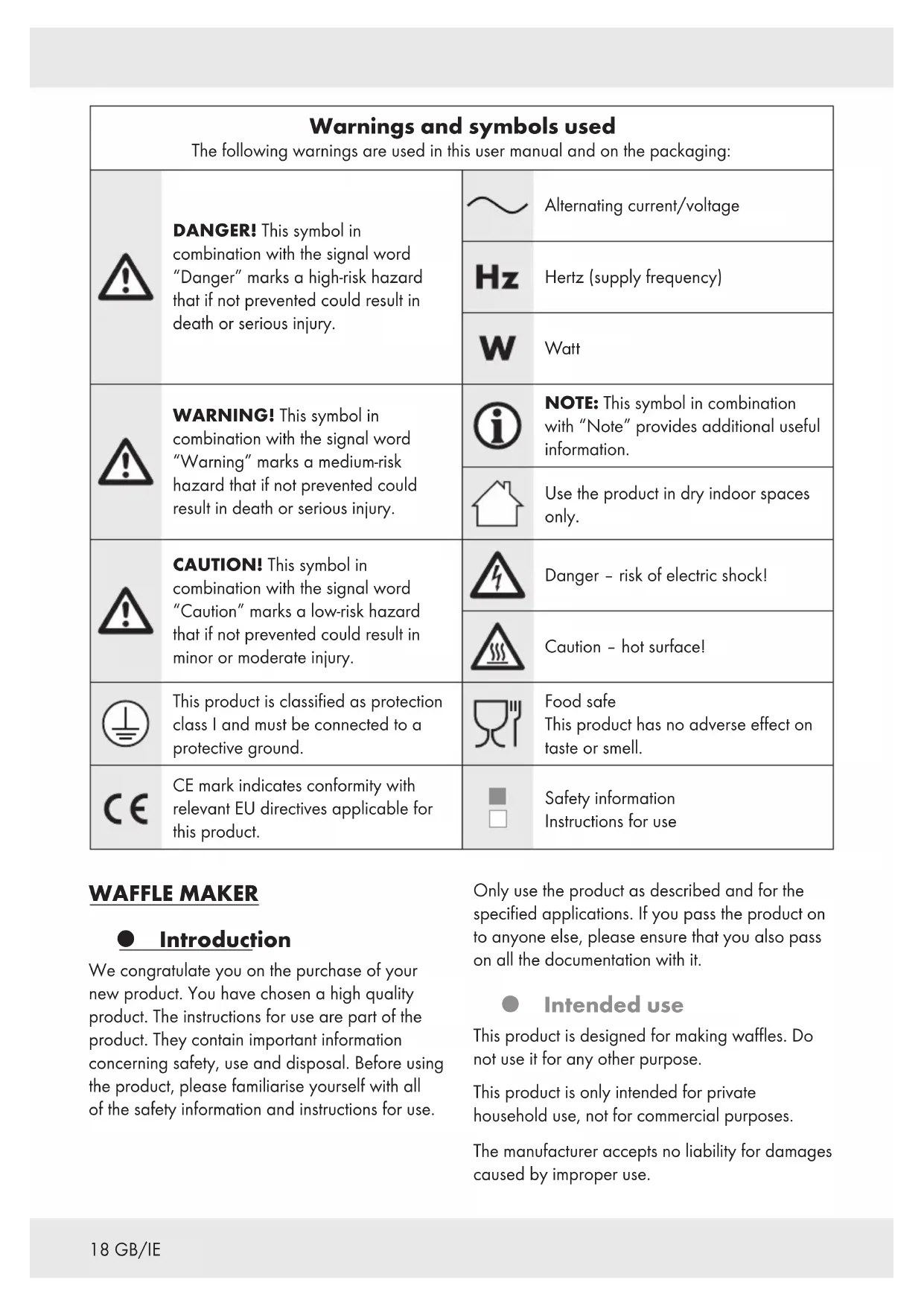

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
			Hertz (supply frequency)
			Watt
	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.		NOTE: This symbol in combination with "Note" provides additional useful information.
			Use the product in dry indoor spaces only.
	CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Danger - risk of electric shock!
			Caution - hot surface!
	This product is classified as protection class I and must be connected to a protective ground.		Food safeThis product has no adverse effect on taste or smell.
	CE mark indicates conformity with relevant EU directives applicable for this product.	[XCTT]	Safety informationInstructions for use

WAFFLE MAKER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use.

Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for making waffles. Do not use it for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1× Waffle maker

1× User manual

● Description of parts

1 Handle
2 Light indicators (green/red)
3 Browning level control
4 Plates
5 Cord rewind
6 Power cord with power plug

- Technical data

Input voltage:	220-240 V~, 50-60 Hz
Power consumption: 1,200 W
Protection class: I
Power consumption in off mode: 0.0 W

Certification

HG05428 TÜV SÜD	GS
HG05428-BS –
HG05428-CH –

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.

■ Cleaning and user maintenance shall not be made by children without supervision.

- Keep the product and its cord out of reach of children less than 8 years.

Intended use

⚠ WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

■ This appliance is intended to be used in household and similar applications such as:

–staff kitchen areas in shops, offices and other working environments;

-farm house; -by clients in hotels, motels and other residential type environments;

—bed and breakfast type environments.

Electrical safety

⚠️ DANGER! Risk of electric

shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

CAUTION! Hot surface!

During use the product gets hot.

Do not touch the product while in use nor immediately after use.

■ During use, care must be taken as low heat may be generated at the handle.

⚠ WARNING! Risk of electric shock! Do not

immerse the product in water or other liquids. Never hold the product under running water.

⚠ WARNING! Risk of electric shock! Neve

damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

■ The product is not to be used if it has been dropped, if there are visible signs of damage.

■ The product is powered at all times while it is connected to the power supply.

Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.

■ Regularly check the power plug and the power cord for damages. If the power cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames.

■ Lay cords in such a way that they may not be tripped over or otherwise damaged.

The product is not intended to be operated by means of an external timer or separate remote-control system.

■ The temperature of accessible surfaces may be high when the product is operating.

Operation

■ The product must not be left unattended while it is connected to the supply mains.

- Do not move the product while it is in operation.

- Do not place the product on hot plates (gas, electric, coal cooking range etc.). Operate the product on a level, stable, clean, heat-resistant and dry surface.

- Do not cover the product while it is in use or shortly after use, when it is still hot.

■ Make sure that the power cord is not pinched by the plates or touches the rim of the plates.

The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A.

Cleaning and storage

⚠ WARNING! Risk of

injury! Disconnect the product from the power supply before cleaning work and when not in use.

- Do not store the hot product in a cupboard or in the packaging.

- Do not pull the power plug out of the electrical outlet by the power cord.

■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.

■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.

■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

■ Refer to the chapter "Cleaning and care" for instructions on how to clean the product.

Before first use

NOTE: The first few times the product is heated up, a faint odour may be present. This is harmless and disappears after a short time. Discard the first set of waffles.

1. Remove the packaging. Check if all parts are complete.

2. Clean the product (see the "Cleaning and care" section).

☐ During production, some parts are covered with a thin oil film for their protection. Before first use, operate the product without any batter on the maximum browning level for 5 minutes. Doing so will make all potential residues evaporate.

☐ Ensure that there is sufficient ventilation in the work area.

Operation

☐ Preparation: Grease the upper and lower plates 4 with suitable cooking oil. ■ The off mode is selected by turning the product off.

Turning on/off

NOTE: During operation, the green indicator 2 goes on and off from time to time. This indicates that the product is reheating up to the baking temperature.

□ Turning the product on: Connect the power plug 6 to a suitable socket outlet. The red indicator 2 lights up.

☐ Turning the product off: Remove the power plug 6 from the socket outlet after each use.

Light indicators	Status
Red indicator off & green indicator off	Product off

Light indicators	Status
Red indicator on & green indicator off	Product is preheating/reheating.
Red indicator on & green indicator on	The optimum temperature has been reached

Browning level

NOTE: If you are unsure, begin at a medium browning level. Adjust the browning level for the next waffles.

Depending on your taste, you can adjust the degree of browning of the waffles.

☐ Turn the browning level control 3 to the desired level.

- MIN: Low browning - MAX: Strong browning

Baking waffles

i NOTES:

While the waffles are baking, the green indicator 2 will turn off and on again. This is to regulate the required operating temperature.

The baking process takes approx. 4 minutes.

☐ Grease the upper and lower plates 4 with suitable cooking oil.

☐ Close the product while preheating.

☐ Do not overfill the lower plates 4 with batter.

☐ Optional - Open the product after approx. 4 minutes of baking to check the baking process. Do not open the product after less than 4 minutes, otherwise the waffles may tear.

1. Turn the browning level control 3 to the desired level.

2. Preheat until the green indicator 2 lights up.

3. Open the product.

4. Use a wooden or heat-resistant plastic ladle to pour batter onto the lower plates 4 . Do not use metal ladles, as this could damage the non-stick surface of the plates.

5. Close the product. The batter is cooked now.

6. Wait approx. 4 minutes until the waffles are ready baked.

7. Removing waffles: Use a plastic/wooden spatula (or other suitable non-metallic tools) to avoid damaging the product's non-stick coating.

8. When cooking is complete: Disconnect the power plug 6 from the socket outlet.

- Recipes

i NOTES:

■ The recipes are for reference only.

□ Adjust the ingredients, browning level and baking time to suit your taste.

Overview

Recipe	Servings	Preparation time
Cocoa waffles 2	approx. 20 min
Buttermilk waffles 2 approx.	20 min
Lemon waffles 2	approx. 20 min
Basic waffles	2 approx. 20 min
Egg-free waffles 2 approx.	20 min

Cocoa waffles

100 g	All-purpose flour
140 g	Sugar
30 g	Cocoa powder
140 g	Butter (melted)
2	Eggs
60 ml	Milk

1. Preheat the product.
2. Mix flour, sugar, cocoa powder, melted butter and eggs. Beat the mixture until stiff.
3. Add milk to the mixture. Stir until all ingredients are well mixed. Do not over-mix.
4. Bake waffles until done.

- Buttermilk waffles

180 g	All-purpose flour
4 g	Baking powder
4 g	Baking soda
2 g	Salt
2	Eggs (beaten)
240 ml	Buttermilk
40 ml	Vegetable oil
2 g	Vanilla (optional)

1. Combine flour, baking powder, baking soda, and salt
2. In a separate bowl, combine buttermilk, oil, eggs, and (optionally) vanilla.
3. Preheat the product.
4. Add wet ingredients to dry ingredients. Stir until all ingredients are well mixed. Do not over-mix.
5. Bake waffles until done.

- Lemon waffles

150 g	All-purpose flour
30 g	Sugar
2 g	Baking powder
2 g	Salt
4	Large eggs (separated)
120 ml	Milk
30 ml	Melted butter
15 g	Fresh lemon juiceGrated peel of 1 entire lemon

1. Combine egg yolks, sugar, and salt.
2. Blend in milk, lemon juice, lemon peel, and butter. Beat well.
3. Add flour and baking powder.
4. Preheat the product.
5. Beat egg whites until stiff. Fold into mixture.
6. Bake waffles until done.

Basic waffles

210 g All-purpose flour

90 g Sugar

8 g Baking powder

2 g Salt

3 Eggs (separated)

210 ml Milk

100 g Butter (melted)

1 packet Vanilla sugar

1. Mix all dry ingredients.
2. Beat egg yolks well. Stir in milk, butter and vanilla sugar. Stir into dry ingredients.
3. Preheat the product.
4. Beat egg whites until stiff. Fold into mixture.
5. Bake waffles until done.

Egg-free waffles

120 g All-purpose flour

30 g Wheat flour

30 g Sugar

8 g Baking powder

2 g Salt

30 ml Canola oil

150 ml Cool water

1. Mix all dry ingredients.
2. Preheat the product.
3. Make a little hole in the middle of the mixture. Pour in water and then oil.
4. Stir until all ingredients are well mixed.
5. Bake waffles until done.

● Cleaning and care

⚠️ DANGER! Risk of electric shock! Before cleaning: Always disconnect the product from the wall outlet.

CAUTION! Hot surface! Do not clean the product right after operation. Let the product cool first.

WARNING! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

i NOTES:

□ Clean the product right after it has cooled. Once the food residues have dried, they are not easy to remove.
☐ Do not use any abrasive, aggressive cleaners or hard brushes to clean the product or its accessories.
☐ Thoroughly dry the product before using it again.

Part	Cleaning method
Housing	□ Wipe down the housing with a slightly damp cloth. Use a mild detergent, if necessary. □ Do not let any water or other liquids enter the product interior.
Plates 4	□ Removing fat and liquids: Use a piece of kitchen paper. □ Removing stuck-on burnt residues: Use a wooden spatula or small wooden skewers. □ Wipe the plates with a slightly damp cloth and a mild detergent.

● Troubleshooting

Problem	Solution
The product is not working.	□ Connect the power plug 6 to an appropriate socket outlet.
The waffles are too dark.	□ Decrease the browning level.□ Shorten the baking time.
The waffles are too light.	□ Increase the browning level.□ Extend the baking time.
The finished waffles are difficult to remove from the product.	□ Lightly grease the plates 4 before baking.□ Try using a different batter recipe.

Storage

CAUTION! Hot surface! Do not store the product right after operation. Let the product cool fi rst.

□ Clean the product before storage.
☐ Wind the power cord 6 on the cord rewind 5.
☐ Store the product in the original packaging when it is not in use.
☐ Store the product at a dry location out of the reach of children.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98:composite materials.

Product:

Two identical icon-based diagrams showing a document with arrows and a trash bin, each containing a text box with Chinese characters.

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful

life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 485252_2501) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

Two identical icons representing food delivery or storage, with Chinese text and symbols.

⚠ WAARSCHUWING! Verwondingsgevaar!

Two identical icon-based diagrams showing a person reading a document and a shopping cart with a coffee cup, likely representing online shopping or food delivery.

Two identical icon-based diagrams showing a person reading a document and a shopping cart with a 'P' symbol, likely representing online shopping or e-commerce.

Two identical icons with Chinese characters and symbols, likely representing food delivery or transportation modes.

Two identical icons representing food delivery or storage, with Chinese text and symbols.

Two identical icons representing food delivery or storage, with speech bubbles and arrows indicating workflow or process steps.

Two identical icons with Chinese text and symbols, likely representing food delivery or transportation services.

Two identical icons representing food delivery or transportation modes, each with a stylized icon and Chinese text.
