Product Type	Waffle Maker
Model	SWEW 750 A2
Brand	SilverCrest
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	750 W
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.5 kg
Non-stick Coating	Yes
Temperature Control	Adjustable thermostat
Indicator Lights	Power and ready lights
Cooking Surface	Round, deep pockets
Number of Waffles per Batch	1
Cool-touch Handle	Yes
Cord Storage	Wrap-around base
Non-slip Feet	Yes
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Overheat protection, auto-off
Spare Parts Availability	Through SilverCrest service
Repairability Index	Not rated
Included Accessories	User manual only

Frequently Asked Questions - SWEW 750 A2 SILVERCREST

How do I use the SilverCrest SWEW 750 A2 for the first time?

Before first use, wipe the plates with a damp cloth. Heat the waffle maker for about 10 minutes without batter to burn off any residues. Let it cool, then wipe again.

What is the power consumption of the SWEW 750 A2?

It has a power consumption of 750 W and operates on 220-240 V ~ 50/60 Hz.

Can I adjust the temperature?

Yes, the waffle maker has an adjustable thermostat to control the browning level. Turn the knob to your desired setting.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth. Do not immerse in water or use abrasive cleaners.

Does it have an automatic shut-off?

Yes, the SWEW 750 A2 includes overheat protection and an automatic shut-off feature for safety.

What type of waffle does it make?

It makes one round, deep-pocket Belgian-style waffle per batch.

Is the handle cool to the touch?

Yes, it features a cool-touch handle for safe opening during use.

Can I store the cord conveniently?

Yes, the base has a wrap-around cord storage feature to keep it tidy.

Where can I find spare parts?

Spare parts are available through SilverCrest customer service or authorized service centers. Check the manual for contact details.

What should I do if the waffle maker smokes?

First-time use may cause slight smoke from manufacturing residues. If it persists, unplug and allow to cool. Check for any stuck batter. If problem continues, contact SilverCrest support.

USER MANUAL SWEW 750 A2 SILVERCREST

WAFFLE MAKER SWEW 750 A2

GB IE NI CY

WAFFLE MAKER

Operating instructions

DE AT CH

WAFFLE IRON

Operating instructions

GR CY

WAFFLE MAKER

Operating instructions

IAN 278964

GB IE NI CY

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GR CY

GB/IE/NI/CY Operating instructions Page 1

Index

Introduction 2

Copyright. 2

Limited liability 2

Intended use 2

Items supplied 3

Disposal of the packaging.... 3

Appliance description 4

Technical data 4

Safety instructions 5

Exchanging the removable plates....7

Placement of the removable plates 7

Extracting the removable plate 8

Commissioning 8

Operation 9

Making nut waffles/patterned waffles....9

Making waffles 10

Cleaning....11

Storage 11

Troubleshooting 12

Recipes 12

Waffles 12

Chocolate waffles 13

Basic batter for nut waffles/patterned waffles.... 13

Sweet batter for nut waffles/patterned waffles 14

Savoury batter for nut waffles/patterned waffles 15

Disposal 15

Kompernass Handels GmbH warranty 16

Service....17

Importer....17

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high quality product. These operating instructions are a component of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use this appliance only as described and only for the purposes indicated. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limited liability

All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

This appliance is exclusively intended for making waffles, nut waffles and patterned waffles.

This appliance is intended exclusively for use in domestic households. Do not use the appliance for commercial applications!

Items supplied

The appliance is delivered with the following components as standard:

• Waffle Maker
• 2 removable plates "Waffles"
• 2 removable plates "Nut waffles"
• 2 removable plates "Patterned waffles"
• Operating instructions

1) Remove the appliance, the removable plates, and the operating instructions from the carton.

2) Remove all packing material.

NOTE

▶ Check the contents to ensure everything is present and for visible damage.

▶ If the delivery is not complete or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section Service).

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

NOTE

If possible, preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can pack the appliance ideally for its return.

Appliance description

Illustration A:

1 Locking device ② Heating coil 3 Lower mountings ④ Heating coil 5 Locking devices 6 Rear mountings

Illustration B (Patterned waffles):

⑦ Upper latches 8 Lower and rear latches 9 Front latches

Illustration C (Waffle plates):

⑦ Upper latches 8 Lower and rear latches 9 Front latches

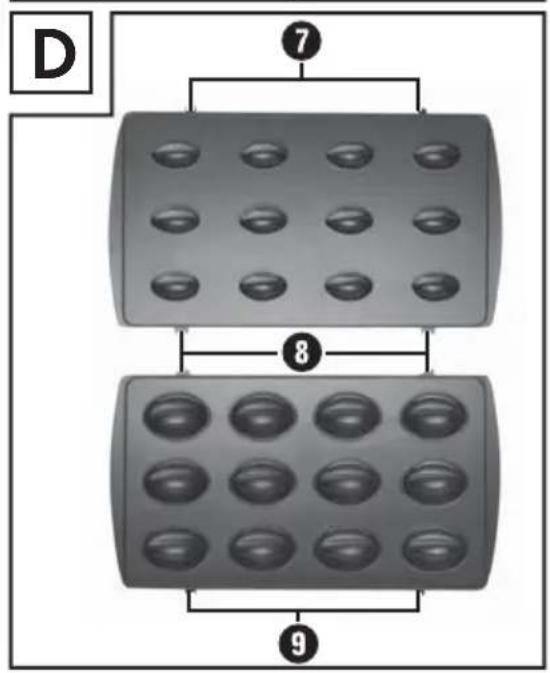

Illustration D (Nut waffles):

⑦ Upper latches 8 Lower and rear latches 9 Front latches

Illustration E:

⑩ Lid locking device ⑪ Control lamp "Power" ⑫ Control lamp "Ready" 13 Cable retainer

Technical data

Voltage 220 - 240 V ~, 50 Hz
Power consumption 750 W
	The coating of the removable plates is food-safe.

Safety instructions

WARNING! RISK OF ELECTRIC SHOCK!

• Arrange for damaged power cables and/or plugs to be replaced as soon as possible by a qualified specialist or by Customer Services. ▶ Use the appliance only in dry indoor areas, not outdoors.

NEVER submerse the appliance in water or other liquids! If you do, you could receive a potentially fatal electric shock.

• When cleaning, ensure that water cannot permeate into the appliance. NEVER clean the appliance under running water.
• Ensure that the appliance can never come into contact with water. NEVER use the appliance adjacent to water or close to vessels containing liquids. ▶ Ensure that the power cable never gets wet or moist when the appliance is in use. Lay the cable such that it cannot be clamped or otherwise damaged. ▶ After use, disconnect the power cable from the mains power socket to turn off the unit. ▶ NEVER open the housing of the appliance.

WARNING! RISK OF INJURY!

This appliance may be used by children of at least 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used, and they have understood the potential risks. ▶ Children should not play with the appliance.

WARNING! RISK OF INJURY!

• Cleaning and user maintenance should not be performed by children, unless they are older than 8 years of age and are supervised. Children younger than 8 years of age are to be kept away from the appliance and the power cable. The appliance can become hot when it is in use. Therefore, only touch the handles. ▶ Let the appliance cool down completely before cleaning it, exchanging the removable plates or putting it into storage. ▶ Be careful when taking out the prepared food. Both the appliance and the food will be extremely hot. ▶ Use the appliance only on a stable, non-slippery and level surface.
• Do not use an external timing switch or a separate remote control system to operate the appliance.

Attention! Hot surfaces!

CAUTION - RISK OF FIRE!

This appliance may not be used in close vicinity to flammable material. ▶ Do not leave the appliance unattended at any time when it is in use. ▶ Operate the appliance only on heat resistant surface. ▶ Do not operate the appliance unsupervised.

CAUTION - PROPERTY DAMAGE!

To avoid damaging the non-stick coating of the appliance, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement. ▶ Do not use abrasive cleansers or sharp objects for cleaning.

Exchanging the removable plates

You can choose between 3 different removable plates:

• "Nut waffles" removable plates: for preparing hollow nut waffle halves, which can then be filled and fitted together.
• "Waffles" removable plates: for making waffles.
• "Patterned waffles" removable plates: for preparing hollow patterned waffle halves which can then be filled and fitted together.

WARNING! RISK OF ELECTRIC SHOCK

▶ Disconnect the plug from the mains power socket before exchanging the removable plates.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before exchanging the removable plates! Risk of Burns!

NOTE

When using the "nut waffles" and "patterned waffles" removable plates, please always ensure that the top removable plate is installed in the top section of the appliance, and that the bottom removable plate is installed in the bottom section of the appliance. Use the illustrations in the fold-out page for orientation.

Placement of the removable plates

1) Open the waffle iron by releasing the lid locking device ⑩ and lifting the lid. 2) Upper removable plate: First slide the lower latches ⑧ into the lower mountings ③. 3) Now press the upper latches ⑦ onto the locking devices ①, so that the upper latches ⑦ spring under the locking devices ① and the removable plate is firmly seated. 4) Lower removable plate: First slide the rear latches ⑧ into the rear mountings ⑥. 5) Now press the front latches ⑨ onto the locking devices ⑤ so that the latches ⑨ spring under the locking devices ⑤ and the removable plate is firmly seated. 6) Press firmly once in the centre of the lower removable plate to ensure that it is securely inserted.

Extracting the removable plate

1) Upper removable plate: Slide the locking devices ① upwards and simultaneously tilt the removable plate forward so that you can lift it out from underneath the lower mountings ③. 2) Lower removable plate: Pull the locking devices ⑤ forward and lift the removable plate so that you can pull it out from the rear mountings ⑥.

Commissioning

Carry out the following procedure with each of the 3 pairs of removable plates.

Smear the non-stick coating on the removable plates with oil suitable for cooking.

WARNING! RISK OF INJURY!

Let the appliance cool down before exchanging the removable plates! Risk of burns!

Install a pair of removable plates into the appliance.

Insert the plug into a mains power socket.

Close the appliance and lock it with the lid locking device ⑩.

Let the appliance heat up for about 10 minutes.

NOTICE

With the first usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a short time. Provide for sufficient ventilation. For example, open a window.

Disconnect the plug and allow the appliance to cool down.

Clean the removable plates and the appliance as described in the chapter "Cleaning".

The appliance is now ready for use.

Operation

Making nut waffles/patterned waffles

1) Select the "nut waffles" or "patterned waffles" removable plates and insert them. Always ensure that you insert the top removable plate in the top half of the appliance and the bottom removable plate in the bottom half.

CAUTION - PROPERTY DAMAGE!

Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device 10.

3) Insert the plug into a mains power socket. The orange "Power" indicator lamp ⑪ illuminates.

4) As soon as the appliance has heated up, the green "Ready" indicator lamp 12 illuminates.

5) Undo the lid locking device 10, open the lid and put approximately 1/2 tsp. of batter (see "Recipes" chapter for recipes for nut waffles and patterned waffles) into each of the moulds/patterns in the bottom removable plates.

NOTE

When using patterned waffles, ensure that the batter has been distributed across all parts of the pattern. Otherwise, parts of the pattern may subsequently be missing.

6) Close the lid and lock it with the lid locking device ⑩.

CAUTION - PROPERTY DAMAGE!

To avoid damaging the non-stick coating of the nut waffles/patterned waffles, always remove your waffles with a plastic or wooden spoon or some other suitable, non-metallic implement.

7) The nut waffles/patterned waffles are ready after about 3 - 4 minutes. Undo the lid locking device 10, open the cover and remove the nut waffles/patterned waffles.

8) If you have finished preparing your nut waffles/patterned waffles, please disconnect the mains plug from the mains socket.

9) Allow the nut waffles/patterned waffles to cool down a little and trim any excess from the edge of the nut waffles/patterned waffles with a knife.

10) Fill the nut waffles/patterned waffles with the required filling. Spread a little of the filling towards the edge of the nut waffles/patterned waffles and place the matching counterpart on top so that both halves stick together, creating a hollow form.

Making waffles

1) Select the "waffles" removable plates and install them.

CAUTION - PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device 10.

3) Insert the plug into a mains power socket. The orange "Power" indicator lamp ⑪ illuminates.

4) As soon as the appliance has heated up, the green "Ready" indicator lamp 12 illuminates.

5) Open the lid and place about 2 - 3 large tablespoons of batter into the centre of each of the two waffle baking surfaces on the lower removable plate.

6) Close the lid and lock it with the lid locking device ⑩.

CAUTION - PROPERTY DAMAGE!

To avoid damaging the non-stick coating of the appliance, always remove your waffles with a plastic or wooden spatula or some other suitable, non-metallic implement.

7) The waffles are ready after about 5 minutes. This time may vary depending on the type of batter used and personal preferences. Undo the lid locking device ⑩, open the cover and remove the nut waffles/patterned waffles.

8) If you have finished preparing your waffles, disconnect the plug from the mains power socket.

Cleaning

WARNING! RISK OF ELECTRIC SHOCK

Disconnect the plug from the mains power socket before cleaning the appliance.

NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electric shock.

WARNING! RISK OF INJURY!

Let the appliance cool down before cleaning it. Risk of Burns!

CAUTION - PROPERTY DAMAGE!

Do not use aggressive or abrasive cleaning agents. These can damage the upper surfaces of the appliance.

Under no circumstances should you clean the removable grill plates or the appliance in the dishwasher!

NOTICE

Do not wait too long to start with the cleaning. Wait until the appliance has cooled down sufficiently that you can touch it without the risk of being burnt. Then the food particles can be removed more easily.

Clean the appliance housing only with a dry or lightly moistened cloth.

Detach the removable plates and clean them in warm water with a little detergent added.

If fats or food should be under the removable plates and in the space in which the heating coils ② ④ are located, proceed as follows:

- Dab the fats or other liquids with a piece of kitchen paper. - Remove stuck-on burnt residues with a wooden spatula or small wooden skewers.

Dry all parts well before re-use.

Storage

Wind the cable around the cable retainer 13.

Store the appliance in a dry location.

Clean the appliance as described in the chapter "Cleaning".

Troubleshooting

Problem Cause Remedy
The appliance does not function.	The plug is not inserted into a mains power socket.	Connect the power cable into a mains power socket.
	The appliance is defective.	In this case, contact Customer Services.
The nut waffl es/ patterned waffl es / waffl es are too dark.	The nut waffl es/patterned waffl es/waffl es were in the appliance for too long.	Remove the nut waffl es/ patterned waffl es/waffl es sooner.

Recipes

Waffles

Ingredients:

250 g margarine or butter, approx. 200 g sugar, 2 packets of vanilla sugar, 5 eggs, 500 g flour, 2 tsp of baking powder, 350-400 ml milk

1) Whisk the eggs until foamy. 2) Add the sugar and vanilla sugar, then mix everything together. 3) Then add the melted butter or margarine. 4) Blend in the baking powder. 5) Under constant stirring, gradually add the milk and flour alternately. 6) Whisk everything at maximum speed with a hand blender until a smooth batter mixture is produced.

Chocolate waffles

Ingredients:

150 g soft butter, 3 eggs, 150 g sugar, 100 g grated white chocolate, 250 g flour, 1 tsp cinnamon, 50 ml milk

1) Whisk the eggs until foamy. 2) Add the sugar and cinnamon, then mix everything together. 3) Then add the melted butter or margarine. 4) Under constant stirring, gradually add the milk and flour alternately. 5) Now fold in the grated chocolate. 6) Whisk everything at maximum speed with a hand blender until a smooth batter mixture is produced.

Basic batter for nut waffles/patterned waffles Ingredients:

400 g flour, 100 g sugar, 100 g soft butter, 2 eggs, 100 ml milk, 1/4 tsp baking powder

1) Whisk the butter, the sugar and the eggs. 2) Mix the flour and baking powder together and add to the mixture. 3) Now add the milk. 4) Whisk everything at maximum speed with a hand blender.

NOTE

The nut waffles/patterned waffles can be filled with a wide variety of different ingredients: such as jam, icing, nut-nougat spreads, custard, yoghurt, apple purée, caramel, cream or, for savoury fillings, cream cheese, herb curd cheese, aioli, tzatziki, melted Gouda cheese etc. ▶ You can also cover the nut waffles/patterned waffles with chocolate glaze or icing, or sprinkle icing sugar on them.

Sweet batter for nut waffles/patterned waffles Ingredients:

◆ 500 g flour ◆ 200 g sugar ◆ 200 g Butter or margarine ◆ 200 g sour cream ◆ 3 eggs ◆ 1 tsp of baking powder ◆ 1 packets of vanilla sugar

1) Separate the white and the yolk of two eggs. The yolk is not required. 2) Now whisk the butter/margarine, the sugar, the vanilla sugar, the 2 egg whites and one whole egg (yolk and white). 3) Stir in the sour cream. 4) Mix the flour and baking powder together and add to the mixture. 5) Whisk everything at maximum speed with a hand blender.

NOTE

The sweet nut waffle/patterned waffles can be filled with a wide variety of different ingredients: such as jam, icing, nut-nougat spread, custard, yoghurt, apple purée, caramel or cream. ▶ You can also cover the nut waffles/patterned waffles with chocolate glaze or icing, or sprinkle icing sugar on them.

Savoury batter for nut waffles/patterned waffles Ingredients:

◆ 200 g flour ◆ 125 g margarine ◆ 1 egg ♦ ¼ tsp baking powder ◆ 1 pinch sugar ◆ 1 pinch of salt

1) Whisk the margarine, the sugar, the egg and the salt. 2) Mix the flour and baking powder together and add this. 3) Whisk everything at maximum speed with a hand blender.

NOTE

The savoury nut waffle/patterned waffles can be filled with a wide variety of different ingredients: such as cream cheese, herb curd cheese, aioli, tzatziki, melted Gouda cheese etc..

Disposal

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU. (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN 278964

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Contents

Introduction 20

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table of Contents

Introduction 38

Copyright 38

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
