USER MANUAL Movo Beam 100 Cameo

CONNECTIONS, CONTROLS AND INDICATORS 5

OPERATION 6-10 DIMMER CURVES 10

SETTING UP AND MOUNTING 11

DMX TECHNOLOGY 12 TECHNICAL SPECIFICATIONS 13

MANUFACTURER´S DECLARATIONS 13

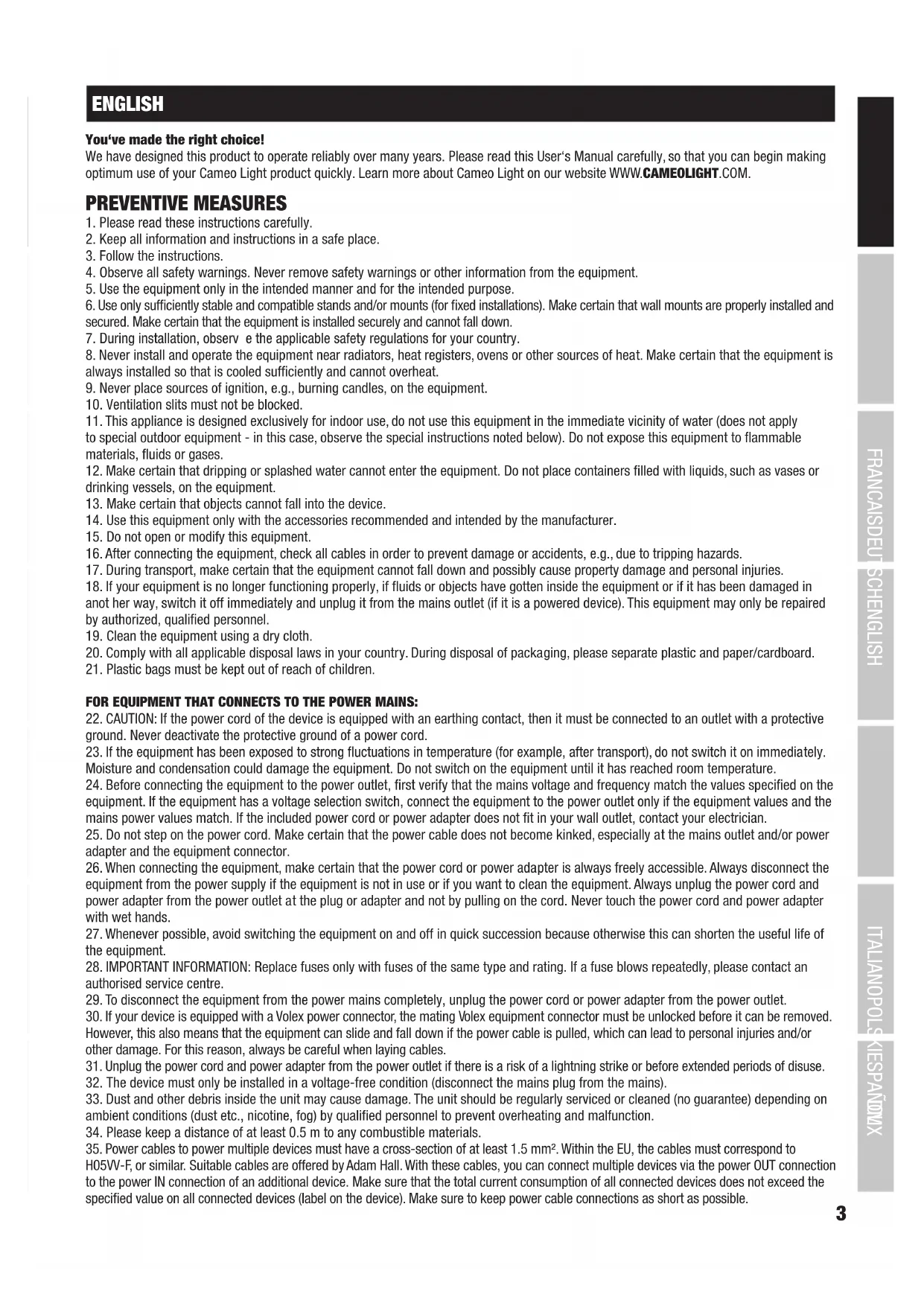

DMX ENGLISH You‘ve made the right choice! We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM. PREVENTIVE MEASURES

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases. 12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards. 17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries. 18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS: 22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord. 23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature. 24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician. 25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector. 26. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment. 28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre. 29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet. 30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables. 31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).

33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.

34. Please keep a distance of at least 0.5 m to any combustible materials.

35. Power cables to power multiple devices must have a cross-section of at least 1.5 mm². Within the EU, the cables must correspond to H05VV-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT connection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the specified value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.4 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device. CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS! This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS! 1. The product has been developed for professional use in the field of event technology and is not suitable as household lighting.

2. Do not stare, even temporarily, directly into the light beam.

3. Do not look at the beam directly with optical instruments such as magnifiers.

4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where strobes are used. INTRODUCTION The Cameo MovoBeam 100 is an ultra-fast moving head with unlimited pan and tilt movement, 16-bit resolution and a 3,000 Hz refresh rate. A 60 Watt COB Quad LED produces rich RGBW colours, fresh pastel colours and vibrant shades of white with a 5.5° beam and 8.5° field angle and an illuminance of 157,700 lux. CONTROL FUNCTIONS: 4-channel, 15-channel, 35-channel DMX control Master / Slave mode Standalone Functions FEATURES: 1 x high power 60 W COB RGBW LED, RGBW colour mixing, 6° beam angle, 2 high-speed motors for Pan and Tilt, endless Pan and Tilt move- ment, suitable for TV and video thanks to its 3,000 Hz refresh rate, DMX-512 control, Master/Slave operation, Standalone programs, Operating voltage 100 V - 240 V AC / 50 - 60 Hz, Power consumption 130 W, omega mounting bracket includedITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

CONNECTIONS, CONTROLS AND INDICATORS

POWER IN Blue power input socket. Operating voltage 100 - 240 V AC / 50 - 60 Hz. Connection via the included power cable.

POWER OUT White power output socket. Used to supply power to additional CAMEO spotlights. Make sure that the total current consumption in amperes (A) of all connected devices does not exceed the specified value on the device.

DMX OUT 3-pin female XLR socket for looping through the DMX control signal.

Displays the operating mode and other system settings.

CONTROL BUTTONS MODE Pressing MODE will take you to the selection menu for system settings. Repeatedly pressing MODE takes you back to the main display. UP and DOWN Selecting the individual menu items in the selection menu for the system settings (DMX address, operating mode, etc.) and sub-menus. These panels allow you to change the value of a menu item as required, such as the DMX address. ENTER Pressing ENTER will take you to the selection menu for the sub-menus to adjust values. Confirm the value changes by pressing ENTER again.6 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX OPERATION NOTE: When the spotlight is properly connected to the mains, “Welcome to Cameo”, the model name and software version appear successively on the display during the start-up process and the motor reset. After this step, the spot is ready for operation and the operating mode that was previously selected is activated.

MAIN DISPLAY DMX MODE

In the upper line of the display, the DMX mode (DMX 4 Ch, 15 Ch, 35 Ch) is displayed and the DMX start address is prominently shown in the centre (for example DMX 35 Ch and ADDRESS 001). As soon as the DMX signal is interrupted, the display starts flashing; if the DMX signal is present again, the display stops flashing. DMX 35Ch

In the upper line of the display, the preset DMX mode is displayed and “SLAVE” is prominently shown in the centre. As soon as the control signal is interrupted, the display starts flashing; if the control signal is present again, the display stops flashing. DMX 35Ch SLAVE Operating Mode

MAIN DISPLAY STANDALONE MODE

In the upper line of the display, the preset DMX mode is displayed and the currently activated Auto mode (AUTO1 - AUTO8), or the static mode STATIC, is shown in the centre. DMX 35Ch AUTO1 Operating Mode DMX 35Ch STATIC Operating Mode SETTING THE DMX START ADDRESS (ADDRESS) Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “ADDRESS” (coloured background) and confirm with ENTER. This is followed by the display of the menu item “Set DMX Address”. Press ENTER again to select the DMX start address as desired by using the UP and DOWN buttons. If the start address is changed, the address colour changes to red. Confirm with ENTER and press MODE twice to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. DMX 35 Ch ADDRESS 001

SETTING THE DMX MODE (DMX Mode) Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “MODE” (coloured background) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “DMX Mode” sub-menu item and confirm by pressing ENTER. Using UP and DOWN, select the desired DMX mode (DMX 4 Ch, DMX 15 Ch, DMX 35 Ch) and confirm with ENTER. Press MODE twice to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. You will find tables with the channels of the different DMX modes in this manual under DMX CONTROL. DMX 35 Ch ADDRESS 001

DMX SETTING THE SLAVE MODE (Slave) Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “MODE” (coloured background) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Slave” sub-menu item, confirm by pressing ENTER and press MODE twice to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. Connect the slave and the master unit (same model) with a DMX cable and activate one of the standalone modes (Auto, Static) on the master unit. Now the slave unit follows the master unit. DMX 35 Ch ADDRESS 001

Setting System Info DMX 35 Ch DMX Mode Slave Yes Auto Static SETTING THE AUTOMATIC CONTROL MODE (Auto) Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “MODE” (coloured background) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Auto” sub-menu item and confirm by pressing ENTER. Using UP and DOWN, you can now select between two additional sub-menu items “Auto Prog” and “Auto Speed”. Select “Auto Prog”, press ENTER and select one of the 8 different auto programs (Prog1 - Prog8) and confirm with ENTER. To set the running speed of the program, press the UP and DOWN buttons to select “Auto Speed”, confirm with ENTER and then, using the UP and DOWN buttons, set the desired speed between 000 and 255 (000 = minimum speed, 255 = maximum speed). Confirm with ENTER and press MODE three times to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. DMX 35 Ch ADDRESS 001 MODE xxx Setting System Info DMX 35 Ch DMX Mode Slave Auto Static DMX 35 Ch Auto Progx Auto Speed xxx DMX 35 Ch Prog1 Yes

STATIC MODE (Static) In the same way as with a DMX control unit, the static mode allows you to adjust all functions such as Pan, Tilt, Dimmer and Strobe directly on the device with values from 000 to 255. Thus, an individual scene can be created without an additional DMX controller. Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Static” (coloured background) and confirm with ENTER. Use the UP and DOWN buttons to select the function of the Moving Head that you wish to edit and confirm by pressing ENTER. The value (pan position, dimmer, etc., see list) of the corresponding function can now be set from 000 to 255 and press ENTER to confirm the input. Once all of the parameters have been set as desired, press MODE three times to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. DMX 35 Ch ADDRESS 001 MODE xxx Setting System Info DMX 35 Ch DMX Mode Slave Auto Static DMX 35 Ch Pan xxx

006 - 010 Strobe closed

103 - 127 Strobe Break Effect, 5s…..1s (Short burst with break)

Colour Ring Macro Speed 000 - 255 slow -> fast DEVICE SETTINGS (Setting) Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Setting" (coloured background) and confirm with ENTER. You will then be taken to the sub-menu to set the sub-menu items (see list). The main display is automatically activated if no input is made within about 30 seconds. DMX 35 Ch ADDRESS 001 MODE xxx Setting System Info DMX 35 Ch Display Rev xxx

Reset Setting Display Rev = Flip Display ON = Rotation of the display by 180° (e.g. overhead installation) OFF = no rotation of the display Display = Display lighting ON = permanently on OFF = deactivation after approx. 1 minutes of inactivity DMX Fail = Operation status with DMX signal interruption Hold = last command is held Blackout = activates Blackout Auto = activates the AUTO mode Dimmer Curve = Dimmer Curve Linear = The light intensity increases linearly with the DMX value. Exp = Adjustment of the light intensity is finer in the lower DMX value range and coarser in the upper DMX value range. Log = Adjustment of the light intensity is coarser in the lower DMX value range and finer in the upper DMX value range. S Curve = Adjustment of the light intensity is finer in the lower and upper DMX value ranges and coarser in the middle DMX value range.10 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX Pan Rev = Pan Reverse Normal = no reversal of the Pan direction Reverse = Reversal of the Pan direction Tilt Rev = Tilt Reverse Normal = no reversal of the Tilt direction Reverse = Reversal of the Tilt direction Feedback = position correction ON = activates automatic position correction OFF = deactivates automatic position correction Fan Control = Fan Speed Regular = maximum brightness at normal fan function Silent = if necessary, reduced brightness with silent fan Mov Blackout = Automatic blackout during head movement ON = Blackout during head movement OFF = no blackout during head movement Calibrate = Correction of the head position of Pan and Tilt Pan Position correction value -128 to +127 Tilt Position correction value -128 to +127 TEST = Function test OFF = stops the function test ON = step-by-step function test of LEDs and motors (approx. 30 seconds) Reset = Reset Pan&Tilt = Resetting of the Pan & Tilt motors All = Resetting all motors and settings Light intensity Light intensity Light intensity Light intensity DMX value linear exponential logarithmic S-curve DMX value DMX value DMX value DIMMER CURVES DEVICE INFORMATION (System Info) Pressing MODE will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "System Info" (coloured background) and confirm with ENTER. You will then be taken to the sub-menu to display the device information. Use the UP and DOWN panels again to select the desired sub-menu item and then press ENTER to retrieve the information. DMX 35 Ch ADDRESS 001 MODE xxx Setting System Info DMX 35 Ch Software Ver VR.xx Temp info Time info System Info Software Ver = Displays the device software version VR. xx Temp info = Temperature display of the LED unit LED Temp xxC / xxF Temp Unit Celsius (= display in degrees Celsius) Fahrenheit (= display in degrees Fahrenheit) Time info = Operating time display Power on Displays the total operating time in hours Last Run Hrs Displays the operating time since the last operation Press the MODE button repeatedly to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.ITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

SETTING UP AND MOUNTING

Thanks to the integrated rubber feet, the spotlight can be placed in a suitable location on the stage floor etc. Mounting on a truss is performed using the supplied omega bracket (use only the original mounting bracket); secure the device with a suitable safety rope to the location (A). Important Notice: Overhead installation should only be carried out by trained personnel. A12 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor). DMX CONNECTION DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller). 2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units. The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables. DMX CABLES When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions. Pin Assignment DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used): DMX TERMINATORS (TERMINATING RESISTORS) To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt). 3-pin XLR connector with a terminating resistor: K3DMXT3 5-pin XLR connector with a terminating resistor: K3DMXT5 Pin Assignment 3-pin XLR connector: 5-pin XLR connector: DMX ADAPTER The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters. Pin Assignment DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020 Pins 4 and 5 are not used. Pin Assignment DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020 Pins 4 and 5 are not used. Shield

DMX TECHNICAL SPECIFICATIONS Model Name: CLMB100 Product Type: LED moving light Type: moving head Colour Spectrum: RGBW Number of LEDs: 1 LED Type: 60 W COB Refresh Rate: 3000 Hz Beam Angle: Beam 5.5°, Field 8.5° LED Colour Ring: 4 RGB segments DMX Input: 3-pin XLR male DMX Output: 3-pin XLR female DMX Mode: 4-channel, 15-channel, 35-channel DMX Functions: Pan/Tilt, Pan/Tilt fine, continuous Pan/Tilt, Auto programs, Strobe, RGBW, Colour Ring Standalone Functions: Pan/Tilt, Pan/Tilt fine, continuous Pan/Tilt, Auto programs, Strobe, Static Mode, Master/Slave Mode, Colour Ring PAN Angle: continuous TILT Angle: continuous Controllers: Mode, Enter, Up, Down Indicators: backlit graphic display Operating Voltage: 100 - 240 V AC / 50 - 60 Hz Power Consumption: 130 W Illuminance (@ 1 m): 157,700 lx Light Output: 1480 lm Power Connector: blue power input socket white power output socket Fuse: T2AL / 250 V (5 x 20 mm) Temperature (during operation): 5°C to 40°C Relative Humidity: < 80% non-condensing Housing Material: metal, ABS Housing Colour: black Housing Cooling: fan Dimensions (W x H x D, excluding bracket): 210 x 325 x 165 mm Weight: 6.5 kg Other Features: 1 m power cable with blue plug and omega mounting bracket included

MANUFACTURER´S DECLARATIONS

MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY

You can find our current warranty conditions and limitations of liability at: http://www.adamhall.com/media/shop/downloads/documents/ manufacturersdeclarations.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach / Email: [e-mail] / +49 (0)6081 / 9419-0. To enquire about the current declaration of conformity, please contact [e-mail].

CORRECT DISPOSAL OF THIS PRODUCT
