Product Type	LED wash projector for outdoor use
Brand	Cameo
Model	ZENIT Z120 G2 (CLZZ120G2)
Light Source	1 LED COB 120 W RGBW
Zoom Angle	7° - 55°
Luminous Flux	2240 lm (RGBW)
Illuminance at 1 m	67 500 lx (narrow beam)
Number of DMX Channels	3, 4, 5, 9, 10, 11 or 17 channels
Control Functions	DMX512, RDM, Master/Slave, Stand Alone (Auto, Static, Colour Macro, Tunable White, User Colour)
DMX Connectors	XLR 5-pin male/female IP65
Power Connectors	Power Twist IP65 (input and output, max. output 10 A)
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	180 W
Protection Rating	IP65
Operating Temperature	-15 °C to +45 °C
Housing Material	Metal, black
Dimensions (L x H x D, without bracket)	239 x 237 x 285 mm
Weight	8.5 kg
Mounting	Bracket with integrated 16 mm TV stud, omega bracket included, safety eye
Safety	Hot surface (up to 70 °C), do not look at the LED, minimum distance 0.5 m to flammable materials
Maintenance	Clean with a dry cloth
Repairability	No user-serviceable parts; repair by qualified personnel only

Frequently Asked Questions - ZENIT Z120 G2 Cameo

How to set the starting DMX address?

Press MODE to access the menu, select DMX Address with UP/DOWN, press ENTER, then set the desired address (001-xxx) and confirm.

What are the available DMX modes?

The DMX modes are: 3, 4, 5, 9, 10, 11 and 17 channels. Each mode offers different functions such as Dimmer, RGBW, Strobe, Zoom, etc.

How to use Stand Alone mode?

In the menu, select Stand Alone, then choose from Auto, Static, Colour Macro, Tunable White or User Colour. Each sub-mode allows you to adjust colors, brightness, zoom, etc.

What does the IP65 protection rating mean?

IP65 means the projector is fully protected against dust and resistant to water jets. It is suitable for outdoor use but is not submersible.

How to connect multiple projectors in Master/Slave mode?

Connect the units via a DMX cable. On the Master unit, activate a Stand Alone mode. On the slaves, set Slave in the menu and adjust the delay if necessary.

Can the control buttons be locked?

Yes, press UP and DOWN simultaneously for 5 seconds to lock. To unlock, repeat the same operation. Automatic locking is also available in the settings (Autolock).

How to adjust the color temperature in Stand Alone mode?

Select Tunable White in the Stand Alone menu. You can then adjust the dimmer, color temperature (CTC), and zoom using the UP/DOWN buttons.

What to do in case of DMX signal loss?

In the Settings menu, the DMX Fail option allows you to choose between Hold (keep last command) or Blackout (turn off).

How to clean the projector?

Use a dry, lint-free cloth. Never use liquid or abrasive products. Make sure the device is unplugged and cooled down before cleaning.

What are important safety precautions?

Never look directly at the LED (risk of eye injury). The surface can reach 70 °C – let it cool for 10 minutes after use. Install at least 0.5 m away from flammable materials. Use a safety cable when mounting overhead.

USER MANUAL ZENIT Z120 G2 Cameo

Black adjustable light bulb mounted on a black stand, with no visible text or symbols

ZENIT® Z120 G2

ZENIT Z120 G2 PROFESSIONAL ZOOM PAR IP65

CLZZ120G2

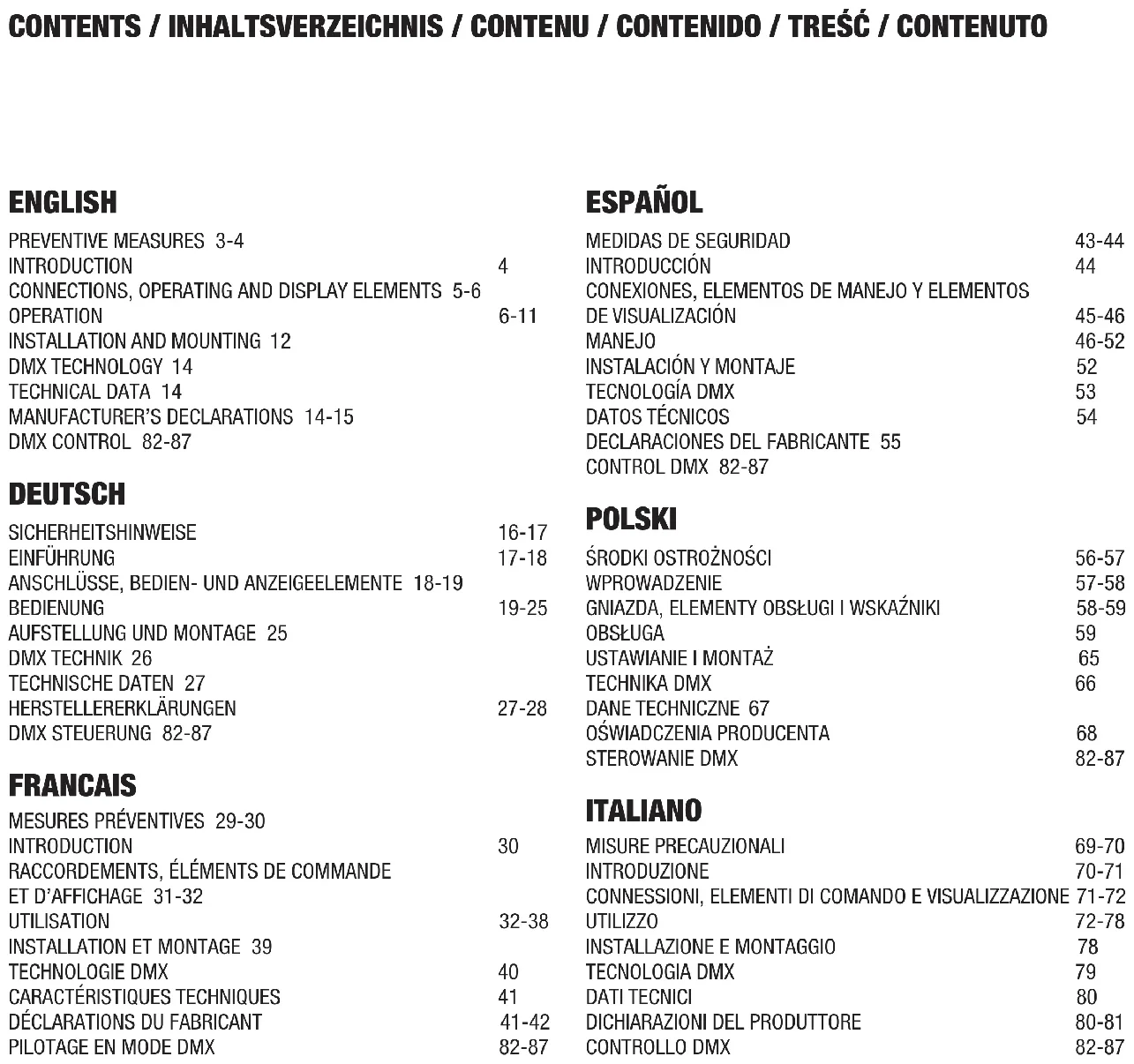

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

PREVENTIVE MEASURES 3-4

INTRODUCTION

4

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 5-6

OPERATION

6-11

INSTALLATION AND MOUNTING 12

DMX TECHNOLOGY 14

TECHNICAL DATA 14

MANUFACTURER'S DECLARATIONS 14-15

DMX CONTROL 82-87

DEUTSCH

SICHERHEITSHINWEISE

16-17

EINFÜHRUNG

17-18

We have designed this product to operate reliably over many years. Please read this User's Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.

PREVENTIVE MEASURES

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases.

12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.

17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.

18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.

5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

6. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.

7. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.

8. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.

9. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.

10. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

11. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).

12. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.

13. Please keep a distance of at least 0.5 m to any combustible materials.

14. Power cables to power multiple devices must have a cross-section of at least 1.5 mm ^2 . Within the EU, the cables must correspond to H05VV-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT connection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the specified value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.

CAUTION:

To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.

The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.

The warning triangle with exclamation mark indicates important operating and maintenance instructions.

Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device.

Warning! This device is designed for use below 2000 metres in altitude.

Warning! This product is not intended for use in tropical climates.

Caution! Intense LED light source! Risk of eye damage. Do not look into the light source.

CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS!

1. The product has been developed for professional use in the field of event technology and is not suitable as household lighting.
2. Do not stare, even temporarily, directly into the light beam.
3. Do not look at the beam directly with optical instruments such as magnifiers.
4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where strobes are used.

INTRODUCTION

OUTDOOR ZENIT ZOOM 120 G2

CLZZ120G2

CONTROL FUNCTIONS

3-channel, 4-channel, 5-channel 9-channel, 10-channel, 11-channel and 17-channel DMX functions

Master/Slave operation

Stand-alone functions

FEATURES

Outdoor spotlight with zoom function and a 120 W COB LED (RGBW). 7 DMX modes. DMX-512 control. Master/Slave operation. Stand-alone functions. Stand or mounting bracket and 16 mm TV spigot included. Omega bracket included. Operating voltage 100–240 V AC/50–60 Hz. Power consumption 180 W. IP65 protection rating.

The spotlights feature the RDM standard (remote device management). Remote device management allows the user to view status and configuration of RDM terminals via an RDM-capable controller.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

cameo® colours of light ZENIT® Z120 G2 cameo MODE ENTER UP DOWN POWER IN 100-240V 50/60Hz POWER OUT MAX POWER OUT: 10A DMX IN DMX OUT POWER CONSUMPTION: 180 W CE X Cameo® is a brand of the Adam Hall Group. Adam-Hall-Str. 1 · 61267 Neu-Anspach · Germany Designed and engineered In Germany, Assembled In PRC WEIGHT: 8.5 kg

1 POWER IN

IP65 Power Twist mains input socket with rubber sealing cap. Operating voltage 100–240 V AC/50–60 Hz. Connection via supplied power cable (when not in use, always close with rubber sealing cap).

2 POWER OUT

IP65 Power Twist mains output socket with rubber sealing cap. Facilitates power supply to other CAMEO lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap).

3 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console. When not in use, always close with the rubber sealing cap).

4 DMX OUT

Female IP65 5-pin XLR socket for sending DMX control signal (when not in use, always close with the rubber sealing cap).

5 OLED DISPLAY

Displays the current operating mode and other system settings.

6 TOUCH-SENSITIVE CONTROLS

MODE

Press mode to access the selection menu for system settings. Press repeatedly to go back to the main display.

ENTER

Press ENTER to access the menu levels to make value changes, and to access the sub-menus. Confirm value changes by pressing ENTER.

UP and DOWN

Select individual menu items in the selection menu (DMX address, operating mode etc.) and in the sub-menus. Allow changes to the value of a menu item, such as the DMX address as required.

7 PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. In order to ensure its proper function, the element must be protected from contamination.

8 SECURING LUG

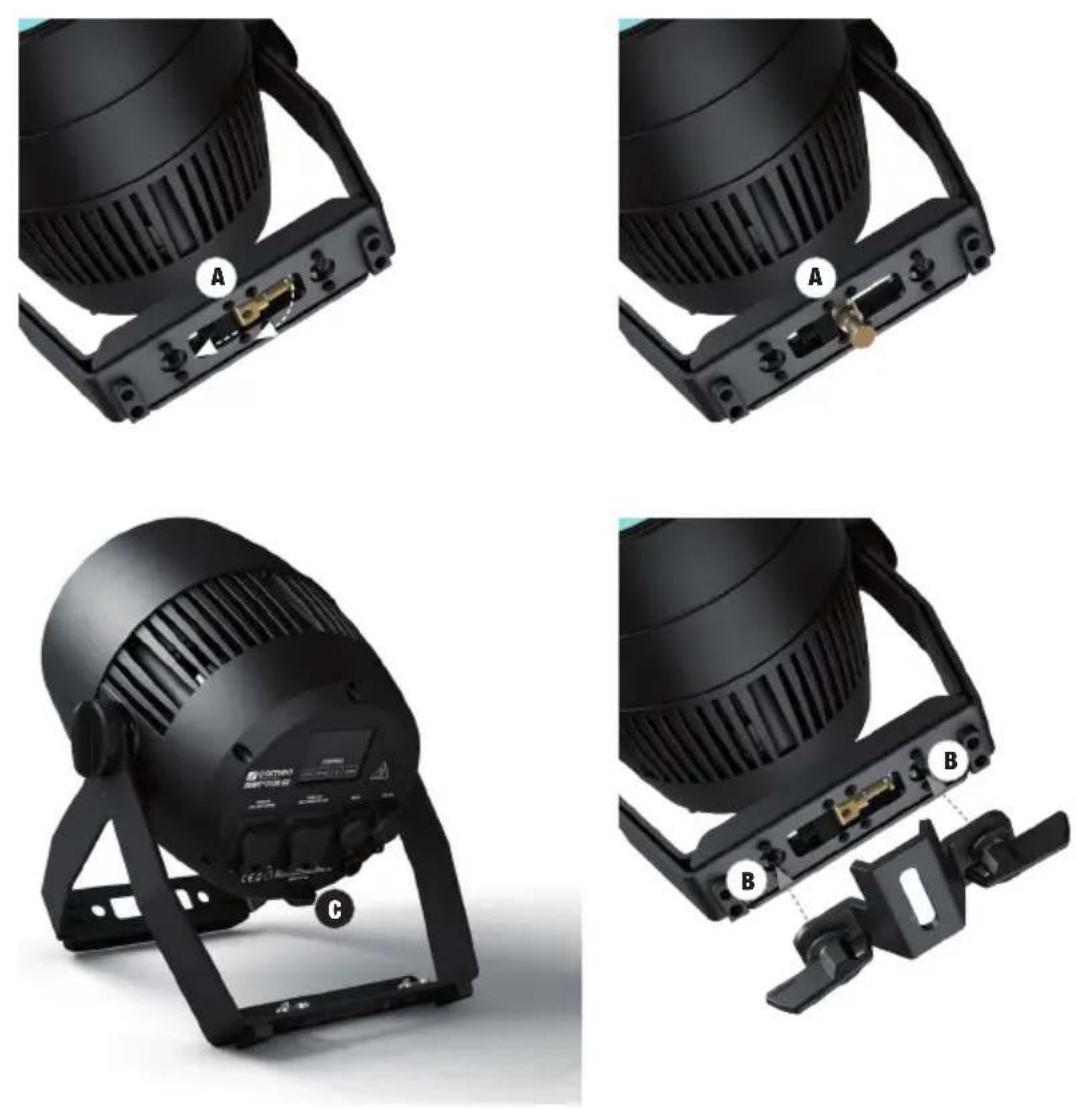

For overhead installation, secure the device to the securing lug with a suitable safety rope.

PLEASE NOTE: In order to provide protection from spraying water, in accordance with protection class IP65, special IP65-rated XLR connectors must be used correctly with the DMX input and output sockets, or they must be closed using the rubber sealing caps. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are protected from spraying water, as in accordance with IP65.

OPERATION

PLEASE NOTE

• As soon as the spotlight is correctly connected to the power supply, the following will be displayed in succession: "Update Wait..." (only for service purposes), "Welcome to Cameo", the model name and the software version. The zoom unit also initialises during start-up. After this process, the lamp is ready for operation and starts in the previously selected mode.
• If one of the DMX operating modes is activated and there is no DMX signal at the DMX input, the display will start to flash after a few seconds.
• After approximately 30 seconds of inactivity, the display will automatically show the currently active operating mode (main display).
• Fast Access Feature: In order to simplify the menu guide, the device has an intelligent menu structure that allows direct access to previously selected menu items and sub-menu items. 1. Press MODE and ENTER simultaneously for direct access to the last-edited sub-menu item, where you can make changes instantly as required (DMX starting address and all modes). 2. Press MODE to go directly to the last selected and edited menu item.
• Before changing device settings, ensure that the control panel is dry and dust free, in order not to impair its functionality.
• The display can be rotated through 180^ by pressing UP when the main display is visible.

SETTING DMX START ADDRESS (DMX Address)

Press MODE to access the selection menu. Now select the menu item "DMX Address" using the UP and DOWN keys (observe arrow) and press ENTER. Now select the desired DMX starting address using the UP and DOWN keys and confirm with ENTER (the highest value is dependent on the selected DMX mode). The DMX mode will start and the last-selected DMX mode will be activated simultaneously.

---- Menu ---- ► DMX Address DMX mode Stand Alone Slave Settings System Information 001 - 5xx DMX Address 001

CONFIGURING DMX MODE (DMX Mode)

Press MODE to access the selection menu. Now select the menu item "DMX Mode" using the UP and DOWN keys (observe arrow) and press ENTER. Now select the desired DMX operating mode with the UP and DOWN buttons and confirm with ENTER. Comprehensive DMX tables can be found in these instructions under "DMX CONTROL".

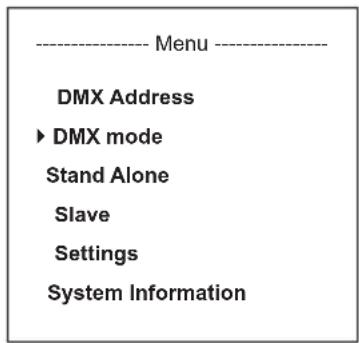

---- Menu ---- DMX Address ► DMX mode Stand Alone Slave Settings System Information

---- DMX Mode ---- ► 3 CH 4 CH 5 CH 9 CH 10 CH 11 CH 17 CH

SETTING STANDALONE MODE

Press MODE to access the selection menu. Using the UP and DOWN controls, select the menu item "Stand Alone" (observe arrow) and confirm with ENTER. In the sub-menu you can now use the UP and DOWN buttons to select from the stand-alone modes "Auto", "Colour Macro", "Static", "Tunable White", and "User Colour". Confirm your selection with ENTER.

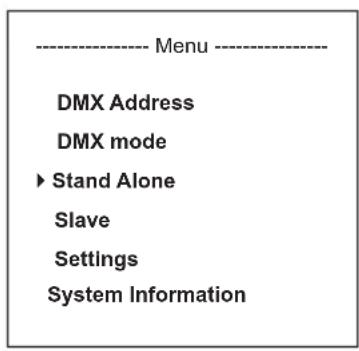

---- Menu ---- DMX Address DMX mode ► Stand Alone Slave Settings System Information

---- Stand Alone ---- ► Auto Static Colour Macro Tunable White User Colour

STAND-ALONE AUTO MODE (Auto Programme 1–6)

The 6 different auto-programmes each comprise non-editable colour-change sequences. Brightness and speed are independently adjustable. Select auto mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now select one of the 6 auto-programmes (observe arrow) and confirm with ENTER. To adjust brightness, use the UP and DOWN controls to select the menu item "Dimmer", and confirm with ENTER, then use the UP and DOWN controls to select the desired value between 000 and 100. Confirm with ENTER. Set the run speed by selecting the menu item "Speed", confirm with ENTER, and then select the desired value between 000 and 100. Confirm with ENTER.

---- Stand Alone ---- ► Auto Static Colour Macro Tunable White User Colour

-------- Auto ------ ► Program 1 Program 2 Program 3 Program 4 Program 5 Program 6

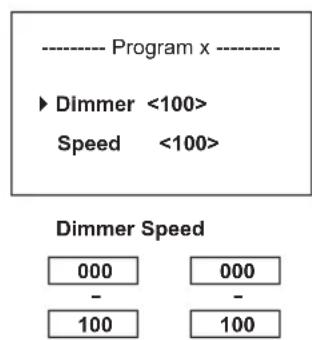

---- Program x ---- ► Dimmer <100> Speed <100> Dimmer Speed 000 000 - 100 100

Mode Auto

STAND-ALONE STATIC MODE (Static)

The static mode allows the Dimmer, Strobe, R, G, B and W etc. to be adjusted directly on the device with values between 000 and 255, in a similar way to with a DMX controller. In this way, an individual scene can be created without an additional DMX controller. Select the static mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now select the menu item that you wish to edit (observe arrow) and confirm with ENTER. The display will show a three-digit number field and you can use the UP and DOWN controls to configure the desired value between 000 and 255. Confirm with ENTER.

---- Stand Alone ---- Auto ► Static Colour Macro Tunable White User Colour ---- Static ---- ► Dimmer <255> DimFine <255> Strobe <255> Red <255> Green <255> Blue <255> White <255> Colour Temp <255> Zoom <255> Zoom Fine <255> 000 - 255 Mode Static

STAND-ALONE COLOUR MACRO MODE (Colour Macro)

15 different preset colour macros are available. Select the "Colour Macro" mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now select the desired colour preset (observe arrow) and confirm with ENTER (Colour Off = blackout). The display will show a three-digit number field and you can use the UP and DOWN controls to set the desired brightness between 000 and 100. Confirm with ENTER. Configuration of the zoom function is carried out in the same way.

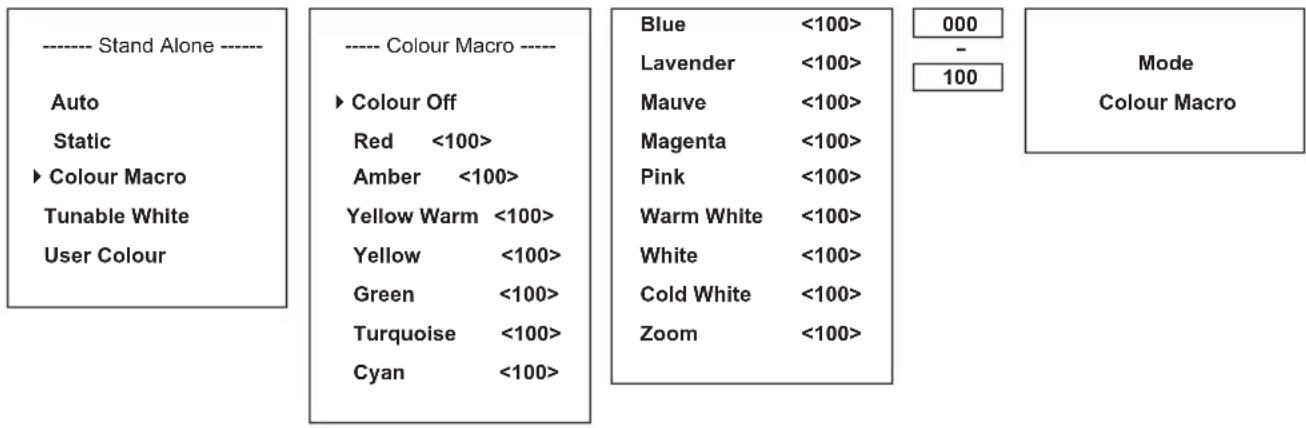

---- Stand Alone ---- Auto Static ► Colour Macro Tunable White User Colour ---- Colour Macro ---- ► Colour Off Red <100> Amber <100> Yellow Warm <100> Yellow <100> Green <100> Turquoise <100> Cyan <100> Blue <100> Lavender <100> Mauve <100> Magenta <100> Pink <100> Warm White <100> White <100> Cold White <100> Zoom <100> 000 - 100 Mode Colour Macro

STAND-ALONE COLOUR TEMPERATURE MODE (Tunable White)

The colour temperature mode enables you to configure the colour temperature from cold white to warm white (CTC), adjust the brightness (Dimmer), and the zoom function directly on the device. Select the colour temperature mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now select the menu item that you wish to edit (observe arrow) and confirm with ENTER. The display will show a three-digit number field and you can use the UP and DOWN controls to configure the desired value. Confirm with ENTER.

---- Stand Alone ---- Auto Static Colour Macro ► Tunable White User Colour ---- Tunable White ---- ► Dimmer <100> CTC <100> Zoom <100> 000 - 100 Mode Tunable White

STAND-ALONE USER PRESETS MODE (User Colour)

The stand-alone mode "User Presets" allows you to store five individual colour presets of overall brightness and a colour mix of R, G, B and W etc. directly in the device. Select the "User Colour" mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER. Use the UP and DOWN buttons to select one of the stored presets Colour 1 to Colour 5 and confirm with ENTER and select the submenu item you want to edit (observe arrow). Confirm with ENTER. The display will show a three-digit number field and you can use the UP and DOWN controls to set the value as required between 000 and 255. Confirm by pressing ENTER again.

---- Stand Alone ---- Auto Static Colour Macro Tunable White ► User Colour

---- User Colour ---- ► Colour 1 Colour 2 Colour 3 Colour 4 Colour 5 Colour 6

---- Colour 1 ---- ► Dimmer <255> DimFine <255> Strobe <255> Red <255> Green <255> Blue <255> White <255> Colour Temp <255> Zoom <255> Zoom Fine <255>

000 - 255

Mode User Colour

SLAVE MODE

Press MODE to access the selection menu. Using the UP and DOWN controls, select the menu item "Slave" (observe arrow) and confirm with ENTER. You can now configure the time delay before which the signal from the master unit is processed by the slave unit (00.00–10.00s in 250 ms increments) and confirm with ENTER. Connect the slave and the master units (same model) with a DMX cable and enable one of the standalone modes on the master unit (Auto, Static, Colour Macro, Tunable White, User Colour). The slave unit will now follow the master unit in accordance with the configuration of the

signal delay. If there is no control signal, the display characters will flash. Flashing stops as soon as a control signal is present.

DEVICE SETTINGS (Settings)

Press MODE to access the selection menu. Using the UP and DOWN controls, select the menu item "Settings" (observe arrow) and confirm with ENTER.

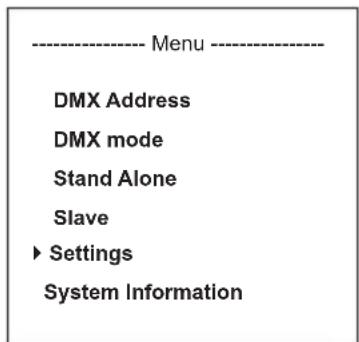

---- Menu ---- DMX Address DMX mode Stand Alone Slave ► Settings System Information

This will take you to the submenu for setting the following submenu items (selection with UP and DOWN, change value or status with UP and DOWN, confirm with ENTER):

Settings (bold = factory setting)
Display Reverse =	Display rotation On Display is rotated through 180° (e.g. for overhead installation)
Display Backlight =	Display lighting On on permanently
			Off Deactivates after approximately 30 seconds of inactivity
DMX Fail = operating status with DMX signal fault			Hold Last command is retained
			Blackout Activates blackout
Dimmer Curve = dimmer curve Linear Light intensity increases linearly with DMX value
					Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
					Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
					S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
Dimmer Response	=	Dimmer response	LED	Lamp responds abruptly to changes in DMX value
			Halogen	= spotlight behaves like a halogen spotlight with soft brightness changes
PWM Frequency	= LED PWM frequency 800 Hz/1200		Hz/2000 Hz/ 3600 Hz/12 kHz/25 kHz	Configuration of LED PWM frequency
Autolock	=	Automatic locking of the controls	On	Automatic locking of the controls after approximately 30 seconds of inactivity. Display shown upon attempted use: “LOCKED” To unlock: Press and hold UP and DOWN simultaneously for approx. 5 seconds
			Off Automatic locking of the controls is disabled
Calibration	=	Colour and zoom calibration	Red, Green, Blue, White, Zoom	Individual colour calibration. Cross-mode configuration of the 4 LED groups RGBW and of the zoom function with values of 000-255
Zoom Reset	=	Initialise zoom unit	Reset?	Initialise zoom unit: confirm with ENTER, cancel with MODE
Factory Reset	=	reset to factory settings	Reset?	Reset to factory settings: Confirm with ENTER. Cancel with MODE

DIMMER CURVES

linear Light intensity DMX value

SYSTEM INFORMATION

Press MODE to access the selection menu. Use the UP and DOWN controls to select the menu item "System Information" (observe arrow) and confirm with ENTER.

---- Menu ----

DMX Address

DMX mode

Stand Alone

Slave

Settings

► System Information

Use the UP and DOWN controls to select the desired submenu item, and press ENTER to display the corresponding information.

System Information (bold = factory setting)
Firmware = Displays device	temperature of LED unit LED LED TEMP xxx
Temperature = Displays temperature of LED unit LED LED TEMP xxx			C/xxxF
			Celsius/Fahrenheit Unit	Celsius (= display in degrees Celsius)
				Unit Fahrenheit (= display in degrees Fahrenheit)
Operation Hours = Displays operating time OpTime xxxx:xxh Displays total operating time in hours and minutes

MANUAL LOCKING FUNCTION

In addition to the ability to automatically protect the lamp from accidental and unauthorised operation (see "Settings" - "Auto-lock"), the controls can also be locked manually. Press and hold the UP and DOWN controls simultaneously for approximately 5 seconds. If an attempt is made to change settings, "LOCKED" will appear in the display and it will no longer be possible to change the spotlight's settings via the controls. After approx. 1 minute, the current operating mode is displayed again. To unlock, press and hold the UP and DOWN controls simultaneously for approximately 5 seconds. The display will show the previously displayed information.

INSTALLATION AND MOUNTING

Thanks to its double bracket and integrated plastic feet, the spotlight can be positioned in a suitable location on a level surface. Traverse-mounting is achieved either with the fold-out 16mm TV spigot (A, suitable for Adam Hall Super Clamp) or an Omega bracket, which is attached to the bracket on the device (B). Suitable Omega brackets and traverse clamps are optionally available. Ensure all connections are tight and secure the spotlight to the securing lug (C) with a suitable safety cable.

Important Safety Instructions: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional.

DMX TECHNOLOGY

DMX-512

DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor).

Coiled black cable with two connectors, no visible text or symbols

DMX CONNECTION

DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller).

2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units.

The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.

DMX CABLES

When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions.

Pin Assignment

DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used):

DMX TERMINATORS (TERMINATING RESISTORS)

To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).

3-pin XLR connector with a terminating resistor: K3DMXT3

5-pin XLR connector with a terminating resistor: K3DMXT5

Pin Assignment

3-pin XLR connector: 5-pin XLR connector:

DMX ADAPTER

The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters.

Pin Assignment

DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020

Pins 4 and 5 are not used.

Pin Assignment

DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020

Pins 4 and 5 are not used.

TECHNICAL DATA

Product number: CLZZ120G2

Product type: LED wash light
Type: Outdoor floodlight
Colour spectrum LED: RGBW
Number of LEDs: 1
LED type: 120 W COB
LED PWM frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz (adjustable)
Beam angle: 7–55°
DMX input: 5-pin male XLR, IP65
DMX output: 5-pin female XLR, IP65
DMX modes: 3-channel, 4-channel, 5-channel, 9-channel, 10-channel, 11-channel, 17-channel
DMX functions: Dimmer, dimmer fine, RGBW, RGBW fine, strobe, colour temperature correction, colour macros, colour change, colour blending, zoom, zoom fine, dimmer sensitivity
Standalone functions:	Color macros, auto programmes, static mode, strobe, user color, tunable white, master/slave operation
System settings:	Display rotation 180°, display lighting, DMX fail, dimmer curves, dimmer sensitivity, colour calibration, display lock Function, LED PWM frequency, zoom reset, factory reset
Control:	DMX512, RDM-enabled
Operating controls:	MODE, ENTER, UP, DOWN (touch-sensitive controls)
Display elements:	OLED display
Operating voltage:	100–240 V AC/50–60 Hz
Power consumption:	180 W
Light intensity (@ 1 m):	67500 lx (narrow)
Luminous flux (RGBW):	2240 lm
Power connection:	IP65 Power Twist sockets for input and output (max. output 10 A)
Ambient temperature (in operation):	-15°C to +45°C
Housing material:	Metal
Housing colour:	Black
Housing cooling:	Convection
Protection class:	IP65
Dimensions (W x H x D, without bracket):	239 x 237 x 285 mm
Weight:	8.5 kg
Additional features:	1 m mains cable with IP65 Power Twist plug, stand-alone mounting bracket included. Integrated 16 mm TV spigot. Barn-door and Omega bracket optionally available

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY

You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_CAMEO.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: [e-mail] / +49 (0)6081 / 9419-0.

CORRECT DISPOSAL OF THIS PRODUCT

(valid in the European Union and other European countries with a differentiated waste collection system)

This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

CE Compliance

Adam Hall GmbH states that this product meets the following guidelines (where applicable):

R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017

Low voltage directive (2014/35/EU)

EMV directive (2014/30/EU)

RoHS (2011/65/EU)

The complete declaration of conformity can be found at www.adamhall.com.

Furthermore, you may also direct your enquiry to [e-mail].

DEUTSCH

cameo colours of light ZENIT® Z120 G2 cameo MODE ENTER UP DOWN POWER IN 100-240V 50/60Hz POWER OUT MAX POWER OUT: 10A DMX IN DMX OUT POWER CONSUMPTION: 180 W CE X Cameo® is a brand of the Adam Hall Group. Adam-Hall-Str. 1 · 61267 Neu-Anspach - Germany Designed and engineered in Germany. Assembled in PRC WEIGHT: 8.5 kg

1 POWER IN

Coiled black cable with two connectors (no text or symbols visible)

DMX-VERBINDUNG:

POWER IN 100-240V 50/60Hz POWER OUT MAX POWER OUT: 10A DMX IN DMX OUT POWER CONSUMPTION: 180 W CE Cameo® is a brand of the Adam Hall Group. Adam-Hall-Str. 1 - 61267 Neu-Anspach - Germany Designed and engineered in Germany, Assembled in PRC WEIGHT: 8.5 kg

Coiled black cable with two connectors (no text or symbols visible)

PROTOCOLE DMX

(Valid in the European Union and other European countries with waste separation)

cameo® colours of light ZENIT® Z120 G2 cameo MODE ENTER UP DOWN POWER IN 100-240V 50/60Hz POWER OUT MAX POWER OUT: 10A DMX IN DMX OUT POWER CONSUMPTION: 180 W CE X Cameo® is a brand of the Adam Hall Group. Adam-Hall-Str. 1 · 61267 Neu-Anspach - Germany Designed and engineered in Germany, Assembled in PRC WEIGHT: 8.5 kg

1 POWER IN

Coiled black cable with two connectors, no visible text or symbols

CONEXIONADO DMX

cameo colours of light ZENIT® Z120 G2 cameo MODE ENTER UP DOWN POWER IN 100-240V 50/60Hz POWER OUT MAX POWER OUT: 10A DMX IN DMX OUT POWER CONSUMPTION: 180 W CE X Cameo® is a brand of the Adam Hall Group. Adam-Hall-Str. 1 · 61267 Neu-Anspach · Germany Designed and engineered in Germany. Assembled in PRC WEIGHT: 8.5 kg

1 POWER IN

Coiled black cable with two connectors (no text or symbols visible)

ZŁĄCZE DMX:

cameo® colours of light ZENIT® Z120 G2 cameo MODE ENTER UP DOWN POWER IN 100-240V 50/60Hz POWER OUT MAX POWER OUT: 10A DMX IN DMX OUT POWER CONSUMPTION: 180 W CE X Cameo® is a brand of the Adam Hall Group. Adam-Hall-Str. 1 · 61267 Neu-Anspach · Germany Designed and engineered in Germany. Assembled in PRC WEIGHT: 8.5 kg

1 POWER IN

Coiled black cable with two connectors, no visible text or symbols

COLLEGAMENTO DMX:

EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
