USER MANUAL ZENIT W600 G2 Cameo

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

DEFINITIONS AND SYMBOLS 6

SAFETY INFORMATION 7

NOTES FOR PORTABLE OUTDOOR EQUIPMENT 11

PACKAGING CONTENT 12

INTRODUCTION 12

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS 13

OPERATION 15

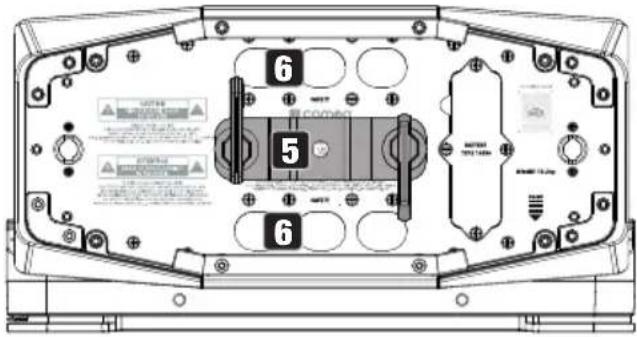

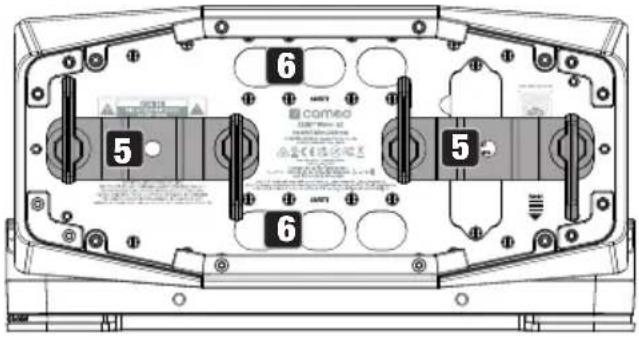

SET-UP AND INSTALLATION 30

CARE, MAINTENANCE, AND REPAIR 31

OPTIONAL ACCESSORIES 32

TECHNICAL DATA 34

EXPLANATION OF IP PROTECTION CLASS 35

MINIMUM DISTANCE TO THE ILLUMINATED SURFACE 36

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 36

DISPOSAL 36

MANUFACTURER DECLARATIONS 37

DEUTSCH

ACCESSIONS EN OPTION 98

CHARACTERISTIQUES TECHNIQUES 100

EXPLICATION DE LA CLASSE DE PROTECTION IP 102

DISTANCE MINIMALE PAR RAPPORT A LA SURFACE ECLAIREE 102

DISTANCE MINIMALE PAR RAPPORT AUX MATERIAUX INFLAMMABLES ORDINAIRES 102

MISEAU REBUT 103

DECLARATIONS DU FABRICANT 103

ESPANOL

You have made the right choice!

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to use your new Cameo Light product quickly and optimally. Further information about Cameo Light is available on our website www.CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within easy reach.
• If you sell or pass on the device, please ensure that you also include the Safety and Compliance Information (SCI) enclosed with the device so that the user manual can be downloaded via the QR code.

INTENDED USE

This product is a device for event technology.

This product has been developed for professional use in the field of event technology and is not suitable for use in the home!

Temporary operation! Event equipment is generally designed for temporary use only and is not intended for permanent use or permanent installation!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to improper use is excluded!

The product is not suitable for:

• Persons (including children) with limited physical, sensory, or mental abilities or a lack of experience and knowledge.
  Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause an electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards due to hot surfaces.

This symbol indicates avoiding looking or staring at the light source.

This symbol indicates hazards due to suspended loads.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INFORMATION

HAZARD:

1. Do not open or modify the device.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. This device may only be repaired by authorised specialist personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the mains cable of the device is damaged, do not operate the device.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Only switch on the device once it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Only use suitable mains cables.
3. To disconnect the device completely from the power supply, unplug the mains cable or the mains adapter from the socket. It is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type specified on the device.
5. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
6. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Only replace plug-in power cables with equivalent cables that correspond to the cable originally supplied. The cross-section must not be smaller than the cross-section of the original cable.

HAZARD:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with limited physical, sensory, or mental abilities.
2. Danger caused by the device falling! Ensure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the unit, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! If this is not explicitly stated, the minimum distance is 0.3 metres.
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. In case of devices with motor-driven components, there is a risk of injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that it is not possible to accidentally touch the housing. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be constantly further developed. In the event of any discrepancies between the user manual and the device labelling with regard to operating conditions, performance, or other device characteristics, the information on the device always takes precedence.
8. The device is not suitable for tropical climates or for operation over 2,000m above sea level.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

PLEASE NOTE:

For conversion or retrofit kits or accessories provided by the manufacturer, please follow the enclosed instructions carefully.

CAUTION! IMPORTANT INFORMATION ON LIGHTING PRODUCTS!

1. This device is a risk group 2 device. Do not stare at the light source! Do not stare at the light beam! Do not look directly into the lamp with optical instruments, such as magnifying glasses or binoculars!
2. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
3. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The light source contained in this luminaire may only be replaced by the manufacturer or its service partner or a similarly qualified person.

SIGNAL TRANSMISSION AND CONTROL BY RADIO (FOR EXAMPLE, W-DMX OR AUDIO RADIO SYSTEMS, BLUETOOTH):

The quality and performance of wireless signal transmissions generally depend on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks) Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference.

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions. These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatment with skilled personnel and equipment.
  Class I, II, and III hazardous areas
• Restricted areas
  Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

SIGNAL TRANSMISSION VIA W-DMX WARNING:

In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or traverse structures, DMX-controlled motors/lifts, or lifting devices for operating DMX-operated platform lifts, hydraulic systems, or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include CO_2 cannons, confetti shooters, water effects, or similar.

NOTES FOR PORTABLE OUTDOOR EQUIPMENT

1. Temporary operation! Event equipment is generally designed for temporary use only.
2. Continuous operation or permanent structural installation - particularly outdoors - can impair the function, surfaces, and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (for example, scratches) must be promptly repaired using suitable measures.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check that the delivery is complete and undamaged, and notify your distribution partner immediately after purchase if the delivery is incomplete or damaged.

The packaging content includes:

1×ZW00G2IP65RGBALClight
2× Omega bracket
1×mains cable

Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

ZENIT W600 G2 Outdoor LED light

CLZW600G2 with 40 6in1 RGBALC LEDs

CONTROL FUNCTIONS:

4-channel RGB, 4-channel Preset, 5-channel CCT, 7-channel Direct, 11-channel RGB CCT, 13-channel Direct 16Bit, 14-channel Direct CCT, 15-channel Effect, 22-channel Full, 41-channel Pattern, 31-channel Pixel RGB, 65-channel Pixel, 80-channel Pixel Full, 3-channel UNISENS, 10-channel Legacy, and 15-channel Legacy DMX control

RDM

W-DMX

Master/Slave modes

Stand-alone functions

FEATURES:

Protection class IP65. 40 6in1 RGBALC LEDs. 10 LED segments. Wireless DMX. RDM. NFC. Operating voltage: 100-240 V AC. Two Omega mounting brackets included. Optionally available DMX adjustable frost filter (Electronic Frost). Optionally available barn doors and various filters for changing the beam angle.

RDM: The light supports the remote device management (RDM) standard. Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (product number CLIREMOTE). The Cameo UNICON also allows access to the entire light menu.

NFC: The status query and configuration of the light can alternatively be carried out via near-field communication (NFC) (via the Cameo Connect). The light does not need to be connected to the mains supply for this.

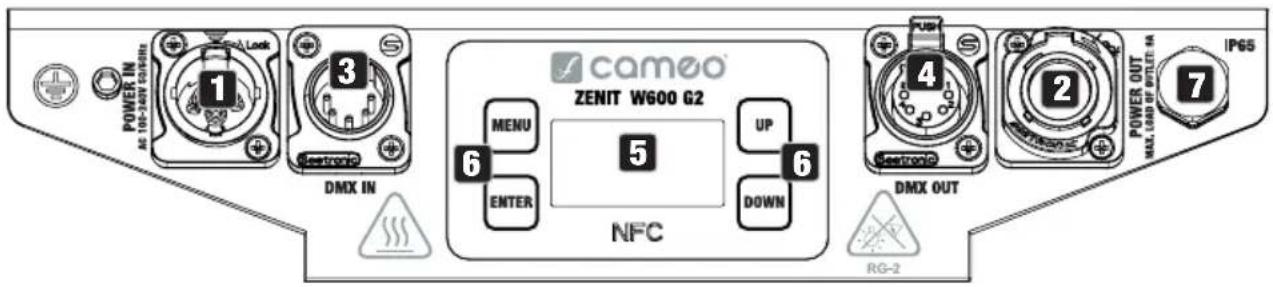

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS

1 POWER IN

IP65 mains input socket with rubber sealing cap. Operating voltage 100-240 V AC / 50 - 60 Hz. Connection via supplied mains cable (when not in use, always close with the rubber sealing cap).

2 POWER OUT

IP65 power output socket with rubber sealing cap. Facilitates power supply to other CAMEO lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap).

3 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (for example, DMX console; when not in use, always close with the rubber sealing cap).

4 DMX OUT

Female IP65 5-pin XLR socket for sending DMX control signal (when not in use, always close with the rubber sealing cap).

5 OLED DISPLAY

The OLED display shows the currently activated mode or the current DMX address (main display), the menu items in the menu, and the numerical value or operational status of certain menu items.

6 TOUCH-SENSITIVE CONTROLS WITH LIGHTING

MENU - Press MENU to access the main menu. Press again or repeatedly to return to the main display.

UP and DOWN - Select the menu items in the main menu (DMX address, mode, etc.) and in the submenus using UP and DOWN. Change value or status of a menu item, for example, DMX address. To change a value quickly (for example, the DMX start address), press and hold UP or DOWN.

ENTER - Press ENTER to access the menu level to make value or status changes, and to access one of the submenus. Press ENTER to confirm value or status changes.

PLEASE NOTE:

• Before navigating the device menu, make sure that the control panel is dry and clean so that its functionality is not impaired.
• Water on the control unit can lead to incorrect operation of the light, for example, in outdoor operation. Therefore, after configuring the light, activate the lock function to prevent incorrect operation by water (Settings -> Display -> Autolock). Deactivate the lock function: press UP and DOWN simultaneously for approximately 5 seconds.
• The battery-powered display and the control panel can be activated even if the device is disconnected from the mains. To do this, insert a type 14430 battery into the corresponding battery compartment on the underside of the device base (battery not included in packaging content). Unscrew the four screws from the battery compartment cover and remove battery compartment cover from the device base. Insert the battery correctly into the battery compartment according to the labelling. Close the compartment again with the battery compartment cover, making sure that the peripheral seal is positioned correctly and is not damaged. Now re-tighten the previously loosened screws crosswise, tightening them alternately. (5± 1kgf.cm)

To retrieve device information and change and save system settings independently of the mains, press and hold ENTER until the display is activated.

The external control of the light is not activated in this case. For this reason, the display shows that there is no control signal even if a control signal is available at the device.

7 PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. To ensure its proper function, the element must be protected from dirt.

Wireless DMX ANTENNA

The antenna for wireless DMX control is located inside the base of the device.

ATTENTION:

ATTENTION: To ensure IP65 splash resistance for the DMX and network sockets, the special input and output sockets must be correctly sealed with the IP65 special plugs or the rubber sealing caps must be used for sealing. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are protected from water sprays in accordance with IP65.

OPERATION

NOTES

• As soon as the light is correctly connected to the mains, the following messages are displayed in succession: "Update wait ..." (for service purposes only), "Welcome to Cameo", the model name, and the software version. After this process, the light is ready for operation, and the previously activated mode is launched.
• If there is no input for approx. 30 seconds, the display automatically returns to the main display.
• Note on the main display in modes with external control: in the event that the control signal is interrupted, the characters in the display begin flashing; once the control signal is available again, the flashing stops.
• Briefly pressing UP from the main display rotates the display by 180^ .
• Rescue mode: Rescue mode offers the option of re-installing the firmware version that was installed upon the light's delivery. This firmware version is saved in the light and does not need to be uploaded externally. To install, briefly press UP and DOWN at the same time one second after starting the boot process. The word "Recovery?" will then be displayed. Confirm by pressing ENTER to start the installation or cancel the process by pressing MENU.

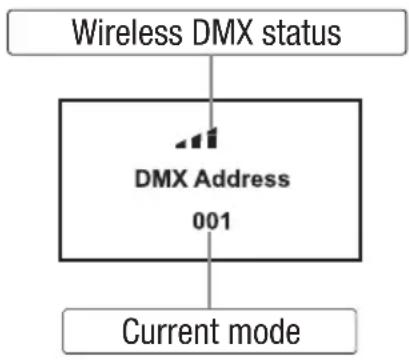

MAIN DISPLAY

The main display shows the following information: current mode (for example: DMX mode with start address 001) and wireless DMX status.

WIRELESS DMX

Wireless module configuration receiver: To pair a wireless DMX receiver with a compatible transmitter, the "Receive Reset" command must be executed in the "Settings" menu under "Wireless -> Linking" (select and confirm "Receive Reset"). The receiver is now ready to pair and waiting for a pairing request from a transmitter. Start the pairing by selecting "Link" in the menu of the transmitter and confirming; the pairing now takes place automatically. Simultaneous or consecutive pairing of several receivers to a transmitter (for example, for master/slave operation) can also be done in the same manner.

Wireless module configuration transmitter: To pair a wireless DMX transmitter with a compatible receiver, the "Unlink" command must be executed in the "Settings" menu under "Wireless -> Linking" (select and confirm "Unlink"). All previous connections are now disconnected. Set the desired receiver to pairing standby and execute the "Link" command in the transmitter menu; pairing is now automatically executed.

A wireless DMX connection is always maintained until it is disconnected with the "Reset" command in the receiver or the "Unlink" command in the transmitter, regardless of whether a device has been disconnected from the power supply in the meantime.

WIRELESS DMX STATUS

×	?↓↓	?↓↓	×↓↓	↓↓	↑G3
W-DMX deactivated	W-DMX activated as receiver and not paired	W-DMX activated as receiver and paired; transmitter is switched off or out of range	W-DMX activated as receiver and paired, no DMX signal	W-DMX activated as receiver and paired, DMX signal available	W-DMX activated as transmitter with G3 standard, DMX signal available

↑G4S	×↑G3	G4↑	↑CRMX	CRMX
W-DMX activated as transmitter with G4s standard, DMX signal available	W-DMX activated as transmitter with G3 standard, no DMX signal	W-DMX activated as transmitter with G4s standard, no DMX signal	W-DMX activated as transmitter with CRMX standard, DMX signal available	W-DMX activated as transmitter with CRMX standard, no DMX signal

SET DMX START ADDRESS (DMX address)

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select DMX Address and confirm again. Using the UP and DOWN buttons, configure the desired DMX start address and press ENTER to confirm (the highest possible value depends on the selected DMX mode).

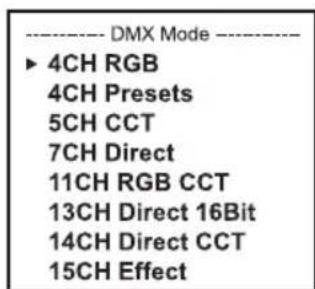

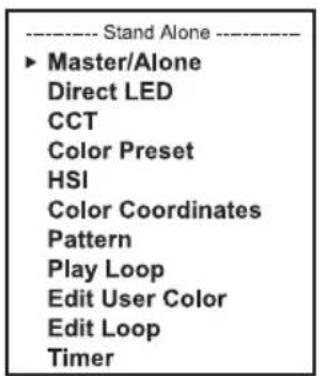

SET DMX MODE (DMX Mode)

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select DMX Mode and confirm again. Now select the desired DMX mode using UP and DOWN and confirm the selection with ENTER. DMX tables with the channel assignments can be found in the DMX CONTROL section of this user manual.

In the stand-alone modes Direct LED, CCT, Color Preset, HSI, Color Coordinates, Pattern, and Play Loop, the control signal of the corresponding mode can be output to slave units via XLR (DMX OUT) and wireless DMX:

Stand Alone -> Master/Alone -> Master

If you do not want to output the control signal, deactivate the output:

Stand Alone -> Master/Alone -> Alone

Starting from the main display, press MENU to enter the main menu. Now select the Control menu item, confirm with ENTER, select Stand Alone, confirm the selection, then select Master/ Alone and confirm again.

This will take you to the submenu where you can make the settings as required (see table).

Master/Alone	Master	Control signal is not relayed via DMX OUT
	Alone	Control signal is not relayed

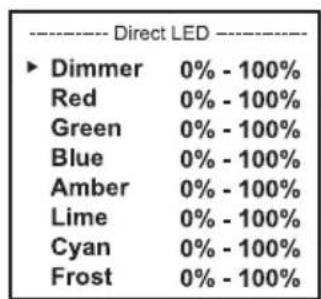

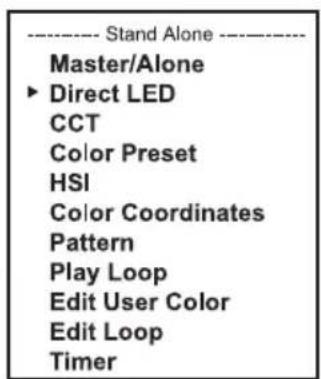

DIRECT LED STAND-ALONE MODE

The Direct LED stand-alone mode allows the dimmer, R, G, B, A, L, C, and frost filter values to be set directly on the device with values in a similar way to a DMX controller (frost filter optionally available). This allows you to create a custom scene without an additional DMX controller.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select Direct LED and confirm again. Now select the menu item you want to edit, confirm the selection, set the desired value, and confirm the entry.

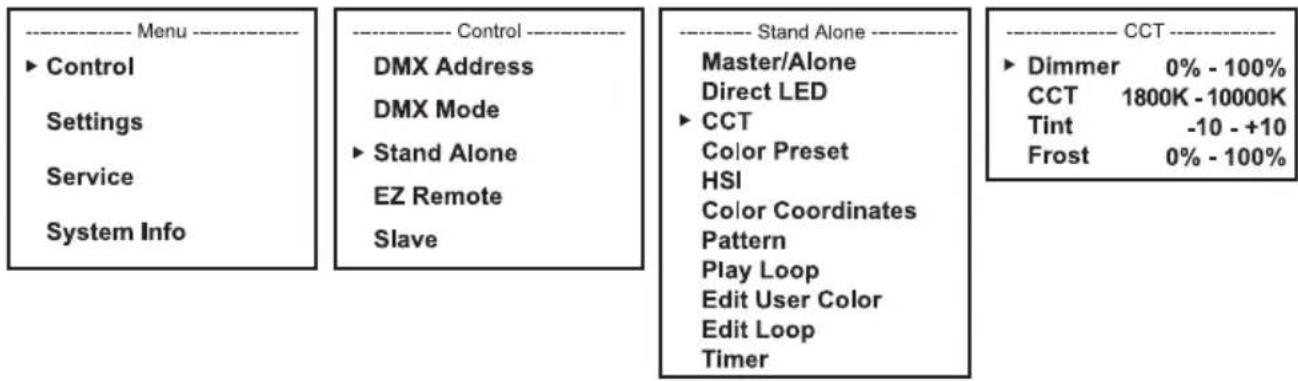

CCT STAND-ALONE MODE (Correlated Color Temperature)

The stand-alone mode "CCT" allows you to adjust the colour temperature in 100K increments from 1800K to 10000K , as well as the hue (tint), brightness (dimmer), and the frost filter (frost) (optionally available frost filter).

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select CCT and confirm again. Now select the menu item you want to edit, confirm the selection, and make the settings as desired and confirm the selection.

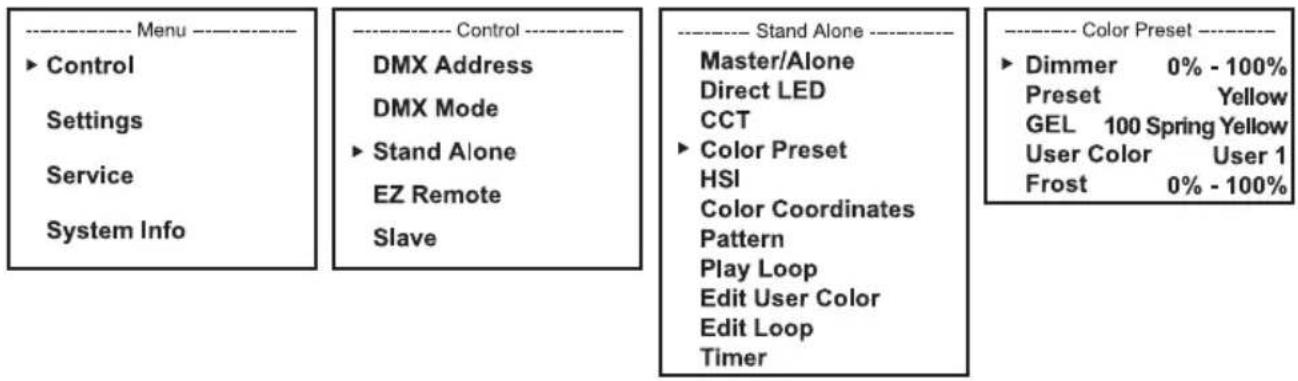

COLOR PRESET STAND-ALONE MODE

Three categories of colour presets are available for selection; the presets from the "User Color" category can be edited (see Edit User Color). The brightness and frost filter are set at a higher level (frost filter optionally available).

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select Color Preset and confirm again. Now select Preset, GEL, or User Color and confirm the selection. The desired preset can now be selected, confirm the selection. The last selected category has priority.

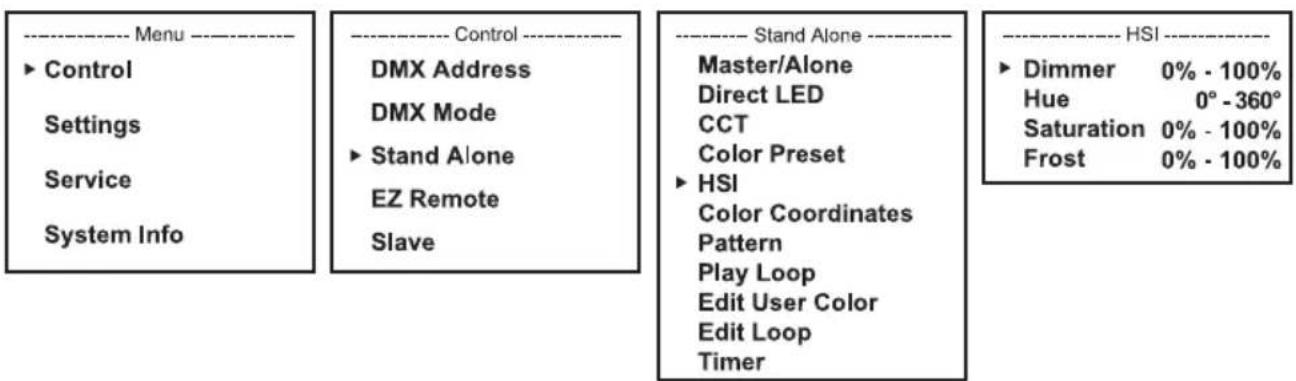

HSI STAND-ALONE MODE (Hue - Saturation - Intensity)

In the stand-alone HSI mode, the tint (hue), saturation, brightness (dimmer), and frost filter (frost) can be adjusted separately as desired (frost filter optionally available).

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select HSI and confirm again. Now select the menu item you want to edit, confirm the selection, and make the settings as desired. Confirm each entry.

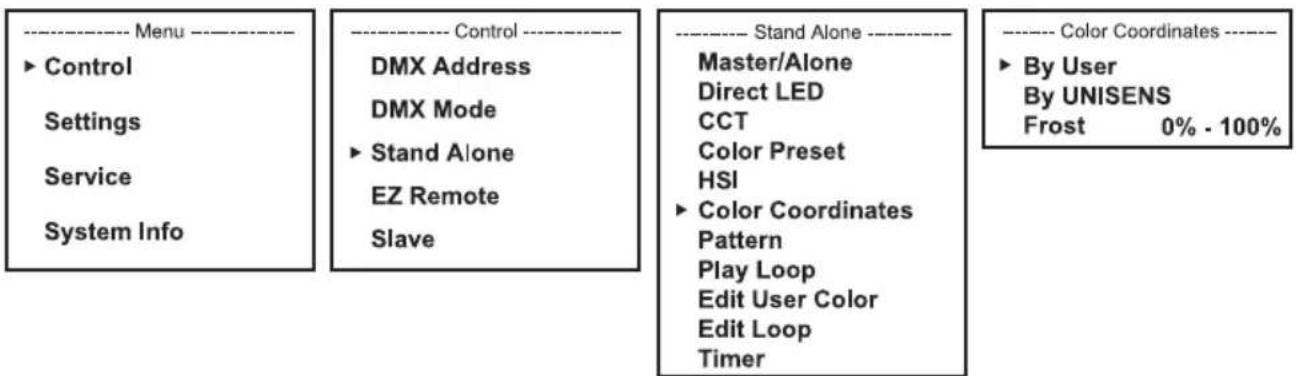

COLOR COORDINATES STAND-ALONE MODE

In the stand-alone mode Color Coordinates, the colour can be set using the x/y coordinates. The brightness (dimmer) and frost filter (frost) are set separately at a higher level (frost filter optionally available).

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select Color Coordinates and confirm again. Now select the menu item you want to edit, confirm the selection, and make the settings as desired. Confirm each entry.

Manual control:

Select By User and confirm. Now set the brightness (dimmer) and the x and y coordinates as required (set x / y coordinates: press ENTER once = digits 1 and 2 after the decimal point, press ENTER again: digits 3 and 4 after the decimal point)

Control via UNISENS:

Select By UNISENS and confirm. Connect the UNISENS to the fixture. The colour coordinates are now controlled via UNISENS, and the values are shown on the display. The brightness is set manually.

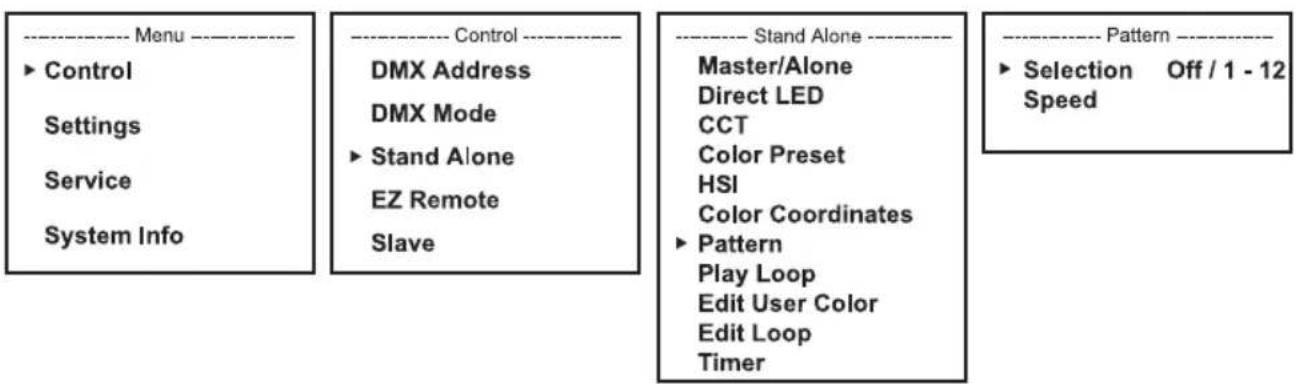

PATTERN STAND-ALONE MODE

Twelve factory-programmed patterns are available. Once you have activated one of the patterns, set the pattern colour, brightness, and frost in one of the stand-alone modes Direct LED, CCT, Color Preset, HSI, or Color Coordinates. To end the Pattern mode, select Off under Selection and confirm the selection.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select Pattern and confirm again. Under Selection, select one of 12 patterns or Off (switched off) and confirm the selection.

Under Speed, select the travel direction of the pattern and the travel speed (see table).

Speed	Chase	Forward travel direction Travel speed 1 .to64
	Chase backwards	Backward travel direction Travel speed 1 .to464
	Fade	Colour fade with forward travel direction	1 ... 64Travel speed 1 to 64
	Fade Colour fade backwards	fade with backward travel direction	1 ... 64Travel speed 1 to 64

The eight available loops are pre-programmed at the factory, but can be customised in the Edit Loop menu item.

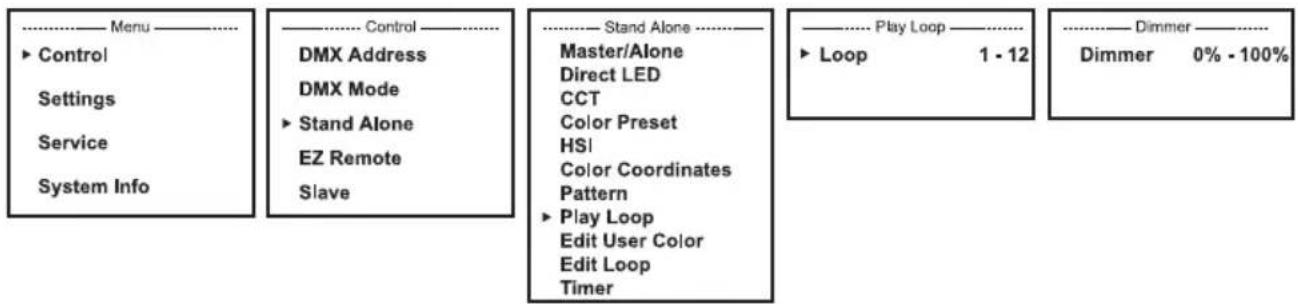

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then

select Play Loop and confirm again. Now select the desired loop and confirm the selection. The brightness (dimmer) is now set separately from 0% to 100% . Confirm each entry.

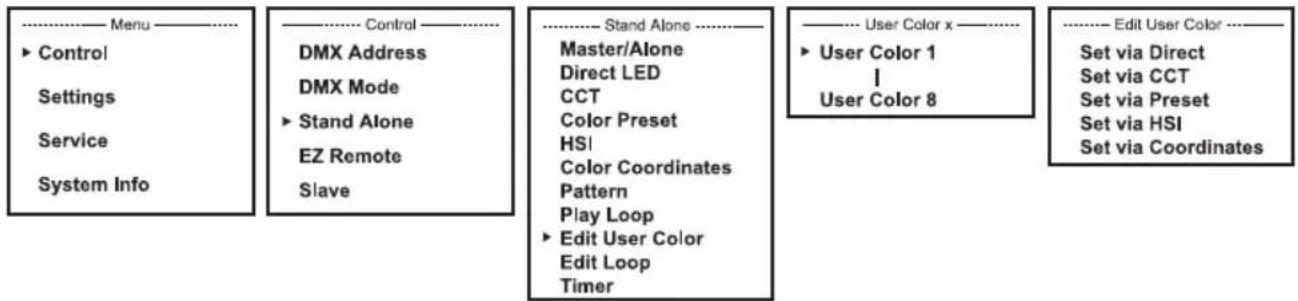

EDITING USER PRESETS (Edit User Color)

The eight user presets available in the stand-alone mode Colour Preset can be edited individually. Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select Edit User Color and confirm again. Select the desired preset (UserID 1-8) and confirm the selection. Now decide which way you want to create the colour for the preset and select one of the five methods Direct, CCT, Preset, HSI, and Coordinates and confirm the selection.

Now set the desired colour as described in the instructions for the respective stand-alone mode.

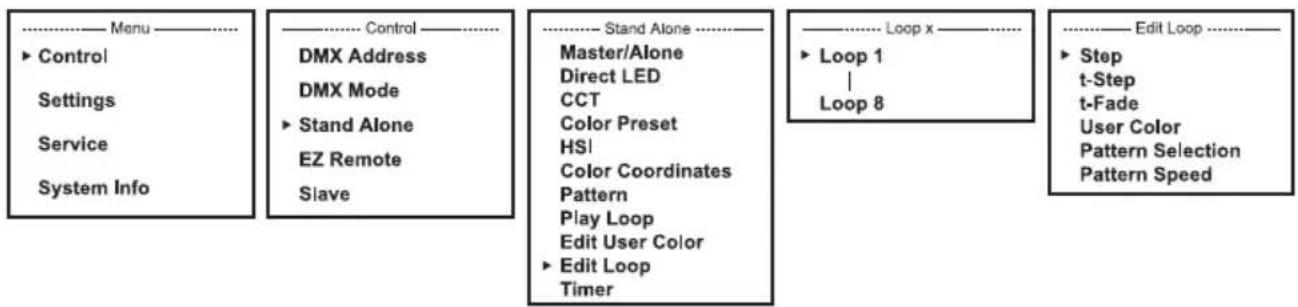

EDIT LOOP

The step duration and fade time can be set independently for all eight loops. Select the step colour in the "Color Preset" submenu item. In addition, one of the patterns can be activated with travel speed and travel direction.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Stand Alone, confirm the selection, then select Edit Loop and confirm again. Now select the desired loop for editing and confirm.

This will take you to the menu for setting the menu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). The settings for each loop are made independently and are retained even after restarting the device.

Step	1 - 8	Step selection
t-Step	t-Step 0s - 10s = 0,1s steps 10s - 1min = 1s steps 1min - 20min = 1min steps	Set the step duration for the selected step
t-Fade	t-Fade 0s - 10s = 0,1s steps 10s - 1min = 1s steps 1min - 20min = 1min steps	Setting the fade time for the selected step
Color Preset	Step 1 + 2: Dark Magenta - Rose Pink, User Color 1 - 8, Blackout	Selecting the colour preset or blackout for the selected step
	Step 3 - 8: Dark Magenta - Rose Pink, User Color 1 - 8, Blackout, Skip Step	Select the colour preset or blackout or skip the selected step
Pattern Deactivate pattern (Off) or Selection	off, 1 - 12	select pattern (1-12)
Pattern Speed	Chase	Forward travel direction Trav
	Chase backwards	Backward travel direction Trav
	Fade	Colour fading with forward travel direction
	Fade backwards	Colour fading with backward travel direction

TIMER FUNCTION

The timer function allows the stand-alone modes to be timer-controlled in such a way that the fade-in time can be set from 0 to 60 minutes, the dwell time from 1 to 24 hours, and the fade-out time from 0 to 60 minutes. After activation of the timer function, the timer control will take effect upon the next start-up of the system.

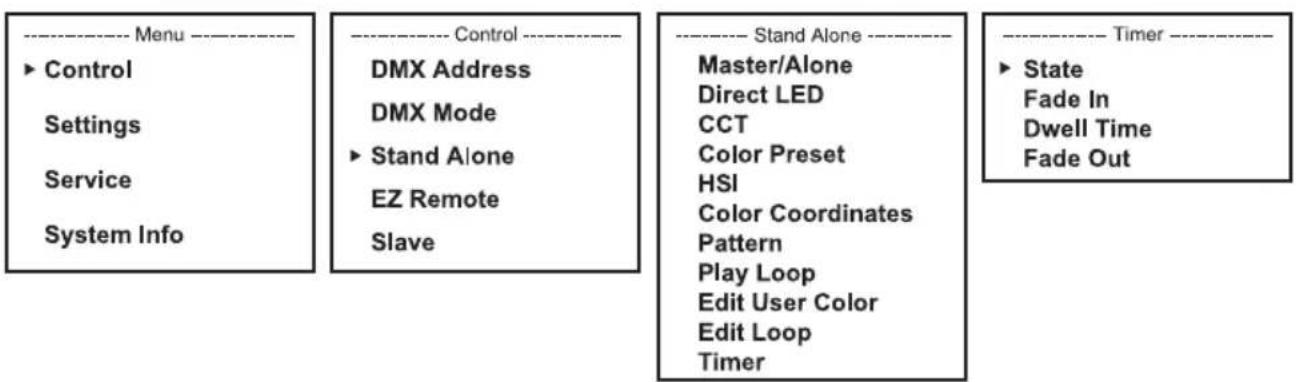

Starting from the main display, press MENU to enter the main menu. Now select the Control menu item, confirm with ENTER, select Stand Alone, confirm the selection, then select Timer and confirm again. Under State, select the setting On and confirm. For custom timer settings, select Fade In, Dwell Time, or Fade Out and confirm. You can now adjust the respective value

as desired. Confirm all entries. To deactivate the timer function, select State and then Off and confirm the entry.

Note: The timer function can be used in master/slave mode via cable and wireless DMX.

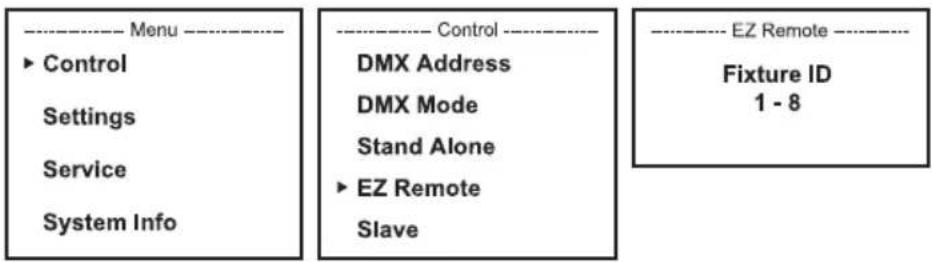

EZ REMOTE CONTROL VIA CAMEO UNICON (optionally available)

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select EZ Remote and confirm again. Now set the desired fixture ID (Fixture ID 1-8) and confirm the entry.

Connect the light and UNICON using a DMX cable, select DMX Control in the UNICON menu, then EZ Remote, and enter the same unit ID. Now control the light using RGB, GEL, CCT, or HSI. By assigning different unit IDs, up to eight lights (or light groups) can be controlled separately via UNICON.

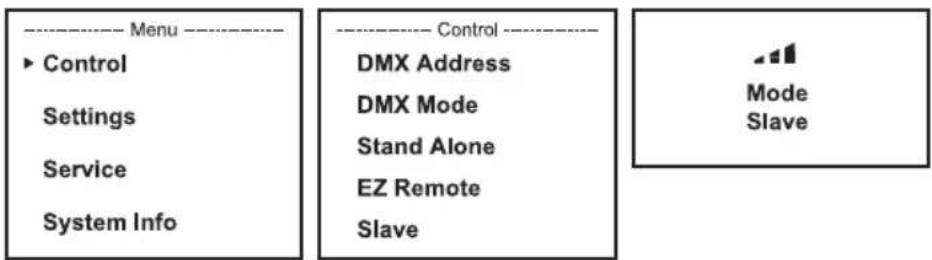

SLAVE MODE

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Control, confirm with ENTER, then select Slave and confirm again. Connect the slave and master units (same model, same software version) using a DMX cable or via wireless DMX and activate one of the stand-alone modes in the master unit. The slave unit will now follow the master unit exactly.

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to enter the main menu. Using the UP and DOWN buttons, select the menu item Settings and confirm with ENTER.

This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

Settings (Bold print = factory setting)
Wireless	Wireless settings	State	On	Wireless module activated
			Off	Wireless module deactivated
		Operating Mode	RX	Wireless module = receiver
			TX CRMX	Wireless module = transmitter with CRMX transmitter standard
			TX G4s	Wireless module = transmitter with G4s transmitter standard
			TX G3	Wireless module = transmitter with G3 transmitter standard
		Linking	Mode RX:ReceiveReset	Reset the receiver and put it in pairing standby mode
			Mode TX:Pair Link	Resetting with compatible, ready-to-pair wireless devices
			Mode TX:Disconnect wireless DMX connections and place in pairing standby mode
		Linking Key	Linking Key	Setting of the connection key
			CRMX Mode(only avail-able withmode = RX)	CRMX	Receiver standard = CRMX
				CRMX2	Receiver standard = CRMX2
			CRMX Universe	A - H	Selection of CRMX universe A to H
		Universal Metadata	RGB ColorCode	Red, Orange, Yellow,Green, Cyan, Blue,Purple, White	RGB code for colour display of the universe
			Universal A 16-character string with a customisable name that identifies the universe

Dimmer	Dimmer settings	Curve	Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
			Halogen	Tungsten dimmer curve
		PWM Frequency	400Hz, 650Hz, 1500Hz, 3600Hz, 12kHz, 18.9kHz, 25kHz	Select LED PWM frequency
		Response (dimmer response)	LED	The light responds immediately to changes in the DMX value
			Halogen The 1 kW	light behaves in a similar way to a 1 kW halogen light
			Halogen The 2 kW	light behaves in a similar way to a 2 kW halogen light
			Halogen The 5 kW	light behaves in a similar way to a 5 kW halogen light
		Redshift	Dim to Warm	Simulates the colour drift when dimming a halogen light. When dimming the light, the colour temperature changes automatically to increasingly warm white tones and amber (and vice versa).
			Off	Function disabled
XColor	Colour calibration	Optimisation mode	Brightness	Calibrated colour mixing for all colours
			Quality	Optimised for CRI
			Disabled	Direct control of all colours, no calibration
		Colour Space	Native
			sRGB
			DCI P3
			Adobe RGB
			REC2020
XColor	Colour calibration	White Point	By Color Space
			6500K
			5600K
			4000K
			3200K
			2700K
		CCT Brightness	Constant	Constant brightness at all CCT values (reference value is 2700 K)
			Maximum	Maximum brightness at all CCT values
Fan	Fan setting	Auto	Automatic fan control
		Off	Deactivated fan with greatly reduced brightness
		Constant Low	Constant low fan speed with reduced brightness, if necessary
		Constant Mid	Constant average fan speed with reduced brightness, if necessary
		Constant High	Constant high fan speed
		Stage	Maximum fan speed
		Auto Silent	Automatic fan control with reduced fan speed
Signal Fail	Operation- al status with DMX signal fault	Hold	Last command is retained
		Blackout	Activates blackout
		Fade to Black (10s)	10-second fade to blackout
		Last Stand Alone	The last selected stand-alone mode is activated
		Full	Full on
Pixel Mirror	Or pixels	Off	Off
		On	Mirror pixels
Display	Display settings	Reverse	On	180° display rotation (for example, for overhead installation)
			Off	No display rotation
			Auto	Automatic position detection (upright/overhead mounting)
		Off Timer	Always On	Permanently on
			Off after 20s	Deactivates after approximately 20 seconds of inactivity
		Autolock	On after 60s	Controls locked after approximately 60 seconds without input (LOCKED). Unlock: Press UP and DOWN simultaneously for approxi-mately 5 seconds.
			Off	Autolock function deactivated

SERVICE MENU (Service)

Starting from the main display, press MENU to enter the main menu. Select Service using UP and DOWN and confirm with ENTER.

Information on the submenu items in the service menu and the corresponding options can be found in the table below (select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

Store Default	User A	Store all system settings in Preset User A
	User B	Store all system settings in Preset User B
	User C	Store all system settings in Preset User C
Load Default	Factory	Reset to factory setting
	User A	Reset to user A values
	User B	Reset to user B values
	User C	Reset to User C values
Reset Service Timer	No	Cancel operation
	Yes -> Reset now	Reset service operating time
Password	For service purposes only.

SYSTEM INFORMATION (System)

Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select System Info and confirm with ENTER.

Information on the submenu items in the System Info menu and the corresponding options can be found in the table below (select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

Firmware	xxx	Vx.x		Display of the firmware version of the corresponding component
	yyy	Vx.x
	...
Wireless	Module	Timo FX		Wireless module model
	Device Name	Zenit W600 G2-xxxx		Device name
	Version	HW (Hardware) Hardware version number SW (Software)		Software version number
	Link Quality	%		Connection quality in per cent
	Status	Operational: DMX Data: RDM Identify: RF Link: Link State:		Status information
Temperature	LED	xxx °C/°F		Display of the temperature of the corresponding component
	Base	xxx °C/°F
	...
	Temperature Unit	°C		Set the temperature unit
		°F
Fan Speed	Fan x	xxx RPM		Display of the corresponding fan's speed
	Fan y	xxx RPM
	...	xxx RPM
Humidity	Head	x%		Display of relative humidity in per cent
	Base	x%
Runtime	Total		xxxx h : xx m	Total operating time
	Operation		xxxx h : xx m	Time in use
	LED	Total	xxxx h : xx m	Lamp operating time
		Red	xxxx h : xx m	Red operating time
		Green	xxxx h : xx m	Green operating time
		Blue	xxxx h : xx m	Blue operating time
		Amber	xxxx h : xx m	Amber operating time
		Lime	xxxx h : xx m	Lime operating time
		Cyan	xxxx h : xx m	Cyan operating time
	Service		xxxx h : xx m	Operating time after resetting the service operating time
Serial Number	Display of the serial number
RDM UID	RDM Unique Identifier
Error Info	Error display

SET-UP AND INSTALLATION

DANGER: Installation, especially overhead installation, requires extensive experience, relevant and up-to-date expertise and competence, including the calculation of working load limits, of the installation material used, and regular safety checks of all installation materials and fixtures! If you do not have these qualifications, do not attempt to carry out an installation yourself, but use the help of appropriately qualified specialist companies! There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

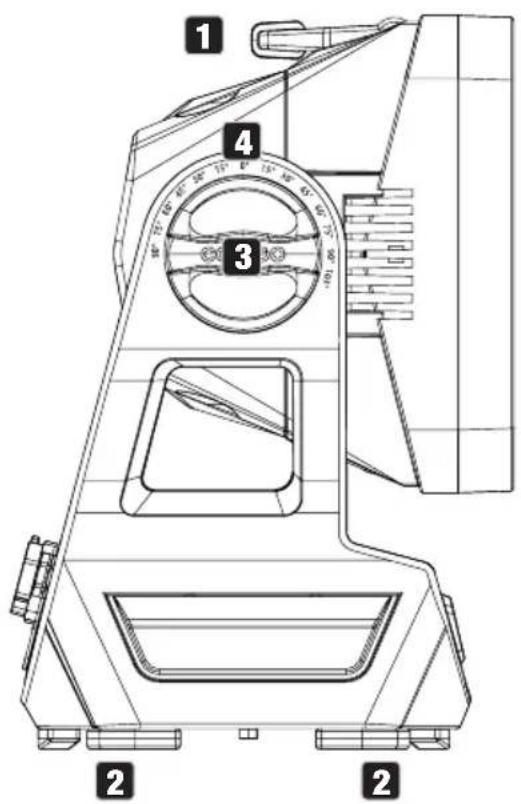

An ergonomically shaped folding handle on the top (No. 1) of the light enables safe transport. Thanks to the rubber feet on the bottom (No. 2), the light can be positioned in a suitable location on a level surface. The direction of radiation on the vertical plane is set using the handle screw (no. 3). The angle scale (no. 4) facilitates precise adjustment.

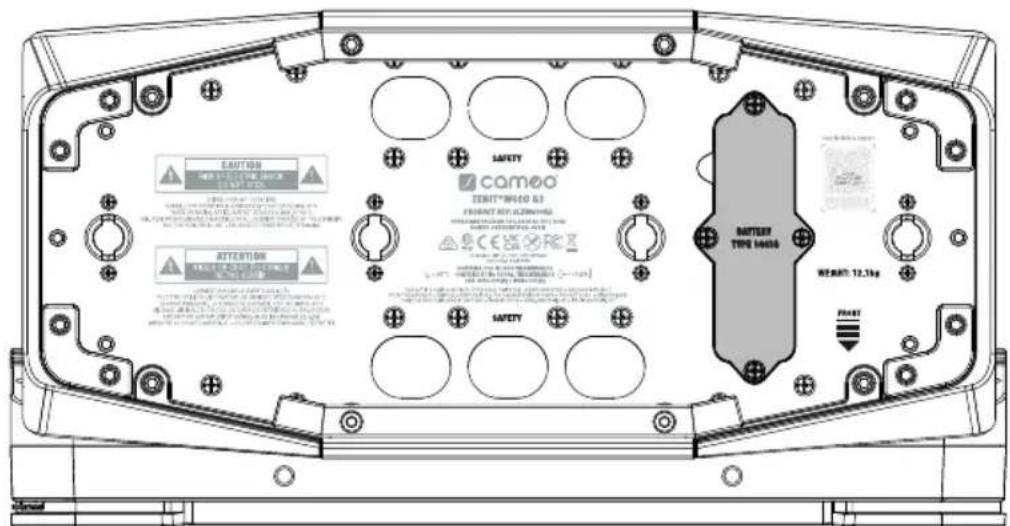

It can be truss-mounted using one or two Omega brackets, which are attached to the base of the device (No. 5). Two Omega brackets are included in the packaging content. Suitable beam clamps are available as an option. Ensure firm connections and secure the fixture to one of the designated locations with a suitable safety cable only (No. 6 SAFETY).

CARE, MAINTENANCE, AND REPAIR

To ensure that the device continues to function properly over the long term, it must be maintained regularly and serviced as required. The care and maintenance required depends on the intensity of use and the environment in which it is used.

A visual inspection should be carried out before each commissioning. In particular, all safety-relevant components, such as connecting elements, safety points, electrical connections and cables, must be taken into account. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (carried out by user)

WARNING! Before carrying out any maintenance work, the power supply and, if possible, all device connections must be unplugged.

NOTE! Improper care can lead to impairment of the device or even destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case; otherwise, they might over-tighten).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must generally be stored dry and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (only by specialised personnel)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, for example, due to charged capacitors.

NOTE! There are no user-serviceable components in the device.

NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel. If in doubt, contact a specialised workshop.

NOTE! Improperly performed maintenance work may affect warranty claims.

NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the installation instructions included.

OPTIONAL ACCESSORIES

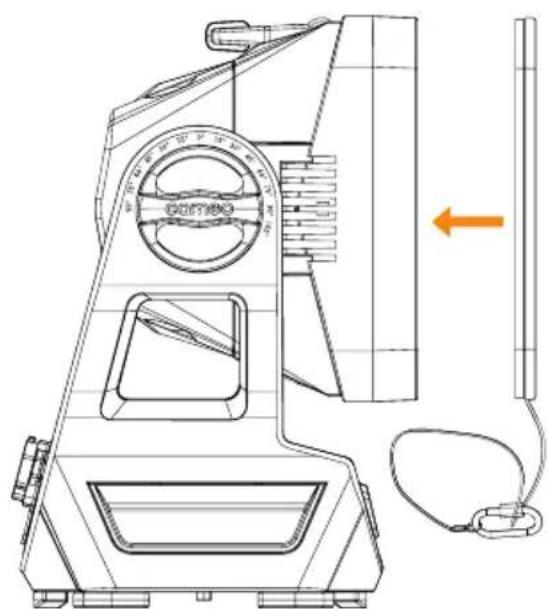

Frost filter adjustable via DMX

Product number CLZW600G2EFROST

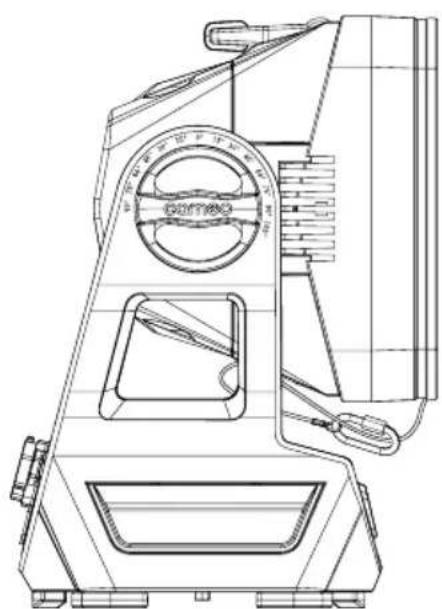

Carefully remove the frost filter from the packaging and place it on the frame of the light fitting with the electrical contacts pointing towards the light (gold-plated contacts of the frost filter on gold-plated contacts of the light). Strong magnets hold the frost filter firmly to the light. Secure the frost filter to the light using the safety cable supplied.

Cameo Cameo Cameo

ZENIT® W600 G2

SNAPBAG® SOFTBOX

Foldable softbox attachment for ZENIT® W600 G2

ZENIT® W600 SNAPMAG®

DIFFUSOR - 9010

90^ diffusor × 10^ for ZENIT W600

ZENIT® W600 SNAPMAG®

DIFFUSOR - 1090

10^ diffusor × 90^ for ZENIT W600

Cameo Cameo Cameo

ZENIT® W600 SNAPMAG ® DIFFUSOR - 6010

60^ diffusor × 10^ for ZENIT W600

ZENIT® W600 SNAPMAG ® DIFFUSOR - 45

45^ diffusor for ZENIT W600

ZENIT® W600 SNAPMAG DIFFUSOR - 25

25^ diffusor for ZENIT W600

Cameo Cameo

ZENIT® W600 SNAPMAG ® DIFFUSOR - 100

Diffusor 100^ for ZENIT W600

ZENIT® W600 4B

Product number CLZW600G2
Product type Outdoor Wash Light
Illuminant type	40 × 50 W RGBALC LEDs (10 segments separately controllable)
Lighting power 32000 lm
Front lens 33.6 mm
Beam angle 17.7° (beam angle) / 34.2° (field angle)
Tilt angle -90° ... +105° (manually adjustable)
LED PWM frequency 400 Hz; 650 Hz; 1.5 kHz; 3.6 kHz; 12 kHz; 18.9 kHz; 25 kHz
Dimmer resolution 16 bit
Dimmer curves Linear; exponential; logarithmic; S-curve; Tungsten
Colour mixing functions x-y, RGBALC, HSI, RGB, CCT + Tint
LED colours RGBALC
Correlated colour temperature (CCT) 1,800 K-10,000 K
Halogen simulation	Yes
Redshift / DTW
Response time	1 kW; 2 kW; 5 kW
halogen simulation
Colour calibration Yes
Colour rendering index (CRI)	98 @ 3200 K / 97 @ 5600 K
TLCI	94 @ 3200 K / 95 @ 5600 K
Strobe	0-20 Hz
Control protocols	DMX; RDM; W-DMX + CRMX; EZ Remote; Unisens; NFC
Number of DMX control modes	16
Stand-alone modes	Master/Slave; CCT; HSI; Direct; Colour Coordinates; Colour Presets; User Colour; Pattern; Loop
Data input connection	5-pin XLR male
Data output connector	5-pin female XLR
Operating voltage	IEC, 100-240 V AC, 50-60 Hz
Power consumption	740 W
Min. power factor Cos Phi (230 V)	0.99 / 0.13 in standby mode
Current consumption 2.8 A @ 230 V
Inrush current	68 A / 30 μs
Power link	@ 230 V and 16 A C-Type circuit breaker -> 5 units
Mains input	Seetronic TR1
Mains output	Seetronic TR1
Max. mains output current	9 A
Display and control elements	OLED display and 4 touch-sensitive controls (MENU; ENTER; UP; DOWN)
Housing material	Metal

Colour Black

Cooling system Temperature-controlled fan

Cooling modes Off; Auto; Constant Low; Constant Mid; Constant High, Stage, Auto Silent

Protection class IP65

Risk group RG2

Ambient temperature (in operation) -15^ ... 45^

Minimum distance to 3 m illuminated surface

Minimum distance to normally flammable materials 0.2 m

Dimensions (W× H× D)400× 292× 197mm

Weight 12.9 kg

Included accessories Mains cable; 2× Omega brackets; SCI

(Safety Compliance Information)

Optionai accessories

Barndoor; Electronic Frost

EXPLANATION OF IP PROTECTION CLASS

1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc.
2. The first identification digit indicates protection from dust, solid objects, and contact:

IP2X	Protected against solid foreign objects ≥ 12.5 mm in diameter
IP3X	Protected against solid foreign objects ≥ 2.5 mm in diameter
IP4X	Protected against solid foreign objects ≥ 1.0 mm in diameter
IP5X	Protected against dust in damaging quantities and fully protected against contact
IP6X	Are dust-tight and completely protected against contact

1. The second digit indicates protection from water:

IPX0 No protection

IPX1 Protection against dripping water

IPX2 Protection against dripping water when the device is tilted up to 15°

IPX3 Protection against falling spray water up to 60° from the vertical

IPX4 Protection against water splashing from any direction

IPX5 Protection against water jets (nozzle) from any angle

IPX6 Protection against strong water jets

IPX7 Protection against temporary submersion

1. In addition, some device-specific measures, such as covers and sealing caps, are necessary in order to achieve the specified protection class (for example, protective caps on unused connections).

The IP rating of the product can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO THE ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. For the value valid for this device, please refer to the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the vendor of the product or the appropriate regional authorities.

MANUFACTURER DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu-Anspach / [e-mail] /

Our current warranty conditions and limitation of liability are available at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

Contact your distribution partner for service.

EC conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines

(where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

CE Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail]

Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/

Printing errors and mistakes, as well as technical or other changes are reserved!

DEUTSCH

ZENIT W600 G2 Outdoor LED Scheinwerfer

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

MODE AUTONOME CCT(Correlated Color Temperature)

ACCESSIONS EN OPTION

TLCI 94 @ 3200 K / 95 @ 5600 K

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

Stand Alone > Master/Alone > Master

Si no desea reenviar la seals de control, desactive la calidad:

Stand Alone > Master/Alone > Alone

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Comando DMX 4-CH RGB, 4-CH Preset, 5-CH CCT, 7-CH Direct, 11-CH RGB CCT, 13-CH Direct 16Bit, 14-CH Direct CCT, 15-CH Effect, 22-CH Full, 41-CH Pattern, 31-CH Pixel RGB, 65-CH Pixel, 80-CH Pixel Full, 3-CH UNISENS, 10-CH Legacy e 15-CH Legacy

RDM

W-DMXTM

Nelle modalità operative stand-alone (Direct LED, CCT, Color Preset, HSI, Color Coordinates,

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

MODALITA STAND-ALONE CCT (Correlated Color Temperature)

EDIT LOOP (Modifica loop)

Control

Settings

Service

System Info

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

10CH Legacy	15CH Legacy
Channel	Channel	Function Values
1	1	Dimmer	000	-	255 0% to 100%
	2	Dimmer fine	000	-	255 0% to 100%
2	3	Strobe functions	000	-	005 Strobe open
			006	-	010 Strobe closed
			011	-	033 Pulse Random, slow -> fast
			034	-	056 Ramp up Random, slow -> fast
			057	-	079 Ramp down Random, slow -> fast
			080	-	102 Random Strobe Effect, slow -> fast
			103	-	127 Strobe Break Effect, 5s.....1s (short burst with break)
			128	-	250 Strobe slow -> fast <1Hz - 20Hz
			251	-	255 Strobe open
3	4	Red	000	-	255 0% to 100%
	5	Red fine	000	-	255 0% to 100%
4	6	Green	000	-	255 0% to 100%
	7	Green fine	000	-	255 0% to 100%
5	8	Blue	000	-	255 0% to 100%
	9	Blue fine	000	-	255 0% to 100%

6	10	White (emulated)	000 - 255	0% to 100%
	11	White fine (emulated)	000 - 255	0% to 100%
7	12	Colour Macros (override RGBW)	000 - 005 Colour off
			006 - 013 Red
			014 - 021 Amber
			022 - 029 Yellow warm
			030 - 037 Yellow
			038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093 Magenta
			094 - 101 Pink
			102 - 109 Warm White
			110 - 117 White
			118 - 125 Cold White
			126 - 127 Colour Jumping Stop
			128 - 191	Colour Jumping Speed slow -> fast / Colour 1 -> 12
			192 - 255	Colour Fading Speed slow -> fast / Colour 1 -> 12
8	13	Colour Temperature (affects RGBW and Colour Macros)	000 - 005 Off
			006 - 255	7200K - 3200K @ Full on affects colours too
9	14	Set dimmer curve	000 - 05 No function
			006 - 063 Linear Dimmer Curve
			064 - 127 Exponential Dimmer Curve
			128 - 191 Logarithmic Dimmer Curve
			192 - 255 S-Curve Dimmer Curve

10 15		Device Settings (please read remark 1*)	000 - 005 No function
			006 - 127 Dimmer Response LED (hold 5s)
			128 - 191 Dimmer Response Halogen (hold 5s)
			192 - 200 Fan Auto (hold 5s)
			201 - 209 Fan Max (hold 5s)
			210 - 218 Fan Silent (hold 5s)
			219 - 223 LED Frequency 800Hz (hold 5s)
			224 - 228 LED Frequency 1200Hz (hold 5s)
			229 - 233 LED Frequency 2000Hz (hold 5s)
			234 - 238 LED Frequency 3600Hz (hold 5s)
			239 - 243 LED Frequency 12kHz (hold 5s)
			244 - 249 LED Frequency 25kHz (hold 5s)
			250 - 255 No function

11CH RGB CCT	14CH Direct CCT	15CH Effect
Channel Channel Channel Function Values
1 1 1 Dimmer 000 - 255 0% to 100%
2 2 2 Dimmer fine 000 - 255
3 3 3			Strobe Functions	000 - 005	Open
				006 - 010	Closed
				011 - 022	Ramp up/down slow to fast
				023 - 033	Ramp up/down random slow to fast
				034 - 045	Ramp up slow to fast
				046 - 056	Ramp up random slow to fast
				057 - 068	Ramp down slow to fast
				069 - 079	Ramp down random slow to fast
3 3 3			Strobe Functions	080 -	102	Random Strobe effect slow to fast
				103 -	127	Break effect 5s to 1s (Short burst with break)
				128 -	250	Slow to fast (<1Hz to 20Hz)
				251 -	255	Open
4 4 4 Red 000 - 255 0% to 100%
5 5 5 Green 000 - 255 0% to 100%
6 6 6 Blue 000 - 255 0% to 100%
	7 7 Amber 000 - 255 0% to 100%
	8 8 Lime 000 - 255 0% to 100%
	9 9 Cyan 000 - 255 0% to 100%
7	10		Color Temperature(affects Color Mixing)	000 -	005 Off
				006 -	006 Warm white
				007 -	046 Warm white to 2700K
				047 -	047 Bulb White (2700K)
				048 -	087 2700 K to 3200K
				088 -	088 Halogen White (3200K)
				089 -	128 3200 K to 4000K
				129 -	129 Neutral White (4000K)
				130 -	169 4000 K to 5600K
				170 -	170 Studio White (5600K)
				171 -	210 5600 K to 6500K
				211 -	211 Daylight White (6500K)
				212 -	251 6500 K to Cold white
				252 -	255 Cold white
8	11		Tint(affects Color Temperature)	000 -	000 Off
				001 -	127 Magenta -> Neutral
				128 -	128 neutral
				129 -	255 Neutral -> Green
000-005 No function
006-009 46 Dark Magenta
010-013 29 Plasma Red
014-017 26 Bright Red
018-021 127 Smoky Pink
022-025 36 Medium Pink
026-029 19 Fire
030-033 135 Deep Golden
034-037 778 Millennium Gold
038-041 21 Gold Amber
042-045 157 Pink
046-049 110 Middle Rose
050-053 109 Light Salmon
054-057 35 Light Pink
058-061 134 Golden Amber
062-065 17 Surprise Peach
066-069 746 Brown
070-073 105 Orange
074-077 20 Medium Amber
078-081 768 Egg Yellow
082-085 15 Deep Straw
086-089 767 Nectarine
090-093 101 Yellow
094-097 100 Spring Yellow
098-101 88 Lime Green
102-105 121 LEE Green
106-109 738 Jas Green
110-113 89 Mass Green
114-117 139 Primary Green
118-121 124 Dark Green
122-125 323 Jade
126-129 354 Special Steel
Blue

		10	Color Presets (override Color Mixing & Color Temperature)	130 -	133	116 Medium Blue-Green
				134 -	137 183 Moonlight Blue
				138 -	141 132 Medium Blue
				142 -	145 119 Dark Blue
				146 -	149 716 Mikkel Blue
				150 -	153 71 Tokyo Blue
				154 -	157 181 Congo Blue
				158 -	161	799 Special KH Lavender
				162 -	165 707 Ultimate Violet
				166 -	169	343 Special Medium Lavender
				170 -	173 798 Chrysalis Pink
				174 -	177 701 Provence
				178 -	181 797 Deep Purple
				182 -	185 48 Rose Purple
				186 -	189 345 Fuchsia Pink
				190 -	193 795 Magical Magenta
				194 -	197 128 Bright Pink
				198 -	201 2 Rose Pink
				202 -	255 No function
		11	Pattern Selection	000 -	005 Off
				006 -	026 1
				027 -	047 2
				048 -	068 3
				069 -	089 4
				090 -	110 5
				111 -	131 6
				132 -	152 7
				153 -	173 8
				174 -	194 9
				195 -	215 10
				216 -	236 11
				237 -	255 12

000 - 000 Off	000 - 000 Off	001 - 064	Pattern Speed fast to slow (Chase)	065 - 065 Pattern Speed Stop	064 - 127	fast (Chase) (back-wards)	063 - 063 Pattern Speed stop	065 - 065 Pattern Speed stop	064 - 127	fast (Chase) (back-wards)
9 12 13 Frost 000 - 255	128 - 191	fast (Fade) (back-wards)	192 - 192 Pattern Speed stop	192 - 192 Pattern Speed stop	193 - 255	fast (Fade) (back-wards)	Electronic Frost 0% to 100%	193 - 255	fast (Fade) (back-wards)
Device settings (hold value for 3 seconds) (please read remark 1*)	006 - 006 No function	007 - 007 Dimmer Curve Linear	008 - 008 No function	006 - 006 No function	007 - 007 Dimmer Curve Linear	008 - 008 No function	008 - 008 No function	006 - 006 No function	007 - 007 Dimmer Curve Linear
	009 - 009 No function	009 - 009 No function	009 - 009 No function	009 - 009 No function	009 - 009 No function	009 - 009 No function	009 - 009 No function	009 - 009 No function	009 - 009 No function
	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve	010 - 010 S-Curve
	011 - 011 open	011 - 011 open	011 - 011 open	011 - 011 open	011 - 011 open	011 - 011 open	011 - 011 open	011 - 011 open	011 - 011 open
	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare	012 - 014 Spare
	015 - 015 PWM 400Hz	015 - 015 PWM 400Hz	015 - 015 PWM 400Hz	015 - 015 PWM 400Hz	015 - 015 PWM 400Hz	015 - 015 PWM 400Hz	015 - 015 PWM 400Hz	015 - 015_PWM 400Hz	015 - 015PWM 400Hz
	017 - 017 PWM 1500Hz	017 - 017 PWM 1500Hz	017 - 017 PWM 1500Hz	017 - 017 PWM 1500Hz	017 - 017 PWM 1500Hz	017 - 017 PWM 1500Hz	017 - 017 PWM 1500Hz	015 - 015 PWM 400Hz	015 - 015PWM 400Hz
	018 - 018 PWM 3600Hz	018 - 018 PWM 3600Hz	018 - 018 PWM 3600Hz	018 - 018 PWM 3600Hz	018 - 018 PWM 3600Hz	018 - 018 PWM 3600Hz	018 - 018 PWM 3600Hz	015 - 015PWM 400Hz	015 - 015PWM 400Hz
	020 - 020 PWM 18.9KHz	020 - 020 PWM 18.9KHz	020 - 020 PWM 18.9KHz	020 - 020 PWM 18.9KHz	020 - 020 PWM 18.9KHz	020 - 020 PWM 18.9KHz	020 - 020 PWM 18.8KHz	021 - 021 PWM 25KHz	021 - 021 PWM 25KHz
	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare	022 - 034 Spare

101314
036 - 036
037 - 037
038 - 038
039 - 041 Spare
042 - 042 DTW (Redshift) On
043 - 043 DTW (Redshift) Off
044 - 048 Spare
049 - 049 No function
050 - 050	Brightness Optimiza-
051 - 051	Quality Optimization
052 - 054 Spare	Mode
053 - 055 Disable Optimization
056 - 058 Spare	Remark 1*
059 - 059 Native Color Space
060 - 060 sRGB Color Space
061 - 061 DGI P3 Color Space
062 - 062	Adobe RGB Color
063 - 063 REC2020 Color Space
064 - 066 Spare	White Point By Color
067 - 067	Space
068 - 068 White Point 6500K	069 - 069 White Point 5600K
070 - 070 White Point 4000K	071 - 071 White Point 3200K
072 - 072 White Point 2700K	073 - 075 Spare
076 - 076 Brightness	077 - 077 Brightness

101314

Device

settings

(hold value for 3 seconds)

(please read remark 1*)

162 - 162 Display Off after 20s

153 - 159 Spare

160 - 160 No function

161 - 161 Display Always On

163 - 163 Display Lock On

164 - 164 Display Lock Off

165 - 190 Spare

191 - 191 No function

192 - 192 Store User Default A

193 - 193 Store user Default B

194 - 194 Store user Default C

195 - 195 Load Factory Defaults

196 - 196 Load User Default A

197 - 197 Load User Default B

198 - 198 Load User Default C

199 - 217 Spare

218 - 218 No function

219 - 219 Record User Color 1

220 - 220 Record User Color 2

221 - 221 Record User Color 3

222 - 222 Record User Color 4

223 - 223 Record User Color 5

10 13 14			Device settings(hold value for 3 seconds)(please read remark 1*)	224 -	224 Record	Record User Color 6
				225 -	225 Record	Record User Color 7
				226 -	226 Record	Record User Color 8
				227 -	229 Spare
				230 -	230 Spare
				231 -	235 Spare
				236 -	255 No function
11 14 15 Fan Control				000 -	005 Read	from Menu
				006 -	011 Auto
				012 -	017 Off
				018 -	023 Constant Low
				024 -	029 Constant Medium
				030 -	035 Constant High
				036 -	041 Stage
				042 -	047 Auto	Silent
				048 -	154	Spare - Read from Menu
				155 -	255	Manual Mode from 0% to 100%

13CH Direct 16Bit
Channel Function Values
1 Red 00 - 255					0% to 100%
2 Red fine 000 - 255
3 Green	000 - 255				0% to 100%
4	Green fine	000 - 255
5	Blue	000 - 255			0% to 100%
6	Blue fine	000 - 255
7	Amber	000 - 255			0% to 100%
8	Amber fine	000 - 255
9	Lime	000 - 255			0% to 100%
10	Lime fine	000 - 255
11 Cyan	000 - 255				0% to 100%
12 Cyan	fine 000 - 255
13 Frost	000 - 255 Electronic Frost	0% to 100%

22CH Full	41CH Pattern
Channel	Channel Function Values
1 1 Dimmer 000	- 255				0% to 100%
2 2	Dimmer fine 000	- 255
3 3	Strobe Functions	000	- 005 Open
		006	- 010 Closed
		011	- 022 Ramp up/down slow to fast
		023	- 033 Ramp up/down random slow to fast
		034	- 045 Ramp up slow to fast
		046	- 056 Ramp up random slow to fast
		057	- 068 Ramp down slow to fast
		069	- 079 Ramp down random slow to fast
		080	- 102 Random Strobe effect slow to fast
		103	- 127	Strobe Break effect 5s to 1s (Short burst with break)
		128	- 250 Strobe slow to fast (<1Hz to 20Hz)
		251	- 255 Open
4 4	Red 000	- 255			0% to 100%
5 5	Red fine 000	- 255
6 6	Green 000	- 255			0% to 100%
7 7	Green fine 000	- 255
8 8 Blue	000 - 255				0% to 100%
9 9	Blue fine 000	- 255
10	10 Amber 000	- 255			0% to 100%
11	11 Amber fine	000	-	255
12	12 Lime	000	-	255	0% to 100%
13	13 Lime fine	000	-	255
14	14 Cyan	000	-	255	0% to 100%
15	15 Cyan fine	000	-	255

16 16		Color Temperature(affects Color Mixing)	000 - 005 Off
			006 - 006 Warm white
			007 - 046 Warm white to 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K to 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K to 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K to 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K to 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K to Cold white
			252 - 255 Cold white
17 17		Tint(affects Color Temperature)	000 - 000 Off
			001 - 127 Magenta -> Neutral
			128 - 128 neutral
			129 - 255 Neutral -> Green
18 18		Color Presets(override Color Mixing & Color Temperature)	000 - 005 No function
			006 - 009 46 Dark Magenta
			010 - 013 29 Plasa Red
			014 - 017 26 Bright Red
			018 - 021 127 Smokey Pink
			022 - 025 36 Medium Pink
			026 - 029 19 Fire
			030 - 033 135 Deep Golden Amber
			034 - 037 778 Millennium Gold
			038 - 041 21 Gold Amber
			042 - 045 157 Pink
			046 - 049 110 Middle Rose
			050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown
18 18
070·073 105 Orange
074·077 20 Medium Amber
078·081 768 Egg Volk Yellow
082·085 15 Deep Straw
086·089 767 Nectarine
090·093 101 Yellow
094·097 100 Spring Yellow
098·101 88 Lime Green
098·105 121 LEE Green
102·105 121 LEE Green
106·109 738 Jas Green
110·113 89 Moss Green
114·117 139 Primary Green
118·121 124 Dark Green
122·125 323 Jade
126·129 354 Special Steel Blue
130·133 116 Medium Blue-Green
134·137 183 Moonlight Blue
138·141 132 Medium Blue
142·145 119 Dark Blue
146·149 716 Mikkel Blue
150·153 71 Tokyo Blue
154·157 181 Congo Blue
168·169 343 Special Medium Lavender
170·173 798 Chrysals Pink
174·177 701 Provence
178·181 797 Deep Purple
182·185 48 Purple
186·189 345 Fuchsia Pink
190·193 795 Magical Magenta
194·197 128 Bright Pink
198·201 2 Rose Pink
202·255 No function

19		Color Preset Crossfade	000 - 005 0s (Off)
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
			245 - 255 5m - 15m (1m Steps)
	19	Pattern Selection	000 - 005 0ff
			006 - 026 1
			027 - 047 2
			048 - 068 3
			069 - 089 4
			090 - 110 5
			111 - 131 6
			132 - 152 7
			153 - 173 8
			174 - 194 9
			195 - 215 10
			216 - 236 11
			237 - 255 12
	20 Pattern Speed		000 - 000 0ff
			001 - 064 Pattern Speed fast to slow (Chase)
			065 - 065 Pattern Speed Stop
			064 - 127 Pattern Speed slow to fast (Chase) (backwards)
			128 - 191 Pattern Speed fast to slow (Fade)
			192 - 192 Pattern Speed Stop
			193 - 255 Pattern Speed slow to fast (Fade) (backwards)
	21	Background Dimmer	000 - 255 0% to 100%
	22	Background Dimmer fine	000 - 255

23
Background
Strobe
011 - 022 Ramp up/down slow to fast
023 - 033 Ramp up/down random slow to fast
034 - 045 Ramp up slow to fast
046 - 056 Ramp up random slow to fast
057 - 068 Ramp down random slow to fast
069 - 079 Ramp down random slow to fast
080 - 102 Rand Strobe effect slow to fast
103 - 127 Strobe Break effect 5s to 1s (Short
burst with break)
251 - 255 Open
24 Background Red 000 - 255
Background Red 000 - 255
25	Background Green fine	000 - 255	0% to 100%
26	Background Green	000 - 255	0% to 100%
27	Background Green fine	000 - 255	0% to 100%
28	Background Blue fine	000 - 255	0% to 100%
29	Background Blue fine	000 - 255	0% to 100%
30	Background Amber fine	000 - 255	0% to 100%
31	Background Amber fine	000 - 255	0% to 100%
32	Background Lime fine	000 - 255	0% to 100%
33	Background Lime fine	000 - 255	0% to 100%
34	Background Cyan fine	000 - 255	0% to 100%
	36	Background Col- or Temperature (affects Back- ground Color Mixing)	000 - 005 Off
			006 - 006 Warm white
			007 - 046 Warm white to 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K to 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K to 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K to 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K to 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K to Cold white
			252 - 255 Cold white
	37	Background Tint (affects Back- ground Color Temperature)	000 - 000 Off
			001 - 127 Magenta -> Neutral
			128 - 128 neutral
			129 - 255 Neutral -> Green
	38	Background Color Presets (override Back- ground Color Mixing & Back- ground Color Temperature)	000 - 005 No function
			006 - 009 46 Dark Magenta
			010 - 013 29 Plasa Red
			014 - 017 26 Bright Red
			018 - 021 127 Smokey Pink
			022 - 025 36 Medium Pink
			026 - 029 19 Fire
			030 - 033 135 Deep Golden Amber
			034 - 037 778 Millennium Gold
			038 - 041 21 Gold Amber
			042 - 045 157 Pink
			046 - 049 110 Middle Rose
			050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown

070 - 073 105 Orange 074 - 077 20 Medium Amber 078 - 081 768 Egg Yolk Yellow 082 - 085 15 Deep Straw 086 - 089 767 Nectarine 090 - 093 101 Yellow 094 - 097 100 Spring Yellow 098 - 101 88 Lime Green 099 - 103 121 LEE Green 102 - 105 121 LEE Green 106 - 109 738 Jas Green 109 - 113 89 Moss Green 114 - 117 139 Primary Green 118 - 121 124 Dark Green 122 - 125 323 Jade 126 - 129 354 Special Steel Blue 130 - 133 116 Medium Blue-Green 134 - 137 183 Moonlight Blue 138 - 141 132 Medium Blue 142 - 145 119 Dark Blue 146 - 149 716 Mikkel Blue 150 - 153 71 Tokyo Blue 154 - 157 181 Congo Blue 158 - 161 799 Special KH Lavender 162 - 165 707 Ultimate Violet 166 - 169 343 Special Medium Lavender 170 - 173 798 Chrysals Pink 174 - 177 701 Provence 178 - 181 797 Deep Purple 182 - 185 48 Rose Purple 190 - 193 795 Magical Magenta 194 - 197 128 Bright Pink 198 - 201 2 Rose Pink 202 - 255 No function

38

21 40		Device settings(hold value for 3 seconds)(please read remark 1*)	000 - 005 No function
			006 - 006 No function
			007 - 007 Dimmer Curve Linear
			008 - 008 Dimmer Curve Exponential
			009 - 009 Dimmer Curve Logarithmic
			010 - 010 Dimmer Curve S-Curve
			011 - 011 Dimmer Curve Halogen
			012 - 014 Spare
			015 - 015 PWM 400Hz
			016 - 016 PWM 650Hz
			017 - 017 PWM 1500Hz
			018 - 018 PWM 3600Hz
			019 - 019 PWM 12kHz
			020 - 020 PWM 18.9kHz
			021 - 021 PWM 25kHz
			022 - 034 Spare
			035 - 035 Dimmer Response LED
			036 - 036 Dimmer Response Halogen 1kW
			037 - 037 Dimmer Response Halogen 2kW
			038 - 038 Dimmer Response Halogen 5kW
			039 - 041 Spare
			042 - 042 DTW (Redshift) On
			043 - 043 DTW (Redshift) Off
			044 - 048 Spare
			049 - 049 No function
			050 - 050 Brightness Optimization Mode
			051 - 051 Quality Optimization Mode
			052 - 054 Spare
			055 - 055 Disable Optimization
			056 - 058 Spare
			059 - 059 Native Color Space
			060 - 060 sRGB Color Space
			061 - 061 DCI P3 Color Space
			062 - 062 Adobe RGB Color Space
			063 - 063 REC2020 Color Space
21 40		Device settings(hold value for 3 seconds)(please read remark 1*)	064 - 066 Spare
			067 - 067 White Point By Color Space
			068 - 068 White Point 6500K
			069 - 069 White Point 5600K
			070 - 070 White Point 4000K
			071 - 071 White Point 3200K
			072 - 072 White Point 2700K
			073 - 075 Spare
			076 - 076 CCT Fade Constant Brightness
			077 - 077 CCT Fade Maximum Brightness
			078 - 082 Spare
			083 - 083 No function
			084 - 084 Fan Auto
			085 - 085 Fan Off
			086 - 086 Fan Constant Low
			087 - 087 Fan Constant Medium
			088 - 088 Fan Constant High
			089 - 089 Fan Stage
			090 - 090 Fan Auto Silent
			091 - 140 Spare
			150 - 150 No function
			151 - 151 Pixel Mirroring Off
			152 - 152 Pixel Mirroring On
			153 - 159 Spare
			160 - 160 No function
			161 - 161 Display Always On
			162 - 162 Display Off after 20s
			163 - 163 Display Lock On
			164 - 164 Display Lock Off
			165 - 190 Spare
			191 - 191 No function
			192 - 192 Store User Default A
			193 - 193 Store User Default B
			194 - 194 Store User Default C
			195 - 195 Load Factory Defaults
21 40		Device settings(hold value for 3 seconds)(please read remark 1*)	196 - 196 LoadUser Default A
			197 - 197 LoadUser Default B
			198 - 198 LoadUser Default C
			199 - 217 Spare
			218 - 218 No function
			219 - 219 Record User Color 1
			220 - 220 Record User Color 2
			221 - 221 Record User Color 3
			222 - 222 Record User Color 4
			223 - 223 Record User Color 5
			224 - 224 Record User Color 6
			225 - 225 Record User Color 7
			226 - 226 Record User Color 8
			227 - 229 Spare
			230 - 230 Spare
			231 - 235 Spare
			236 - 255 No function
22 41	Fan Control		000 - 005 Read from Menu
			006 - 011 Auto
			012 - 017 Off
			018 - 023 Constant Low
			024 - 029 Constant Medium
			030 - 035 Constant High
			036 - 041 Stage
			042 - 047 Auto Silent
			048 - 154 Spare - Read from Menu
			155 - 255 Manual Mode from 0% to 100%

31CH Pixel RGB	65CH Pixel
Channel Channel Function Values
	1 Dimmer 000 - 255				0% to 100%
	2 Dimmer fine 000 - 255
1 3 Frost 000 - 255 Electronic Frost		0% to	100%
	4	Device settings(hold value for 3 seconds)	000 - 005 No function
			006 - 006 No function
			007 - 007 Dimmer Curve Linear
			008 - 008 Dimmer Curve Exponential
			009 - 009 Dimmer Curve Logarithmic
			010 - 010 Dimmer Curve S-Curve
			011 - 011 Dimmer Curve Halogen
			012 - 014 Spare
			015 - 015 PWM 400Hz
			016 - 016 PWM 650Hz
			017 - 017 PWM 1500Hz
			018 - 018 PWM 3600Hz
			019 - 019 PWM 12kHz
			020 - 020 PWM 18.9kHz
			021 - 021 PWM 25kHz
			022 - 034 Spare
			035 - 035 Dimmer Response LED
			036 - 036 Dimmer Response Halogen 1kW
			037 - 037 Dimmer Response Halogen 2kW
			038 - 038 Dimmer Response Halogen 5kW
			039 - 041 Spare
			042 - 042 DTW (Redshift) On
			043 - 043 DTW (Redshift) Off
			044 - 048 Spare
			049 - 049 No function
			050 - 050 Brightness Optimization Mode
			051 - 051 Quality Optimization Mode
			052 - 054 Spare

	4	Device settings(hold value for 3 seconds)	055 - 055 Disable Optimization
			056 - 058 Spare
			059 - 059 Native Color Space
			060 - 060 sRGB Color Space
			061 - 061 DCI P3 Color Space
			062 - 062 Adobe RGB Color Space
			063 - 063 REC20 20 Color Space
			064 - 066 Spare
			067 - 067 White Point By Color Space
			068 - 068 White Point 6500K
			069 - 069 White Point 5600K
			070 - 070 White Point 4000K
			071 - 071 White Point 3200K
			072 - 072 White Point 2700K
			073 - 075 Spare
			076 - 076 CCT Fade Constant Brightness
			077 - 077 CCT Fade Maximum Brightness
			078 - 082 Spare
			083 - 083 No function
			084 - 084 Fan Auto
			085 - 085 Fan Off
			086 - 086 Fan Constant Low
			087 - 087 Fan Constant Medium
			088 - 088 Fan Constant High
			089 - 089 Fan Stage
			090 - 090 Fan Auto Silent
			091 - 140 Spare
			150 - 150 No function
			151 - 151 Pixel Mirroring Off
			152 - 152 Pixel Mirroring On
			153 - 159 Spare
			160 - 160 No function
			161 - 161 Display Always On
			162 - 162 Display Off after 20s
			163 - 163 Display Lock On
164-164 Display Lock Off
165-190 Spare
191-191 No function
192-192 Store User Default A
193-193 Store User Default B
194-194 Store User Default C
195-195 Load Factory Defaults
196-196 Load user Default A
197-197 Load user Default B
198-198 Load user Default C
199-217 Spare
218-218 No function
3 seconds (hold value for 3 seconds)
219-219 Record User Color 1
220-220 Record User Color 2
221-221 Record User Color 3
222-222 Record User Color 4
223-223 Record User Color 5
224-224 Record User Color 6
225-225 Record User Color 7
226-226 Record User Color 8
227-229 Spare
230-230 Spare
231-235 Spare
236-235 No function
000-005 Read from Menu
000-005 Read from Menu
006-01 Auto
012-017 Of
018-023 Constant Low
024-029 Constant Medium
030-035 Constant High
036-04 Stage
042-047 Auto Silent
048-154 Spare - Read from Menu
155-255 Manual Mode from 0% to 100%

37 Green 1000 -	255 0% to 100%
48 Blue 1000 -	255 0% to 100%
	9 Amber 1000 - 255 0% to 100%
	10 Lime 1000 - 255 0% to 100%
	11 Cyan 1000 - 255 0% to 100%
5 12 Red 2000 -	255 0% to 100%
6 13	Green 2000 - 255 0% to 100%
7 14	Blue 2000 - 255 0% to 100%
	15	Amber 2000 - 255 0% to 100%
	16 Lime 2000 - 255 0% to 100%
	17 Cyan 2000 - 255 0% to 100%
8 18 Red 3000 -	255 0% to 100%
9 19	Green 3000 - 255 0% to 100%
10	20	Blue 3000 - 255 0% to 100%
	21	Amber 3000 - 255 0% to 100%
	22 Lime 3000 - 255 0% to 100%
	23 Cyan 3000 - 255 0% to 100%
11	24 Red 4000 - 255 0% to 100%
12	25	Green 4000 - 255 0% to 100%
13	26	Blue 4000 - 255 0% to 100%
	27	Amber 4000 - 255 0% to 100%
	28 Lime 4000 - 255 0% to 100%
	29 Cyan 4000 - 255 0% to 100%
14	30 Red 5000 - 255 0% to 100%
15	31	Green 5000 - 255 0% to 100%
16	32	Blue 5000 - 255 0% to 100%
	33	Amber 5000 - 255 0% to 100%
	34 Lime 5000 - 255 0% to 100%
	35 Cyan 5000 - 255 0% to 100%
17	36 Red 6000 - 255 0% to 100%
18	37	Green 6000 - 255 0% to 100%
19	38	Blue 6000 - 255 0% to 100%
	39	Amber 6000 - 255 0% to 100%
	40 Lime 6000 - 255 0% to 100%
	41 Cyan 6000 - 255 0% to 100%

20 42 Red 7 000 - 255 0% to 100%
21 43 Green 7 000 - 255 0% to 100%
22 44 Blue 7 000 - 255 0% to 100%
	45 Amber 7 000 - 255 0% to 100%
	46 Lime 7 000 - 255 0% to 100%
	47 Cyan 7 000 - 255 0% to 100%
23 48 Red 8 000 - 255 0% to 100%
24 49 Green 8 000 - 255 0% to 100%
25 50 Blue 8 000 - 255 0% to 100%
	51 Amber 8 000 - 255 0% to 100%
	52 Lime 8 000 - 255 0% to 100%
	53 Cyan 8 000 - 255 0% to 100%
26 54 Red 9 000 - 255 0% to 100%
27 55 Green 9 000 - 255 0% to 100%
28 56 Blue 9 000 - 255 0% to 100%
	57 Amber 9 000 - 255 0% to 100%
	58 Lime 9 000 - 255 0% to 100%
	59 Cyan 9 000 - 255 0% to 100%
29 60 Red 10 000 - 255 0% to 100%
30 61 Green 10 000 - 255 0% to 100%
31 62 Blue 10 000 - 255 0% to 100%
	63 Amber 10 000 - 255 0% to 100%
	64 Lime 10 000 - 255 0% to 100%
	65 Cyan 10 000 - 255 0% to 100%
80CH Pixel Full
Channel Function Values
1 Dimmer 000 - 255				0% to 100%
2	Dimmer fine	000 - 255
3	Strobe Functions	000 - 005 Open
		006 - 010 Closed
		011 - 022 Ramp	up/down slow to fast
		023 - 033 Ramp	up/down random slow to fast
		034 - 045 Ramp	up slow to fast
		046 - 056 Ramp	up random slow to fast
		057 - 068 Ramp	down slow to fast
		069 - 079 Ramp	down random slow to fast
		080 - 102 Random Strobe effect slow to fast
		103 - 127	Strobe Break effect 5s to 1s (short burst with break)
		128 - 250 Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 Open
4 Red	000 - 255			0% to 100%
5 Red	fine 000 - 255
6 Green	000 - 255			0% to 100%
7 Green	fine 000 - 255
8	Blue	000 - 255	0% to 100%
9	Blue fine	000 - 255
10 Amber	000 - 255		0% to 100%
11	Amber fine	000 - 255
12	Lime	000 - 255	0% to 100%
13 Lime fine	000 - 255
14	Cyan	000 - 255	0% to 100%
15 Cyan fine	000 - 255
16	Color Temperature (affects Color Mixing)	000 - 005 Off
		006 - 006 Warm white
		007 - 046 Warm white to 2700K
		047 - 047 Bulb White (2700K)
		048 - 087 2700K to 3200K
		088 - 088 Halogen White (3200K)
		089 - 128 3200K to 4000K
		129 - 129 Neutral White (4000K)
		130 - 169 4000K to 5600K
		170 - 170 Studio White (5600K)
		171 - 210 5600K to 6500K
		211 - 211 Daylight White (6500K)
		212 - 251 6500K to Cold white
		252 - 255 Cold white
17	Tint (affects Color Temperature)	000 - 000 Off
		001 - 127 Magenta -> Neutral
		128 - 128 neutral
		129 - 255 Neutral -> Green
18 Frost 000 - 255 Electronic Frost 0% to 100%
19	Device settings (hold value for 3 seconds) (please read remark 1*)	000 - 005 No function
		006 - 006 No function
		007 - 007 Dimmer Curve Linear
		008 - 008 Dimmer Curve Exponential
		009 - 009 Dimmer Curve Logarithmic
		010 - 010 Dimmer Curve S-Curve
		011 - 011 Dimmer Curve Halogen
		012 - 014 Spare
		015 - 015 PWM 400Hz
		016 - 016 PWM 650Hz
		017 - 017 PWM 1500Hz
		018 - 018 PWM 3600Hz
		019 - 019 PWM 12kHz
		020 - 020 PWM 18.9kHz
		021 - 021 PWM 25kHz
		022 - 034 Spare

19	Device settings(hold value for 3 seconds)(please read remark 1*)	035 - 035 Dimmer Response LED
		036 - 036 Dimmer Response Halogen 1kW
		037 - 037 Dimmer Response Halogen 2kW
		038 - 038 Dimmer Response Halogen 5kW
		039 - 041 Spare
		042 - 042 DTW (Redshift) On
		043 - 043 DTW (Redshift) Off
		044 - 048 Spare
		049 - 049 No function
		050 - 050 Brightness Optimization Mode
		051 - 051 Quality Optimization Mode
		052 - 054 Spare
		055 - 055 Disable Optimization
		056 - 058 Spare
		059 - 059 Native Color Space
		060 - 060 sRGB Color Space
		061 - 061 DCI P3 Color Space
		062 - 062 Adobe RGB Color Space
		063 - 063 REC2020 Color Space
		064 - 066 Spare
		067 - 067 White Point By Color Space
		068 - 068 White Point 6500K
		069 - 069 White Point 5600K
		070 - 070 White Point 4000K
		071 - 071 White Point 3200K
		072 - 072 White Point 2700K
		073 - 075 Spare
		076 - 076 CCT Fade Constant Brightness
		077 - 077 CCT Fade Maximum Brightness
		078 - 082 Spare
		083 - 083 No function
		084 - 084 Fan Auto
		085 - 085 Fan Off
		086 - 086 Fan Constant Low
		087 - 087 Fan Constant Medium
19	Device settings(hold value for 3 seconds)(please read remark 1*)	088 - 088 Fan Constant High
		089 - 089 Fan Stage
		090 - 090 Fan Auto Silent
		091 - 140 Spare
		150 - 150 No function
		151 - 151 Pixel Mirroring Off
		152 - 152 Pixel Mirroring On
		153 - 159 Spare
		160 - 160 No function
		161 - 161 Display Always On
		162 - 162 Display Off after 20s
		163 - 163 Display Lock On
		164 - 164 Display Lock Off
		165 - 190 Spare
		191 - 191 No function
		192 - 192 Store User Default A
		193 - 193 Store User Default B
		194 - 194 Store User Default C
		195 - 195 Load Factory Defaults
		196 - 196 Load User Default A
		197 - 197 Load User Default B
		198 - 198 Load User Default C
		199 - 217 Spare
		218 - 218 No function
		219 - 219 Record User Color 1
		220 - 220 Record User Color 2
		221 - 221 Record User Color 3
		222 - 222 Record User Color 4
		223 - 223 Record User Color 5
		224 - 224 Record User Color 6
		225 - 225 Record User Color 7
		226 - 226 Record User Color 8
		227 - 229 Spare
		230 - 230 Spare

19	Device settings(hold value for 3 seconds)(please read remark 1*)	231 -	235	Spare
		236 -	255	No function
20 Fan	Control	000 -	005	Read from Menu
		006 -	011	Auto
		012 -	017	Off
		018 -	023	Constant Low
		024 -	029	Constant Medium
		030 -	035	Constant High
		036 -	041	Stage
		042 -	047	Auto Silent
		048 -	154	Spare - Read from Menu
		155 -	255	Manual Mode from 0% to 100%
21 Red	1 000 - 255 0% to 100%
22 Green	1 000 - 255 0% to 100%
23 Blue	1 000 - 255 0% to 100%
24 Amber	1 000 - 255 0% to 100%
25 Lime	1 000 - 255 0% to 100%
26 Cyan	1 000 - 255 0% to 100%
27 Red	2 000 - 255 0% to 100%
28 Green	2 000 - 255 0% to 100%
29 Blue	2 000 - 255 0% to 100%
30 Amber	2 000 - 255 0% to 100%
31 Lime	2 000 - 255 0% to 100%
32 Cyan	2 000 - 255 0% to 100%
33 Red	3 000 - 255 0% to 100%
34 Green	3 000 - 255 0% to 100%
35 Blue	3 000 - 255 0% to 100%
36 Amber	3 000 - 255 0% to 100%
37 Lime	3 000 - 255 0% to 100%
38 Cyan	3 000 - 255 0% to 100%

39 Red 4 000 - 255 0% to 100%

40 Green 4 000 - 255 0% to 100%

41 Blue 4 000 - 255 0% to 100%

42 Amber 4 000 - 255 0% to 100%

43 Lime 4 000 - 255 0% to 100%

44 Cyan 4 000 - 255 0% to 100%

45 Red 5 000 - 255 0% to 100%

46 Green 5 000 - 255 0% to 100%

47 Blue 5 000 - 255 0% to 100%

48 Amber 5 000 - 255 0% to 100%

49 Lime 5 000 - 255 0% to 100%

50 Cyan 5 000 - 255 0% to 100%

51 Red 6 000 - 255 0% to 100%

52 Green 6 000 - 255 0% to 100%

53 Blue 6 000 - 255 0% to 100%

54 Amber 6 000 - 255 0% to 100%

55 Lime 6 000 - 255 0% to 100%

56 Cyan 6 000 - 255 0% to 100%

57 Red 7 000 - 255 0% to 100%

58 Green 7 000 - 255 0% to 100%

59 Blue 7 000 - 255 0% to 100%

60 Amber 7 000 - 255 0% to 100%

61 Lime 7 000 - 255 0% to 100%

62 Cyan 7 000 - 255 0% to 100%

63 Red 8 000 - 255 0% to 100%

64 Green 8 000 - 255 0% to 100%

65 Blue 8 000 - 255 0% to 100%

66 Amber 8 000 - 255 0% to 100%

67 Lime 8 000 - 255 0% to 100%

68 Cyan 8 000 - 255 0% to 100%

69 Red 9 000 - 255 0% to 100%

70 Green 9 000 - 255 0% to 100%

71 Blue 9 000 - 255 0% to 100%

72 Amber 9 000 - 255 0% to 100%

73 Lime	9 000 - 255	0% to 100%
74 Cyan	9 000 - 255	0% to 100%
75 Red	10 000 - 255	0% to 100%
76 Green	10 000 - 255	0% to 100%
77 Blue	10 000 - 255	0% to 100%
78 Amber	10 000 - 255	0% to 100%
79 Lime	10 000 - 255	0% to 100%
80 Cyan	10 000 - 255	0% to 100%

EN: (1) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
DE: (1^) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
FR: (1^) Une fois les ajustements effectués, reglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
ES: (1) Después de realizar los ajustes, establezca el valor en 000 para evaporar perturbaciones mediante una llama de funciona sin fin.
PL: (1) Po dokonaniu ustawien ustaw wartosc na 000, abyunikac zaklocen przyze niekończace sie wywojanie funkcj.
IT: (1^) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.
