USER MANUAL OTOS L16 Cameo

Black rectangular electronic device with a colorful LED array and ventilation slots (no visible text or symbols)

OTOS® L16

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

DEFINITIONS AND SYMBOLS 6

SAFETY INFORMATION 7

NOTES FOR PORTABLE OUTDOOR EQUIPMENT 11

PACKAGING CONTENT 12

INTRODUCTION 12

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS 13

OPERATION 16

SET-UP AND INSTALLATION 29

CARE, MAINTENANCE, AND REPAIR 30

OPTIONAL ACCESSORIES 31

TECHNICAL DATA 33

EXPLANATION OF IP PROTECTION CLASS 34

MINIMUM DISTANCE TO THE ILLUMINATED SURFACE 35

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 35

DISPOSAL 35

MANUFACTURER DECLARATIONS 36

DEUTSCH

You have made the right choice!

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to use your new Cameo Light product quickly and optimally. Further information about Cameo Light is available on our website WWW.CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within easy reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use in the home!

Temporary operation! Event equipment is generally designed for temporary use only and is not intended for permanent use or permanent installation!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to improper use is excluded!

The product is not suitable for:

- Use by persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.

- Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations

or conditions that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards due to hot surfaces.

This symbol indicates avoiding looking or staring at the light source.

This symbol indicates hazards due to suspended loads.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INFORMATION

HAZARD:

1. Do not open or modify the device.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. This device may only be repaired by authorised specialist personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the mains cable of the device is damaged, do not operate the device.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Only use suitable mains cables.
3. To disconnect the device completely from the power supply, unplug the mains cable or the mains adapter from the socket. It is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type specified on the device.
5. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
6. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace pluggable power cables only with original cables.

HAZARD:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with limited physical, sensory, or mental abilities.
2. Danger caused by falling device! Ensure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the unit, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. In case of devices with motor-driven components, there is a risk of injury from the movement of the device. Sudden movement of the device can cause shock reactions.

1. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be constantly further developed. In the event of any discrepancies between the user manual and the device labelling with regard to operating conditions, performance or other device characteristics, the information on the device always takes precedence.
8. The device is not suitable for tropical climate zones or for operation above 2,000 metres above sea level.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

Three yellow warning symbols: triangular warning triangle with 'No Concern' and exclamation mark, triangular warning sign with exclamation mark, and crossed-out screwdriver symbol.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. This device is a risk group 1 device. Do not stare at the light source! Do not look directly into the lamp with optical instruments, such as magnifying glasses or binoculars!
2. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
3. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The light source contained in this luminaire may only be replaced by the manufacturer or its service partner or a similarly qualified person.

SIGNAL TRANSMISSION BY RADIO (FOR EXAMPLE, W-DMX OR AUDIO RADIO SYSTEMS):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal quality:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks)

Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions.

These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatment with skilled personnel and equipment.
  • Class I, II, and III hazardous areas
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

SIGNAL TRANSMISSION VIA W-DMX WARNING:

In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or traverse structures, DMX-controlled motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic systems or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include CO2 cannons, confetti shooters, water effects, or similar.

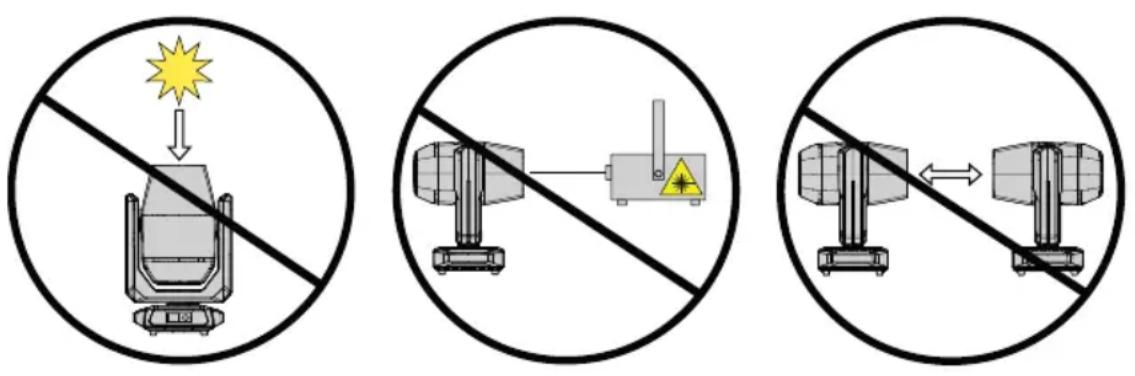

CAUTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!

Solar radiation, laser radiation, and bundled light beams from other lights can damage the housing and internal components, such as filters, gobo and colour wheels, motors, cables, belts, as well as light sources!

Do not expose the device and especially the lens opening to direct sunlight, laser radiation, and bundled light beams from other lights during unpacking, installation, prolonged disuse, and operation! Always point the lens opening towards the floor when the device is not in use!

Damage caused by external light sources is excluded from the manufacturer's warranty!

NOTES FOR PORTABLE OUTDOOR EQUIPMENT

1. Temporary operation! Event equipment is generally designed for temporary use only.
2. Continuous operation or permanent structural installation – particularly outdoors – can impair the function, surfaces, and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (for example, scratches) must be promptly repaired using suitable measures.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check that the delivery is complete and undamaged, and notify your distribution partner immediately after purchase if the delivery is incomplete or damaged.

The packaging content includes:

▶ 1 × OTOS L16 IP65 Linear light RGBL
▶ 1 × mains cable
▶ 2 × Omega brackets

▶ Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

10-channel dual, 20-channel dual, 20-channel effect, 24-channel wash, 43-channel pattern, 122-channel pixel, 183-channel pixel full access DMX control

Master/slave operation

Stand-alone operation

Art-Net

sACN

Wireless DMX

FEATURES:

Protection class IP65. 16 × 50 W RGBL LEDs plus Line LEDs (32 × 0.5 W RGB LEDs). DMX512. Wireless DMX. Art-Net and sACN. 5-pin DMX connections. 2-segment zoom function. 2 × Omega mounting brackets included. Operating voltage: 100 - 240 V AC.

The lights feature the RDM standard (remote device management). Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).

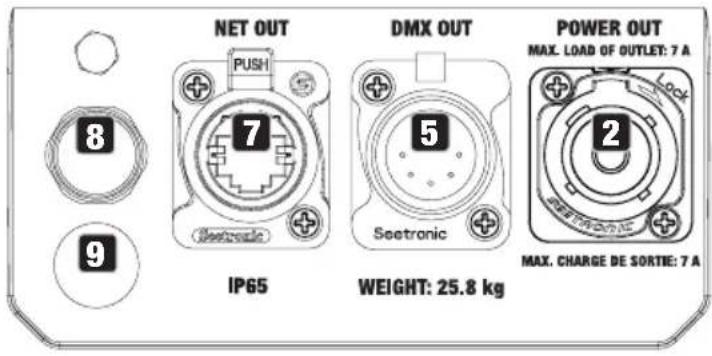

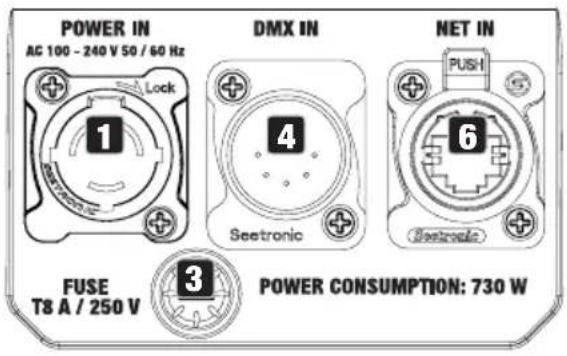

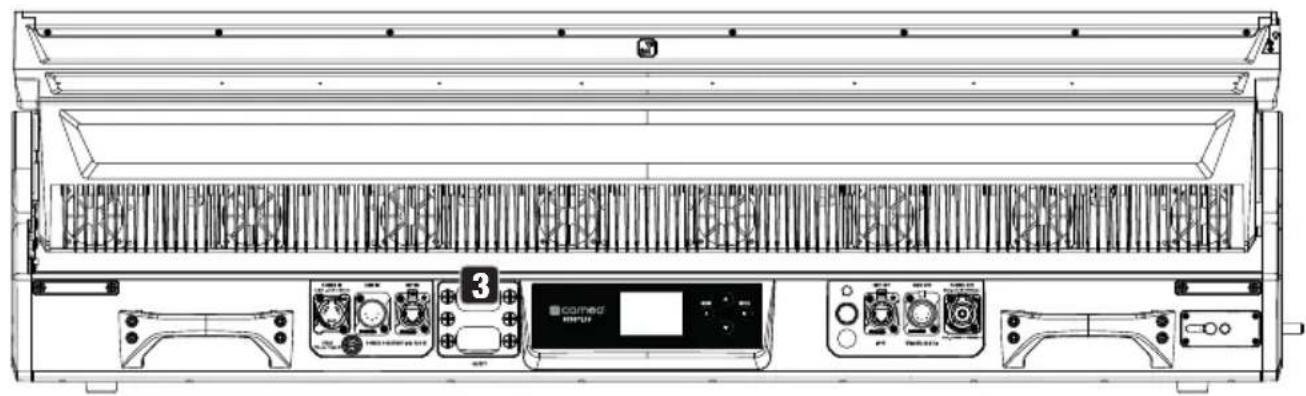

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS

POWER IN AC 100 - 240 V 50 / 60 Hz Lock 1 DMX IN Seotronic NET IN PUSH 6 3 FUSE T8 A / 250 V POWER CONSUMPTION: 730 W

NET OUT PUSH 7 IP65 DMX OUT 5 Seetronic POWER OUT MAX. LOAD OF OUTLET: 7 A 2 MAX. CHARGE DE SORTIE: 7 A WEIGHT: 25.8 kg

1 POWER IN

IP65 mains input socket with rubber sealing cap. Operating voltage 100–240 V AC / 50 – 60 Hz. Connection via supplied mains cable (when not in use, always close with the rubber sealing cap).

2 POWER OUT

IP65 power output socket with rubber sealing cap. Facilitates power supply to other CAMEO lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close the rubber sealing cap).

3 FUSE

IP65 fuse holder for 5 × 20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and rating. Carefully reseal the fuse holder to further ensure IP65 tightness. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (for example, DMX console; when not in use, always close with the rubber sealing cap).

5 DMX OUT

Female IP65 5-pin XLR socket for sending DMX control signal (when not in use, always close with the rubber sealing cap).

6 NET IN

RJ45 network connector for connecting to an Art-Net or sACN network (when not in use, always close with the rubber sealing cap). Use IP65-rated CAT-5e or better cables to set up the network.

7 NET OUT

RJ45 network connector to relay the control signal (when not in use, always close with the rubber sealing cap). Use IP65-rated CAT-5e or better cables to set up the network.

8 PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. To ensure its proper function, the element must be protected from dirt.

9 WIRELESS DMX ANTENNA

Antenna for wireless DMX control.

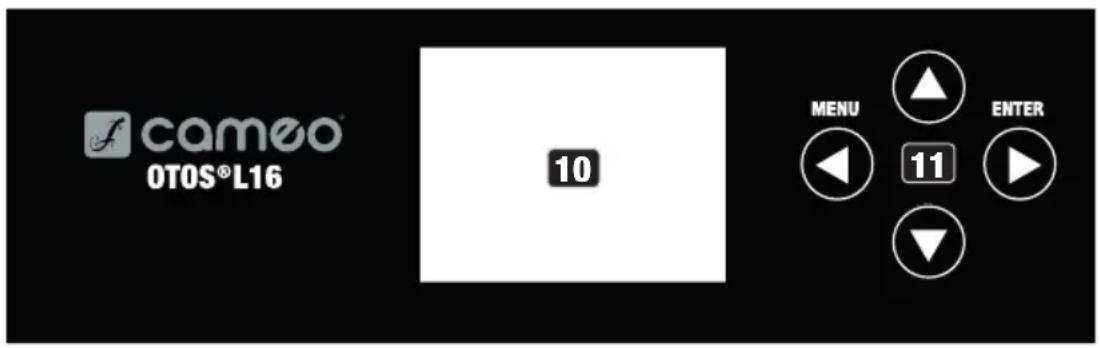

cameo OTOS® L16 10 MENU 11 ENTER

10 LC DISPLAY

The illuminated display shows the currently activated mode (main display), the menu items in the main menu and submenus, and the numerical value or status in certain menu items. If there is no control signal to the device, the characters in the centre of the display start flashing; the flashing stops as soon as a control signal is available (W-DMX, DMX, and slave operation).

11 TOUCH-SENSITIVE CONTROLS

MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main display.

▲ and ▼ – Use ▲ and ▼ to select the menu items in the main menu (for example, DMX address, operating mode) and in the submenus. Change the value or status of a menu item, such as DMX address.

ENTER – Press ENTER to access the menu layer to make value or status changes, and to access one of the submenus. Press ENTER to confirm value and status changes.

PLEASE NOTE:

• Before navigating the device menu, make sure that the control panel is dry and clean so that its functionality is not impaired.
• Water on the control unit can lead to incorrect operation of the light, for example, in outdoor operation. Therefore, after configuring the light, activate the lock function to prevent incorrect operation by water (Settings -> Display -> Autolock). Deactivate the lock function: press UP and DOWN simultaneously for approximately 5 seconds.

ATTENTION:

ATTENTION: To ensure IP65 splash resistance for the DMX and network sockets, the special input and output sockets must be correctly sealed with the IP65 special plugs or the rubber sealing caps must be used for sealing. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT mains sockets are protected from splashing water, as in accordance with IP65.

The battery-powered display can be activated even if the device is disconnected from the mains. To do this, press and hold MENU until the display is activated. You can now access device information and change and save system settings without mains connection. The external control of the light is not activated in this case. For this reason, the display shows that there is no control signal even if the device has a control signal.

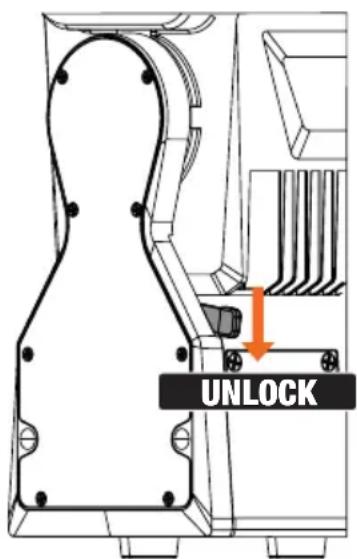

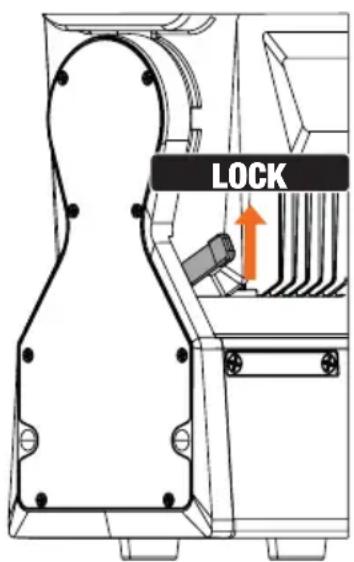

12 TILT LOCK

Mechanical locking device to prevent the vertical rotation of the head during transport (three locking positions: head vertical, 90° forward, 90° back). Disconnect the device from the power supply and push the locking lever in the direction of the rotation axis to lock. Move the head of the unit vertically until one of the locking positions is found and the locking lever engages (LOCK). Unlock the device before start-up (UNLOCK).

LOCK

UNLOCK

OPERATION

NOTES

When the light is correctly connected to the mains, “Software update ... please wait”, the software version, “Welcome to Cameo”, and “... RESET” are shown on the display during start-up and motor reset. After this process, the fixture is ready for operation and the previously activated operating mode is launched.

The main display is activated automatically if no input is made within approximately 30 seconds.

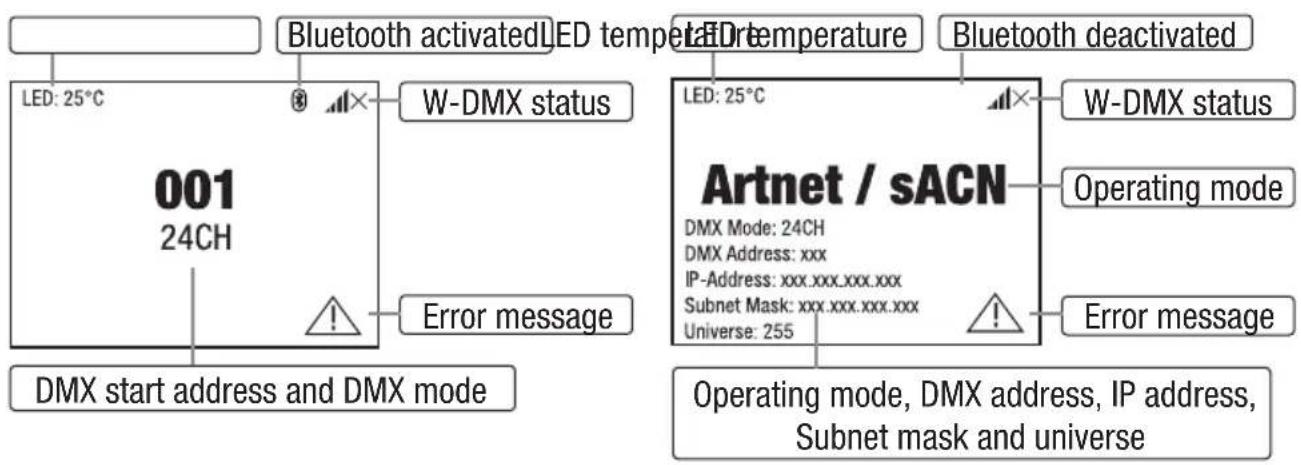

MAIN DISPLAY

In the different operating modes, the main display shows different information which is relevant to the operating mode.

DMX and W-DMX operating modes Art-Net and sACN operating modes


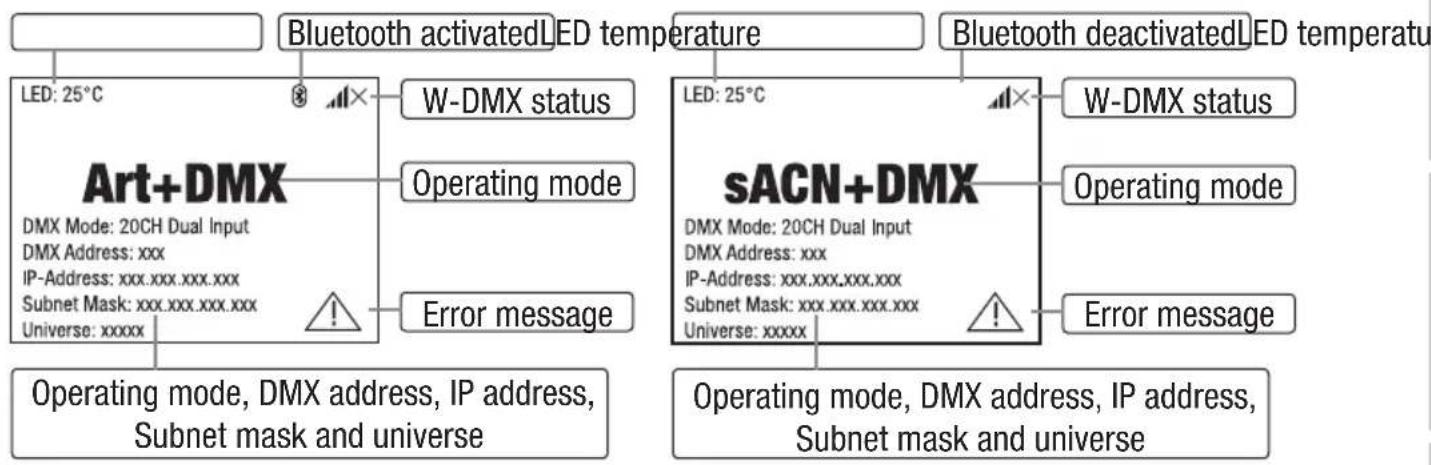

Art-Net + DMX operating mode sACN + DMX operating mode


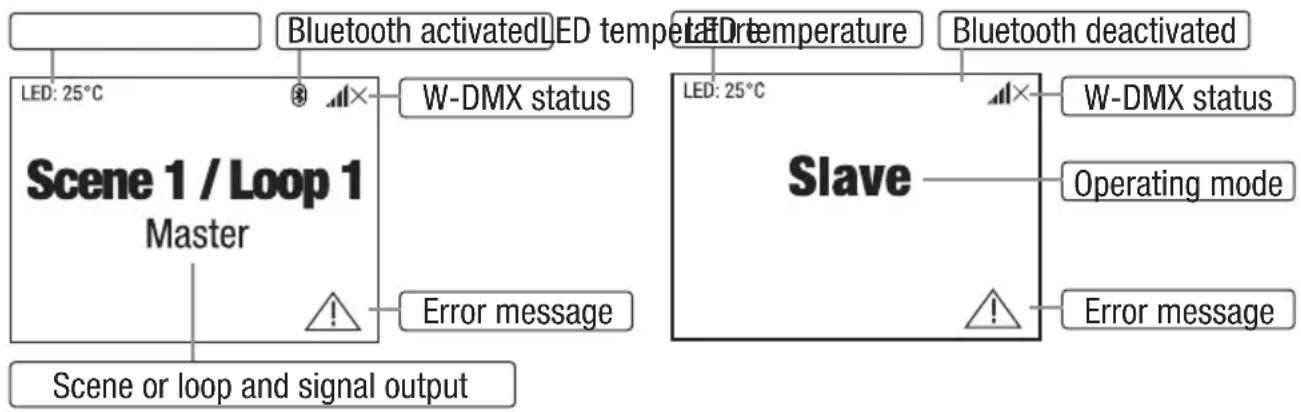

Stand-alone operating modes Slave operating mode

Note on the main display in the operating modes with external control: In the event that the control signal is interrupted, the characters in the centre of the display begin flashing; once the control signal is present again, the flashing stops.

Error message: If the warning symbol (triangle with exclamation mark) appears in the display, there is an error in one or more of the device's components. The affected components can be viewed in the System Info Menu under Error Info. If a restart or reset does not rectify the error, please contact an authorised service centre.

WIRELESS DMX

To pair a wireless DMX receiver with a wireless DMX transmitter, the corresponding menu item must be reset (Unlink). The receiver is now ready to pair and waiting for a pairing request from a transmitter. To start the pairing process, select Link or Force to pair in the transmitter's menu and confirm; the devices are now paired automatically. Simultaneous or consecutive pairing of several receivers to a transmitter (for example, for master/slave operation) can also be done in the same manner. A wireless DMX connection is always maintained until it is disconnected with the Reset command in the receiver or the Unlink command in the transmitter, regardless of whether a device has been disconnected from the power supply in the meantime.

WIRELESS DMX STATUS

W-DMX deactivated	W-DMX activated as receiver; not paired	W-DMX activated as receiver and paired; transmitter is switched off or out of range	W-DMX activated as receiver and paired; no DMX signal	W-DMX activated as receiver and paired; DMX signal present	W-DMX activated as transmitter

CONTROL MENU (Control)

The control menu is used to select the various operating modes and set their options in the respective submenus.

SET DMX START ADDRESS (DMX Address)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the DMX Address menu item and confirm again. Use ▲ and ▼ to set the desired value and press ENTER to confirm.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

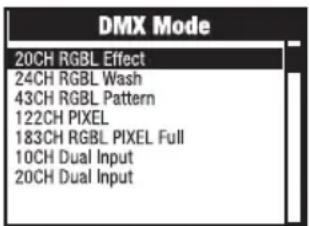

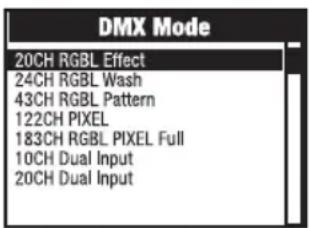

SET DMX MODE (DMX Mode)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the DMX Mode menu item and confirm again. Use ▲ and ▼ to select the desired DMX operating mode and press ENTER to confirm. DMX tables with the channel assignments can be found in the DMX CONTROL section of this user manual.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 20CH RGBL Effect 24CH RGBL Wash 43CH RGBL Pattern 122CH PIXEL 183CH RGBL PIXEL Full 10CH Dual Input 20CH Dual Input

NETWORK (Network)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the Network menu item and confirm again.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Information on the submenu items in the network menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Network Artnet
Protocol	Artnet	Control via Art-Net
	sACN	Control via sACN
Universe	Absolute Univ.	Setting of the absolute Art-Net universe	Dependent on net, subnet, and universe
	Net	Setting of the Art-Net network	Dependent on absolute universe
	Subnet	Setting of the Art-Net subnet
	Universe	Setting of the Art-Net universe
IP Address	xxx.xxx.xxx.xxx	Setting of the IP address: set first block, confirm, set second block, confirm.
Subnet Mask	xxx.xxx.xxx.xxx	Setting of the subnet mask: set first block, confirm, set second block, confirm.
Dual Input Modes	Pixel Address	Setting of the pixel start address from 001 to 4xx
	Signal Setup	Pixel via network	Pixel control via network
		Pixel via DMX	Pixel control via DMX
Signal Routing	Send to XLR		Relaying of the control signal to XLR Out
	Backup by XLR		Control via XLR with network signal interruption
	Receive only		No connection between the network signal and XLR connectors

Network sACN
Protocol	Artnet	Control via Art-Net
	sACN	Control via sACN
Universe	Absolute Univ.	Setting of the sACN universe
IP Address	xxx.xxx.xxx.xxx	Setting of the IP address: set first block, confirm, set second block, confirm.
Subnet Mask	xxx.xxx.xxx.xxx	Setting of the subnet mask: set first block, confirm, set second block, confirm.
Dual Input Modes	Pixel Address	Setting of the pixel start address from 001 to 4xx
	Signal Setup	Pixel via network	Pixel control via network
		Pixel via DMX	Pixel control via DMX
Signal Routing	Send to XLR		Relaying of the control signal to XLR Out
	Backup by XLR		Control via XLR with network signal interruption
	Receive only		No connection between the network signal and XLR connectors

STAND-ALONE MENU (Stand Alone)

In the stand-alone operating modes “Play Scene” and “Play Loop”, the control signal of the corresponding operating mode can be output to slave units via XLR (Master/Alone -> Master). If you do not want to output the control signal, deactivate the output (Master/Alone -> Alone).

Activate one of the eight available scenes (Scene 1–8) or one of the eight available loops (Loop 1–8). The scenes and loops are pre-programmed, but can be customised (Edit Scene / Edit Loop).

Starting from the main display, press MENU to enter the main menu. Use ▲ and ▼ to select the Control menu item and confirm with ENTER. Now select the menu item Stand Alone and confirm again.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Information on the submenu items in the stand-alone menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Stand Alone
Master/Alone	Master	Control signal is not relayed via DMX OUT
	Alone	Control signal is not relayed
Play Scene/Loop	Scene	Scene 1 - 8	Selection and activation of the desired scene
	Loop	Loop 1 - 8	Selection and activation of the desired loop
Edit Scene	Scene 1 - 8	Tilt	Set each scene individually. Scenes are activated by selecting them.
		Dimmer
		...
Edit Loop	Loop 1 - 8	Step	1 - 8	Selection of Step 1-8
		t-Step	0s - 20min	Setting of the step time
		t-Fade	0s - 20 min	Setting of the fade time
		User Scene	1 - 8	Selection of Scene 1-8
		Skip Step	No / Yes	Skip step: No/Yes

SLAVE MODE (Slave)

Starting from the main display, press MENU to enter the main menu. Use ▲ and ▼ to select the Control menu item and confirm with ENTER. Now select the menu item Slave and confirm again. Activate the output of the control signal in the master unit (Control -> Stand Alone -> Master/Alone -> Master). Connect the slave and master units (same model, same software version) with a DMX cable or via wireless DMX™ and activate the stand-alone operating mode “Play Scene” or “Play Loop” in the master unit. The slave unit will now follow the master unit exactly.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Settings and confirm with ENTER.

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Dimmer Color Calibration Fan Movement Sun Protection Signal Fail Pixel Mirror Display

Information on the submenu items in the settings menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Settings (Bold print = factory setting)
Wireless	Wireless settings	State	On	Wireless module activated
			Off	Wireless module deactivated
		Operating Mode	RX	Wireless module = receiver
			TX CRMX	Wireless module = transmitter with CRMX transmitter standard
			TX G4s	Wireless module = transmitter with G4s transmitter standard
			TX G3	Wireless module = transmitter with G3 transmitter standard
		Linking	Mode RX:Receive Reset	Reset the receiver and put it in pairing standby mode
			Mode TX: Pair Link	ring with compatible, ready-to-pair wireless devices
			Mode TX: Unlink	connect wireless DMX connections and place in pairing standby mode
Wireless	Wireless settings	Linking Key	Linking Key	Setting of the connection key
			CRMX Mode (only available with operating mode = RX)	CRMX	Receiver standard = CRMX
				CRMX2	Receiver standard = CRMX2
			CRMX Universe	A - H	Selection of CRMX universe A to H
		Uni-verse Meta-data	RGB Color Code	Red, Orange, Yellow, Green, Cyan, Blue, Purple, White	RGB code for colour display of the universe
			Universe A 16 Name	-character string with a customisable name that identifies the universe
		Blue-tooth	State	On	Bluetooth switched on
				Off	Bluetooth switched off
			Pin	On	PIN request switched on (factory setting 081569)
				Off	PIN request switched off
Dimmer	Dimmer settings	Curve (Dim-mer curve)	Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
		PWM Fre-quency	650Hz, 1530Hz, 3600Hz, 12kHz, 18.9kHz, 25kHz	Select LED PWM frequency
Dimmer	Dimmer settings	Response (dim re-sponse)	LED	The fixture responds immediately to changes of the DMX value
			Halogen	The light behaves in a similar way to a halogen light with gradual changes of brightness
		Red-shift	Dim to Warm	Simulates the colour drift when dimming a halogen light. When dimming the light, the colour temperature changes automatically to increasingly warm white tones and amber (and vice versa).
			Off	Function disabled
Color Calibration	Colour calibration	User		Custom colour calibration. Red, green, blue, and lime brightness setting with values ranging from 0 to 255
		Smart		Factory setting
Fan	Fan setting	Auto	Automatic fan control
		Off	Deactivated fan with greatly reduced brightness
		Constant Low	Constant low fan speed with reduced brightness, if necessary
		Constant Mid	Constant average fan speed with reduced brightness, if necessary
		Constant High	Constant high fan speed
Move-ment	Head movements settings	Tilt Re-verse	On	Tilt direction reversed
			Off	Tilt direction not reversed
		Position Feedback	On	Automatic position correction enabled
			Off	Automatic position correction disabled
		Move in Black	On	Blackout during head movement
			Off	No blackout during head movement
		Silent Move-ment	On	Slowed motor movements for quieter operation
			Off	Function disabled
		Zoom Link	On	If Zoom Link is activated (On), the zoom segments are synchronised with the first zoom channel (the second zoom channel is ignored).
			Off

Sun Protection	Protective function for the internal components	On	Activates blackout and the device head is directed downwards
		Off	Function disabled
Signal Fail	Operational status with DMX signal fault	Hold	Last command is retained
		Last Stand Alone The last selected stand-alone operating mode is activated
		Fade to Black 10 (10s)	-second fade to blackout
		Black-out	Activates blackout
		Full	Full on
		Sun Protection	Activates blackout and the device head is directed downwards
Pixel Mirror	Mirror pixels	Off	Off
		On	Mirror pixels
Display	Display settings	Reverse	On	180° display rotation (for example, for overhead installation)
			Off	No display rotation
			Auto	Automatic position detection (upright/overhead mounting)
		Off Timer	Always On	Permanently on
			Off after 20s	Deactivates after approximately 20 seconds of inactivity
		Auto-lock	On after 60s	Controls locked after approximately 60 seconds without input (LOCKED). Unlock: Press UP and DOWN simultaneously for approximately 5 seconds.
			Off	Autolock function deactivated

SERVICE MENU (Service)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Service and confirm with ENTER.

Main Menu Control Settings Service System Info Quicklight

Service Store Default Load Default Reset Test Reset Service Timer Password

Information on the submenu items in the service menu and the corresponding options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Service
Store Default	User A		Save all current settings as user preset A
	User B		Save all current settings as user preset B
	User C		Save all current settings as user preset C
Load Default	Factory Default		Reset to factory setting
	User A		Reset to user A values
	User B		Reset to user B values
	User C		Reset to user C values
Reset	Tilt		Reset pan/tilt motors
	Head		Reset motors in the device head
	All		Reset all motors
Test	Test Sequence		Pre-programmed sequence to test all components
	Stress Test		Pre-programmed sequence to test all components under maximum load
	Motor Test		Activate all motors individually with values of 000 to 255
Reset Service Timer	No		Do not reset service operation time
	Yes	Reset Now	Reset service operating time
Password	For service purposes only.

SYSTEM INFORMATION (System)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select System Info and confirm with ENTER.

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Humidity Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Information on the submenu items in the System Info menu and the corresponding options can be found in the table below (select with ▲ and ▼, confirm with ENTER).

System Info
Firmware	DISP	Vx.x.x	Display of the firmware version of the corresponding component
	...	Vx.x.x
Wireless	Module	TimoTwo	Wireless module model
	Device Name	OTOSL16-xxxx	Device name
	Version	HW (Hardware) Hardware version numberSW (Software)	Software version number
	Link Quality	%	Connection quality in per cent
	Data Source	None /DMX /Wireless Link /SPI /BLE	Information on the data source
	Status	Operational:DMX Data:RDM Identify:RF Link:Link State:	Status information
Temperature	LED	xxx °C/°F	Display of the temperature of the corresponding component
	Base	xxx °C/°F
	Temperature Unit	Setting of the temperature unit°F	(press ENTER to change)
Fan Speed	xxxx RPM	Display of the speed of the corresponding fans
Humidity	Head	x%	Display of relative humidity in per cent
	Base	x%
Runtime	Total	xxxx h : xx m		Total operating time
	Operation	xxxx h : xx m		Time in use
	LED	Total	xxxx h : xx m	Lamp operating time
		Red	xxxx h : xx m
		Green	xxxx h : xx m
		Blue	xxxx h : xx m
		Lime	xxxx h : xx m
	Service	xxxx h : xx m		Operating time after resetting the service operating time
MAC Address	xx:xx:xx:xx-:xx:xx	MAC address
RDM UID	RDM Unique Identifier (unique identifier)
DMX Values	Display of the DMX values present
Error Info	Error display in case of malfunction
DMX Table	Display of DMX mode tables

QUICKLIGHT (Quicklight)

Set up a scene quickly and easily using the basic moving head functions without an external controller. Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Quicklight and confirm with ENTER. Select the desired menu item with ▲ and ▼, confirm with ENTER, change the value with ▲ and ▼, and confirm the value change with ENTER.

Main Menu Control Settings Service System Info Quicklight

Quicklight Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

If the Quicklight mode is activated, the display does not automatically return to the main display. Quicklight mode is automatically cancelled when you exit the Quicklight menu. The settings in the Quicklight menu are retained even after restarting the light.

SET-UP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware, and regular safety inspection of all installation materials and lights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

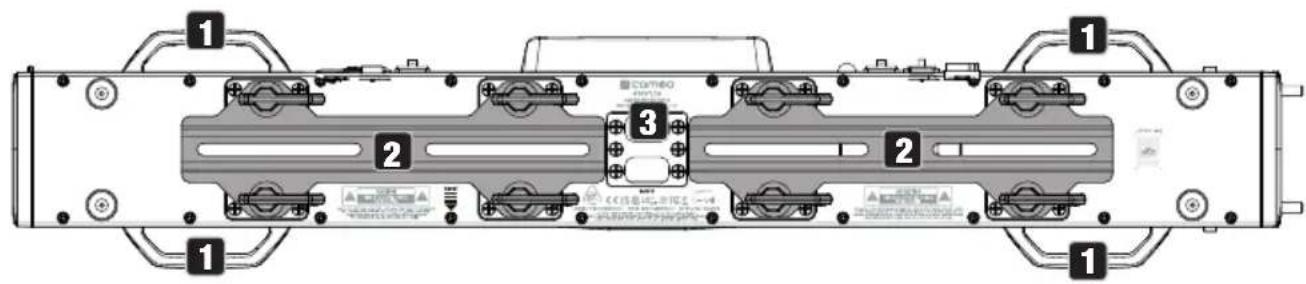

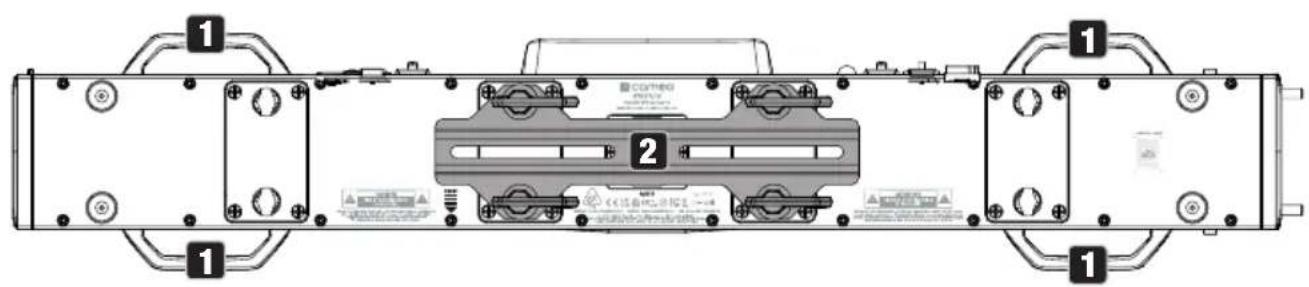

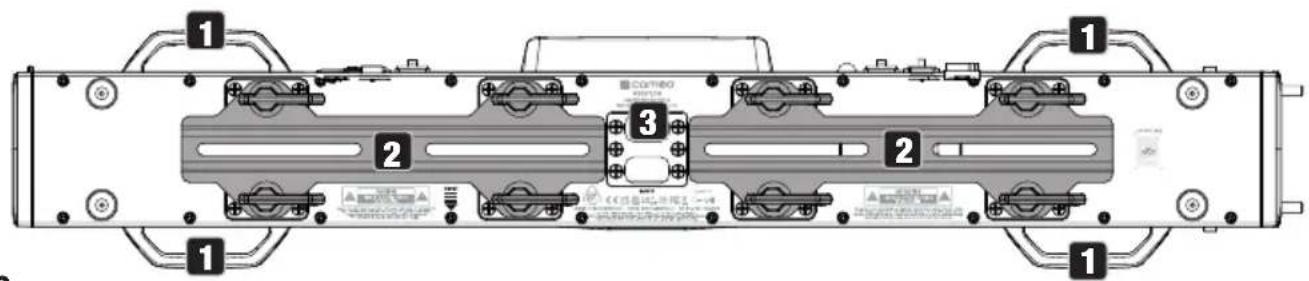

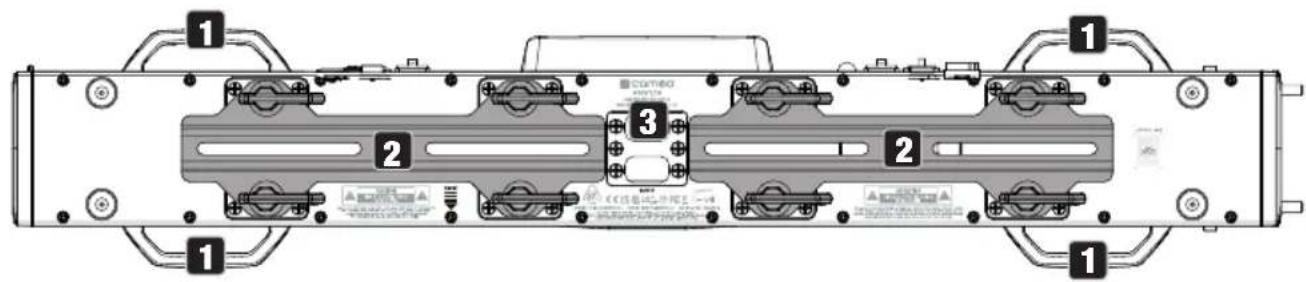

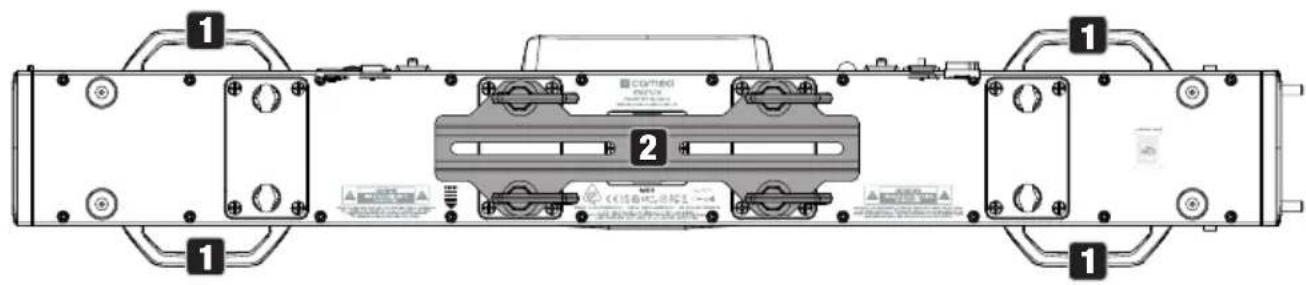

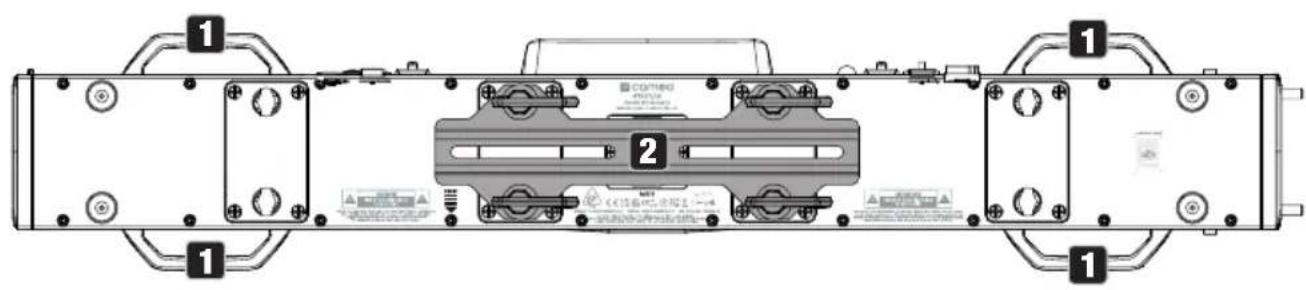

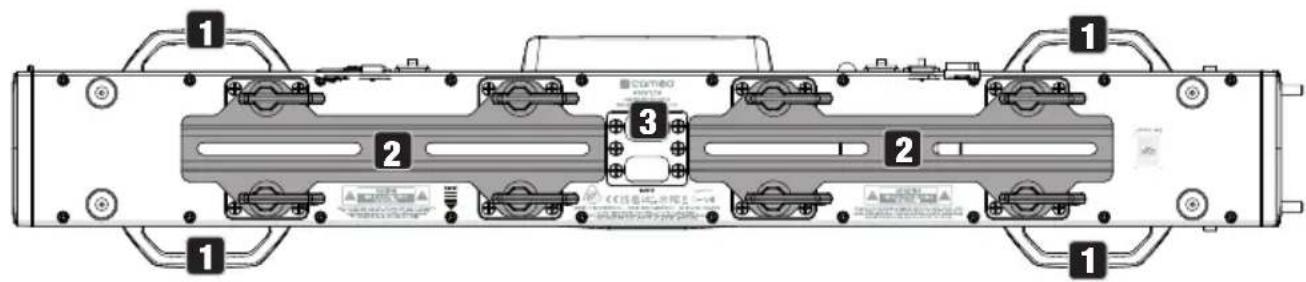

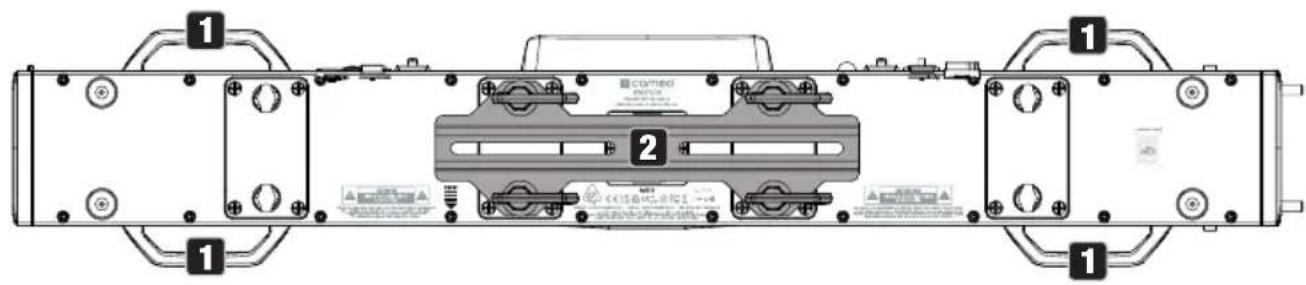

Two ergonomically shaped handles on each side of the light enable safe transport (No. 1). Thanks to the rubber feet on the bottom, the light can be positioned in a suitable location on a level surface. It can be truss-mounted using one or two Omega brackets, which are attached to the base of the device (No. 2). Two Omega brackets are included in the packaging content. Suitable beam clamps are available as an option. Ensure firm connections and secure the fixture to one of the designated locations with a suitable safety cable (SAFETY, No. 3).

Technical line drawing of a rack-mounted air conditioner unit with control panel and fan array (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and safety warnings

Technical diagram of a mechanical assembly with numbered components and labeled parts

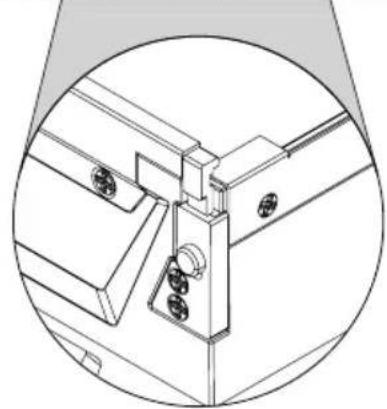

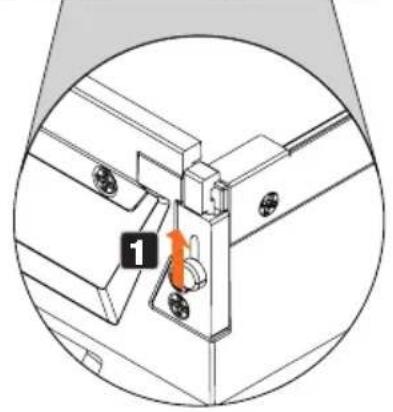

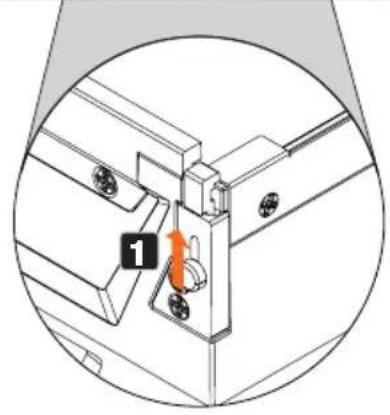

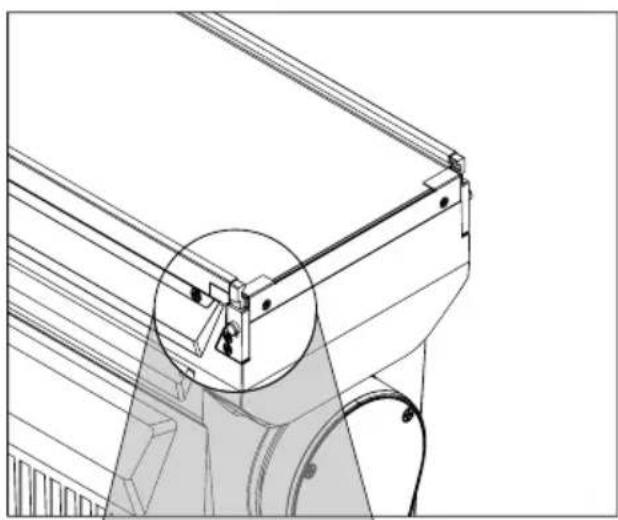

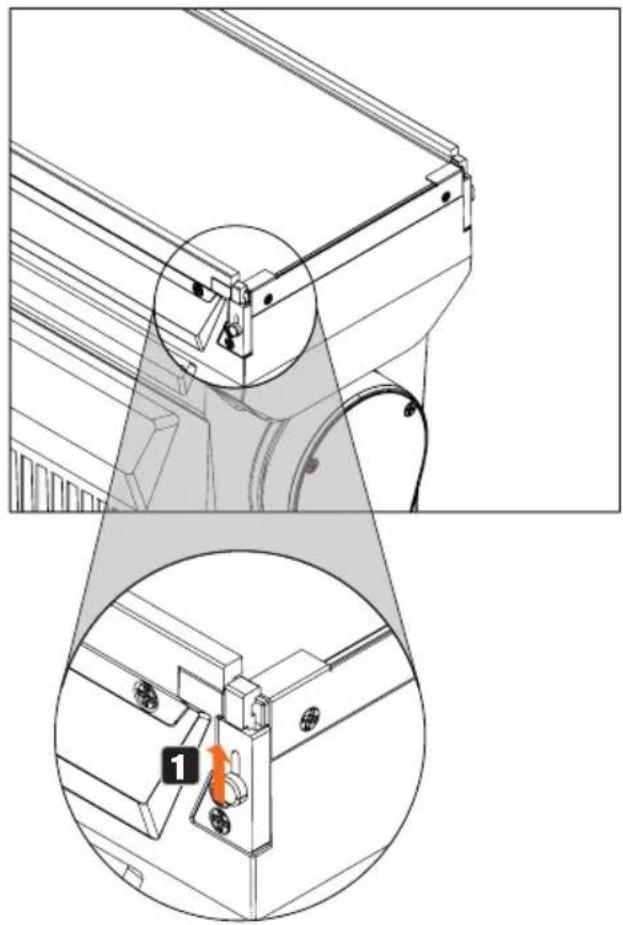

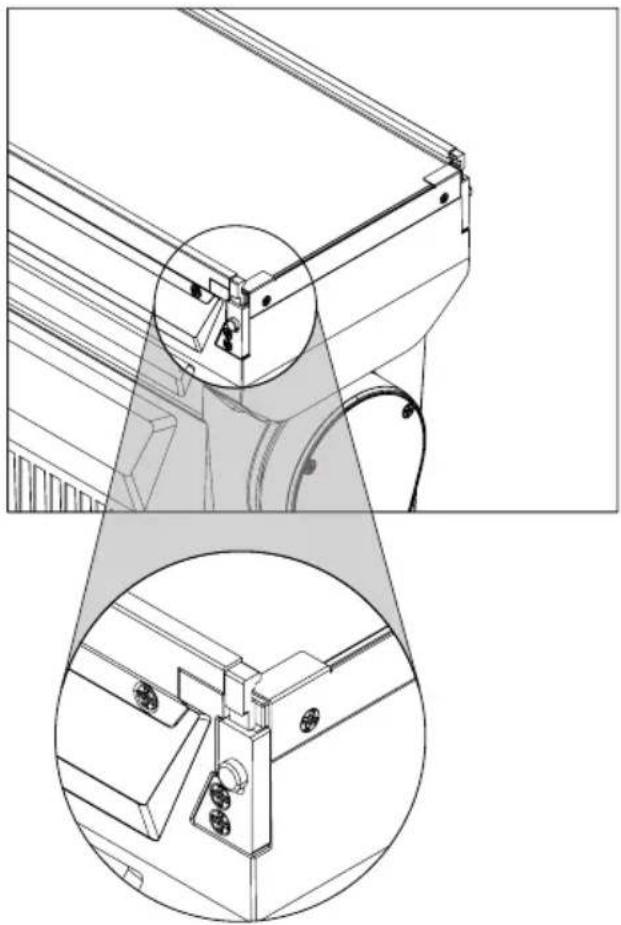

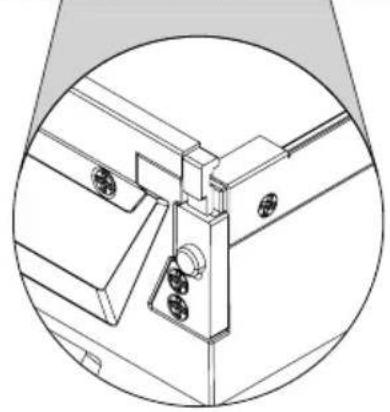

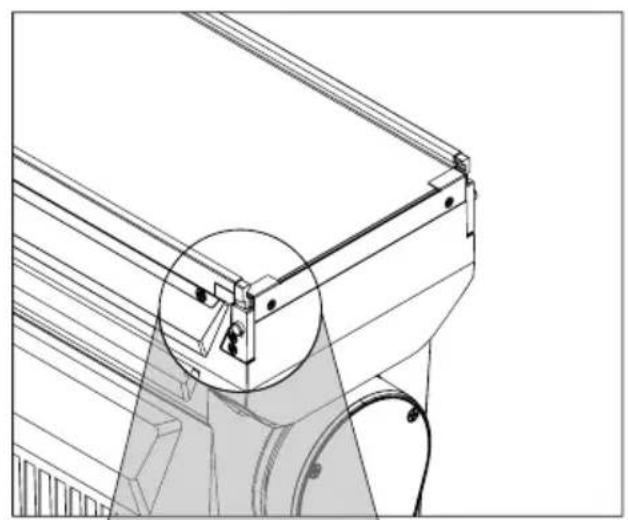

To easily form a uniform line with two or more lights, the lights have two extendable bolts on one side and two matching connecting holes on the other. Press the release button (No. 4) and slide

the bolt on the handle (No. 5) outwards. Make sure that the release button clicks back into place after the process. Now bring the lights together (No. 6).

Technical diagram showing exploded view of a server rack with labeled components and an arrow indicating assembly or transformation.

CARE, MAINTENANCE, AND REPAIR

To ensure that the device continues to function properly over the long term, it must be maintained regularly and serviced as required. The care and maintenance required depends on the intensity of use and the environment in which it is used.

We generally recommend a visual inspection before each use. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (carried out by user)

WARNING! Before carrying out any maintenance work, the power supply and, if possible, all device connections must be unplugged.

NOTE! Improper care can lead to impairment of the device or even destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case; otherwise, they might over-tighten).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.

5. Devices must generally be stored dry and protected from dust and dirt.

6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (only by specialised personnel)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, for example, due to charged capacitors.

NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel. If in doubt, contact a specialised workshop.

NOTE! Improperly performed maintenance work may affect warranty claims.

NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the installation instructions included.

OPTIONAL ACCESSORIES

CLOTOSL16FILTERA

ASYMMETRIC FILTER

CLOTOSL16FILTERDA

DARK FILTER

CLOTOSL16FILTERDI

FILTER WITH DIAMOND STRUCTURE

CLOTOSL16FILTERW

120° CIRCULAR FILTER

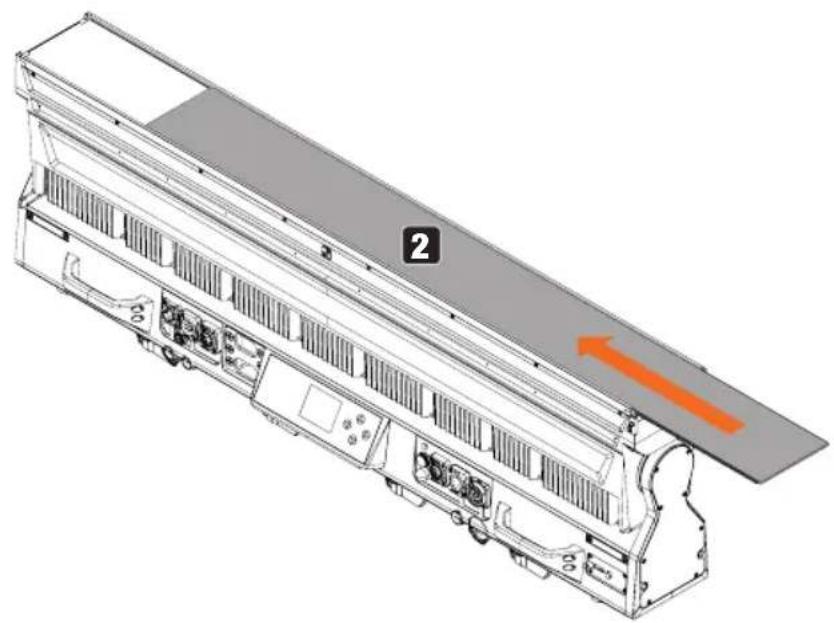

To insert a filter into the holder provided on the light, open the two sliding latches at the end of the light. To do this, slide the latches on the handle (No. 1) upwards. Now insert the filter (for 3 mm thick filters, milled edges facing upwards) into the grooves and push it into the holder (No. 2) as far as it will go. After the filter is inserted, close the latch again to prevent the filter from falling out.

Technical diagram showing a mechanical assembly with two views: one close-up of a component with a highlighted section, the other tilted slightly (no text or symbols present)

Technical line drawing of a mechanical assembly with two views: one showing internal components and the other showing a bracket (no text or symbols present)

Technical diagram of a multi-layered electronic device with internal components and an orange directional arrow indicating flow or movement (no text or symbols present)

TECHNICAL DATA

Item number	CLOT0SL16
Product Category	LED Moving Light
Type	IP65 Moving Bar
Light Source Center LED	16 x 50 W
Color Mixing Center LEDs	RGBL
Number of LED Line Segments	32 (Line Top 16 & Line Bottom 16)
Color Mixing Line LEDs	RGB
Tilt Angle	+/- 104°
LED PWM	650 Hz; 1530 Hz; 3600 Hz; 12 kHz; 18.9 kHz; 25 kHz
Dimmer Resolution	16-bit
Dimmer Curves	Linear; Exponential; Logarithmic; S-Curve
Calibration	Yes
CRI	>85
CCT	1800 - 10000 K
Control Protocols	DMX; RDM; W-DMX; CRMX
Data Connections	5pin XLR male + female; 2x RJ45
Display / Indicators	LC Display
IP-Rating	IP65 for temporary outdoor use
Ambient Temperature Rating	-15 ... 45°C
Cooling System	Temperature-controlled fans
Operation Voltage	100 - 240 V AC / 50-60 Hz
Max. Power Consumption	730 W
Fuse	T8A/250V
Power Connection	Seetronic IP65
Power Link	Seetronic IP65
Max. Power Out	7 A
Housing	Metal
Risk Group	1
Minimum distance to illuminated surface	3 m
Minimum distance to normal flam-mable materials	0.5 m
Dimensions (w x h x d)	1001 x 300 x 187 mm
Weight	25.8 kg

EXPLANATION OF IP PROTECTION CLASS

1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc.
2. The first identification digit indicates protection from dust, solid objects, and contact:

IP2X	Protected against solid foreign objects ≥ 12.5 mm in diameter
IP3X	Protected against solid foreign objects ≥ 2.5 mm in diameter
IP4X	Protected against solid foreign objects ≥ 1.0 mm in diameter
IP5X	Protected against dust in damaging quantities and fully protected against contact
IP6X	Are dust-tight and completely protected against contact
3. The second digit indicates protection from water:
IPX0	No protection
IPX1	Protection against dripping water
IPX2	Protection against dripping water when the device is tilted up to 15°
IPX3	Protection against falling spray water up to 60° from the vertical
IPX4	Protection against water splashing from any direction
IPX5	Protection against water jets (nozzle) from any angle
IPX6	Protection against strong water jets
IPX7	Protection against temporary submersion

1. In addition, some device-specific measures, such as covers and sealing caps, are necessary in order to achieve the specified protection class (for example, protective caps on unused connections).

The IP rating of the product can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO THE ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. For the value valid for this device, please refer to the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the vendor of the product or the appropriate regional authorities.

MANUFACTURER DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu-Anspach / Email [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability are available at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE conformity

Adam Hall GmbH hereby confirm that this product meets the following guidelines

(where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

CE Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail].

Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/.

Printing errors and mistakes, as well as technical or other changes are reserved!

DEUTSCH

Three circular diagrams showing a safety barrier with a sun icon, connected to a device and warning symbol, alongside a crossed-out device.

HINWEISE FÜR ORTSVERÄNDERLICHE OUTDOOR-GERÄTE

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 20CH RGBL Effect 24CH RGBL Wash 43CH RGBL Pattern 122CH PIXEL 183CH RGBL PIXEL Full 10CH Dual Input 20CH Dual Input

NETZWERK (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Dimmer Color Calibration Fan Movement Sun Protection Signal Fail Pixel Mirror Display

Main Menu Control Settings Service System Info Quicklight

Service Store Default Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Humidity Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Technical line drawing of a rack-mounted device with front panel, control panels, and display unit (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram showing exploded view of a server rack with labeled components and an arrow indicating assembly or transformation.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with numbered component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and a central bracket (no text or symbols)

Technical line drawing of a multi-level electronic device with internal components and a highlighted component (no text or symbols)

TECHNISCHE DATEN

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Three circular diagrams showing a safety barrier with a sun icon, a warning sign, and an arrow indicating bidirectional interaction.

REMARQUES RELATIVES AUX APPAREILS PORTABLES DE PLEIN AIR

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

RÉGLAGE DU MODE DMX (DMX Mode)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 20CH RGBL Effect 24CH RGBL Wash 43CH RGBL Pattern 122CH PIXEL 183CH RGBL PIXEL Full 10CH Dual Input 20CH Dual Input

RÉSEAU (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

PARAMÈTRES SYSTÈME (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Dimmer Color Calibration Fan Movement Sun Protection Signal Fail Pixel Mirror Display

Main Menu Control Settings Service System Info Quicklight

Service Store Default Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Humidity Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Technical line drawing of a server rack with front panel, control panels, and ventilation grilles (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and safety warnings

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram showing exploded view and assembly of a device with numbered components and an arrow indicating transformation.

ENTRETIEN, MAINTENANCE ET RÉPARATION

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical bracket with mounting holes and a highlighted section (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and a central bracket (no text or symbols)

Technical line drawing of a multi-layered electronic device with internal components and a highlighted orange arrow indicating flow or movement (no text or symbols present)

CARACTÉRISTIQUES TECHNIQUES

Dimensions (L × H × P) 1001 × 300 × 187 mm

Poids 25,8 kg

EXPLICATION DE LA CLASSE DE PROTECTION IP

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

Three circular diagrams showing a device with a sun symbol, connected to a warning sign and connected to a device with an arrow.

NOTAS SOBRE EL EQUIPAMIENTO EXTERIOR PORTÁTIL

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 20CH RGBL Effect 24CH RGBL Wash 43CH RGBL Pattern 122CH PIXEL 183CH RGBL PIXEL Full 10CH Dual Input 20CH Dual Input

RED (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

AJUSTES DE SISTEMA (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Dimmer Color Calibration Fan Movement Sun Protection Signal Fail Pixel Mirror Display

Main Menu Control Settings Service System Info Quicklight

Service Store Default Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Humidity Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Technical line drawing of a server rack with front panel, control panels, and display unit (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and safety warnings

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram showing exploded view of a server rack with labeled components and an arrow indicating assembly or transformation.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with numbered component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and a central bracket (no text or symbols)

Technical line drawing of a multi-level electronic device with internal components and a highlighted orange arrow indicating flow or movement (no text or symbols present)

DATOS TÉCNICOS

Three circular diagrams showing a safety barrier with a sun icon, no warning symbols, and a device with a warning sign.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

USTAWIANIE TRYBU DMX (DMX Mode)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 20CH RGBL Effect 24CH RGBL Wash 43CH RGBL Pattern 122CH PIXEL 183CH RGBL PIXEL Full 10CH Dual Input 20CH Dual Input

SIEĆ (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

USTAWIENIA SYSTEMOWE (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Dimmer Color Calibration Fan Movement Sun Protection Signal Fail Pixel Mirror Display

Main Menu Control Settings Service System Info Quicklight

Service Store Default Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Humidity Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

KONFIGURACJA I INSTALACJA

Technical line drawing of a server rack with front panel, control panels, and ventilation grilles (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and safety warnings

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram showing exploded view of a server rack with labeled components and a 3D transformation arrow indicating assembly or repair.

PIELEGNACJA, KONSERWACJA I NAPRAWA

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical bracket with a highlighted component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and a central bracket (no text or symbols)

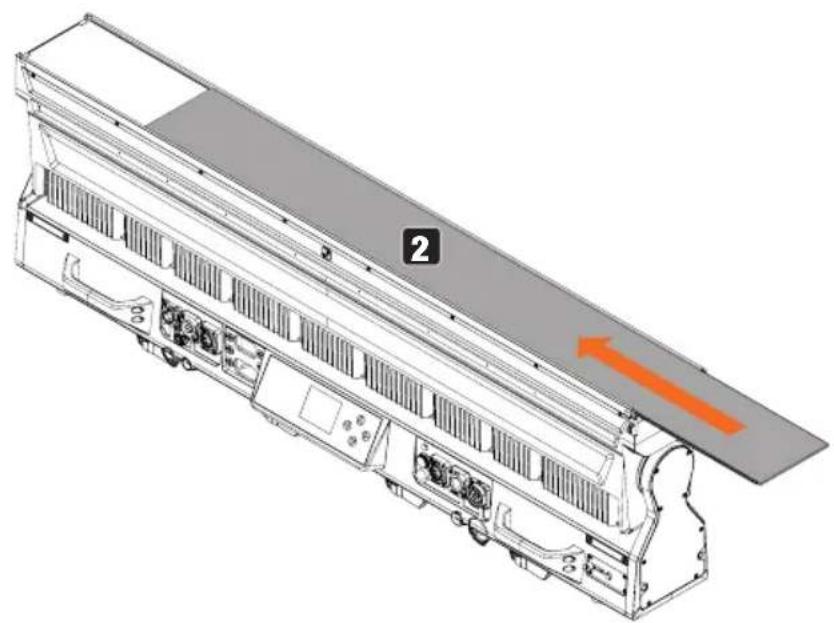

Technical line drawing of a multi-level electronic device with internal components and a highlighted orange arrow indicating flow or movement (no text or symbols present)

DANE TECHNICZNE

Three circular diagrams showing a device with a sun symbol, connected to a warning sign and connected to a device with an arrow.

NOTE PER LE APPARECCHIATURE PORTATILI DA INSTALLARE ALL'ESTERNO

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

IMPOSTARE LA MODALITÀ DMX (DMX Mode)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 20CH RGBL Effect 24CH RGBL Wash 43CH RGBL Pattern 122CH PIXEL 183CH RGBL PIXEL Full 10CH Dual Input 20CH Dual Input

RETE (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

IMPOSTAZIONI DI SISTEMA (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Dimmer Color Calibration Fan Movement Sun Protection Signal Fail Pixel Mirror Display

Main Menu Control Settings Service System Info Quicklight

Service Store Default Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Humidity Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Technical line drawing of a server rack with front panel, control panels, and display unit (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and safety warnings

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram showing exploded view and assembly of a server rack with labeled components and an orange arrow indicating transformation.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with numbered component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and a central bracket (no text or symbols)

Technical line drawing of a multi-level electronic device with internal components and a highlighted orange arrow indicating direction (no text or symbols present)

DATI TECNICI
