USER MANUAL DW558 DEWALT

Anvend horevaern, his lydniveauaut overstiger 85 dB(A).

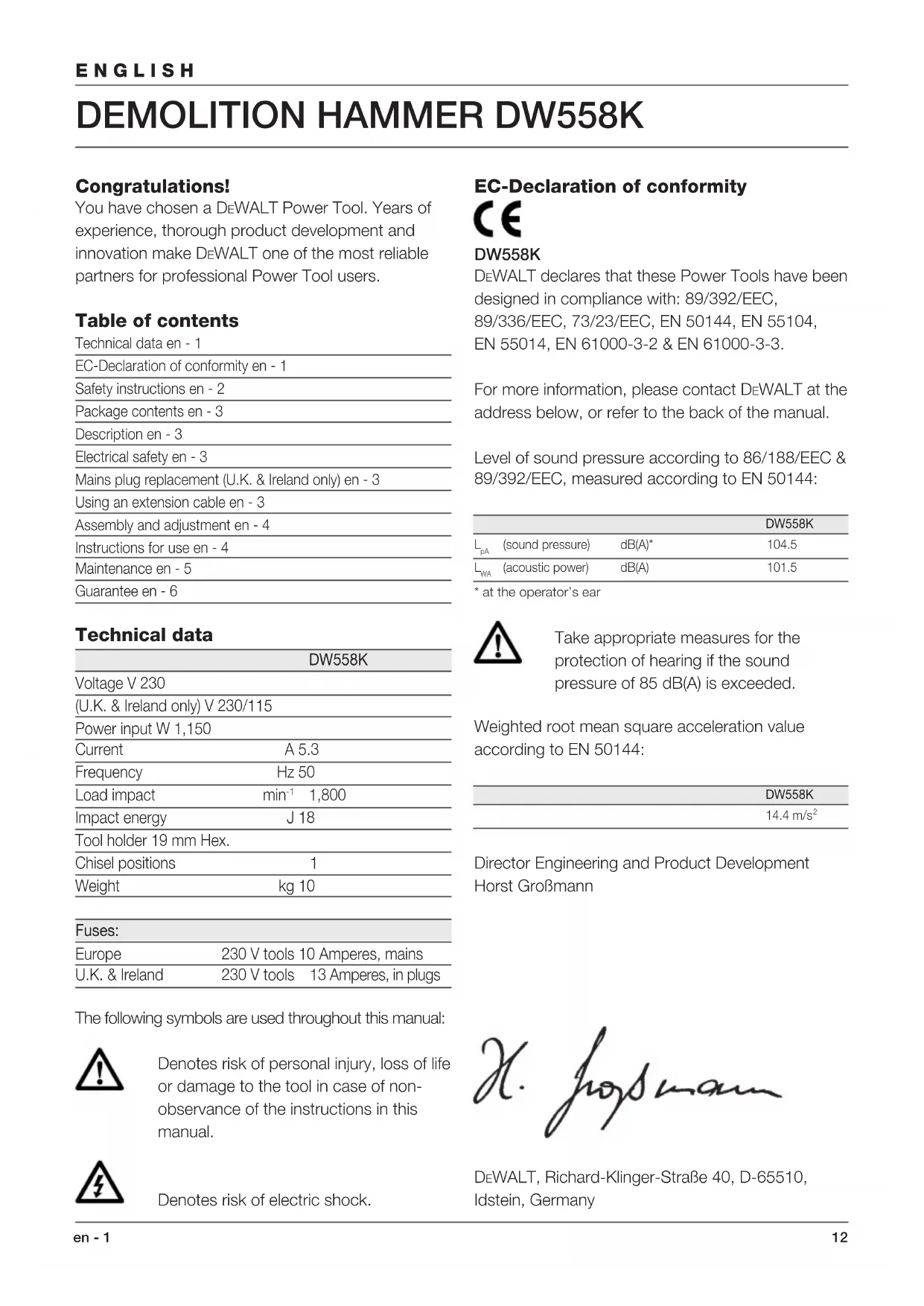

You have chosen a DeWALT Power Tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

EC-Declaration of conformity en - 1

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 3

Mains plug replacement (U.K. & Ireland only) en - 3

Using an extension cable en - 3

Assembly and adjustment en - 4

Instructions for use en - 4

Maintenance en - 5

Guarantee en - 6

Technical data

	DW558K
Voltage V 230
(U.K. & Ireland only) V 230/115
Power input W 1,150
Current	A 5.3
Frequency	Hz 50
Load impact	min-1 1,800
Impact energy	J 18
Tool holder 19 mm Hex.
Chisel positions	1
Weight	kg 10

Fuses:

Europe 230 V tools 10 Amperes, mains

U.K. & Ireland 230 V tools 13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Denotes risk of electric shock.

EC-Declaration of conformity

DW558K

DeWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55104, EN 55014, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DeWALT at the address below, or refer to the back of the manual.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to EN 50144:

		DW558K
LpA (sound pressure)	dB(A)*	104.5
LwA (acoustic power)	dB(A)	101.5

• at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

DW558K

14.4 m/s2

Director Engineering and Product Development Horst Großmann

DeWALT, Richard-Klinger-StraBe 40, D-65510, Idstein, Germany

Safety instructions

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (Fl) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense.

Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts,

breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.

Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

20 Have your tool repaired by an authorized DeWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Package contents

The package contains:

1 Demolition Hammer
1 Side handle
1 Allen key
1 Pointed chisel
1 Dust cover
1 Metal case
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your DEWALT Demolition Hammer has been designed for professional Heavy Duty demolition, chipping and chasing applications in concrete, brick, stone and other masonry materials.

1 ON/OFF-switch
2 Locking switch
3 Tool holder for 19mm Hex. accessories
4 Side handle
5 Side handle clamp wheel
6 Switch handle cover
7 Carbon brush access cover
8 Lower service access cover
9 Upper service access cover

10 Gearbox and tool holder access cover
11 Tool locking bar
12 Dust cover

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

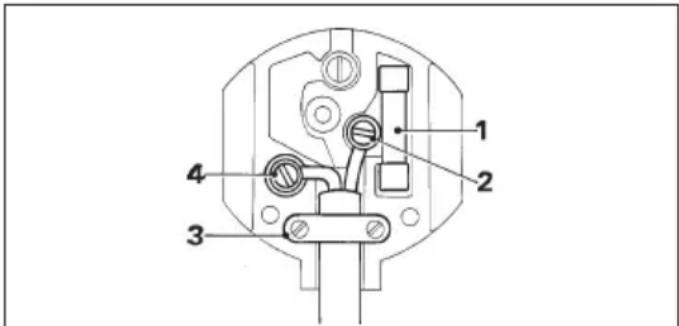

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Never use a light socket. Never connect the live (L) or neutral (N) wires to the earth pin marked E or

For 115V units with a power rating exceeding 1500W , we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this

tool (see technical data). The minimum conductor size is 1.5mm^2

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
			7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1	1	5	0	-	2	.	0	6 6
		2.1 -	3.4	6 6	6 6	15 15
		3.5 -	5.0	6 6	10 15	20 20
		5.1 -	7.0	10 10	15 20	20 25
		7.1 -	12.0	15 15	20 25	25	-
		12.1 -	20.0	20	20	25	-	-
220/240		0 -	2.0	6	6	6	6	6
		2.1 -	3.4	6	6	6	6	6
		3.5 -	5.0	6 6	6 6	10 15
		5.1 -	7.0	10 10	10 10	15 15
		7.1 -	12.0	15 15	15 15	20 20
		12.1 -	20.0	20 20	20 20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Inserting and removing 19 mm Hex. accessories (fig.B)

Your DeWALT Demolition Hammer uses accessories with 19mm Hex. tool shank (refer to the inset in fig. B for a cross-section of a chisel shank).

Grease the chisel shank.

Do not apply bit lubricant to the Power Tool.

• Push in the tool locking bar (11) and turn it through 180^ .
• Insert the chisel shank into the tool holder (3).

• Push in the tool locking bar and turn it back into the original position.

• Pull on the chisel to check if it is properly locked. The hammering function requires the chisel to be able to move axially several centimetres when locked in the tool holder.

• Fit the dust cover (12) over the end of the tool holder (3).
• To remove a chisel push in the tool locking bar (11), turn it through 180^ and pull the chisel out of the tool holder.

Fitting the side handle (fig. C)

The side handle (4) can be mounted on the front of the Demolition Hammer to suit both RH- and LH-users.

Always operate the Demolition Hammer with the side handle properly mounted.

• Unscrew the side handle clamp wheel (5).
• If necessary, remove the side handle mounting assembly and remount it on the opposite side of the tool.
• Rotate the mounting assembly to the desired position.
• Lock the side handle mounting assembly in place by tightening the clamp wheel (5).

Instructions for use

• Always observe the safety instructions and applicable regulations.
• Be aware of the location of pipework and wiring.
• Apply a pressure of approx. 20 - 30kg to the tool. Excessive force does not speed up chiselling but decreases tool performance and may shorten tool life.

Demolition, chasing and channelling (fig. A)

• Select the appropriate chisel and grease its shank.
• Insert the chisel and check if it is properly locked.
• Fit the dust cover (12).
• Fit and adjust the side handle (4) and tighten the side handle clamp wheel (5).
• To run the tool press the ON/OFF-switch (1). The tool now runs in continuous operation.
• To stop the tool press the locking switch (2) briefly. Always switch OFF the tool when work is finished and before unplugging.

Various types of 19mm Hex. chisels and points are available as an option.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• The Demolition Hammer is not user-serviceable.

Take the tool to an authorized DEWALT repair agent after approximately 100 hours of use. If problems occur before this time contact an authorized DEWALT repair agent.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Accessory maintenance

Accessory maintenance at the right time guarantees optimal results in application and a long and efficient accessory life.

• Grind the chisels on grinding disks. Refer to fig. D for the appropriate angles of the following chisels:
• spade-shaped chisel (13)
  -cold chisel (14)
  -pointed chisel (15)
• U-shaped chisel (16)
• hollow chisel (17)
• mortar chisel (18)
• toothed chisel (19)

These chisels can be reground only a limited number of times. If in doubt, contact your dealer for recommendations.
- Ensure that the cutting edge does not show discoloration caused by too much pressure. This may impair the hardness of the accessory.

Unwanted tools and the environment

Take your tool to an authorized DeWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

30 DAY NO RISK SATISFACTION GUARANTEE

If you are not completely satisfied with the performance of your DeWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DeWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

- ONE YEAR FREE SERVICE CONTRACT

If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

- ONE YEAR FULL WARRANTY

If your DeWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
  Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.
