USER MANUAL Muze Joie

IMPORTANT-KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

1 NOISE

3 CLICK

Line drawing of a stroller with wheels and a small wheel, no text or symbols present

2 1 2 3 CLICK

Illustration of a hand using a tool to lift a small wheeled cart, with an arrow indicating the motion (no text or symbols present)

7

Abstract diagram with concentric curved lines and a central red-and-white object, no text or symbols present

5 CLICK 1

9

Line drawing of a stroller with wheels and seat, no text or symbols present

Illustration of a hand placing a red object into a container with arrows indicating motion (no text or symbols)

12

Illustration of a person adjusting a seatbelt with a hand inserting a pin (no text or symbols)

17 1 2 3

Illustration of a hand securing a buckle with a lock icon (no text or symbols)

14 1 2 3 CLICK

18 1 2

Illustration of a hand holding a small object with an arrow indicating rotation, next to a stylized bicycle (no text or symbols)

15 A 1 B 2 3

3 CLICK

20

Illustration of a hand holding a folded top-up chair with an arrow indicating motion (no text or symbols)

Illustration of a hand using a chair to lift a seatbelt, showing the seatbelt being lifted (no text or symbols present)

23 2 ↑ 1

24

Illustration of a woman walking with a stroller, no text or symbols present

Accessories (May not be included in purchase)

Accessories may be sold separately or may not be available depending on region.

26 1 2 3 4 5 27

28 1 2

29

30 CLICK

31 2 1

Line drawing of a baby stroller with wheels and seat (no text or symbols)

33 CLICK

34 1 2

Line drawing of a stroller with wheels and seat cover, no text or symbols present

Note

Welcome to Joie

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie MUZE", you are using a high quality, fully certified stroller, approved to European safety standards EN 1898:2012. This product is suitable for use with children weighing under 15kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Visit us at Joiebaby.com to download manuals and see more exciting .Joie products. For warranty information, please visit our website at joiebaby.com

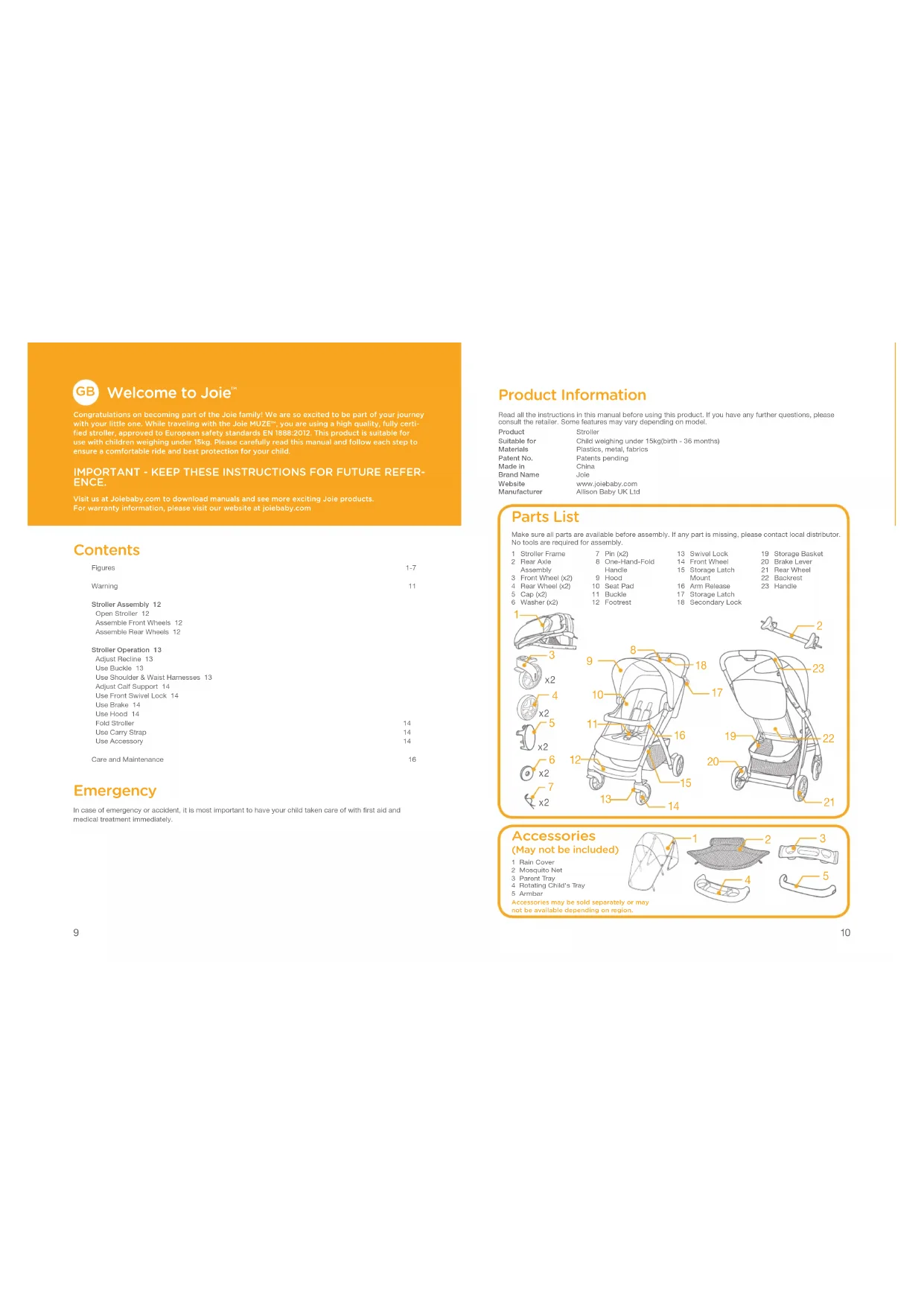

Contents

Figures	1-7
Warning	11
Stroller Assembly 12
Open Stroller 12
Assemble Front Wheels 12
Assemble Rear Wheels 12

Stroller Operation 13

Adjust Recline 13

Use Buckle 13

Use Shoulder & Waist Harnesses 13

Adjust Calf Support 14

Use Front Swivel Lock 14

Use Brake 14

Use Hood 14

Fold Stroller 14

Use Carry Strap 14

Use Accessory

Care and Maintenance 16

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Stroller

Suitable for Child weighing under 15kg(birth - 36 months)

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made in China

Brand Name

Website www.joriebaby.com

Manufacturer Allison Baby UK Ltd

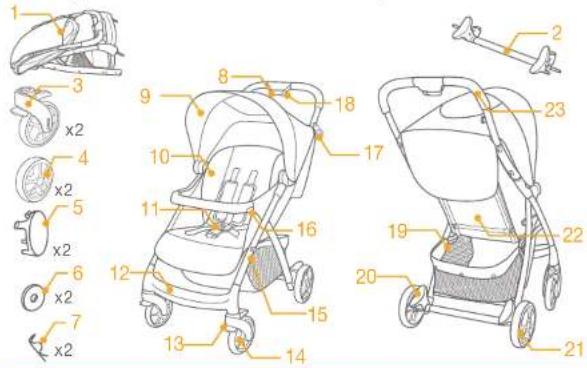

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local distributor. No tools are required for assembly.

1. Stroller Frame

2 Bear Axle

Assembly

3 Front Wheel (x2)

4 Rear Wheel (x2)

5 Cap (x2)

6 Washer (x2)

7 Pin (x2)

8 One-Hand-Fold

Handle

9 Hood

10 Seat Pad

1 Buckle

12 Footrest

13 Swivel Lock

14 Front Wheel

15 Storage Latch

Mount

16 Arm Release

17 Storage Latch

18 Secondary Lock

19 Storage Basket

20 Brake Lever

21 Rear Wheel

22 Backrest

23 Handle

Technical diagram of a stroller with numbered parts and corresponding cross-sectional views

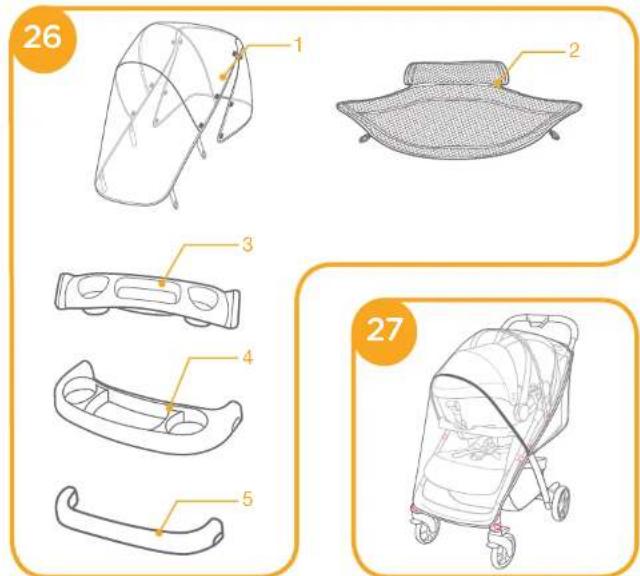

Accessories

(May not be included)

1 Rain Cover

2 Mosquito Net

3 Parent Tray

4 Rotating Child's Tray

5 Armbar

Accessories may be sold separately or may

not be available depending on region

or may 1 2 3 4 5

WARNING

! WARNING Always use the crotch combination with the waist belt. It is suggested that the shoulder harnesses be used as well.
! WARNING Ensure that all the locking devices are engaged before use.
! WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.
! WARNING Do not let your child play with this product.
! Adult assembly required.
! Use of the stroller with a child weighing more than 15kg will cause damage to the stroller.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.
! Overloading, folding incorrectly, or using component parts from other manufacturers may cause the stroller to be damaged, broken or unsafe. Please read the instruction manual carefully.
! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! Safety belts and restraint system must be used correctly.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Do not place any item that may do harm to the baby and stroller in the parent tray.
! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous area.
Do make sure all mechanisms are fixed before using the stroller.
! To avoid strangulation, do not place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! To prevent tipping, do not put anything on the handle. Always lift the child in and out of the stroller.
! Do not lift stroller while child is in stroller.
! Do not use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller.

! To avoid finger entrapment, use care when folding and unfolding the stroller.
! Be sure the stroller is fully open or folded before allowing child near the stroller.
! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! Check that the infant child restraint attachment device is correctly engaged before use.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.
! Discontinue using your stroller if it is damaged or broken.
! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! The maximum recommended weight of the parent tray is 1.36kg/3lbs.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device must be engaged when placing and removing children.
! For infant child restraints used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot, or bed.
Extra Care is needed if used on moving vehicles and child should not be left unattended, even with brakes engaged.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

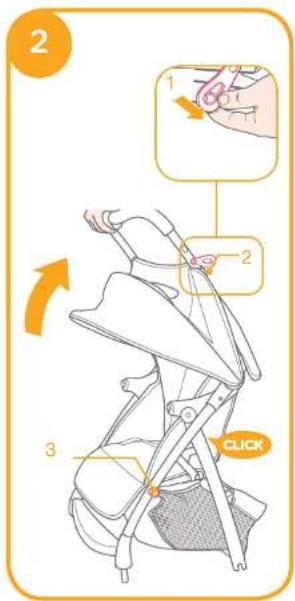

Open Stroller

If the stroller is locked as 2 - 1, please separate storage latch 2 - 2 from storage mount 2 - 3, and then lift

the handle to open the stroller. A click sound means the stroller is open completely.

! Check that the stroller is completely open before continuing.

Assemble Front Wheels

Assemble front wheels to front legs. Check that wheels are securely attached by pulling on wheel assemblies.

The front wheels can be disassembled by pulling the release buttons backwards.

Assemble Rear Wheels

Assemble the rear wheels by following these steps.

1. Remove and discard the two end caps on the rear axle before assembling the rear wheels. 5 - 1

2. Assemble the rear axle assembly to rear legs 🔍. Check that the rear axle assembly is securely attached by pulling on the rear axle assembly.

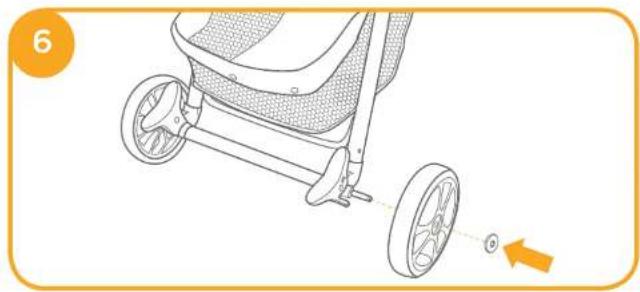

3. Place the rear wheel and washer on one side of the rear axle.

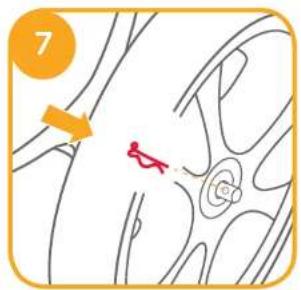

4. To secure wheel and washer to axle, push the straight side of pin through the hole on the axle. The assembled pin is shown as ☑.

The curve side on the pin must curve around the outside of the axle.

Make sure the washer is between the pin and the wheel.

1. Line up the tabs on the cap with the holes on the wheel, snap the cap onto the wheel to cover the washer and pin.

The completely assembled rear wheels are shown as 10.

Stroller Operation

Adjust Recline

Recline Backrest

There are 4 angles for the backrest.

To recline the backrest, squeeze the recline handle on the back of the seat ^① , pull down on the backrest. ^② To raise the backrest, push up.

Make sure the recline is set properly for use.

Use Buckle

Release Buckle

Press the center button to release the buckle.

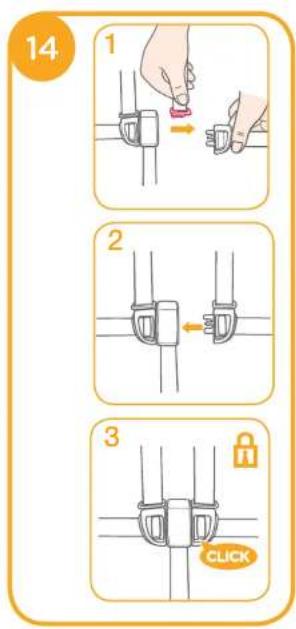

Lock Buckle

Match the waist belt buckle with the shoulder buckle 14 - 1, and click into the center buckle. 19 - 2

A click sound means the buckle is locked completely.

To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

Do not cross the shoulder belts. This will cause pressure on child's neck.

Use Shoulder & Waist Harnesses

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

Shoulder harness anchor A Shoulder harness anchor B

15 - 3 Slide adjuster

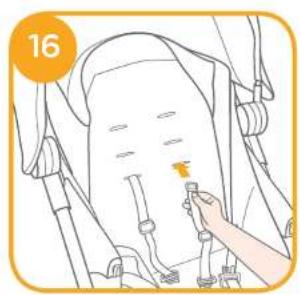

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

Use either shoulder harness anchor in the slots that are closest to child's shoulder height.

Use slide adjuster to change the harness length. 17 - 1

Press the button 17 - 2, while pulling the waist harness to proper length 17 - 3.

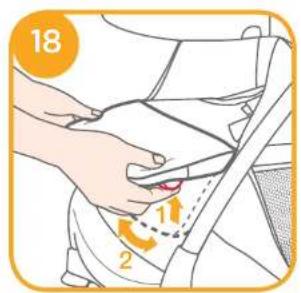

Adjust Calf Support

The calf support has 2 positions.

To adjust the calf support, press the adjustment buttons underneath the calf support, 1 and rotate the calf support downward or upward. 2

Use Front Swivel Lock

Pull up the front swivel locks to maintain the moving direction. 10

Tip It is recommended to use swivel locks on uneven surfaces.

Use Brake

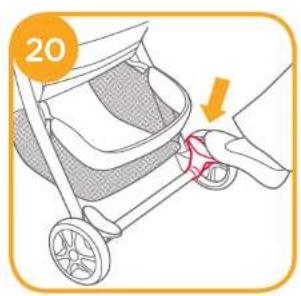

To lock wheels, step backwards on either of the brake levers as 🚫 Step forwards on the brake lever to release wheel.

Tip The brake must be engaged when placing and removing children.

Tip Always apply brake when stroller is in stopped position.

Tip To ensure brake is fully engaged, gently rock the stroller backwards and forwards before releasing the handle.

Tip Clean brake system regularly to ensure fully functional. See care and maintenance section.

Use Hood

To open the hood, pull hood towards front.

To fold the hood, pull hood towards back.

Fold Stroller

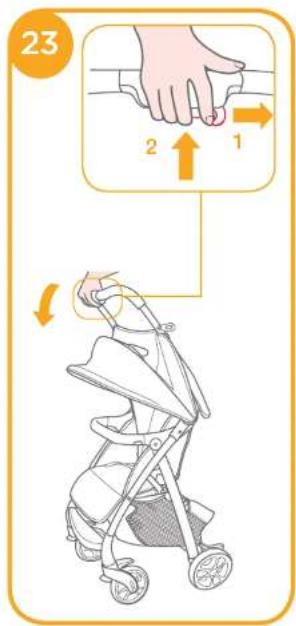

Push secondary lock ⚫ - 1 and squeeze one-hand fold handle ⚫ - 2. Push the stroller forward to fold. Lock the stroller by tucking storage latch onto the storage mount ⚫ - 1. The stroller is folded and locked completely. ⚫

Use Carry Strap

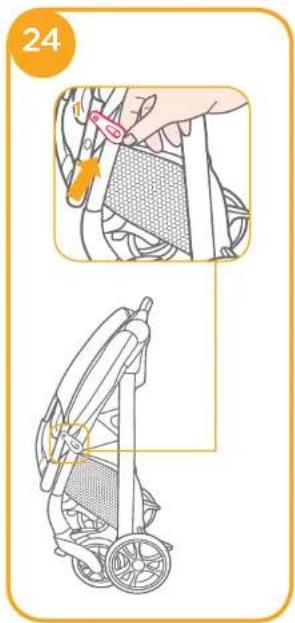

Securely grab the carry strap for easy transportation.

Use Accessory

-1 Rain Cover -2 Mosquito Net -3 Parent Tray

-4 Rotating Child's Tray -5 Armbar

Accessories may be sold separately or may not be available depending on region.

Use with Joie Child restraint

When using with Joie child restraint java, please refer to the following instructions.

! If you have any problems about using the infant child restraint, please refer to their own instruction manuals. ! Please don't fold stroller when attaching the child restraint.

Use Rain Cover

To assemble the rain cover, place it over the stroller, and then attach the 10 pairs of hook and loop fasteners on the rain cover.

Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened.

After the rain cover is assembled, please reassemble the parent tray on the handle.

When using the rain cover, please always check its ventilation.

When not in use, please check that the rain cover has been cleaned and dried before folding.

If the rain cover is on the stroller, always remove rain cover to prevent ripping and tearing.

Do not place your child into the stroller assembled with rain cover during hot weather.

When using your stroller at the beach, completely clean you stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Use Mosquito Net

Cover the stroller with the mosquito net. Follow the steps below to secure the mosquito net.

1. Attach the elastic strap to the hook on the back of the plastic.

2. Wrap bottom edge of the footrest and then stick the Velcro ^2 .

3. Repeat steps above to secure mosquito net to opposite side.

The assembled mosquito net is shown as 🟢.

Use Parent Tray

To assemble the parent tray, attach the parent tray to the parent tray mounts on both sides of the handle.

Do not place any item that may do harm to the baby and stroller in the parent tray.

The maximum recommended weight of the parent tray is 1.36kg/3lbs.

Use Rotating Child's Tray

Align the rotating child's tray end with matching component, and then push down to assemble.

The rotating child's tray can be pulled up on both left and right sides.

To open the rotating child's tray, press rotating child's tray release button 31 - 1, and then pull up the rotating child's tray. 31 - 2

Use Armbar

Align the ambar end with matching component, and then push down to assemble.

The armbar can be pulled up on both left and right sides.

To open the armbar, press armbar release button - 1, and then pull up the armbar. - 2

Tip Armbar can be open for easily placing and removing child.

Care and Maintenance

1. Removable seat pad may be washed in cold water and drip-dried. No bleach.

2. To clean stroller frame, use only household soap and warm water. No bleach or detergent.

3. From time to time check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.

4. Excessive exposure to sun or heat could cause fading or warping of parts.

5. If stroller becomes wet, open hood and allow to dry thoroughly before storing.

6. If wheels squeak, use a light oil (e.g., Silicon Spray, antitrust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.

7. If brake pedal stiff/hard to fully engage, flush any debris from brake system with clean water first before lubricating.

8. When using your stroller at the beach or areas of high dust/sand, completely clean your stroller after use to remove sand and salt from brake mechanisms and wheel assemblies.

Bienvenu à Joie™

Technical diagram of a stroller with numbered parts and corresponding cross-sectional views

Accessoires

Technical diagram showing labeled parts of a mechanical component with numbered annotations

MISES EN GARDE

Technical diagram of a stroller with numbered parts and corresponding cross-sectional views

Zubehor

Diagram showing five labeled parts of a mesh net or mesh fan structure, with numbered annotations.

WARNUNGSHINWEISE

Diagram showing labeled parts of a mechanical device with numbered components

Advertencias

Joie ^TM by Infanti

Web site

www.joliebaby.com

Fabricante

Allison Baby UK Ltd

Lista de peças

Labeled diagram of a stroller with numbered parts for identification

Technical diagram of a stroller with numbered parts for identification

Acessorios

(Podem não estar

inclusos na compra)

Accessories may be sold separately or may not be available depending on region.

Labeled diagram of a baby stroller with numbered parts for identification

Technical diagram of a stroller with numbered parts labeled 21, 22, 23, and 2

Accessori

(potrebber o non

essere inclusi)

Diagram showing labeled parts of a mechanical or architectural component with numbered annotations

AVVERTENZE

Diagram showing labeled parts of a mechanical device with numbered components

AANWIJZINGEN

Technical diagram of a two-step stroller with numbered parts for identification

Diagram showing labeled parts of a mechanical device with numbered components

Предостережения

USCHOVEJTE TENTO MANUAL PRO BUDOUCÍ POUŽITÍ

Technical diagram of a stroller with numbered parts and corresponding cross-sectional views

Doplňky

Diagram showing labeled parts of a mesh net with numbered components

VAROVÁNÍ

The assembled pin is shown as

USCHOVAJTE TENTO MANUAL PRE BUDÜCE POUŽITIE!

Pre informácie o záruke navitivte naše internetovi stránky na www.joliebaby.com

OBSAH

Obrazky	1-7
Varovanje	91

Zostavenie kočika 92

Rozloženie kočika 92

Technical diagram of a stroller with numbered parts and corresponding cross-sectional views

DopInky

Diagram showing labeled parts of a mesh net with numbered components

VAROVANIE

Technical diagram of a stroller with numbered parts and corresponding icons for identification.

액세서리

(포함되지 않을 수도 있음)

1.레인 커버

1. 모기점

3.부모용 트레이

4.아이공드테어 5.아리가드

1. 田径一

Diagram showing labeled parts of a mechanical device with numbered components

Labeled diagram of a stroller with numbered parts for identification

Technical diagram of a stroller with numbered parts for identification

Technical diagram showing labeled parts of a mesh net or mesh device with numbered annotations

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ
