USER MANUAL HBS820S LG

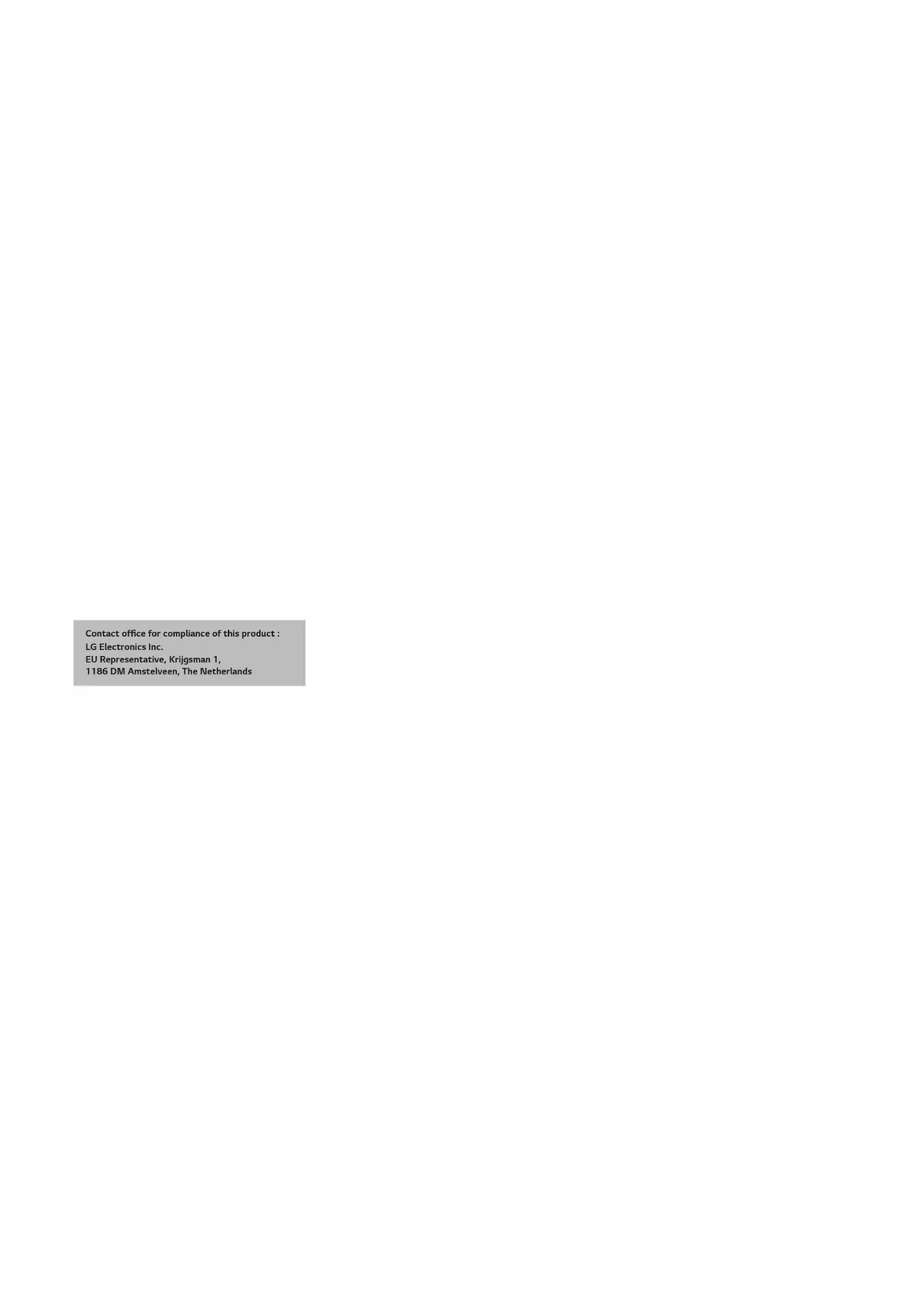

Contact office for compliance of this product :

LG Electronics Inc.

EU Representative, Krijgsman 1,

1186 DM Amstelveen, The Netherlands

LG

Life's Good

User Manual

LG TONE Ultra™

Bluetooth® Wireless Stereo Headset

HBS-820S

English

NOTE: For the best performance and to prevent any damage to, or misuse of the HBS-820S, please read all of the information carefully prior to using the HBS-820S.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.

HBS-820S

www.lg.com

Copyright © 2016-2017 LG Electronics. All Rights Reserved

The LG TONE Ultra (HBS-820S) is a lightweight wireless headset that uses Bluetooth technology.

This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile.

Safety Cautions

CAUTION

Do not disassemble, adjust, or repair the product arbitrarily.

Do not place the product near excessive heat or flammable material.

Do not arbitrarily replace the battery as it may explode.

The product may be damaged if an incompatible recharger is used.

Make sure that any infant or child does not swallow a magnet or a small component of the product.

Make sure that foreign objects do not enter the charger's connectors (charging port and power plug). Failing to do so may result in fire or electric shock.

For your safety, do not wear the product while it is being charged.

If you have a medical device implanted, contact your doctor before use.

Do not pull the earphone cable with excessive force.

For your safety, do not remove the battery incorporated in the product.

Lithium-ion polymer Battery is hazardous component which can cause injury.

Battery replacement by non-qualified professional can cause damage to your device.

Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by authorized service provider. The battery should be recycled or disposed separately from household wastes.

In order to prevent unnecessary energy consumption, disconnect the device when fully charged.

Always use an easily accessible power-outlet for charging your device.

WARNING

Do not drop the product from a high place.

Make sure there is no water, alcohol, or benzene in contact with the product.

Do not store the product in a wet or dusty place.

Do not place any heavy objects on the product.

This product is not waterproof. Avoid humidity and water.

OTE

If the product is exposed to excessive sweat, clean the product.

Keep the earbud of the earphone always clean.

HD Speaker

If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high definition.

Qualcomm® aptX™ Audio

LG HBS-820S is powered by Qualcomm aptX audio. Qualcomm aptX audio is Bluetooth wireless technology that provides clearer audio for listening to music and watching movies.

Qualcomm aptX audio is automatically enabled when a mobile phone or audio device supports it.

Product Components

Line drawing of a closed earband device (no text or symbols)

TONE Ultra HBS-820S (Medium ear gels tips installed)

Extra Ear Gels (small & large)

Micro USB Charging Cable

Reference guide User Manual WEEE Card

(Europe Only)

NOTE: Actual product design may differ from images shown in manual.

CAUTION

Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty.

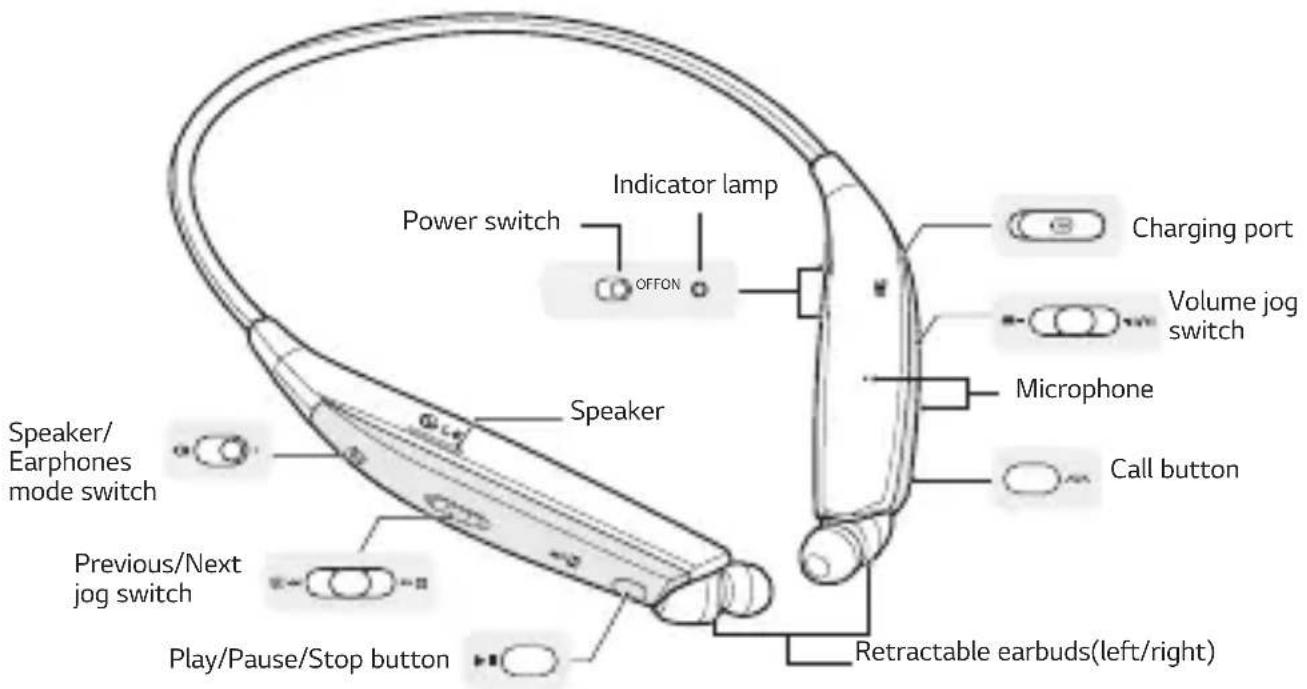

Product Description

Indicator lamp Power switch OFFON Charging port Volume jog switch Speaker Microphone Call button Speaker/ Earphones mode switch Previous/Next jog switch Play/Pause/Stop button Retractable earbuds(left/right)

NOTE: When you control the volume (level 15), you will hear a control sound two times or as a long sound from volume level 10 and higher.

Battery Charging and Alerts

Open the Charging port cover and connect the charger to the Charging port.

Indicator Lamp Red Purple Blue
Battery Status Charging 80% Completed

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Slide and hold the Volume jog switch in the volume down (-) direction for 1 second to check the Indicator lamp and battery level by voice.

Battery Status Sufficient Normal Insufficient
Indicator Lamp Blue flashes three times Purple flashes three times Red flashes three times

HBS-820S Pairing and Connecting

If you start the process after putting in your earbuds, you can easily pair and connect following the voice prompts.

If you hear that the battery is insufficient, recharge the battery before proceeding with pairing.

If pairing is not completed within 3 minutes, the power automatically turns off.

When the power automatically turns off, slide the Power switch from the OFF to the ON position to turn the power on.

Simple line drawing of a person's head and shoulders (no text or symbols)

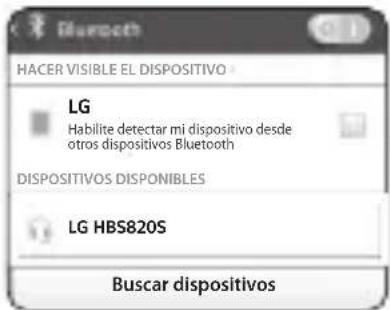

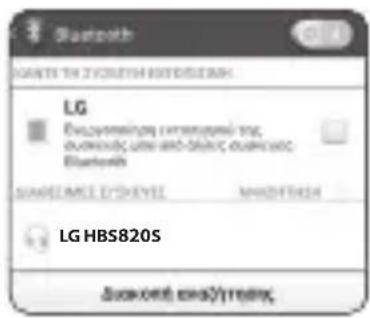

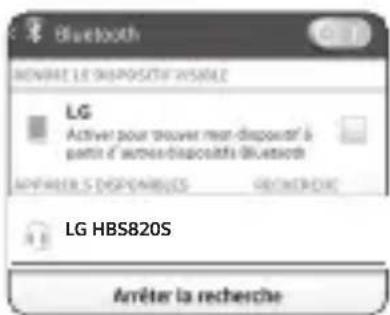

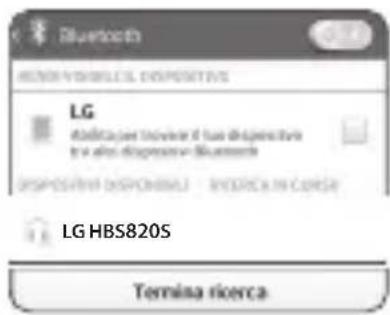

Connecting Quickly

ONOFF α1 α2

ONOFF 0.1 0.2

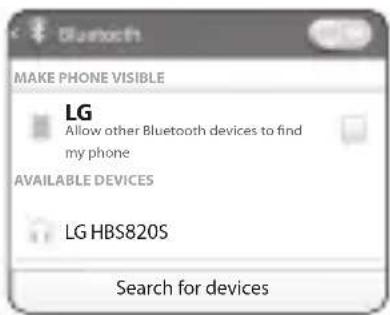

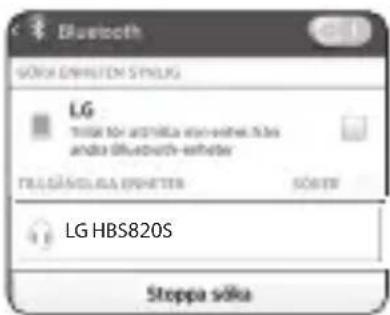

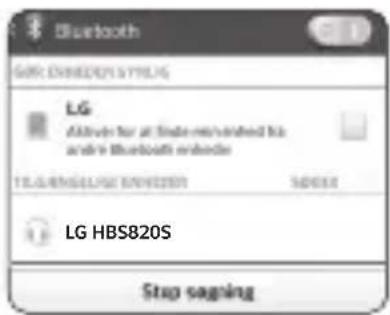

MAKE PHONE VISIBLE LG Allow other Bluetooth devices to find my phone AVAILABLE DEVICES LG HBS820S Search for devices

1 Slide the Power switch toward the ON position to turn on the power.
2 The blue Indicator lamp turns on and the HBS-820S switches to Search mode.
3 From the mobile phone or device list, select LG HBS820S to connect.
4 A voice message will indicate that the connection is completed.
5 Use the same process to pair the HBS-820S with other devices.

Connecting Manually

1 Press and hold the Call button and slide the Power switch to the ON position to turn it on.
2 The blue Indicator lamp turns on and the HBS-820S switches to Search mode.
3 Select LG HBS820S from the device list to connect.

Multiple Connections

The HBS-820S can be connected to a mobile phone and a PC simultaneously.

The HBS-820S can be connected to an additional device while it is already connected to a device.

1 Press and hold the Call button and slide the Power switch to the ON position to turn it on.
2 The blue Indicator lamp turns on and the HBS-820S switches to Search mode.
3 From the mobile phone or device list, select LG HBS820S to connect.
4 A voice message will indicate that the connection is completed. This device becomes the "Main Connected Device."
5 Try to connect to HBS-820S using a previously connected device. This device becomes the "Sub Connected Device."

NOTE: If simultaneously connected to two devices, the device that was connected most recently is the "Main Connected Device." The main functions work based on the "Main Connected Device."

Automatic Reconnection

If you turn on HBS-820S, it will automatically connect to the most recent (main or peripheral) device it was connected to. (If a device cannot be found, Search mode will be activated.)

If the product does not automatically connect to the device you want, Search for your product on the device you want to connect to and connect it manually.

Indicator Lamp

HBS-820S Status Description
Power On The blue Indicator lamp flashes four times.
Power Off The blue Indicator lamp flashes four times.
Search Mode The blue Indicator lamp is on.
Connected to a device The Indicator lamp will flash blue once every 5 seconds.

Mobile Calling Functions

Functions Description
Receiving a Call/Hanging Up	Briefly press theCall button.To turn off the vibration alert, briefly slide theVolume jog switchin the volume down (-) direction.
Making a Call	If you make a call using a mobile phone, the call is automatically connected to the HBS-820S.For some mobile phones, you should briefly press thePlay/Pause/Stop buttontwo times to switch calls.
Redial	Press and hold theCall buttonfor more than 1 second to place a call to the last number you called.
Voice Dial	Briefly press theCall button.If the mobile phone does not support the Voice Dial function, you can use the Redial function.
Switching Calls	Briefly press thePlay/Pause/Stop buttontwo times during a call.(Every time you press one of these buttons, the call switches to the mobile phone or the HBS-820S.)
Receiving a CallWhile on the Phone	You can receive another call while on the phone by pressing and holding theCall buttonfor 1 second.The existing call switches to a call waiting status. Press and hold theCall buttonagain for 1 second to switch back to the previous call.Briefly press theCall buttonto hang up in the middle of a call or to hang up both calls.(It works differently depending on the mobile phone settings.)
Rejecting a Call Press and hold theCall buttonfor 2 seconds.
Enabling/Disabling Mute	Simultaneously slide and hold theVolume jog switchin the volume up (+) direction, and slide thePrevious/Next jog switchin the(◀ position for 1 second.

CAUTION: Do not disable/enable the Mute function while driving, as you need to use both hands.
NOTE: The Voice Dial and Redial functions work on the Main Connected Device or on the device on which you made the last call. (The Voice Dial and Redial functions may work differently depending on the mobile phone being used.)

Playing Music

Functions Description
Play	Briefly press the Play/Pause/Stop button.Music will play from the activated player of the connected device.
Pause	Briefly press the Play/Pause/Stop button.
Stop Press and hold the Play/Pause/Stop button for 1 second.
Play Previous/Next Song	Briefly slide the Previous/Next jog switch in the (◀◀) or (▶▶) position.
Fast Rewind/Forward	Slide the Previous/Next jog switch in the (◀◀) or (▶▶) direction until you reach the desired section of the track.

NOTE: To switch to a different music playback device when multiple devices are connected, stop the currently playing music and then play music from the device of your choice.

Speaker Mode

If you slide the Speaker mode switch to the ON position, the device will enter Speaker mode.

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or operation instructions.

Vibration Alert Settings

Slide and hold the Volume jog switch in the volume up (+) direction for 2 seconds when the HBS-820S is not in use.

If you turn off the vibration alerts, it will not vibrate even when a call is being received or you are out of communication range.

NOTE: The vibration alert is automatically set to the ON position when you turn on the power.

Out of Range

If the device connected to the product is out of effective communication range (33 feet / 10 meters), the communication signal becomes weak and the communication is lost.

If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, press the Call button on the product to connect to it manually.

If a device that is not in use goes out of communication range when multiple devices are connected, the product vibrates and a voice message indicates that the connection is lost. In this case, the automatic reconnection function is not supported.

LG Tone & Talk™

Tone & Talk supports various functions including text and voice directions, and calling. Go to the Google Play™ store and search for "LG Tone & Talk" or scan the QR code on the right to install Tone & Talk.

NOTE: Tone & Talk can be used on Android™ smartphones.

QR code image containing encoded data, no visible human-readable text

NOTE: The Current Time Alert and the Voice Memo functions cannot be used at the same time. You can only use one function at a time when you make selections in the Tone & Talk app. The Voice Memo and Find Me functions may not be supported on some devices.

Function Action
Current Time Alert	1. Go to Tone & Talk and select Current time alert.2. Slide and hold the Previous/Next jog switch to the ( ) position for 1 second.
Voice Memo	1. Go to Tone & Talk and select Voice memo.2. Slide and hold the Previous/Next jog switch to the ( ) position for 1 second.(This feature may not be supported on some devices.)
Reading Recent Messages	Slide and hold the Previous/Next jog switch in the ( ) position for 1 second.
Find Me (Find my phone)	Simultaneously slide and hold the Volume jog switch and Previous/Next jog switch in the same direction for 1 second.
Using Speed Dial to Make a Call	1. Go to Tone & Talk and select a speed dial contact.2. Briefly press the Call button two times.(The number should be specified in the Tone & Talk app.)
Using Favorites to Make a Call	1. Go to Tone & Talk and select afavorite contact.2. Briefly press theCall buttontwo times.3. Slide and hold thePrevious/Next jog switchto the(◀◀)or(▶▶) position for 1 second to select a number.4. Briefly press theCall buttontwo times.
Making a Call from Call History	1. Go to Tone & Talk and selectCall History.2. Briefly press theCall buttontwo times.3. Slide and hold thePrevious/Next jog switchto the(◀◀)or(▶▶) position for 1 second to select a Call History number.4. Briefly slidetheCall buttontwo times.
Changing the Voice Prompt Language	1. SelectAdvanced>View morein Tone & Talk.2. SelectVoice prompt languageto change the language.

Summary of HBS-820S Functions

Function	HBS-820S Status	Action
Power On Power off Slide the Power switch to the ON position.
Power Off Power on Slide the Power switch to the OFF position.
Volume Up	Talking/Music on	Slide the Volume jog switch to the volume up (+) position.
Volume Down	Talking/Music on	Slide the Volume jog switch to the volume down (-) position.
Transferring a Call Talking Press the Play/Pause/Stop button twice.
Answering a Call Ringing Briefly press the Call button.
Stop Incoming Call Vibration Alerting	Ringing	Briefly slide the Volume jog switch to the volume down (-) position.
Vibration On/Off Idle		Slide and hold the Volume jog switch to the volume up (+) position for 2 seconds.
Find Me (Find my phone) Power on		Simultaneously slide and hold the Volume jog switch and Previous/Next jog switch in the same direction for 1 second.
Ending a Call Talking Briefly press the Call button.
Call Waiting Talking Press and hold the Call button for 1 second.
Last Number Redial Idle Press and hold the Call button for 1 second.
Voice Dialing (Handset Must Support)	Idle Briefly press the Call button.
Call Reject Ringing Press and hold the Call button for 2 seconds.
Mic Mute On/Off Talking		Simultaneously slide and hold the Volume jog switch to the volume up (+) position and the Previous/Next jog switch to the ( ) position for 1 second.
Pairing Mode (Manual) Power off		Simultaneously press and hold the Call button and slide the Power switch to the ON position for 2 seconds.
Battery Status Check Idle		Slide and hold the Volume jog switch to the volume down (-) position for 1 second.
Speaker Mode Speaker On Slide the Speaker Mode switch to the ON position.(Right)
Play	Power on	Briefly press the Play/Pause/Stop button.
Pause	Music on	Briefly press the Play/Pause/Stop button.
Stop	Music on	Press and hold the Play/Pause/Stop button for 1 second.
Next Song Music on		Briefly slide the Previous/Next jog switch to the ( ) position.
Previous Song Music on		Briefly slide the Previous/Next jog switch to the ( ) position.
Fast Forward	Music on	Slide and hold the Previous/Next jog switch in the ( ) position.
Rewind	Music on	Slide and hold the Previous/Next jog switch in the ( ) position.

Troubleshooting

Problems Solutions
The power does not turn on	Check the battery level and charge it.
Cannot make a call with the HBS-820S	If the mobile phone does not support headset and hands-free functions, you cannot use the calling features.Check the battery level and charge it.
Cannot register the HBS-820S to the mobile phone	Check whether the HBS-820S is turned on.Check whether the HBS-820S is in Search mode.- Simultaneously press and hold theCall buttonand slide thePower switchto the ON position and the HBS-820S switches to Search mode.
The sound is low Control the sound level of the device connected to the HBS-820S.

Specifications and Features

Item Comments
Bluetooth Specifications	V 4.1 (Headset/Hands-Free/A2DP/AVRCP)
Battery Battery 3.7 V / 210 mAh, Lithium-ion polymer
Standby Time Up to 720 hours*
Talk Time Up to 14.5 hours* (When in Speaker mode: 8.5 hours)
Music Play Time Up to 11.5 hours* (When in Speaker mode: 6 hours)
Charging Time Approximately 2 hours
Rated Input Voltage DC 4.75 V ~ 5.3 V, 400 mA
Operating Temperature -10°C (+14°F) ~ +50°C (+122°F)
Dimensions/Weight 155.5 mm (W) X 167.5 mm (L) X 17.5 mm (H) / 49.5 g
Operating Frequency 2402 MHz to 2480 MHz
Target Power 10 dBm

*Certain features may use more power and cause actual time to vary.

Declaration of Confirmation

FCC NOTICE TO USERS:

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void the user's authority to operate the device.

DECLARATION OF CONFORMITY :

Hereby, LG Electronics declares that this HBS-820S is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration

Bluetooth ^® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Qualcomm® aptX™ audio is a product of Qualcomm Technologies International, Ltd.

Bluetooth® C€

FCC ID: ZNFHBS820S

Additional Information

1. Radio frequency exposure

This Bluetooth Wireless Stereo Headset HBS-820S is a radio transmitter and receiver. When in operation it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz.

Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.

2. BluetoothConnection Precautions

The following environments affect the range and reception of Bluetooth signals:

• When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device
• When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50° or below -10°. For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10° and +45°.

Removal of waste batteries and accumulators (Product with embedded battery ONLY)

- In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.

- Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.

5. Recycling the battery in your Bluetooth Headset

The battery in your Bluetooth Headset must be disposed of properly and should never be placed in municipal waste.

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4 For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product.

6. Conditions

• The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.
• If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics.
• This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid.
• This warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty.

Limited Warranty

SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF ONE (1) YEAR. SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO GET FURTHER INFORMATION.

Important Safety Information

Avoiding hearing damage

Permanent hearing loss may occur if you use your Handsfree car kit at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Please refer to your handset user guide for more information on how to adjust listening levels on your handset.

You may suffer hearing damage if you switch from speaker mode to earphone mode at maximum volume. Make sure you turn the volume down before switching to earphone mode.

Using headsets safely

Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Disposal of your old appliance

1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling.

Blank white image with no visible content, text, or symbols

LG

Life's Good

Simple line drawing of a biological structure resembling a worm or larva (no text or symbols)

Illustration of a person wearing a hat and coat, with no visible text or symbols

Scanned document with a grid of rectangular blocks and a single letter '1' in the top-left corner.

(pouze Evropa)

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Simple line drawing of a person's head and shoulders (no text or symbols)

Rychlé připojení

ONOFF on

ONOFF α1-α2

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pair of earphones (no text or symbols)

TONE Ultra HBS-820S (Mellemstore øregel og dupper monteret)

Simple line drawing of a coiled or twisted object with no text or symbols

Illustration of a stylized person's head and shoulders, no text or symbols present

Scanned document page with placeholder text and a small icon, likely a form or template sheet.

(kun i Europa)

Diagram of a medical or laboratory device with ports and connectors (no text or labels)

Line drawing of a person's head and shoulders (no text or symbols)

Hurtig forbindelse

ONOFF ← ← ←

ONOFF 01 02 03

Bluetooth GIR: ENRIEDENSTFLIG LG Attitude for at State-networked its and/or Bluetooth vehicles TELENSLISE ENRIER 50000 LG HBS820S Stop saging

QR code image containing encoded data, no visible human-readable text

Blank white image with no visible content, text, or symbols

LG

Life's Good

Simple line drawing of a curved, ribbon-like object resembling a stylized ear or connector (no text or symbols)

Illustration of a medical professional figure in profile view, no text or symbols present

Scanned document page with faint text and a small symbol, likely a form or table header

(Europe uniquement)

Diagram of a medical device with ports and connectors, showing no text or symbols

Line drawing of a person wearing a collared shirt and headband (no text or symbols)

Connexion rapide

ONOFF on on

ONOFF on OFF

Diagram showing a device control panel with directional arrows and labeled buttons, including a plus and minus symbols.

QR code image containing encoded data, no visible human-readable text

Copyright © 2016-2017 LG Electronics. All Rights Reserved

Line drawing of a pair of earphones (no text or symbols)

TONE Ultra HBS-820S

Diagram of a device with labeled ports and an arrow indicating direction (no text or symbols present)

Line drawing of a person's head and shoulders (no text or symbols)

ONOFF DC OFF

LG Elovoemianq eletengyng-1ing, davonics, umi and blint, ouwicnec Bluetooth SANDUCE EYSHKEYE MADYTH24 LG HBS820S Davonect emoYtrehix

Diagram showing a device control panel with directional arrows and labeled buttons, including Chinese text.

QR code image containing encoded data, no visible human-readable text

Warning symbol with a triangle containing an ear and sound waves (no text or numbers)

Symbol of a trash bin with crossed-out lines and a solid black rectangle below (no text or labels)

Line drawing of a closed earband device (no text or symbols)

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Simple line drawing of a person's head and shoulders (no text or symbols)

Schnell verbinden

ONOFF on on

ONOFF on OFF

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or device operation.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a curved, segmented object resembling a stylized helmet or device (no text or symbols)

Diagram of a car's rear suspension system showing vehicle, battery, and cable connections (no text or labels)

Line drawing of a person's head and shoulders (no text or symbols)

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or system operation.

QR code image containing encoded data, no visible human-readable text

Blank white image with no visible content, text, or symbols

LG

Life's Good

Copyright © 2016-2017 LG Electronics. All Rights Reserved

Line drawing of an earbuds with a curved handle and segmented body (no text or symbols)

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Line drawing of a person's head and shoulders (no text or symbols)

Connessione rapida

ONOFF on off

ONOFF on OFF

MEMORVINCLELS DISPOSITIVE LG Adelizierung der für die dispersive ver als dispositive Bluetooth DISPOSITIVE DISPONIBILI VEGETZA IN CORSO LG HBS820S Termina ricerca

Diagram showing a device with labeled components and directional arrows, including symbols like '←' and 'O'

Blank white image with no visible content, text, or symbols

LG

Life's Good

Line drawing of a curved, segmented object resembling an ear or connector (no text or symbols)

Diagram of a medical device with catheter placement and internal components (no text or labels)

Line drawing of a person's head and shoulders (no text or symbols)

Diagram showing a device with directional arrows and labeled components, including a circular symbol and a rectangular component.

QR code image containing encoded data, no visible human-readable text

Line drawing of a curved, segmented object resembling an ear or headband (no text or symbols)

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Simple line drawing of a person's head and shoulders (no text or symbols)

Szybkie połączenie

ONOFF 25.0000

ONOFF OFF

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or system operation.

QR code image containing encoded data, no visible human-readable text

Line drawing of a pair of earphones (no text or symbols)

TONE Ultra HBS-820S (pontas de almofadas de auriculares médias instaladas)

Almofadas de auriculares adicionais (pequenas e grandes)

Cabo de carregamento micro USB

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Simple line drawing of a person's head and shoulders (no text or symbols)

Ligação rápida

ONOFF ON OFF

ONOFF α-1.0m

Mc Bluetooth MOISTAR DISPOSIVO LG Tomar Values APRABLISHED/OPRONS/RES A PRISQUIDAR LG HBS820S Pacar procura

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or operation instructions.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a curved, elongated object resembling an ear or lens (no text or symbols)

Diagram of a medical or electronic device with ports and connectors, no visible text or symbols

Line drawing of a person's head and shoulders (no text or symbols)

Conexión rápida

ONOFF 08:00:01

ONOFF OFF

Diagram showing a device with directional arrows and labeled components, likely indicating movement or control buttons.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a curved, segmented object resembling an ear or connector (no text or symbols)

TONE Ultra HBS-820S

Line drawing of a person's head and shoulders (no text or symbols)

Rýchle pripojenie

ONOFF m 0.01

ONOFF OK

LG Pavotl oklahoma mlphraxizadenia a octench zaničeni očivarin Bluetooth LGI HBS820S Zastavit vyhřadávanie

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or system operation.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a curved, ribbon-like object with no text or symbols

Diagram of a medical or electronic device with ports and connectors, no visible text or symbols

Line drawing of a person's head and shoulders (no text or symbols)

Ansluta snabbt

ONOFF 04 05

ONOFF OK

Bluetooth SOKA ENHUTEN SYNUG LG Töse for and tilka avn-ethel filos andla Bluetooth-etheler TELENSOLAVA ENHUTER SÖRTER LG HBS820S Stoppa söka

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or system operation.

QR code image containing encoded data, no visible human-readable text

Blank white image with no visible content, text, or symbols

LG

Life's Good

Manual de utilizare LG TONE Ultra™

Căști stereo wireless cu Bluetooth® HBS-820S

Română

Simple line drawing of a curved, elongated object resembling an ear or lens (no text or symbols)

Diagram showing cable port connections with labeled ports and directional arrows indicating movement or flow

Line drawing of a person's head and shoulders (no text or symbols)

Conectarea rapidă

ONOFF

ONOFF OFF

Diagram showing a device with labeled buttons and directional arrows, including symbols like '←', 'Q1', and '→'

QR code image containing encoded data, no visible human-readable text

Warning symbol with a triangle containing a stylized ear and sound waves (no text)

Simple line drawing of a curved, elongated object resembling an ear or lens (no text or symbols)

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Line drawing of a person's head and shoulders (no text or symbols)

Hızlı Bağlantı

ONOFF ONOFF

ONOFF on on

Bluetooth LG HBS820S Aramayi durür

Diagram of a device control panel with directional arrows and labeled buttons

QR code image containing encoded data, no visible human-readable text

Blank white image with no visible content, text, or symbols

LG

Life's Good

用戶手冊

LG TONE Ultra™

藍牙TM無線立體聲耳機

HBS-820S

繁體中文

Copyright © 2016-2017 LG Electronics. All Rights Reserved

Line drawing of a closed earband device (no text or symbols)

TONE Ultra HBS-820S (已安装中型耳塞套)

額外的耳塞套 (小型和大型)

Micro USB 充電連接線

中证 10.1008 U.S.A.

Diagram of a medical device with connectors and tubing (no text or symbols)

Line drawing of a person's head and shoulders (no text or symbols)

快速連線

ONOFF 0.4 1.0

ONOFF → ←

Diagram showing a device control panel with directional arrows and labeled buttons, likely for system or data management.

震動提示設定

QR code image containing encoded data, no visible human-readable text

Warning symbol with a sine wave inside a triangle (no text or numbers)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Blank white image with no visible content, text, or symbols

- Lithuanian

Blank white image with no visible content, text, or symbols

FCC Safety Information

Part 15.21 statement

Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the user's authority to operate the equipment.

Part 15.105 statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

- Čeština

Blank white image with no visible content, text, or symbols

Simple line drawing of an earbuds (no text or symbols)

Diagram of a medical or electronic device with ports and connectors (no text or symbols)

Line drawing of a person's head and shoulders (no text or symbols)

ONOFF ON OFF

ONOFF

Diagram showing a device control panel with directional arrows and labeled buttons, including a circular icon labeled 'ON'.

وضع مكبر الصوت

QR code image containing encoded data, no visible human-readable text

Warning symbol with a triangle containing an ear and sound waves (no text or numbers)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Blank white image with no visible content, text, or symbols
