USER MANUAL Force HBSS80 LG

Contact office for compliance of this product :

LG Electronics Inc.

EU Representative, Krijgsman 1,

1186 DM Amstelveen, The Netherlands

User Manual

LG FORCE™

Bluetooth® Wireless Stereo Headset

English

All rights reserved. LG Electronics Inc., 2016

NOTE: For the best performance and to prevent any damage to, or misuse of the HBS-S80, please read all of the information carefully prior to using the HBS-S80.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.

The LG FORCE (HBS-S80) is a lightweight wireless headset that uses Bluetooth technology.

This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile.

Safety Cautions

CAUTION

Do not disassemble, adjust, or repair the product arbitrarily.

Do not place the product near excessive heat or flammable material.

Do not arbitrarily replace the battery as it may explode.

The product may be damaged if an incompatible charger is used.

Make sure that any infant or child does not swallow a magnet or a small component of the product.

Make sure that foreign objects do not enter the charger's connectors (charging port and power plug).

Failing to do so may result in fire or electric shock.

For your safety, do not wear the product while it is being charged.

If you have a medical device implanted, contact your doctor before use.

Do not pull the earphone cable with excessive force.

For your safety, do not remove the battery incorporated in the product.

Lithium-ion polymer battery is hazardous component which can cause injury.

Battery replacement by non-qualified professional can cause damage to your device.

Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by authorized service provider. The battery should be recycled or disposed separately from household wastes.

WARNING

Do not drop the product from a high place.

Make sure there is no alcohol or benzene in contact with the product.

Do not store the product in a wet or dusty place.

Do not place any heavy objects on the product.

Product is sweat and water resistant (IPx5). It is not waterproof and should not be submerged in water.

NOTE

If the product is exposed to excessive sweat, clean the product.

Keep the earbud of the earphone always clean.

HD Speaker

If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high definition.

LG HBS-S80 is powered by Qualcomm aptX audio. Qualcomm aptX audio is Bluetooth wireless technology that provides clearer audio for listening to music and watching movies.

Qualcomm aptX audio is automatically enabled when a mobile phone or audio device supports it.

Product Components

FORCE HBS-S80 (Medium ear gels installed)

Micro USB Charging Cable

Extra Ear Gels (small & large)

Pouch

Reference guide User Manual WEEE Card

(Europe Only)

NOTE: Actual product design may differ from images shown in manual.

CAUTION

Make sure authentic LG Electronics components are used. Using a non Authentic component may damage the product and thus void the warranty.

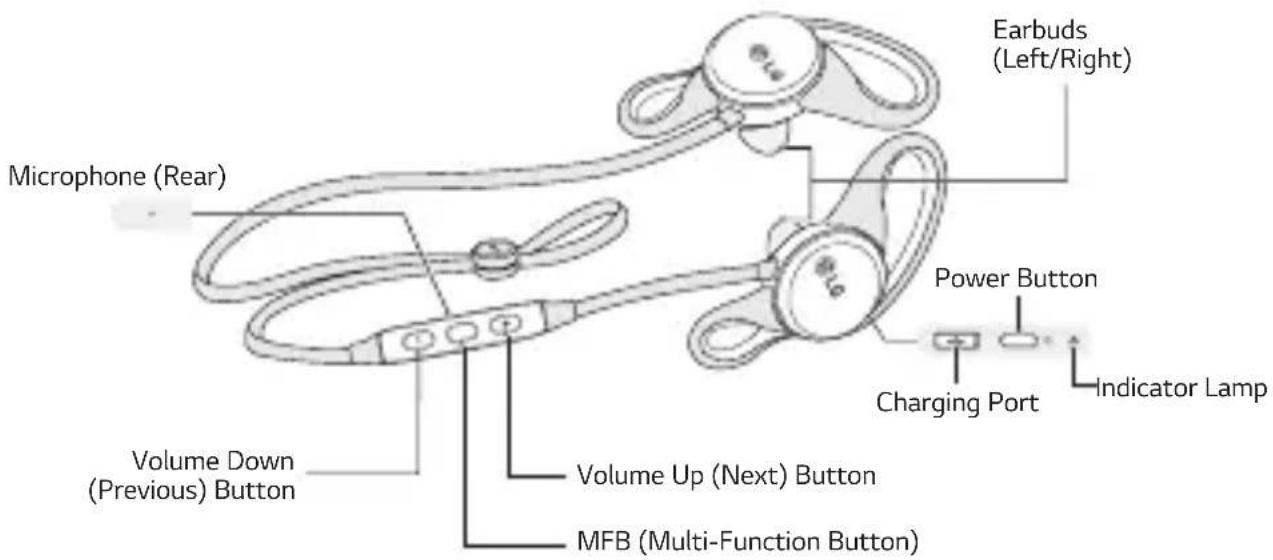

Product Description

NOTE: When you control the volume (level 16), you will hear a control sound two times or as a long sound from volume level 6 and higher.

Battery Charging and Alerts

Open the Charging Port cover and connect the charger to the Charging Port.

Indicator Lamp Red Purple Blue
Battery Status Charging 80% Completed

Press and hold the Volume Down Button for 2 seconds to check the battery level using voice prompts and the Indicator Lamp.

Battery Status High Medium Low
Indicator Lamp Flashes blue Flashes purple Flashes red

Putting on the Product

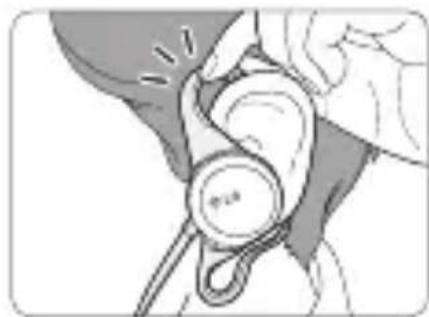

1 Fit the top of the ear hooks on your ears, and insert the earbuds into your ears.

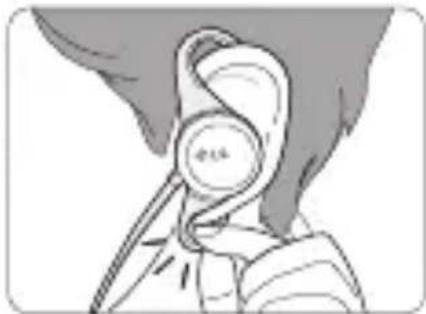

2 Fit the bottom of the ear hooks on your ears, and adjust the ear hooks so they do not move.

HBS-S80 Pairing and Connecting

If you start the process after putting in your earbuds, you can easily pair and connect following the voice prompts.

If you hear that the battery is insufficient, recharge the battery before proceeding with pairing.

If pairing is not completed within 3 minutes, the power automatically turns off. If the power turned off automatically, press and hold the Power Button for 2 seconds to turn the power on.

Connecting Quickly

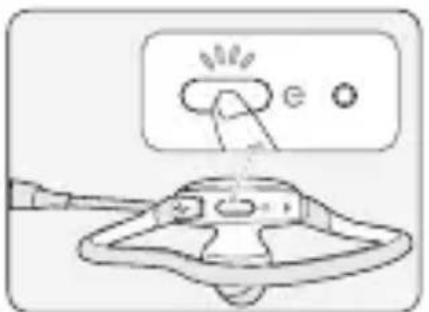

1 Press and hold the Power Button for 2 seconds to turn the power on.

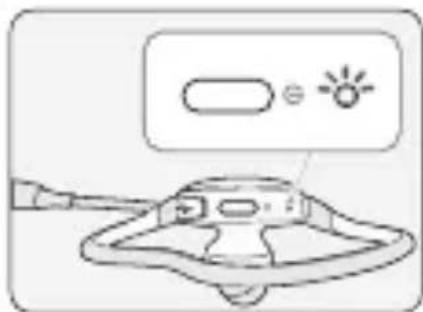

2 The Indicator Lamp will turn blue and the HBS-S80 will switch to Search mode.

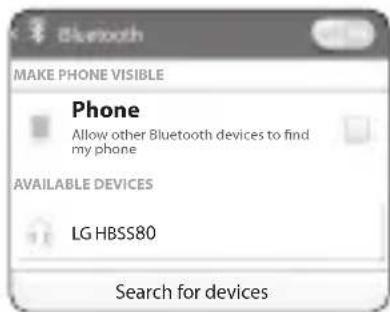

3 From the mobile phone or device list, select LG HBSS80 to connect.
4 A voice message will indicate that the connection is completed.
5 Use the same process to pair the HBS-S80 with other devices.

Connecting Manually

1 When the power is off, simultaneously press and hold the Power Button and the MFB for 2 seconds to turn the power on.
2 The blue Indicator Lamp turns on and the HBS-S80 switches to Search mode.
3 Select LG HBSS80 from the device list to connect.

Multiple Connections

The HBS-S80 can be simultaneously connected to a mobile phone and a PC.

The HBS-S80 can be connected to an additional device while it is already connected to a device.

1 When the power is off, simultaneously press and hold the Power Button and the MFB for 2 seconds to turn the power on.
2 The Indicator Lamp will turn blue, and the HBS-S80 will switch to Search mode.
3 From the mobile phone or device list, select LG HBSS80 to connect.
4 A voice message will indicate that the connection is completed. This device becomes the "Main Connected Device."
5 Try to connect to HBS-S80 using a previously connected device. This device becomes the "Sub Connected Device."

NOTE: If simultaneously connected to two devices, the device that was connected most recently is the "Main Connected Device." The main functions work based on the "Main Connected Device."

Automatic Reconnection

If you turn on the product, it automatically searches for and connects to the devices ("Main Connected Device" and "Sub Connected Device") to which it was previously connected. (If the product cannot find the device to which it was connected last time, the product switches to Search mode.)

If the product does not automatically connect to the device you want, search the device list for the product you want to connect to and connect it manually.

Indicator Lamp

HBS-S80 Status Description
Power On The blue Indicator Lamp flashes four times.
Power Off The blue Indicator Lamp flashes four times.
Search Mode The blue Indicator Lamp is on.
Connected to a device The Indicator Lamp will flash blue once every 5 seconds.
Call Connected or Playing Music	The Indicator Lamp will flash blue once every 5 seconds.

Mobile Calling Functions

Functions Description
Receiving a Call/Hanging Up	Press the MFB.
Making a Call	If you make a call using a mobile phone, the call is automatically connected to the HBS-S80.
Redial	Press and hold the MFB for 2 seconds to radial the most recent number that you called.
Voice Dial Press and	hold the MFB for 1 second.
Switching Calls	Press and hold the Volume Up Button for 2 seconds. (Every time you press one of these buttons, the call switches to the mobile phone or the HBS-S80.)
Receiving a Call While on the Phone	Press and hold the MFB for 1 second to receive another call while already talking on the phone. The first call will be switched to call waiting. Press and hold the MFB for 1 second to return to the first call.
Rejecting a Call Press	and hold the MFB for 2 seconds.
Enabling/Disabling Mute	Simultaneously press and hold the Volume Up Button and the Volume Down Button for 1 second.

CAUTION: Do not disable/enable the mute while driving, as you need to use both hands.

NOTE: The Voice Dial and Redial functions work on the Main Connected Device or on the device on which you made the last call. (The Voice Dial and Redial functions may work differently depending on the mobile phone being used.)

The Voice Dial and Redial functions are not available while music is being played. Press the MFB to pause the music before using these functions.

Playing Music

Functions Description
Play	Press the MFB. Music will play from the activated player of the connected device.
Pause Press the MFB while your music is playing.
Previous Song Press and hold the Volume Down Button for 1 second.
Next Song Press and hold the Volume Up Button for 1 second.
Change Equalizer Mode	While your music is playing, press and hold the MFB for 2 seconds. The Equalizer Mode will change in the following order: Bass Boost (default) > Normal > Treble Boost.

NOTE: To switch to a different music playback device when multiple devices are connected, stop any music playing and play music from the device of your choice.

Out of Range

If the device connected to the product is out of effective communication range (33 feet/10 meters), the communication signal becomes weak and the communication is lost.

If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, press the MFB on the product to connect to it manually.

If a device not in use moves out of range when multiple devices are connected, a voice prompt will be generated. In this case, the automatic reconnection function is not supported.

Summary of HBS-S80 Functions

Function HBS-S80 Status	Action
Power On Power off Press	and hold the Power Button for 2 seconds.
Power Off Power on Press	and hold the Power Button for 3 seconds.
Volume Up	Talking/Music on	Briefly press the Volume Up Button.
Volume Down	Talking/Music on	Briefly press the Volume Down Button.
Switching Calls	Talking	Press and hold the Volume Up Button for 2 seconds.
Receiving a Call Ringing Briefly press the MFB.
Ending a Call Talking Briefly press the MFB.
Call Waiting Talking Press and hold the MFB for 1 second.
Last Number Redial Idle Press and hold the MFB for 2 seconds.
Voice Dialing (must be supported on mobile device)	Idle Press and hold the MFB for 1 second.
Rejecting a Call Ringing Press and hold the MFB for 2 seconds.
Enabling/Disabling Mute Talking		Simultaneously press and hold the Volume Up and Volume Down Buttons for 1 second.
Pairing Mode (manual)	Power off	Simultaneously press and hold the MFB and the Power Button for 2 seconds.
Battery Status Check	Idle	Press and hold the Volume Down Button for 2 seconds.
Play	Power on	Briefly press the MFB.
Pause	Music on	Briefly press the MFB.
Next Song	Music on	Press and hold the Volume Up Button for 1 second.
Previous Song Music on		Press and hold the Volume Down Button for 1 second.
Equalizer Settings	Music on	Press and hold the MFB for 2 seconds.

Troubleshooting

Problems Solutions
The power does not turn on	Check the battery level and charge it.
Cannot make a call with the HBS-S80	If the mobile phone does not support headset and hands-free functions, you cannot use the calling features. Check the battery level and charge it.
Cannot register the HBS-S80 to the mobile phone	Check whether the HBS-S80 is turned on. Check whether the HBS-S80 is in Search mode. -While the power is off, Simultaneously press and hold the Power Button and MFB for 2 seconds to turn the power on. The HBS-S80 will change to Search mode.
The sound is low Control the sound level of the device connected to the HBS-S80.

Specifications and Features

Item Comments
Bluetooth Specifications	V 4.1 (Headset/Hands-Free/A2DP/AVRCP)
Battery Battery 3.7 V / 115 mAh, Lithium-ion polymer
Standby Time Up to 400 hours*
Talk Time Up to 6.5 hours*
Music Play Time Up to 6 hours*
Charging Time Less than 2.5 hours
Rated Input Voltage DC 4.75 V ~ 5.3 V, 400 mA
Operating Temperature -10 °C (+14 °F) ~ +50 °C (+122 °F)
Dimensions/Weight [39.2 mm (W) X 74.7 mm (L) X 30.45 mm (H)] X 2 / 27.5 g
Operating Frequency 2402 MHz to 2480 MHz

*Certain features may use more power and cause actual time to vary.

Declaration of Confirmation

FCC NOTICE TO USERS :

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE :

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device.

DECLARATION OF CONFORMITY :

Hereby, LG Electronics declares that this HBS-S80 is in compliance with the essential requirements and other relevant provisions of Directive1999/5/EC. A copy of the Declaration of Conformity can be found at http://www/lg.com/global/declaration

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Qualcomm® aptX™ audio is a product of Qualcomm Technologies International, Ltd.

Bluetooth® C∈0168

FCC ID: ZNFEHBSS80

Additional Information

1. Radio frequency exposure

This Bluetooth Wireless Stereo Headset HBS-S80 is a radio transmitter and receiver. When in operation it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic [elds (microwaves) in the frequency range 2.4 to 2.4835 GHz.

Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.

2. Bluetooth Connection Precautions

The following environments affect the range and reception of Bluetooth signals:

• When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device
• When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50^ or below -10^ . For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10^ and +45^ .

Removal of waste batteries and accumulators (Product with embedded battery ONLY)

• In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.

• Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.

5. Recycling the battery in your Bluetooth Headset

The battery in your Bluetooth Headset must be disposed of properly and should never be placed in municipal waste.

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4 For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product.

6. Conditions

• The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.
• If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics.

• This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid.

• This warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty.

Limited Warranty

SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTY THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF ONE (1) YEAR. SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO GET FURTHER INFORMATION.

Important Safety Information

Avoiding hearing damage

Permanent hearing loss may occur if you use your Handsfree car kit at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Please refer to your handset user guide for more information on how to adjust listening levels on your handset.

Using headsets safely

Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Disposal of your old appliance

1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www/lg.com/global/recycling.

Avanapaywyn mouoiknC

Yeoido-dong, Yeongdeungpo-gu, Seoul, Korea, 150-721

Tel: [phone]

FIRMA YETKILISINIMIMZASI - KASESI

LG ELECTRONICS TICARE ANONIM SIRKETI
Kaptapapa M, Pyalanga Bulwari N73
Ortedo Puza KwaZulu-Natalyan SL151ST
Tet (2012) 62 54 212 222 6-4
Verga No. Bogazif Kunlmar 6080 487 738

MALIN

CINSI

KULAKLIK

MARKASI:LG

MODELI

BANDROL VE SERI NO :

TESLIM TARIHI VE YERI

GARANTI SÜRESİ:2YIL

AZAMI TAMIR SURESI:20IS GUNU

SATICI FIRMANIN

UNVANI

ADRESI

TELEFONU

TELEFAKSI:

FATURA TARIHI VE NO :

TARIH-IMZA-KASE:

LG Electronics

LG

LG Electronics Ticaret A.S.

Bulgarian I3xBpbJHe Ha cTapn ypeI

1 CnmbolbT c6c 3auepTaHnKoHTeHep noka3Ba, ye OTnaDbuNTe ot eJeKtpnuecknte n eJeKtpoHHnte npOdykTu (WEEE) Tpr6Ba da ce N3XBpJrT OTdEJIHO OT bHTOBNe OTnabUn.

2 Ctapnte eIektpnueckn npOyKtn MoarTa da cbdbpxkT onaCHN BeIecTbA n IpaBnHTo n3xBbpIa He Ha Baunr ypeI ue nomorHe 3a IpeDOTBpTaRABaHe Ha HeratNBHTe NocneIcTBn 3a OKoHNata CpeDa H OBeWkoTo 3dpabe. BauRr CTap ypeM MoKe Da cbDbPka Yactn 3a MHOrOKpaTHa ynotpe6a, KOnTO bNxMa MOrn Da 6bDat n3NoJ3BaHn 3a peMOHT Ha dpyrnpOyKtN, KaKTo n dpyrn cehnn MaTePnaII, KOtO MoarTa da 6bDat peuKnipaHn c cel 3ana3BaHe Ha OrpaHnueHIne pecypcn.

3 Moxete da 3aHeceTe Baunr ypei nn B mara3nHa, ot KOnTO cTe ro 3akynnnn moxete da ce Cbpxte C MeCTHna DbpXkABeH OΦnc 3a OTnadbnte, 3a da noJyUHTe HOpMaunr 3a Han-6n3knr PA3PEUHEWEEE nyKt 3a cbupane Ha OTnabu. 3a Han-aKtyaHa HOpMaunr ot Baata DaPkaBa, MOnj, norJeHete tyk: www.lq.com/global/recycling

Croatian

Zbrinjavanje starog ureda

1 Ovaj simbol prekrižene kante za smece na kotačićima označava kako se opadni elektrčni i elektrčni proizvodi (WEEE) moraju zbrinjavati odvojeno od komunalog OTPada.
2 Dotrajali elektricni proizvodi mogu sadržavati opasne tvari stoga ce ispavnov zbirnjavanje vaših dotrajalih uredaja pomoci u sprječavanju potencijalnih negativnih posljedica na okolis i ljudsko zdravlje. Vaš dotrajao uredaj moze sadržavati dijelove koji se mogu ponovo iskoristiti za popravak drugih proizvoda te druge vrijedne materijale koji se mogu reciklarati i takao sačuvati ogranicene resurse.
3 Ovisno o razini smetnje / stete i dobi stavke, stari proizvodi mogu se popraviti za vise radnogŽivota koji ce spriječiti izbije otpada. Proizvodi koji nisu prikladni za ponovnu uporabu moze se reciklirati da se oporavim vrijedne resurse i pomoci da se smanji globalno potrošnju novih sirovina.
4 Urešaj možete odnjeti u trgovinu u kooj ste kupili proizvod ili možete kontaktirati ured za zbrinjavanje opada kod vaših mjesnih nadležnih tjela te od njih saznati vishe informacija o najbiližem ovlaštenom WEEE sabirnom centru. Za majnovije informacije iz vaše države molimo pogledajte internetske stranice www/lg.com/ global/recycling

- Estonian

Teie vana seadme havitamine

a jll a jll a jll a jll a jll a jll

ailll 0d dckd aadll aalall clll 0ype y jilai jgl lcll yail ciis

2 2

yagall lallll alalal yalalal yalalal yalalal yalalal yalalal yalalal yalalal y

jia jialgai

"..jll jiall jll" caiy jll jll jai

Jilali Jua 1

J 1111111111111111111111111111111111

i 1

LgBgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRg

:ala abo

J 1

：

a aallll lal lal y hbs-S80 1n LG Electronics n. http://www/lg.com/global/declaration

Bluetooth SIG, Inc.

Qualcomm Technologies International, Ltd qualcomm® aptX™ audio

Bluetooth

C∈0168

FCC ID: ZNFEHBSS80

JnssLioie. SsJlIaIg JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe JIe

Bluetooth 2

:Bluetooth 1

Jlalll jglalnbluteoth jg jnnn nnaa aag aag aag gag gag gag - (11, 11) 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4

J 3

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

yjIbll Jg Ciloges.4

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

J (Pb) J (Cd) J (Hg) J (J) J (J) J (J) J (J) J (J) J (J) J (J)

2

aaiiill aiiil 1 i j 3

iilllll llllll 100000000000000000000000000000000000000000

J 1

y 1 y

aalil aaii 1

1

2

3

-

aaiiie
