USER MANUAL IronHero V1500 CECOTEC

IronHero V-1500 Essential Blue

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

Planchas verticales/ Garment steamer

Four different IRON-HEO handheld hair guns in yellow, red, green, and blue colors, displayed against a dark background (no text or symbols visible on the device itself).

Safety instructions 9

1. Parts and components 58

2. Before use 58

3. Operation 59

4. Cleaning and maintenance 60

5. Troubleshooting 61

6. Technical specifications 62

7. Disposal of old electrica

and electronic appliances 63

1. Technical support and warranty 63

2. Copyright 63

3. Declaration of conformity

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• Do not leave the iron unattended while connected to the power supply.
• Do not use the iron if it has been dropped, shows visible damage, or is leaking.
• Unplug the appliance before filling up the water tank.
  • Continuous steam at 155 g/min and 600 g/min stroke.
• Care should be taken when using the appliance due to the emission of steam.
• When placing the iron on its base, make sure that the surface on which the base is placed is stable.
• Unplug the appliance during filling and cleaning.
• The appliance must not be left unattended while connected to the mains.
• Keep this appliance and its power cord out of reach of children under the age of 8 when it is on or cooling down.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.

IRONHERO V-1500 ESSENTIAL BLUE IRONHERO V-1500 ESSENTIAL YELLOW IRONHERO V-1500 ESSENTIAL GREEN IRONHERO V-1500 ESSENTIAL RED

• Keep the appliance and its cord out of the reach of children under 8 years of age when the appliance is in use or cooling down.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Inspect the power cable regularly for visible damage, especially the plug and its housing. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any danger.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Warning: never immerse the appliance in water. Do not touch the water!
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the surface or worktop.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Switch off and unplug the product from the power supply when not in use, when filling the water tank, and before cleaning it. Pull from the plug, not the cable, to disconnect it from the outlet.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• Be careful when tilting or turning the appliance: there may still be hot water inside. Avoid moving the appliance abruptly to minimise the risk of spillage.

IRONHERO V-1500 ESSENTIAL BLUE IRONHERO V-1500 ESSENTIAL YELLOW IRONHERO V-1500 ESSENTIAL GREEN IRONHERO V-1500 ESSENTIAL RED

• Caution: hot surface. The temperature of accessible surfaces may be high while the appliance is in use and could cause burns. Do not touch hot surfaces during operation or immediately after.
• Be careful when using the appliance: the steam emission can be dangerous if used improperly. Do not aim steam at people or animals and do not apply steam to worn clothes to avoid risk of burns.
• It is not recommended to use the appliance on leather, suede, vinyl, plastic, or other steam-sensitive fabrics.
• Do not use the device when the water tank is empty.
• Do not allow the power cord to come into contact with high-temperature steam during product operation.
• Disconnect the power plug before cleaning the product, installing or removing brush accessories, or filling up the water tank. Allow the device to cool down before cleaning it.
• Do not use the device with perfume, vinegar or other liquids. This product is designed to operate only with water.
• Do not attempt to repair the appliance yourself. Contact the official Cecotec Technical Support Service in case of doubt.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly.
• Cecotec takes no responsibility for any damage caused by misuse of the machine. Any misuse or non-compliance with these instructions voids the warranty and Cecotec's liability.
• All our ironing range products have undergone quality control tests previous to their commercialisation. These tests consist of filling the water tank in order to check tightness and to ensure the correct operation of the device. Once the test has been carried out, the tank is emptied and dried, but some water may still remain inside.

IRONHERO V-1500 ESSENTIAL BLUE IRONHERO V-1500 ESSENTIAL YELLOW IRONHERO V-1500 ESSENTIAL GREEN IRONHERO V-1500 ESSENTIAL RED

INSTRUCTIONS DE SÉCURITÉ

IronHero V 1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

Voltage: 220-240 V\~

Frequency: 50 Hz

Power: 1500W

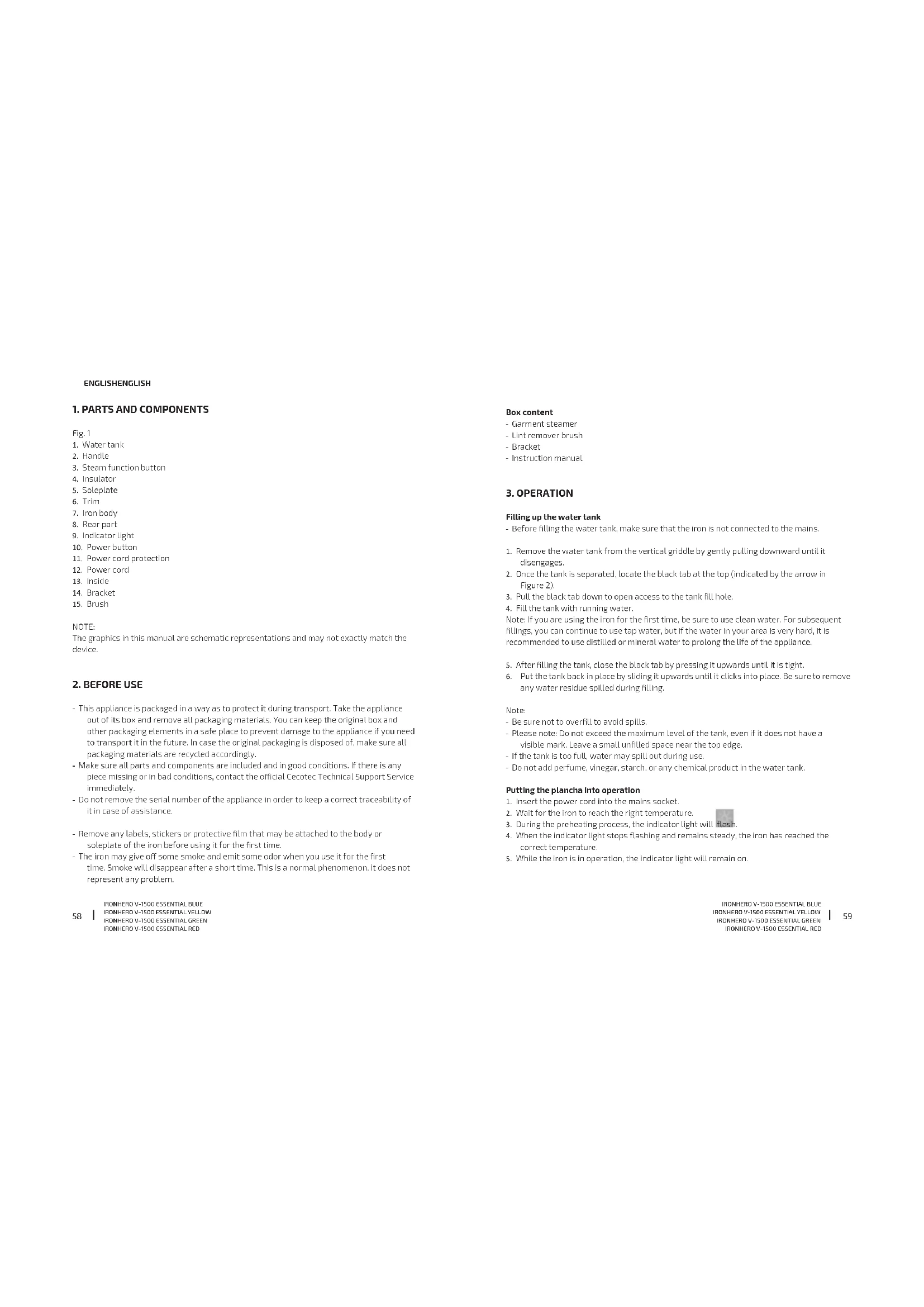

1. Water tank
2. Handle
3. Steam function button
4. Insulator
5. Soleplate
6. Trim
7. Iron body
8. Rear part
9. Indicator light
10. Power button
11. Power cord protection
12. Power cord
13. Inside
14. Bracket
15. Brush

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.
• Remove any labels, stickers or protective film that may be attached to the body or soleplate of the iron before using it for the first time.
• The iron may give off some smoke and emit some odor when you use it for the first time. Smoke will disappear after a short time. This is a normal phenomenon, it does not represent any problem.

58

IRONHERO V-1500 ESSENTIAL BLUE IRONHERO V-1500 ESSENTIAL YELLOW IRONHERO V-1500 ESSENTIAL GREEN IRONHERO V-1500 ESSENTIAL RED

Box content

• Garment steamer
• Lint remover brush
• Bracket
• Instruction manual

3. OPERATION

Filling up the water tank

- Before filling the water tank, make sure that the iron is not connected to the mains.

1. Remove the water tank from the vertical griddle by gently pulling downward until it disengages.
2. Once the tank is separated, locate the black tab at the top (indicated by the arrow in Figure 2).
3. Pull the black tab down to open access to the tank fill hole.
4. Fill the tank with running water.

Note: If you are using the iron for the first time, be sure to use clean water. For subsequent fillings, you can continue to use tap water, but if the water in your area is very hard, it is recommended to use distilled or mineral water to prolong the life of the appliance.

1. After filling the tank, close the black tab by pressing it upwards until it is tight.
2. Put the tank back in place by sliding it upwards until it clicks into place. Be sure to remove any water residue spilled during filling.

Note:

• Be sure not to overfill to avoid spills.
• Please note: Do not exceed the maximum level of the tank, even if it does not have a visible mark. Leave a small unfilled space near the top edge.
• If the tank is too full, water may spill out during use.
• Do not add perfume, vinegar, starch, or any chemical product in the water tank.

Putting the plancha into operation

1. Insert the power cord into the mains socket.
2. Wait for the iron to reach the right temperature.
3. During the preheating process, the indicator light will flash.
4. When the indicator light stops flashing and remains steady, the iron has reached the correct temperature.
5. While the iron is in operation, the indicator light will remain on.

IRONHERO V-1500 ESSENTIAL BLUE

IRONHERO V-1500 ESSENTIAL YELLOW

IRONHERO V-1500 ESSENTIAL GREEN

IRONHERO V-1500 ESSENTIAL RED

ENGLISHENGLISH

Use Steam function

- You can only use the Steam function when the iron is hot. - Make sure there's enough water in the tank.

1. Connect the power cable to a power outlet.
2. Wait for the iron to reach the right temperature.
3. To activate the steam function, press the on/off button and select the desired power level.
4. To activate the steam output, press the button corresponding to the steam function.

5. The griddle has two power levels:

6. 2017年1月1日

a. Low: Ideal for delicate fabrics.
b. High: Recommended for thicker fabrics or fabrics with difficult wrinkles.

Warning: Do not direct the iron at any person. Serious injury or burns may occur.

Operation

1. Wait for the iron to reach the right temperature.
2. Hold the iron vertically and keep it at a certain distance from the garment to be ironed.
3. Then press the on/off button and select the desired power level.
4. To start the operation of the vertical iron press the steam function button.
5. Press and hold the steam function button during all use. If you release the button, steam will stop coming out.

Note:

• This type of appliance is especially useful for ironing hanging clothes, curtains, upholstery, etc.
• When using the iron, the steam may stop coming out for a few seconds. This is a normal phenomenon.

4. CLEANING AND MAINTENANCE

• Before cleaning the iron, unplug it from the socket and allow it to cool down completely.
• Wipe it with a damp cloth.
• Do not immerse in water or any other liquid.
• Rinse the tank regularly with water and empty it after cleaning.
• After use, unplug the iron from the outlet and drain any water that may remain in the tank. Before storing, make sure it is completely cold.
• Never use scouring pads, abrasive or chemical cleaners, or solvents to clean the body or soleplate of the iron.

60

IRONHERO V-1500 ESSENTIAL BLUE

IRONHERO V-1500 ESSENTIAL YELLOW

IRONHERO V-1500 ESSENTIAL GREEN

IRONHERO V-1500 ESSENTIAL RED

Descaling

- You can perform the descaling operation if you notice that the performance of the appliance has decreased. Perform this operation in a ventilated room.

1. Remove the water tank by sliding it downwards.
2. Fill the water tank with 50% water and 50% white vinegar. Do not use other descaling products.
3. Return the water tank to its position inside the appliance. Make sure that the water tank is fully inserted into position.
4. Plug the device in.
5. Wait until the device is ready for use.
6. Run the appliance until the water tank is completely emptied.

7. Fill the water tank with 100% water and repeat the operation until the water tank has been completely emptied in order to rinse the appliance.

8. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES SOLUTIONS
No steam. The device is unplugged or not turned on.		Check that the unit is correctly plugged in and switched on.
		Water level is too low. Disconnect the unit and refill it.
		The steam pump has not been primed. Press the steam button continuously until steam comes out.
		This is the first time he has used the device. Keep the steam trigger pressed for 1 minute to prime the appliance.
		The water tank is not properly assembled. Make sure that the tank is correctly positioned and fixed in place.
The appliance does not heat up.	The device is unplugged or not turned on.	Plug in the device and turn it on.

IRONHERO V-1500 ESSENTIAL BLUE

IRONHERO V-1500 ESSENTIAL YELLOW

IRONHERO V-1500 ESSENTIAL GREEN

IRONHERO V-1500 ESSENTIAL RED

ENGLISHENGLISH

Water loss. The water tank is not properly positioned or the lid is not fully engaged.		Check that the lid is tight and the water tank is securely in place.
The steam flow has been reduced or leaves white spots on the laundry.	Limescale has accumulated in the unit.	Perform the "Cleaning and Maintenance" section.
The steam leaves stains on fabrics or the appliance produces splashes.	The product is not sufficiently descaled.	Carefully read the "Cleaning and maintenance" section and perform the process.
	You have used liquids other than those recommended for decalcification.	Carefully read the "Cleaning and maintenance" section and perform the process.
Water dripping from the steam head	The device has been in a tilted or horizontal position for too long.	Do not leave it too long in a tilted or horizontal position.

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_104313 / EU01_104314 / EU01_104315 / EU01_104316

Product:

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

Voltage: 220-240 V-

Frequency: 50 Hz

Power: 1500 W

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

IRONHERO V-1500 ESSENTIAL BLUE

IRONHERO V-1500 ESSENTIAL YELLOW

IRONHERO V-1500 ESSENTIAL GREEN

IRONHERO V-1500 ESSENTIAL RED

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

B. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not

hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested

to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

IRONHERO V-1500 ESSENTIAL BLUE

IRONHERO V-1500 ESSENTIAL YELLOW

IRONHERO V-1500 ESSENTIAL GREEN

IRONHERO V-1500 ESSENTIAL RED

FRANÇAISFRANÇAIS

1. PIÈCES ET COMPOSANTS

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

Voltage: 220-240 V

Fréquence : 50 Hz

Puissance : 1500 W

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V 1500 Essential Blue

IronHero V-1500 Essential Yellow

IronHero V 1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V 1500 Essential Red

IronHero V-1500 Essential Blue

Tensão: 220-240 V

Frequência: 50 Hz

Potência: 1500 W

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

Voltage: 220-240 V-

Frequentie: 50 Hz

Power: 1500W

IronHero V 1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

Napiecie: 220-240 V

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V 1500 Essential Blue

Napětí: 220-240 V\~

Frekvence: 50 Hz

Síla: 1500 W

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V 1500 Essential Blue

Voltraj: 220-240 V-

Frekans: 50 Hz

Güç: 1500W

IronHero V-1500 Essential Yellow

IronHero V-1500 Essential Green

IronHero V-1500 Essential Red

IronHero V-1500 Essential Blue

Τάση: 220-240 V\~

Συχνότητα: 50 Hz

Ισχύς: 1500W

EU01_104313 / EU01_104314 / EU01_104315 / EU01_104316

:

Technical diagram of a handheld device with numbered parts for identification

Fig./Img./Abb./Afb./Rys/Orb 1

Two identical line drawings of a mechanical component with a central slot and a handle (no text or symbols)

Fig./Img./Abb./Afb./Rys/Orb 2

IRONHERO V-1500 ESSENTIAL BLUE IRONHERO V-1500 ESSENTIAL YELLOW IRONHERO V-1500 ESSENTIAL GREEN IRONHERO V-1500 ESSENTIAL RED

IRONHERO V-1500 ESSENTIAL BLUE IRONHERO V-1500 ESSENTIAL YELLOW IRONHERO V-1500 ESSENTIAL GREEN IRONHERO V-1500 ESSENTIAL RED

www.cecotec.es
