HTCOSTIGAN5000 - Irrigation timer Hillvert - Free user manual and instructions
Find the device manual for free HTCOSTIGAN5000 Hillvert in PDF.
| Product type | Solar watering timer with pump |
| Model | HT-COSTIGAN-5000 |
| Brand | Hillvert |
| Number of sections/drippers | Up to 50 plants |
| Battery | 3.7 V DC, 2000 mAh x2 (rechargeable) |
| Solar panel | 1.6 W |
| Maximum water flow | 600 ml/min x2 (two outlets) |
| Maximum water temperature | 40°C |
| IP protection class | IP44 |
| Weight | 1.1 kg |
| Programming | Cycles: 24h, 48h, 72h with adjustable duration (1-12 min) |
| Manual mode | TEST mode for continuous operation until discharge |
| Power supply | Solar panel (no mains electricity required) |
| Night operation | Watering after nightfall |
| Low water level protection | Automatic shutdown if tank empty |
| Included components | Solar panel, pump with filter, 1/8" hose, anti-siphon valve, T-piece, cap, brackets, drippers |
| Maintenance | Clean the solar panel regularly; use a soft cloth; no corrosive products |
| Safety | Do not use below 0°C; do not pump salt water, corrosive or flammable liquids |
| Repairability | Repairs by the manufacturer only; no independent repair |
| Warranty | Consult the manufacturer's terms |
Frequently Asked Questions - HTCOSTIGAN5000 Hillvert
User questions about HTCOSTIGAN5000 Hillvert
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Irrigation timer in PDF format for free! Find your manual HTCOSTIGAN5000 - Hillvert and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HTCOSTIGAN5000 by Hillvert.
USER MANUAL HTCOSTIGAN5000 Hillvert
This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.
Technical data
| Parameter description | Parameter value | |
| Product name | Solar Irrigation System | |
| Model | HT-COSTIGAN-2500 | HT-COSTIGAN-5000 |
| Battery | 3,7 V DC, 2000 mAh | 3,7 V DC, 2000 mAh x 2 |
| Solar panel power [W] | 1,6 | |
| Number of sections | 25 | 50 |
| Max. water temperature [°C] | 40 | |
| Max water flow [ml/min] | 600 | 600 x 2 |
| IP protection class | IP44 | |
| Weight [kg] | 0.75 | 1.1 |
1. General description
The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.
DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.
To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.
Legend
| CE | The product satisfies the relevant safety standards. |
| Read instructions before use. | |
| The product must be recycled. | |
| ! | WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign) |
PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.
2. Usage safety
ATTENTION!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.
The terms "device" or "product" are used in the warnings and instructions to refer to:
Solar Irrigation System
2.1. Safety in the workplace
a) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
b) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
c) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
d) Electric cables and irrigation hoses should be arranged so they do not pose any risk to people, eliminating the possibility of tripping.
e) Regularly check the condition of the hoses for damage or leaks.
f) Do not bend the cables to avoid damage.
g) Do not use the device in the vicinity of electrical installations to avoid penetration of water. It may cause a threat to life or health.
h) Remember to regularly fill up the water in the tank to prevent system airlock.
i) Do not connect the device directly to an existing water supply network.
j) It is forbidden to connect the device to power sources other than a compatible solar panel.
Remember! When using the device, protect children and other bystanders.
2.2. Personal safety
a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
2.3. Safe device use
a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Disconnect the device from the solar panel before making adjustments, changing attachments or putting the device away. This preventive measure reduces the risk of accidental activation.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Keep the device out of the reach of children.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) Do not handle or hang the device holding it by the cables or hoses.
m) It is forbidden to use the device for pumping contaminated water (e.g. with oil, small particles, abrasive solids, etc.)
n) Do not use the device for pumping salty water, caustic substances, flammable liquids, etc.
o) Do not use the device at temperatures below zero degrees Celsius. Frozen water will damage the device.
p) Do not start the device if it is not filled with water.
q) Mount the solar panel so as to protect it against accidental damage (e.g., as a result of a fall or impact).
ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.
3. Use guidelines
The device is designed for automatic irrigation of plants using solar energy.
The user is liable for any damage resulting from unintended use of the device.

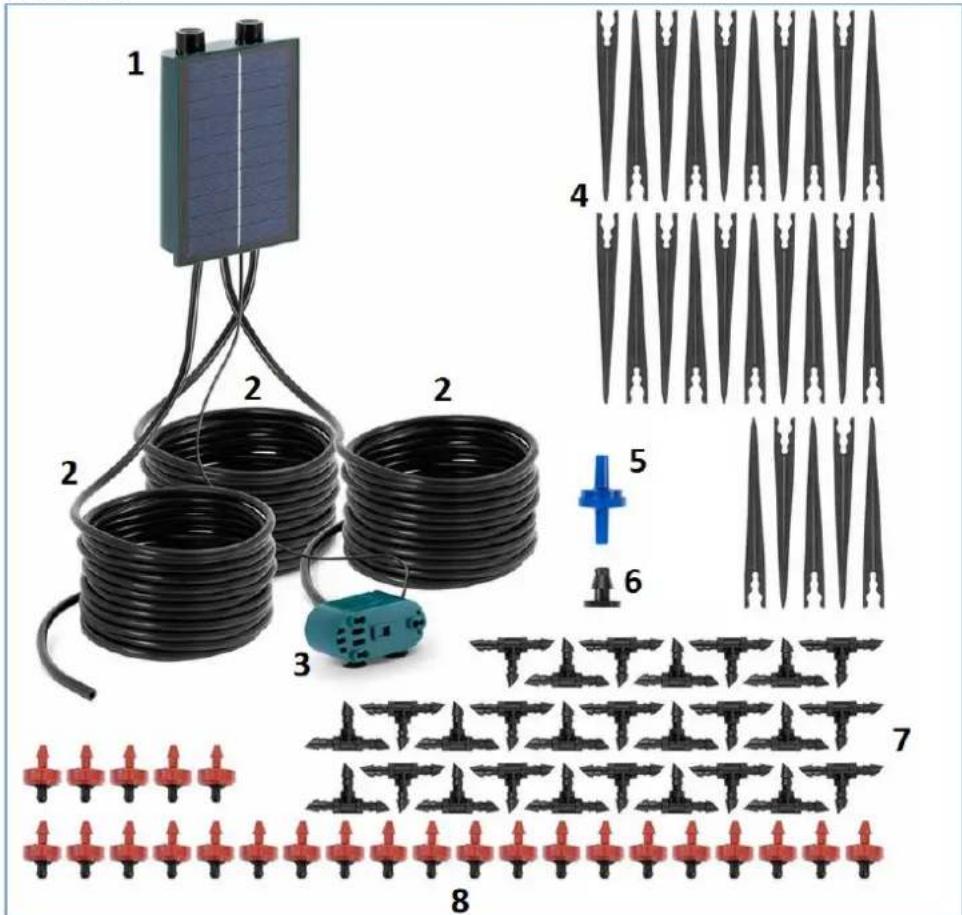

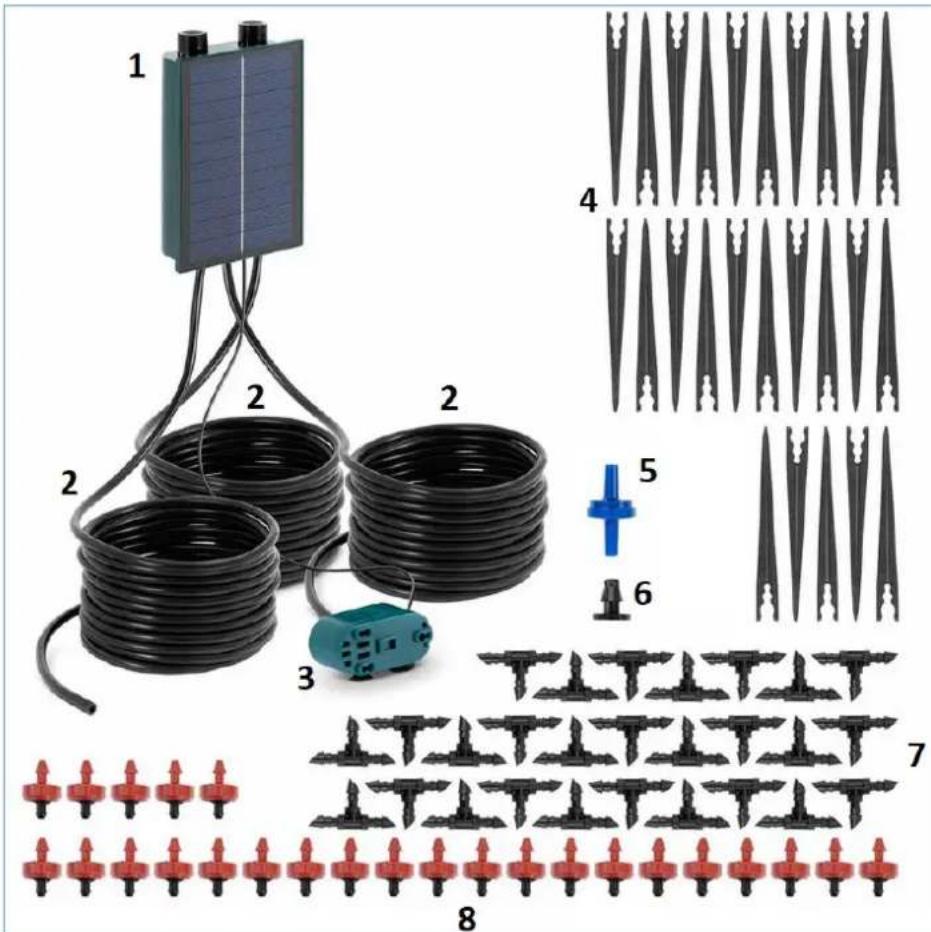

3.1. Device description
HT-COSTIGAN-2500:
HT-COSTIGAN-5000:
1 - Solar panel with control
2-Hose
3-Pump
4-Holder
5 - Anti-siphon valve
6-Stopper
7-T-piece
8-Dripper
3.2. Assembling the device

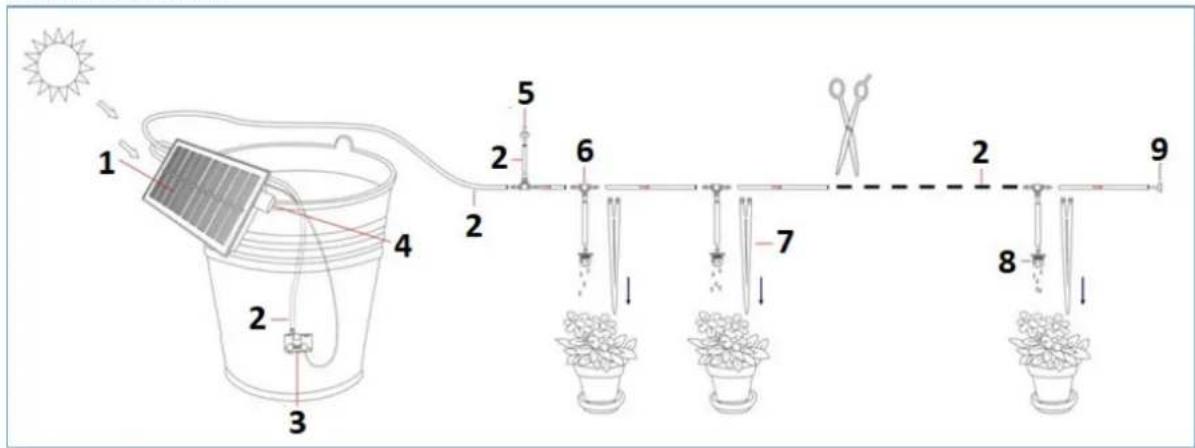

HT-COSTIGAN-2500:

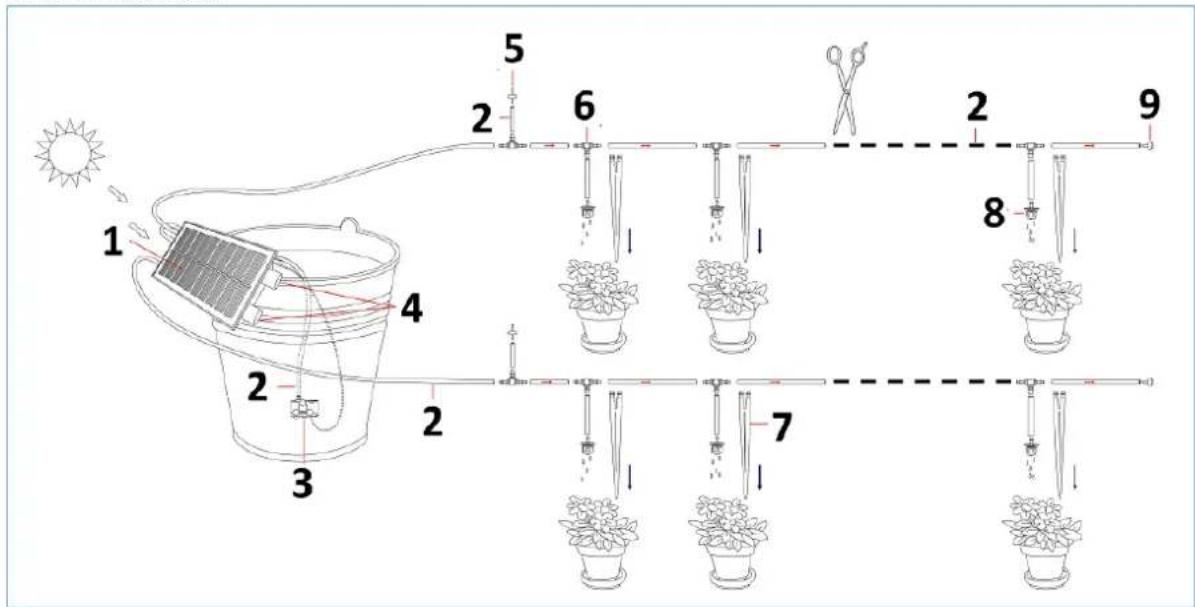

HT-COSTIGAN-5000:
1 - Solar panel
2-Hose 1 / 8^
3-Filter with pump
4 - Control knob
5 - Anti-siphon valve
6-T-piece
7-Holder
8-Dripper
9 - Stopper
- Carefully unpack all components.
- When hanging the solar panel, point it towards the sun.
- Connect the pump filter as required, place it in the water making sure it is fully submerged.
Cut the 1 / 8'' hose yourself as required, then connect the hose and T-adapter. - Connect the T-adapter, 1/8" hose and anti-siphon valve and note the direction of the anti-siphon valve.
The anti-siphon valve must be positioned higher than the dippers.
1 - Anti-siphon valve inlet
2 - Anti-siphon valve outlet
3-1/8" hose
4-T-piece
- Place the plant in the holder and use the stopper on the end of the hose.
- The system can be operated with up to 25 plants (HT-COSTIGAN-2500) / 50 plants (HT-COSTIGAN-5000), as required.
The irrigation system is now ready for use.
3.3. Device use
After installation, leave the irrigation system in direct sunlight for at least 6-8 hours to fully charge the battery.

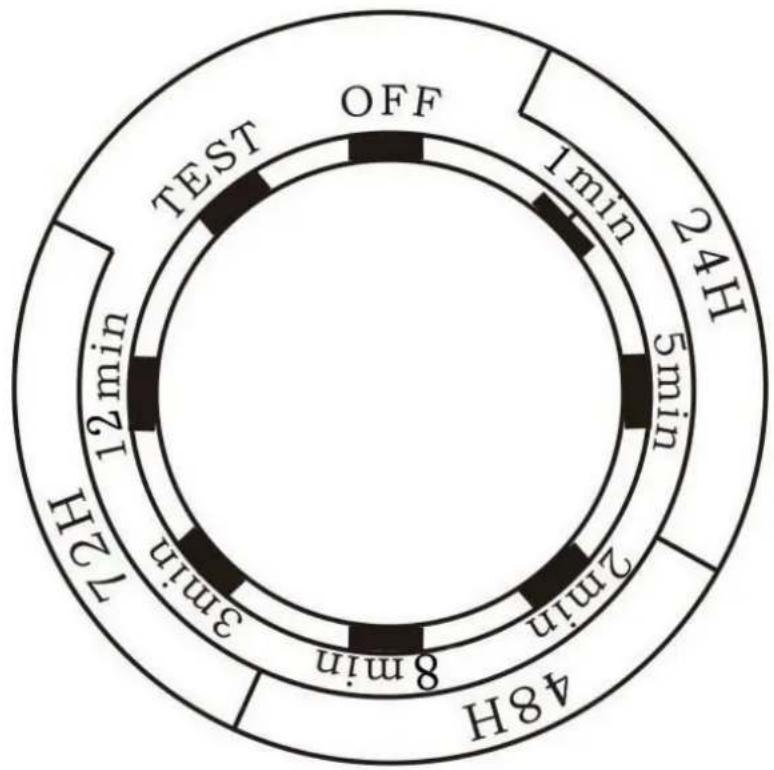

| Mode | Action | Operation | |
| TEST Test run | The device will continue to operate until the battery is discharged. | ||
| OFF | Switching off | Irrigation shutdown | |
| 24 H | 1 min Switching on for 1 minute | Irrigation will run for 1 minute once a day after nightfall. | |
| 5 min Switching on for 5 minutes | Irrigation will run for 5 minutes once a day after nightfall. | ||
| 48 H | 2 min Switching on for 2 minutes | Irrigation will run for 2 minutes once every two days after nightfall. | |
| 8 min Switching on for 8 minutes | Irrigation will run for 8 minutes once every two days after nightfall. | ||
| 72 H | 3 min Switching on for 3 minutes | Irrigation will operate for three minutes once every three days after nightfall. | |
| 12 min | Switching on for 12 minutes | Irrigation will operate for 12 minutes once every three days after nightfall. | |
Low battery: if the battery is discharged, allow the solar panel to charge the pump for at least 6-8 hours in direct sunlight and do not turn on the irrigation often.
Low water level: if there is not enough water in the water container, irrigation will be turned off, refill the water in the container.
Cycle function: this irrigation system has been designed with a cycle function for after-dark operation. Simply set the time for the pump to run the first time and the pump will run every cycle.
3.4. Cleaning and maintenance
a) Use only non-corrosive cleaners to clean the surface.
b) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
c) Do not spray the device with a water jet or submerge it in water.
d) The device must be regularly inspected to check its technical efficiency and spot any damage.
e) Use a soft cloth for cleaning.
f) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
g) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
h) The solar panel should be cleaned regularly to optimise cell charging.
SAFE REMOVAL OF BATTERIES AND RECHARGEABLE BATTERIES:
3,7 V DC, 2000 mAh batteries are installed in the devices.
Remove used batteries from the device using the same procedure by which you installed them. Recycle batteries with the appropriate organisation or company.
DISPOSING OF USED DEVICES:
Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.
Contact local authorities for information on your local recycling facility.
For the disposal of the device please consider and act according to the national and local rules and regulations.
