USER MANUAL Run Fit RF350 Prixton

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

CINTA DE CORRER TREADMILL

INDEX

ES 3

EN 13

FR 23

IT 33

DE 43

PT 53

NL 63

Two identical mechanical components labeled S1, shown in side profile with no visible text or symbols.

Perilla fija x 2

Junta x 2

Perilla x 2

Technical line drawing of a mechanical device with no visible text or symbols

Caminadora principal

Technical diagram of a treadmill with labeled parts S3 and directional arrows indicating movement or assembly.

Paso 2

Line drawing of a treadmill with a tool and droplet pouring from the handle (no text or symbols)

Lubricante 1PC

WARNING • Save shooting fingers, all have since the meeting last. • Do you see who who drinking from a person's drawing. • See if you're doing it, but in order of back. • Make friends in person taking of friends.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Herramienta: Llave Allen

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Herramienta: Llave Allen

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Herramienta: Llave Allen

Line drawing of a person performing a seated stretch or exercise (no text or symbols)

Line drawing of a person in motion, possibly dancing or gesturing (no text or symbols)

QR code image containing encoded data, no visible human-readable text

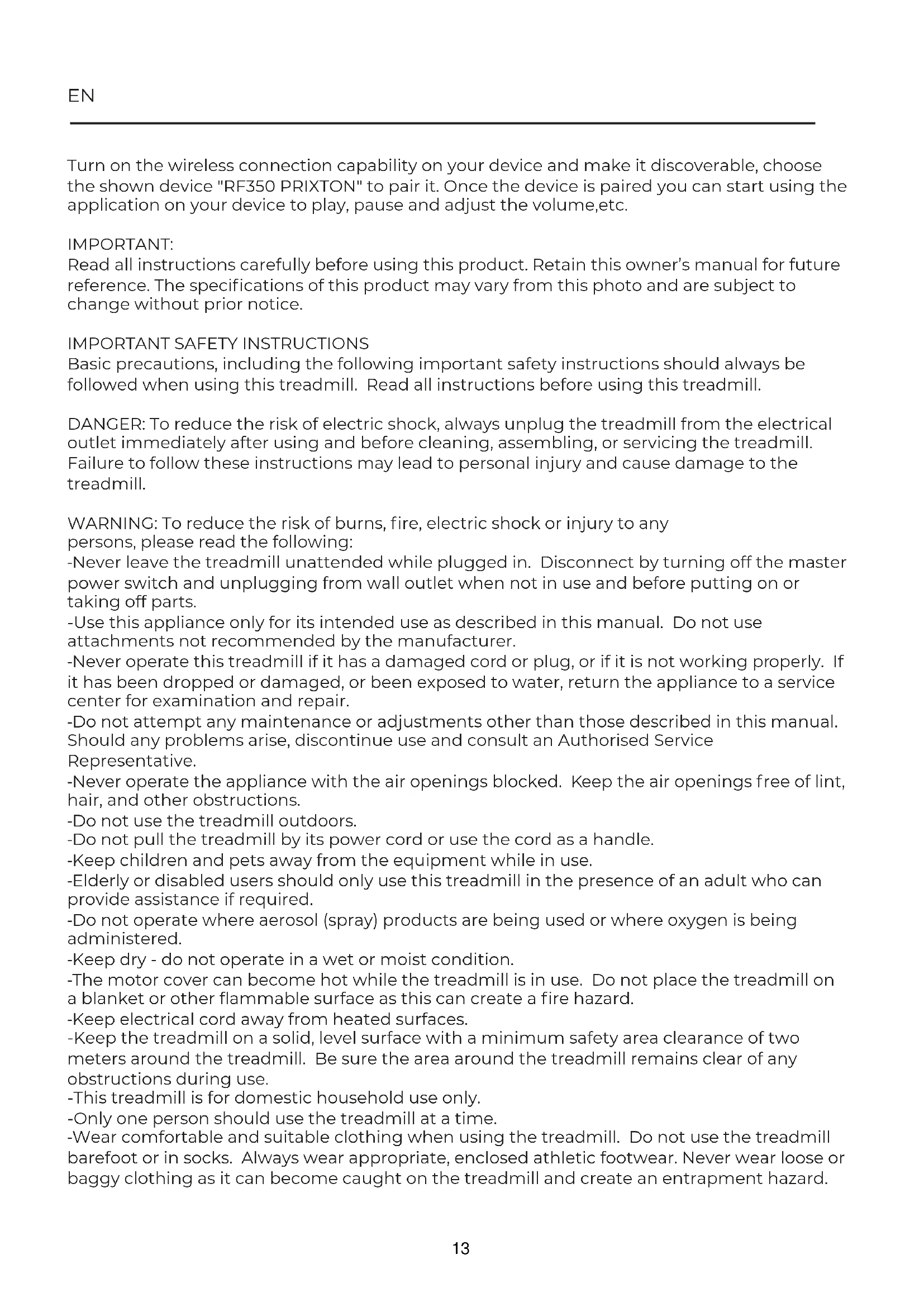

Turn on the wireless connection capability on your device and make it discoverable, choose the shown device "RF350 PRIXTON" to pair it. Once the device is paired you can start using the application on your device to play, pause and adjust the volume, etc.

IMPORTANT:

Read all instructions carefully before using this product. Retain this owner's manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

IMPORTANT SAFETY INSTRUCTIONS

Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill.

DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill. Failure to follow these instructions may lead to personal injury and cause damage to the treadmill.

WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons, please read the following:

-Never leave the treadmill unattended while plugged in. Disconnect by turning off the master power switch and unplugging from wall outlet when not in use and before putting on or taking off parts.

-Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

- Never operate this treadmill if it has a damaged cord or plug, or if it is not working properly. If it has been dropped or damaged, or been exposed to water, return the appliance to a service center for examination and repair.

-Do not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue use and consult an Authorised Service Representative.

- Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and other obstructions.

-Do not use the treadmill outdoors.

-Do not pull the treadmill by its power cord or use the cord as a handle.

-Keep children and pets away from the equipment while in use.

-Elderly or disabled users should only use this treadmill in the presence of an adult who can provide assistance if required.

-Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

-Keep dry - do not operate in a wet or moist condition.

-The motor cover can become hot while the treadmill is in use. Do not place the treadmill on a blanket or other flammable surface as this can create a fire hazard.

-Keep electrical cord away from heated surfaces.

-Keep the treadmill on a solid, level surface with a minimum safety area clearance of two meters around the treadmill. Be sure the area around the treadmill remains clear of any obstructions during use.

-This treadmill is for domestic household use only.

-Only one person should use the treadmill at a time.

-Wear comfortable and suitable clothing when using the treadmill. Do not use the treadmill barefoot or in socks. Always wear appropriate, enclosed athletic footwear. Never wear loose or baggy clothing as it can become caught on the treadmill and create an entrapment hazard.

-Always hold on to the handrails while using the treadmill.

-Always make sure the spring knob and round knob are in place when folding and moving the treadmill.

-Do not leave children who are under 12 years-old unsupervised near or on the treadmill.

-To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

-Children should not be allowed to play on or near the treadmill at any time.

-CAUTION - RISK OF INJURY TO PERSONS - To avoid injury, use extreme caution when stepping onto or off of a moving treadmill belt. Carefully read this instruction manual before use.

-Maximum Weight Capacity is 100 kgs.

-Pull out the Safety Tether Key for emergency stop.

-This unit must be plugged into a nominal 220-240 volt 50 Hz outlet which has been grounded.

-Keep hands clear of all moving parts. Never place hands or feet under the treadmill while in use.

-Do not use the treadmill on a carpet that is greater than 1.3 cm in height.

-Before using the treadmill, check that the belt is aligned and centered on the running deck and all visible fasteners on the treadmill are sufficiently tightened and secure.

-Children shall not play with the appliance.

-Cleaning and user maintenance shall not be made by children without supervision.

-If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons persons in order to avoid a hazard.

- Never operate this treadmill if it is in the folded position.

-Allow the running belt to fully stop and unplug the power cord from the wall outlet before folding up the treadmill.

-Always face towards the computer console and do not run backwards on the running belt.

WARNING: Before beginning any exercise program consult your physician.

This is especially important for people who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment.

Do not operate this exercise equipment without properly fitted guards, as the moving parts can present a risk of serious injury if exposed.

CAUTION: Read all instructions carefully before operating this product. Retain this Owner's Manual for future reference.

ACCESSORIES

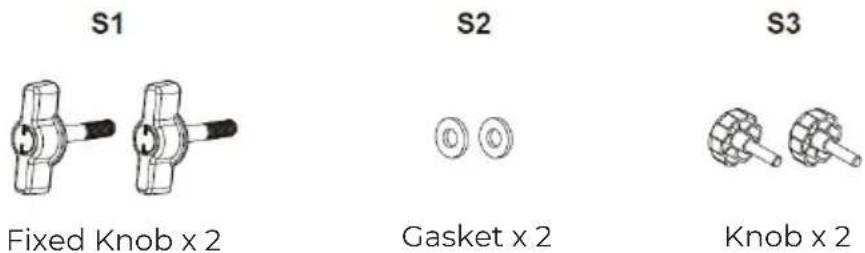

S1 Fixed Knob x 2 S2 Gasket x 2 S3 Knob x 2

S4

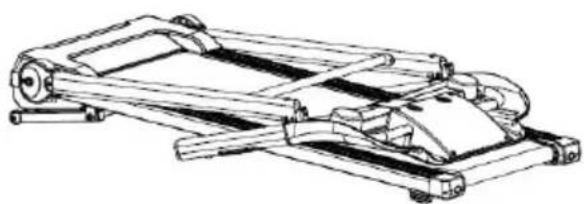

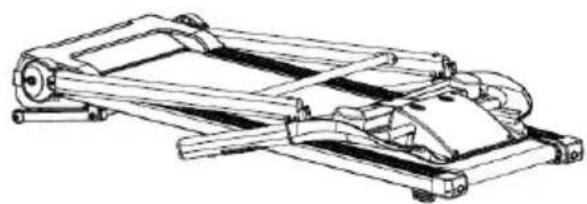

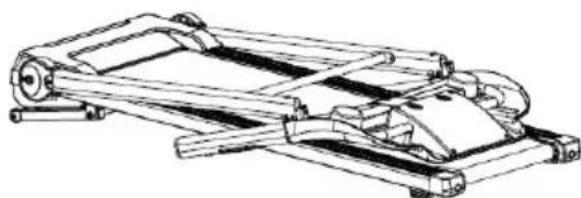

Technical line drawing of a mechanical device with no visible text or symbols

Main Treadmill

TOOL KIT

6#Allen Key x 1

Safety Key x 1

ASSEMBLY INSTRUCTIONS

2 easy steps to assemble your treadmill then you're ready to workout.

S1 S2 S2 S1

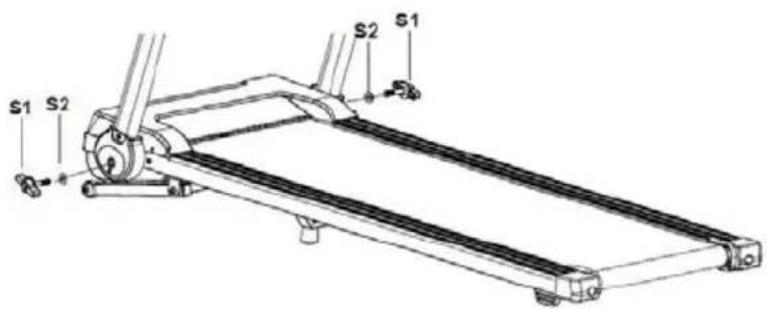

Step 1

It is recommended to have a second person assist with this step. One person should hold the Left/Right Handlebar Support Tubes in place while the other person tightens the bolts.

Use two (S1) and two (S2) to secure both Left/Right Handlebar Support Tubes onto the Base Frame. Same operation for installation on the left and right.

Technical diagram of a treadmill handle with labeled parts S3 and directional arrows indicating movement or assembly.

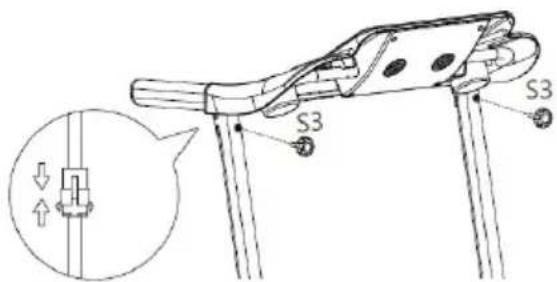

Step 2

Slide the Handlebar onto the both Left/Right Handlebar Support Tubes. Secure the Handlebar onto the both Left/Right Handlebar Support Tubes with two (S2) and two (S3).

IMPORTANT: While sliding the Handlebar onto the both Left/Right Handlebar Support Tubes, make sure the cables are installed inside the Right Handlebar Support Tube and pay attention not to pinch the cables.

LUBRICATION

Lubricating your treadmill running belt will ensure superior performance and extend its life expectancy. When you receive your treadmill please apply some lubricant into each oil cap. After the first 25 hours of use (or 2-3 months) apply some lubricant and repeat for every following 50 hours of use (or 5-8 months). Run on the treadmill at a slow speed for 3 to 5 minutes to evenly distribute lubricant.

How to check running belt for proper lubrication

Lift one side of the running belt and feel the top surface of the running deck. If the surface is slick to the touch, then no further lubrication is required.

If the surface is dry to the touch, aply some lubricant.

Avoid over oiling the running deck.

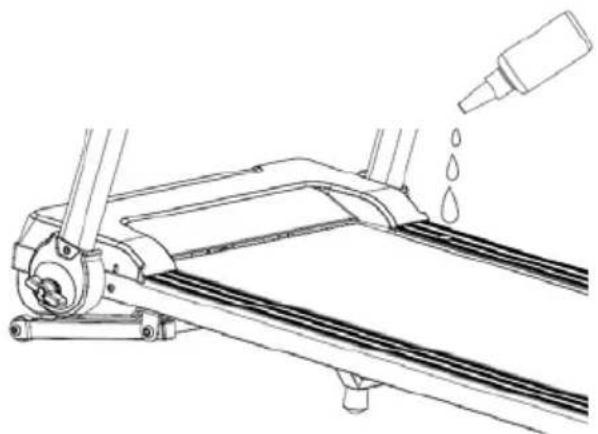

1. Stop the belt so that the seam is facing upwards and in the centre of the deck.

2. Remove the cap on the oil system.

3. Squeeze few drops of silicon oil and replace the cap.

4. Spread the silicone by running the treadmill at 1 Km/h and step gently on the treadmill from left to right. Do this for some minutes to enable the silicone to spread on the belt.

Line drawing of a treadmill with a dropper pouring liquid from a bottle onto the side (no text or symbols)

Lubricant 1PC

VOUTRAPH • Base shooting fingers and hat were too weating them. • Don't go into right when shooting, ringing them; • Slow if you had lots, days or dirt of teeth. • Hard feedback is present taking off to track.

Before beginning a workout session ensure that the Safety Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.

NOTE: Always stand on the side rails when you start the treadmill, never start the treadmill while you are standing on the running belt.

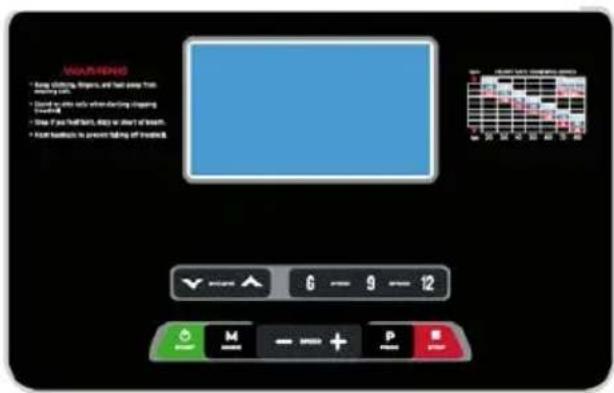

QUICK START:

Press the START button on the computer to start exercise, the LED window will countdown 3 seconds with the LED showing "5-4-3-2-1" before the running belt starts moving. The running belt starts moving with an initial speed of 1.0 KPH.you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise.

FUNCTION BUTTONS:

START:

Press the START button to start training on different training mode.

STOP:

Press the STOP button to stop training on different training mode.

PROG (PROGRAM):

Press the PROG button to select the pre-set training program (P01-P16) mode before training.

MODE:

Press the MODE button to select different functions (time or distance) for setting exercise goals in manual program mode before training.

SPEED + (SPEED UP):

Press the SPEED + button to make upward adjustments for pre-setting target training time or distance in manual program mode before training.

Press the SPEED + button to make upward adjustments for pre-setting target training time in pre-set training program (P01-P16) mode before training.

SPEED - (SPEED DOWN):

Press the SPEED - button to make backward adjustments for pre-setting target training time or distance in manual program mode before training.

Press the SPEED - button to make backward adjustments for pre-setting target training time in pre-set training program (P01-P16) mode before training.

INSTANT SPEED (6/9/12): Used to reach desired speed more quickly.

INCLINE ^: To increase incline level adjustments during all training periods on different training modes.

INCLINE ☑: To decrease incline level adjustments during all training periods on different train-ing modes.

PULSE: Displays your current heart rate in beats per minute (BPM). To activate, grip the hand pulse sensors during exercise and the pulse will display after 2-5 seconds. For a more accurate reading, grip pulse sensors with both hands.

DISPLAY FUNCTIONS:

TIME: Displays your elapsed workout time in minutes and seconds. Press the START button on the computer to begin exercising, you may press the SPEED + or SPEED - button on the computer console or handlebar to

increase or decrease the running speed during exercise. Time starts counting up from 0:00 to 99:59 per 1 second increment.

SPEED: Displays the current speed from the minimum 1.0 KPH to the maximum 16.0 KPH.

DIST. (DISTANCE): Displays the accumulative distance travelled during workout. Press the START button on the computer to begin exercising, you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise. Distance starts counting up.

CAL. (CALORIES): Displays the total calories burned during your workout. Press the START button on the computer to begin exercising, you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise. Calorie starts counting up. (This data is a rough guide for comparison of different exercise sessions and should not be used in medical treatment).

TRAINING IN MANUAL PROGRAM MODE:

You may pre-set target TIME or DISTANCE in STOP mode before training. Only one of the functions can be pre-set. To set TIME press the MODE button on the computer console until you see the split window of TIME begin blinking. Press the SPEED + or SPEED - button on the computer console or handlebar to change the setting. Each increment is 1 minute. The pre-set target time range is from 5:00 to 99:00 minutes. Once you pre-set target time, press the START button on the computer to begin exercising. The running belt starts moving with an initial speed of 1.0 KPH. You may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise.

To set DISTANCE press the MODE button on the computer console until you see the split window of DISTANCE begin blinking. Press the SPEED + or SPEED - button on the computer console to change the setting. The pre-set target distance range is from 0.50 to 65.0 kilometers, the default distance is 1 kilometer. Once you pre-set target distance, press the START button on the computer to begin exercising.

TRAINING IN PRE-SET PROGRAM MODE (P01-P16):

The computer offers 16 pre-set programs (P01-P16). You may select one of the pre-set training programs in STOP mode before training. Press the PROG (PROGRAM) button on the computer console to select one of the training programs. The split window of TIME begin blinking. You may press the SPEED + or SPEED - button on the

computer console or handlebar to change the setting. Each increment is 1 minute. The pre-set target time range is from 5:00 to 99:00 minutes. Once you pre-set target time, press the START button on the computer to begin exercising. When the pre-set training program time count down to 0:00, the computer will beep to alert you and the treadmill will stop automatically.

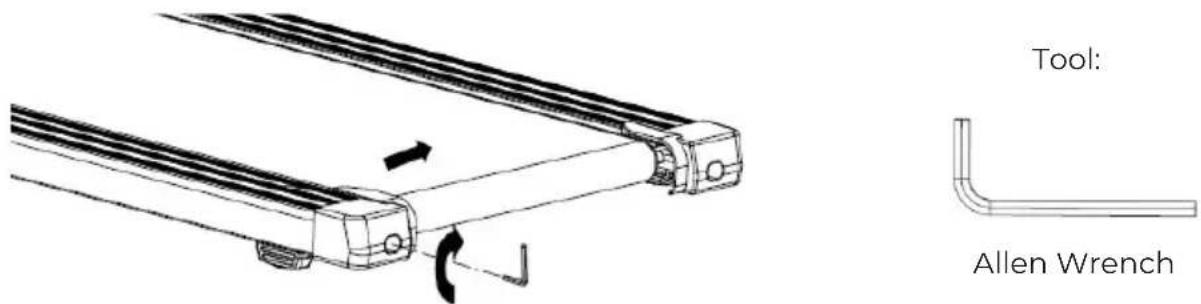

BELT ADJUSTMENT

The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 6-8 KPH. Use the Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt. If the running belt is shifting to the left, turn the left adjustment bolt 1/4 turn clockwise, and the running belt should start to correct itself.

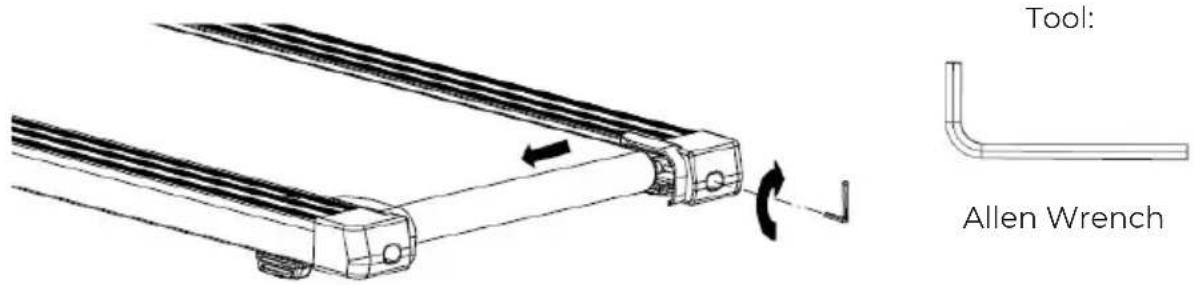

If the running belt is shifting to the right, then turn the right adjustment bolt 1/4 turn clockwise, and the belt should start to correct itself. Keep turning the adjustment bolts until the running belt is properly centered.

Tool: Allen Wrench

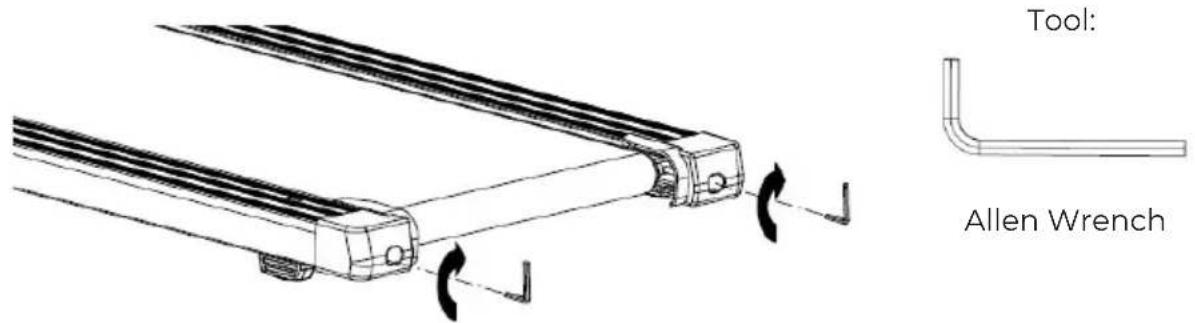

If the running belt is slipping during use, turn off and unplug the treadmill. Using the Allen Wrench provided, turn both left and right rear roller adjustment bolts 1/4 turn clockwise, then turn the main power switch back on and run the treadmill at a speed of 6-8 KPH. Run on to the running belt to determine if the belt is still slipping. Repeat this procedure until the belt no longer slips.

Tool: Allen Wrench

CARE, MAINTENANCE & TROUBLESHOOTING GUIDE

WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance.

WARNING: Always check the wear and tear components like spring knob and running belt to prevent injury.

CLEANING

After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit.

The treadmill can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents. Be careful not to get excessive moisture on the display panel as this might damage the unit and create an electrical hazard.

Please keep the treadmill, especially the computer console, out of direct sunlight to prevent damage to the screen.

STORAGE

Store the treadmill in a clean and dry indoor environment. Never leave or use the unit outdoors. Ensure the master power switch is off and the power cord is un-plugged from wall outlet.

TROUBLESHOOTING GUIDE

Problem:

Treadmill will not start.

Potential Causes:

1. Treadmill not plugged in.
2. Safety Tether Key is not correctly installed.
3. Circuit breaker in the house has been tripped.
4. Treadmill circuit breaker has been tripped.

Corrections:

1. Plug the power cord into a wall outlet.
2. Reinstall the Safety Tether Key.
3. Reset the circuit breaker, or call an electrician to replace the circuit breaker.
4. Wait 5 minutes and then try to restart the treadmill.

Problem:

Belt slips.

Potential Causes:

Belt not tight enough.

Corrections:

Adjust belt tension.

Problem:

Belt hesitates when stepped on.

Potential Causes:

1. Not enough lubrication applied onto the running deck.
2. Belt is too tight.
   Corrections:
3. Apply lubricant.
4. Adjust belt tension.

Problem:

Belt is not centred.

Potential Causes:

Running belt tension not even across the rear roller.

Corrections:

Centre the belt.

00000 00000 000100 EN

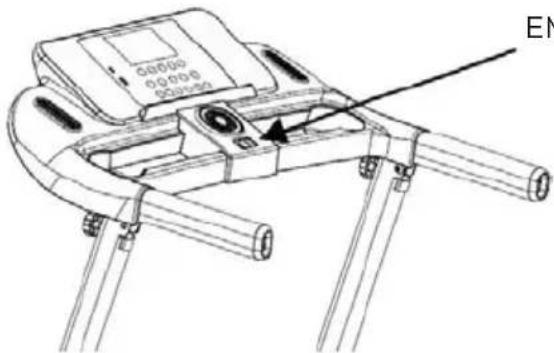

Before beginning a workout session ensure that the EMERGENCY STOP KEY is placed onto the computer console and the safety clip is securely attached to an article of your clothing. If you fall the clip will pull out the EMERGENCY STOP KEY from the computer console and the running belt will stop immediately for emergency stop, helping to prevent injury.

WARM UP AND COOL DOWN ROUTINE

The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.

COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired muscles. The purpose of cooling down is to return the body to its resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart.

HEAD ROLLS

Rotate your head to the right for one count, you should feel a stretching sensation up the left side of your neck. Then rotate your head back for one count, stretching your chin to the ceiling and letting your mouth open. Rotate your head to the left for one count, then drop your head to your chest for one count.

SHOULDER LIFTS

Lift your right shoulder toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder.

SIDE STRETCHES

Open your arms to the side and lift them until they are over your h Reach your right arm as far toward the ceiling as you can for one count. Repeat this action with your left arm.

QUADRICEPS STRETCH

With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot.

INNER THIGH STRETCH

Sit with the soles of your feet together and your knees pointing outward. Pull your feet as close to your groin as possible. Gently push your knees toward the floor. Hold for 15 counts.

Line drawings of five different human postures in various poses, including stretching, lifting, standing, and kneeling (no text or symbols)

TOE TOUCHES

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach as far as you can and hold for 15 counts.

HAMSTRING STRETCHES

Extend your right leg. Rest the sole of your left foot against your right inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax and then repeat with left leg.

CALF/ACHILLES STRETCH

Lean against a wall with your right leg in front of the left and your arms forward. Keep your left leg straight and the right foot on the floor; then bend the right leg and lean forward by moving your hips toward the wall. Hold, then repeat on the other side for 15 counts.

Line drawing of a person kneeling and stretching (no text or symbols)

Application Software (APP)

Check if your mobile device confirms the requirements for the application.

The requirements of each application are shown in the Google PlayStore or AppStore.

Check out Kinomap for 7 days now for free or choose the FREE FIT&HOME app!

AndroidiOS

Kinomap K

Please remember to turn on the Wireless connection feature on your device.

AndroidiOS

QR code image containing encoded data, no visible human-readable text

Please understand that we are not able to offer you a complete operation guide of the application inside this manual, as the app will be updated from time to time.

This process can make changes to the operation or the design of the application. Please refer to the instructions inside the specific app download store or contact us.

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form. These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
Prixton	RUN FITRF350	TREADMILL	Fitness

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Two identical mechanical components with black end caps, labeled S1 (no text or symbols on parts)

Bouton fixe x 2

Joint x 2

Bouton x 2

Technical line drawing of a mechanical device with no visible text or symbols

Tapis de course

Clé Allen 6# x 1

Clé de sécurité x 1

INSTRUCTIONS D'ASSEMBLAGE

Technical diagram of a mechanical device with labeled parts S3 and an inset showing a component with directional arrows.

Étape 2

Line drawing of a treadmill with a dropper pouring liquid from a bottle onto the side (no text or symbols)

WARNING • Base shooting fingers and half-wave than opening ball. • Don't use mini bits when driving shooting times. • Slow if you feel back, day or short of touch. • Make hardbox to prevent taking off times. 6 - 9 - 12

Line drawings of three different human postures in different poses (shoulder, forward, and raised), no text or symbols present.

ÉTIREMENT DES ADDUCTEURS

Line drawing of a person performing a seated stretch or exercise (no text or symbols)

ÉTIREMENT DES MOLLETS/TENDONS D'ACHILLE

Line drawing of a person in motion, possibly dancing or gesturing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Tapis roulant

Chiave a brugola 6# x 1

Line drawing of a treadmill with water droplets and a tool, no text or symbols present

Lubrificante 1 pz

UTILIZZO DEL COMPUTER

MAINT-REPGS • Bare standing fingers, and face spread from walking bars. • Stand up into right when starting lingering minutes. • See if you had back, days or after of touch. • Make headbox in prevent falling off trackers.

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Strumento:

Chiave a brugola

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Strumento:

Chiave a brugola

Technical line drawing of a mechanical component with curved arrows indicating motion (no text or symbols)

Strumento:

Chiave a brugola

Line drawings of a person in various postures including standing, stretching, and performing poses (no text or symbols)

STRETTE DELL'INTERNO COSCIA

Simple line drawing of a person kneeling and handling an object (no text or symbols)

STRETTE DEGLI ISCHI

Line drawing of a person in motion, possibly dancing or performing a martial arts or exercise pose (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Haupt-Laufband

6# Inbusschlüssel x 1
Sicherheitsschlüssel x 1

MONTAGEANLEITUNG

Technical diagram of a treadmill handle assembly with labeled parts S3 and directional arrows indicating movement or assembly.

Schritt 2

Line drawing of a treadmill with a tool and droplet drop, no text or symbols present

WARNING • Save waiting triggers and then press the following radio. • Send up links when clicking triggering triggers. • Use if your head bits, dots or short of touch. • Make buttons to prevent falling off seconds.

Diagram of a mechanical assembly with two rollers and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with multiple rods and a central component (no text or symbols)

Line drawings of three human figures in different postures, showing different poses (no text or symbols)

Line drawing of a person performing a seated leg stretch (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a treadmill with labeled parts S3 and an inset showing a mechanical component with arrows indicating direction.

Passo 2

Let me know if you need further assistance!

LUBRIFICAÇÃO

Line drawing of a treadmill with a dropper pouring liquid from a bottle onto it (no text or symbols)

WARNERS • Long shooting fingers are that save then walking on. • Show you go back when doing shooting minutes • Save if you feel bad, easy or short of touch. • Make mistakes to prevent taking of clicks.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Ferramenta: Chave Allen

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Ferramenta: Chave Allen

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Ferramenta: Chave Allen

Line drawing of a person performing a seated stretch or exercise (no text or symbols)

ALONGAMENTO DA PANTURRILHA/ AQUILES

Line drawing of a human figure in motion, possibly dancing or gesturing (no text or symbols)

Aplicativo de Software (APP)

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a mechanical device with no visible text or symbols

Hoofd loopband

GEREEDSCHAPSET

6# Inbussleutel x 1

Veiligheidskey x 1

INSTRUCTIES VOOR MONTEREN

Line drawing of a treadmill with a tool and water droplets, no text or symbols present

Lubricant 1PC

WARNING • Save shooting fingers, and have since then moving right. • Show if you can walk when shooting them is walking. • See if you feel able to stay or start of next. • Hold friends to prevent taking of mistakes.

Technical line drawing of a mechanical component with curved arrows indicating motion or assembly (no text or symbols)

Gereedschap:

Inbussleutel

ZORG, ONDERHOUD EN PROBLEEMOPLOSSINGSGIDS

PROBLEEMOPLOSSINGSGIDS

Probleem:

ZIJWAARTSE STRETCHES

Three sequential line drawings of a person performing a stretching or kneeling posture (no text or symbols)

Line drawing of a person in motion, possibly dancing or gesturing (no text or symbols)

Toepassingssoftware (APP)
