USER MANUAL Run Fit Cardio RF250 Prixton

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

CINTA DE CORRER TREADMILL

INDEX

ES 3

EN 12

FR 21

IT 30

DE 39

PT 48

NL 57

Nota:

Technical illustration of two mechanical fasteners with circular flanges below (no text or symbols)

Simple L-shaped line drawing with three parallel curved lines (no text or symbols)

Llave Allen #6

④

Line drawing of a cable and switch device (no text or symbols)

Line drawing of a mechanical roller or conveyor device with no visible text or symbols

Line drawing of a treadmill with motion arrows indicating changes (no text or symbols)

Line drawing of a treadmill with an inset showing the handle mechanism (no text or symbols)

LUBRICACIÓN

Line drawing of a treadmill with sensors and a hanging weight (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Llave Allen

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Herramienta:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Llave Allen

Pure mechanical diagram showing a lever mechanism with curved arrows indicating motion (no text or symbols)

Herramienta:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Llave Allen

APPLICATION SOFTWARE (APP)

Check if your mobile device confirms the requirements for the application. The requirements of each application are shown in the Google PlayStore or AppStore.

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text

Before installation and operation, please read this operation manual carefully and save this manual for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill.

DANGER: To reduce the risk of electric shock, always unplug the treadmill

from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.

Failure to follow these instructions may lead to personal injury and cause damage to the treadmill.

WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons, please read the following:

Never leave the treadmill unattended while plugged in. Disconnect by turning off the master power switch and unplugging from wall outlet when not in use and before putting on or taking off parts.

Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

Never operate this treadmill if it has a damaged cord or plug, or if it is not working properly. If it has been dropped or damaged, or been exposed to water, return the appliance to a service center for examination and repair.

Do not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue use and consult an Authorised Service Representative.

Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and other obstructions.

Do not use the treadmill outdoors.

Do not pull the treadmill by its power cord or use the cord as a handle.

Keep children and pets away from the equipment while in use.

Elderly or disabled users should only use this treadmill in the presence of an adult who can provide assistance if required.

Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

Keep dry - do not operate in a wet or moist condition.

The motor cover can become hot while the treadmill is in use. Do not place the treadmill on a blanket or other flammable surface as this can create a fire hazard. Keep electrical cord away from heated surfaces.

Keep the treadmill on a solid, level surface with a minimum safety area clearance of two meters around the treadmill. Be sure the area around the treadmill remains clear of any obstructions during use.

This treadmill is for domestic household use only.

Only one person should use the treadmill at a time.

Wear comfortable and suitable clothing when using the treadmill. Do not use the treadmill barefoot or in socks. Always wear appropriate, enclosed athletic footwear. Never wear loose or baggy clothing as it can become caught on the treadmill and create an entrapment hazard.

Always hold on to the handrails while using the treadmill.

Always make sure the spring knob and round knob are in place when folding and moving the treadmill.

Do not leave children who are under 12 years-old unsupervised near or on the treadmill.

To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should not be allowed to play on or near the treadmill at any time. CAUTION - RISK OF INJURY TO PERSONS - To avoid injury, use extreme caution when stepping onto or off of a moving treadmill belt. Carefully read this instruction manual before use.

Maximum Weight Capacity is 110 kgs.

Pull out the Safety Tether Key for emergency stop.

This unit must be plugged into a nominal 220-240 volt 50 Hz outlet which has been grounded.

Keep hands clear of all moving parts. Never place hands or feet under the treadmill while in use.

Do not use the treadmill on a carpet that is greater than 1.3 cm in height.

Before using the treadmill, check that the belt is aligned and centered on the running deck and all visible fasteners on the treadmill are sufficiently tightened and secure. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons persons in order to avoid a hazard.

Never operate this treadmill if it is in the folded position.

Allow the running belt to fully stop and unplug the power cord from the wall outlet before folding up the treadmill.

Always face towards the computer console and do not run backwards on the running belt.

WARNING: Before beginning any exercise program consult your physician.

This is especially important for people who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment. Do not operate this exercise equipment without properly fitted guards, as the moving parts can present a risk of serious injury if exposed.

CAUTION: Read all instructions carefully before operating this product. Retain this Owner's Manual for future reference.

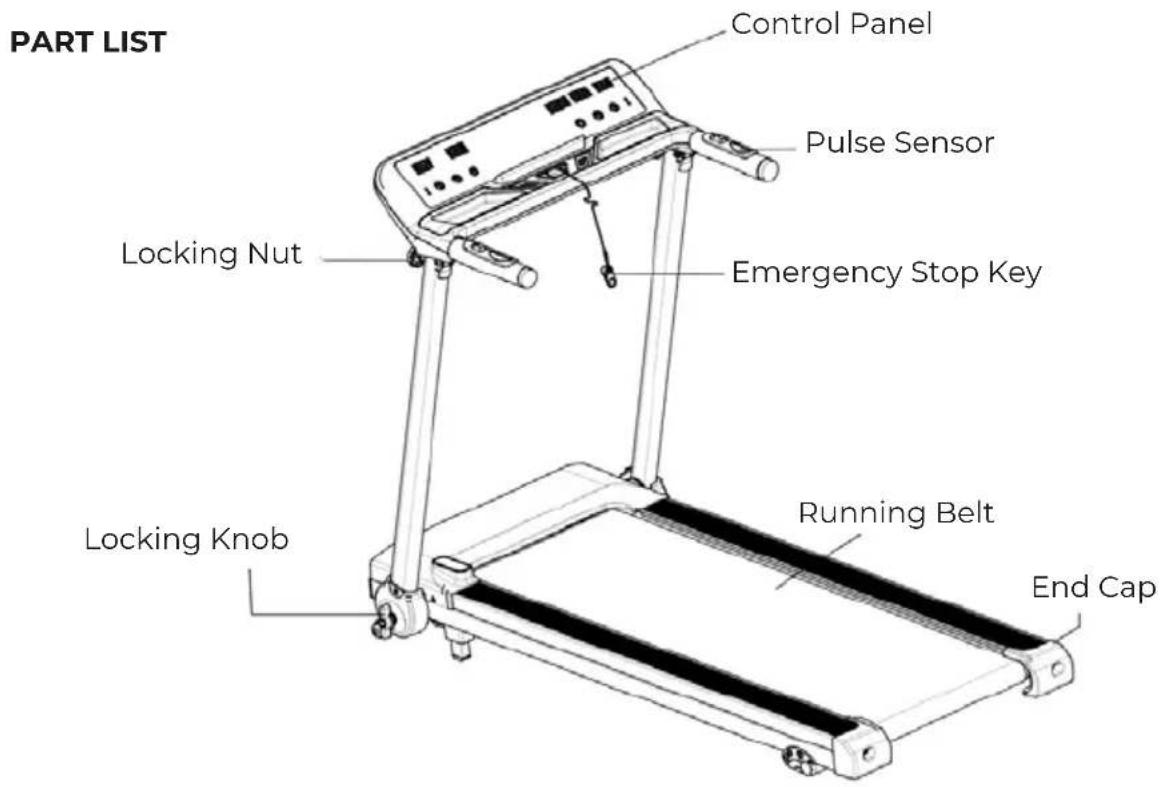

PART LIST Control Panel Pulse Sensor Locking Nut Emergency Stop Key Running Belt End Cap Locking Knob

Accessories

①

Technical line drawing of two mechanical components with circular seals below (no text or symbols)

Locking Knob x 2 Washer x 2

②

M8*35 Locking Nut x2

③

Simple L-shaped metal pipe or elbow joint diagram (no text or symbols)

6 Allen Key

④

Line drawing of a mechanical device with two components and a coiled cable (no text or symbols)

Emergency Stop Key

ASSEMBLY INSTRUCTION

Line drawing of a mechanical roller or conveyor device with no visible text or symbols

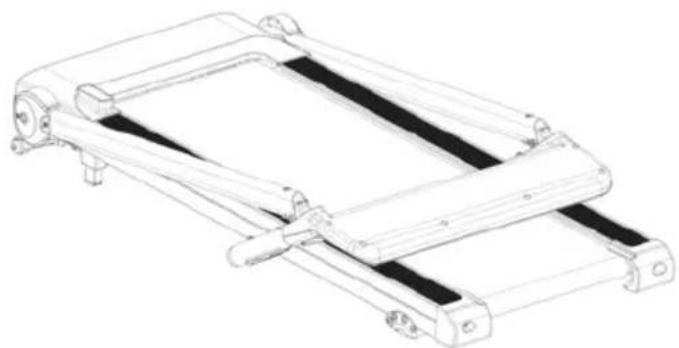

1. Remove the treadmill from the shipping carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the ship-ping carton.

Line drawing of a treadmill with motion arrows indicating changes, no text or symbols present

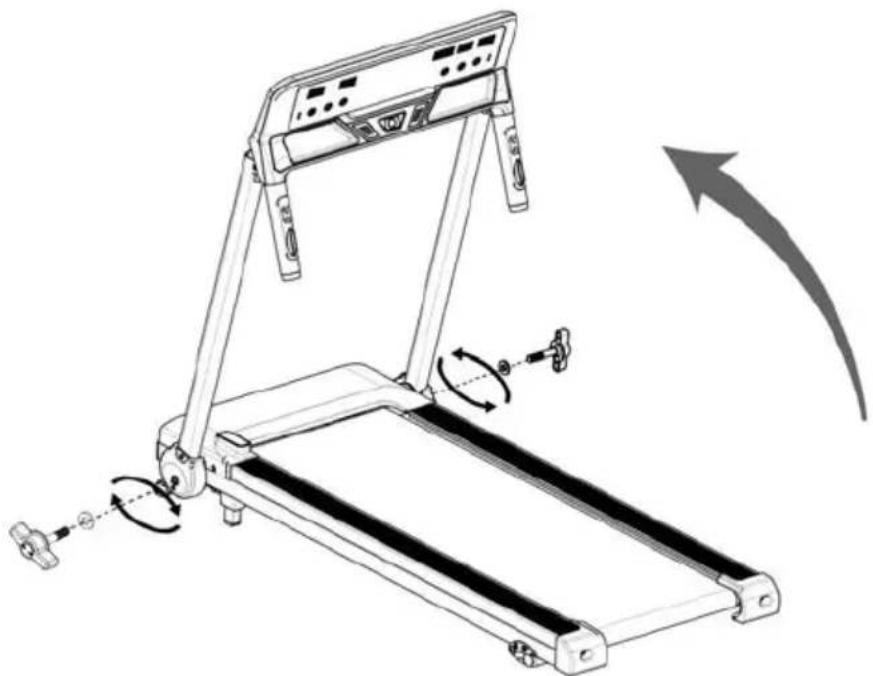

1. Lift both Right and Left Handlebar Support Tubes up. One person should hold the both Right and Left Handlebar Support Tubes in place while the other person tightens the bolts. Lift both Right and Left Handlebar Support Tubes up and align bolt holes. Use two Locking Knobs and two Washers to secure both Right and Left Handlebar Support Tubes onto the Main Frame.

Line drawing of a treadmill with an inset showing the front view and motion arrows (no text or symbols)

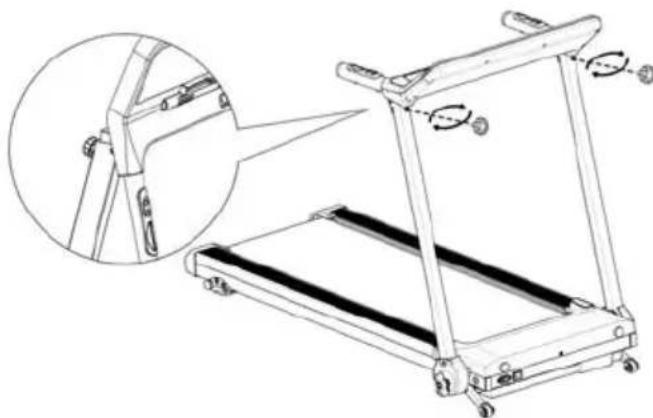

1. Lift the Console Panel up, using two Locking Nuts and tighten them on the back of the Console Panel.

Before beginning a workout session ensure that the Safety Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.

NOTE: Always stand on the side rails when you start the treadmill, never start the treadmill while you are standing on the running belt.

QUICK START:

Press the START button on the computer to start exercise, the LCD window will countdown 3 seconds with the LCD showing "3-2-1" before the running belt starts moving. The running belt starts moving with an initial speed of 1.0 KPH.you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise.

FUNCTION BUTTONS:

START:

Press the START button to start training on different training mode.

STOP:

Press the STOP button to stop training on different training mode.

PROG (PROGRAM):

Press the PROG button to select the pre-set training program (P01-P12) mode before training.

MODE:

Press the MODE button to select different functions (time or distance) for setting exercise goals in manual program mode before training.

SPEED + (SPEED UP):

Press the SPEED + button to make upward adjustments for pre-setting target training time or distance in manual program mode before training.

SPEED - (SPEED DOWN):

Press the SPEED - button to make backward adjustments for pre-setting target training time or distance in manual program mode before training.

PROG/PULSE:

During exercise mode, pulse will be displayed on the window of PROG/PULSE automatically if detected.

DISPLAY FUNCTIONS:

TIME: Displays your elapsed workout time in minutes and seconds. Press the START button on the computer to begin exercising, you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise. Time starts counting up from 0:00 to 99:59 per 1 second increment.

SPEED: Displays the current speed from the minimum 1.0 KPH to the maximum 14.0 KPH.

DIST. (DISTANCE): Displays the accumulative distance travelled during workout. Press the START button on the computer to begin exercising, you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise. Distance starts counting up.

CAL. (CALORIES): Displays the total calories burned during your workout. Press the START button on the computer to begin exercising, you may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise. Calorie starts counting up. (This data is a rough guide for comparison of different exercise sessions and should not be used in medical treatment).

PULSE: Displays your current heart rate in beats per minute (BPM). To activate, grip the hand pulse sensors during exercise and the pulse will display after 2-5 seconds. For a more accurate reading, grip pulse sensors with both hands.

TRAINING IN MANUAL PROGRAM MODE:

You may pre-set target TIME or DISTANCE in STOP mode before training. Only one of the functions can be pre-set. To set TIME press the MODE button on the computer console until you see the split window of TIME begin blinking. Press the SPEED + or SPEED - button on the computer console or handlebar to change the setting. Each increment is 1 minute. The pre-set target time range is from 5:00 to 99:00 minutes. Once you pre-set target time, press the START button on the computer to begin exercising. The running belt starts moving with an initial speed of 1.0 KPH. You may press the SPEED + or SPEED - button on the computer console or handlebar to increase or decrease the running speed during exercise.

To set DISTANCE press the MODE button on the computer console until you see the split window of DISTANCE begin blinking. Press the SPEED + or SPEED - button on the computer console to change the setting. The pre-set target distance range is from 0.50 to 65.0 kilometers, the default distance is 1 kilometer. Once you pre-set target distance, press the START button on the computer to begin exercising.

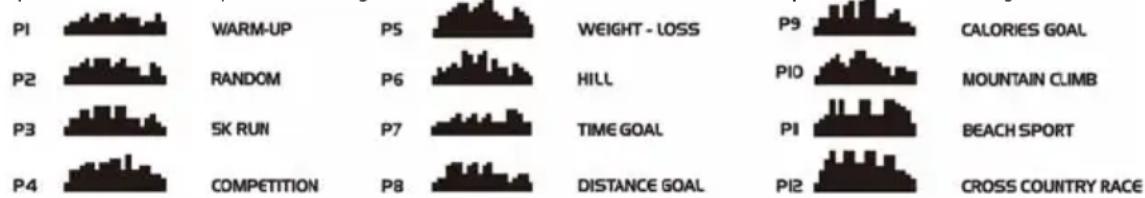

TRAINING IN PRE-SET PROGRAM MODE (P01-P12):

The computer offers 12 pre-set programs (P01-P12). You may select one of the pre-set training programs in STOP mode before training. Press the PROG (PROGRAM) button on the computer console to select one of the training programs. The split window of TIME begin blinking. You may press the SPEED + or SPEED - button on the computer console or handlebar to change the setting. Each increment is 1 minute. The pre-set target time range is from 5:00 to 99:00 minutes. Once you pre-set target time, press the START button on the computer to begin exercising. When the pre-set training program time count down to 0:00, the computer will beep to alert you and the treadmill will stop automatically.

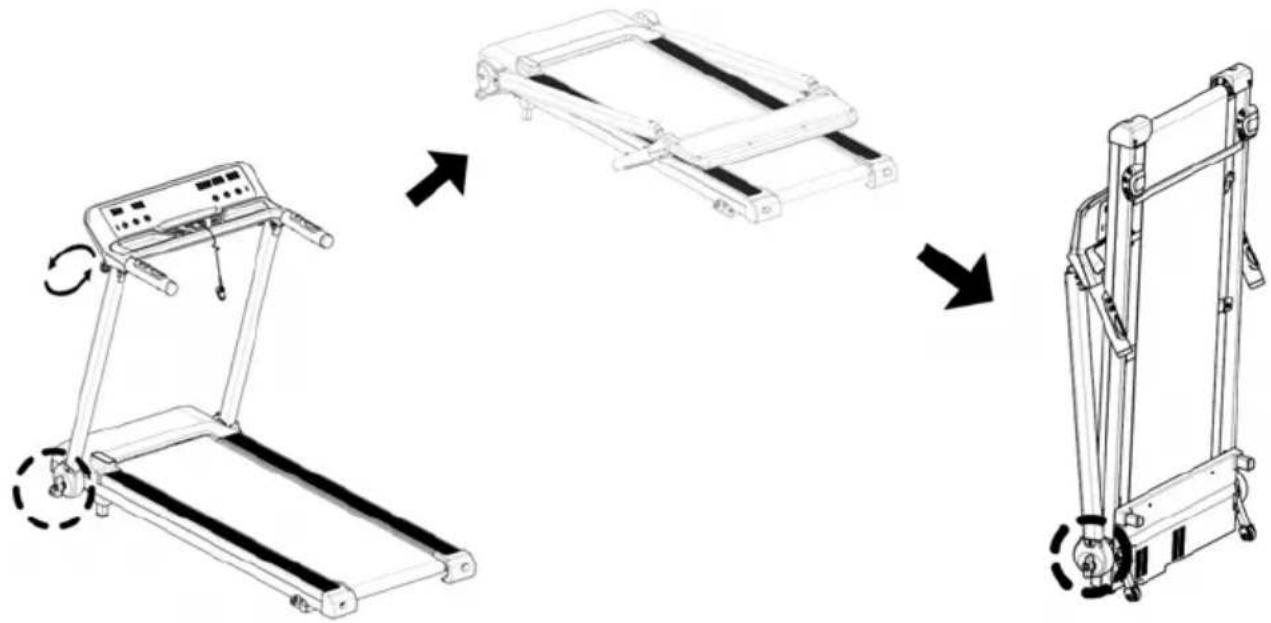

LIFTING UP THE TREADMILL

Loose the Locking Nut from the back of the Console Panel and the Locking Knob from the lower end of the main frame. And then tighten the Locking Knobs again.

Firmly grasp the supporting tubes and lower it to the ground. Lift the treadmill up in the vertical position. See figures below.

Store the treadmill in a clean and dry environment away from children.

CAUTION: Failure to secure the main frame with the Locking Knob may cause the treadmill accidental fall and cause bodily injury.

LUBRICATION

Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months).

How to check running belt for proper lubrication

Lift one side of the running belt and feel the top surface of the running deck.

If the surface is slick to the touch, then no further lubrication is required.

If the surface is dry to the touch, apply some lubricant.

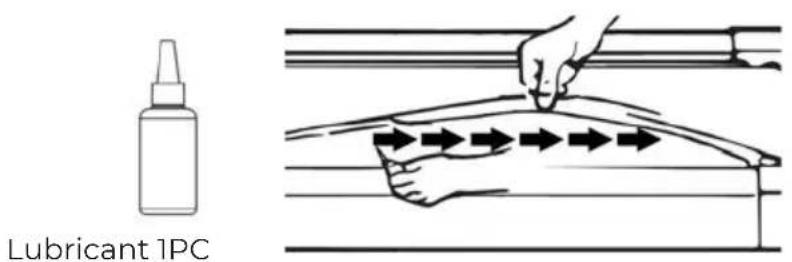

How to apply lubricant

Lift one side of running belt.

Pour some lubricant under the centre of the running belt on the top surface of the running deck.

Run on the treadmill at a slow speed for 3 to 5 minutes to evenly distribute lubricant. NOTE: DO NOT over lubricate running deck. Any excess lubricant that comes out should be wiped off.

Lubricant 1PC

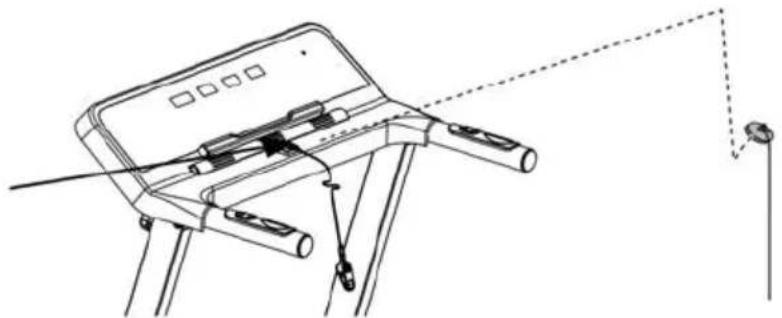

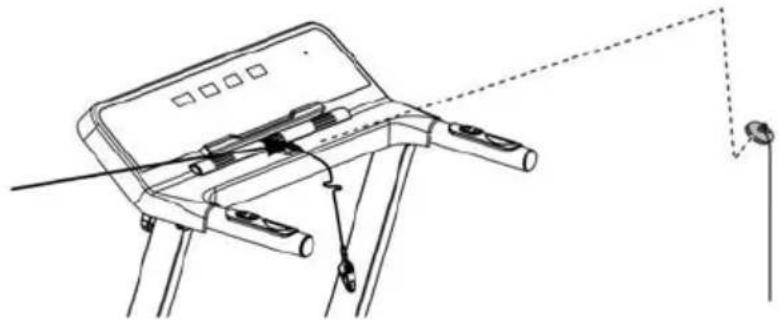

EMERGENCY STOP

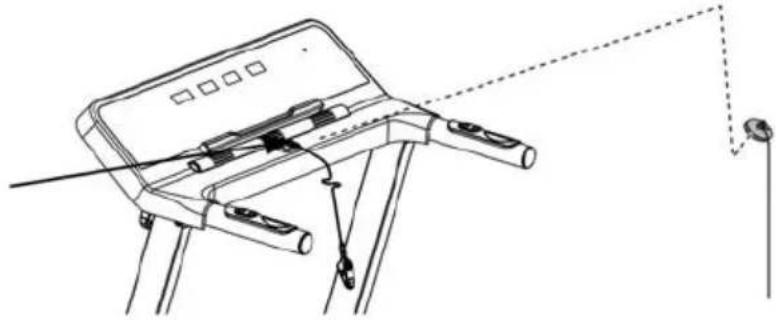

EMERGENCY STOP KEY

Line drawing of a treadmill with sensors and a pulley, no text or symbols present

Before beginning a workout session ensure that the EMERGENCY STOP KEY is placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing. If you fall the clip will pull out the EMERGENCY STOP KEY from the Computer Console and the running belt will stop immediately for emergency stop, helping to prevent injury.

BELT ADJUSTMENT

The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 8-10 KPH. Use the Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt. If the running belt is shifting to the left, turn the left adjustment bolt 1/4 turn clockwise, and the running belt should start to correct itself.

Pure mechanical diagram showing a lever mechanism with no text or symbols

Tool:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Allen Wrench

If the running belt is shifting to the right, then turn the right adjustment bolt 1/4 turn clockwise, and the belt should start to correct itself. Keep turning the adjustment bolts until the running belt is properly centered.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Tool:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Allen Wrench

If the running belt is slipping during use, turn off and unplug the treadmill. Using the Allen Wrench provided, turn both left and right rear roller adjustment bolts 1/4 turn clockwise, then turn the main power switch back on and run the treadmill at a speed of 8-10 KPH. Run on to the running belt to determine if the belt is still slipping. Repeat this procedure until the belt no longer slips.

Pure mechanical assembly diagram showing a lever mechanism with no text or symbols

Tool:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Allen Wrench

CARE, MAINTENANCE & TROUBLESHOOTING GUIDE

WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance.

WARNING: Always check the wear and tear components like spring knob and running belt to prevent injury.

CLEANING

After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit.

The treadmill can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents. Be careful not to get excessive moisture on the display panel as this might damage the unit and create an electrical hazard.

Please keep the treadmill, especially the computer console, out of direct sunlight to prevent damage to the screen.

STORAGE

Store the treadmill in a clean and dry indoor environment. Never leave or use the unit outdoors. Ensure the master power switch is off and the power cord is un-plugged from wall outlet.

TROUBLESHOOTING GUIDE

Problem

Treadmill will not start.

Potential Causes

1. Treadmill not plugged in.
2. Safety Tether Key is not correctly installed.
   3.Circuit breaker in the house has been tripped.
3. Treadmill circuit breaker has been tripped.

Corrections

1. Plug the power cord into a wall outlet.
2. Reinstall the Safety Tether Key.
3. Reset the circuit breaker, or call an electrician to replace the circuit breaker.
4. Wait 5 minutes and then try to restart the treadmill.

Problem

Belt slips.

Potential Causes

Belt not tight enough.

Corrections

Adjust belt tension.

Problem

Belt hesitates when stepped on.

Potential Causes

1. Not enough lubrication applied onto the running deck.
   2.Belt is too tight.

Corrections

1. Apply lubricant.
2. Adjust belt tension.

Problem

Belt is not centred.

Potential Causes

Running belt tension not even across the rear roller.

Corrections

Centre the belt.

APPLICATION SOFTWARE (APP)

Check if your mobile device confirms the requirements for the application. The requirements of each application are shown in the Google PlayStore or AppStore.

Check out Kinomap for 7 days now for free or choose the FREE FIT&HOME app!

AndroidiOS

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

Please remember to turn on the Bluetooth feature on your device.

AndroidiOS

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text

Please understand that we are not able to offer you a complete operation guide of the application inside this manual, as the app will be updated from time to time. This process can make changes to the operation or the design of the application. Please refer to the instructions inside the specific app download store or contact us.

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form. These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
Prixton	RUN FIT CARDIO RF250	TREADMILL	Fitness

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Note :

Technical line drawing of two mechanical components with circular base and adjustment arrows (no text or symbols)

Simple L-shaped metal pipe or elbow joint diagram (no text or symbols)

Clé Allen #6

④

Line drawing of a simple electrical circuit with two components and a coiled cable (no text or symbols)

Line drawing of a mechanical roller or conveyor device with no visible text or symbols

Diagram of a treadmill with motion arrows indicating changes, no text or symbols present

Line drawing of a treadmill with an inset close-up showing the mechanism (no text or symbols)

LUBRIFICATION

Line drawing of a treadmill with attached sensors and a hanging weight (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Clé Allen

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Outil :

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Clé Allen

Pure mechanical assembly diagram showing a lever mechanism with curved arrows indicating motion (no text or symbols)

Outil :

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Clé Allen

GUIDE D'ENTRETIEN, DE MAINTENANCE ET DE DÉPANNAGE

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text

Technical illustration of two mechanical fasteners with circular flanges below (no text or symbols)

Simple L-shaped line drawing with no text, numbers, or symbols

Line drawing of a cable with two connectors and a switch (no text or symbols)

Line drawing of a mechanical roller or conveyor device with no visible text or symbols

Line drawing of a treadmill with motion arrows indicating movement, no text or symbols present

Technical line drawing of a treadmill with an inset showing the mechanism of adjustment (no text or symbols present)

LUBRIFICAZIONE

Line drawing of a treadmill with sensors and a vertical sensor, no text or symbols present

Diagram of a mechanical assembly with rotating parts and directional arrows (no text or symbols)

Utensile:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Chiave a brugola

Diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Utensile:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Chiave a brugola

Pure mechanical assembly diagram showing a lever mechanism with no text or symbols

Utensile:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Chiave a brugola

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text

Technical line drawing of two mechanical components with circular base and fasteners (no text or symbols)

Simple L-shaped metal pipe diagram with no text or symbols

kantschlüssel #6

④

Line drawing of a cable with two connectors and a switch (no text or symbols)

Not-Aus-SchlüsselSechs-

MONTAGEANLEITUNG:

Line drawing of a mechanical roller or conveyor device with no visible text or symbols

Line drawing of a treadmill with motion arrows indicating changes (no text or symbols)

Technical line drawing of a treadmill with an inset showing the mechanism of adjustment (no text or symbols present)

SCHMIERUNG

Illustration of a hand pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

NOTFALL-STOPP

NOT-AUS-SCHLÜSSEL

Line drawing of a treadmill with attached sensors and a vertical sensor (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Werkzeug:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Inbusschlüssel

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Werkzeug:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Inbusschlüssel

Pure mechanical assembly diagram showing a lever mechanism with no text or symbols

Werkzeug:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Inbusschlüssel

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text

Technical line drawing of two mechanical components with circular seals, no text or symbols present

Simple line drawing of an L-shaped metal bracket (no text or symbols)

Chave Allen #6

④

Line drawing of a cable and two switches connected in a wire (no text or symbols)

Line drawing of a treadmill with roller and frame (no text or symbols)

Line drawing of a treadmill with motion arrows indicating rotation and change (no text or symbols)

Line drawing of a treadmill with an inset showing the mechanism of adjustment or motion (no text or symbols present)

LUBRIFICAÇÃO

Illustration of a hand pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

PARADA DE EMERGÊNCIA

CHAVE DE PARADA DE EMERGÊNCIA

Line drawing of a treadmill with sensors and a hanging weight (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Ferramenta:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Chave Allen

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Ferramenta:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Chave Allen

Pure mechanical assembly diagram showing two parallel rods with curved arrows indicating motion (no text or symbols)

Ferramenta:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Chave Allen

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text

Simple L-shaped line drawing with no text, numbers, or symbols

④

Line drawing of a cable with two connectors and a switch (no text or symbols)

Noodstopsleutel Inbussleut

ASSEMBLERINSTRUCTIES:

Line drawing of a mechanical device with roller and frame components (no text or symbols)

Line drawing of a treadmill with motion arrows indicating changes, no text or symbols present

Line drawing of a treadmill with an inset showing the handle mechanism (no text or symbols)

Line drawing of a treadmill with sensors and a pointer, no text or symbols present

Pure mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Inbussleutel

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Gereedschap:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Inbussleutel

Pure mechanical assembly diagram showing a lever mechanism with no text or symbols

Gereedschap:

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

Inbussleutel

ZORG, ONDERHOUD & PROBLEMENOPLOSSINGSGIDS

QR code image containing encoded data, no visible human-readable text

Kinomap

K

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

FIT&SHOW

QR code image containing encoded data, no visible human-readable text
