USER MANUAL Power Flex Prixton

Line drawing of a handheld device with a spherical head and circular body, no text or symbols present

PISTOLA DE MASAJE MASSAGE GUN

INDEX

ES 3

EN 13

FR 24

IT 33

DE 42

PT 51

NL 60

Line drawing of a person performing a dumbbell exercise with a bandage device (no text or symbols)

Line drawing of a person holding two medical devices (no text or symbols)

1. Masaje en el cuello

Line drawing of a person performing a physical therapy or massage technique with a belt and wrist (no text or symbols)

1. Masaje en los pies

Line drawing of a person using a handheld device to lift a person's arm (no text or symbols)

Technical line drawing of two mechanical components with handle and grip (no text or symbols)

Simple line drawing of a Y-shaped mechanical or electrical component with no text or symbols

Cabezal curvo para zonas curvadas

Simple line drawing of a push-button with no text or symbols

Top-down view of a rectangular grid pattern with two side lobes and a central square cutout (no text or symbols)

Tronco mayor 30s-1min 6veces

Decúbito supino

WARNING To charge this device, make sure to use a power adapter with the following values: 5 volts and a recommended amperage of at least 1000mA.

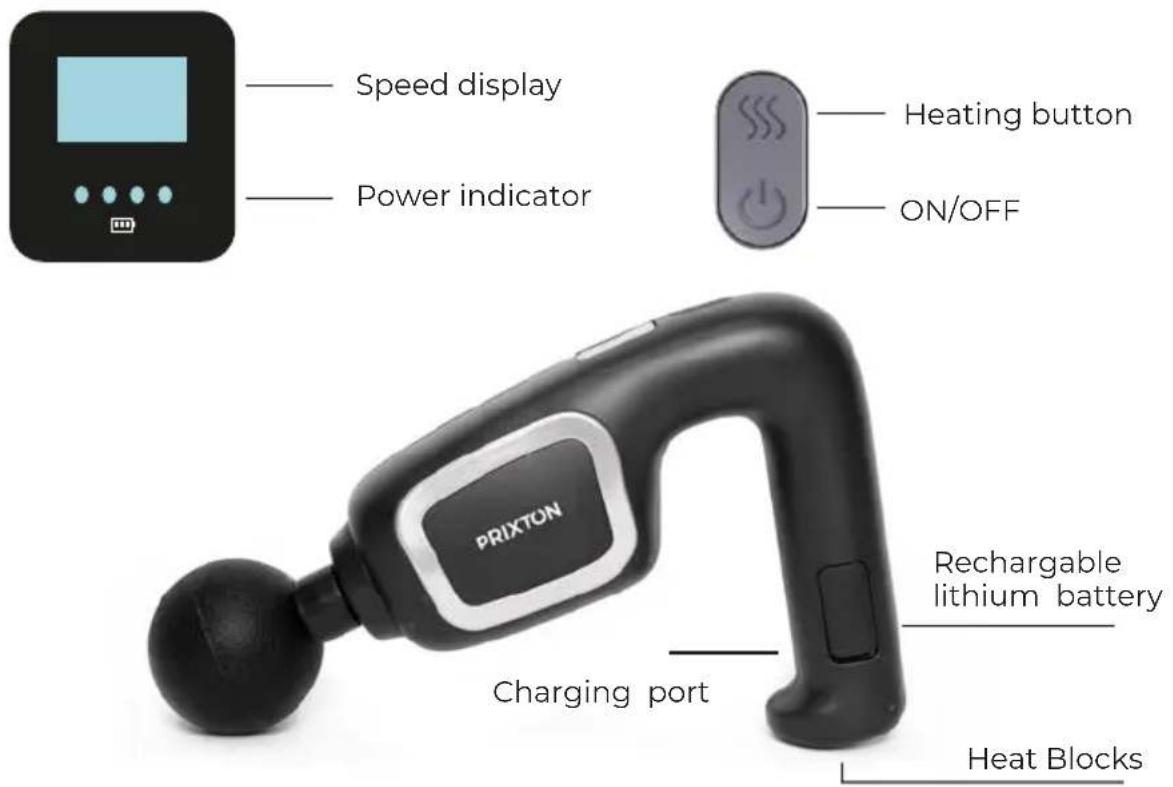

Speed display Power indicator Heating button ON/OFF PRIXTON Charging port Rechargeable lithium battery Heat Blocks

Instructions

Power operation cautions

Press the power switch at the top of the machine and hold 1 second to turn it on and start working.(Power light on) Press the power switch at the top of the machine and hold 1 second again to turn it off.(Power light off) Press the heat switch on the top of the machine to turn it on and start the device (key indicator light on). Press the heat switch at the top of the machine again to turn off the device (key indicator off).

Device

Equipment Power switch on, quick press the power bottom once to adjust it to level 1, press twice to adjust it to level 2, and so on, a total of 6 adjustable, display 6 levels. Level 1-6 corresponding frequency levels. Heating button, press once to level 1, and press level 2, and level 3. When the heat working, the temperature of the three gears are 40 degrees, 50 degrees, 60 degrees, the heating time to 40 degrees is about 2 minutes.

Charging

Before the first use, charging 4h to fill it up, charging the device does not work, the power is devided into 4 levels. The battery can be charged at any time and at any charge level. It is not recommended that the battery be completely depleted. Make sure the power is off when the machine is not in use. The operating time of the device depends on the speed level and the pressure applied during use.

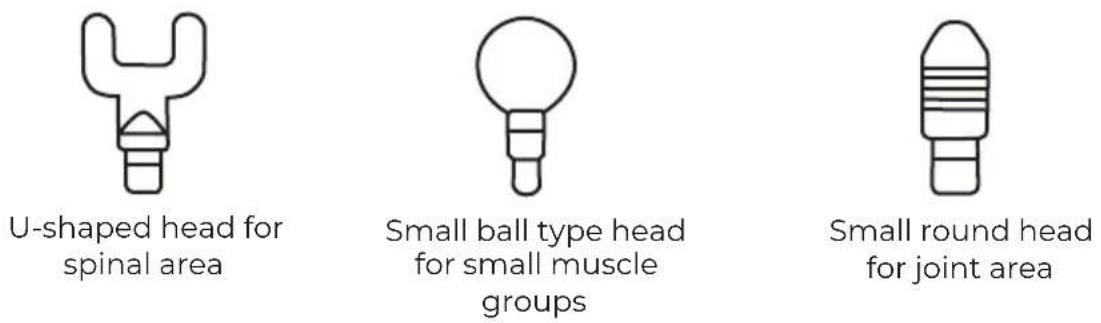

Small flat head for all parts of the body

Large ball-shaped head for large muscle groups

Use scenes

Line drawing of a person performing a dumbbell exercise with a resistance band (no text or symbols)

1. Back massage

Line drawing of a person holding two medical devices (no text or symbols)

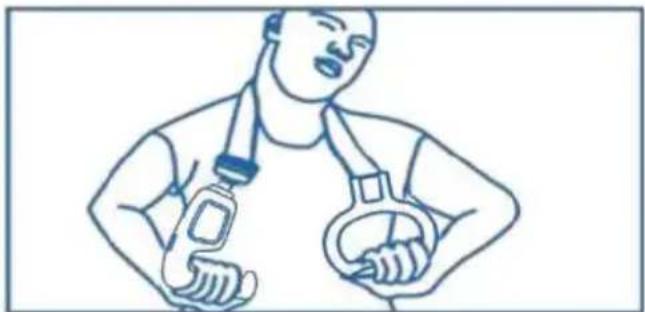

2.Neck massage

Line drawing of a person performing a physical therapy or massage technique on a seated leg, with no text or symbols present.

3.Foot massage

Line drawing of a person using a handheld device to lift a person's arm (no text or symbols)

1. Arm massage

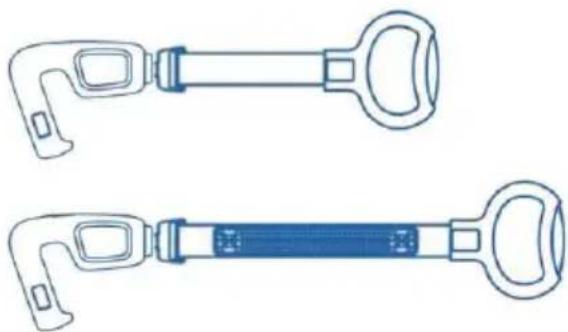

Adjustable pulling belt

Pull the strap to adjust the installation adjust the installation.

Two identical line drawings of a mechanical device with handle and grip, shown in side and top views (no text or symbols)

Simple line drawing of a Y-shaped mechanical or electrical component with no text or symbols

Curved head for bending parts

Simple line drawing of a three-tiered mechanical component (no text or symbols)

Strap head for fixing pulling belt

Top-down view of a rectangular grid pattern with two side lobes, no text or symbols present.

Massage straps for other parts of the neck, back, etc

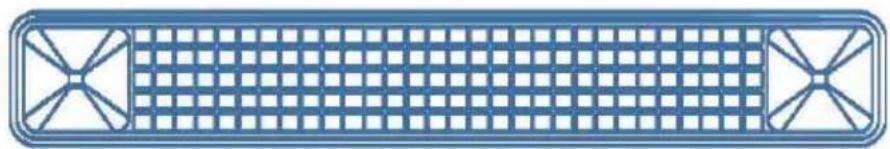

Massage block for all parts of the body

Configuration and Specifications

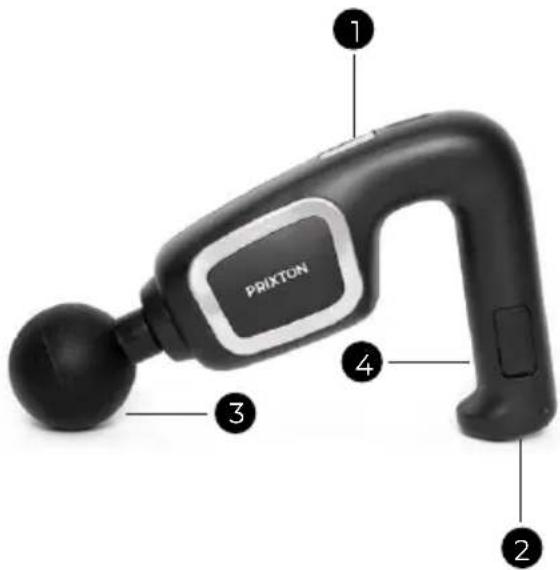

Configuration

1. Control panel

2.Heated electrode piece

3.Removable and replaceable vibration head.

When disassembling the vibration head, pull it out hard

4.DC charging port

Product parameters

Battery voltage: 7.4V

Rate power: 24W

Rate voltage: 5V

Battery type: Lithium battery

1 PRIXTON 2 3 4

Physical Therapy Precautions

Post-injury

The first physical therapy session after injury should be gradual according to the patient's satisfaction and comfort level.

ROM rating

Identify the area and surrounding muscles according to the physiotherapy protocol.

Start the instrument and set it at low to medium intensity.

The pressure applied is the weight of the instrument itself.

Lymphatic drainage

Requires light, generalized physiotherapy.

Move slowly from the distal to the proximal end of the limb, i.e. in the direction of the cardiac venous return.

Reduces swelling and eliminates pain.

Restore muscle flexibility and extensibility.

Promote blood circulation and lymphatic return.

Postoperative

The first postoperative physiotherapy treatment is based on the patient's response and the gradual increase in the duration and intensity of the treatment.

Determine the site of physiotherapy.

Ask the patient if there are any open wounds, stitches to drain the internal fixation. (If so, do not stimulate these areas)

Start the device and set it on the lowest setting.

Cover the treatment area with a towel.

Apply moderate pressure to the physiotherapy site with the instrument.

Limit physiotherapy to the area around the surgical site.

Efficacy

Elimination of post-operative and post-injury purpura tissue

Trigger point physiotherapy.

Safety instructions

DANGER: To reduce the risk of electric shock, fire and personal injury, this product must be used in accordance with the following instructions

For adult use only

1. Can only be used on the dry, clean skin surface of the body parts, not through the clothing gently pressed on the skin, moving, each part for about 60 seconds.

2. Use the device only on the soft tissues of the body without causing pain or discomfort. Do not use on the head or any hard or bony part of the body.

3. Use only the vibration head that produces the best results

Either controlled downward pressure or pressure applied may produce bruising. Check the treatment area frequently and stop using it as soon as there are signs of pain or discomfort Keep fingers, hair or other body parts away from the shaft and back of the vibrating head, as they may get caught Do not place any objects in the ventilation holes of the device

1. Do not immerse the device in water or allow water to enter the ventilation holes of the device Do not drop or improperly use the device

2. Check the device and electricity carefully before each use.

3. Do not alter or modify the device in any way.

4. Never leave the device running or charging unattended.

Method of use

Local muscle relaxation

Static technique

Dynamic techniques

Pectoralis -30s

Deltoid -30s

Rotator cuff muscles -25s

Biceps -30s

Brachialis -30s

Brachioradialis -30s

Abdominals -45s

Rotator cuff muscle -25s

Triceps -25s

latissimus dorsii - 45s

erector spinae -35s

Pear muscle 1min to 1.5min

Iliotibial bundle -25s

Biceps brachii -1min

Greater adductor muscle -25s

Semitendinosus&semimembranosus -40s

Hallux valgus muscle -20s

Flexor digitorum brevis -40s

Heel -20s

Upper extremity operation program

Supina position

Round head vertical down

Brachioradialis 10 s – 15 s, 3 times

Radial carpal flexor 10 s -15 s, 3 times

Longissimus dorsi 12 s, 15 s

Ulnar carpal flexor 10 s -15 s, 3

Finger extensors 5 s -10 s2

Radial carpal short extensors 5 s -10 s 2

Radial carpal long extensors 5 s 10 s, 2 times

Ulnar carpal exlensors 5 s -10 s, 2 times

Elbow muscles 10 s - 15 s, 2 times

Biceps 15 s - 20 s, 3 times

Humerus 15 s - 20 s, 3 times

Rostral humerus 15 s - 20 s, 3 times

Triceps 15 s - 20 s, 3 times

Deltoid

-Anterior fasciculus 10 s - 20 s, 3 times

-Middle fasciculus 10 s - 20 s, 3 times

-Posterior fasciculus 10 s - 20 s, 3 times

Lower extremity operation scheme

Prone position

Small flat head vertical down

Rouge cord muscle

Bíceps femoris 20s-30sx3 times

Semilendinosus muscle 20s-30sx3 times

Semimembranosus muscle 20s-30sx3 times

Direction of movement from top to bottom

Small flal head 45° outward

Thin femoral muscle 10s-15sx2 limes

Longissimus dorsi 10s-15sx2 times

Short retraclors 10s-15sx2 times

Calf tríceps

Overhead muscles 20s-30sX3 times

Flounder muscle 20s-30sX3 times

Moving direction from top lo bottom

Small round head vertical downward

Treadmill

Straighl knee position 15s-30s

Bend knee position 15s-30s

Supina position

Small flat head vertical down

Quadriceps femoris

Rectus femoris 30s-45sx2 times

Lateral femur 30s-45sx2 times

Medial femur 30s-45sx2 times

Middle femur 30s-45sx2 times

Direction of movement from top to bottom

Small flat head vertical downward

Suture muscle 30s-45s

Broad fascial tensor fasciae 15s-20sx2 times

Tibialis anterior muscle 15s-20sx2 times

Peroneus longus 15s-20sx2 times

Peroneus brevis short muscle 15s-20sx2 times

Movement direction from top to bottom

Knee arthritis

Supina position

Small flat head down vertically

Prone position

Small round head vertical down

Quadriceps Femoris

Reclus femoris 20s-45sx2 times

lateral femur 20s-45sx2 times

Medial femur 20s-45sx2 times

Middle femoral muscle 20s-45sx2 times

The direction of movement is from top to bottom

and the patient slowly bends he knee slightly

Small round head vertical down

Iliopsoas edge - anterior iliacus 30s-1 min

Reclus femoris, inguinalis 1 min

Broad fascia tensor 15s-20s x 2 times

Palellar ligament area 20s x 3 times

Circle muscle 30s-45s

Straight knee position 15s-30s

Flexed knee position 15s-30s

Calf triceps

Overhead muscles 20s-30sx3s

Halibut 20s-30sx3times

Tennis Elbow

Supina position

Small flat head vertical down

Anterior deltoid 10sx3 times

Middle bundle 10sx3 times

Posterior fasciculus 10sx3 times

Bíceps 15s-20sx3 times

Brachialis 15s-20sx3 times

Brachioradialis 15s-20sx3 times

Small round head vertical down

Lateral humeral ankle tendon 30S40S

If you are afraid of hitting the bone surface, you can squeeze the muscle with your hand and hit it downward

Small round head downward vertically:

Flexor carpi radialis 10s-15sx3 times

Palmaris longus 12s-15sx3 times

Flexor carpi radialis ulnaris 10s-15sx3 times

Finger extensors 5s-10sx2 times

Flexor carpi radialis short 5s-10sx2 times

Flexor carpi radialis longus 5s-10sx2 times

Neck and shoulder operation

program Supine position

Small flat head vertical down

Tríceps 15s-20sx3reps

Elbow muscles 10s-20sx2 reps

Superior Irapezius bundle 15s-20sx3 reps

Middle fascicle 15s-20sx3 reps

Inferior fasciculus 15s-20sx3 reps

Lalissimus dorsi 30s-1 minx2 reps

Direction from the middle to the sidas, from top to bottom

Small round head vertical down

Supraspinalus 10s-15sx3reps

Scapular lift 10s-12sx2 times

Large circular muscle 10s-12sx2 reps

Small round muscle 10s-12sx2 times

Infraspinalus 10s-12sx2 times

Direction from the middle to the sides

Prone position

Chest, triceps

Upper arm open 90 degrees, wrist straight.

Forearms perellel to the torso

Slimulale lhe pectoralis mejor first 30s

Switch to stimulating the brachialis 30s

Low back operation program

Supina position

Small flat head down vertically

Oblique muscle (middle and lower fibers)

Middle fasciculus 15s-20sx3 reps

Inferior fasciculus 15s-20sx3 reps

Rhomboids 20s-30sx3 reps

Vertical spinal muscles (lumbar segment) 30s-1 minx4 reps

lalissimus dorsi 30s-1 minx4 reps

Thoracolumbar fascia 1minx3 times

Sacral joint 1minx3 times

Small flat head vertical down

Truncalis major 30s-1 minx6 reps

Supine position

Internal and external obliques 10s-15sx2 times

Small round head vertical down erector spinae (thoracic

segment) 15s-20sx2 reps

Lumbar square 20s-30sx2 times

Iliopsoas muscle 30s-40sx4 times

Lumbar muscle strain

Prone position (unilateral) Small

flat head down vertically

Gluteus maximus 30s-1 minx4 times

Gluteus minimus and skeleton 30s-1 minx3 times

Sacral skeletal joint 30s-1 minx2 times

Lateral position, bend the slaighlened leg below by 90

Small flal head down vertically:

Gluteus medius and skeleton 30s-1 r

Sacral skeletal joint 30s-1 r

Skeletal tibial bundle 30s-1 r

Around greater trochanler 30s-1 r

Supine position (unilateral)

Skeletal muscles 30s-1 minx3 times

Slow flexion of the patient's hip

Skeletal margin-anterior skeleton 30s-1 minx2 times

Rectus femoris inguinalis 1 minx3 times

Sacral skeletal operation protocol

Prone position (unilateral)

Small flat head vertical down

Gluteus medius 30s-1 minx4 times

Gluteus maximus 30s-1 minx4 times

Paretic muscle 1 minx1.5min

Sacral joint 1 minx1 .5min

Direction: inward upward to outward downward, along the muscle

Rousseau muscle

Biceps femoris 20s-30sx3 times

Semitendinosus 20s-30sx3 times

Semimembranosus 20s-30sx3 times

From top to bottom

Plantar fasciitis in

supina position

Small flat head vertical down

Orbital cord muscle

Biceps femoris 20s-30sx3 times

Semitendinosus 220s-30sx3 times

Semimembranosus muscle 220s-30sx3 times

Direction of movement from top to bottom

U-shaped head vertical downward circling muscle

Straight knee position 215s-30s

Flexed knee position 215s-30s

Calf triceps

Gastrocnemius 220s-30sx3 reps

Hallux valgus 220s-30sx3 reps

Four-point position with forefoot on the ground

Small round head perpendicular to the sole of the foot

Plantar fascia 220s-30sx3 reps

Supina position

Movement direction from top to bottom

Warranty Policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL DESCRIPTION		CATEGORY
PRIXTON	POWER FLEX	MASSAGE GUN	FITNESS

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address: www.prixton.com

LA TRASTIENDA DIGITAL

Line drawing of a person performing a dumbbell exercise with a horizontal bar (no text or symbols)

1. Massage du dos

Line drawing of a person holding two devices, one with a bulb and the other with a ring (no text or symbols)

1. Massage du cou

Line drawing of a person performing a physical therapy or massage technique on a leg, with no visible text or symbols.

1. Massage des pieds

Line drawing of a person using a handheld device to lift a body (no text or symbols)

1. Massage des bras

Two identical blue-labeled mechanical tools with handles and brackets, shown from different angles (no text or symbols)

Simple line drawing of a Y-shaped mechanical or electrical component with no text or symbols

Simple line drawing of a push-button with no text or symbols

Top-down view of a rectangular grid pattern with two side connectors (no text or symbols)

Line drawing of a person performing a dumbbell exercise with a resistance band (no text or symbols)

Line drawing of a person holding two medical devices (no text or symbols)

1. Massaggio al collo

Line drawing of a person performing a physical therapy or massage technique with a bandage and wrist (no text or symbols)

1. Massaggio ai piedi

Line drawing of a person using a handheld device to interact with another person (no text or symbols)

1. Massaggio alle

Line drawing of two identical mechanical components with handles and brackets (no text or symbols)

Simple line drawing of a Y-shaped mechanical or electrical component with no text or symbols

Testina curva per le aree curve

Simple line drawing of a three-tiered mechanical device (no text or symbols)

Pure diagram of a rectangular grid pattern with two side connectors, no text or symbols present.

Line drawing of a person performing a dumbbell exercise with a resistance band (no text or symbols)

1. Rückenmassage

Line drawing of a person holding two medical devices (no text or symbols)

1. Nackenmassage

Line drawing of a person performing a medical or rehabilitation procedure with a bandage and belt (no text or symbols)

1. Fußmassage

Line drawing of a person using a handheld device to lift a body (no text or symbols)

1. Armmassage

Two identical line drawings of a mechanical device with handle and grip (no text or symbols)

Simple line drawing of a Y-shaped mechanical or electrical component with no text or symbols

Simple line drawing of a three-tiered mechanical component (no text or symbols)

Top-down view of a rectangular grid-patterned object with two side panels, no text or symbols present.

Line drawing of a person performing a dumbbell exercise with a resistance band (no text or symbols)

1. Massagem nas costas

Line drawing of a person holding two medical devices (no text or symbols)

1. Massagem no

Line drawing of a person using a belt drive a seated leg (no text or symbols)

1. Massagem nos pés

Line drawing of a person using a handheld device to lift a person's arm (no text or symbols)

1. Massagem nos

Two identical line drawings of a key with handles and a blue bar, shown side by side (no text or symbols)

Simple line drawing of a Y-shaped mechanical component with no text or symbols

Simple line drawing of a three-tiered object resembling a stylus or tray (no text or symbols)

Top-down schematic of a rectangular grid pattern with two side lobes and a central square grid (no text or symbols)

Line drawing of a person performing a dumbbell exercise with a resistance band (no text or symbols)

1. Rugmassage

Line drawing of a person holding two medical devices (no text or symbols)

1. Nekmassage

Line drawing of a person using a belt drive a seated leg (no text or symbols)

1. Voetmassage

Line drawing of a person using a resistance band device (no text or symbols)

1. Armmassage

Two identical line drawings of a key with handles and a blue bar, no text or symbols present.

Simple line drawing of a Y-shaped mechanical component with no text or symbols

Simple line drawing of a stylized object resembling a tray or tool (no text or symbols)

Pure diagram of a rectangular grid pattern with two side lobes, no text or symbols present
