USER MANUAL BF100 Prixton

Line drawing of a cross-legged exercise bike with adjustable arms and legs (no text or symbols)

BICICLETA ESTÁTICA

EXERCISE BIKE

Technical line drawing of a bolt and threaded shaft (no text or symbols)

Simple line drawing of an L-shaped metal bracket (no text or symbols)

Llave Allen

B. Llave

INSTRUCCIONES DE MONTAJE

Technical line drawings of a two-wheeled stationary exercise machine (no text or symbols present)

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawings of a two-wheeled exercise bike with no text or symbols

Technical line drawing of a mechanical bracket with circular holes and a base (no text or symbols)

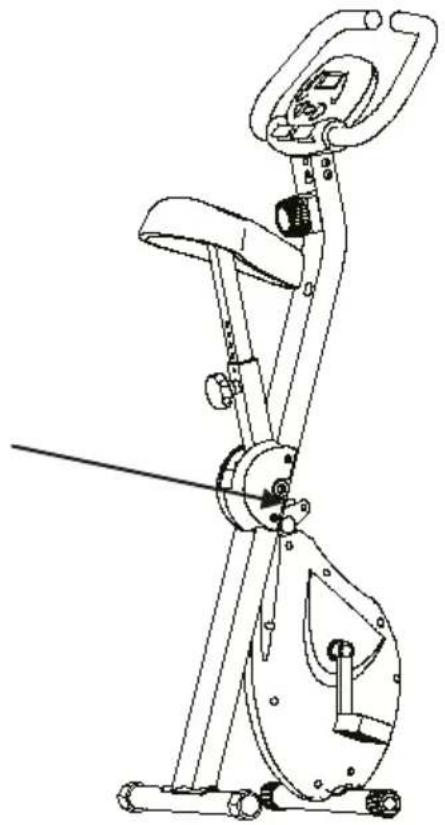

CUIDADO

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a stationary exercise machine with legs, arms, and control panel (no text or symbols)

Line drawing of a person performing a seated leg stretch or exercise (no text or symbols)

Line drawing of a person sitting cross-legged, holding their head in thought (no text or symbols)

Line drawing of a person standing with arms slightly extended (no text or symbols)

Line drawing of a person standing with arms slightly extended (no text or symbols)

Rotación de cuello

Line drawing of a person in motion, viewed from behind with arms raised (no text or symbols)

Line drawing of a person bending forward with hands on hips (no text or symbols)

Illustration of a person performing a stretching exercise with arms raised (no text or symbols)

Basic precautions should always be followed, including the following safety instructions when using this equipment: Read all instructions before using this equipment.

1. Read all the instructions in this manual and do warm up exercises before using this equipment.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every position of the body is necessary. Refer to Warm Up and Cool Down Routine page. After exercise, relaxation of the body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use. This equipment should be placed on a flat surface when using. Using a mat or other covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes that might catch any part of the equipment.
5. Do not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue use and consult an Authorized Service Representative.
6. Do not use the equipment outdoors.
7. This equipment is for household use only.
8. Only one person should be on the equipment while in use.
9. Keep children and pets away from the equipment while in use. This machine is designed for adults only. The minimum free space required for safe operation is not less than two meters.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediately and consult your physician before continuing.
11. The maximum weight capacity for this product is 110kgs.

WARNING:

Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment.

CAUTION:

Read all instructions carefully before operating this product.

Retain this Owner's Manual for future reference.

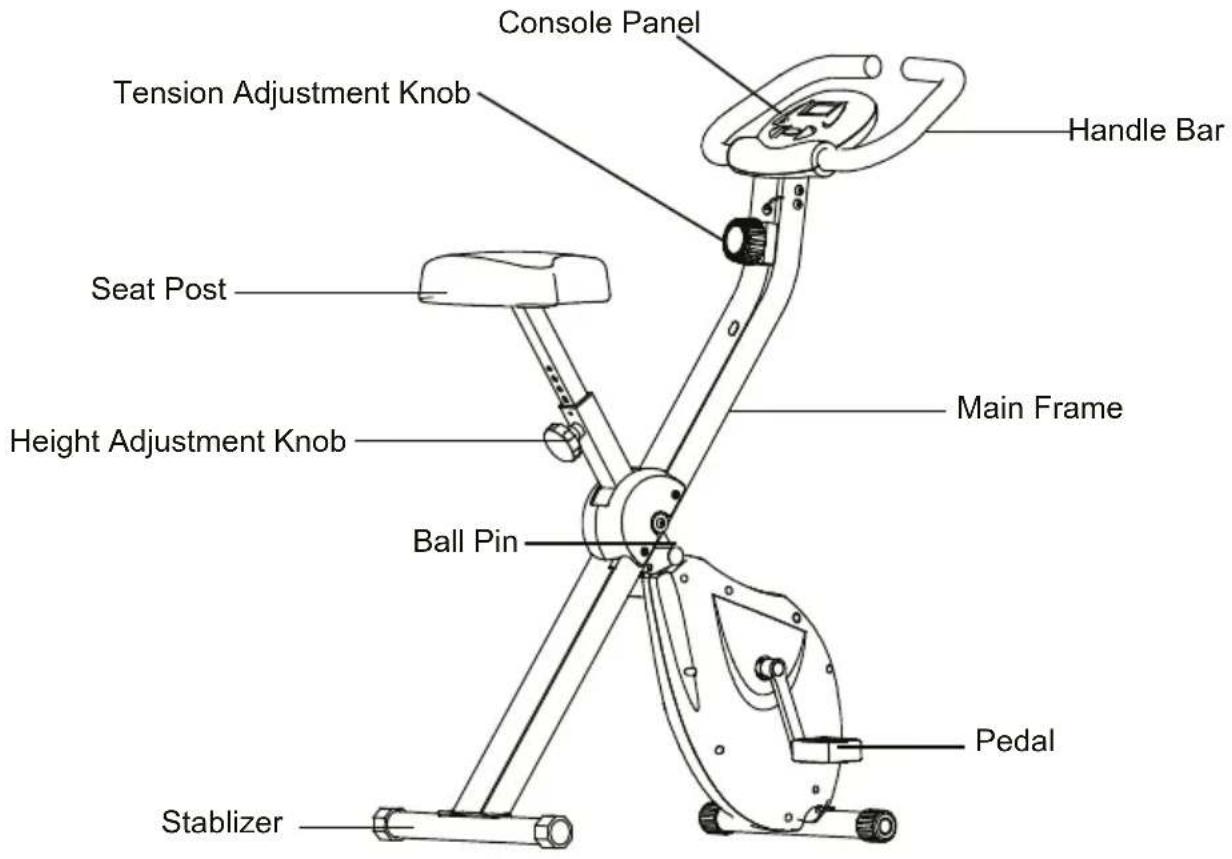

MAIN PARTS LIST

Console Panel Tension Adjustment Knob Handle Bar Seat Post Height Adjustment Knob Ball Pin Main Frame Stablizer Pedal

HARDWARE PACKING LIST

A.

Technical line drawing of a bolt with threaded shaft (no text or symbols)

1. Socket head cap screw
   2.Curved gasket

C.

Simple line drawing of a right-angle pipe fitting (no text or symbols)

Allen wrench

B. Spanner

ASSEMBLY INSTRUCTIONS

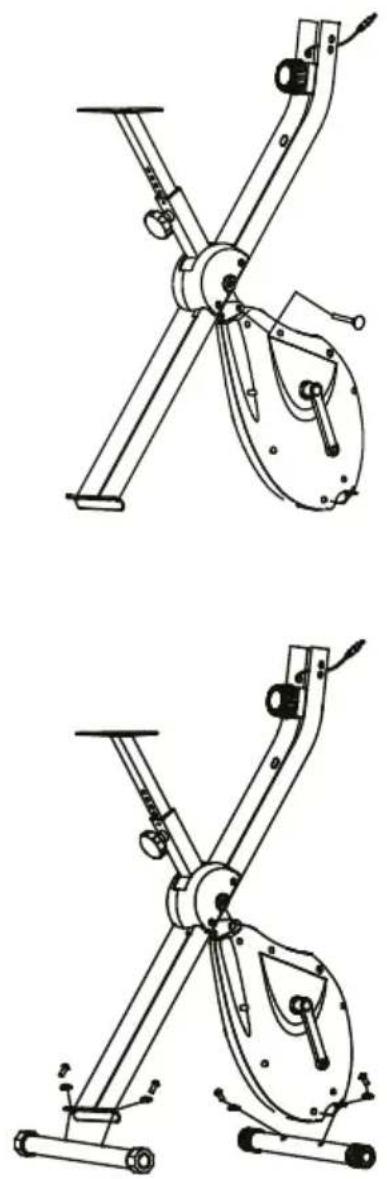

1. Install the Ball Pin.

Pull the ball pin out to expand the main fram.

Technical line drawings of a mechanical exercise machine (no text or symbols present)

2. Install the Front and Rear Stabilizers.

Loose the screws in the stabilizer, and insert them into the corresponding grooves and tighten in each stabilizer.

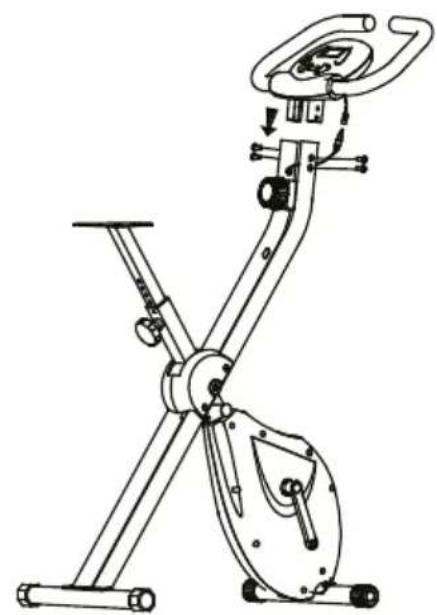

3. Install the Handlebar and Control Panel

Place the handlebar onto the corresponding grooves in the main frame, tighten it with bolts and gaskets. Connect the cords with the corresponding slots, and then place the control panel onto the main frame and tighten.

Line drawing of a cross-legged exercise bike with adjustable arms and legs (no text or symbols)

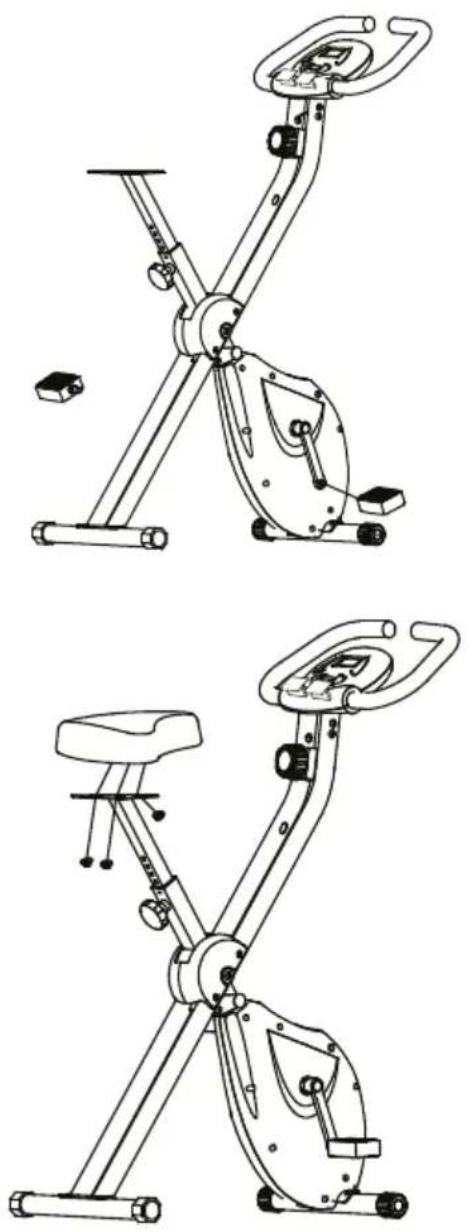

4. Install the Left and Right Pedals.

Attach the left/right pedal onto corresponding axles (left pedal with left-hand thread, right pedal with right-hand thread).

Line drawings of a two-wheeled exercise bike with no text or symbols

5. Install the Back Handlebar and Seat Cushion.

Loose the nylon nut and washer, place the back handlebar onto the triangle plate and tighten. Place the seat cushion onto the plate and tighten.

TENSI For ten adjust To inc tensio It sets It sets

TENSION ADJUSTMENT

For tension adjustment, simply use the tension adjustment knob (18) found beneath the Computer. To increase tension, turn clockwise (+), to decrease tension, turn anti-clockwise (-). It sets the lowest magnetic force on the level 1 It sets the highest magnetic force on the level

HOW TO ADJUST THE SEAT'S HEIGHT:

A. Loose the knob off.

B. Adjust to the required height.

C. Finally tighten the knob

SAFE Storage Instructions

Store your Bike Fit in a dry area away from children and high traffic areas. be sure it is secure and cannot fall forward onto small animals or children.

Technical line drawing of a mechanical bracket with circular holes and a base (no text or symbols)

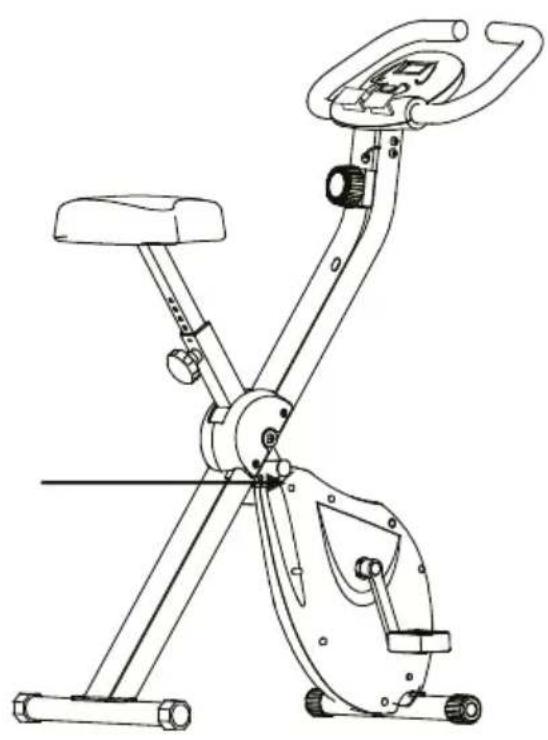

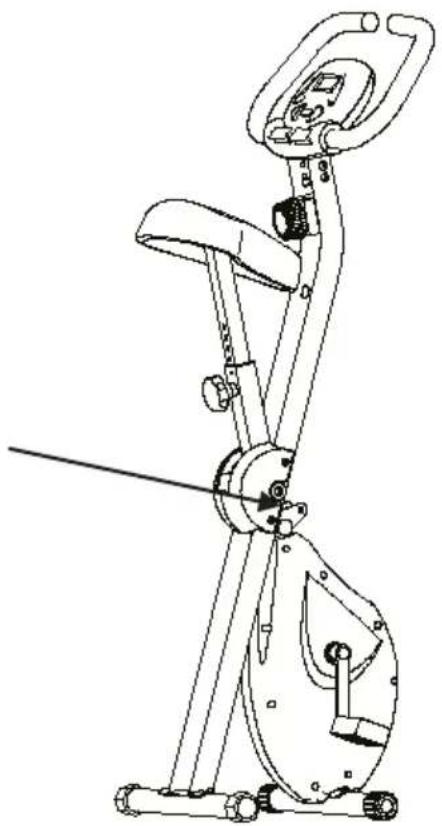

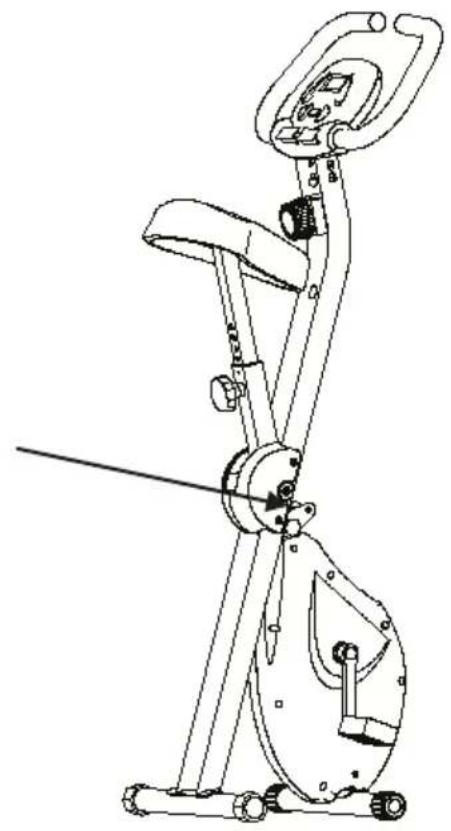

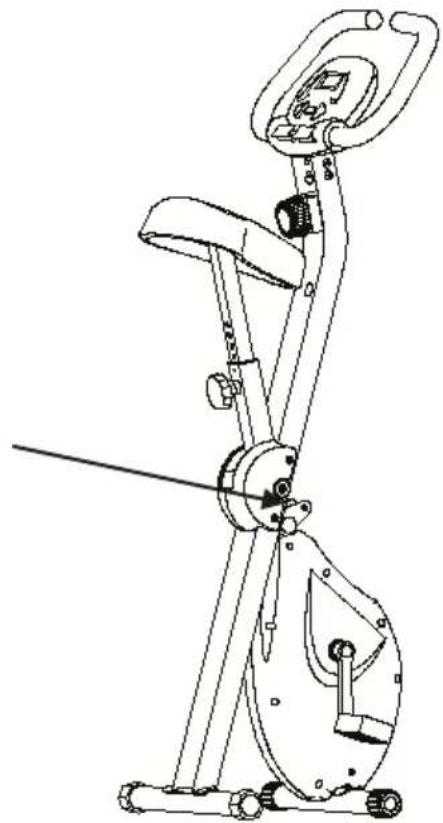

CAUTION:

Don't adjust the height of the seat post over the "STOP" marking shown on the seat post. Or it is dangerous.

HOW TO FOLD THE BIKE FIT

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

1. Pull out the ball pin, and insert it back after folded.

Line drawing of a stationary exercise machine with adjustable arms and legs (no text or symbols)

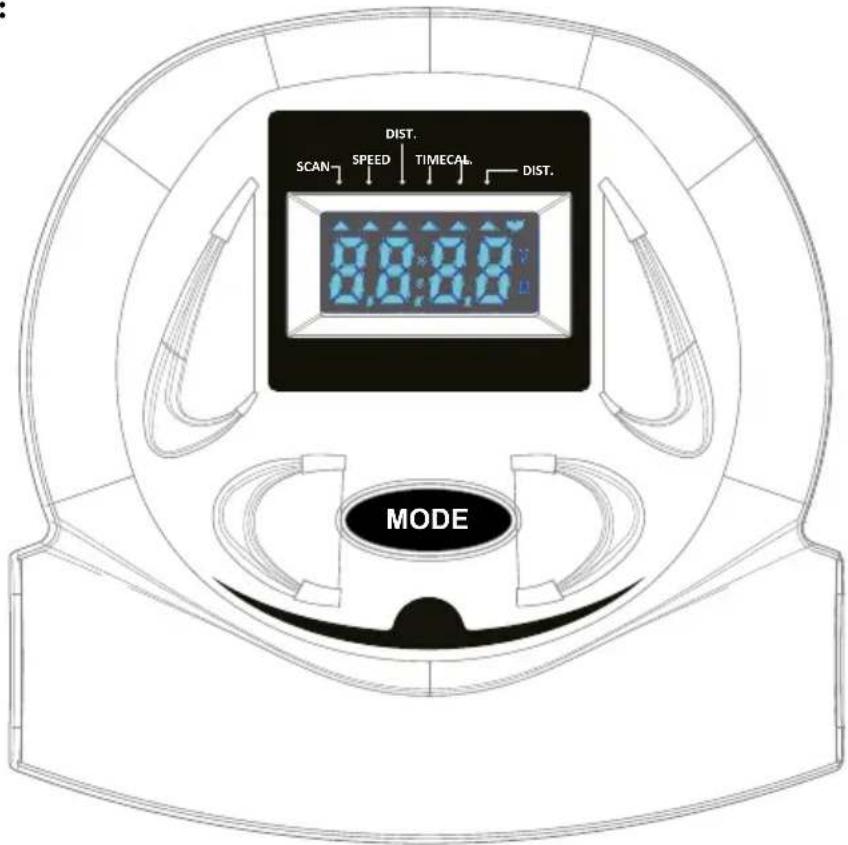

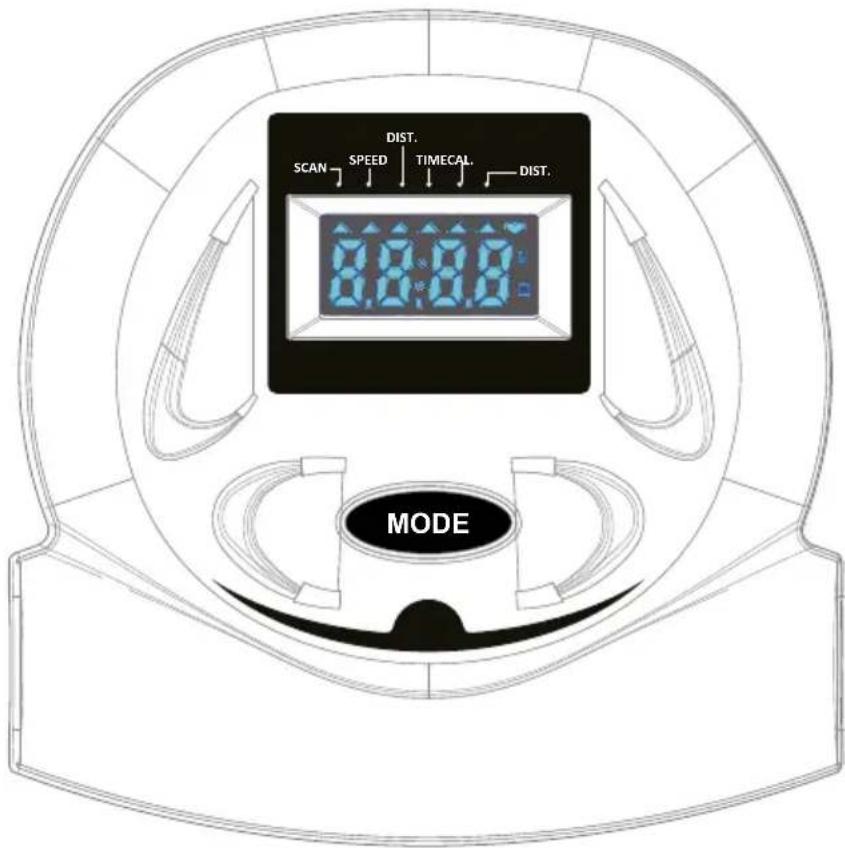

SPECIFICATIONS:

SCAN SPEED DIST. TIMECAL. DIST. 8888 MODE

BUTTON FUNCTIONS

MODE	A.To scan function display and confirm all settings.B.Hold for 3s, then clear all figures and restart.
SET	A.After stop exercising for 4 seconds, press SET key to adjust TIME/DISTANCE/CALORIES value up.B.Long press on SET key, will increase rapidly as hotkey.C.When select function, press SET key to enter into the function.
RESET	A.After stop exercising for 4 seconds, in MODE/SET mode, press RESET key to clear current setting values (except SCAN & SPEED).B.Hold for 3 seconds to restart the computer.
TIME	Display range 00:00 ~99:59; Setting range 0:00~99:00.
SPEED	Display range 0 ~999.9.
DISTANCE	Display range 0~999.9; Setting range 0:00~999.0.
CALORIES	Display range 0 ~999.9; Setting range 0~999.0.

INSTRUCTION

1. When install batteries and power on, LCD will display all segments then enter into the SCAN function mode after one second. Press the MODE key to select the next function.

2. LCD display function Order: SCAN >TMR >SPEED >DIST >CAL >SCAN.

3. When there is signal transmitted to the console without pressing any key, all function TMW/SPD/DST/CAL will start to count up automatically.

4.TMR – Press the SET key to set target time, the increment is 1:00 minute each time; If TIME count down to 0:00 from target value, console will stop and 0:00 is flashing for reminder, press any key to stop it. Then Time will start to count up.

5.SPD – User cannot preset SPEED. When there is signal transmitted to the console, LCD will display current exercising speed.

6.DST - Press SET key to set target distance, the increment is 1.0 m each time. If DISTANCE counts down to 0.0 from target value, console will stop and 0.0 is flashing for reminder, press any key to stop it. Then DISTANCE will start to count up.

7.CAL – Press SET key to set target CALORIES, the increment is 1.0cl each time. If CALORIE counts down to 0.0 from target value, console will stop and 0.0 is flashing for reminder, press any key to stop it. Then CALORIE will start to count up.

Remark:

1. Without any signal been transmitted into the monitor for 4 minutes, the monitor will enter to Standby mode.

2.STOP SIGNAL-STOP signal will light up when SCAN function is under executing.

Trouble shooting:

When the display of LCD is weak, it means the batteries need to be changed. . If there is no signal when you pedal, please check if the cable is well connected.

Warm Up Exercises

A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.

Warming up is an important part of your workout, and should begin every session. It prepares your body for more strenuous exercise by heating up and stretching out your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles. At the end of your workout, repeat these exercises to reduce sore muscle problems. We suggest the following warm-up and cool-down exercises:

Inner Thigh Stretch

Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees towards the floor. Hold for 15 counts.

Line drawing of a person performing a seated stretch or exercise (no text or symbols)

Line drawing of a person sitting cross-legged, holding an object (no text or symbols)

Hamstring Stretch

Sit with your right leg extended. Rest the sole of your left foot against your right inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax and then repeat with left leg extended.

Line drawing of a person standing in a relaxed pose (no text or symbols)

Line drawing of a person wearing a tank top and shorts (no text or symbols)

Shoulder Lift

Lift your right shoulder up toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder.

Calf-Achilles Stretch

Lean against a wall with your left leg in front of the right and your arms forward. Keep your right leg straight and the left foot on the floor; then bend the left leg and lean forward by moving your hips toward the wall. Hold, then repeat on the other side for 15 counts.

Line drawing of a person in athletic attire performing a stretching or martial arts pose (no text or symbols)

Line drawing of a person bending forward with hands on hips (no text or symbols)

Toe Touch

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach down as far as you can and hold for 15 counts.

Side Stretch

Open your arms to the side and continue lifting them until they are over your head. Reach your right arm as far upward toward the ceiling as you can for one count. Feel the stretch up your right side. Repeat this action with your left arm.

Illustration of a person performing a stretching exercise with arms raised (no text or symbols)

TROUBLE SHOOTING GUIDE

1. Verify that all the bolts and nuts are locked properly and the turning parts should be turned freely without damaged parts.
2. Clean the equipment with soap and slightly damp cloth only. Please do not use any solvent to clean the equipment.

Problem	Potential Cause	Corrections
Base is unstable.	1.Floor is not flat or there is small object under the front or rear stabilizer.2.The rear stabilizer end caps have not been leveled when adjusting.	1.Remove the object.2.Adjust the rear stabilizer end caps.
Handlebar is shaking.	The Bolts are loose.	Tighten the Bolts.
Loud noise from the moving parts.	The interval of the parts is improper tighten.	Open the covers to adjust.
No resistance when riding the bike.	1.The interval of the magnetic resistance increases.2.Tension control knob is damaged.3.Belt slips.4.The bearing set is damaged.	1.Open the covers to adjust.2.Change the tension control knob.3.Open the covers to adjust.4.Change the bearing set.

PRODUCT SPECIFICATION

N.W/G.W:14/16.5KG

Max User Weight: 110KGS

C€

This exercise device is designed only for use at home. EXERCISE DEVICES CLASS HC ARE NOT SUITABLE FOR THERAPEUTIC PURPOSES! Your physician should perform a general health examination prior to starting your exercise program and discuss any possible hurt, circulatory or orthopedic issues.

Warranty Policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL DESCRIPTION	CATEGORY
PRIXTON	BIKE FITBF100	EXERCISE BIKE	FITNESS

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address: www.prixton.com

LA TRASTIENDA DIGITAL

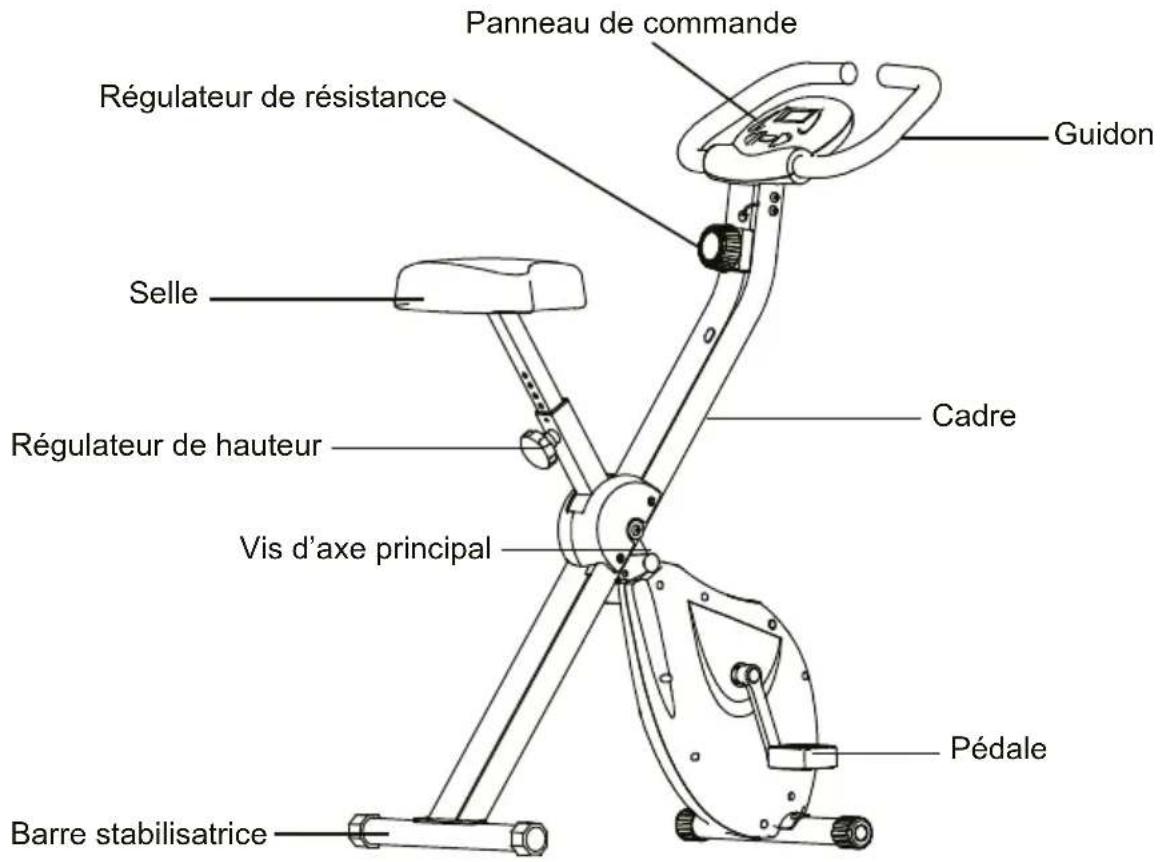

PARTIES PRINCIPALES

Technical line drawing of a bolt with threaded end (no text or symbols)

Simple line drawing of a right-angle pipe fitting (no text or symbols)

Clé Allen

Simple line drawing of a hammer or plunger with no text or symbols

Clé

INSTRUCTIONS DE MONTAGE

Technical line drawing of a mechanical device with levers and gears (no text or symbols)

Technical line drawing of a cross-shaped exercise machine (no text or symbols)

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a cross-legged exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a cross-shaped exercise bike with adjustable arms and legs (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a curved base (no text or symbols)

ATTENTION:

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a stationary exercise machine with legs and control panel (no text or symbols)

Technical line drawing of a bolt with threaded end (no text or symbols)

Simple line drawing of a right-angle pipe fitting (no text or symbols)

Chiave a brugola

B. Chiave

Technical line drawing of a mechanical device with levers and gears (no text or symbols)

Technical line drawing of a mechanical exercise machine (no text or symbols)

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawings of a two-wheeled exercise bike with no visible text or symbols

Technical line drawing of a mechanical bracket with circular holes and a base (no text or symbols)

ATTENZIONE:

Line drawing of a cross-legged exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Technical line drawing of a bolt with threaded shaft (no text or symbols)

Simple line drawing of an L-shaped metal angle (no text or symbols)

Inbusschlüssel

Simple line drawing of a hammer or plunger with no text or symbols

Schlüssel

MONTAGEANWEISUNGEN

Technical line drawing of a mechanical device with levers and gears (no text or symbols)

Technical line drawing of a cross-shaped exercise machine (no text or symbols)

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Technical line drawings of a two-wheeled exercise bike (no text or symbols present)

Technical line drawing of a mechanical bracket with circular holes and a base (no text or symbols)

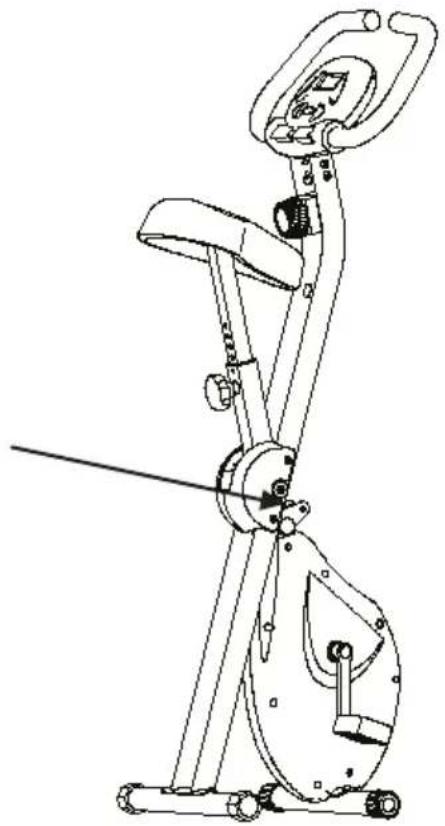

ACHTUNG:

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a stationary exercise machine with adjustable arms and legs (no text or symbols)

Technical line drawing of a bolt with threaded shaft (no text or symbols)

Simple line drawing of an L-shaped metal angle (no text or symbols)

Chave Sextavada

B. Chave

INSTRUÇÕES DE MONTAGEM

Technical line drawing of a mechanical device with levers and gears (no text or symbols)

Technical line drawing of a mechanical exercise machine (no text or symbols present)

Line drawing of a cross-legged exercise bike with control panel and motion arrows (no text or symbols)

Technical line drawings of a two-wheeled exercise bike (no text or symbols present)

Technical line drawing of a mechanical bracket with mounting holes (no text or symbols)

CUIDADO:

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a stationary exercise machine with adjustable arms and legs (no text or symbols)

Technical line drawing of a mechanical component with a flanged shaft and threaded end (no text or symbols)

Simple line drawing of a bent pipe or corner joint (no text or symbols)

Inbussleutel

Simple line drawing of a hammer and sickle (no text or symbols)

Sleutel

MONTAGE-INSTRUCTIES

Technical line drawing of a mechanical device with levers and gears (no text or symbols)

Technical line drawing of a cross-shaped exercise bike (no text or symbols)

Line drawing of a cross-legged exercise bike with a head-mounted device and motion arrows indicating movement (no text or symbols)

Line drawings of a two- Ebats exercise bike with no text or symbols

Technical line drawing of a mechanical bracket or bracket with circular holes and a base (no text or symbols)

OPGELET:

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

Line drawing of a stationary exercise machine with adjustable arms and legs (no text or symbols)

SPECIFICATIES:

SCAN SPEED DIST. TIMECAL. DIST. 8:8:8:8 MODE

FUNCTIES VAN DE KNOPPPEN
