USER MANUAL SP 17.000 Flat Level Sensor Kärcher

• stellen. Verlängerte Nachlaufzeit Der Level-Sensor ist verschmutzt. 1. Den Level-Sensor reinigen. Fehler Ursache Behebung SP 17.000 Flat Level Sensor SP 22.000 Dirt Level Sensor Leistungsdaten Gerät Netzspannung V 230-240 230-240 Netzfrequenz Hz 50 50 Nennleistung W 550 750 Fördermenge maximal l/h 17.000 22.000 Druck (max.) MPa (bar) 0,09 (0,9) 0,08 (0,8) Förderhöhe (max.) m 9 8 Eintauchtiefe (max.) m 7 7 Zul. Temp. Förderflüs- sigkeit °C 5 p. 35
• Partikelgröße (max.) der zulässigen Förder- flüssigkeiten mm 5 30 Mindestflüssigkeitshö- he (manueller Modus) mm 7 50 Restflüssigkeitshöhe mm 1 35 Gewicht (ohne Zube- hör) kg 6 6,7 SP 17.000 Flat Level Sensor SP 22.000 Dirt Level SensorEnglish 9 EU-Konformitätserklärung Hiermit erklären wir, dass die nachfolgend bezeichnete Maschine aufgrund ihrer Konzipierung und Bauart so- wie in der von uns in Verkehr gebrachten Ausführung den einschlägigen grundlegenden Sicherheits- und Ge- sundheitsanforderungen der EU-Richtlinien entspricht. Bei einer nicht mit uns abgestimmten Änderung der Ma- schine verliert diese Erklärung ihre Gültigkeit. Produkt: Pumpe Typ: 1.645-xxx Einschlägige EU-Richtlinien 2014/35/EU 2014/30/EU 2011/65/EU 2009/125/EG Angewandte Verordnung(en) (EU) 2019/1781 Angewandte harmonisierte Normen EN 60335-1 EN 60335-2-41 EN 62233: 2008 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN IEC 63000: 2018 Die Unterzeichnenden handeln im Auftrag und mit Voll- macht des Vorstands. Dokumentationsbevollmächtigter: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Tel.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2021/06/01 Contents General notes Read these original operating instruc- tions and the enclosed safety instruc- tions before using the device for the first time. Proceed accordingly. Keep both books for future reference or for future own- ers. Intended use Only use the device in private households. Intended use: ● Removal of water from building sections in the event of flooding ● Transferring and pumping water from containers ● Water removal from wells and shafts ● Pumping fresh water out of boats and yachts For notes on functional principle, see chapter Opera- tion. Permissible feed fluids DANGER Danger of death and risk of damage when pumping explosive, flammable or unsuitable substances! Flammable or explosive substances may ignite or ex- plode. Unsuitable substances can damage the pump. Do not pump explosive, flammable or corrosive liquids or gases (e.g. fuels, petroleum, nitro thinner) and do not pump fats, oils, salt water or waste water from sanitary facilities or water that has a lower flowing ability than clean water. Permissible feed fluids: ● Fresh water up to a certain degree of soiling SP 17000 Flat Level Sensor: Water with a degree of soiling up to grain size 5 mm SP 22000 Dirt Level Sensor: Water with a degree of soiling up to grain size 30 mm ● Swimming pool water with intended dosage of addi- tives ● Washing lye, e.g. from leaking washing machines. Then rinse and clean the pump with clear fresh wa- ter, see chapter Rinsing and cleaning. ● The temperature of the pumped liquids must lie be- tween 5 °C and 35 °C. General notes p. 9
• Intended use p. 9
• Hazard levels p. 10
• Environmental protection p. 10
• Accessories and spare parts p. 10
• Scope of delivery p. 10
• Warranty p. 10
• Device description p. 10
• Initial startup p. 10
• Operation p. 11
• Care and maintenance p. 12
• Transport p. 12
• Storage p. 12
• Troubleshooting guide p. 12
• Technical data p. 13
• Optimising the flow rate p. 13

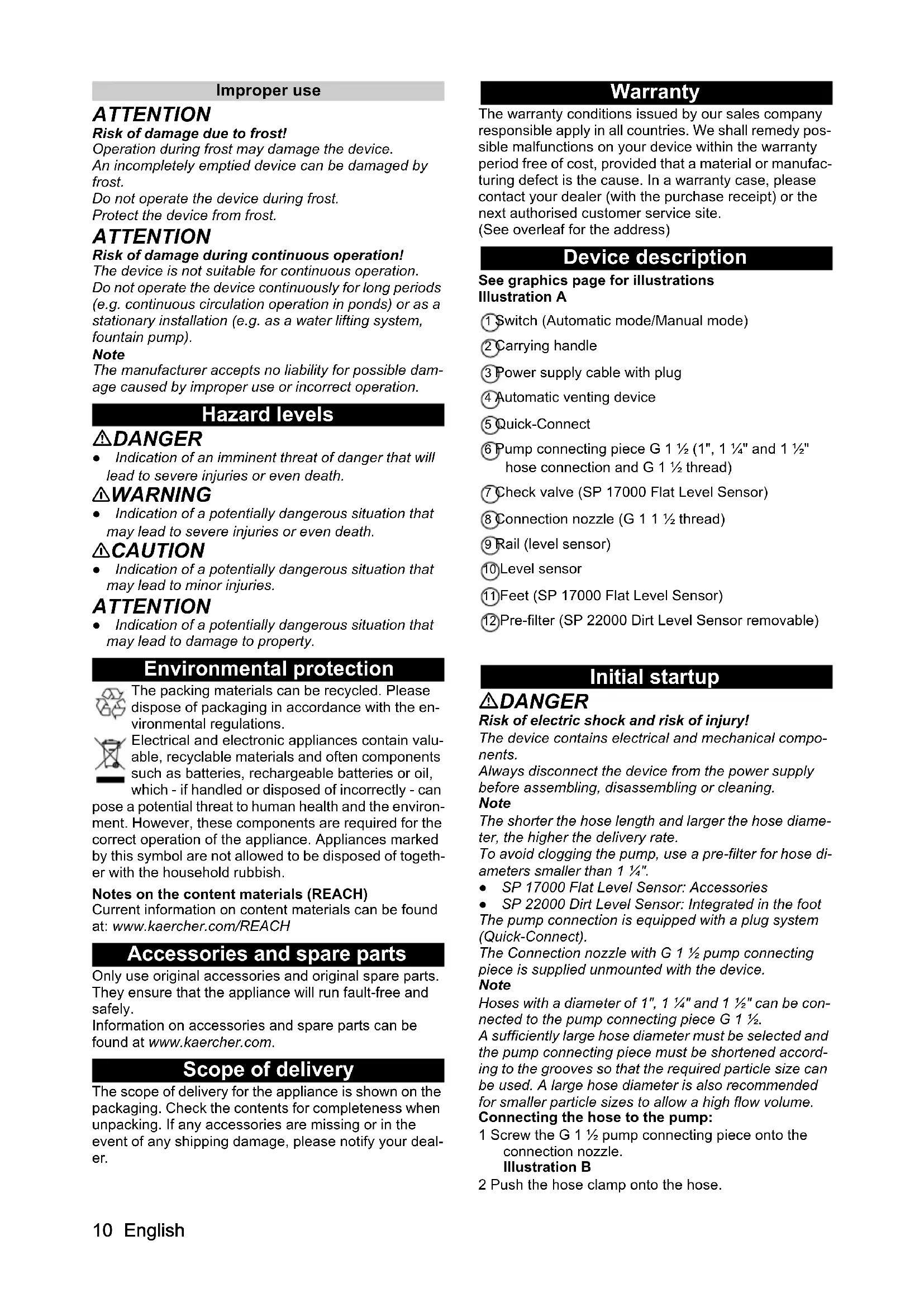

• Declaration of Conformity English Improper use ATTENTION Risk of damage due to frost! Operation during frost may damage the device. An incompletely emptied device can be damaged by frost. Do not operate the device during frost. Protect the device from frost. ATTENTION Risk of damage during continuous operation! The device is not suitable for continuous operation. Do not operate the device continuously for long periods (e.g. continuous circulation operation in ponds) or as a stationary installation (e.g. as a water lifting system, fountain pump). Note The manufacturer accepts no liability for possible dam- age caused by improper use or incorrect operation. Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dangerous situation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dangerous situation that may lead to minor injuries. ATTENTION ● Indication of a potentially dangerous situation that may lead to damage to property. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Warranty The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy pos- sible malfunctions on your device within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Device description See graphics page for illustrations Illustration A 1 Switch (Automatic mode/Manual mode) 2 Carrying handle 3 Power supply cable with plug 4 Automatic venting device 5 Quick-Connect 6 Pump connecting piece G 1 ½ (1", 1 ¼" and 1 ½" hose connection and G 1 ½ thread) 7 Check valve (SP 17000 Flat Level Sensor) 8 Connection nozzle (G 1 1 ½ thread) 9 Rail (level sensor) 10 Level sensor 11 Feet (SP 17000 Flat Level Sensor) 12 Pre-filter (SP 22000 Dirt Level Sensor removable) Initial startup DANGER Risk of electric shock and risk of injury! The device contains electrical and mechanical compo- nents. Always disconnect the device from the power supply before assembling, disassembling or cleaning. Note The shorter the hose length and larger the hose diame- ter, the higher the delivery rate. To avoid clogging the pump, use a pre-filter for hose di- ameters smaller than 1 ¼″. ● SP 17000 Flat Level Sensor: Accessories ● SP 22000 Dirt Level Sensor: Integrated in the foot The pump connection is equipped with a plug system (Quick-Connect). The Connection nozzle with G 1 ½ pump connecting piece is supplied unmounted with the device. Note Hoses with a diameter of 1″, 1 ¼″ and 1 ½″ can be con- nected to the pump connecting piece G 1 ½. A sufficiently large hose diameter must be selected and the pump connecting piece must be shortened accord- ing to the grooves so that the required particle size can be used. A large hose diameter is also recommended for smaller particle sizes to allow a high flow volume. Connecting the hose to the pump: 1 Screw the G 1 ½ pump connecting piece onto the connection nozzle. Illustration B 2 Push the hose clamp onto the hose.English 11 3 Push the hose onto the G 1 ½ pump connecting piece and fasten it with a hose clamp. 4 Push the connection nozzle into the Quick-Connect. Illustration C Erecting/immersing the pump: 1 Push the level sensor onto the rail from above. Illustration D 2 Fold the feet out or in. (SP 17000 Flat Level Sensor) Illustration E Note The feet do not necessarily need for be folded out bit folding out the feet provides a higher delivery rate. Fold- ing the feet in allows flat suction of liquids to a residual fluid height of 1 mm. 3 Installing/removing the pre-filter. (SP 17000 Flat Level Sensor) Illustration E Note It is not necessary to install the pre-filter, but a higher delivery rate is reached by installing the pre-filter (only for SP 17000 Flat Level Sensor). The pumped liquid is pre-filtered by the pre-filter to protect the pump from heavy contamination. Particles of up to 5 mm can still be pumped when using the filter. Removing the pre-filter al- lows flat suction of liquids to a residual fluid height of 1 mm. (only for SP 17000 Flat Level Sensor). 4 Place the pump securely on solid ground in the pumped liquid or immerse it via a rope attached to the carrying handle. Note The suction area must not be blocked by soiling. If the ground is muddy, place the pump on a brick or similar. Make sure that the pump stands level. Do not carry the pump using the cable or hose. Operation DANGER Danger of death from electric shock. Danger of death from electric shock if live parts are touched. During operation, do not touch the rope attached to the carrying handle or any objects that are in contact with the pumped liquid (e.g. pipelines protruding into the pumped liquid, railings) and do not reach into the pumped liquid. Automatic venting device p. 1310

1. If the fluid level is low, any sucked-in air, or air pres-

ent in the pump, may escape via the automatic vent- ing device. Fluid can also leak along with air. If the pump has problems with suction when the fluid level is low, unplug and plug in the mains plug re- peatedly to assist the suction process. Illustration F Automatic mode Note In automatic mode, the level sensor controls the pump- ing process automatically. The pump switches on when the level sensor makes contact with the rising pumped liquid. The pump switches off when the level sensor loses con- tact with the falling pumped liquid and an after-running time of 15 s has expired. Illustration G Switching on: Minimum fluid level required to enable the pump to suck independently (= minimum switch-on point): ● SP 17000 Flat Level Sensor: 7 mm (57 mm when using the pre-filter) ● SP 22000 Dirt Level Sensor: 50 mm Highest adjustable switching height of the level sensor: ● SP 17000 Flat Level Sensor: 190 mm (240 mm when using the pre-filter) ● SP 22000 Dirt Level Sensor: 237 mm Minimum residual fluid height/max. suction depth: ● SP 17000 Flat Level Sensor: 1 mm (without pre-fil- ter, with folded feet) ● SP 22000 Dirt Level Sensor: 35 mm Note It is recommended to use the pre-filter. Note Make sure that the pump stands level. Otherwise the level sensor may not lose contact with the fluid and the pump can run dry.

1. Push the level sensor to the desired switch

-on height (contact with the pumped liquid). Note The higher the level sensor is set, the higher the switch- on and switch-off points. See the following table for ap- plication examples:

3. Plug the mains plug into a mains socket.

Manual mode Note In manual mode, the pump stays switched on.

2. Plug the mains plug into a mains socket.

ATTENTION Risk of damage from dry running! Dry running leads to increased wear on the pump. Do not leave the pump unattended in manual operation. In case of dry running, immediately pull the mains plug out of the socket. Application area SP 17000 Flat Level Sensor SP 22000 Dirt Level Sensor Shafts with a di- ameter < approx. 1 m (e.g. drain- age) Level sensor in uppermost posi- tion Level sensor in uppermost posi- tion We recommend- ed using the pre- filter Pre-filter flap closed (protection against soiling) Swimming pools, ponds (only for SP 22000 Dirt Level Sensor) Level sensor in lowest position Level sensor in lowest position Starting pumping with the pre-filter or folded-out feet Pre-filter flap closed (protection against soiling) Continuing pump- ing without the pre-filter and fold- ed-in feet (reach- es a residual fluid height of 1 mm) Note Perform in manu- al mode. Monitor the switch-off/ shallow suction.12 English Flat suction (SP 17000 Flat Level Sensor) It is recommended to use manual mode to reach the min. residual fluid height of 1 mm. A check valve is installed in the SP 17000 Flat Level Sensor. This prevents residual fluid in the hose from flowing back after the pumping process finishes. Finishing operation

1. Pull the mains plug out of the socket.

The device stops. ATTENTION Risk of damage! Risk of damage due to dried soiling or additives. Rinse and clean the device immediately after each use.

2. If dirty liquids or liquids with additives have been

pumped, rinse and clean the device immediately af- ter finishing operation, see chapter Rinsing and cleaning.

3. Drain the device and accessories and let them dry.

Care and maintenance DANGER Risk of electric shock and risk of injury! The device contains electrical and mechanical compo- nents. Cleaning and user maintenance may not be carried out by children. Rinsing and cleaning ATTENTION Risk of damage! Risk of damage due to dried soiling or additives. Rinse and clean the device immediately after each use. 1 If dirty liquids or liquids with additives have been pumped, the device must be rinsed afterwards: Use the device to pump clear fresh water without addi- tives until all soiling or additives have been flushed out of the device. DANGER Risk of electric shock and risk of injury! The device contains electrical and mechanical compo- nents. Always disconnect the device from the power supply before assembling, disassembling or cleaning. 2 Pull the mains plug out of the socket. 3 Press the Quick-Connect button and remove the connection nozzle. Illustration C 4 Where necessary, remove residue from the hose and on Quick-Connect. 5 Clean the outside of the device with a soft, clean cloth and clear fresh water. 6 Drain the device and accessories and let them dry. Service The device is maintenance-free. Transport Manual transport 몇 CAUTION Risk of injury from tripping! There is a risk of injury from tripping on loose cables and hoses. Be careful of cables and hoses when moving the device.

1. Lift and carry the device by the carrying handle.

Transport in vehicles 몇 WARNING Risk of injury, risk of damage! Note the weight of the device during transport. Store or secure the device in accordance with applica- ble guidelines so that it cannot slip or be thrown around during transport.

2. When transporting the device in vehicles, secure it

to prevent it from slipping or overturning in accord- ance with the respectively applicable guidelines. Storage ATTENTION Risk of damage due to frost! An incompletely emptied device can be damaged by frost. Completely empty the device and accessories before storing them. Protect the device from frost. Store the device in a frost-free place and not outdoors. 몇 CAUTION Risk of injury and damage! The device may tip over on sloping surfaces. Be aware of the weight of the device during storage.

1. Completely empty the pump and accessories.

2. Allow the pump and accessories to dry out.

3. Store the pump in a frost-protected place.

Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. Fault Cause Rectification The pump is running, but not delivering Air is in the pump. 1. Pull the mains plug out of the socket and plug it in again several times, until the liquid is drawn in. The suction area is clogged. 1. Pull the mains plug out of the socket.

2. Clean the suction area.

Water level below the minimum liquid lev- el.

1. Immerse the pump deeper into the pumped

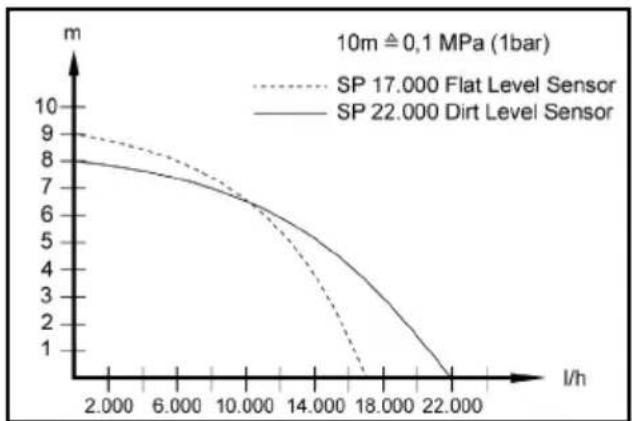

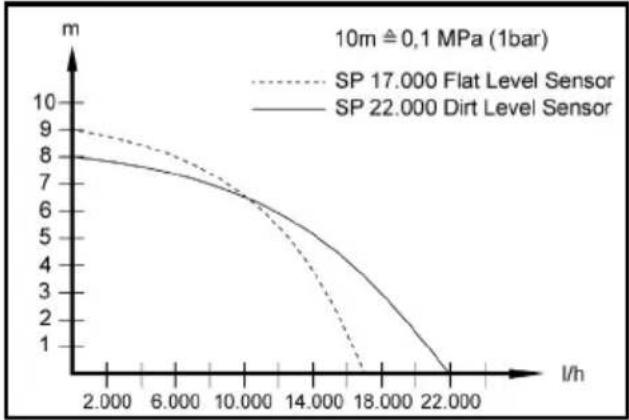

liquid if possible, see chapter Operation.English 13 Technical data Subject to technical modifications. Optimising the flow rate The flow rate is further increased: ● The lifting height is reduced. ● The diameter of the hose used is increased. ● The length of the hose used is decreased. ● The smaller the pressure loss caused by the con- nected up accessories. Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design The pump does not start up, or stops suddenly during operation The power supply is disconnected. 1. Check the fuses and the electrical connec- tions. The thermal protection switch has switched off the pump because of over- heating.

1. Pull the mains plug out of the socket.

2. Allow the pump to cool down.

3. Remove any dirt particles in the suction ar-

4. Clean the suction area.

5. Prevent the pump from running dry.

Dirt particles block the suction area. 1. Pull the mains plug out of the socket.

2. Clean the suction area.

The level sensor stops the pump. 1. Check the position of the level sensor and correct if necessary. Note The pump stops 15 s after the level sensor no longer has contact with the water. The level sensor does not react because it is soiled.

1. Clean the level sensor.

The pumping capacity decreases The suction area is clogged. 1. Pull the mains plug out of the socket.

2. Clean the suction area.

The delivery rate is too low The maximum delivery head is exceed- ed. The hose diameter and the hose length have been selected incorrectly.

1. Observe the maximum delivery head, see

ter or a shorter hose length, see chapter Optimising the flow rate. Quick-Connect cannot be opened or closed The push-fit system is dirty. 1. Remove the clip.

3. Install the clip.

The pump runs although the level sensor has no contact with the water The level sensor does not react because it is soiled.
