USER MANUAL ICY FDM1BTC2000 WILFA

Exterior view of a black Wilfa kitchen blender with digital display (no text or symbols on device)

ICY

FROZEN DRINK MAKER FDM1B-TC2000

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

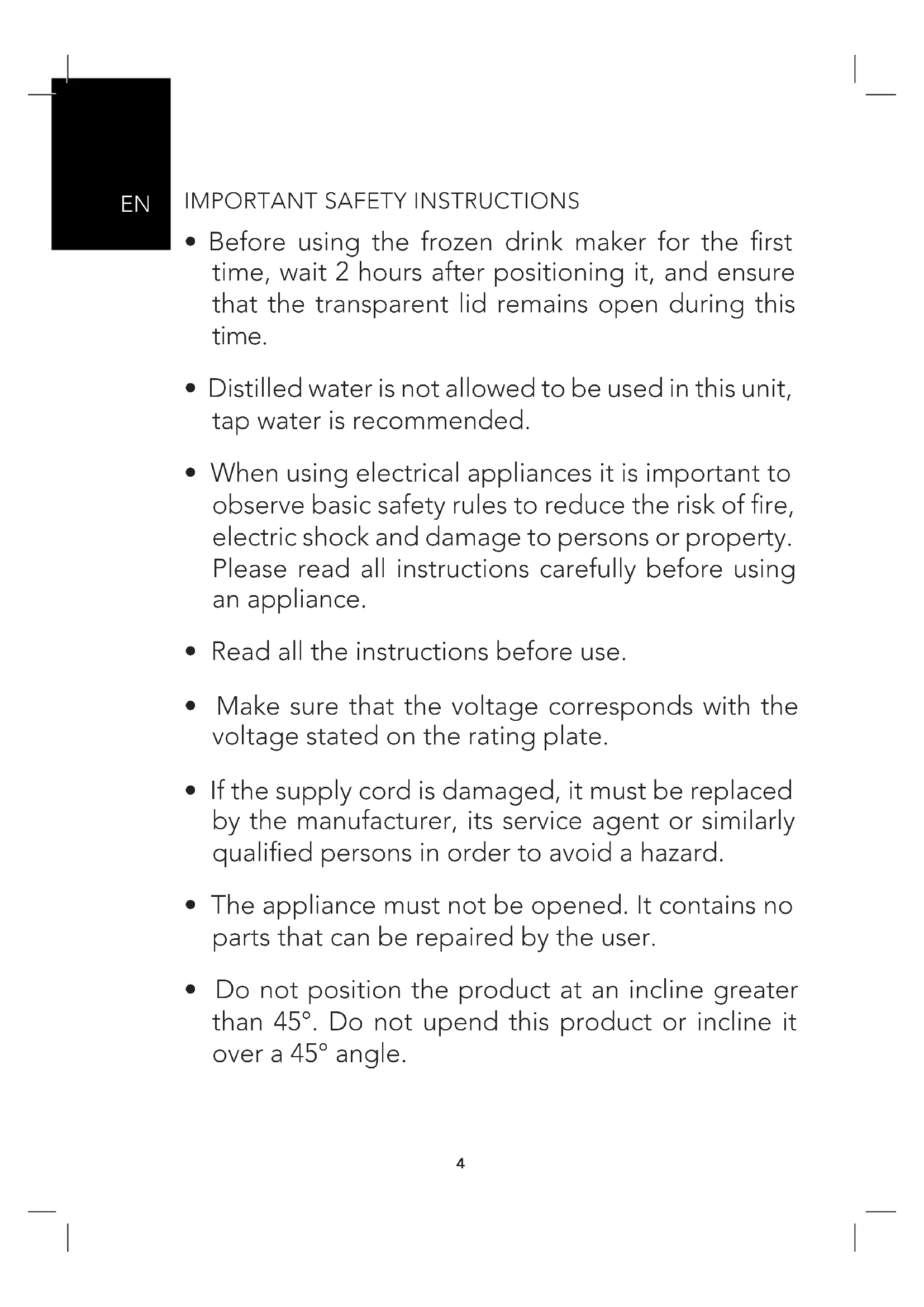

IMPORTANT SAFETY INSTRUCTIONS

• Before using the frozen drink maker for the first time, wait 2 hours after positioning it, and ensure that the transparent lid remains open during this time.
• Distilled water is not allowed to be used in this unit, tap water is recommended.
• When using electrical appliances it is important to observe basic safety rules to reduce the risk of fire, electric shock and damage to persons or property. Please read all instructions carefully before using an appliance.
• Read all the instructions before use.
• Make sure that the voltage corresponds with the voltage stated on the rating plate.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance must not be opened. It contains no parts that can be repaired by the user.

• Do not position the product at an incline greater than 45^ . Do not upend this product or incline it over a 45^ angle.

• Do not pour water on the ventilation openings, cord or plug.

• Do not immerse the appliance in water or other liquid.
• Disconnect the appliance after use or before cleaning.
• Provide good ventilation around the appliance, a minimum of 10 cm.
• Only use accessories recommended by the manufacturer.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not use this appliance near flames, hot plates or a stove.

EN

• Do not insert objects into the machine through the ventilation openings. This can cause electric shock or fire.
• Do not start the appliance until you have fitted the tank and stirring blades.
• Do not use outdoors.
• Never clean with scouring powder or other hard objects.
• Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This product is intended for indoor, non-industrial, non-commercial; household use only.
• Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Warning: When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

The refrigerant isobutene (R290) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R290) is flammable.

Caution: risk of fire / Flammable materials.

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

TIME 8:8:8 F Thickness + Slush Frappe Milkshake Slush Cocktails Frozen Drinks Clean Control Lock Timer I II

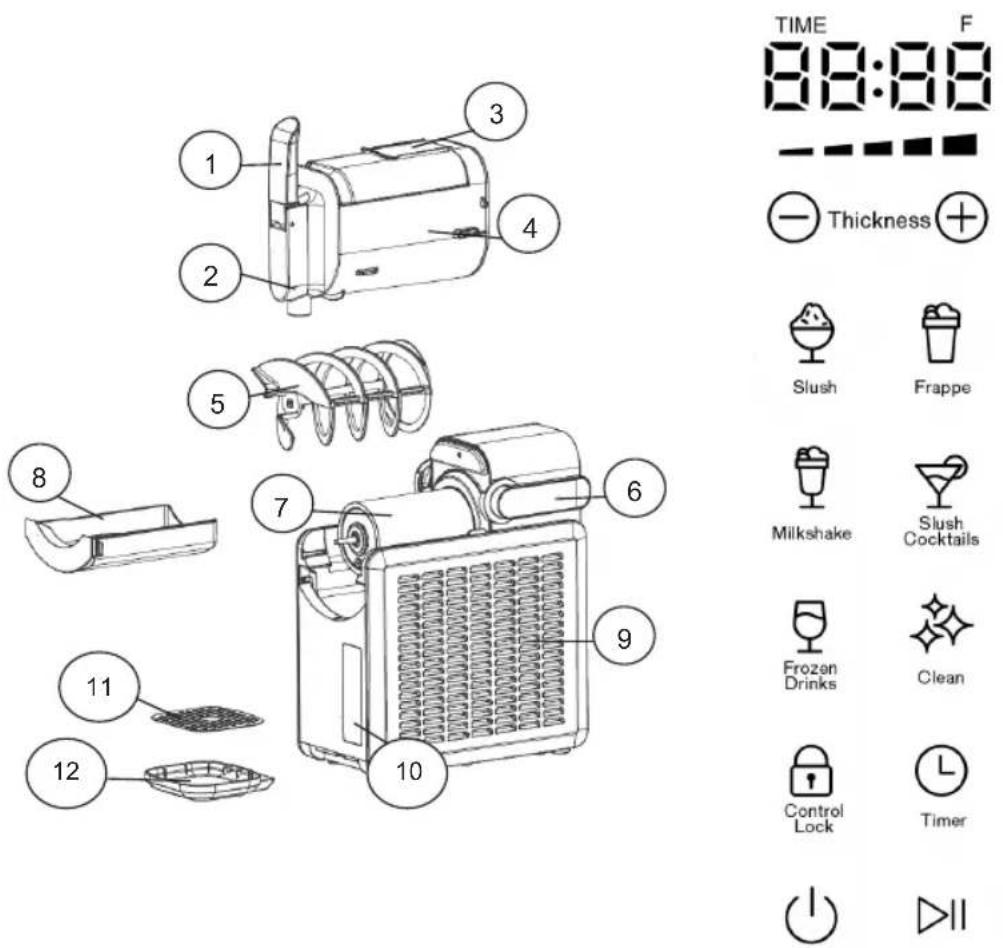

Key components:

1. Handle
2. Dispenser
3. Top lid
4. Tank
5. Stirring blades
6. Tank lock handle
7. Evaporator
8. Water tray
9. Housing
10. Control panel
11. Drip tray cover
12. Drip tray

Control panel:

1. Display
2. Thickness display
3. Thickness adjustment
4. Slush preset
5. Frappe preset
6. Milkshake preset
7. Slush cocktail preset
8. Frozen drink preset
9. Clean
10. Child lock
11. Timer - delay function
12. On/Off button
13. Start/pause button

BEFORE USE

Note: Read all the warnings before using the appliance.

1. Place the slush machine on a flat, stable surface.
2. Clean all parts that touch the liquid, including the evaporator, tank, and stirring blades. Ensure the power cord is unplugged before cleaning. (See "cleaning and maintenance" for detailed cleaning instructions).

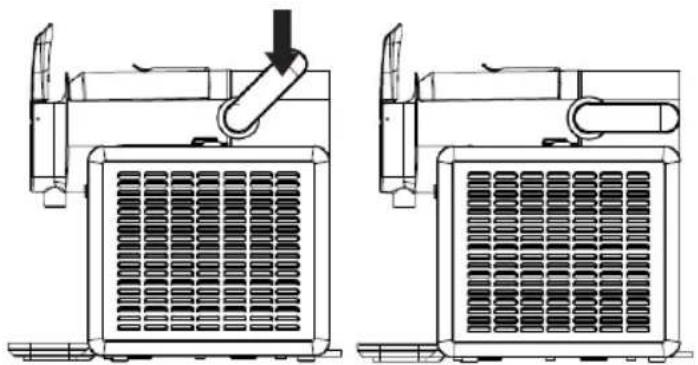

3. Assemble the tank by sliding it over the stirring blades and evaporator. Lock it into place by pushing the handle down as shown in the figure.

Technical line drawing of two identical HVAC unit designs with heat sinks and a downward arrow indicating airflow direction (no text or symbols)

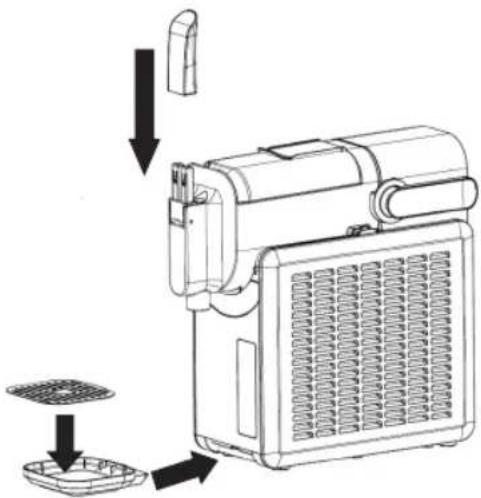

1. Assemble the handle and drip tray as shown in the figure.

Diagram showing a device with labeled parts and directional arrows indicating process steps

EN

Preset Ingredients Examples

Slush Ready-to-drink or infused beverages containing high sugar content.		Lemonade, soda.
Frappe Coffee, tea, or other ready-to-drink and infused beverages with added sugar.		Frappe, ready to use frappe mix.
Milkshake Dairy-based beverages such as milk or yoghurt, plant-based alternatives.		Chocolate milk, milkshake.
Slush cocktails	Liqueurs, spirits (mixed with non-alcoholic beverages), wine, or low alcohol by volume liquids.	Margarita, rosé wine, premixed spirits and cocktails.
Frozen drinks	Fresh juices (without pulp), fruit-based juices, fruit sodas, or similar beverages.	Orange juice, mango juice, soda.

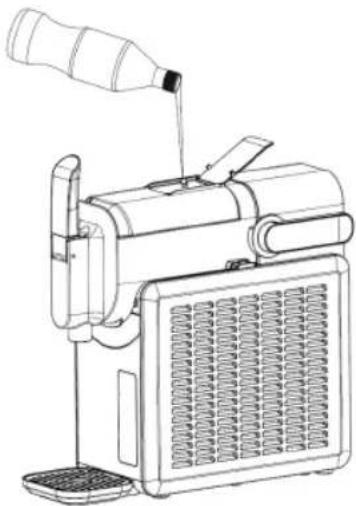

1. Ensure that the water tray, stirring blades and tank are securely installed. Open the lid on top of the tank and pour your prepared liquid into the tank, keeping it between the Minimum and Max (1.50L) levels.

Line drawing of a mechanical device with a bottle pouring liquid into it (no text or symbols)

1. Close the lid securely.

2. Plug in the machine. The on/off button will flash. Press it to activate the control panel.

3. Select your desired preset:

4. Slush

5. Frappe
6. Milkshake
7. Slush cocktails

8. Frozen drinks

9. Adjust the thickness using the "+" or "-" buttons. The higher the number of bars, the lower the temperature.

10. Press the start button to start the machine. The child lock will activate after 1 minute of inactivity. To deactivate, press and hold the child lock button for 3 seconds.

AFTER PREPARATION

- Once the slush is ready, the machine will alert you with a buzzer sound. Pull the handle down to pour your drink.

TIMER FUNCTION

Use the timer function to delay the start of the machine.

1. Choose your desired preset and thickness.
2. Press the timer button, adjust the time using the "+" and "-" buttons, and press the start/pause button to begin the countdown. The startup can be delayed by up to 24 hours.
3. To cancel the timer, press the start/pause button.
4. You can modify the settings and time anytime. Simply unlock the child lock and adjust with "+" and "-" buttons.

CLEANING AND MAINTENANCE

CLEANING STEPS

1. After use, pour clean water (water temperature not exceeding 50^ C) into the tank.
2. Select the "Clean" mode to initiate cleaning.
3. Drain the water and repeat if necessary.
4. Disassemble and clean the parts.
5. The tank, stirring blades and water tray can be cleaned in the dishwasher. We recommend placing the parts on the top rack in the dishwasher.

6. Use a damp soft brush or cloth to clean the evaporator and the sealing ring at the rear of it.

7. Ensure all parts are completely dry before reassembling.

Caution: Do not immerse the appliance, cord, or plug in water or any other liquid.

STORING

• Ensure the machine is thoroughly cleaned, with no residue remaining, before storing.
• Store it upright and in a dry and safe place.

Problem Cause Solution

Stirring blades scraping	Low sugar content	Adjust the sugar content
	Incorrect assembly	Reassemble the stirring blades correctly.
Display shows "OP"	Tank not installed correctly	Reassemble the tank and securely lock the tank.
Display shows "E1" or "E2"	Sensor short circuit / open circuit	Power off and restart.Contact Wilfa customer service if unresolved.
Display shows "E3"	Motor issue Restart.	Contact Wilfa customer service if unresolved.

PROTECTION FUNCTIONS

• Motor Protection: Prevents overloading during operation.
• Compressor Protection: Delays restart to prevent frequent cycling.
• Safety Lock: Prevents operation if the tank is not securely attached.

TIPS

1. Always maintain ingredients between the Minimum and Max levels.
2. Use ingredients with at least 6% sugar content or a Brix value of 10%. If insufficient, add 1-2 tablespoon of flavoured syrup or another high-sugar ingredient.
3. When using alcohol, ensure the percentage is between 2.8% and 16%.
4. Be aware that the alcohol takes a longer time to freeze. To reduce the freezing time, add the alcohol only after the slush has reached the desired consistency.
5. Pre-chill ingredients to enhance performance.
6. Clean the dispenser after every use to prevent blockages.
7. When using natural fruit juice, strain it before adding it to the machine to avoid clogging the dispenser.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instruction manual is also available at our website; wilfa.com

PRODUCT SPECIFICATIONS

220-240V\~50Hz, 220W

23g R290

If the appliance is idle for almost 1 minute, it enters 'off mode'. The power consumption in off mode is 0.4W.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

18 VIKTIGE SIKKERHETSANVISNINGER
22 PRODUKTOVERSIKT
23 F∅R BRUK
24 BRUK
25 RENGJ∅RING OG VEDLIKEHOLD
26 PROBLEML∅SNING
26 TIPS
28 GARANTI
29 PRODUKTSPESIFIKASJONER
29 SUPPORT OG RESERVEDELER
29 GJENVINNING

VIKTIGE SIKKERHETSANVISNINGER

Technical line drawing of two identical HVAC unit designs with heat sinks and a downward arrow indicating airflow direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating assembly or operation steps.

BRUK

NO

Line drawing of a portable sewing machine with a spool of liquid pouring from its chimney (no text or symbols)

Varning: brandrisk/brandfarliga material.

Om kylkretsen skadas:

Technical line drawing of two identical HVAC unit designs with heat sinks and a downward arrow indicating airflow direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating process steps

ANVÄNDNING

Line drawing of a manual washing machine with a bottle pouring liquid from it (no text or symbols)

Technical line drawing of two identical air conditioning units with heat sinks and a downward arrow indicating airflow direction (no text or symbols)

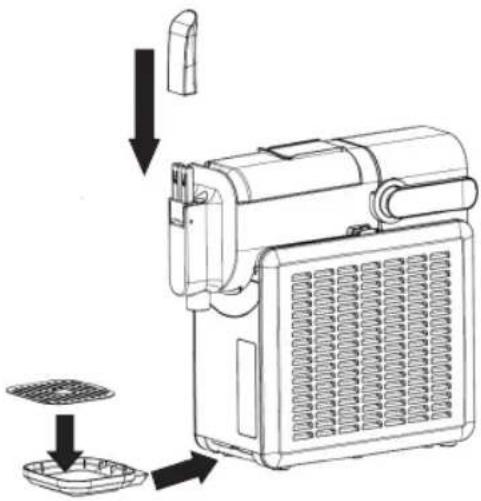

1. Monter håndtag og drypbakke som vist på figuren.
