USER MANUAL StyleLine 125 OASE

HeatUp 25/50/75/100/150/200/250/300/400

DE Gebrauchsanleitung und Garantie
EN Operating instructions and Guarantee
FR Notice d'emploi et Garantie
NL Gebruiksaanwijzing en Garantie
ES Instrucciones de uso y Garantia
PT Instruções de uso e Garantia
IT Istruzioni d'uso e Garanzia
DA Brugsanvisining og Garanti
NO Bruksanvisning og Garanti
SV Bruksanvisning och Garanti
FI Käytöohje ja Takuu

HU Hasznalati utmutató es Garancia
PL Instrukcja uzytkowania i Gwarancja
CS Návod k použitá Záruka
SK Návod na použitie a Záruka
SL Navodila za uporabo in Garancija
HR Uputa o upotrebi i Jamstvo
RO Instruetiuni de folosinta 山 Garantie
BG ynbTbaHe 3a ynoTppe6a n rapaunra
UK Noci6HnK 3 ekcnnyatau Ta IapaTia
RU PykoBoDCTBO no 3KcnnyatauN n TapaHTnA
CN 使用说明书和保用证书

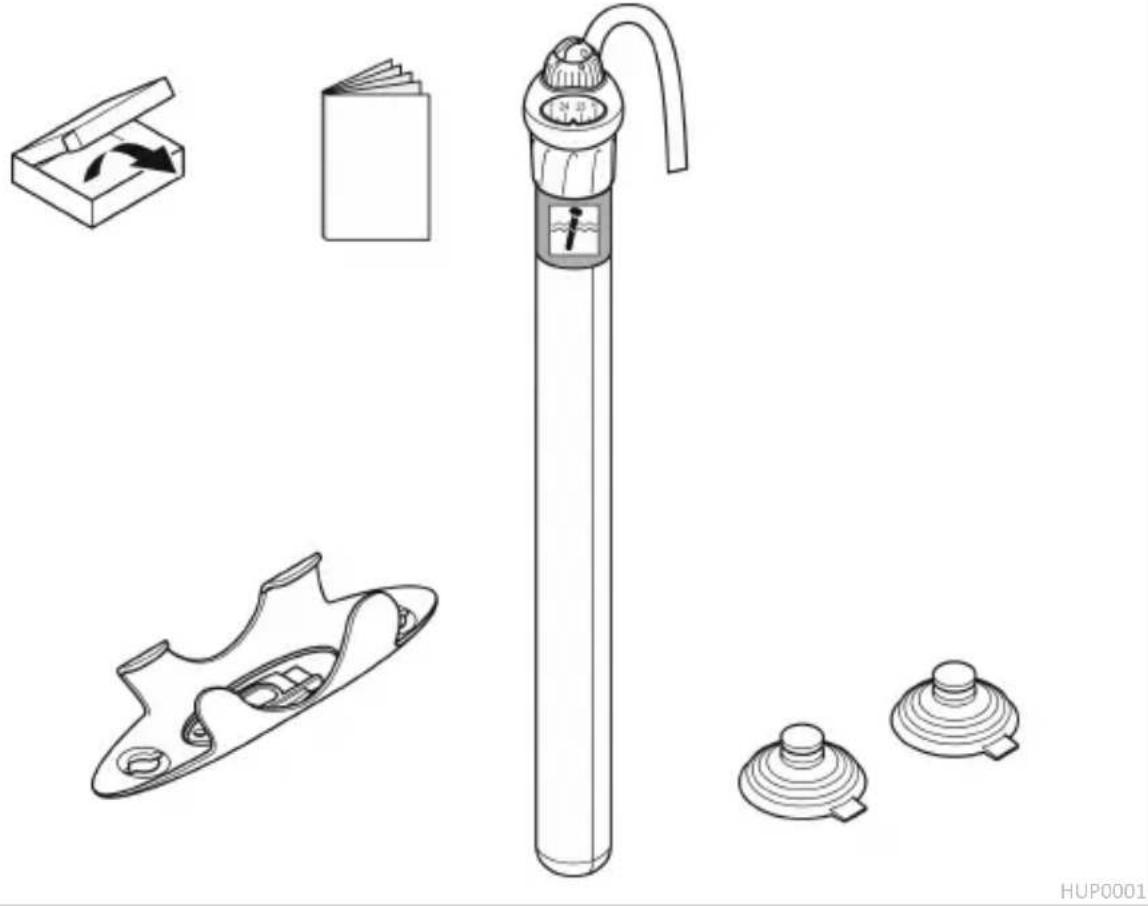

A
HeatUp 25/50/75/100/150/200/250/300/400

B

HUP0002

C

HUP0003

D

HUP0005

E

HUP0006

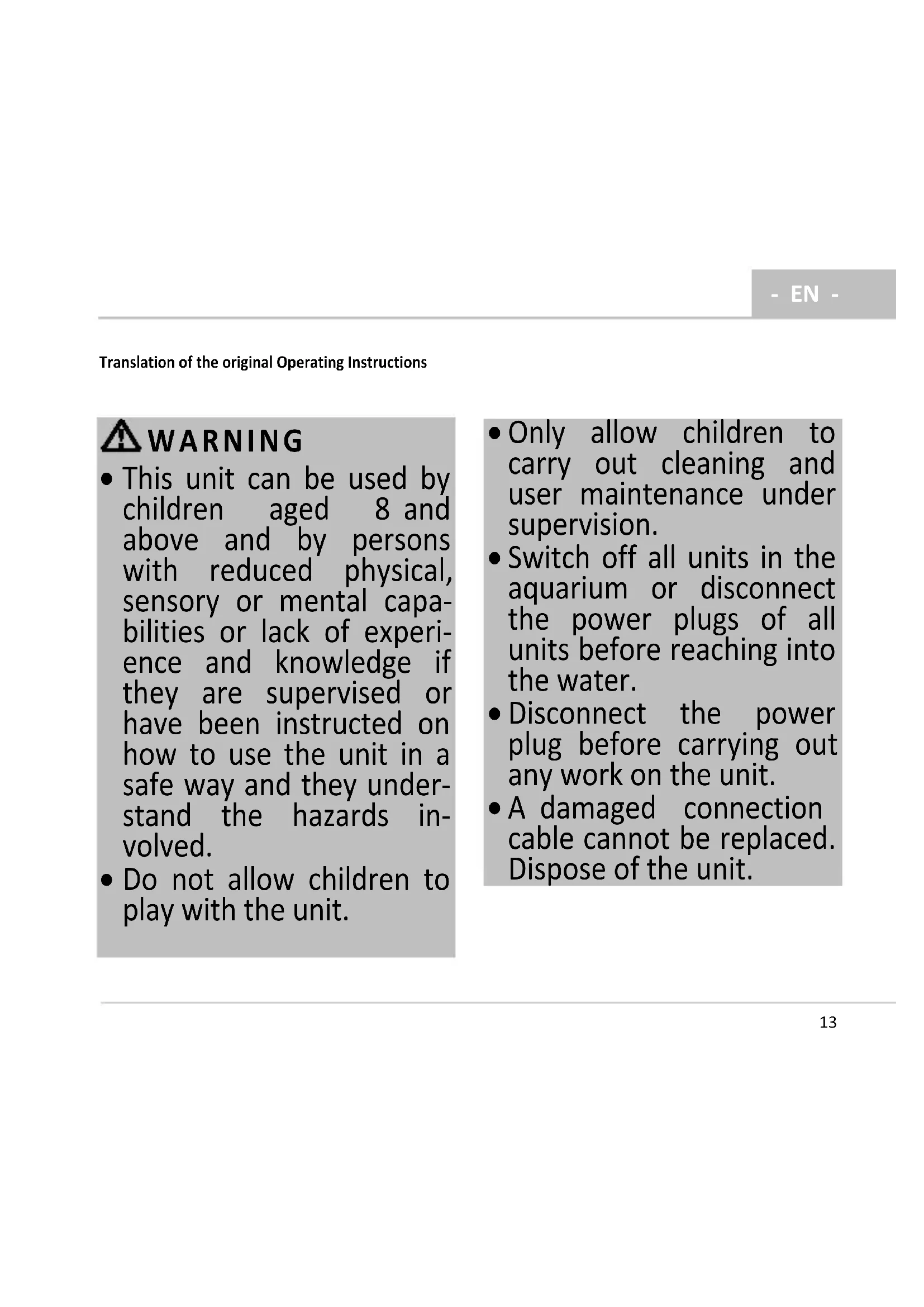

WARNING

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.

• Do not allow children to play with the unit.

• Only allow children to carry out cleaning and user maintenance under supervision.

• Switch off all units in the aquarium or disconnect the power plugs of all units before reaching into the water.
• Disconnect the power plug before carrying out any work on the unit.
• A damaged connection cable cannot be replaced. Dispose of the unit.

- EN -

SAFETY INFORMATION

• Switch off all units in the aquarium or disconnect the power plugs of all units before reaching into the water.
• Never operate the unit if the housing is defective!
• Never operate the unit if an electrical cable is defective!
• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions.
• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, if in doubt, the manufacturer.
• Only use original spare parts and accessories for the unit.
• Never carry out technical changes to the unit.
• Protect the plug connection from moisture.
• Only connect the unit to a correctly fitted socket.

Warnings used in these instructions

CAUTION

• Indicates a possibly hazardous situation.
  Non-observation may lead to slight or minor injuries.

NOTE

Information for the purpose of clarification or for preventing possible damage to assets or to the environment.

Cross-references used in these instructions

A reference to a figure, e.g. figure A.

PRODUCT DESCRIPTION

Intended use

Only use the product described in this manual as follows:

• As a thermostat controlled aquarium heater.
• Operate in accordance with instructions.

The following restrictions apply to the unit:

• Only use indoors and for aquaristic purposes in the home (not for commercial use).
• Only operate with water at a water temperature of +4^ to +35^ .

INSTALLATION AND CONNECTION

NOTE

• Do not switch the unit on until it is immersed in water.
  The unit can be completely immersed in water.
• Ensure that the unit is immersed in water at least up to the minimum immersion depth marking.

NOTE

The desired water temperature can only be achieved if the heating capacity of the heater is suitable for the volume of water in the aquarium ( Technical data) and is positioned in an area with good water circulation.

How to proceed:

B,C,D

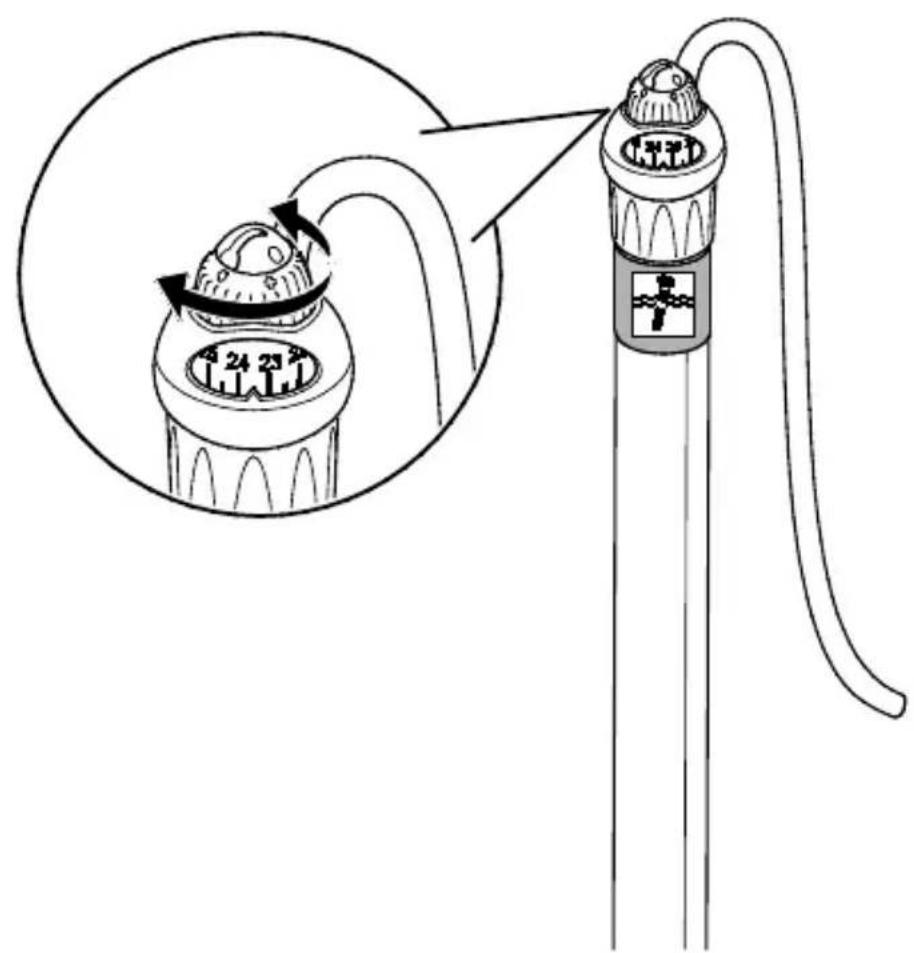

• Turn the temperature controller to the desired temperature value.

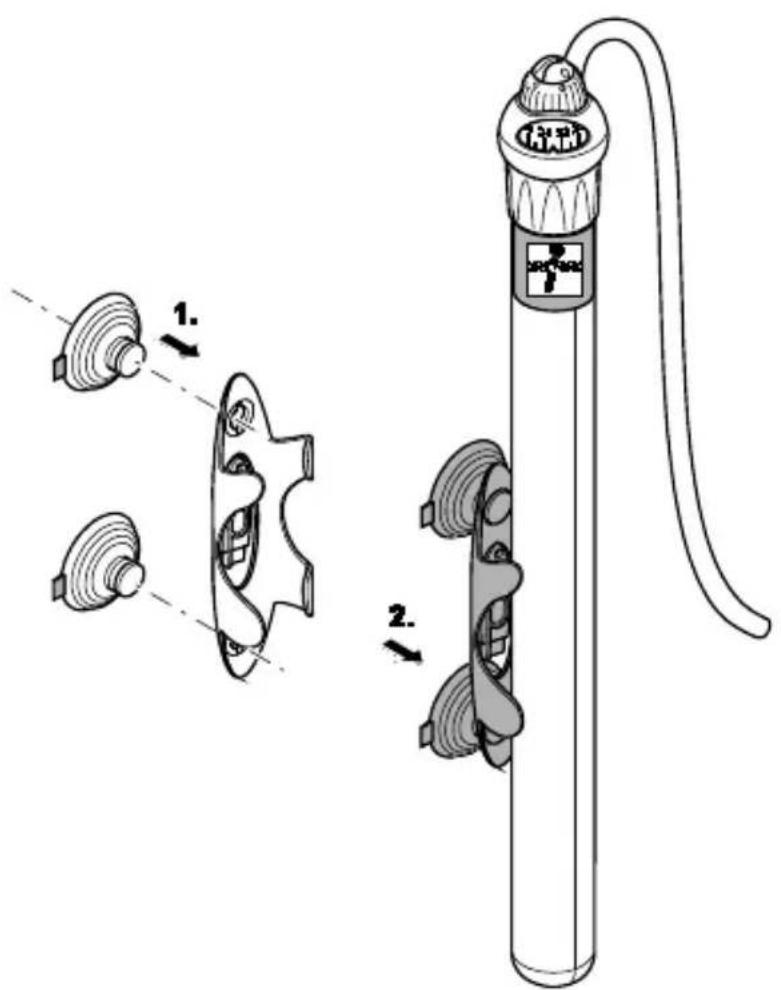

• Insert the supplied suction cups into the holder by twisting.

• Pay attention to the alignment of the tab (it should point upwards or to the side).

• Clamp the holder to the unit.

• Position the unit with the heating element pointing towards the floor of the filled aquarium on a clean, smooth surface in an area with good water circulation.

- EN -

COMMISSIONING/START-UP

CAUTION

Risk of injury from hot surface!

Risk of burning parts of the body or risk of fire.

• Disconnect the heater from the mains and allow it to cool down before commencing any work.

NOTE

For the use of the heater in a filter approved for this purpose:

Danger of fire! The heater and filter can be destroyed by the heat generated at the surface.

• Do not switch the heater on until the filter is completely filled with water, switched on and the water is continuously circulated.

NOTE

For use in an aquarium:

• Before switching on, ensure that the heater is immersed in water at least up to the marking for the minimum immersion depth.

NOTE

• Switch off the heater and allow it to cool down before removing it from the water.

• Do not leave the heater unattended after removing it from the water.

• Wait approx. 30 minutes before switching on so that the thermostat can adjust to the temperature of the water.

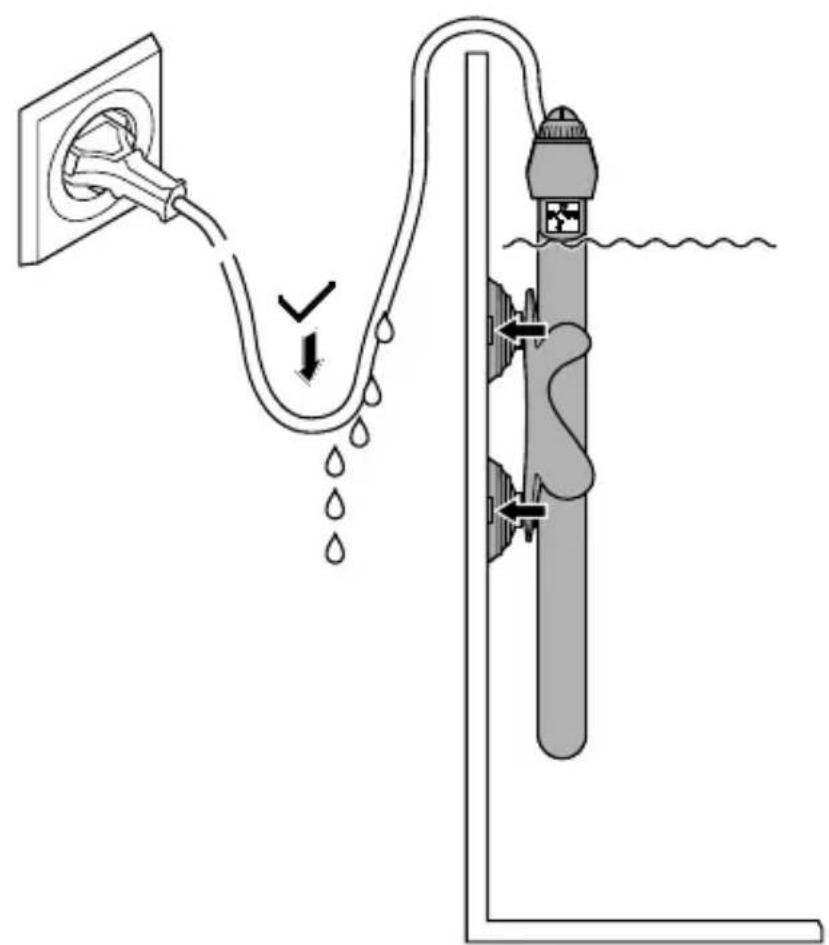

• Route the power connection cable such that it forms a drip loop!
• Switching on: Connect the unit to the mains. The unit switches on immediately.
• Switching off: Disconnect the unit from the mains.

Checking the temperature values

NOTE

The heater switches on and off automatically in order to maintain the set temperature.

A light in the glass bulb indicates that the heater is functioning.

The light and heater are switched off when the set temperature is reached.

How to proceed:

• When the unit has been operating for about one day, check the water temperature with a precision thermometer.
• The measured temperature is lower than the set temperature: Check the water flow around the unit and, if necessary, move the unit to a different position where the water circulation is not obstructed by e.g. plants
  Measure the temperature again after some time.
• The temperature difference is still too great: Calibrate the unit. (-> Calibrating the unit)
• The measured temperature is higher than the set temperature: Calibrate the unit. (-> Calibrating the unit)

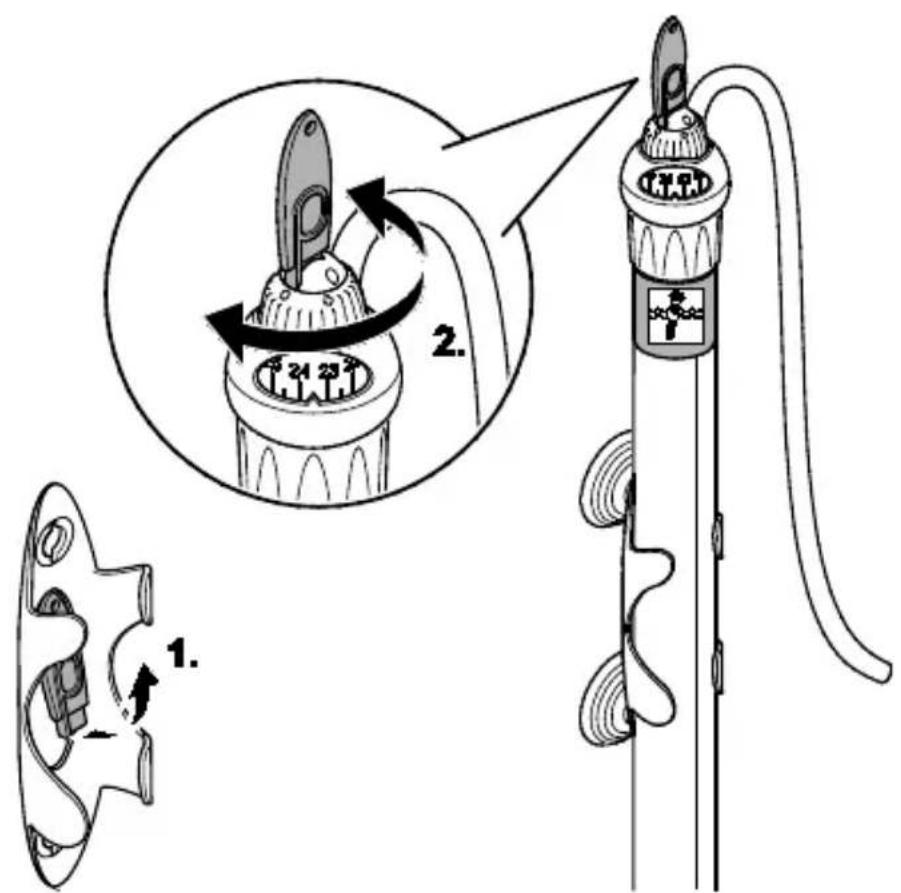

Calibrating the unit

• Calibration range: It is possible to calibrate the unit by plus 3^ and minus 3^ .
• The calibration controller protrudes out of the different-coloured temperature controller. There are 3 fixed positions in the plus and minus range. Each position corresponds to approx. 1 degree centigrade.

NOTE

Do not attempt to go outside the calibration range.

How to proceed:

E

• Use a screwdriver for the calibration or break the supplied tool out of the holder.
• Measured temperature is too high: Keep the temperature controller at the set value and move the calibration controller in the direction of - (minus).
• Measured temperature is too low: Keep the temperature controller at the set value and move the calibration controller in the direction of + (plus).

REMEDY OF FAULTS

Malfunction	Cause	Remedy
The water does not heat up.	No mains voltage	Check the mains voltage.
	Unit defective	Replace unit
Water does not reach the set temperature.	Insufficient water circulation	Check the temperature.
	Unit is not calibrated.	Calibrate the unit.
	The heating capacity of the unit is not sufficient with regards to the ambient temperature or water volume to be heated up.	Select a suitable unit.

CLEANING

If necessary, clean the unit with clear water using a soft sponge or cloth.

• Do not not use cleaning agents or chemical solutions.

WEAR PARTS

• Suction cup

DISPOSAL

NOTE

Do not dispose of this unit with domestic waste.

• Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided for this purpose.
