USER MANUAL CDD4520ProS SCHEPPACH

Explanation of the symbols on the equipment The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the ex- planations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. Caution - Read the operating instructions to reduce the risk of inquiry Wear ear-muffs! The impact of noise can cause damage to hearing. Wear a breathing mask! Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Wear safety goggles! Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight. Wear work gloves! Protect rechargeable batteries from temperatures over 40°C Li-Ion Do not throw rechargeable batteries away with household waste www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

Table of contents: Page:

3. Scope of delivery 17

5. Safety information 18

6. Additional Safety Warnings 19

7. Residual risks 20

15. Disposal and recycling 22

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

5. Rechargeable battery pack

6. Battery pack release button

8. Torque pre-selector

3. Scope of delivery

- Cordless impact drill - Translation of original instruction manual - 2AH battery - Charger

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be in- formed about the equipment’s potential hazards. It is also imperative to observe the accident preven- tion regulations in force in your area. The same applies for the general rules of health and safety at work. The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. The machine may be used only with original accesso- ries and original tools of the manufacturer. The safety-, workplace- and maintenance specica- tions of the manufacturer as well as the dimensions specied in the technical data must be observed. Please note that our equipment has not been de- signed for use in commercial, trade or industrial appli- cations. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

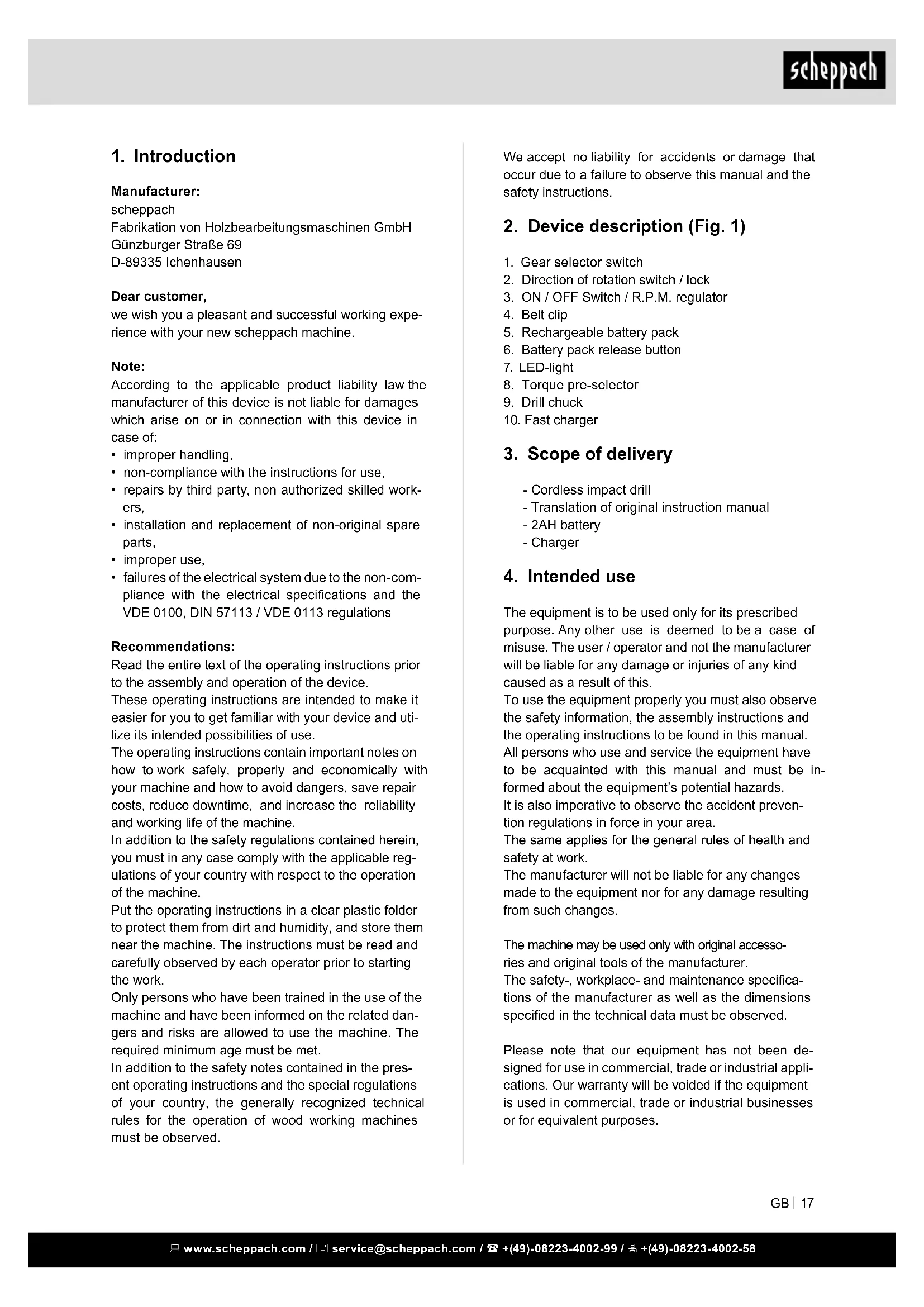

Manufacturer: scheppach Fabrikation von Holzbearbeitungsmaschinen GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear customer, we wish you a pleasant and successful working expe- rience with your new scheppach machine. Note: According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• non-compliance with the instructions for use,

• repairs by third party, non authorized skilled work- ers,

• installation and replacement of non-original spare parts,

• failures of the electrical system due to the non-com- pliance with the electrical specications and the VDE 0100, DIN 57113 / VDE 0113 regulations Recommendations: Read the entire text of the operating instructions prior to the assembly and operation of the device. These operating instructions are intended to make it easier for you to get familiar with your device and uti- lize its intended possibilities of use. The operating instructions contain important notes on how to work safely, properly and economically with your machine and how to avoid dangers, save repair costs, reduce downtime, and increase the reliability and working life of the machine. In addition to the safety regulations contained herein, you must in any case comply with the applicable reg- ulations of your country with respect to the operation of the machine. Put the operating instructions in a clear plastic folder to protect them from dirt and humidity, and store them near the machine. The instructions must be read and carefully observed by each operator prior to starting the work. Only persons who have been trained in the use of the machine and have been informed on the related dan- gers and risks are allowed to use the machine. The required minimum age must be met. In addition to the safety notes contained in the pres- ent operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of wood working machines must be observed. www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduc- es the risk of electric shock.

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or med- ication. A moment of inattention while operating power tools may result in serious personal injury. b. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and bal- ance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a sec- ond.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b. Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. The appliance is designed for use by adults. Young people under 16 years of age may only use the appli- ance under supervision. The manufacturer accepts no liability for damages caused by improper use or incorrect operation of the appliance. Use this product only as described and for the areas of applications specied. The appliance is not intended for commercial use. Any other usage or modication of the appliance is deemed to be improper and carries a signicant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

5. Safety information

m WARNING! Read all safety warnings, instruc- tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may re- sult in electric shock, re and/or serious injury. Save all warnings and instructions for future ref- erence. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool.

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Do not operate power tools in explosive at- mospheres, such as in the presence of am- mable liquids, gases or dust. Power tools cre- ate sparks which may ignite the dust or fumes. c. Keep children and bystanders away while op- erating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b. Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet con- ditions. Water entering a power tool will increase the risk of electric shock. d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords in- crease the risk of electric shock. www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

POISONOUS DUSTS! Harmful / noxious dusts generated from your work rep- resent a risk to the health of the person operating the device and to anyone near the work area. Wear safe- ty glasses and a dust mask! Do not drill any material containing asbestos. Asbestos is a known carcinogen. Hold the electrical power tool rmly. High reaction torques may occur momentarily during tightening or loosening of screws. If the inserted tool jams, switch off the electrical pow- er tool immediately. Be prepared for high reaction tor- ques as they may cause kickback. The inserted tool may jam if the electrical power tool is overloaded or is held at an angle to the workpiece. Before you carry out any tasks on the device, trans- port or store it, make sure that the direction of rotation switch is in the middle position (lock). To prevent the device from starting up unintentionally. Attention - Service lines! Danger! Take steps to ensure that you do not hit upon any service lines (electricity, gas, water) when working with electrical appliances. Check, if need be with a service line detector, before you start to cut or bore into a surface. Information on the rechargeable battery

• Please observe the operating manual for the re- chargeable batteries. Information on the charging unit and charging process

• Please observe the operating manual for the charging unit. Careful handling and use of battery devices

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of re if a charger that is suitable for a specic type of battery is used with other batteries.

• In the power tools, use only the batteries de- signed for the purpose. The use of other batter- ies may result in injuries and risk of re.

• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re.

• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery uid may cause skin irritations or burns.

• Ensure that the device is switched off before in- serting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjust- ments, changing accessories, or storing pow- er tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to oper- ate the power tool. Power tools are dangerous in the hands of untrained users. e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly main- tained power tools. f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpect- ed situations.

a. Have your power tool serviced by a qualied repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained.

6. Additional Safety Warnings

Safety advice relating to cordless drill drivers

• Hold the device by the insulated handle surfaces when you are undertaking work where there is the danger of the screw striking hidden electricity cables or the device’s mains lead. Contact of the screw with a live wire could cause metal parts of the device to become live and lead to electric shock.

• Children or persons who lack the knowledge or expe- rience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or in- struction by a person responsible for their safety. Chil- dren must never be allowed to play with the device.

• Securely support the workpiece. A workpiece held in a clamp or vice is kept more securely in place than one held by your hand. www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

Cordless drill: Nominal voltage: 20 V Idle-running speed: 1st gear: max. 0 - 450 min

Idle-running speed: 2nd gear: max. 0 - 1600 min

Max. torque: 45 Nm Drill chuck clamping range: max. 13 mm Weight: 1,1 kg Subject to technical changes! Noise and vibration m Warning: Noise at the workplace can exceed 85 dB (A). In this case, noise protection measures are necessary for the user (wear hearing protection!). Noise output in dB Sound power level L

• Open the packaging and remove the device care- fully.

• Remove the packaging material as well as the packaging and transport bracing (if available).

• Check that the delivery is complete.

• Check the device and accessory parts for transport damage. Inform the transport agent immediately of any faults. Later complaints cannot be considered.

• If possible, store the packaging until the warranty period has expired.

• Familiarize yourself with the machine with the help of the operating instructions manual before using it.

• Use only original parts for accessories as well as consumables and spare parts. Spare parts can be obtained from your scheppach retailer.

• Please quote our article numbers as well as type and production year in all your orders. m ATTENTION! The device and packaging materials are not toys! Children must not be allowed to play with plas- tic bags, lm and small parts! There is a risk of swallowing and suffocation!

• Recharge the batteries indoors only because the battery charger is designed for indoor use only. Risk of electric shock.

• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heat- er. Heat damages the battery and there is a risk of explosion.

• Allow a hot battery to cool before charging.

• Do not open up the battery and avoid mechan- ical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respira- tory tract. Ensure fresh air and seek medical assis- tance in the event of discomfort.

• Do not use non-rechargeable batteries. This could damage the appliance. Warning! This electric tool generates an electromag- netic eld during operation. This eld can impair ac- tive or passive medical implants under certain condi- tions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manu- facturer of the medical implant prior to operating the electric tool.

The machine has been built according to the state of the art and the recognised technical safety require- ments. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main.

• Residual risks can be minimised if the „safety in- structions“ and the „Proper use“ are observed along with the whole of the operating instructions.

• Avoid accidental starting of the machine: the oper- ating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommend- ed in this manual.. This ensures that your machine performs optimally.

• Hands may never enter the processing zone when the machine is in operation. www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

Warning! Always remove the battery pack before making ad- justments to the equipment.

m Important! You must fully assemble the appliance before using it for the rst time! To ensure that the Li battery pack provides long ser- vice you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops. Insertion / removal of a batterypack into the ap- pliance Ensure that the appliance is switched off before in- serting the battery. The insertion of a battery into an electrical appliance that is switched on can lead to accidents. Inserting the rechargeable battery pack: Move the rotation switch (2) into the middle position (lock) and push the rechargeable battery pack (5) into the handle until it engages. Removing the rechargeable battery pack: Press the release button (6) and remove the re- chargeable battery pack. Used batteries If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service. Changing tools

• Your cordless electric drill / screwdriver has a fully automatic spindle lock and is tted with an enclosed keyless chuck incorporating the latest technology. Once the motor has come to a halt, the drive shaft is automatically locked, so that the chuck (9) can be opened simply by turning it . After you have insert- ed the required bit and xed it in place by turning the chuck , you can immediately continue working. The spindle lock releases itself automatically when the motor is started (by operation of the ON / OFF switch (3) ). Torque pre-selection

• You can adjust the torque by using (8) torque prese- lection.

• Select a low setting for small screws, soft workma- terial.

• Select a high setting for large screws, hard work materials and for the extraction of screws.

• For drilling, push the selector to the setting for drill- ing, in that you adjust the torque pre-selector to the position .

• For drilling tasks, also push the gear selector switch (1) to the front (Position: 2). 2 Gear Drive CAUTION! Move the gear selector switch (1) only af- ter the device has come to a standstill. Failure to ob- serve this advice may result in damage to the device. In the rst gear (Gear selector switch (1) in Position:

1) This setting is intended for use with all screwing

tasks and for accessories (see example Fig. B). In the second gear (Gear selector switch (1) in Posi- tion: 2) for the carrying out of drilling tasks (see ex- ample Fig. A). Installation Switching On /Off Switching on: To start the appliance squeeze on the ON / OFF switch (3) and then keep it pressed down. The LED working light (7) comes on with a slightly or fully pressed ON / OFF switch (3) and illuminates the working area in poor lighting conditions. Switching off: To stop the appliance, release the ON / OFF switch (3). Adjusting the speed The ON / OFF switch (3) has a variable speed control device. Slight pressure on the ON / OFF switch (3) will cause the rotation speed to slow down. With in- creased pressure, the rotational speed will increase. Note: The integrated engine brake means that the device will come to a fast standstill. Switching direction of rotation To switch the direction of rotation, push the direction of rotation switch (2) to either the right or to the left. Tips and Tricks Before you use the appliance, check to see that the screw or drill bit is properly tted, i.e. located centrally in the chuck. Screw bits are designated with their di- mensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play. Torque: Smaller screws and bits in particular can be easily damaged if you adjust the appliance with too high a torque and/or rotation speed. www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

Hard screwdriving conditions (into metal): Particularly high torques can occur, for example with metal screws tightened by socket tool bits. Select a lower rotation speed. Soft screwdriving conditions (e.g. into soft wood): You should also select a low speed in order not to damage the wood workpiece surface through contact with the metal screw head. Use a countersinker. When drilling into wood, metal and other materials, take note of the following advice: With small diameter drill bits use a high drill speed. For large diameter drill bits, use a low drill speed. For hard materials, select a low drill speed. For soft materials, select a high drill speed. Secure or x down the workpiece (if possible) in a clamp or vice. Mark the intended position of the hole with a centre punch or a nail and select a low drill speed for drilling. Take the rotating drill bit out of the hole frequently so that swarf or drill dust can be re-moved and the hole and tool is ventilated. Drilling in metal: Use a metal drill bit (HSS). For the best results, you should cool the bit with oil. Metal drill bits can also be used to drill into plastic. Drilling in stone: Use a circular shafted masonry drill bit with a hard- ened metal tip. Drilling in wood: Normally you should use a wood drill with a cen- tring point. For deep holes, use an auger type bit. For large diameter holes, use a forstner bit. You can screw small screws into soft wood without the need for pre-drilling.

Danger! Always pull out the battery pack before starting any cleaning work.

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

• We recommend that you clean the device immedi- ately each time you have nished using it.

• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30˚C. Store the electrical tool in its original packag- ing. Cover the electrical tool in order to protect it from dust and moisture. Store the operating manual with the electrical tool.

There are no parts inside the equipment which re- quire additional maintenance. Service information Please note that the following parts of this product are subject to normal or natural wear and that the fol- lowing parts are therefore also required for use as consumables. Wear parts*: carbon brushes

• Not necessarily included in the scope of delivery!

15. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equip- ment and its accessories are made of various types of material, such as metal and plastic. Defective com- ponents must be disposed of as special waste. Ask your dealer or your local council. www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58

Batteries and rechargeable batteries do not be- long in the household waste! As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful sub- stances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner. *labelled with: Cd = cadmium, Hg = mercury, Pb = lead Old devices must not be disposed of with house- hold waste! This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertain- ing to waste electrical and electronic equipment (WEEE). This product must be disposed of at a des- ignated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equip- ment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous sub- stances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your mu- nicipal administration, public waste disposal authori- ty, an authorised body for the disposal of waste elec- trical and electronic equipment or your waste disposal company.

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service work- shop. Fault Possible cause Remedy Device does not start Battery empty Charge battery Battery defective Check the battery, have it repaired by a certied electrician if necessary On/off switch defective Repair by an authorised service centre Motor defective Repair by an authorised service centre Motor stops during operation Battery empty Charge battery Battery not inserted correctly Re-insert battery Battery defective Clean contacts, replace original battery Reduced power Battery depleted Replace battery Battery not fully charged Charge battery www.scheppach.com / service@scheppach.com / +(49)-08223-4002-99 / +(49)-08223-4002-58
