Product type	Iron
Brand	Solac
Model	Smart Evolution CVG9507
Power supply	Mains (230 V ~ 50/60 Hz) on grounded socket 16 A
Power	2400 W (estimated)
Water tank capacity	Approximately 300 ml (estimated)
Ironing types	Dry, steam, vertical steam
Temperature setting	Synthetics (•), Silk/Wool (••), Cotton/Linen (•••/Max)
Automatic shut-off	Yes (8 min vertical, 30 s horizontal)
Anti-scale system	Yes (integrated anti-scale)
Indicator light	Heating indicator (green/red)
Soleplate	Non-stick
Use	Household only
Maintenance	Clean with a damp cloth and mild detergent; do not immerse
Descaling	Use a suitable descaling product; avoid vinegar
Safety	Automatic shut-off; hot surface; do not leave unattended
Warranty	Complies with current legislation; approved customer service
Repairability	Genuine parts from approved technical services

Frequently Asked Questions - Smart Evolution CVG9507 SOLAC

How to fill the water tank of the Solac Smart Evolution CVG9507 iron?

Open the filling spout cover, fill with water up to the MAX level (Fig. 1), then close the cover firmly. Preferably use distilled water if your water is hard.

How to use the steam function?

Make sure the tank is filled with water. Plug in the appliance and wait for the green light to turn on. Press the steam activation button (B) periodically to produce steam (Fig. 2). You can also dry iron by leaving the button in the off position.

What to do if the iron does not heat up?

Check that the iron is properly plugged into a 16 A grounded socket. Wait a few moments for the green light to turn on. If the problem persists, contact an approved technical support service. Do not attempt to repair it yourself.

How to clean the iron?

Unplug the iron and let it cool down completely. Clean the soleplate and body with a damp cloth soaked with a few drops of mild detergent. Then dry with a clean cloth. Never use solvents, abrasive or acidic products (like bleach), and do not immerse the appliance in water.

How to descale the iron?

To prevent calcium buildup, it is recommended to use low mineral water (distilled water). If necessary, use a specific descaling product for irons, commercially available. Home solutions like vinegar are not recommended.

What does the blinking red and green light mean?

An alternating red and green flashing accompanied by 3 beeps indicates that the iron has entered automatic shut-off (stand-by) mode. This occurs after 8 minutes of inactivity in vertical position or 30 seconds in horizontal position. To reactivate, simply move the appliance (Fig. 4).

How to activate the automatic shut-off?

The automatic shut-off is an integrated function that activates automatically. No operation is required: the iron goes into standby after 8 minutes in vertical position or 30 seconds in horizontal position without use.

Can I use scented water in the iron?

No, using scented water automatically voids the product warranty. Use only clear water, preferably distilled or low in calcium.

How to steam vertically?

Hang the garment on a hanger or curtains. Hold the iron vertically, pass it from top to bottom while pressing the steam button. For cotton and linen, put the soleplate in contact with the fabric; for delicate fabrics, keep it a few centimeters away.

What to do if water leaks through the soleplate?

Make sure the tank is not filled above the MAX level. Check that the cover is properly closed. Wait until the iron is at temperature (green light on) before activating steam. If the problem persists, contact customer service.

USER MANUAL Smart Evolution CVG9507 SOLAC

Black sOlaac electric iron with visible branding and model number (no text-heavy elements)

Line drawing of a hand using a power tool to cut a steam iron, showing mechanical components and part (no text or symbols)

Line drawing of a hand using a steam iron to lift a chimney, with exhaust plume nearby (no text or symbols)

Diagram showing a curved object with an arrow and radiating lines, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram of a car interior showing a curved arrow indicating direction (no text or symbols present)

Diagram of a boat's internal structure with an arrow indicating direction, labeled 'Fig. 4' (no text or symbols on the diagram itself)

ESPAÑOL ES

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

• The appliance must be used and placed on a flat, stable surface.
• When the appliance is placed on its support, make sure that the surface on which it is placed is stable.
  · Never leave the appliance un-attended while it is connected to the mains supply.
• This appliance can be used by children aged 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are supervised and have been instructed in the safe use of the appliance and understand the hazards involved.

• Children must not clean or maintain the appliance unless supervised.

• Keep the appliance and its cord out of reach of children less than 8 years of age.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
  This symbol means that surface could to get hot during the use.
• To avoid occurrences with the power grid, it is advisable that the device be connected to a maximum impedance of 0.27Ω. If in doubt, please consult your utility company.
  The temperature of the accessible surfaces may be high when the appliance is in use.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. To avoid hazards, do not attempt to disassemble or repair the appliance by yourself.
• Connect the appliance to an earthed socket rated at 16 amperes or more.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.

EN

• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not tug on the power cord. Never use the power cord to lift, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to hang or come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings break, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not touch the heated parts of the appliance, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the parts or accessories are not properly fitted..
• Do not use the appliance if any of the switches do not work.
• Use the appliance handle/s, to pick it up or move it.
• Do not use the appliance if it has tipped over.
• Do not turn the appliance over while it is in use or connected to the mains.
• To keep the non-stick coating in good condition, do not use metal or pointed utensils on it.
• Respect the MAX level indicator. (Fig.1)
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store or transport the appliance if it

is still hot.

• Keeping the iron on its rest at maximum temperature for prolonged periods may cause discolouration, which does not affect the correct operation of the appliance.
• For a correct operation, keep the soleplate in good condition; do not iron over metal objects (metal ironing board parts, buttons, zips, etc.)
• It is advisable to use distilled water, especially if the water in your area contains clay or if it is “hard” (containing lime or magnesium).
• Check that the lid is closed properly before switching the appliance on.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Never rest the appliance on a surface while in use.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with pets or animals.
• Do not use the appliance to dry textiles of any kind.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Antiscale
B Steam trigger
C Indicator lamps
D Filling spout
E Soleplate

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all of the products' packaging has been removed.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

EN

- Prepare the appliance according to the function you wish to use:

FILLING WITH WATER:

• It is essential to have filled the tank with water to be able to work with steam.
• Open the cover.
• Fill the tank, taking care to observe the MAX level (Fig.1).
• Close water inlet lid.
• Use of scented water automatically cancels the warranty

CVG9507 USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Once plugged in, the product will start to heat up, during this heating period, do not press the steam button, wait for the green light to come on,

SMART:

- The product adapts to all types of fabric:

• Temperature for synthetic fibres (Polyester, Nylon...). Setting •
• Temperature for silk, wool. Setting ●●

• Temperature for cotton. Y linen Setting ●●● and Max

• Wait until indicator (C) lights green, this means that the appliance has reached temperature, after its first warm-up.

• During use of the appliance, indicator (C) will come on and off automatically to indicate when it is using power and heating.

DRY IRONING:

- The appliance has a steam control trigger (B) which, when set to off, allows dry ironing (without steam) or with steam depending on whether the trigger is pressed (Fig. 2).

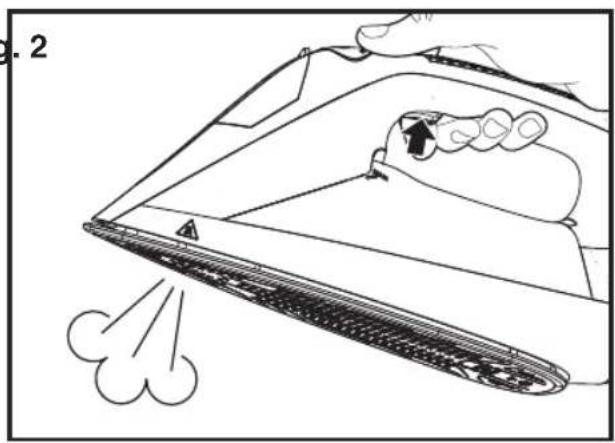

STEAM IRONING:

- It is possible to iron with steam whenever the tank is filled with water and the correct temperature is selected.

VERTICAL IRONING:

• It is possible to iron hanging curtains, items of clothing on their own hanger, etc. To do so, follow these instructions:
• Iron from top to bottom,.
• Important: for cotton and linen, it is recommended to put the base of the iron in contact with the material. For other more deli-

cate fabrics, it is recommended to keep the base of the iron a few centimetres away.

AUTO-OFF FUNCTION (STAND-BY): CVG9507;

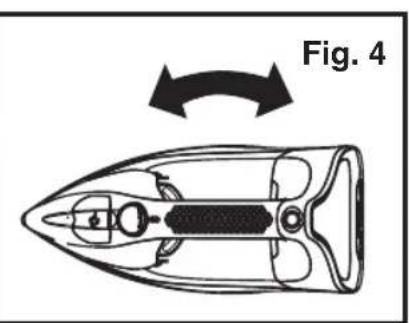

• For the purpose of saving energy, the appliance switches to auto-off mode (stand-by) after 8 minutes in the upright position or 30 seconds if left flat, assuming the user has not performed any action during this period. 3 beeps will sound and the indicator will flash RED GREEN alternately
• To resume ironing just touch the trigger or move the iron.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Unplug the appliance from the mains.
• Drain the water out of the appliance.
• Clean the appliance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

• For the appliance to work correctly it should be kept free of limescale or magnesium incrustations caused by the use of hard water.
• To avoid this kind of problem it is advisable to use distilled water.
• To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation.
• To do so, we recommend the use of the specific product for this kind of appliance, which can be found in specialised shops and authorised technical services.
• A specific anti-lime scale product should be used on this kind of product.
• Home-made solutions, such as the use of vinegar, are not recommended for descaling this appliance.

EN

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IF REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials used for the packaging of this appliance are included in a disposal, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material. - The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

FR

Cher Client,

NIEPRAWIDŁOWOŚCI I NAPRAWA

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://solac.com

You can also request related information by contacting us by phone.

You can download this instruction manual and its updates at http://solac.com
