Brand	Solac
Model	CVG9508
Product type	Iron
Power supply	220-240 V ~ 50/60 Hz
Power	2400 W
Tank capacity	300 ml
Soleplate	Non-stick
Functions	Dry ironing, steam, vertical, automatic shutoff
Temperature settings	ECO (synthetics), AUTO (silk/wool), TURBO (cotton/linen)
Automatic shutoff	8 min vertical, 30 s horizontal
Anti-scale system	Integrated, distilled water recommended
Cable length	Approximately 2 m
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 30 x 12 x 15 cm
Care and cleaning	Clean with a damp cloth, do not immerse, descale with specific product
Safety	Automatic shutoff, overheat protection, hot surface
Spare parts and repairability	Repair by authorized technical service, original parts
General information	Domestic use, CE certified, WEEE recycling

Frequently Asked Questions - CVG9508 SOLAC

How to fill the water tank?

Open the filling spout cap, pour water up to the MAX level (do not exceed), then close. Preferably use distilled water.

How to use the steam function?

After plugging in the iron and waiting for the green light to turn on (temperature reached), press the steam button (C) to get steam. You can adjust the flow with the steam flow selector (B).

What does automatic shutoff mean?

If the iron remains stationary for 8 minutes in vertical position or 30 seconds in horizontal position, it automatically turns off. To reactivate, simply move it.

How to choose the ironing temperature?

Use the program selector (D): ECO for synthetics, AUTO for silk and wool, TURBO for cotton and linen. Follow the symbols on the garments.

Can I iron vertically with steam?

Yes, for curtains or hanging clothes. Pass the iron from top to bottom. For delicate fabrics, keep it a few centimeters away.

What to do if the iron smokes during first use?

This is normal: residues of industrial grease evaporate. The smoke disappears after a few minutes of use.

How to clean the iron?

Unplug and allow it to cool completely. Clean the soleplate and body with a damp cloth and a little mild detergent. Never immerse the iron.

What type of water to use to avoid scale?

Use distilled or demineralized water. Hard tap water can clog the iron. Do not use scented water.

How to descale the iron?

Use a specific descaling product for irons, available in stores. Do not use vinegar or other homemade solutions.

What to do in case of breakdown?

Do not attempt to repair it yourself. Contact an authorized Solac technical support service for any repairs.

USER MANUAL CVG9508 SOLAC

Black iron 2400 W power iron with a handle and spout, shown against a plain background (no text or symbols visible on the device itself)

Line drawing of a hand using a tool to clean or remove a piece of material from an iron (no text or symbols)

Line drawing of a steam iron with exhaust plume, no text or symbols present

Top-down schematic of a boat with internal compartments and directional arrow, labeled Fig. 5 (no text or symbols on diagram itself)

Many thanks for choosing to purchase a SOL-AC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

• The appliance must be used and placed on a flat, stable surface.
• When the appliance is placed on its support, make sure that the surface on which it is placed is stable.
• Never leave the appliance unattended while it is connected to the mains supply.
  This appliance can be used by children aged 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are supervised and have been instructed in the safe use of the appliance and understand the hazards involved.

• Children must not clean or maintain the appliance unless supervised.

• Keep the appliance and its cord out of reach of children less than 8 years of age.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
  This symbol means that surface could to get hot during the use.
• To avoid occurrences with the power grid, it is advisable that the device be connected to
  · a maximum impedance of 0.27Ω. If in doubt, please consult your utility company.
• The temperature of the accessible surfaces may be high when the appliance is in use.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. To avoid hazards, do not attempt to disassemble or repair the appliance by yourself.
• Connect the appliance to an earthed socket rated at 16 amperes or more.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do

EN

not use plug adaptors.

• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not tug on the power cord. Never use the power cord to lift, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to hang or come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings break, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not touch the heated parts of the appliance, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the parts or accessories are not properly fitted..

- Do not use the appliance if any of the switches do not work.

- Use the appliance handle/s, to pick it up or move it.

- Do not use the appliance if it has tipped over.

- Do not turn the appliance over while it is in use or connected to the mains.

- To keep the non-stick coating in good condition, do not use metal or pointed utensils on it.

- Respect the MAX level indicator. (Fig.?)

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- This appliance is for household use only, not professional, industrial use.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

• Do not store or transport the appliance if it is still hot.
• Keeping the iron on its rest at maximum temperature for prolonged periods may cause discolouration, which does not affect the correct operation of the appliance.
• For a correct operation, keep the soleplate in good condition; do not iron over metal objects (metal ironing board parts, buttons, zips, etc.)
• It is advisable to use distilled water, especially if the water in your area contains clay or if it is “hard” (containing lime or magnesium).
• Check that the lid is closed properly before switching the appliance on.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Never rest the appliance on a surface while in use.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with pets or animals.
• Do not use the appliance to dry textiles of any kind.

SERVICE:

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Antiscale

B Steam flow control

C Steam activation trigger

D Temperature selector

E Indicator lamps

F Filling spout

G Soleplate

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all of the products' packaging has been removed.
• Some parts of the appliance have been lightly greased. Consequently, the first time

the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

- Prepare the appliance according to the function you wish to use:

FILLING WITH WATER:

• It is essential to have filled the tank with water to be able to work with steam.
• Open the cover.

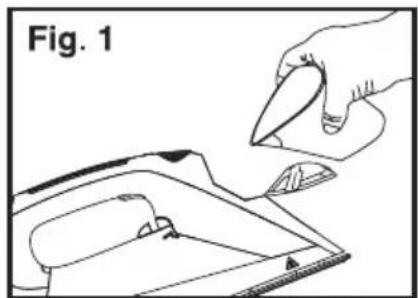

• Fill the tank, taking care to observe the MAX level (Fig.1).
• Close water inlet lid.
• Use of scented water automatically cancels the warranty

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.

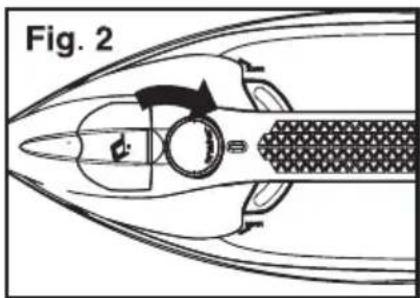

• Once plugged in, the product will start to heat up, during this heating period, do not press the steam button, with the model CVG9506 first wait for the pilot light to switch off, and with model CVG9508 model, wait for the green light to come on, use the steam control to select the ideal steam flow. (Fig.2).
• Do not use temperatures higher than those indicated on the garments to be ironed.
  • (Fig.3) ECO Temperature for synthetic fibres (Polyester, Nylon...). Setting •
  • (Fig.3) AUTO Temperature for silk, wool. Setting ••
  · (Fig.3) TURBO Temperature for cotton. Y linen Setting ●●● and Max
• If a garment has several kinds of fibres, select the temperature for the fibre that requires the lowest temperature. (For example, select the temperature for polyester for a fabric made out of 60% polyester and 40% cott.
• Wait until indicator (E) switches off, model CVG9506, or the green light switches on, model CVG9508, indicating that the appliance has reached temperature, after its first warm-up.
• During use of the appliance, indicator (E) will switch on and off, model CVG9506, or change colour (red, green) (CVG9508) to indicate when it is using power and heating.

DRY IRONING:

- The appliance has a steam control trigger

(C) which, when set to off, allows dry ironing (without steam) or with steam depending on whether the trigger is pressed (Fig. 4).

STEAM IRONING:

- It is possible to iron with steam whenever the tank is filled with water and the correct temperature is selected. Use the steam control to select the ideal steam flow (Fig. 2).

VERTICAL IRONING:

• It is possible to iron hanging curtains, items of clothing on their own hanger, etc. To do so, follow these instructions:
• Iron from top to bottom,.
• Important: for cotton and linen, it is recommended to put the base of the iron in contact with the material. For other more delicate fabrics, it is recommended to keep the base of the iron a few centimetres away.

AUTO-OFF FUNCTION (STAND-BY): CVG9508

• For the purpose of saving energy, the appliance switches to auto-off mode (stand-by) after 8 minutes in the upright position or 30 seconds if left flat, assuming the user has not performed any action during this period. 3 beeps will sound and the indicator will flash RED GREEN alternately
  • To resume ironing just move the iron (Fig. 5)

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Unplug the appliance from the mains.
• Drain the water out of the appliance.
• Clean the appliance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

HOW TO DEAL WITH LIME SCALE INCRUSTATIONS:

- For the appliance to work correctly it should

be kept free of limescale or magnesium in- crustations caused by the use of hard water.

• To avoid this kind of problem it is advisable to use distilled water.
• To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation.
• To do so, we recommend the use of the specific product for this kind of appliance, which can be found in specialised shops and authorised technical services.
• A specific anti-lime scale product should be used on this kind of product.
• Home-made solutions, such as the use of vinegar, are not recommended for descaling this appliance.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IF REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials used for the packaging of this appliance are included in a disposal, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.
  This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
