USER MANUAL Auto Evolution Sensor CVG9611 SOLAC
KOMPAKTOWY GENERATOR PARY
INSTRUKCJA OBSLUGI
KOMPAKTNE ZEHLIACE SYSTEMY
NAVOD NA POUZITIE
KOMPAKT VASALÖRENDSZER
HASZNÁLATI UTASITÁS
KOMNAKTHA YCTAHOBKA 3A
ГладенE
HCHCTPYKUIN3A YNOTPEBA
SISTEM COMPACT DE CÁLCARE
INSTRUCTION DE UTILIZARE
aal 1



Fig 2.



Distinguido paciente:
Many thanks for choosing to purchase a SOLAC brand product.
Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.
DESCRIPTION
A Antiscale
B Steam blast
C Steam On/Off button
D SENSOR
E Digital display
G Program selector
H Filling spout
Soleplate
Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.
SAFETY ADVICE AND WARNINGS
The appliance should be used and placed on a flat and stable surface.
. When the appliance is placed on its support, make sure that the surface on which it is placed is stable.
This symbol means that surface could to get hot during the use.
. Do not leave the appliance unattended while it is connected to the mains supply.
This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and un
derstand the hazards involved.
. Cleaning and user maintenance must not be done by children unless supervised.
. Keep the appliance and its cable out of reach of children under the age of eight.
This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
. Do not use the appliance if it has been dropped, if there are visible signs of damage or if it has a leak.
The temperature of the accessible surfaces may be high when the appliance is in use.
If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.
- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
- Connect the appliance to a 16 amp earthed mains socket.
- The appliance's plug must fit into the mains socket properly. Do not modify the plug. Do not use plug adaptors.
- Do not use or store the appliance outdoors.
- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
- Do not stretch the mains cable. Never use the mains cable to lift, carry or unplug the appli
EN
ance.
- Do not wrap the cable around the appliance.
- Ensure that the electric cable does not get trapped or tangled.
- Do not allow the connection cable to hang freely or to come into contact with the appliance's hot surfaces.
- Check the condition of the mains cable. Damaged or twisted cables increase the risk of electric shock.
- Do not touch the plug with wet hands.
- Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock. - Do not touch any heated parts, as this may cause serious burns.
USE AND CARE:
- Fully unroll the appliance's power cable before each use.
- Do not use the appliance if the on/off switch does not work.
. Do not use the appliance if the on/off switch does not work.
. Use the appliance handle/s, to lift or move it. - Do not use the appliance at an angle or turn it over.
. Do not turn the appliance over while it is in use or connected to the mains.
To keep the non-stick coating in good condition, do not use metal or pointed utensils on it. - Respect the MAX level indicator. (Fig.1)
- Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
- This appliance is for household use only, not professional or industrial use.
- Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use
- Do not store or transport the appliance if it is still hot.
- If the iron is left on at maximum temperature for prolonged periods, this may cause discolouration, which will not affect appliance operation in any way.
To ensure that the iron functions correctly, keep the soleplate scratch free and do not use it on metal objects (e.g. the ironing board, but
tons,zips...)
The use of distilled water is recommended, especially if the water in your area contains any type of silt or is "hard" (contains calcium or magnesium).
- Check that the lid is closed properly before switching the appliance on.
- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
- Never rest the appliance on a surface while in use.
- Do not use the appliance on any part of the body of a person or animal.
- Do not use the appliance on pets or animals.
- Do not use the appliance to dry garments of any kind.
To switch the appliance off, turn the program selector anticlockwise to the 0 position..
SERVICE:
- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
- Misuse or failure to follow the instructions may be dangerous and renders the manufacturer's guarantee null and void.
INSTRUCTIONS FOR USE BEFORE USE:
Peel off appliance's protective film.
- Make sure that all the product's packaging has been removed.
Some parts of the appliance have been lightly greased, consequently, the appliance may give off a light smoke the first time it is used. After a short time, this smoke will disappear.
Prepare the appliance according to the function you wish to use:
FILLING WITH WATER:
It is essential to have filled the tank with water to be able to work with steam.
. Open the lid on the filling spout.
- Fill the tank, taking care to respect the MAX level (Fig. 1).
. Close the filling spout lid.
If, during ironing, the water tank runs dry, the pump will automatically switch off after 25" to 30" to protect the micro-pump
If the appliance were to run out of water completely with the steam selector activated,
EN
you would hear a strange noise from the micro-pump. Switch off the steam selector to prevent any damage to the system.
- Switch off the appliance and fill the water tank. When switching it on again, this noise will disappear.
USE:
Unroll the cable completely before plugging it in.
- Connect the appliance to the mains.
- Temperature and steam status are shown on the screen (E), when both values remain steady this indicates that the CVG is ready for use, it will also beep when it reaches its setting.

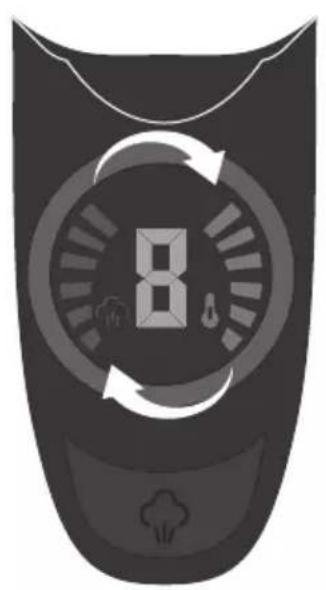

To select the various programs just turn the digital screen to the left or right depending on whether we wish to increase or decrease the program number, the program will change with a slight turn. Left decreases, right increases. (Fig. 2) once turned, the dial will return to position.
Given that the soleplate takes a long time to cool, we recommend starting off with delicate garments and then increasing the program setting.
PROGRAM GARMENTS
| 0 | Off |
| 1 | Antisheen, special setting to avoid creating sheen on dark garments |
| 2 | ECO setting, the most efficient, optimised for cost-effective ironing. |
| 3 | Delicates; ironing directly on T-shirts with printed decals and any delicate garment. |
| 4 | AUTO; single setting suitable for all type of ironing, except for very delicate garments. |
| 5 | Ironing shirts and cotton garments |
| 6 | Denim jeans and heavy cotton |
| 7 | Linen; fabrics that are difficult to iron. |
| 8 | TURBO; Maximum temperature and steam flow forULTRA FAST ironing. |
- -IMPORTANT: If the fabric is made up of various kinds of fibres, select the temperature for the fibre that requires the lowest temperature. (For example, select the temperature for polyester for a fabric made out of 60% polyester and 40% cotton (pos. 3)).
-
- Temperature and steam status are shown on the
PRESENCE SENSOR (D)
The CVG is equipped with a presence sensor (D) that instantly shuts off the steam outlet if
the handle is not being held. This leads to energy savings and increased autonomy of the water tank (lower water consumption).
. Steam flow is automatically re-established by holding the handle on the CVG
- Removing your hand from the handle does not switch off the selected steam function, it only interrupts the steam flow temporarily until it detects that the handle is being gripped again. The screen continues to display the icon for the selected steam function.
DRY AND/OR STEAM IRONING

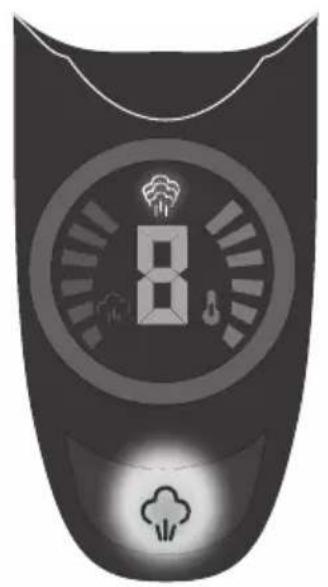

- The appliance has a steam control button (C) which, when set to off, allows dry ironing (without steam) or with steam if it is switched on, a light indicates its status, on/enabled off/ disabled.
EXTRA STEAM:
It is possible to iron with maximum steam flow regardless of the setting. To do this, in the case of steam ironing, just press the steam button (c), the steam flow will increase to maximum, to stop steam production just press the steam button again. The screen displays the current setting, with a steam bar which shows empty when switched off, up through the various settings for each program to maximum when the super steam setting is activated.
STEAM BLAST:
- This function provides extra steam for removing creases.
- Press the steam blast button (B) only in programs 7 and 8, the screen will display an icon to indicate when the EXTRA function (Fig 2) is ready. With the lower programs, soleplate temperature is not sufficient to produce a steam blast, consequently the super steam icon will not be displayed. Wait a few seconds until the steam penetrates the fibres of the garment before pushing the button again. For optimum steam quality, do not apply more than three successive blasts.
- During initial use it is necessary to press repeatedly in order to prime the super steam water circuit.
VERTICAL IRONING:
It is possible to iron hanging curtains, items of clothing on their own hanger, etc. To do so, follow these instructions:
- Iron from top to bottom while pressing the steam control (B), follow the instructions given
EN
in the Steam Blast section.
- Important: for cotton and linen, it is recommended to put the base of the iron in contact with the material. For other more delicate fabrics, it is recommended to keep the base of the iron a few centimetres away.
AUTO-OFF FUNCTION (AUTO-OFF):
- For the purpose of saving energy, the appliance switches to auto-off mode (auto-off) if it is not moved for a particular period of time. When this happens, a beep will sound and the auto-off indicator light will flash, indicating that this function is activated.
- Auto-off: after about 3 minutes without moving the appliance.
To resume ironing just touch any button or the handle of the iron.
The iron will emit beeps every so often to indicate that it is plugged into the mains supply in stand-by mode.
ONCE YOU HAVE FINISHED USING THE APPLIANCE:
. Unplug the appliance from the mains.
- Remove the water from the water tank.
Clean the appliance
CLEANING
Unplug the appliance from the mains and let it cool down before performing any cleaning task.
- Clean the appliance using a damp cloth with a few drops of detergent and then dry it.
- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Do not immerse the appliance in water or any other liquid, or place it under a running tap.
* HOW TO DEAL WITH LIME SCALE INCRUSTATIONS:
- For the appliance to work correctly it should be kept free of lime scale or magnesium incrustations caused by the use of hard water.
- To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation.
- Homemade solutions, such as the use of vinegar, are not recommended for de-scaling this appliance and will result in the loss of product warranty.
FAULTS AND REPAIR
- Take the appliance to an authorised technical
support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.
- If the mains cable has been damaged, it must be replaced, proceed as in the case of a fault.
- -Do not use scented water, as this damages the coating inside the steamer.
FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:
ECOLOGY AND RECYCLABILITY OF THE PRODUCT
- The packaging materials for this appliance are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that if you wish to dispose of the product once its useful life has ended, it must be deposited with an authorised waste management agent for the selec
tive collection of Waste Electrical and Electronic Equipment (WEEE)
This appliance complies with Directive 2014/35/ EC on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.
Cher Client,
AANWEZIGHEIDSSSENSOR (D)
C Przycisk pary On/Off
D CZUJNIK
E Ekran cyfrowy
DLA URZADZEN WYPRODUKOWANYCH W UNII EUROPEJSKIEJ I W PRZYPADKU WYMAGAN PRAWNYCH OBOWIAZUACYCH W DANYM KRAJU:
EKOLOGIA I ZARZADZANIE ODPADAMI
TJADEHE HA CYXO N/IMN C IAPA:
. UpeBt pa3noIara c 6yToH (C) 3a ynpabIeHne Ha npapaT, KOITO, KOraTO CE NOCTaBN B NIOJoxHe "N3KJIIOUeHO", IO3BOJRA Ba Da Ce IaDiHa cyxo (T.e. 6e3 npapa) nIN C npapa, cNopeD TOBa, daIN e 3a- DeiCTbAH INI IN3KJIIOUeH. CbCToRHeTo Ha ynpaBILHeHTo HA npapaT ce yKa3Ba Cbc CBETIIHNHe INIINkATOp, CbOTBeTHO: CBETn = 3aJeICTBaH IN He CBETn = IN3KJIIOUeH ypeI.
ДОПТБЛНTEЛHA ПAPA:
. Pn BCaKO OT NOLOXeHnTa e Bb3MOxHO da Ce TnAn C MaKcImaHe npoNToK. 3a cenTa, B Cnya, Ye NODaBATE npa, cAmO cneDBA Da HAcTNCHeTe BeHbXbYToHa 3a npa (c), n NapoTOkBT Ue HapactHE MaKcImaJIHo. Ako HaTNCHe OUe BeHNbXbYToHa 3a npa B TOBa NIOXeHne 3a MaKcImaHe npoNToK, NODaBaHTo Ha npa Cnnpa. Ha ekpaHa MoKeTe Da BUnITE N03uYra, Ha KOrTo Ce HAMnPate Ipa3Ha INBua, Ako YpeDbTe N3KJIooHEn, paZIyHnTE No3uIN Ha BCsKa IpoRpama Ha pa6ota, INN MaKcImaJIHa CTOnHOCT, B Cnya, Ye CTe AKTNBupaJIn Ta3N N03uYra 3a MaKcImaJIHa npa.
IAPENyDAP:
TaaHcyHKnnaDabaOnbHLHTeHa npa 3a npemaxBaHeTo Ha TpydHnTe 3a rnaDeHe TbHKn.
HaTnCHeTe 6yToHa 3a napen ynap (B) camo npnporpamnte 7 n 8. Ha ekpaHa ige ce noRbN IKOHa, KOrTO yka3Ba, kora fynKuJaTa EXTRA FIG (2) e roTOba. Pnno-HnCKn Iporpamn Tempepatyata Ha IINoCha Ta HcHOBaTa He e DoCTaTbUHa, 3a da NopOni napOBn yIap, nopAdn KoETo IKoHaTa, Yka3BaAa cynePnapa He ige CE NOBn. PpeDi Da HAtnCHeTe OTHOBO 6yToHa, N3yaKaInTe HAKOJIKO CeKHyDn 3a Da MoKe Napata Da IPOHnKHe B TbKaHTa Ha dpexHte. C cen NoCTnraHe Ha Han-BnCOKO KaueCTBO Ha napata, BCEKn PbT He HAtnCKaTe IOBeYe OT DBA PtTN NocJeDoBATEJHo.
- N3nCKBaT Ce HeKoJIKKoPaTHN HaTnCKaHnY, 3a Da BKNIOHTe 3a IIbPBN Tt Ta3N OyHKUIN, DOKaTO 3axpaHInTe BOHN KpbI C BOJa OT NapOBn yDap.
BEPTIKAJHO TJAIDEHE:
C NOMOUSA Ha Ta3n FyHKUma MoKeTe Da TnaDInTe OkaeHn NepDeTa, DpexN NoCTaBeHN Bbpx y3a
KauaKaTa MM N T.H. 3a ceI Ta IpoeepaTe no CLeDNHaUNH:
IpekapaTe IOTnTa OT rope Ha doJy.Ako Jenaete Da HATNCHeTe ynpabLeHneTo Ha napata (B), cIeDbaiTe yka3aHnraTa 3a ypeDa, pa3dJe ,napOB ydap".
BAXHO!:3a namyk nJeHce npenopbUba ochoBata Ha IOTnra Da ce HAMnpa B DoNnC TbKaHTa.3a DpyrI, NO-DeJIHKaTHn TbKaHN npenOpbVbame Da IbpxKeTe IOTnra Ha HRAKoIKO caHTIMeTp a OTCTOHHie.
ФУHKLЯ ABTOMATNUHΟ ИЗКЛЮУBAHE (AUTO-OFF):
CzelIKOHOMHa eHepnA,ako ypeBtOCTaHe HEnoDbNKeH 3a OnpedeJeHO Bpeme, npemHaBA B CbCToHHe Ha camOn3KNoUBaHe (auto-off). Korato ToBa cTaHe ige Ce ye npedynpeIteJen 3ByKO BcHaN CBeTeuYr INDkATOp 3a camOn3KNoUBaHe 3aONyBa Da npIMnRBa, 3a Da yKaKe, Ye Ta3n cyHKUe E 3aDenCTBaHa.
I3KIOUeHO aBO: cIeI OKOIO 3 MNHyTN, aKO ype-DbT OCTaHE HENoDBNKeH.
3a da ce BbPHeTe KbM HopMaHHaTa pa60Ta Ha ypeDa, IpocTo HATnCHeTe KOeTo I Da e KOnYe NII IN dpBxKata Ha ypeDa.
. CyBaT CE HЯKOJIKO I3CBnPBAHnI ppe3 OnpedeJeH OTpra3bK OT BpeMe, KOeTO NOKa3Ba, Ye IOTnraTe BKNIOUcHeHa KbM MpeXkata B peXm ,N3HaKBaHe" (,stand-by")
CJIeI INPKIIOUBAHE HA PABOTATA C YPEDA, HANPABETE CJEIDHOTO:
I3KIOUeTe ypea ot eNEKtpueckKaTa Mpeka.
I3neTe BOata OTeepBoapa.
-Почисту урета.
ПОЧИстван <|im_start|>assistant ПОЧИства
I3KIOUeTe ypeDa OT 3axpaHbAaTa MpeXa Iro OCTabeTe Da N3CTnHe, PpeDi Na npNCtBnITE KbM NOuHCTBaHETo My.
IOnuHCTe Te ypea C BnaXHa KbPna, HanoEHa C HAKOJIKO KaKN MneU npenapat N nocJe rnooc cyuTe.
3a noHCTBaHETo My He n3NoI3BaIte pa3TBOpnTeJn I npenapatnc KnceJIHEn nn OCHOBEN pH KaTOp, KaTo 6eJInHa n a6pa3NBn npOdyKTn.
He notanayte ypea BbB Boda nIy dpyra TeuHoc, HnTO rnoctabryte noKpaHa Ha YeMaTa.
*OBPABOTKA HA KAJLUPAHNE OTJIAHNA
3a npabnHOTO cyHKUHOHPaHe Ha ypea,ToT Tp6Ba Da e NOuHCTeH OT KOTJeH KaMbK INN MaH He3N, KOITo Ce OTlaRat Pn N3NOJ3BaHe Ha CUNHO BAPOBNTa BOda.
3a da npedeotbpatnte To3n npo6nem, Bn npenoppbYBaMe Da n3NOJ3BaTe BOda c HNCKO cbJbPkaHne Ha BapOBVK IIN MaHe3n.
IpnOTcTpaHraBaHeToHaKaIznaOtypea,He ce npenopbUbatDomaunPa3TBOpn,KATO HapnMep ouet.B npoBEN cIyau rapaHuaTaHa ype
da ce ahynilpa.
HEN3ПРABHOCTN I PEMOH
BcnyaHa HEn3npaBHOCT OTHecTe ypeDa ByIbHOMOueH cepBn3 3a TexHnuecko o6cnykBaHe. MoJ He ce onntBaIte da pa3rno6BaTe ypeDa nn Da ro NoppaBATE TOBa e OnaCHO.
Ako 3axpaHbuaT Ka6eI e NOBpeH, Tp8Ba da ce IoMehn. Hapabete CbUTo KaKTo Ipn Heu3- npaBHOCT.
-He n3noJ3BaIte apOMaTn3npaHn BODn Te noBpejdaT 3aunTHnA CLOH Ha BaOpn3aTopa.
3A PA3HOBNIOHOCNTE EU HA TOBA N3-DEJINE N/NIIN B CNYA, PPNIOXIM 3A BAJATA CTPAHA:
ОПАЗВАЕ HA OKOLHATA CРЕДА И PELИКЛИРАЕ HA ИЗДЕЛNETO.
MaTePnAnTe,OT KOnTo e N3pa6oTeH To3n ypeCa npEaBnDcHb CnCTeMaTa 3a Cb6npaHe,KnacNcNkauNaI r peuKnPaHa He cBtte.Ako JKeJaTe Da ce ocBO6OHTe OT T8x, N3NoJ3BaJTeObIeCTBeHnTe KOHTeHepn, pnpOJeHn 3a BceKnOTDeJIeH BVd MaTePnAn.
B npOyKta HЯMa KOHcHTpaCnHa BeUeCTBa, KOnTo MoRat Da ce CMrTaT BpeHN 3a OKoJHaTa CpeJa.
To3n CnMBOJ O3HaUaBa, Ye aKO JeJaete Da ce ocBo6OJnte ot ypeDa, cIeN KaTO ekCnIooatauONHHnT My XNBOT e N3TEKbJ, Tp8Ba Da ro npedeAte Te NO IOXoJaU Na Hn Ha @npMa 3a

Inpepa6oTKa Ha OTnpaTbU,OTOpn3uPaHa 3a pa3deJIHO Cb6bpaHe Ha OTHOCHO OTnpaBcI OT eNeKtpnuecko N eNeKtpoHNO obOpyDbaHe (EO).
Hactoansypei n3nbJnRa DnpeKtBa 2014/35/UE 3a Hnckn HanpexeHn, DnpeKtBa 2014/30/UE 3a eJnKtpomarHeTnHO CbOTBeTCTBne n c DnpeKtBa 2011/65/EU 3a orpaHnueHnra npuYnoTe6bHa HnKoOn OnpdeJeHn Onacn BeueCTBa B eJnKtpuYeCKn EJnKTPoHNn anapatn nC DnpeKtBa 2009/125/CE 3a n3ncBAHnra Ta 3a ekOJIOruHcN DN3aH, PnIIOXmN KbM n3dEJIry, CBbp-3aHn c eHeprna.
ROMÁNA RO
Stimate client,
Vä multumim pentru ca ati cumparat un produs marca SOLAC.
jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia
j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1
(1)
ie lilei 12 jn jaiil gdi slauiu pi
GVC
jiaai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia
J 1
jaiiaaa aaiiie aiiee iaeiie
a a a a a a a a a a a a a a a a a a
Cali jll jalai jda jjla lo
1
J (Fig.2).
.
a aai 1
aolll 1
.
aalil
ED = 2
51 + u + 4q = 1 + uq dH

aIall gall 12
1 120 g jblz qlc yjy d Jooynly
1
:Jaauiu auii ciua
i111 1
pall glll lglg jlg 15y
:clai
.(MAX(Fig.1gssal)
25 100000000000000000000000000000000000000000000000000000000000000

g
a
jlll 1000000000000000000000000000000
JbI Jglnnnne
i
y jil 5ill aol
j
iiS 1j g baw i jgaii
12
J
1
J 5
j
y
jgl jg 100
Jog.2020 4111 4111 4111 5y
Jgl2y. jblal Jd
suii
J 1
aalaaalgallglgee
S ACD = S COD + S BDO - S CDO
iiaaiy jia jia iiaiae 1jia
1 1
xelll 20 jiee
. 1. 1.
J 1
a111 1gll jiee 2y pddii
gjgl jball jie jia jai
jui jiu jiali jia jilai jilai jilai
y1y2 ≤ x1x2
Jaa Jaa
jglj
jgl jg jy 11
1 1
1
aIgblbIyIyIyIyIyIyIyIy
jgl jia iislll jy
j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j
a 1
.SOLAC
g
plll lss sss
i
On/off C
W
j
S APQ = S AQP + S_ PQQ
cull 4
S OBC = S ABC + S_ BOC
1
Jai wall 4 Jg jia 4
aiee eae ee eee
aaii
y
.
cb = 1
2
Jaiy
laai jyj
y
y.
gogogolng
a 1
glaiaaiaaa aaiagai gaaanai g
pao la 12i aeg aeall g yai jai
L
aaii aie jiee iie
aie jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai
auii Jia 1
