USER MANUAL TCUS 400 EINHELL

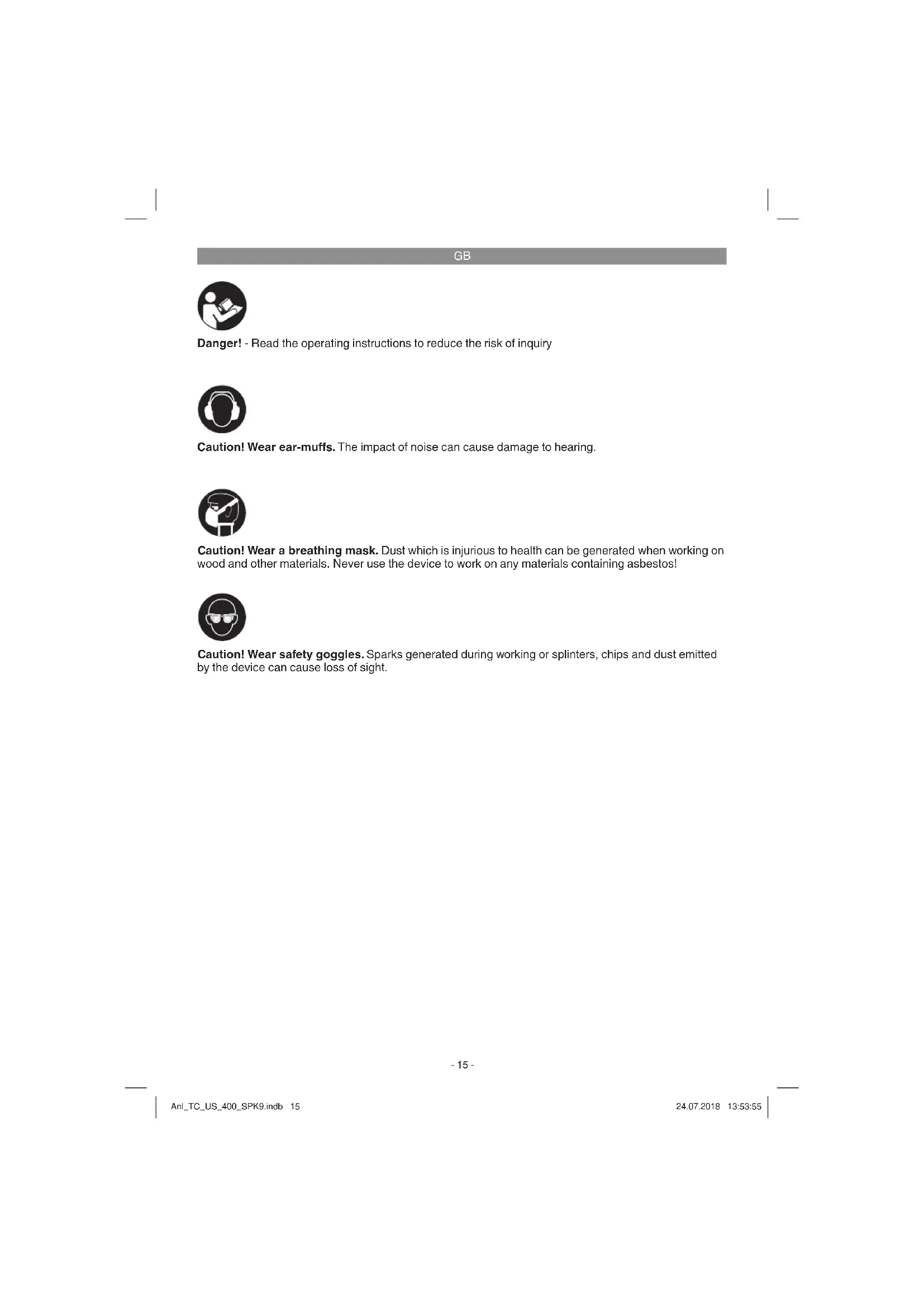

Danger! - Read the operating instructions to reduce the risk of inquiry Caution! Wear ear-muff s. The impact of noise can cause damage to hearing. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Anl_TC_US_400_SPK9.indb 15Anl_TC_US_400_SPK9.indb 15 24.07.2018 13:53:5524.07.2018 13:53:55GB

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Special safety information

Check that the moving parts are in good wor- king order, that they do not jam, and that no parts are damaged. Make sure that all parts are fitted correctly and that all other operating conditions are properly fulfilled.

Unless otherwise stated in the operating ins- tructions, damaged safety devices and parts must be repaired or replaced by an autho- rized service center.

Have damaged switches replaced by a custo- mer service workshop.

This tool complies with the pertinent safety regulations.

Always stand facing the machine so that you always have a good overview.

2. Layout and items supplied

6. Grinding/sanding area

9. Grinding/sanding belt tensioner

10. Knurled screw for grinding/sanding belt ad-

11. Grinding /sanding belt

13. Grinding/sanding disk

14. Grinding/sanding table

15. Locking screw for grinding/sanding table

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Upright belt and disk grinder/sander

2 grinding/sanding papers

Original operating instructions

The belt and disk grinding/sander is designed for grinding/sanding all types of timber commensura- te with the machine’s size. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. The machine is allowed to be operated only with suitable grinding/sanding belts which comply with the data specifi ed in this manual. To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with these operating instructions and must be informed about the equipment‘s potential hazards. It is also imperative to observe the accident pre- vention regulations in force in your area. The same applies for the general rules of health and safety at work. The manufacturer will not be liable for any chan- ges made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine‘s construction and design:

Harmful emissions of wood dust when used in closed rooms.

The rotating parts of the device cannot be covered for functional reasons. Therefore you must exercise care and hold the workpiece firmly to prevent it slipping which could result in your hands coming into contact with the grinding/sanding belt. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

.......................................276 m/min Dimensions ...................................915 x 100 mm Weight .........................................................12 kg Load factor: A load factor of S2 30 min (intermittent periodic duty) means that you may operate the motor continuously at its nominal power level (375 W) for no longer than the time stipulated on the spe- cifi cations label (30 minutes ON period). If you fail to observe this time limit the motor will overheat. During the OFF period the motor will cool again to its starting temperature. Danger! Sound and vibration Sound and vibration values were measured in accordance with EN 61029.

uncertainty .............................................3 dB Wear ear-muff s. The impact of noise can cause damage to hea- ring. Total vibration values (vector sum of three direc- tions) determined in accordance with EN 61029. Vibration emission value a

The specifi ed vibration value was established in accordance with a standardized testing method. It may change according to how the electric equip- ment is used and may exceed the specifi ed value in exceptional circumstances. The specifi ed vibration value can be used to compare the equipment with other electric power tools. Anl_TC_US_400_SPK9.indb 17Anl_TC_US_400_SPK9.indb 17 24.07.2018 13:53:5524.07.2018 13:53:55GB

The specifi ed vibration value can be used for initi- al assessment of a harmful eff ect. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use. Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

3. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. Warning! Always pull the power plug before making adjustments to the equipment.

All covers and safety devices have to be pro- perly fitted before the equipment is switched on.

It must be possible for the grinding/sanding belt and disk to run freely.

When working with wood that has been pro- cessed before, watch out for foreign bodies such as nails or screws, etc.

Before you actuate the On/Off switch, make sure that the abrasive paper is correctly fitted and that the equipment‘s moving parts run smoothly.

Plug the rubber feet (2) onto the base plate (5).

Secure the plastic guard (16) with the screws (17). (Fig. 2)

Plug the grinding/sanding disk (13) onto the shaft. (Fig. 3)

Tighten the screw (18) with the Hexagon key (19) in order to secure the grinding/sanding disk (13). (Fig. 3/4)

Mount the lower wheel guard (20) with the screws (21). (Fig. 4)

Mount the grinding/sanding table (14) and se- cure with the screw (15). (Fig. 5) The grinding/ sanding table (14) can be infinitely adjusted from 0° to 45° with the miter scale (23) and the thumb screw (22). The adjustable cross stop (7) ensures safe guidance of the work- piece.

Important. The grinding/sanding disk (13) must be able to run freely, but the distance between the grinding/sanding table (14) and the grinding/sanding disk (13) is not allowed to exceed 1.6 mm.

Put on the stop rail (12) and secure with the screws (24) and (25). (Fig. 6)

Important. The grinding/sanding belt (11) must be able to run freely. 5.2. Changing the grinding/sanding belt (11) (Fig. 7 - 9)

Pull out the power plug.

Remove the screws (25) and (26).

Remove the grinding/sanding belt guard (27).

Turn the grinding/sanding tensioner (9) to the right in order to reduce the tension on the grinding/sanding belt (11).

Remove the grinding/sanding belt (11) to the rear.

Mount and the new grinding/sanding belt in reverse order.

Important. Note the running direction: On the housing (28) and on the inside of the grin- ding/sanding belt! 5.3. Adjusting the grinding/sanding belt (11) (Fig. 1)

Push the grinding/sanding belt (11) by hand slowly in the running direction.

The grinding/sanding belt (11) must run centrally on the grinding/sanding surface (6). If not, you can use the knurled screw (10) to make adjustments. Anl_TC_US_400_SPK9.indb 18Anl_TC_US_400_SPK9.indb 18 24.07.2018 13:53:5624.07.2018 13:53:56GB

5.4. Moving the grinding/sanding position of the grinding/sanding belt (11) (Fig. 10/11)

Move the grinding/sanding belt (11) upwards into the desired position.

Retighten the nuts (29) to secure this position.

In this position you can use the grinding/ sanding table to support the workpiece. To do so, push the table into the hole in the holding tube (31) and secure with the screw (30). 5.5. Replacing the abrasive paper on the grin- ding/sanding disk (13) Dismantle the bottom wheel guard (20) by remo- ving the 3 screws (21) (Figure 4). Pull the san- ding/grinding paper off the sanding/grinding disk (13) and attach the new sanding/grinding paper (quick-fi t fastening system).

The grinder/sander can be switched on by pressing the green button „1“ (1).

Always hold the workpiece firmly during grin- ding/sanding.

Do not exert excessive pressure.

To prevent the abrasive paper from becoming worn on one side, the workpiece should be moved to and fro on the grinding/sanding belt or grinding/sanding plate as you grind/sand.

Important! Pieces of wood should always be sanded with the grain to prevent them splitting. Important. If the grinding wheel or the grinding/sanding belt becomes jammed during operation, please re- move the workpiece until the tool reaches its top speed again.

7. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

If you want to move the equipment to a diff erent place, disconnect the equipment from the power supply and set it up in the new position you want to use it in. Anl_TC_US_400_SPK9.indb 20Anl_TC_US_400_SPK9.indb 20 24.07.2018 13:53:5624.07.2018 13:53:56GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_TC_US_400_SPK9.indb 21Anl_TC_US_400_SPK9.indb 21 24.07.2018 13:53:5624.07.2018 13:53:56GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Consumables* Abrasive paper, grinding/sanding belt Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.

Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_TC_US_400_SPK9.indb 23Anl_TC_US_400_SPK9.indb 23 24.07.2018 13:53:5624.07.2018 13:53:56F
