USER MANUAL SB60BTS THOMSON

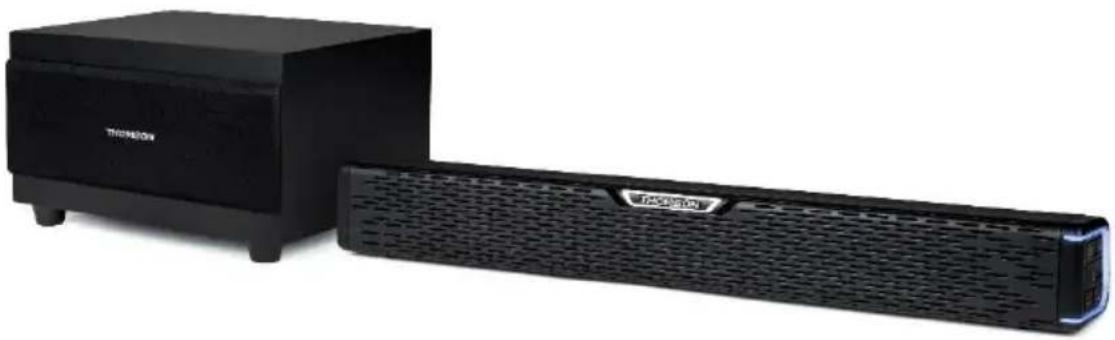

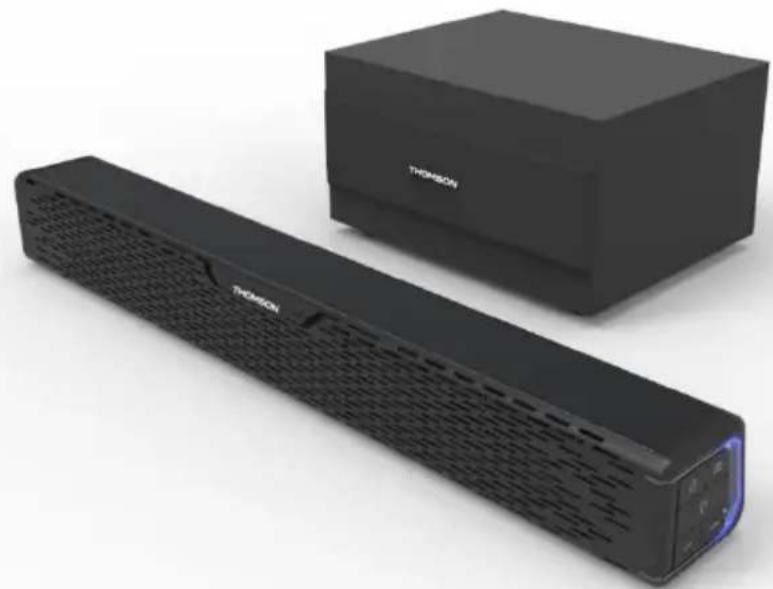

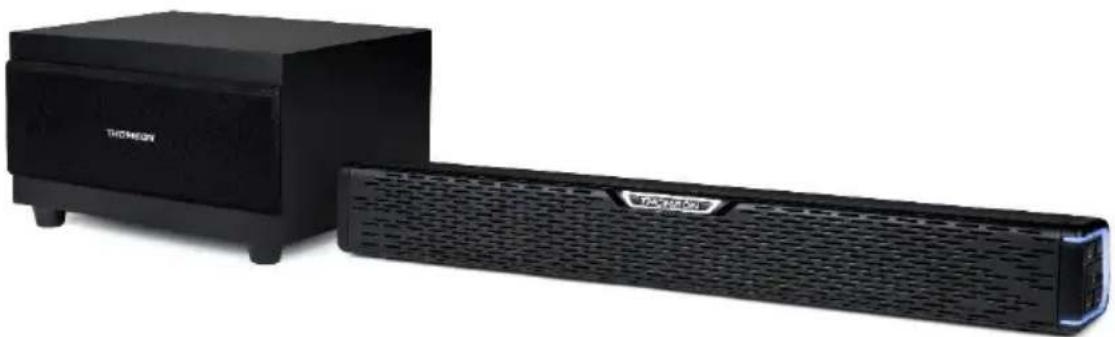

SOUNDBAR WITH WIRED SUBWOOFER

OPERATING THIS UNIT AND RETAIN FOR

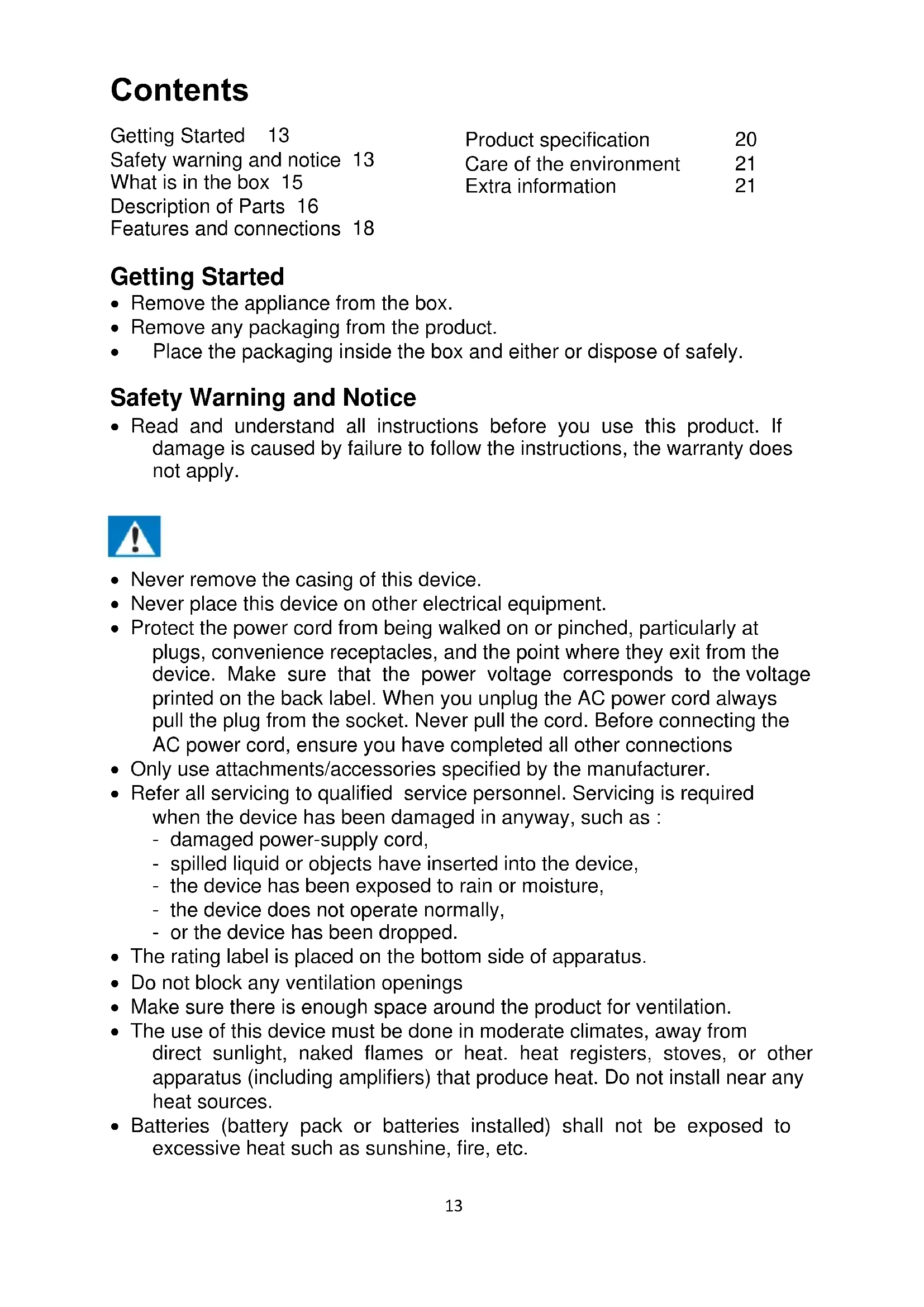

Contents Getting Started 13 Safety warning and notice 13 What is in the box 15 Description of Parts 16 Features and connections 18 Getting Started

• Remove the appliance from the box.

• Remove any packaging from the product.

• Place the packaging inside the box and either or dispose of safely. Safety Warning and Notice

• Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

• Never remove the casing of this device.

• Never place this device on other electrical equipment.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device. Make sure that the power voltage corresponds to the voltage printed on the back label. When you unplug the AC power cord always pull the plug from the socket. Never pull the cord. Before connecting the AC power cord, ensure you have completed all other connections

• Only use attachments/accessories specified by the manufacturer.

• Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in anyway, such as : - damaged power-supply cord, - spilled liquid or objects have inserted into the device, - the device has been exposed to rain or moisture, - the device does not operate normally, - or the device has been dropped.

• The rating label is placed on the bottom side of apparatus.

• Do not block any ventilation openings

• Make sure there is enough space around the product for ventilation.

• The use of this device must be done in moderate climates, away from direct sunlight, naked flames or heat. heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not install near any heat sources.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire, etc. Product specification

Care of the environment

• Unplug before cleaning. Never lubricate any part of this device. Clean the appliance with a soft cloth. Do not use abrasives or harsh cleaners.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this device from the power if necessary.

• Do not use this apparatus near water. It must not be in contact with dripping or splashing. Do not use this unit in wet or damp conditions.

• Unplug this device during lightning storms or when unused for long periods of time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

• The battery must be removed from the appliance before it is scrapped; The appliance must be disconnected from the supply mains when removing the battery.

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.

The exclamation point within a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.15

Note the following information: Only use the power supplies listed below : 12V / 2.5A AC adaptor

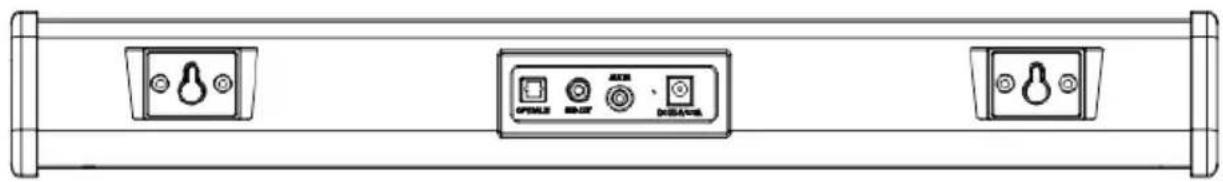

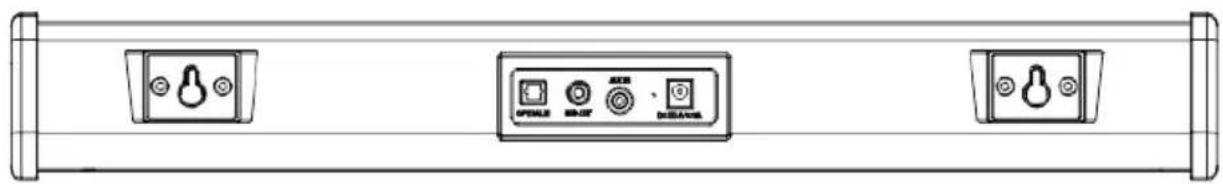

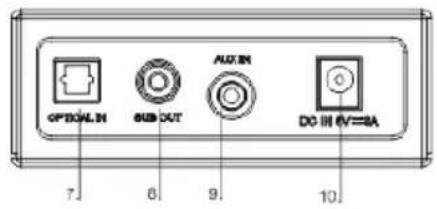

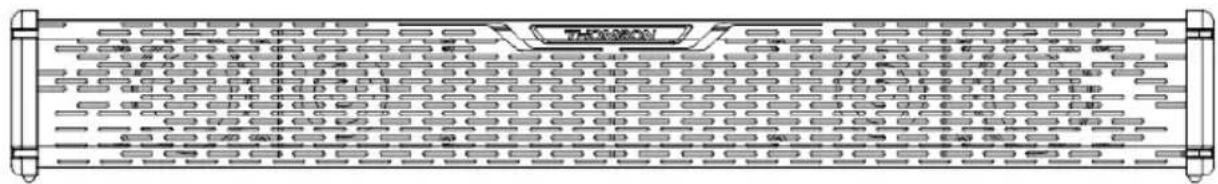

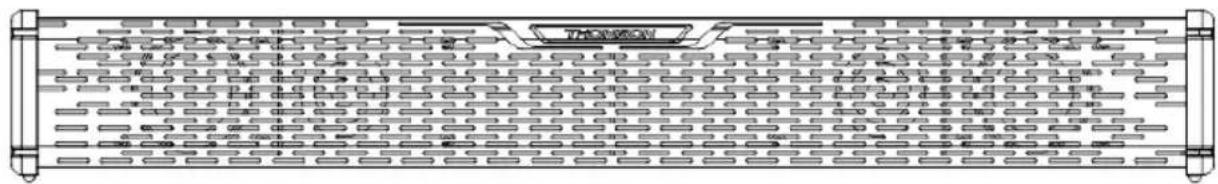

Description of Parts

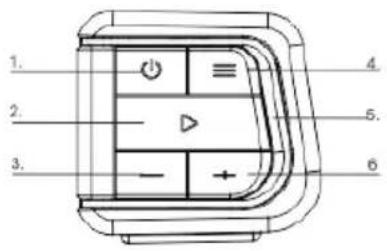

Press to select the Mode (Bluetooth / Optical in / Aux in)

Long press 3 seconds to disconnect the Bluetooth device

Flat-movie-music-voice

Power Place the unit in the desired position and unravel the mains cable. Insert the AC adapter into the supply socket and switch on if applicable. Auto standby When playing media from a connected device, the soundbar automatically switches to standby if: No button is pressed for 10 minutes, No audio from a connected device for 10 minutes.18 Features and connections Using the Optical input You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (included) Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input on the speaker bar.

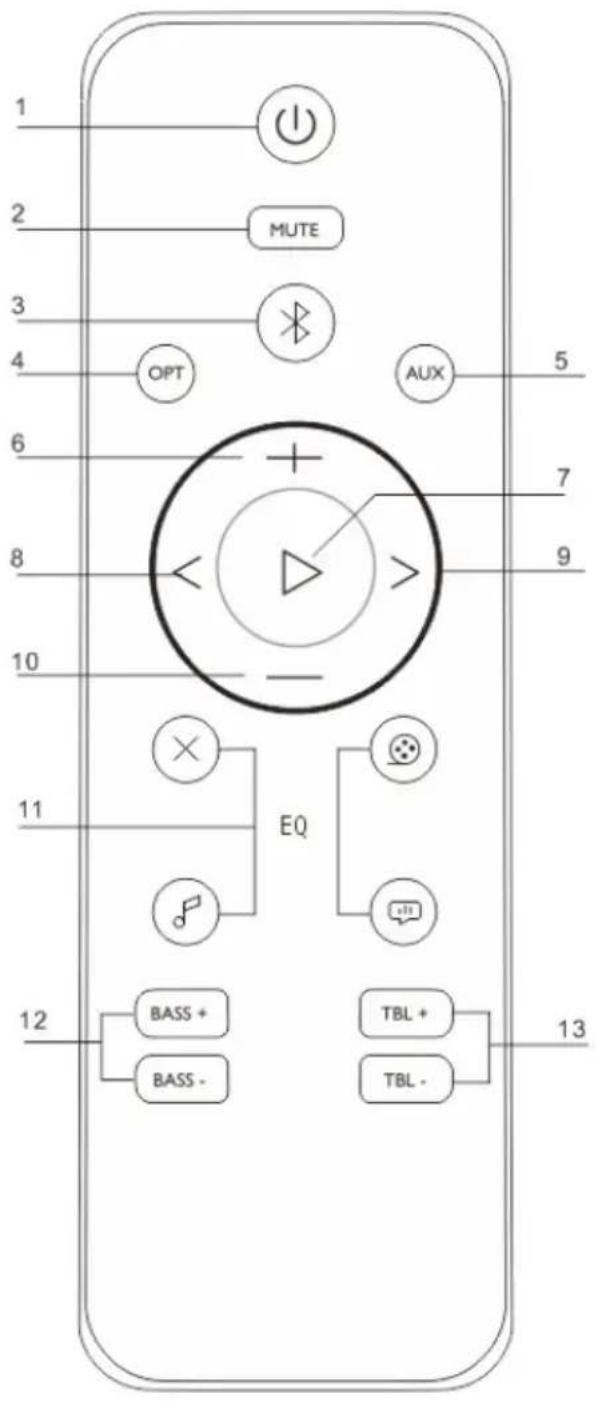

1. Long press the button on unit or press the button on

remote control to power the unit on.

2. Press the button repeatedly on unit or press the OPT button on

remote to switch to Optical mode. The white LED light on.

3. Audio from the connected audio source will now be played through the

speakers. Using the Auxiliary Input RCA (included 3.5mm RCA cable)

1. Connect a 3.5mm Audio Input cable (not included) to the 3.5mm Audio

Input on the sound bar and an audio source.

2. Long press the button on unit or press the button on

remote control to power the unit on.

3. Press the button repeatedly on unit or press the AUX button on

remote to switch to AUX mode. The green LED light on

4. Use the native controls on the connected audio device to begin playing

music through the connected sound bar. Using the Bluetooth Remark: The maximum connection distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to avoid connection getting disturbed.19 Please make sure your cell phone is Bluetooth-enabled. Specific pairing steps may vary with different cell phones. Please refer to the user manual of your cell phone for further information. The general pairing steps are as follows:

1. Keep SB60BTS and Bluetooth cell phone within 1 meter when pairing.

2. Long press the button on unit or press the button on

remote control to power the unit on.

3. Press the button repeatedly on unit or press the button on

remote to switch to BT mode. The blue LED light on

4. Switch on your cell phone’s Bluetooth function and search for

Bluetooth devices. After the search is completed, select “ SB60BTS ” from the Bluetooth device list.

5. According to indication, enter password or PIN No: “0000” and press

6. After successful pairing, select “ SB60BTS ” from the Bluetooth device

list and press “connect”.

7. Press II to play / pause the music

8. Long Press “+ “to turn up the volume,

9. Long press “- “to turn down the volume.

10. Press ”+” to skip to the previous song.

11. Press “-“ to skip to the next song.

Using the EQ function Press the EQ button to switch the equalizer mode to music, movie, and game mode.

• Music: Best suited for listening to music

• Movie: Best suited for watching movies

• Game: Best suited for playing games Press “X” on remote control to cancel the EQ model.20 Product specification

• Adaptor manufacturer name or trademark :Powereric

• Adaptor Model Number ; AD0301-1202500GB

• Input voltage and frequency; 90-240V, 50/60Hz

• Output voltage, current, power :12.0V, 2.5A, 30W

• Average active efficiency: 86.95%

• Efficiency at low load (10%): 93.6%

• No-load power consumption: ≤0.1W

Under the environment with electrostatic discharge, the device may be power off. It requires user re-charge the battery and reset the device by turn on the device to choose the appropriate mode & set time again.

Power Consumption 0.8W Bluetooth Frequency 2.40-2.80 GHz Power Input DC 12.0V /2.5A Transmission Distance 10m S/N Ratio ≥55dB EIRP EIRP -0.92dBm Speaker Frequency 30Hz-20kHz Bluetooth pair name SB60BTS Dimension 200*200*80mm Weight 4.6kgs21 Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Attention should be drawn to environmental aspects of battery disposal. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health. Extra information

• If there is an incoming call while SB60BTS is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depends on your cell phone.)

word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

• You can find the information on the plate located at the back of the unit.

• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.

DECLARATION OF CONFORMITY

The undersigned, Bigben Interactive declares that the radio equipment of the SB60BTS complies with the 2014/53/EU directive. The complete text is available at https://www.bigben-interactive.co.uk/support/22 Made in China Manufactured by BIGBEN INTERACTIVE 396, Rue de la Voyette
