USER MANUAL DCW200 DEWALT

2. MILJØMÆssIG sIkkERHED

The vibration and/or noise emission level given in this information sheet has been measured in accordance with a standardised test given in

62841 and may be used to compare one tool with another. It may be used for a preliminary assessment ofexposure.

WARNING: The declared vibration and/or noise

emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or is poorly maintained, the vibration and/or noise emission may differ. This may significantly increase the exposure level over the total workingperiod. An estimation of the level of exposure to vibration and/or noise should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total workingperiod. Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the accessories, keep the hands warm (relevant for vibration), organisation of workpatterns. DCW200 Voltage V

(emission sound pressure level) dB(A) 75.3

(sound power level) dB(A) 83.3

(uncertainty for the given sound level) dB(A) 2.5 Vibration emission value a

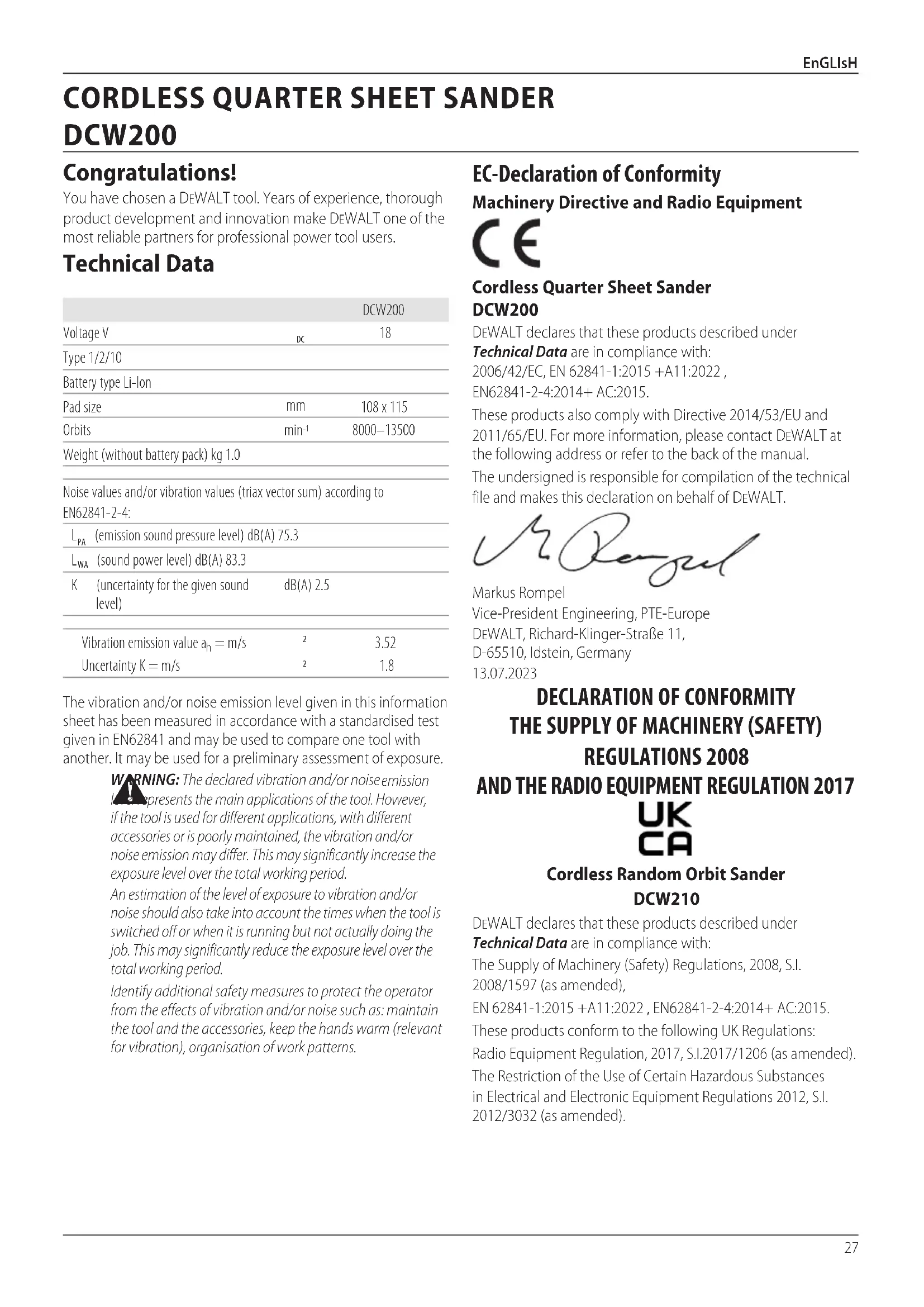

Congratulations! You have chosen a DeWALT tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional power toolusers. Technical Data

CORDLESS QUARTER SHEET SANDER

DCW200 English (original instructions)

DECLARATION OF CONFORMITY

THE SUPPLY OF MACHINERY (SAFETY) REGULATIONS 2008

AND THE RADIO EQUIPMENT REGULATION 2017

Cordless Random Orbit Sander DCW210 DeWALT declares that these products described under Technical Data are in compliancewith: The Supply of Machinery (Safety) Regulations, 2008, S.I. 2008/1597 (as amended), EN 62841-1:2015 +A11:2022 , EN62841-2-4:2014+ AC:2015. These products conform to the following UK Regulations: Radio Equipment Regulation, 2017, S.I.2017/1206 (as amended). The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, S.I. 2012/3032 (as amended).28 EnGLIsH

WARNING: To reduce the risk of injury, read the

instructionmanual. Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to thesesymbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTUREREFERENCE The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and For more information, please contact DeWALT at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DeWALT. Karl Evans Vice President Professional Power Tools EANZ GTS DeWALT UK, 270 Bath Road, Slough SL1 4DX England

Batteries Chargers/Charge Times (Minutes)*** Cat # V

DCB185 18 1,3 0,35 22 60 40 30 22 22 22 22 22 40 DCB187 18 3,0 0,54 45 140 90 70 45 45 45 45 45 90 DCB189 18 4,0 0,54 60 185 120 100 60 60 60 60 60 120 DCBP034/G 18 1,7 0,32 27 82 50 40 27 27 27 27 27 50 DCBP518/G 18 5,0 0,75 50 240 150 120 75 60 50 50 75 150 *Date code 201811475B or later **Date code 201536 or later ***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries. BatteriesChargers/Charge Times (Minutes)Cat #DCWeight*Date code 201811475B or later**Date code 201536 or later **Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries. ***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

Denotes risk of electricshock.

Denotes risk offire.29 EnGLIsH will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk ofinjury. refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool Batteries Chargers/Charge Times (Minutes) Cat #

Weight *Date code 201811475B or later **Date code 201536 or later **Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries. ***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.30 ENGLISH Chargers DeWALT chargers require no adjustment and are designed to be as easy as possible tooperate. Residual Risks In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment ofhearing.

• Risk of personal injury due to flyingparticles.

• Risk of burns due to accessories becoming hot duringoperation.

• Risk of personal injury due to prolongeduse. Additional Safety Instructions for Sanders

• Always secure the workpiece by a clamping device or in a bench vise in such a manner that it cannot move while beingmachined.

• Do not overload the machine by pressing with excessive force! The best sanding results are achieved with moderate application pressure. The sanding capacity and quality are mainly dependent on the selection of the correctabrasive.

• Always wear eye protection and a respirator whensanding.

• Sanding of lead‑based paint is not recommended. See Precautions to Take When Sanding Paint for additional information before sandingpaint.

• Do not operate the unit without the dust collection bag or dust collectionsystem.

• Clean your tool outperiodically.

• Empty dust bag frequently, especially when sanding resin coated surfaces such as polyurethane, varnish, shellac, etc. Dispose of coated dust particles according to the finish manufacturer’s guidelines, or place in a metal can with a tight-fitting metal lid. Remove coated dust particles from the premises daily. The accumulation of fine sanding dust particles may self ignite and causefire.

• Always wait until the sander has come to a complete stop before placing itdown. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised serviceproviders. Electrical Safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of yourmains.

Your DeWALT charger is double insulated in accordance with EN60335; therefore, no earth wire isrequired. If the supply cord is damaged, it must be replaced only by DeWALT or an authorised serviceorganisation. Mains Plug Replacement (U.K.& Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the oldplug.

• Connect the brown lead to the live terminal in theplug.

• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the

earthterminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3A. Using an Extension Cable An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (refer to Technical Data). The minimum conductor size is 1mm

; the maximum length is30m. When using a cable reel, always unwind the cablecompletely. Important Safety Instructions for All Battery Chargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (referto TechnicalData). Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using batterypack.

WARNING: Shock hazard. Do not allow any liquid to get

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable batteries. Other types of batteries may burst, causing personal injury anddamage.

CAUTION: Children should be supervised to ensure that they do not play with theappliance. NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting toclean.31 ENGLISH

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose charger to rain orsnow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk ofdamage to electric plug andcord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, orelectrocution.

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate charger with damaged cord or plug— have them replacedimmediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised servicecentre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• In case of damaged power supply cord, the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent anyhazard.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect two chargerstogether.

• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger. Charging a Battery (Fig.B)

1. Plug the charger into an appropriate outlet before inserting

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly, indicating that the charging process hasstarted.

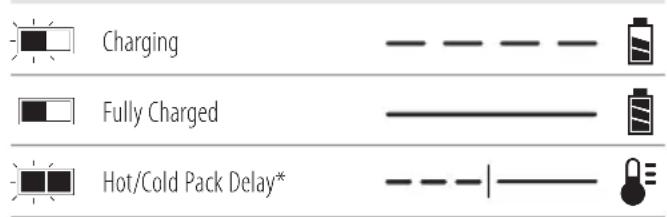

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

on the batterypack. NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack. Charge Indicators

Hot/Cold Pack Delay*

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing tolight. NOTE: This could also mean a problem with acharger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised servicecentre. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of thecharger. Electronic Protection System XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack in the charger until it is fullycharged. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7–9mm, screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots.32 ENGLISH Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Battery Packs Important Safety Instructions for All BatteryPacks When ordering replacement battery packs, be sure to include catalogue number andvoltage. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging proceduresoutlined.

READ ALL INSTRUCTIONS

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust orfumes.

• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non‑compatible charger as battery pack may rupture, causing serious personalinjury.

• Charge the battery packs only in DeWALTchargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may fall below 4˚C (39.2˚F) (such as outside sheds or metal buildings in winter), or reach or exceed 40˚C (104˚F) (such as outside sheds or metal buildings insummer).

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be flammable

if exposed to spark orflame.

WARNING: Never attempt to open the battery pack for

any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre forrecycling.

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys,etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Transportation

WARNING: Fire hazard. Transporting batteries can

possibly cause fire if the battery terminals inadvertently come into contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well-insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in checkedbaggage. DeWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards, which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations; International Maritime Dangerous Goods (IMDG) Regulations; and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to

section 38.3of the UN Recommendations on the Transport of

Dangerous Goods Manual of Tests andCriteria. In most instances, shipping a DeWALT battery pack will be excepted from being classified as a fully regulated Class9Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100Watt Hours (Wh) will require being shipped as fully regulated Class9. All lithium-ion batteries have the Wh rating marked on the pack. Furthermore, due to regulation complexities, DeWALT does not recommend air shipping lithium-ion battery packs alone regardless of Wh rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Wh rating of the battery pack is no greater than 100Wh. Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentationrequirements. The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities comply with the applicableregulations. Transporting the FLEXVOLT

Battery The DeWALT FLEXVOLT® battery has two modes: Use andTransport. Use Mode: When the FLEXVOLT

battery stands alone or is in

DeWALT 18V product, it will operate as an 18V battery. When the FLEXVOLT

battery is in a 54V or a 108V (two 54V batteries) product, it will operate as a 54Vbattery.33 ENGLISH Markings on Tool The following pictograms are shown on the tool: Read instruction manual beforeuse. Wear earprotection. Package Contents The package contains: 1 Quarter sheet sander 1 Paper punch 1 Dust bag 1 Li-Ion battery pack (C1, D1, E1, G1, H1, L1, M1, P1, Q1, S1, T1 models) 2 Li-Ion battery packs (C2, D2, E2, G2, H2, L2, M2, P2, Q2, S2, T2 models) 3 Li-Ion battery packs (C3, D3, E3, G3, H3, L3, M3, P3, Q3, S3, T3 models) 1 Instruction manual NOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs and chargers are not included with NT models. Bmodels include Bluetooth® batterypacks. NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DeWALT is under license. Other trademarks and trade names are those of their respectiveowners.

• Check for damage to the tool, parts or accessories which may have occurred duringtransport.

• Take the time to thoroughly read and understand this manual prior tooperation. Battery Type These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189, DCBP034, DCBP034G, DCBP518, DCBP518G. Refer to Technical Data for moreinformation. Transport Mode: When the cap is attached to the FLEXVOLT

battery, the battery is in Transport mode. Keep the cap forshipping. When in Transport mode, strings of cells are electrically disconnected within the pack, resulting in 3batteries with a lower Watt hour (Wh) rating as compared to 1battery with a higher Watt hour rating. This increased quantity of 3batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries. For example, the Transport Wh rating might indicate 3x36Wh, meaning 3batteries of 36Wh each. The Use Wh rating might indicate 108Wh (1batteryimplied). Storage Recommendations

1. The best storage place is one that is cool and dry away from

direct sunlight and excessive heat or cold. For optimum battery performance and life, store battery packs at room temperature when not inuse.

2. For long storage, it is recommended to store a fully charged

battery pack in a cool, dry place out of the charger for optimalresults. NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse. Labels on Charger and Battery Pack In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the followingpictographs:

Refer to Technical Data for chargingtime.

Do not probe with conductiveobjects.

Do not charge damaged batterypacks.

Do not expose towater.

Have defective cords replacedimmediately.

Charge only between 4˚C and 40˚C.

Only for indooruse. Example of Use and Transport Label Marking

Discard the battery pack with due care for theenvironment.

Charge DeWALT battery packs only with designated DeWALT chargers. Charging battery packs other than the designated DeWALT batteries with a DeWALT charger may make them burst or lead to other dangeroussituations.

Do not incinerate the batterypack.

USE (without transport cap). Example: Wh rating indicates 108Wh (1battery with 108Wh).

TRANSPORT (with built-in transport cap). Example: Wh rating indicates 3x 36Wh (3batteries of 36Wh).34 ENGLISH Inserting and Removing the Battery Pack from the Tool (Fig. F) NOTE: Make sure your battery pack

is fullycharged. To Install the Battery Pack into the Tool Handle

1. Align the battery pack with the rails inside the tool’s

2. Slide it into the handle until the battery pack is firmly seated

in the tool and ensure that you hear the lock snap intoplace. To Remove the Battery Pack from the Tool

1. Press the battery release button

and firmly pull the battery pack out of the toolhandle.

2. Insert battery pack into the charger as described in the

charger section of thismanual.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

WARNING: Use only DeWALT batteries andchargers.

Attaching Abrasive Paper Your sander is designed to use quarter sheet abrasive paper. A quarter sheet of abrasive paper is measured 114.3mm x 139.7mm. This size paper can be madeby: a. Cutting full sized 228.6mm x 279.4mm abrasive paper into 1/4sheets of 114.3mm x 139.7mm. b. Cutting half sheet of abrasive paper into two 114.3mm x 139.7mmsheets. c. Pre-cut 114.3mm x 139.7mm abrasive paper is available at extracost. Fitting Sanding Sheets (Fig. C–G) Fitting regular sanding sheets (Fig.C–F)

1. Soften the stiff sandpaper by pulling it over the 90°

edge of a table or other straight edge, as shown in Fig.C. Concentrate on softening the edges to beclamped.

2. Release the rear paper clamp

by pulling up on the side clamp levers

and disengaging them from the tabs

, Fig.E) by applying and holding pressure on the front clamp button

while inserting the 115mm edge of the abrasive paper under the front paper clamp until if hits the paper-limiting ribs

Release the front paper clamp to secure the front of thepaper.

and begin to pivot the rear paper clamp

around to its locking position. Lock one side clamp lever

by placing it behind the tab

, Fig.F) on the base plate/pad and then repeat with the second side clamplever.

5. If you are using the dust extraction feature, perforate the

sandpaper (see PaperPunch). Fitting Hook and Loop Sanding Sheets (Fig.G)

2. Place the sanding sheet directly on top of the base

3. Hold the base plate/pad with one hand and align the dust

WARNING: Never modify the power tool or any part of it.

Damage or personal injury couldresult.

Removable dust chute

Battery release button

Paper punch Intended Use This quarter sheet sander has been designed for sanding wood, metal, plastics and paintedsurfaces. Only use this quarter sheet sander for drysanding. DO NOT use under wet conditions or in the presence of flammable liquids orgases. This quarter sheet sander is a professional powertool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons withoutsupervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with thisproduct. Fuel Gauge Battery Packs (Fig.B) Some DeWALT battery packs include a fuel gauge, which consists of three green LED lights that indicate the level of charge remaining in the batterypack. To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate, designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. Wear eyeprotection.35 EnGLIsH Dust Extraction (Fig. A, J)

WARNING: Since woodworking with a sander produces

dust, always install a dust bag designed in compliance with the applicable directives regarding dustemission.

WARNING: Do not use a dust bag or vacuum extractor

without proper spark protection when sandingmetal. Your sander has a removable dust chute

which allows either the supplied dust bag

or a shop vacuum system to be connected. The built-in outlet utilizes the DeWALT AirLock connection making it compatible with the D eWALT dustextractor. To Attach the Dust Bag

1. While holding the sander, fit the dust bag collar

as shown in FigureJ.

2. Turn the collar clockwise to lock the dust bag

inplace. To Empty the Dust Bag nOTE: Be sure to wear approved eye protection and approved dust mask when performing thisprocedure. For efficient dust extraction, empty the dust collector when it is about one thirdfull.

1. While holding the sander, turn the collar

anticlockwise to unlock the dust bag

2. Remove dust bag from the sander and gently shake or tap

the dust bag toempty.

3. Reattach the dust bag back onto the dust port and lock into

place by turning the dust bag collarclockwise. You may notice that all the dust will not come free from the bag. This will not affect sanding performance but will reduce the sander’s dust collection efficiency. To restore your sander’s dust collection efficiency, depress the spring inside the dust bag when you are emptying it and tap it on the side of the waste bin or dustreceptacle.

CAUTION: Never operate this sander unless a dust collector is in place. Sanding dust exhaust may create a breathinghazard. Operating the Sander (Fig. I) NOTICE: These sanders are not to be used in drywallapplications. NOTICE: Avoid overloading your sander. Overloading will result in a considerable reduction in speed and finish Wireless Tool Control (Fig. A)

CAUTION: Read all saftey warnings, instruction and specifications of the appliance which is paired with thesander. Your sander is equipped with a Wireless Tool Control transmitter which allows your sander to be wirelessly paired with another Wireless Tool Control device, such as a dustextractor. To pair your sander using Wireless Tool Control, press and hold the On/off switch

on the sander and the Wireless Tool Control pairing button on the seperate device. An LED on the seperate device will let you know when your sander has been successfullypaired. Proper hand position requires one hand on the main grip

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. OPERATION Instructions for Use

WARNING: Always observe the safety instructions and

applicableregulations.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Speed Control Dial (Fig. A) The speed control dial

, shown in FigureA, allows you to increase or decrease speed from 8000–13500 Orbits Per Minute. The optimal speed setting for each application is very much dependent on personal preference. Generally, you will want to use a higher setting on harder materials and a lower setting on softer materials. Material removal rate increases as speedincreases. Switch (Fig. A) To turn the unit on, depress the side of the dust-protected switch

that corresponds to the symbol “I”. To turn the tool off, depress the side of the switch that corresponds to the symbol“O”. Paper Punch (Fig. H1, H2)

CAUTION: Turn off and remove the battery pack from the tool before making any adjustments or removing or installing attachments or accessories. Be sure the switch is in the OFFposition. A paper punch

is provided with your sander to let you perforate regular abrasive paper to make dust collectionpossible. To Perforate your Abrasive Paper Install the abrasive paper on the tool as instructed in this manual. With the sander turned off and battery removed, place the paper punch on the paper so that the tabs at the edges of the punch are against any two adjacent sides of the sanding pad, as shown. Press the punch against the pad so that the 8points penetrate the paper, as shown in Fig. H1. (Press the punch into the pad as far as it will go.) Remove the paper punch and the paper is ready. An alternate method of perforating the paper is to securely fasten the punch to a suitable work surface. Two holes are provided in the punch for this purpose. Use #8flat head screws. Press the sander (with the paper attached) down on thepunch.36 EnGLIsH Included with the unit is a dust port which fits batteries 5Ah andunder. Available for purchase as a service part (N684701) is a dust port for batteries 6Ah andover. Optional Accessories

WARNING: Since accessories, other than those offered

by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT-recommended accessories should be used with thisproduct. Consult your dealer for further information on the appropriateaccessories. Cleaning

WARNING: Electrical shock and mechanical hazard.

Disconnect the electrical appliance from the power source beforecleaning.

WARNING: To ensure safe and efficient operation,

always keep the electrical appliance and the ventilation slotsclean.

WARNING: Never use solvents or other harsh chemicals

for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Ventilation slots can be cleaned using a dry, soft non-metallic brush and/or a suitable vacuum cleaner. Do not use water or any cleaning solutions. Wear approved eye protection and an approved dustmask. Lubrication Your power tool requires no additionallubrication.

3. cLEanInG anD DIsPOsaL

- All surfaces in the work area should be vacuumed and thoroughly cleaned daily for the duration of the sanding project. Vacuum filter bags should be changedfrequently. - Plastic drop cloths should be gathered up and disposed of along with any dust chips or other removal debris. They should be placed in sealed refuse receptacles and disposed of through regular trash pick-up procedures. During clean up, children and pregnant women should be kept away from the immediate workarea. - All toys, washable furniture and utensils used by children should be washed thoroughly before being usedagain. quality of your work. The unit may also become hot. In this event, run sander at a no load condition for a minute ortwo. To operate your sander, grasp it as shown in Fig.I and turn it on. Move the sander in long, sweeping strokes along the surface being sanded, letting the sander do thework. Pushing down on the tool while sanding actually slows the removal rate and produces an inferior quality surface. Be sure to check your work often, this sander is capable of removing material rapidly, especially with coarsepaper. The orbital action of your sander allows you to sand with the grain or at any angle across it for most sanding jobs. To produce the best finish possible, start with coarse grit sandpaper and change gradually to finer and finer paper. Vacuum and wipe surface with a tack cloth between grit steps. Your sander is designed to sand into small or confined areas. Its small size and light weight make it ideal for overheadwork. The rate at which the dust collection bag fills up will vary with the type of material being sanded and the coarseness of the sandpaper. For best results, empty the bag frequently. When sanding painted surfaces, (see the following for additional precautions when sanding paint) you may find that the sandpaper loads up and clogs with paint. A heat gun will work much better to remove paint before sanding. FOLLOW ALL SAFETY INSTRUCTIONS IN HEAT GUN INSTRUCTIONMANUAL. Precautions to Take When Sanding Paint Sanding of lead based paint is NOT RECOMMENDED due to the difficulty of controlling the contaminated dust. The greatest danger of lead poisoning is to children and pregnantwomen. Since it is difficult to identify whether or not a paint contains lead without a chemical analysis, we recommend the following precautions when sanding any paint:

- No children or pregnant women should enter the work area where the paint sanding is being done until all clean up iscompleted. - A dust mask or respirator should be worn by all persons entering the work area. The filter should be replaced daily or whenever the wearer has difficulty breathing. See your local hardware store for the proper EN 149- AS/NZS 1716-approved dustmask. - NO EATING, DRINKING or SMOKING should be done in the work area to prevent ingesting contaminated paint particles. Workers should wash and clean up BEFORE eating, drinking or smoking. Articles of food, drink, or smoking should not be left in the work area where dust would settle onthem.

2. EnVIROnMEnTaL saFETY

- Paint should be removed in such a manner as to minimize the amount of dustgenerated. - Areas where paint removal is occurring should be sealed with plastic sheeting of 4milsthickness. - Sanding should be done in a manner to reduce tracking of paint dust outside the workarea.37 EnGLIsH Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal householdwaste. Products and batteries contain materials that can be recovered or recycled, reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com. Rechargeable Battery Pack This long-life battery pack must be recharged when it fails to produce sufficient power on jobs that were easily done before. At the end of its technical life, discard it with due care for ourenvironment:

• Run the battery pack down completely, then remove it from thetool.

suspension de charge*

BEWAAR ALLE WAARSCHUWINGEN
